- Dual Ball Bearings in the cooling fan provides increased airflow, reliability and longer life
- Tachometer pin on the TX3 motherboard connector provides system with fan operating status

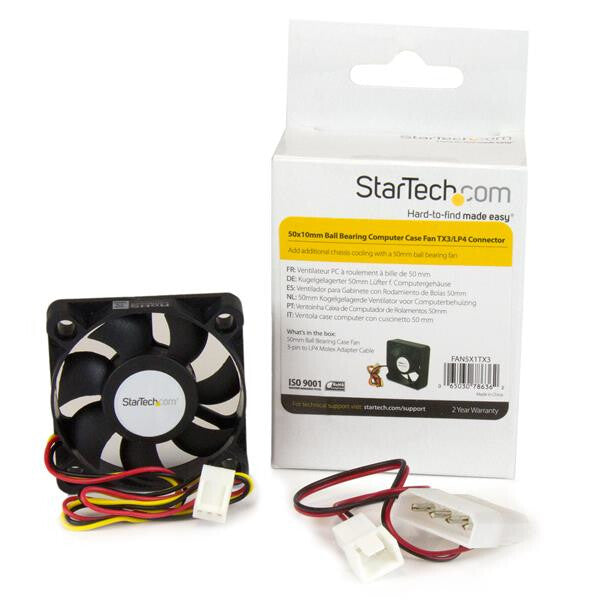

- Includes a TX3 to LP4 adapter
Add additional chassis cooling with a 50mm ball bearing fan

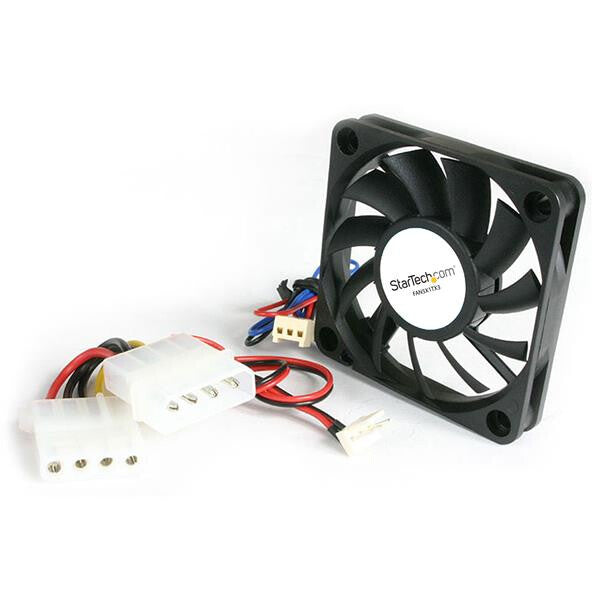

This versatile 5cm x 1cm fan is an ideal replacement fan for keeping your computer running cool. The fan can be powered through a TX3 connection, and features a dual ball bearing design that ensures reliable cooling and longer fan lifespan.
| Performance |
|---|
| Suitable location |
Computer case |
| Type |
Fan |
| Fan diameter |
5 cm |
| Rotational speed (max) |
4500 RPM |
| Noise level (high speed) |
23 dB |
| Maximum airflow |
8.63 cfm |
| Bearing type |
Ball bearing |
| Mean time between failures (MTBF) |
50000 h |
| Operating temperature (T-T) |
-10 - 80 °C |
| Design |
|---|
| Product colour |
Black |
| Material |
Plastic |
| Number of fans |
1 fan(s) |
| Fan connector |
3-pin |
| Certification |
CE, UR, UL, REACH |
| Power |
|---|
| Power consumption (typical) |
1.08 W |
| Voltage |
12 V |
| Rated current |
0.09 A |
| Weight & dimensions |
|---|
| Width |
10 mm |
| Depth |
50 mm |
| Height |
50 mm |
| Weight |
19 g |
| Package width |
65 mm |
| Package depth |
115 mm |
| Package height |
34 mm |
| Package weight |
1 kg |
| Technical details |
|---|
| Compliance certificates |
RoHS |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
356 mm |
| Master (outer) case length |
452 mm |
| Master (outer) case height |
294 mm |
| Products per master (outer) case |
200 pc(s) |
