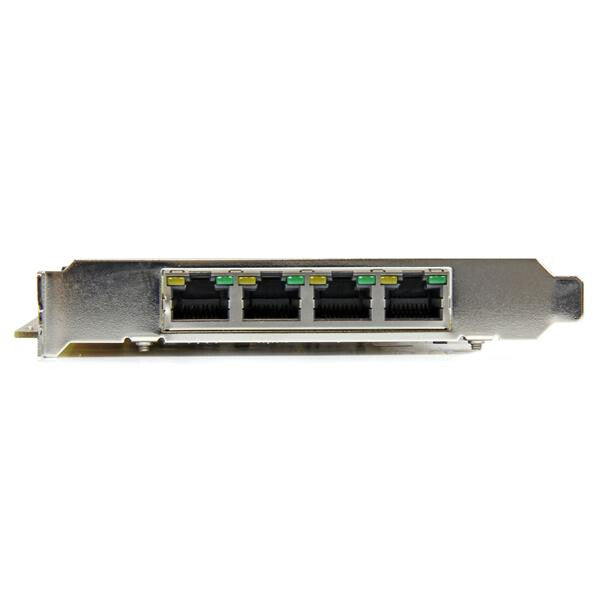

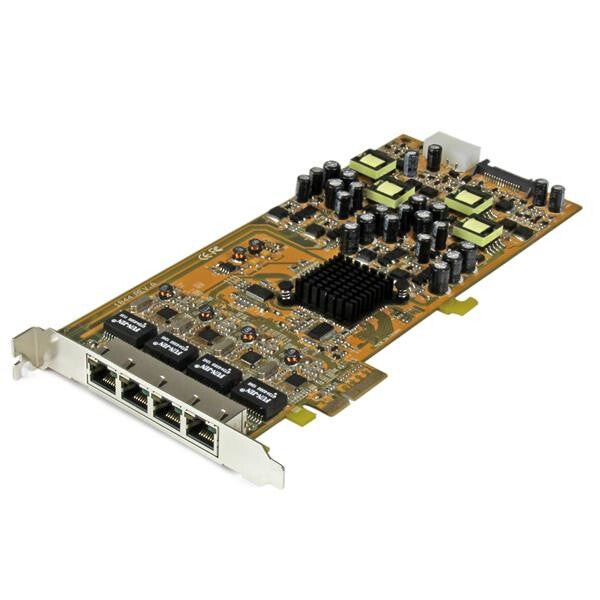

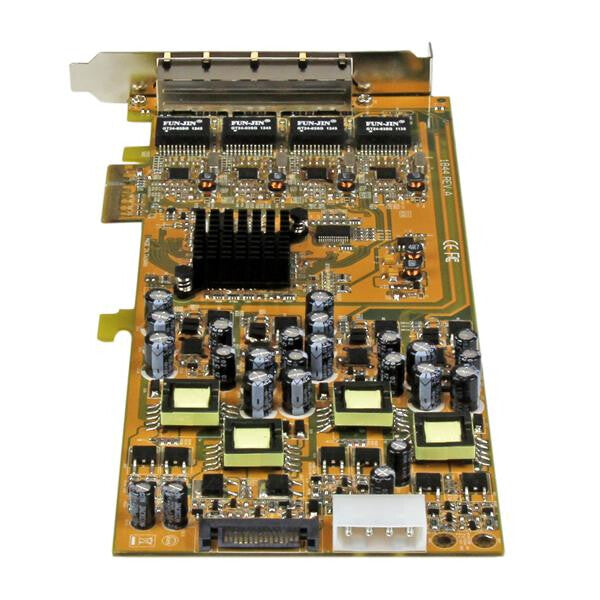

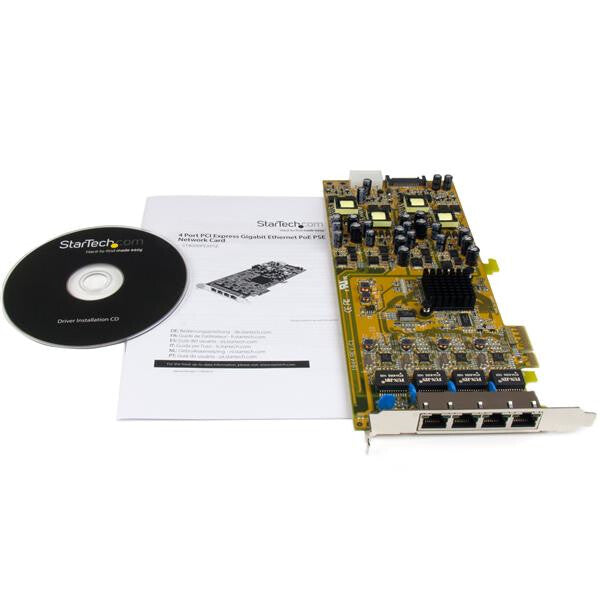

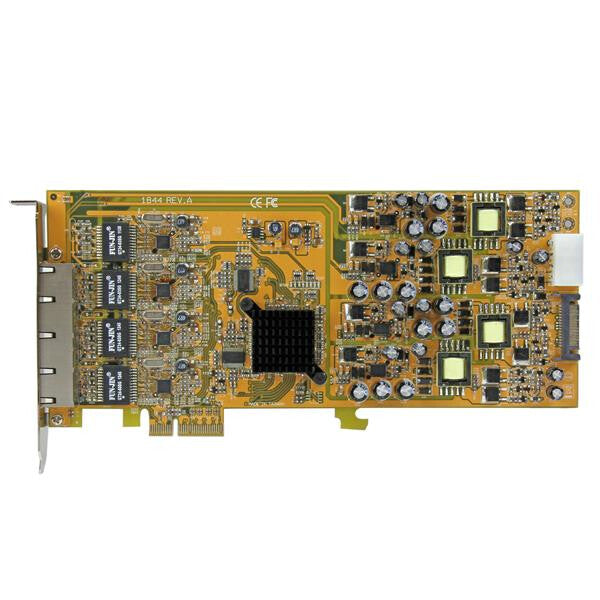

StarTech.com 4 Port Gigabit Power over Ethernet PCIe Network Card - PSE / PoE PCI Express NIC - TAA

• FULLY COMPLIANT: This 4 port Gigabit PoE card is fully compliant with IEEE 802.3at Class 1 & Class 2, Type 1, Power over Ethernet (PoE) standards
• PSE SUPPORT: This PCIe network card features a Power Sourcing Equipment (PSE) endpoint that supports up to 50V, 25.5 watts max. output per port
• POWER YOUR PoE DEVICES: Provide connectivity and power to compatible PoE devices, including cameras and wireless access points using this PCIe PoE Ethernet card
• ULTIMATE SUPPORT: The Gigabit NIC supports IEEE 802.3 AT Class 1 and Class 2 (Type 1), 802.3az Draft 2.2 Energy-Efficient Ethernet (EEE), 802.1q VLAN tagging, 802.1p Layer 2 Priority Encoding and 802.3x Full Duplex Flow Control
• THE IT PRO'S CHOICE: Designed for reliability in edge and on-prem deployments, our network cards are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance

Add 4 Gigabit Power over Ethernet ports to a PCI Express-enabled computer

The ST4000PEXPSE 4-Port PoE NIC lets you add four Gigabit Power over Ethernet ports through a single PCI Express slot. Each port can provide up to 25.5W of power, combining network data and power over a single Ethernet cable for reduced cable clutter and added convenience for remote PoE devices.

The PCI express PoE card supports the IEEE 802.3 AT Class 1 and Class 2 (Type 1) standard for Power Sourcing Equipment (PSE), and can deliver up to 50V DC power to compliant Powered Devices (PD). This eliminates the need for a separate power source and data connection for PoE devices such as IP cameras, IP phones or wireless access points.

Suitable for any standard profile PCIe-enabled client, server or workstation, the PoE network card supports features such as Jumbo Frames (up to 9KB), VLAN tagging and Wake on LAN (WoL).
