- OS Independent – No drivers or software required
- Auto-scan function automatically selects computer sequentially
- Front panel push-button and Hotkey switching allow easy computer access
- Identifies and selects computers by the names assigned using the OSD
- USB console connections
- Rename connected computers for easy identification
- OSD security allows each PC to be password protected
- Plug-and-play system configuration
- Supported Wide Screen Resolutions: 1920x1200, 1920x1080, 1680x1050, 1400x1050, 1440x900, 1360x768
- Supported 4 : 3 Resolutions: 1920x1440, 1600x1200, 1280x1024, 1024x768
Control up to 4 VGA and USB computers from a single keyboard, mouse and monitor

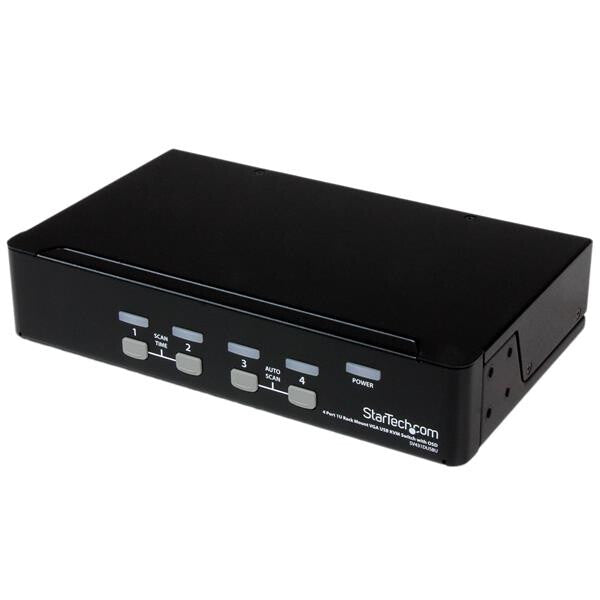

The SV431DUSBU 4 Port 1U Rack Mountable USB KVM Switch with OSD lets you control multiple USB based computers from a single console (USB keyboard, USB mouse, monitor).

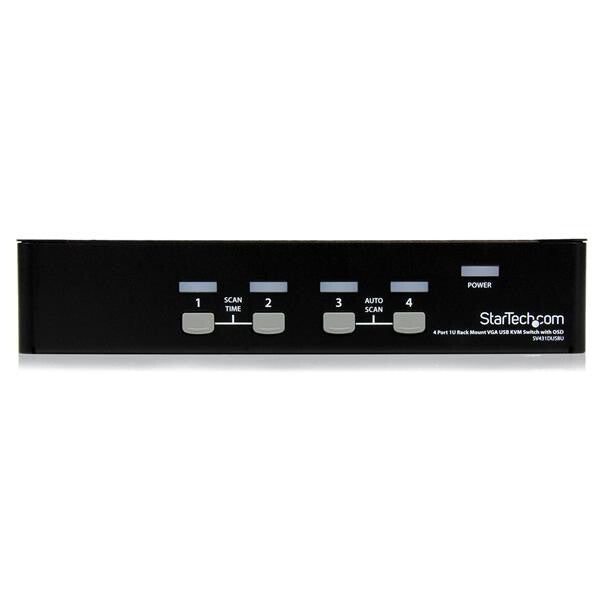

Convenient push-button and hot-key controls provide quick, reliable switching between connected computers while manual and auto-scan switching modes and an On Screen Display (OSD) offer additional control options.
Designed to ensure maximum space efficiency, the USB KVM switch features a slim 1U design that fits neatly into a server equipment rack/cabinet (with optional mounting bracket SV431RACK) and offers rear cable connections to eliminate cable tangles and minimize workspace disruption.
This product is TAA compliant and backed by a Startech.com 3-year warranty with free lifetime technical support.
Rackmount your KVM switch
If you’d like to mount this KVM switch to your server rack, StarTech.com offers a 1U Rackmount Bracket (sold separately) that turns this KVM into a rackmountable KVM.
The SV431DUSBU only works with specific 2-in-1 VGA and USB cables (sold separately), a list of StarTech.com approved cables are below:
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
6 ft Ultra Thin USB VGA 2-in-1 KVM Cable
10 ft Ultra Thin USB VGA 2-in-1 KVM Cable
15 ft Ultra Thin USB VGA 2-in-1 KVM Cable

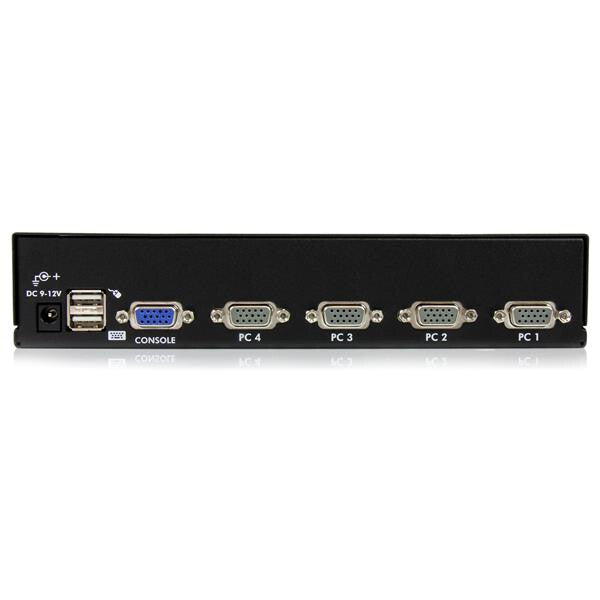

| Ports & interfaces |
|---|
| Number of computers controlled |
4 |
| Keyboard port type |
No |
| Mouse port type |
No |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
5 |
| Console USB ports quantity |
2 |
| Console ports |
USB A, VGA (D-Sub) |
| USB 2.0 ports quantity |
2 |
| Audio connections |
No |
| DC-in jack |
Yes |
| Performance |
|---|
| Maximum analog resolution |
1920 x 1440 pixels |
| Maximum resolution |
1920 x 1440 pixels |
| Plug and Play |
Yes |
| Daisy chain |
Yes |
| Design |
|---|
| Rack capacity |
1U |
| Rack mounting |
Yes |
| Product colour |
Black |
| Housing material |
Steel |
| LED indicators |
Power |
| Hot keys |
Yes |
| Mean time between failures (MTBF) |
143000 h |
| Certification |
CE, FCC, TAA, REACH |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
Yes |
| Power |
|---|
| Input voltage |
110 - 240 V |
| Input current |
0.2 A |
| Output voltage |
9 V |
| Output current |
0.6 A |
| Compatible power plug types |
AU, EU, UK, US |
| Power plug type |
Type M |
| External power adapter |
Yes |
| Power consumption (typical) |
5.4 W |
| Sustainability |
|---|
| Compliance certificates |
RoHS |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Operating relative humidity (H-H) |
0 - 80% |
| Weight & dimensions |
|---|
| Width |
220 mm |
| Depth |
130 mm |
| Height |
43 mm |
| Weight |
957 g |
| Packaging data |
|---|
| Package width |
412 mm |
| Package depth |
215 mm |
| Package height |
92 mm |
| Package weight |
1.6 kg |

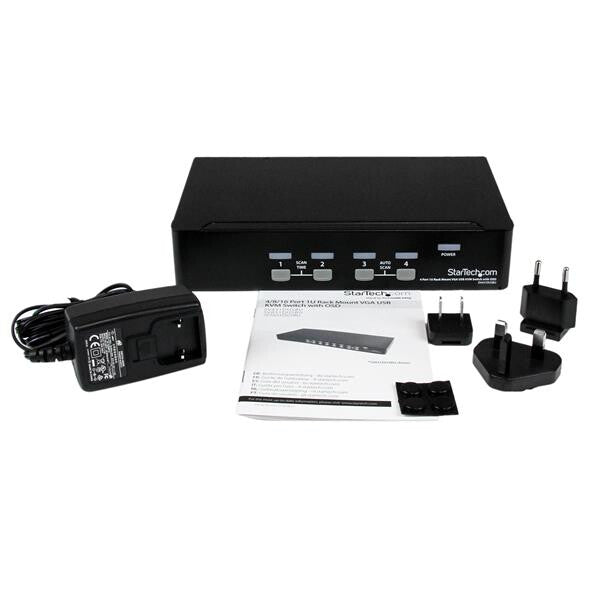

| Packaging content |
|---|
| Rubber feet |
Yes |
| AC adapter included |
Yes |
| Manual |
Yes |
| Other features |
|---|
| Audio support |
No |
| IP control |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
551 mm |
| Master (outer) case length |
439 mm |
| Master (outer) case height |
258 mm |
| Products per master (outer) case |
6 pc(s) |
