- Control 2 computers from one USB keyboard/mouse/monitor
- Share 3 different USB peripherals using the integrated hub
- High 1920x1440 resolution capability

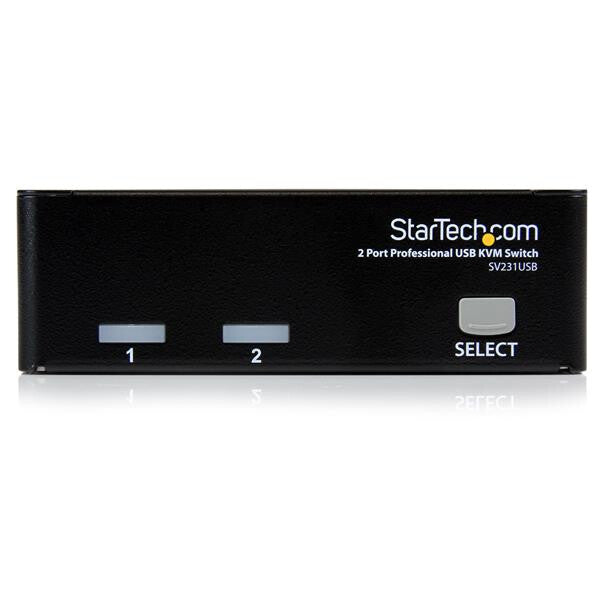

- Front panel push buttons for easy computer selection
- OS independent - No software or drivers required
- Supports keyboard and mouse plug and play
- Selectable auto scan time interval
- Supports DDC2B VGA monitors
- Universal Power Adapter with EU and UK prong types included

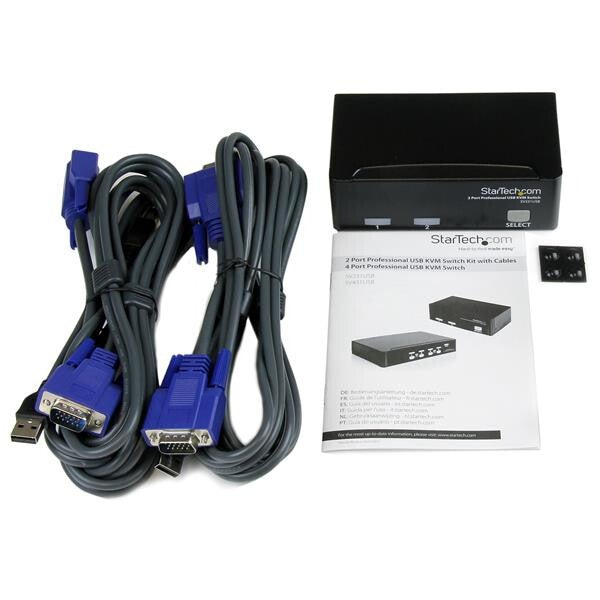

Control 2 USB VGA based computers with this complete KVM kit including cables

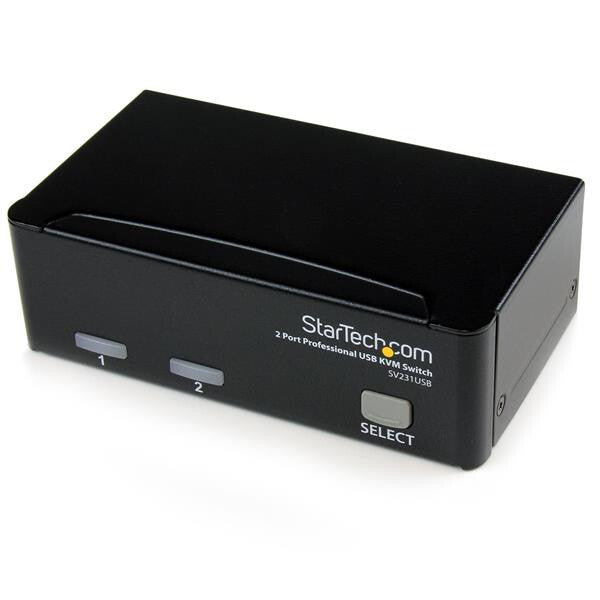

The SV231USBGB 2 Port Professional USB KVM Switch Kit with Cables offers simple control of 2 computers from a single monitor/display and USB peripheral set (keyboard, mouse).
The 2 Port KVM includes 2 USB KVM cables, for a complete out-of-the-box solution saving you time and money. An integrated 3 port USB hub allows you to share USB peripherals between computers as though they were connected directly. A compact form factor and rear-port connections minimizes disruption to your workspace.
This OS independent KVM supports resolutions up to 1920x1440, and provides a smooth operating experience in mixed (Windows/Mac/Linux) environments.

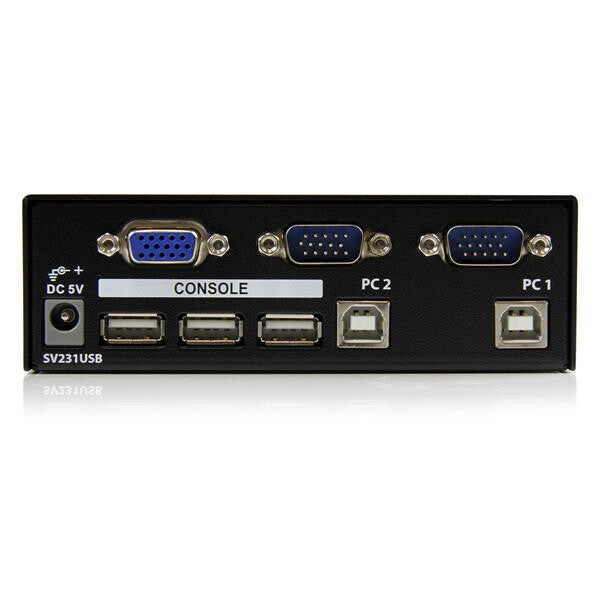

| Ports & interfaces |
|---|
| Number of computers controlled |
2 |
| Keyboard port type |
USB |
| Mouse port type |
USB |
| Video port type |
VGA |
| VGA (D-Sub) ports quantity |
3 |
| Console USB ports quantity |
3 |
| Console ports |
USB A, VGA (D-Sub) |
| Audio connections |
No |
| DC-in jack |
Yes |
| Performance |
|---|
| Maximum resolution |
1920 x 1440 pixels |
| Scan interval |
3,8,15,30 s |
| Daisy chain |
No |
| Number of users |
1 user(s) |
| Design |
|---|
| Rack mounting |
No |
| Product colour |
Black |
| Housing material |
Steel |
| Cable length |
1.8 m |
| Maximum cable length |
5 m |
| Hot keys |
No |
| Mean time between failures (MTBF) |
111000 h |
| Certification |
CE, FCC, TAA, REACH |
| Display |
|---|
| Built-in display |
No |
| On Screen Display (OSD) |
No |
| Power |
|---|
| Input voltage |
100 - 240, 5 V |
| Input current |
0.4 A |
| Output current |
2 A |
| Compatible power plug types |
EU, UK |
| Power plug type |
Type N |
| External power adapter |
Yes |
| Power consumption (typical) |
10 W |
| Weight & dimensions |
|---|
| Width |
124 mm |
| Depth |
70 mm |
| Height |
40 mm |
| Weight |
420 g |
| Packaging data |
|---|
| Package width |
235 mm |
| Package depth |
183 mm |
| Package height |
92 mm |
| Package weight |
1.5 kg |
| Packaging content |
|---|
| Cables included |
KVM |
| AC adapter included |
Yes |
| Manual |
Yes |
| Other features |
|---|
| IP control |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85176200 |
| Master (outer) case width |
317 mm |
| Master (outer) case length |
392 mm |
| Master (outer) case height |
275 mm |
| Products per master (outer) case |
6 pc(s) |
