- Compliant with USB 3.2 Gen1 specifications

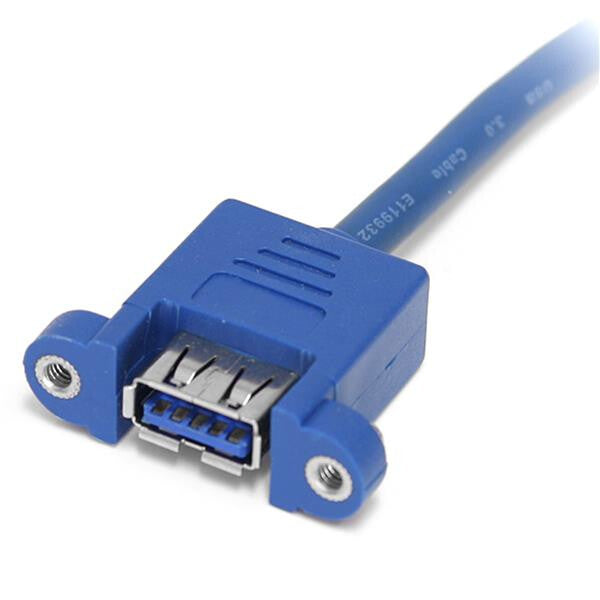

- 2 panel-mount USB 3.2 Gen1-A ports with screws to allow for secure installation
Extend a USB 3.2 Gen1 Motherboard Header into Two Panel-mount USB 3.2 Gen1-A Ports

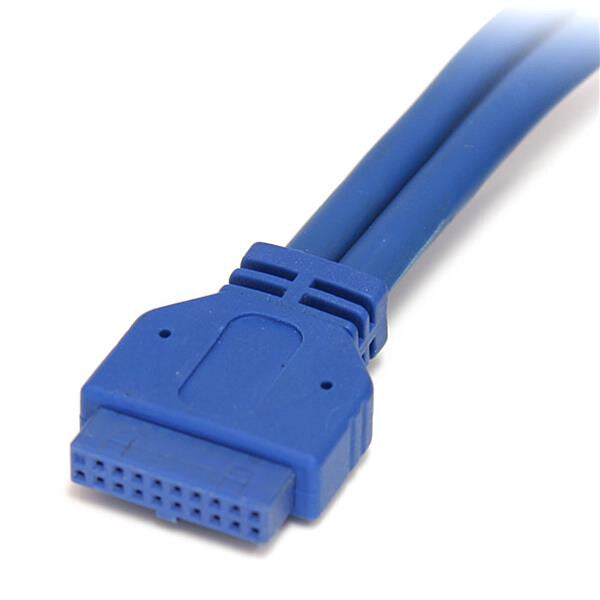

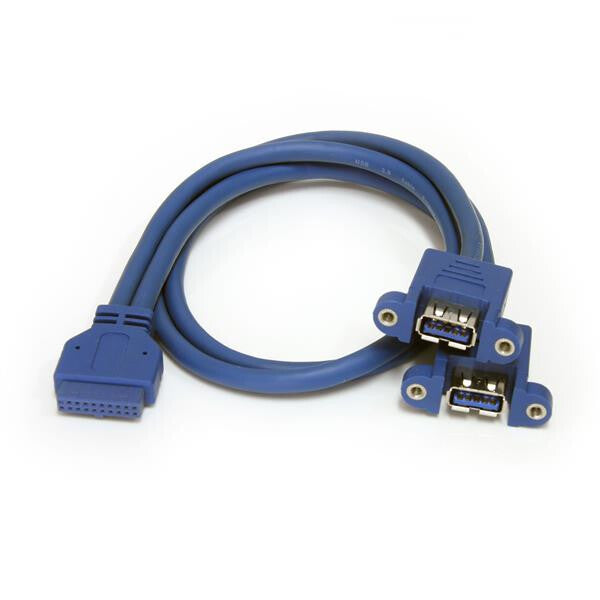

The USB3SPNLAFHD 2-Port USB 3.2 Gen 1 to Panel mount USB cable features a 20-pin USB 3.2 Gen 1 motherboard header connection on one end, breaking off into two separate USB 3.2 Gen 1-A (female) ports on the other end of the cable.
The USB 3.2 Gen 1 panel mount cable offers a convenient solution for connecting bootable thumb drives or authentication fobs etc. to the motherboard USB 3.2 Gen 1 connection.
The USB 20-pin motherboard header to panel mount USB 3.2 Gen 1 cable is backed by StarTech.com's Lifetime Warranty.
| Ports & interfaces |
|---|
| Connector 1 |
2 x USB A |
| Connector 2 |
IDC |
| Cable length |
0.5 m |
| Performance |
|---|
| Product colour |
Blue |
| Cable jacket material |
Polyvinyl chloride (PVC) |
| Housing material |
Polyvinyl chloride (PVC) |
| AWG wire size |
28 |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Certification |
CE, REACH |
| Weight & dimensions |
|---|
| Width |
36.5 mm |
| Depth |
500 mm |
| Height |
12 mm |
| Weight |
69 g |
| Packaging data |
|---|
| Package width |
198 mm |
| Package depth |
167 mm |
| Package height |
25 mm |
| Package weight |
74 g |
| Logistics data |
|---|
| Products per master (outer) case |
200 pc(s) |
| Master (outer) case width |
386 mm |
| Master (outer) case length |
434 mm |
| Master (outer) case height |
342 mm |
