- Fasten a DB9 (RS232) Serial port to an existing face or wall plate
- Add legacy hardware to newer systems
Turn a Motherboard IDC Serial Header into a Panel-Mountable 9-Pin RS232 Serial Connector

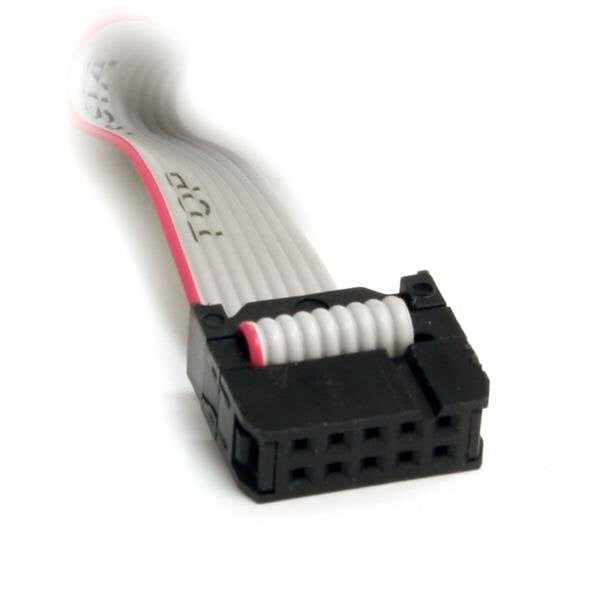

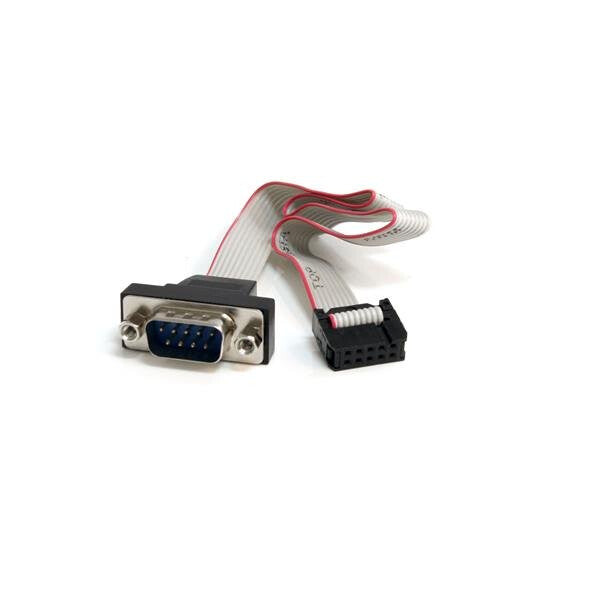

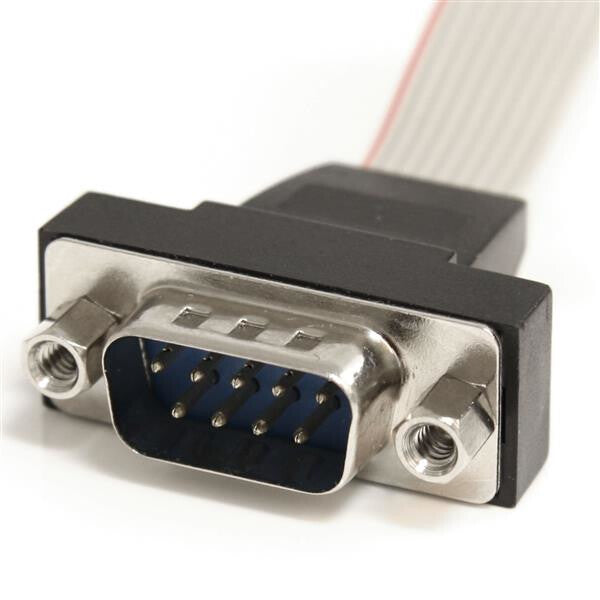

The PNL9M16 16-inch IDC Serial to Panel Mount Serial Cable, features a 10-pin (IDC) motherboard header connection on one end and a panel mount DB9 male connector port on the other - a simple answer for adding a DB9 (RS232) serial port to any computer system which has an RS232 serial panel mount receptacle.
This cost-effective solution bridges the compatibility gap between modern computers and legacy serial peripherals.
| Features |
|---|
| Product colour |
Grey |
| Cable length |
0.4064 m |
| Connector 1 |
DB-9 |
| Connector 2 |
IDC |
| Connector 2 gender |
Female |
| Connector 1 gender |
Male |
| AWG wire size |
28 |
| Packaging data |
|---|
| Quantity per pack |
1 pc(s) |
| Package width |
220 mm |
| Package depth |
125 mm |
| Package height |
19 mm |
| Package weight |
22 g |
| Certificates |
|---|
| Certification |
CE, REACH, RoHS |
| Weight & dimensions |
|---|
| Weight |
17 g |
| Logistics data |
|---|
| Harmonized System (HS) code |
84733080 |
| Master (outer) case width |
490 mm |
| Master (outer) case length |
330 mm |
| Master (outer) case height |
270 mm |
| Products per master (outer) case |
400 pc(s) |
