Upgrade Networks with Copper-to-Fiber Conversion: Convert 100M to 10GBASE-T copper (RJ-45) to 10G fiber using an open SFP+ slot; supports multimode or single-mode transceivers (e.g., 10GBASE-SR/LR) for flexible deployment and extended reach
-

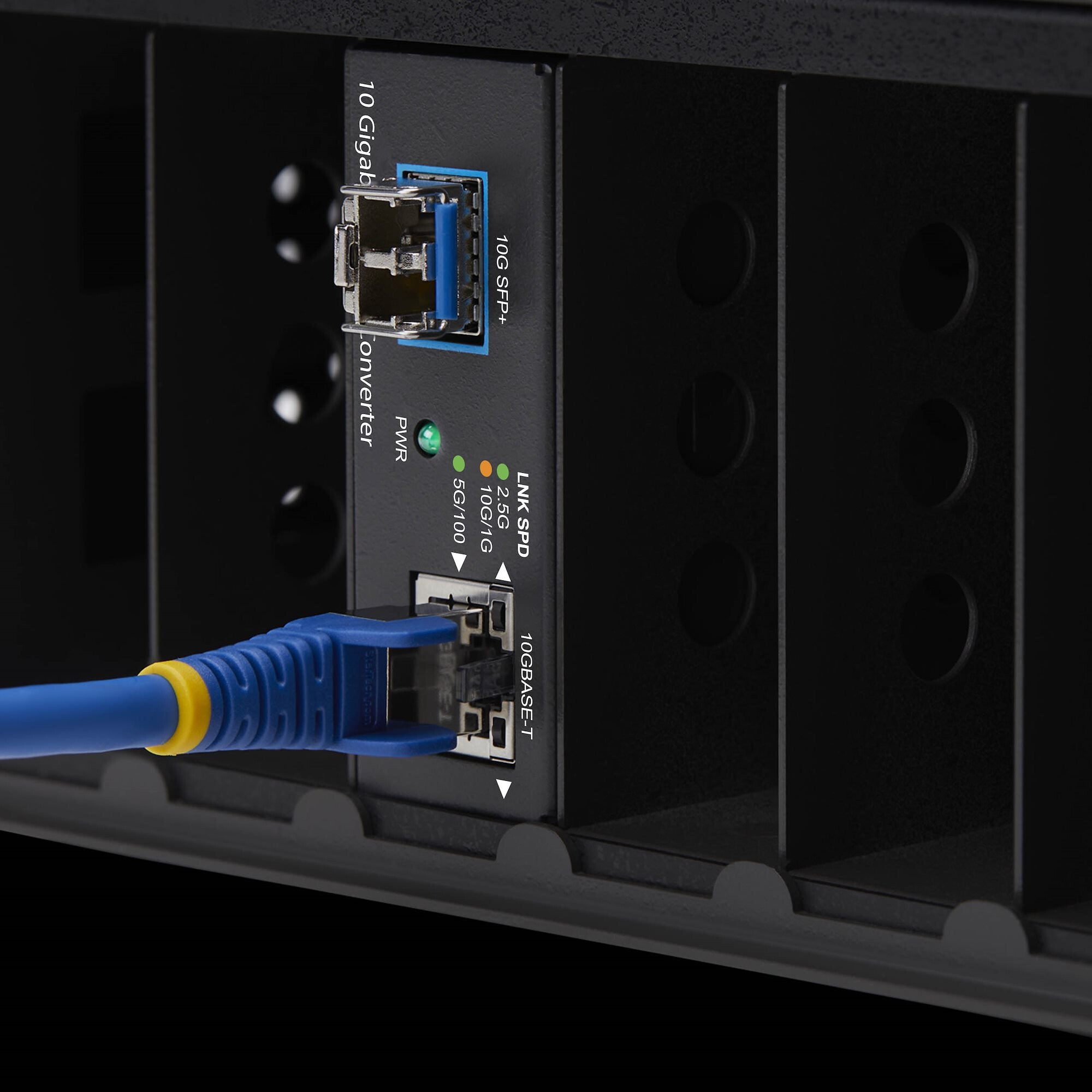

Flexible Mounting: Use as a compact standalone unit or mount to a wall, rack, DIN rail (ADJDINKIT) or chassis (MCM7-MEDIA-CHASSIS, MCM15-MEDIA-CHASSIS) for clean, professional integration into structured wiring closets, data centers, or server rooms
-
Standardize Network Conversions:: Plug-and-play installation supports auto-negotiation of 100Mbps, 1/2.5/5/10Gbps copper speeds, 16K Jumbo Frames, and full-duplex flow control, helping IT deploy one media converter across networks with different speeds
-
Deploy Efficiently in Compact, Power-Sensitive Spaces: Consumes only 3.75W (typical) via 5V DC input from included power adapter or chassis power supply and rated for 0°C to 50°C operating environments; Does not support PoE
-
The IT Pro's Choice: Designed for reliability in edge and on-prem deployments, our media converters are lab-tested and field-proven for seamless integration and maximum uptime; Backed by free lifetime 24/5 multi-lingual technical assistance
Connect a high-speed copper (10GBASE-T) network to a fiber (10GBASE-R) network using a 10GbE SFP+ transceiver.
Flexible, High-Speed Copper-to-Fiber Conversion

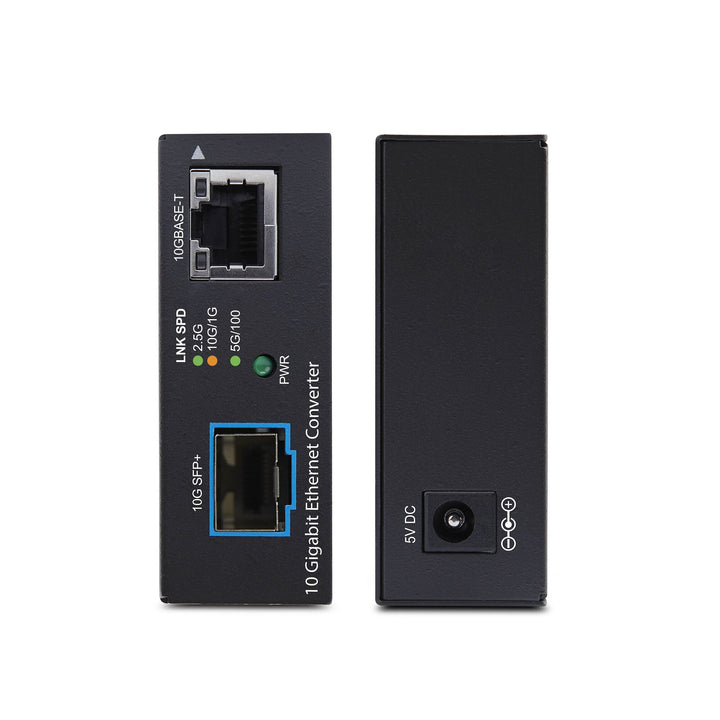

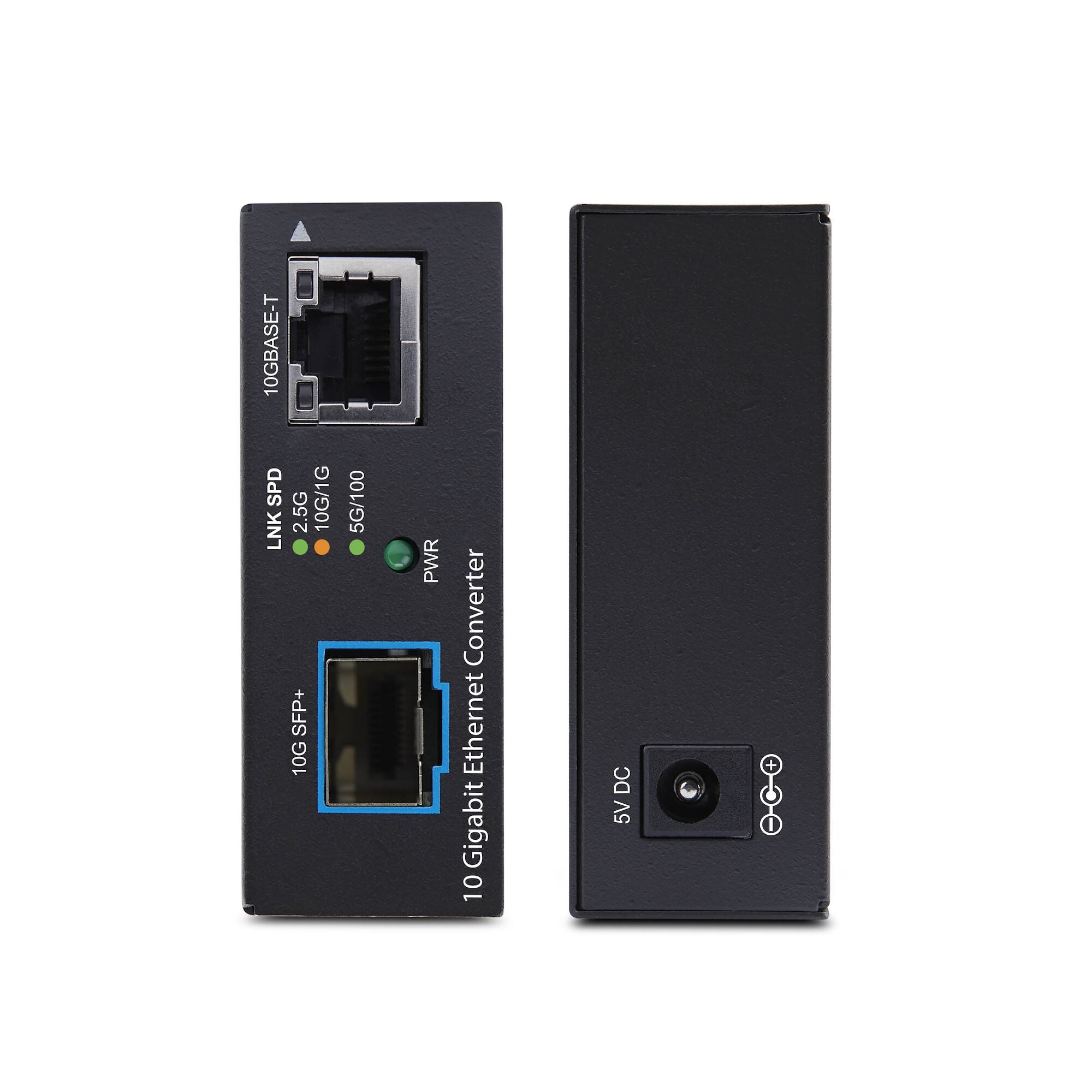

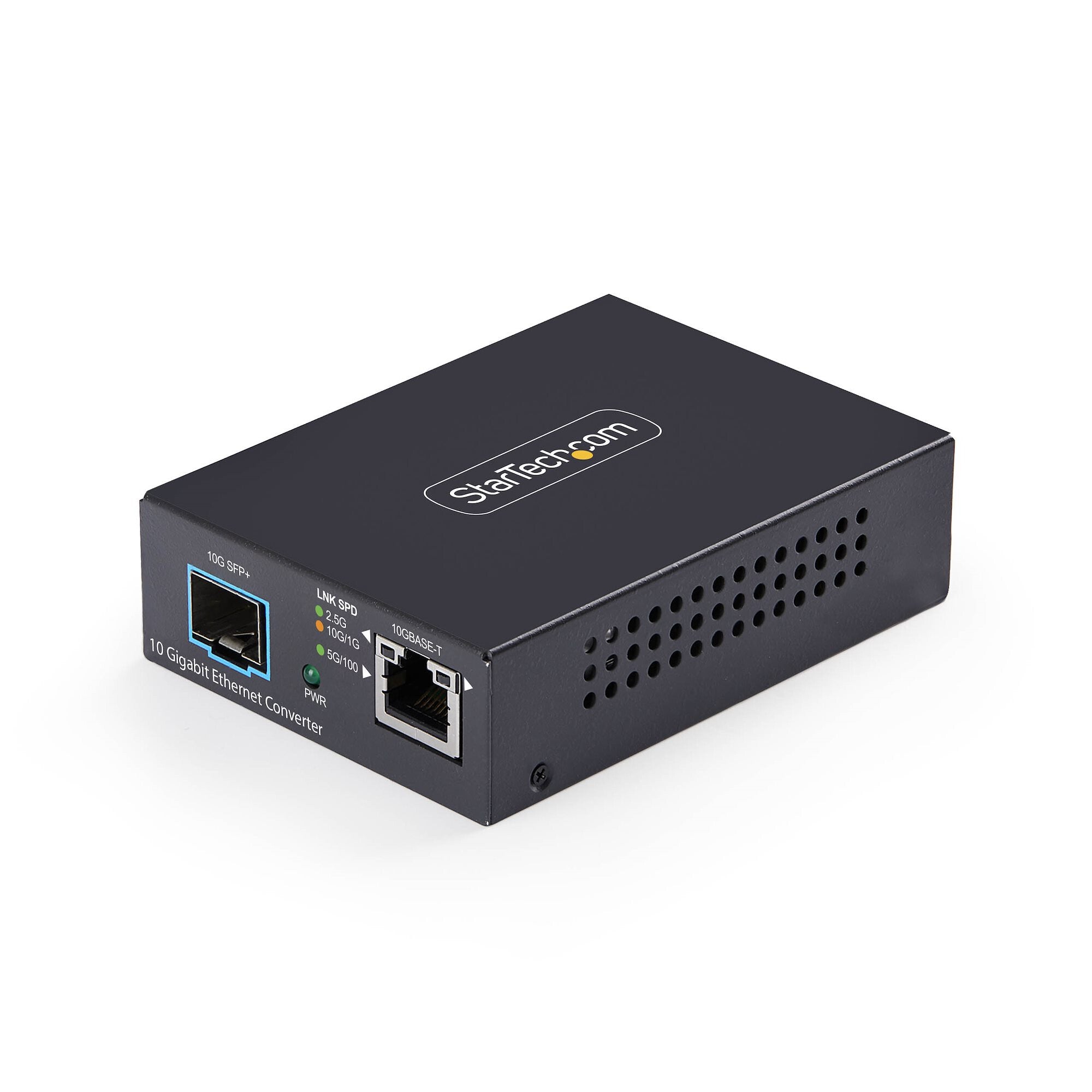

This compact 10G media converter enables seamless copper-to-fiber conversion for network upgrades or long-distance extension. Featuring an open SFP+ slot, it converts 100M to - 10GBASE-T RJ-45 to 10G fiber and supports both multi-mode and single-mode transceivers (10GBASE-SR/LR) for flexible deployment across enterprise and telecom environments.
Versatile Mounting and Deployment
Ideal for structured wiring closets, server rooms, or remote network upgrades, the converter supports wall-mount, DIN rail, and chassis installations. It can operate as a standalone device or integrate into a media converter chassis system.
Optimized for Mixed-Speed Networks
Built for maximum compatibility, the converter supports IEEE 802.3 standards, 16K Jumbo Frames, auto MDI/MDI-X, and full-duplex flow control. With plug-and-play setup and reliable diagnostics, it ensures consistent performance across legacy and high-speed links.

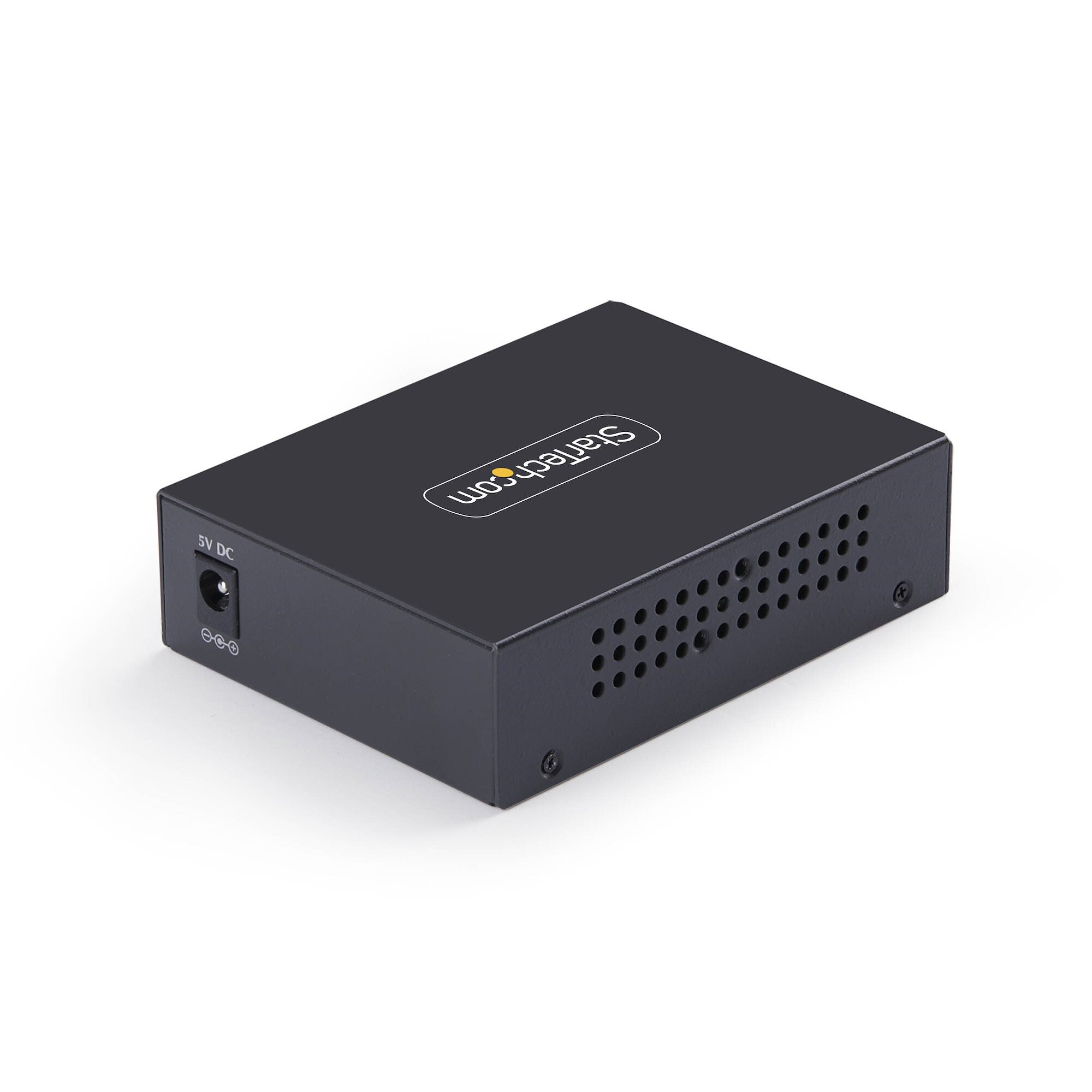

Efficient, Compact Design
With low 3.75W (typical) power consumption via 5V DC input, this power-efficient converter operates in environments ranging from 0°C to 50°C. It avoids PoE-related conflicts and is ideal for compact, power-sensitive deployments.
| Network |
|---|
| Maximum data transfer rate |
10000 Mbit/s |
| Converter input interface |
10GBase-T |
| Converter output interface |
10GBase-X |
| Networking standards |
IEEE 802.3 |
| Ethernet interface type |
2.5 Gigabit Ethernet, 5 Gigabit Ethernet, 10 Gigabit Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet LAN data rates |
100,1000,2500,5000,10000 Mbit/s |
| Jumbo frames support |
Yes |
| Jumbo frames |
16000 |
| Flow control support |
Yes |
| Auto MDI/MDI-X |
Yes |
| Auto-negotiation |
Yes |
| Duplex system |
Full |
| Performance |
|---|
| Fiber mode structure |
Multi-mode, Single-mode |
| Features |
|---|
| Internal |
No |
| Plug and Play |
Yes |
| Housing material |
Metal |
| Product colour |
Black |
| LED indicators |
Link, Power |
| Ports & interfaces |
|---|
| Connectivity technology |
Wired |
| Ethernet LAN (RJ-45) ports |
1 |
| Fiber optic connector |
SFP+ |
| DC-in jack |
Yes |
| Power |
|---|
| Input voltage |
100 - 240 V |
| Input current |
0.4 A |
| Output voltage |
5 V |
| Output current |
2 A |
| Power consumption (typical) |
3.75 W |
| External power adapter |
Yes |
| Weight & dimensions |
|---|
| Width |
94 mm |
| Depth |
70 mm |
| Height |
26 mm |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 50 °C |
| Storage temperature (T-T) |
-10 - 70 °C |
| Operating relative humidity (H-H) |
5 - 95% |
| Packaging content |
|---|

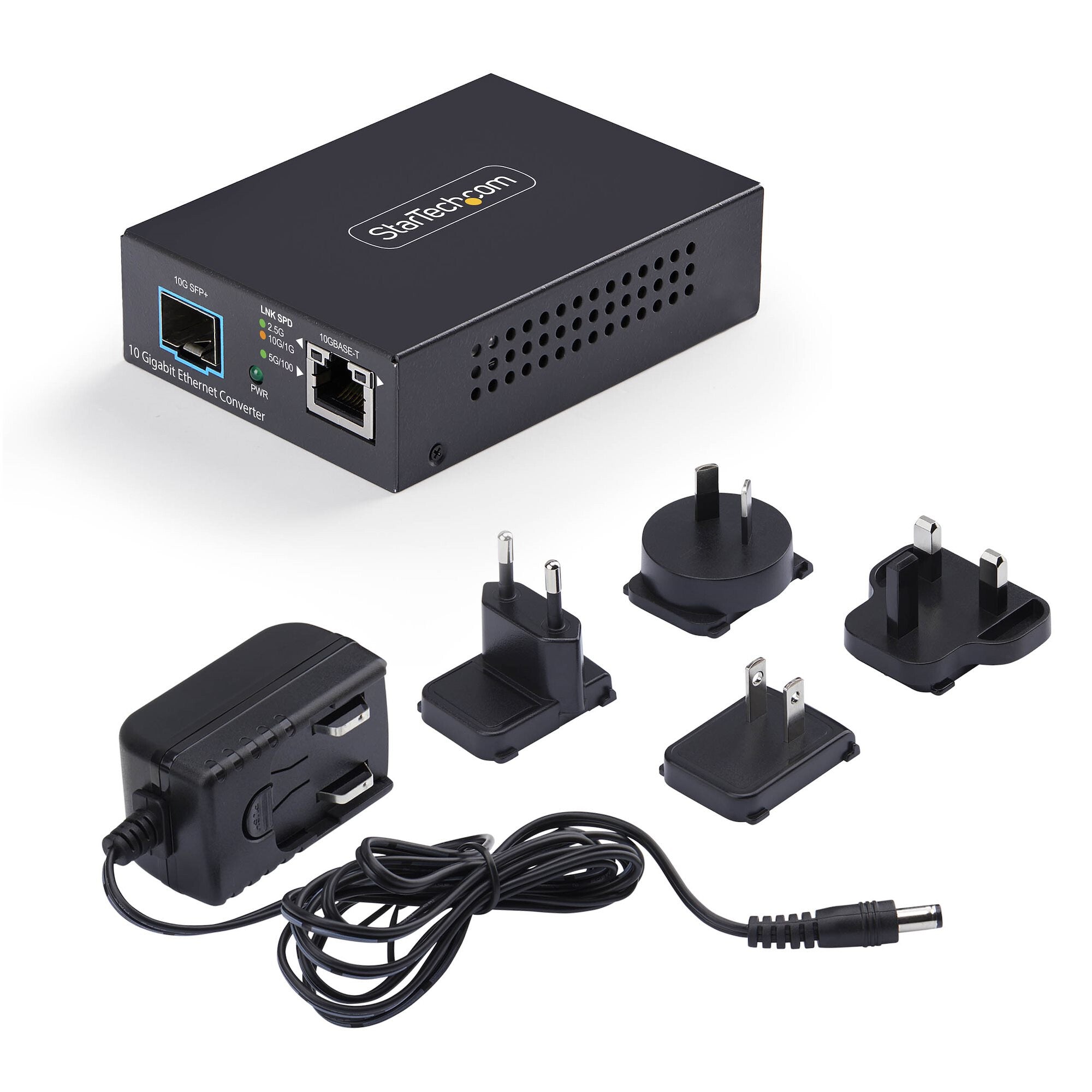

| AC adapter included |
Yes |
| User guide |
Yes |
| Packaging data |
|---|
| Package width |
70 mm |
| Package depth |
94 mm |
| Package height |
26 mm |
| Package weight |
500 g |
| Certificates |
|---|
| Compliance certificates |
CE, Federal Communications Commission (FCC), RoHS, Trade Agreements Act (TAA) |
| Logistics data |
|---|
| Master (outer) case width |
133 mm |
| Master (outer) case length |
281 mm |
| Master (outer) case height |
66 mm |
| Products per master (outer) case |
20 pc(s) |
