StarTech.com 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation - TAA

• Provides one RS422/485 port while powering the device through USB
• RS-485 mode supports Auto Transceiver Turn Around (ATTA)
• Compatible with both USB 2.0 and USB 1.1
• RS422/485 Baud rate up to 921.6 Kbps

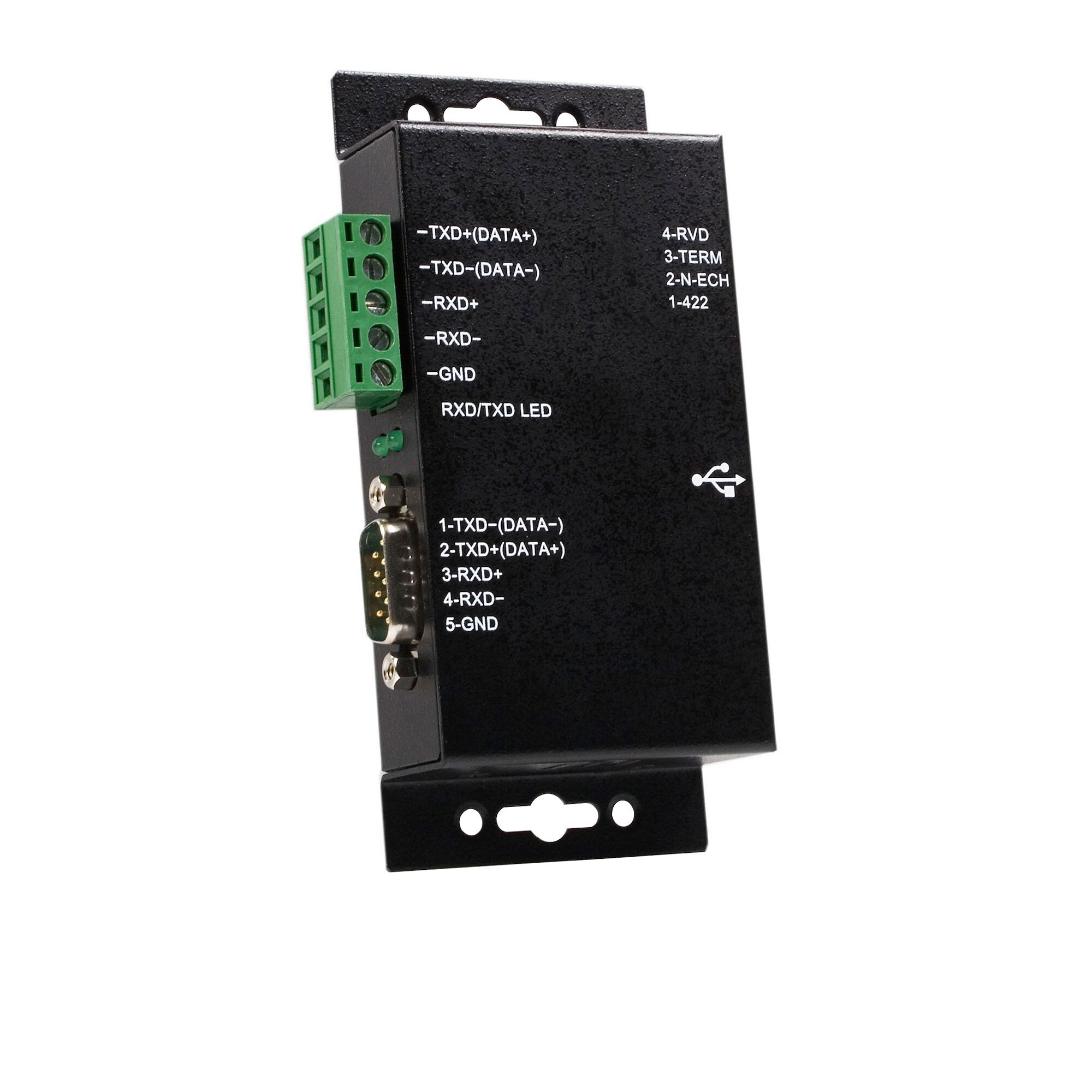

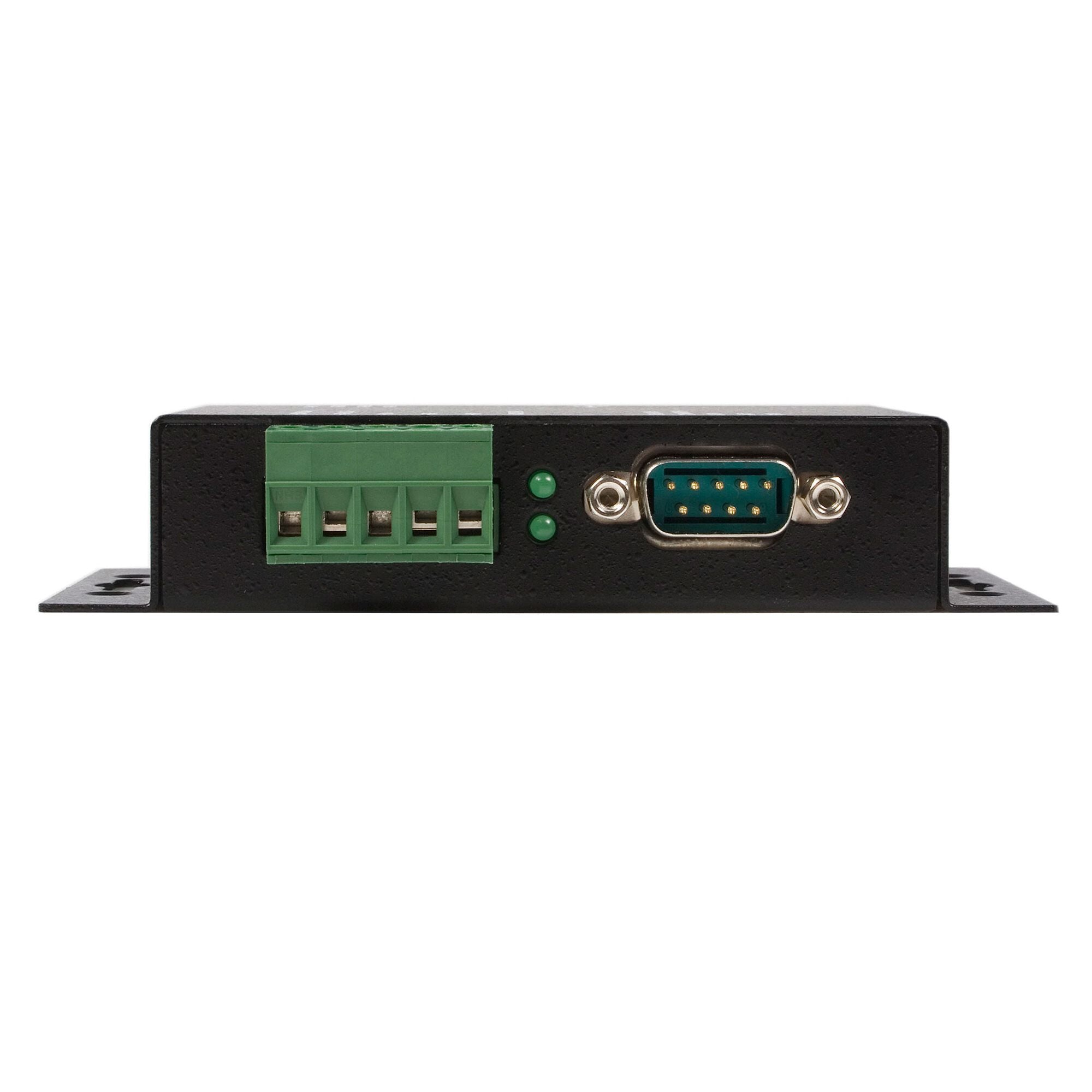

• Supports DB9 and terminal block connector
• Optical Isolation and Surge Protection (2500 Vrms)
• Supports 4-wire RS422 and 2-wire RS485 applications

Add an R422/485 serial port to your laptop or desktop computer through USB

The ICUSB422IS 1 Port Metal Industrial USB to RS422/RS485 Serial Adapter w/ Isolation connects to a computer using USB and allows you to connect any RS-422 or RS-485 serial device via the provided DB9 port or hard-wired to the terminal block. The USB to serial adapter features circuit isolation to ensure that sensitive controls and devices will not be damaged while connected, making it a viable solution for connecting costly industrial serial devices. The RS422/485 Converter receives full power via the host USB connection, and provides power to the attached serial device without requiring an external power adapter. Designed to provide a durable serial solution, the USB to RS422/485 Converter is ruggedly constructed and can be mounted nearly anywhere. Backed by a StarTech.com 2-year warranty and free lifetime technical support.
