Input power factor correction minimizes installation costs by enabling the use of smaller generators and cabling
Modular design speeds up mean time to repair (MTTR)
Compatible with 400V Symmetra PX 48 and 96/160kW
Compatible with 208V Symmetra PX 20, 40, and 80kW

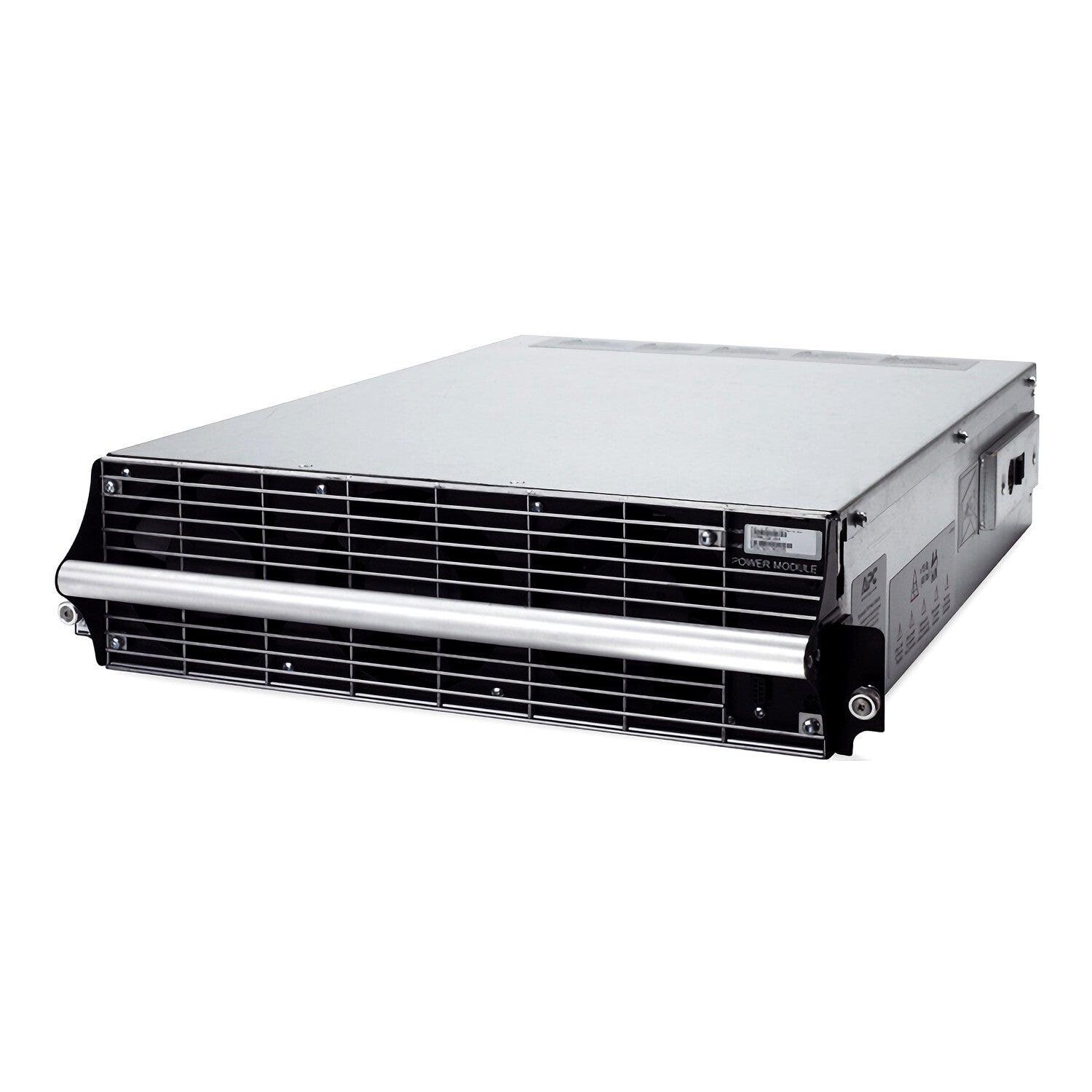

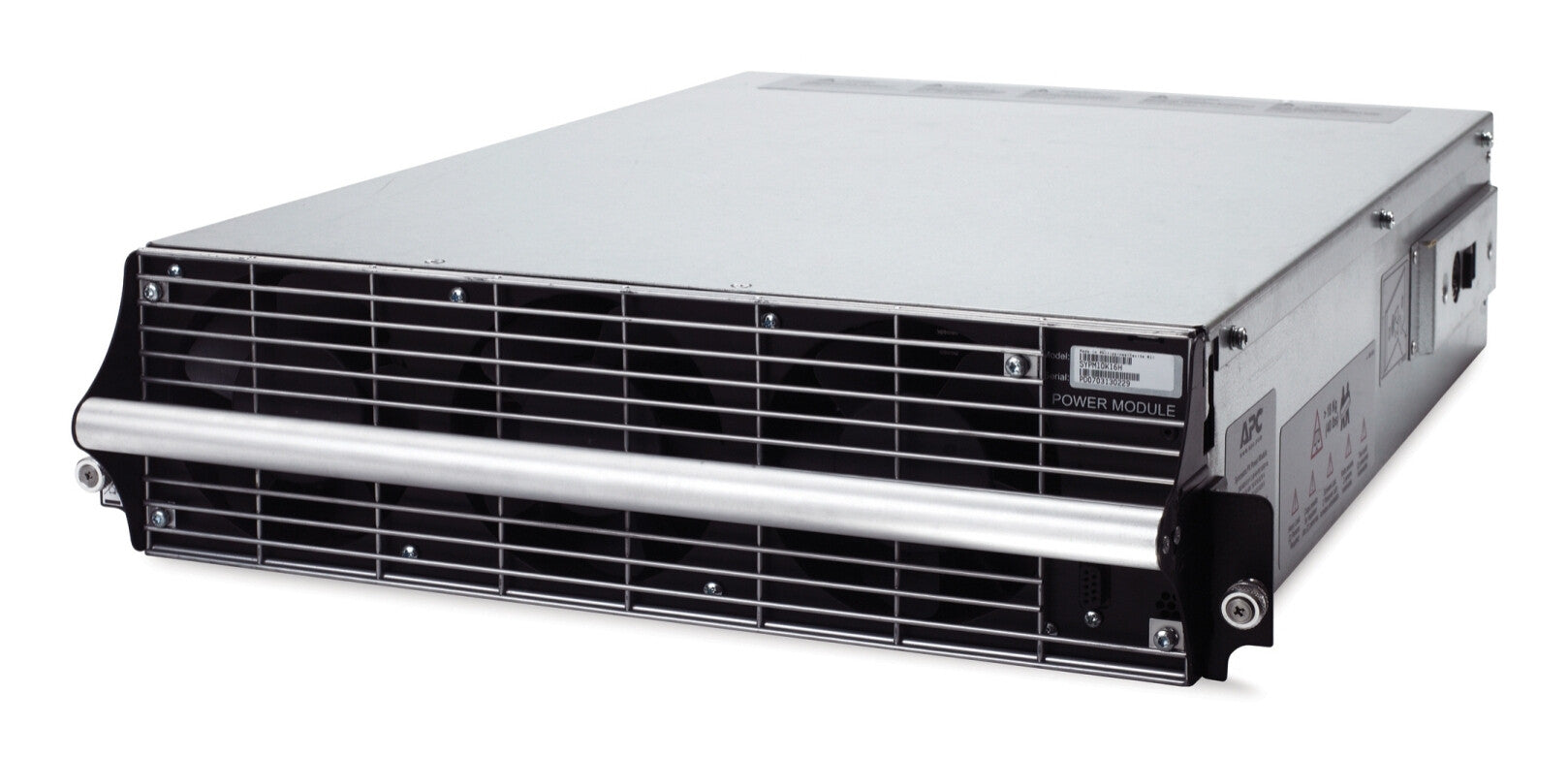

"A 16 kW high efficiency power module for the Symmetra PX 160 kW & PX 48 kW." "This power module is backward compatible with the SYPM10KH module and will autodetect to deliver only 10 kW of power protection if installed in a PX 80 kW, 40 KW or 20 kW all-in-one."
Features
Product type
Power module
Product colour
Black, Grey
Noise level
63 dB
Power
Load capacity
16000 VA
Capacity
16000 W
Input voltage
400 3 phases
Input frequency
40/70 Hz
Output voltage
230 V
Number of phases
3
Maximum total current draw per phase
33 A
DC input voltage
400 V 3 phases
Output connection type
hard wire 5-wire (3P + N + E) for 1 zone(s)
Output power capacity
16 kVA
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Certification
CE,EN 50091-1,EN 50091-3,FCC Part 15 Class A,VFI-SS-111
