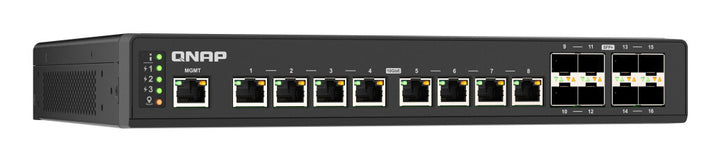

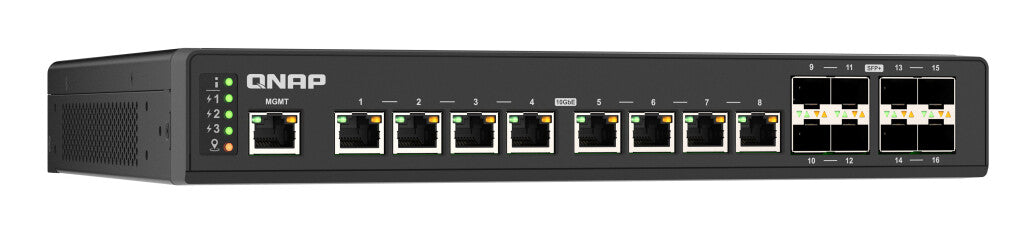

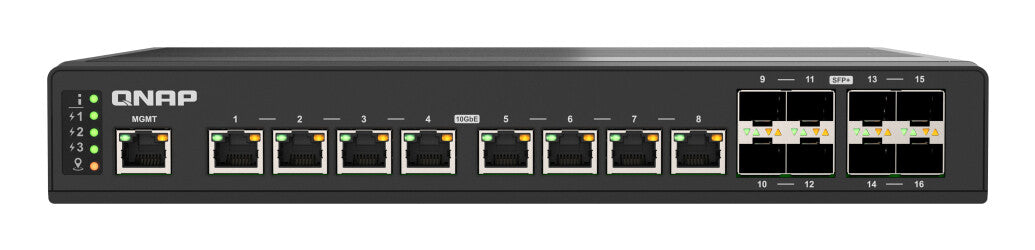

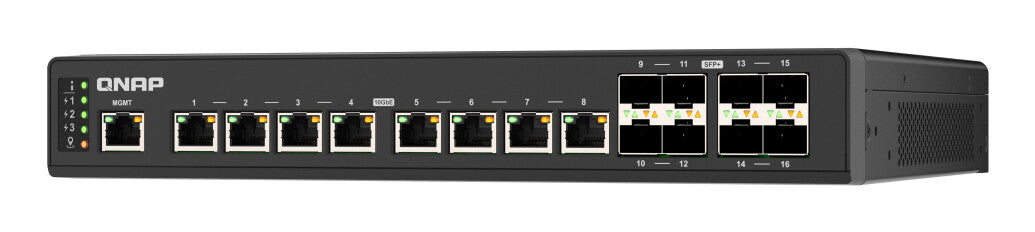

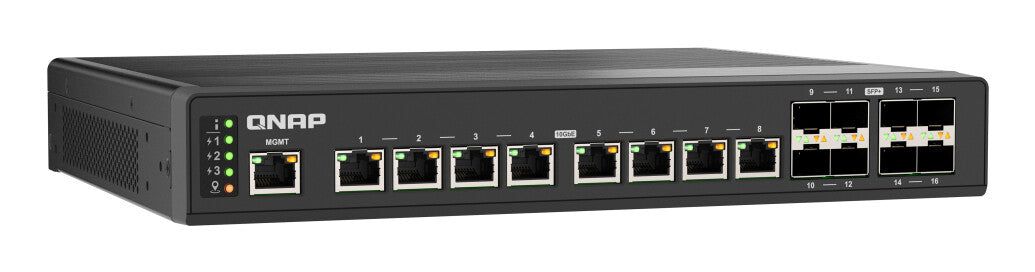

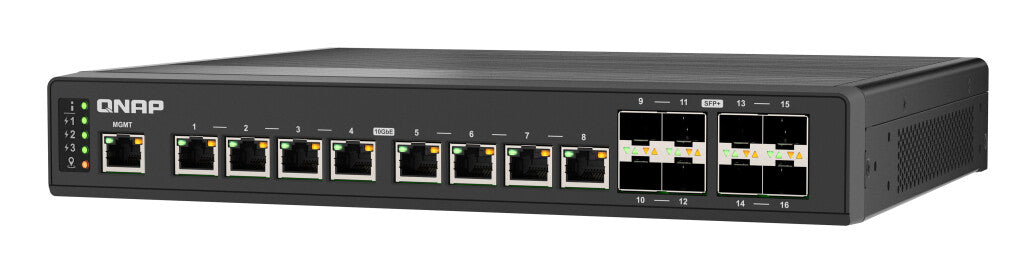

QNAP QSW-IM3216-8S8T network switch Managed L2 10G Ethernet (100/1000/10000) Black

• IP20 industrial-grade protection: Rugged, shock-resistant, IP20 rated, and with a fanless design. Capable of operating in temperatures from -30°C to 65°C (-22°F to 149°F)
• 16 high-speed 10GbE ports: Includes 8 x 10GbE SFP+ fiber ports (10G/1G) and 8 x 10GbE RJ45 network ports (10G/5G/2.5G/1G/100M). Supports a range of network devices and link aggregation for up to 20Gbps network bandwidth
• Redundant power design: Has two wide voltage DC 9-54V power inputs and a circuit breaker, ensuring continuous operation. A DC power adapter is also included
• More secure network management: Supports ACL, Qfinder Pro login, and SNMP management to ensure network and device connection security with centralized network device management and maintenance
• Simplified AV-over-IP configuration: Manages IGMP Snooping and IGMP Snooping-controlled traffic forwarding for low-latency network connections with multiple AV endpoint devices
• Smart graphical Web management: QSS (QNAP Switch System) simplifies network management with an overview dashboard, port management, and setup guides

Designed for harsh industrial environments, the QSW-IM3216-8S8T high-speed switch features a fanless IP20-rated enclosure with a redundant DC 9-54V power supply. It provides sixteen 10GbE ports, practical L2 management functions, and can be mounted in a rack, placed on a desktop, or wall mounted. This range of installation options makes it an economical and efficient high-speed networking solution for factory automation, AI smart manufacturing, smart cities, automotive industry, traffic monitoring, and other applications. The QSW-IM3216-8S8T was designed and manufactured in Taiwan, offering high-quality and reliable networking solutions.

• Quick Start Guide
• manual pdf
• leaflet
