- Featuring The latest CPU and GPU Both at Maximum Power
- 300W Total Power New Ceiling Next Gen Cooler Boost Technology
- Simple & Fast Upgrades With Safety Unmatched by Competitors
- User beneficial design Rear IO ports 90Whr Battery Slimmer chassis
- Smooth 240Hz OLED Visual Ultimate Eye Comfort

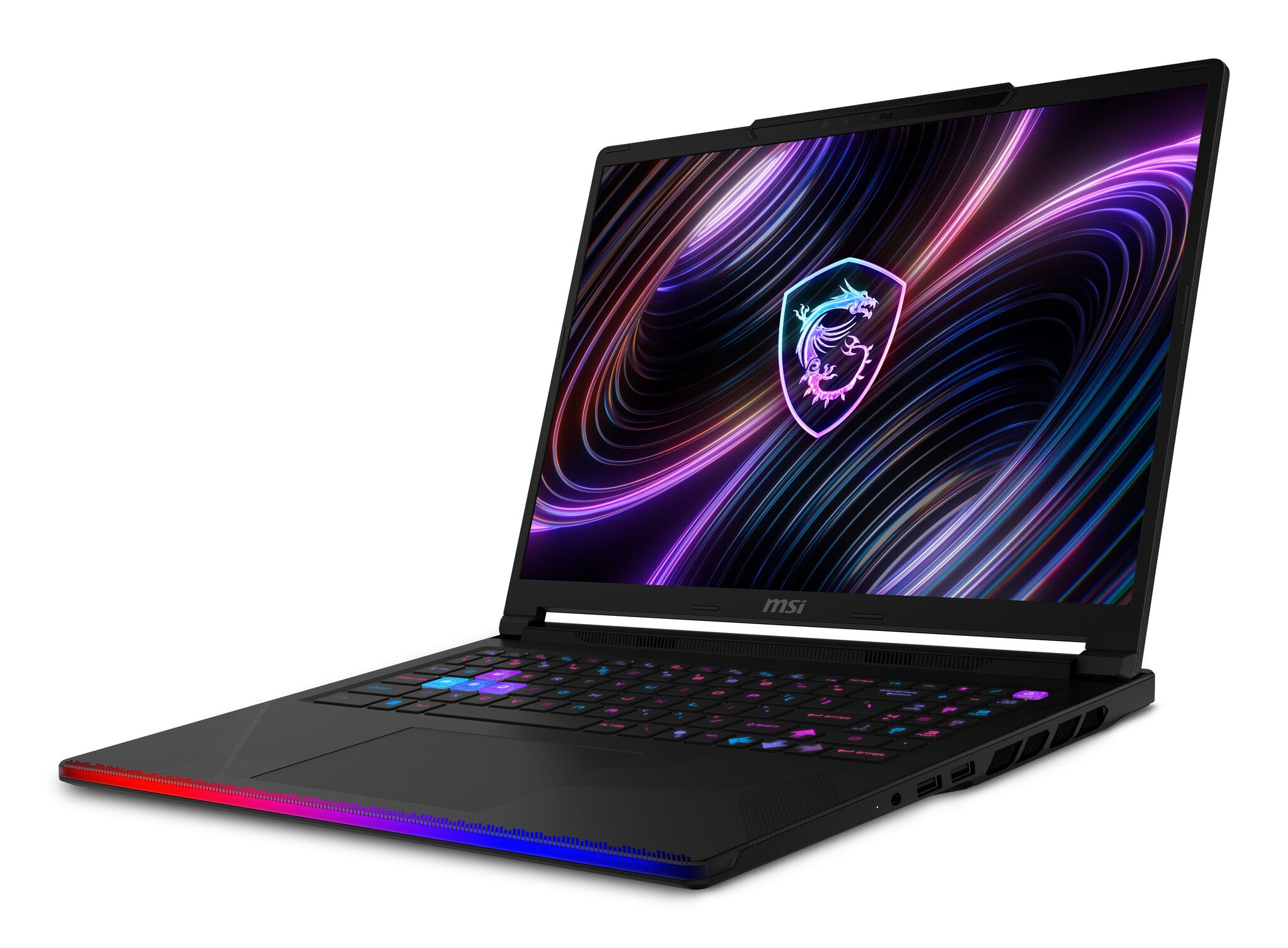

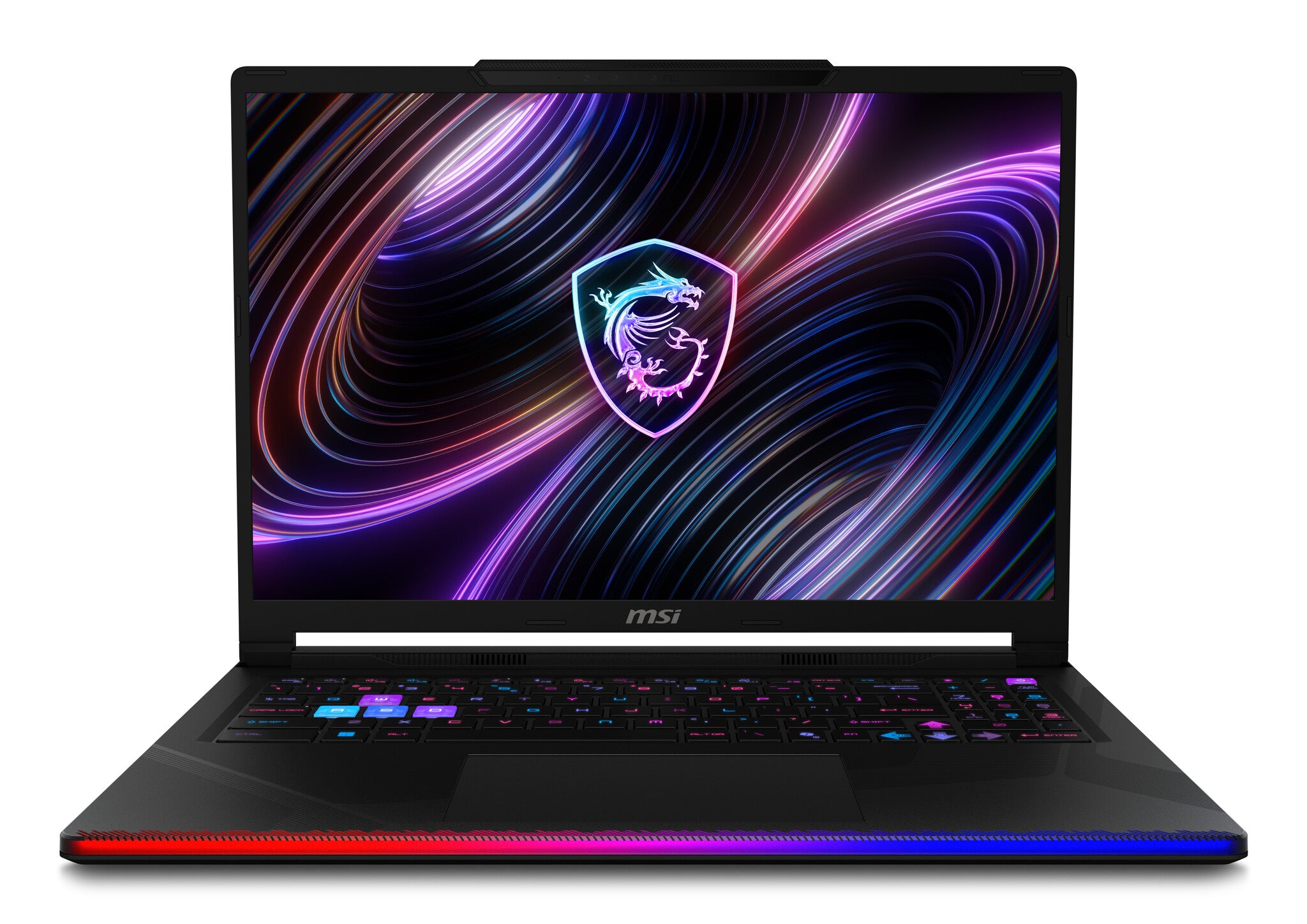

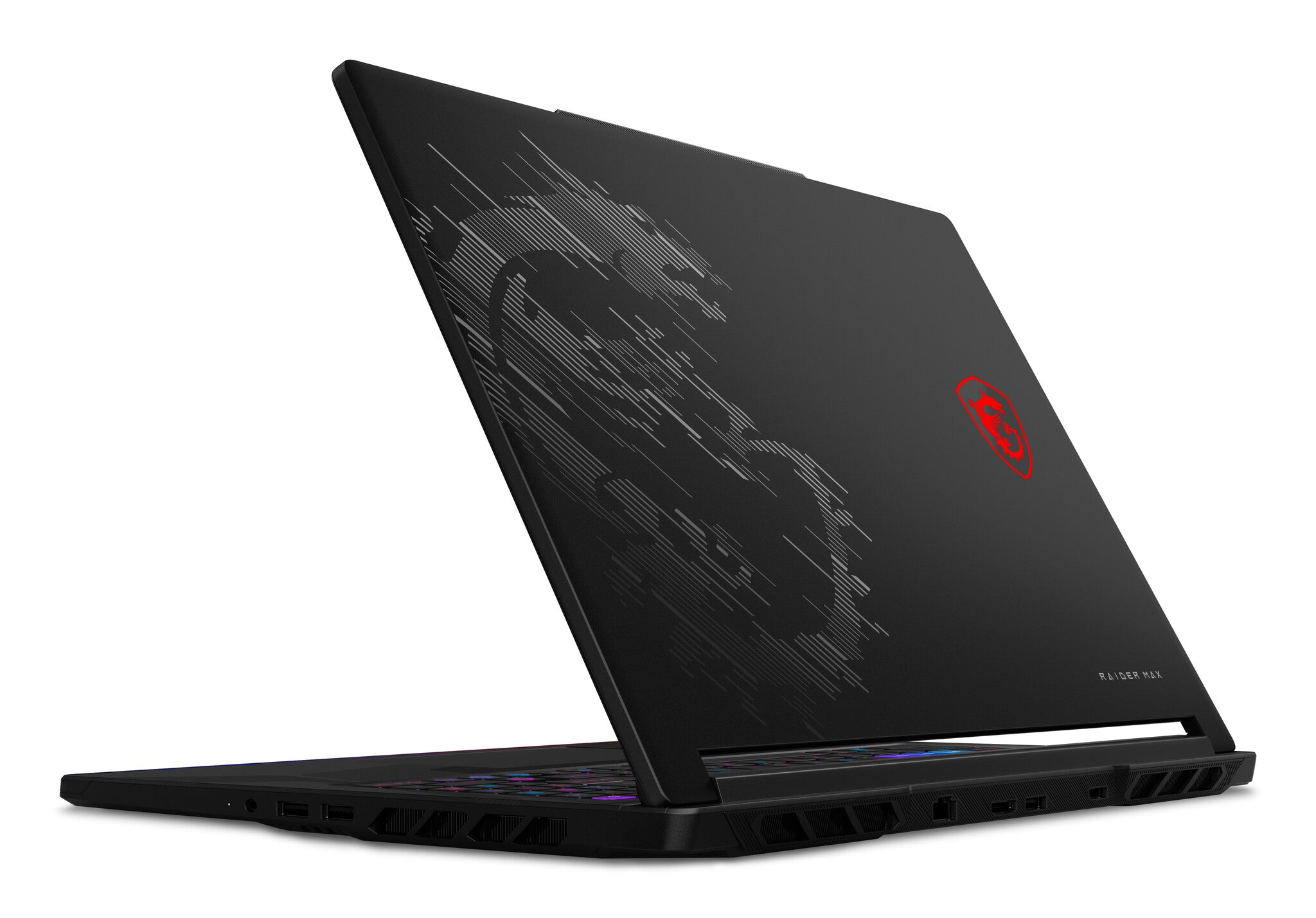

The MSI Raider 16 Max HX B2WJ-065UK is a high-performance 16-inch gaming laptop powered by an Intel® Core™ Ultra 9 290HX Plus processor and NVIDIA® GeForce RTX™ 5090 Laptop GPU. It features a QHD+ 240Hz OLED display, 32GB DDR5 memory and a 2TB SSD for smooth gaming, content creation and demanding AI workloads. With up to 300W combined CPU and GPU power, advanced cooling, Wi-Fi 7 and Thunderbolt™ 4 connectivity, it delivers flagship performance in a premium portable design.
| Design |
|---|
| Product type |
Laptop |
| Product colour |
Black |
| Colour name |
Core Black |
| Form factor |
Clamshell |
| Country of origin |
China |
| Original brand name |
MSI |
| Display |
|---|
| Display diagonal |
40.6 cm (16") |
| Display resolution |
2560 x 1600 pixels |
| Touchscreen |
No |
| HD type |
Quad HD+ |
| Panel type |
OLED |
| Native aspect ratio |
16:10 |
| Anti-glare screen |
Yes |
| Colour gamut |
100% |
| RGB colour space |
DCI-P3 |
| Maximum refresh rate |
240 Hz |
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Core Ultra 9 |
| Processor generation |
Intel Core Ultra (Series 2) |
| Processor model |
290HX Plus |
| Processor cores |
8 |
| Processor threads |
24 |
| Processor boost frequency |
5.5 GHz |
| Processor frequency |
2.9 GHz |
| Performance cores |
8 |
| Efficient cores |
16 |
| Performance-core Max Turbo Frequency |
5.5 GHz |
| Efficient-core Max Turbo Frequency |
4.7 GHz |
| Performance-core base frequency |
2.7 GHz |
| Efficient-core base frequency |
1.8 GHz |
| Processor cache |
36 MB |
| Processor cache type |
Smart Cache |
| Maximum turbo power |
160 W |
| Processor base power |
55 W |
| Neural processor unit (NPU) |
|---|
| Neural processor unit (NPU) |
Intel AI Boost |
| Sparsity support |
Yes |
| Windows Studio effects support |
Yes |
| AI software frameworks supported by NPU |
OpenVINO, Windows ML, DirectML, ONNX RT |
| Total processor performance up to |
36 TOPs |
| NPU performance up to |
13 TOPs |
| GPU performance up to |
8 TOPs |
| Memory |
|---|
| Internal memory |
32 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory clock speed |
5600 MHz |
| Memory slots |
2x SO-DIMM |
| Storage |
|---|
| Total storage capacity |
2 TB |
| Storage media |
SSD |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD capacity |
2 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| Optical drive type |
No |
| Card reader integrated |
Yes |
| Compatible memory cards |
SD |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Discrete graphics card |
Yes |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card model |
NVIDIA GeForce RTX 5090 |
| Discrete graphics card memory |
24 GB |
| Discrete graphics memory type |
GDDR7 |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® Graphics |
| On-board graphics card model |
Intel® Graphics |
| Audio |
|---|
| Audio system |
Nahimic 3 |
| Number of built-in speakers |
4 |
| Speaker power |
2 W |
| Built-in subwoofer |
Yes |
| Camera |
|---|
| Front camera |
Yes |
| Front camera HD type |
Full HD |
| Video capturing speed |
30 fps |
| Infrared (IR) camera |
Yes |
| Privacy camera |
Yes |
| Privacy type |
Privacy shutter |
| Network |
|---|
| Mobile network connection |
No |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| WLAN controller manufacturer |
Killer |
| WLAN controller model |
Killer Wi-Fi BE1750x |
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
2500 Mbit/s |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity |
3 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| Thunderbolt 5 ports quantity |
2 |
| Intel® Thunderbolt 5 |
Yes |
| Combo headphone/mic port |
Yes |
| Performance |
|---|
| Motherboard chipset |
Intel SoC |
| Keyboard |
|---|
| Pointing device |
Touchpad |
| Keyboard backlit |
Yes |
| Numeric keypad |
Yes |
| Keyboard backlit zone |
Per-key RGB |
| Keyboard backlit colour |
RGB |
| Copilot key |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Home |
| Battery |
|---|
| Battery capacity |
90 Wh |
| Power |
|---|
| Required charging power (max) |
140 W |
| Required charging power (min) |
120 W |
| USB Type-C charging port |
Yes |
| USB Power Delivery (USB PD) |
Yes |
| Security |
|---|
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Weight & dimensions |
|---|
| Weight |
2.6 kg |
| Width |
363 mm |
| Depth |
269.7 mm |
| Height |
20 mm |
| Height (front) |
2.19 cm |
| Height (rear) |
2.88 cm |
| Packaging data |
|---|
| Package width |
453 mm |
| Package depth |
116 mm |
| Package height |
343 mm |
| Package weight |
500 g |
| General |
|---|
| Product family |
Raider |
| Packaging content |
|---|
| AC adapter included |
Yes |
| Power cord included |
Yes |
| Logistics data |
|---|
| Commodity Classification Automated Tracking System (CCATS) |
8471300000 |
| Other features |
|---|
| Warranty period |
2 year(s) |
