INTEL 14TH GEN CORE i5 PC - DP21 14M is a compact (2.3L) mini PC featuring an Intel 14th Gen. Core i5-14400 processor with 20-core / 28-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo); Windows 11 Pro software pre-installed
16GB RAM, UHD GRAPHICS - The system includes 16GB of pre-installed DDR5 memory (2 x SO-DIMMs up to 64GB) and supports 4K display at up to 60Hz - ideal for watching hi-res movies
The rear I/O includes HDMI 2.0 & DP 1.4 ports for dual monitor setups
1TB PCIe M.2 SSD STORAGE- 512GB of pre-installed PCIe M.2 SSD storage ensures faster loading speeds (supports up to 2 x 2.5" HDD/SSD & 1 x M.2 with auto switch)
The dTPM2.0 (Trusted Platform Module 2.0) technology provides security for storing sensitive data & passwords
A server-grade thermal module distributes the cooling of different components within the system
MSI Power Meter & MSI AI Engine - Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
"MSI PRO DP21 14M Mini PC (SFF):

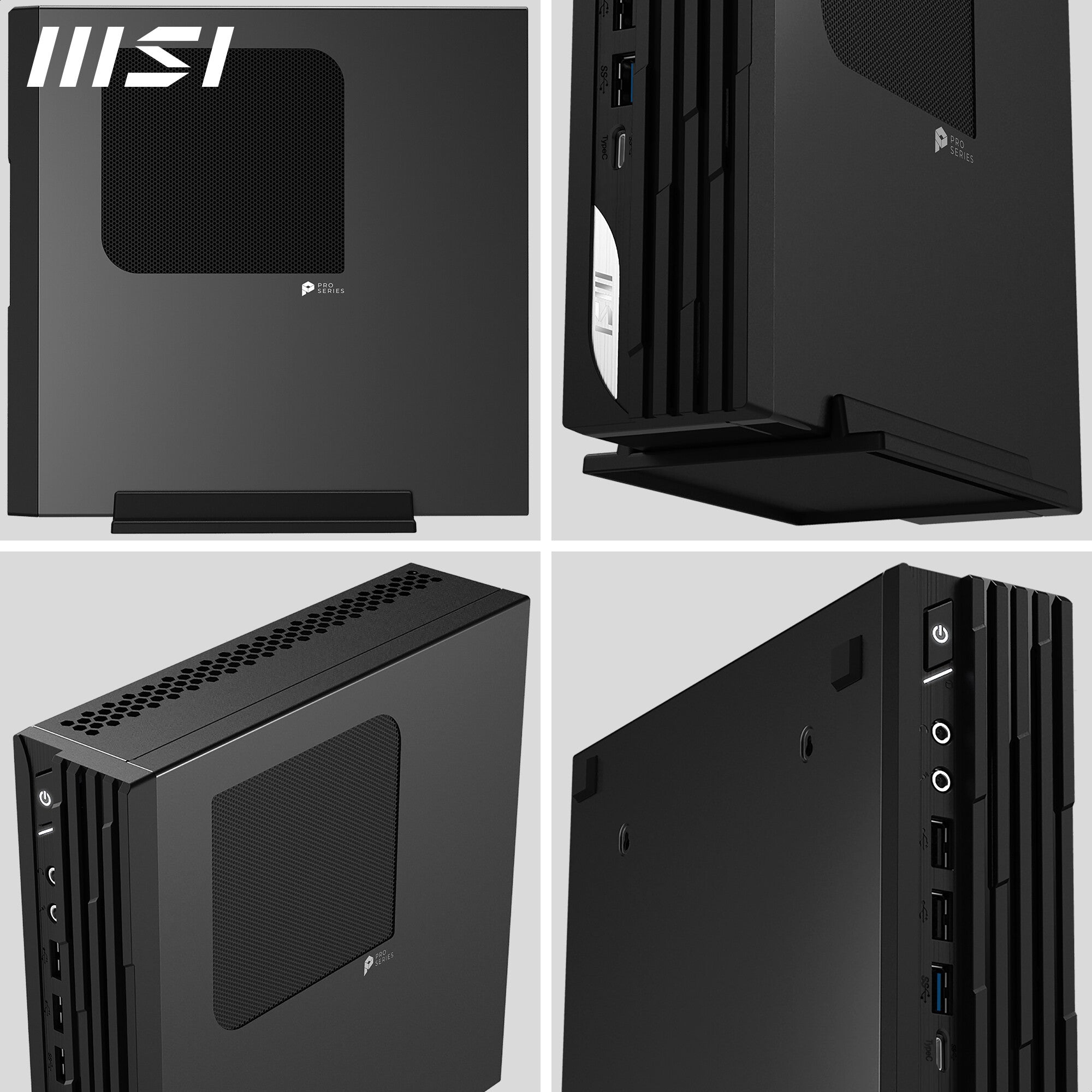

The MSI PRO DP21 14M is a small yet powerful mini-desktop with a compact 2.3L design suitable for commercial office work.
The PRO DP21 14M I5 14400 FS 16GB 512GB W11P is a complete system equipped with an Intel 14th Gen Core i5-14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo), 16GB DDR5 memory, 512GB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity. Windows 11 Pro software is pre-installed.
The easy-to-upgrade SFF case can house both M.2 (with auto switch) & 2 x 2.5-inch SSD/HDD storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMMs)

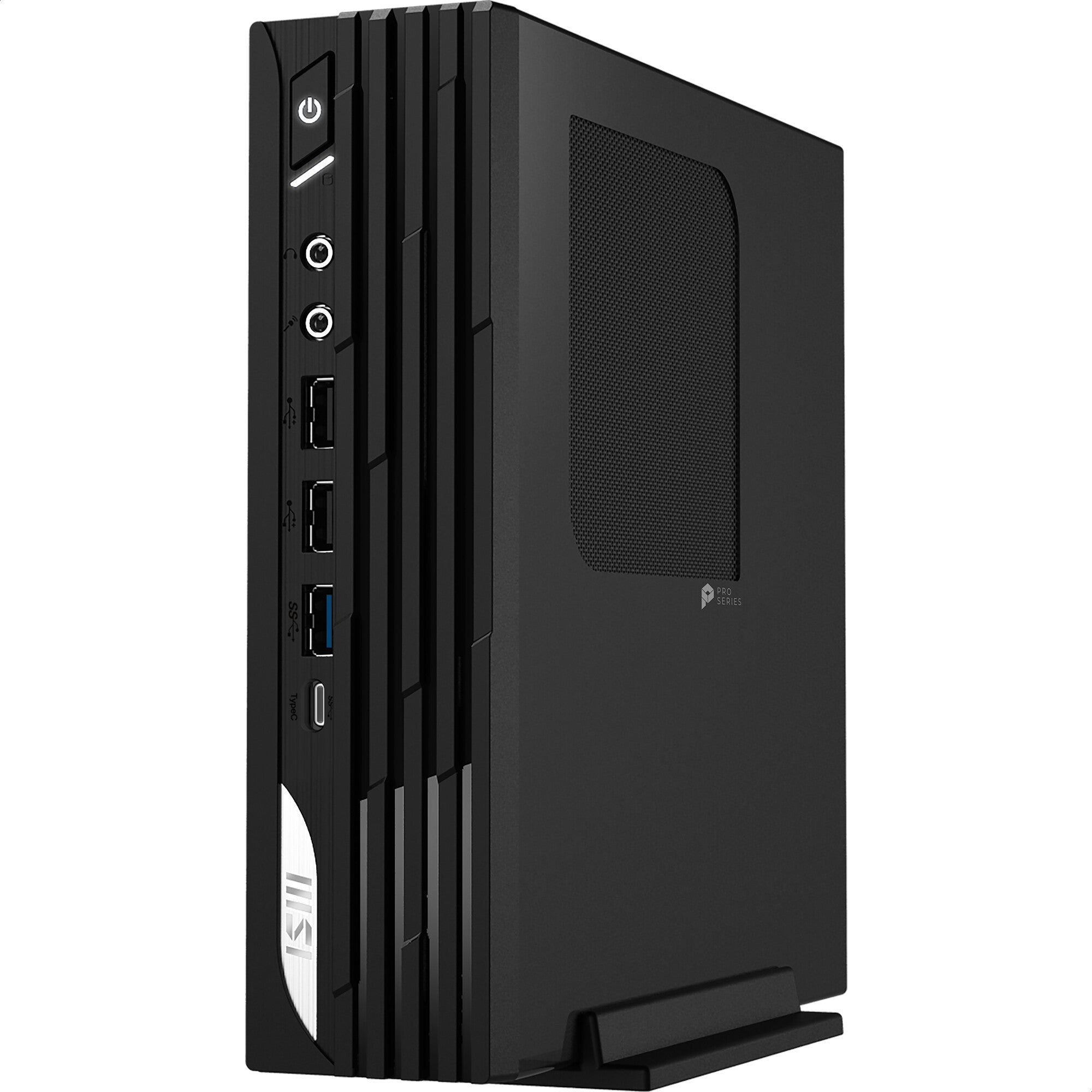

Front & rear I/O include Intel 1Gbps ethernet LAN RJ45, Mic-in, Headphones-out, 8 x USB (10Gbps Type-A & C, 5Gbps Type-A & C, 2.0 Type-A), and HDMI 2.1 & DP 1.4 ports. The PRO DP21 14M also contains a COM port for connecting to POS devices. dTrusted Platform Module 2.0 (dTPM2.0) technology provides security for storing sensitive information."
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
Intel® Core™ i5 (14th gen)
Processor model
i5-14400
Processor cores
10
Processor threads
16
Processor boost frequency
4.7 GHz
Processor frequency
2.5 GHz
Performance cores
6
Efficient cores
4
Performance-core Max Turbo Frequency
4.7 GHz
Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.8 GHz
Processor cache
20 MB
Processor cache type
Smart Cache
Number of processors installed
1
Maximum turbo power
148 W
Processor base power
65 W
Neural processor unit (NPU)
Neural processor unit (NPU)
No
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory data transfer rate
5600 MT/s
Buffered memory type
Clocked unregistered (unbuffered)
Memory channels
Dual-channel
Non-ECC
Yes
ECC
No
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
3
Total HDDs capacity
0 GB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
512 GB
NVMe
Yes
SSD interface
PCI Express 3.0
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card memory
0 GB
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics
On-board graphics card cores
24
On-board graphics card 6K support
No
On-board graphics card 8K support
Yes
Number of external displays supported
2
Graphics card Open GL support
Yes
AMD FreeSync
No
Ray tracing acceleration
No
CUDA
No
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
Graphics card DisplayPorts quantity
1
Graphics card HDMI ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
1
USB 3.2 Gen 1 (3.1 Gen 1) Type-C ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
1
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
Intel® Thunderbolt 4
No
Intel® Thunderbolt 5
No
DVI port
No
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Headphone outputs
1
Line-in
Yes
Line-out
Yes
Combo headphone/mic port
No
S/PDIF out port
No
DC-in jack
Yes
Fiber NIC port (Flex I/O)
No
Number of front audio ports
2
Number of front USB ports
4
Number of rear USB ports
4
Expansion slots
PCI Express x1 slots
1
Design
Chassis type
SFF
Colour name
Black
Volume
2.6 L

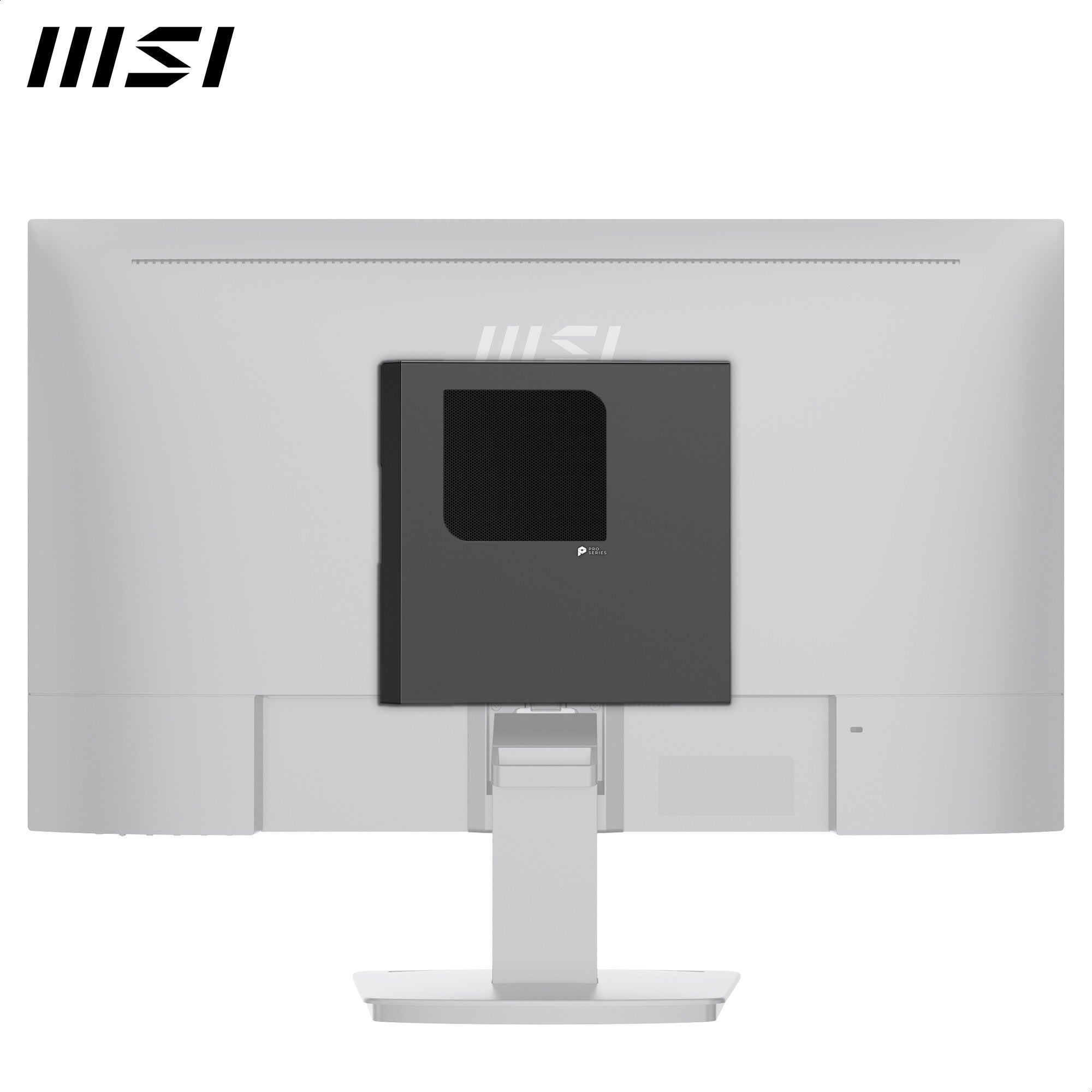

VESA mounting
Yes
Placement supported
Horizontal/Vertical
Water cooling system
No
Number of 2.5" bays
2
Cable lock slot
Yes
Cable lock slot type
Kensington
Copilot key
No
Product colour
Black
Introduction month
June
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Country of origin
China
Refurbished
No
Certified refurbished
No
Performance
Product type
Mini PC
Market positioning
Business
Powered by
MSI
Virtual Reality (VR) ready
No
Motherboard chipset
Intel H610
Motherboard form factor
micro ATX
Compatible processor series
Intel Core i5 14th Gen
Audio chip
Realtek ALC897
Audio system
High Definition Audio
Audio output channels
2.1 channels
Built-in speaker(s)
No
Password protection
Yes
Password protection type
BIOS, User
Fingerprint reader
No
BIOS type
UEFI
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Sound pressure level
28 dB
Software
Operating system installed
Windows 11 Pro
Copilot+ PC
No
Operating system architecture
64-bit
Windows 11 free upgrade
Yes
Operating system language
English
Apple Intelligence
No
Drivers included
Yes
Power
Power supply
120 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power consumption (max)
95 W
Power consumption (standby)
8 W
Power consumption (typical)
35 W
80 PLUS certification
No
USB Type-C output power
15 W
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%
Operating vibration
0.25 G
Non-operating vibration
0.5 G
Operating shock
10 G
Non-operating shock
60 G
Certificates
PSTI certified
No
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CE, Federal Communications Commission (FCC), RoHS
Low halogen
No
Weight & dimensions
Width
204 mm
Depth
208 mm
Height
54.8 mm
Weight
1.27 kg
Package width
271 mm
Package depth
382 mm
Package height
122 mm
Package weight
2.8 kg
Packaging content
Display included
No
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Power cable length
1.5 m
Cables included
AC
VESA mount included
No
Screws included
No
Manual
Yes
General
Product family
Pro
Technical details
Dangerous goods
No
Statement of conformance & platform certificate included
