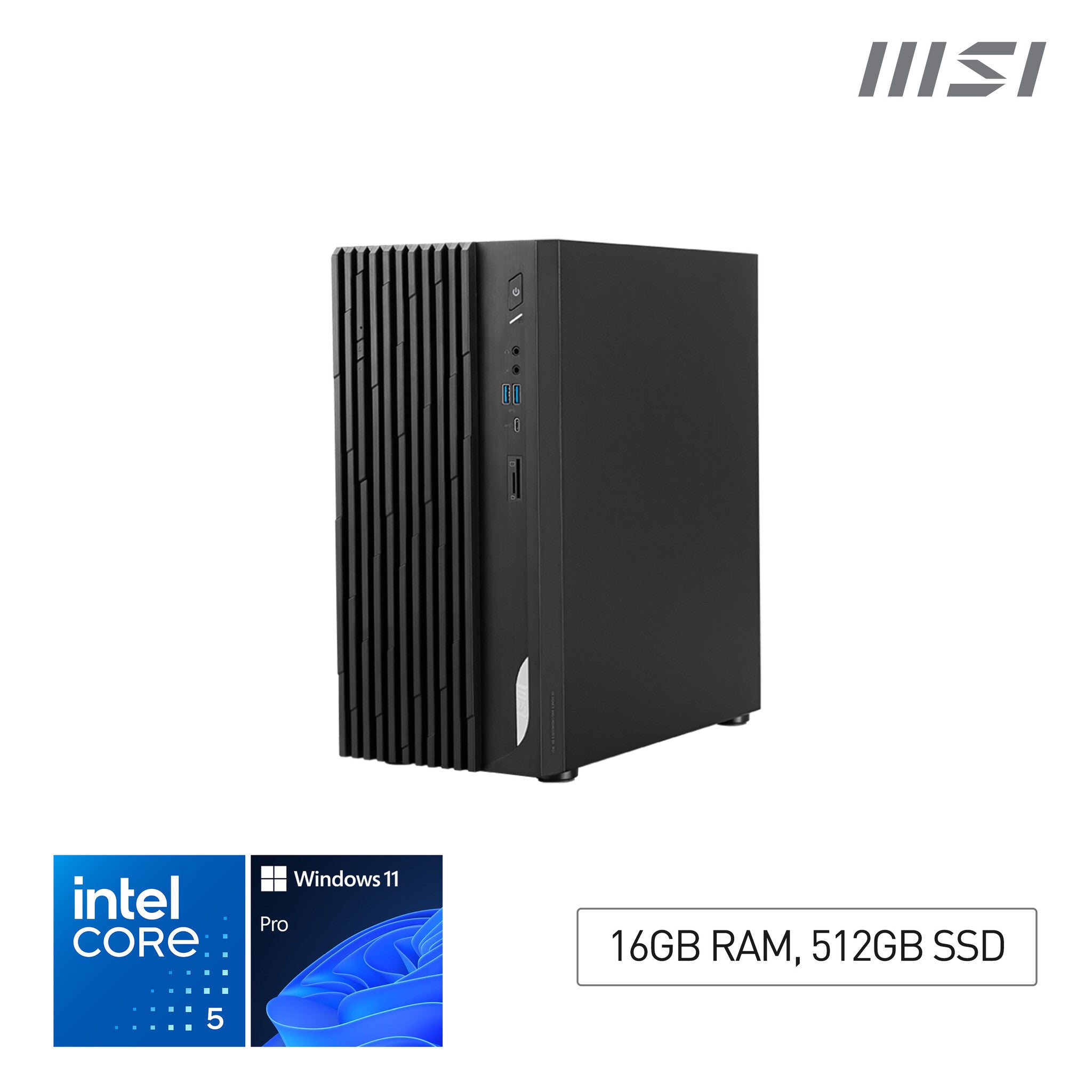

MSI PRO DP180 14A Mid-Tower PC - Intel Core i5 processor 14400 CPU, 16GB DDR5 5600Hz Memory, 512GB M.2 SSD Storage, 1 x USB (10Gbps), 3 x USB (5Gbps), 4 x USB 2.0, 1 x COM Port, 1 x Card Reader (Support SD & Micro SD Card), HDMI 2.1, DP 1.4 & D-Sub (VGA), Wi-Fi 6E, Bluetooth 5.3 - Black, Windows 11 Pro
INTEL 14TH GEN CORE i5 Mid-tower PC - The PRO DP180 14A is a Mid-tower PC featuring an Intel 14th Gen. Core i5 Processor 14400 processor with 10-core / 16-thread architecture (2.1GHz base frequency, 5.4GHz max. turbo) with Windows 11 Pro software pre-installed
16GB RAM, NVIIDIA GRAPHICS - The system includes 16GB of pre-installed DDR5-5600 memory (2 x U-DIMMs up to 64GB) and supports 8K UHD display - ideal for watching movies & content creation; Includes HDMI 2.1, DP 1.4, and D-Sub ports for multiple monitor setups
512GB M.2 SSD STORAGE, VESA MOUNTABLE - 512GB of pre-installed M.2 SSD storage ensures faster loading speeds (supports 1 x 2.5" HDD/SSD & 1 x 3.5" HDD)

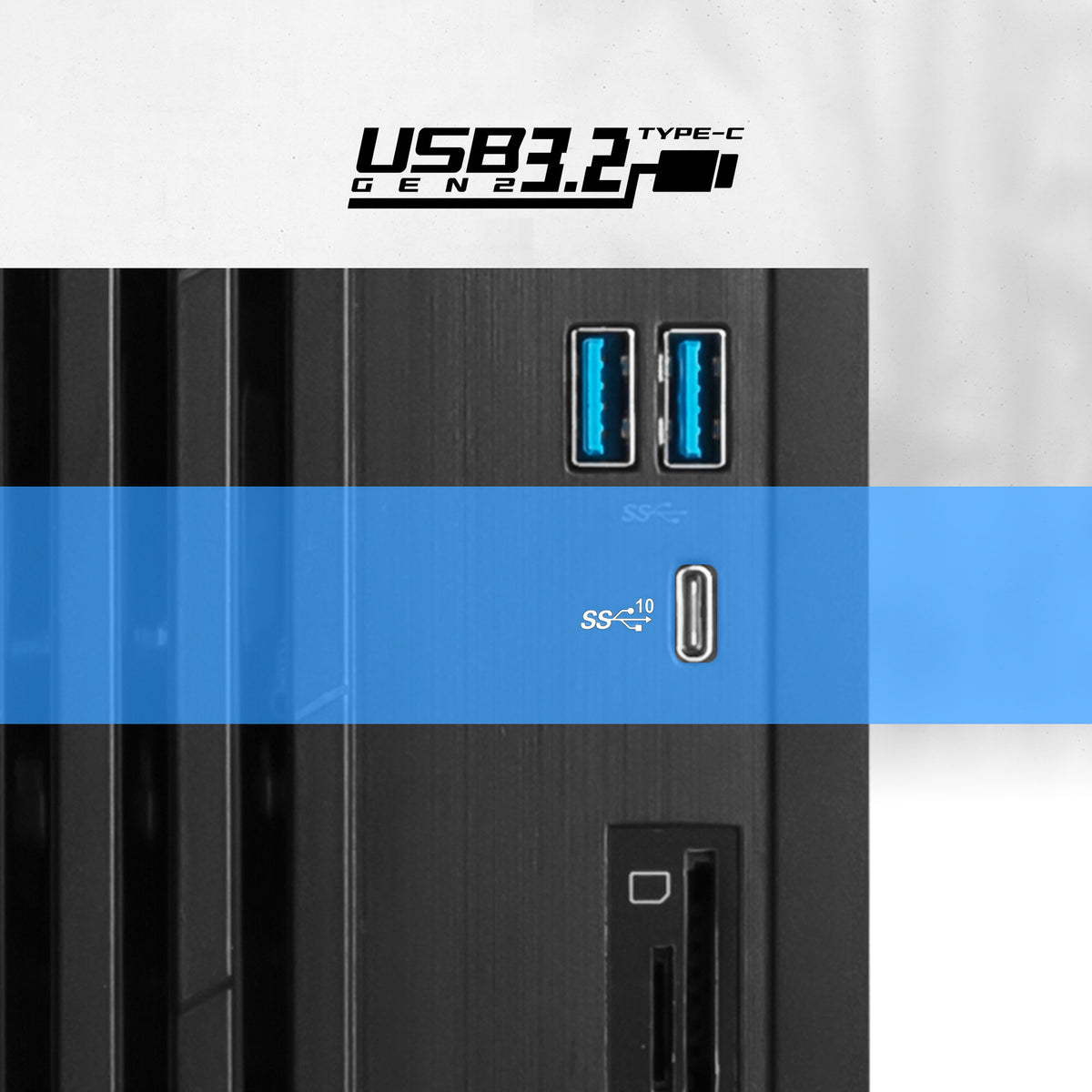

CONVENIENT & QUIETLY EFFICIENT - The front I/O panel features 1x USB 3.2 Gen 2 Type C, 2x USB 3.2 Gen 1 Type A, 1x Mic-in, 1x Headphone-out, 1x Card Reader (Support SD & Micro SD Card) ports; The 18L Mid-tower case incorporates an efficient thermal design & low-noise fan for a whisper-quiet 28 dBA noise level during idle modeWI-FI 6E & BLUETOOTH 5.3 - Network connectivity includes an Intel Wi-Fi 6E AX211 LAN (up to 2.4Gbps), Bluetooth 5.3, and dual LAN (1G & 2.5G Ethernet LAN)
WI-FI 6E & BLUETOOTH 5.3 - Network connectivity includes an Intel Wi-Fi 6E AX211 LAN (up to 2.4Gbps), Bluetooth 5.3, and dual LAN (1G & 2.5G Ethernet LAN)

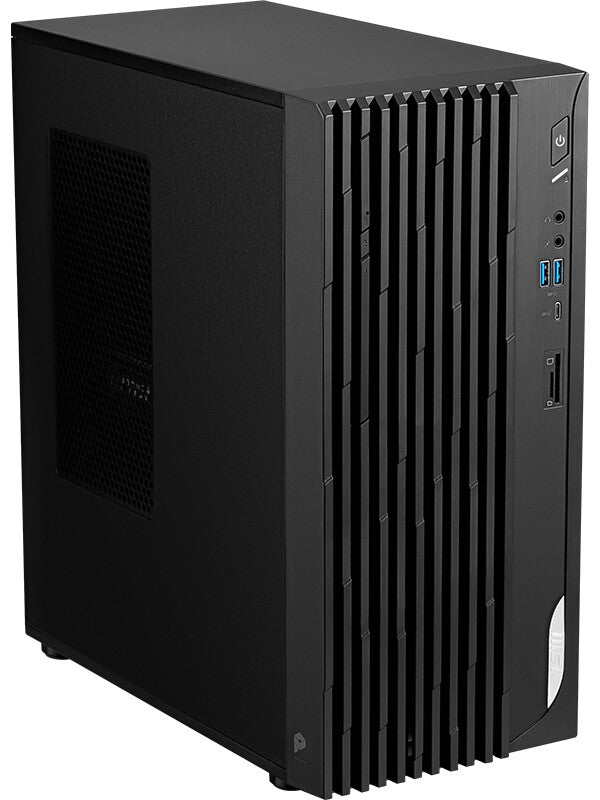

"PRO DP180 14A: The Powerful Mid-tower PC
The MSI PRO DP180 14A is a mid-toer yet powerful desktop with an incredible 18L design suitable for commercial office work or use as a home-theatre/entertainment PC (4K 60Hz display output, and it supports NVIDIA Graphics card which supports up to four-monitor setups).
The PRO DP180 14A-xxxEU- is a complete system equipped with an Intel 14th Gen Core i5 Processor 14400 processor, 16 GB of DDR5-5600MHz memory, 512GB of M.2 SSD storage, Intel Wi-Fi 6E & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

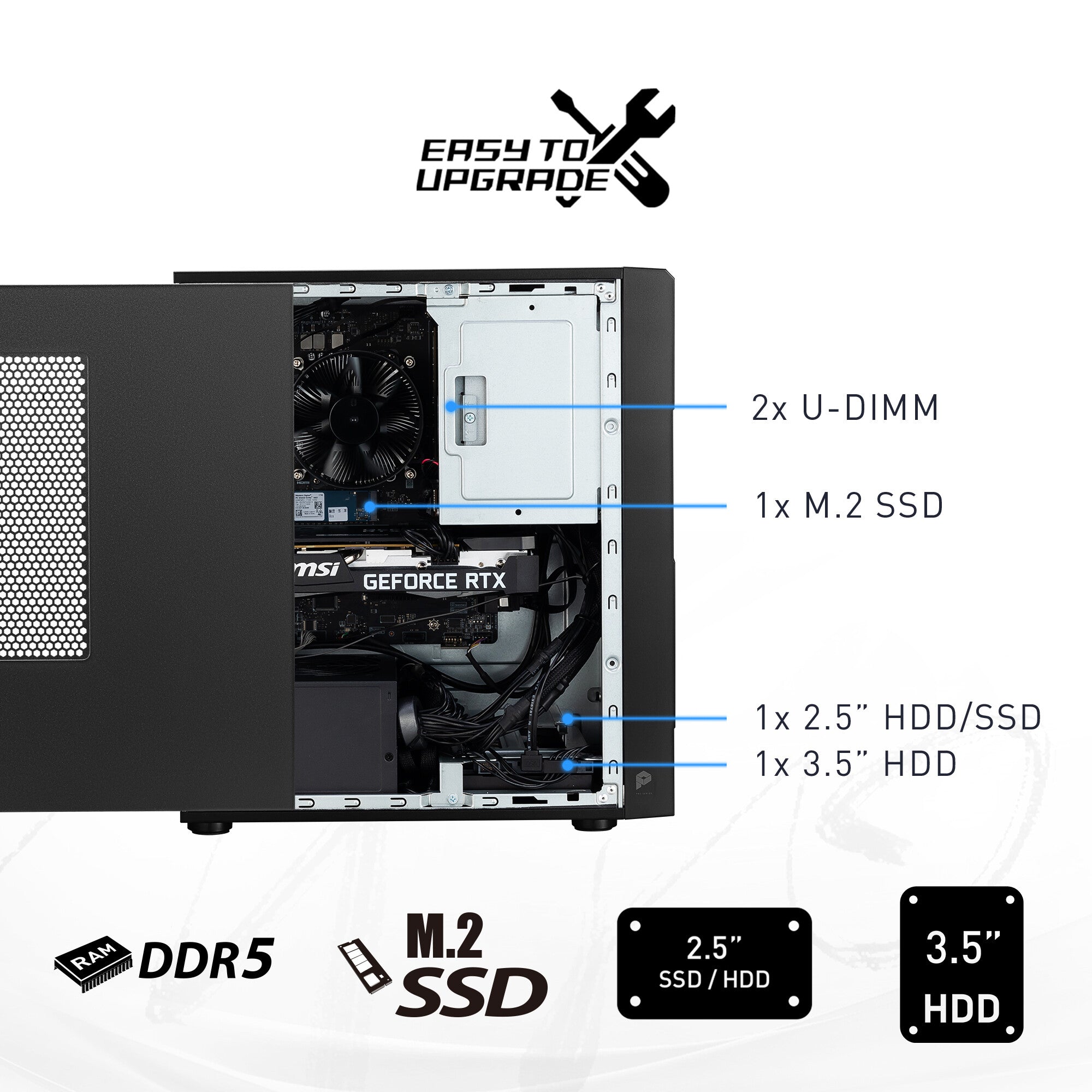

The easy-to-upgrade mid-tower case can house both M.2 (with auto switch), 2.5-in SSD/HDD, and 3.5-inch HDD storage, as well as up to 64 GB of system memory (2 x DDR5 5600MHz U-DIMMs).
Thanks to its cooling-optimized layout and low-noise fan, the MSI PRO DP180 14A is not only an energy-efficient computing solution but is also very quiet, running at a whisper-level 28 dBA while in idle mode.

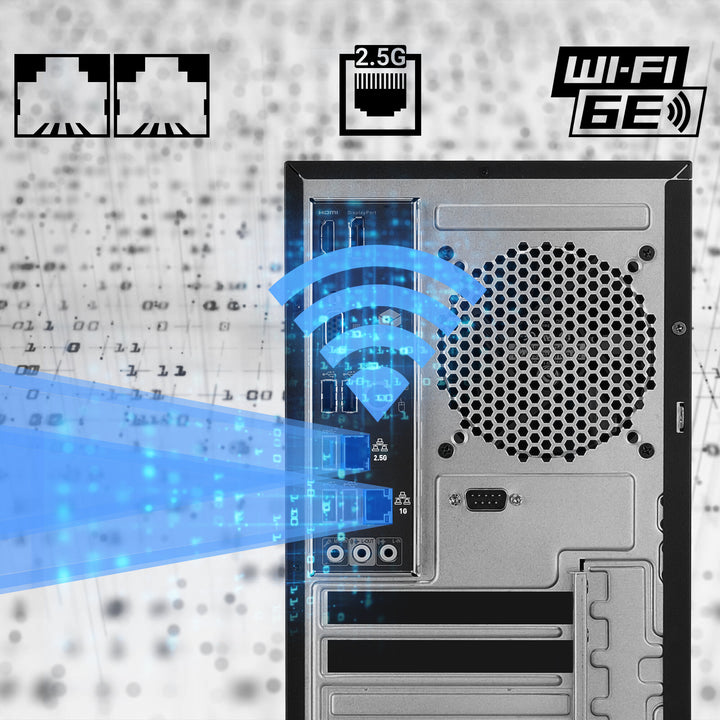

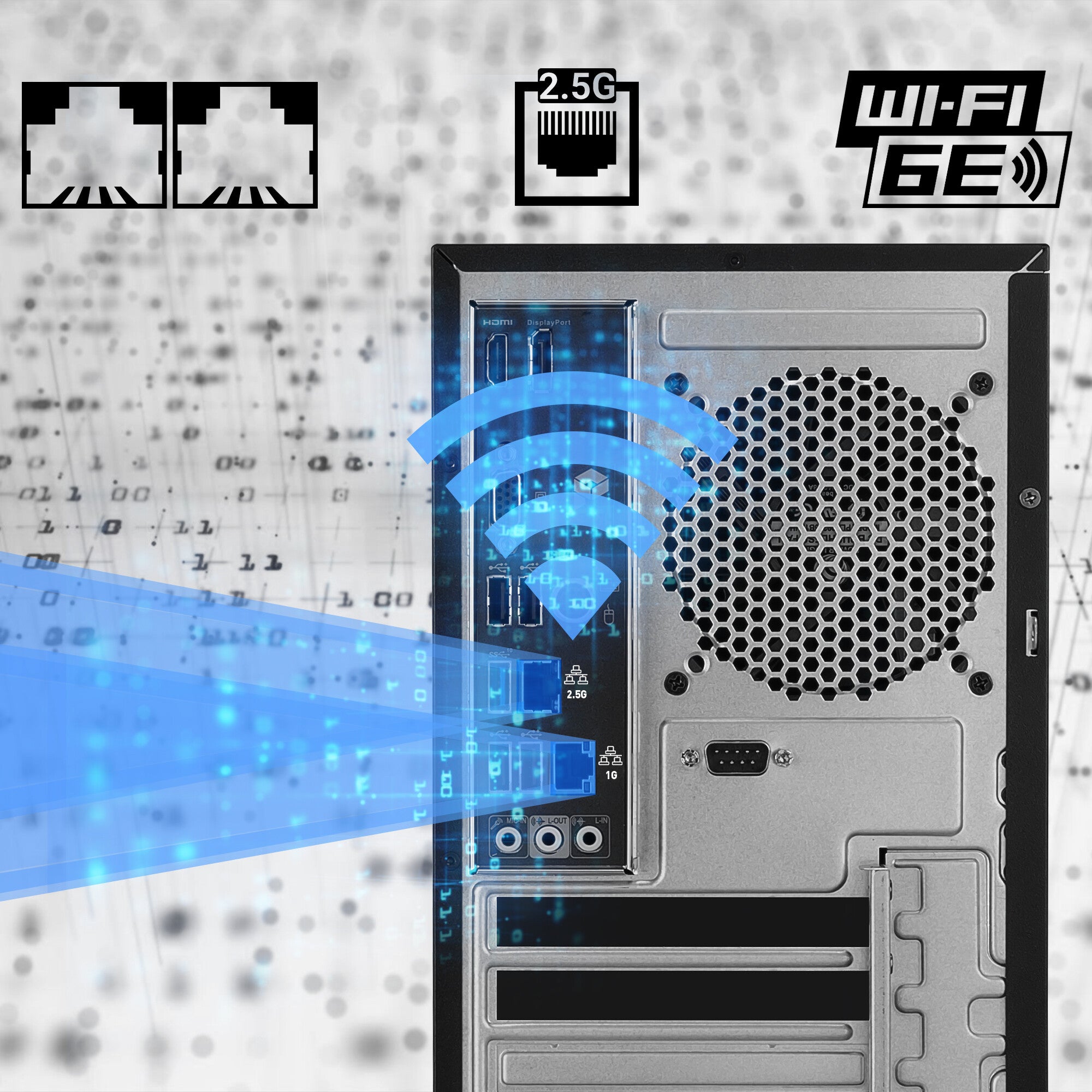

Front & rear I/O include dual LA (1G & 2.5Gbps Ethernet LAN), Mic-in and Headphones-out combo design, built-in card reader (SD & Micro SD card), 1 x USB 3.2 Gen 2 Type-C, 3 x USB 3.2 Gen 1 Type-A, and 4 USB 2.0 ports."
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i5
Processor generation
Intel® Core™ i5 (14th gen)
Processor model
i5-14400
Processor cores
10
Processor threads
16
Processor boost frequency
4.7 GHz
Processor frequency
2.5 GHz
Performance cores
6
Efficient cores
4
Performance-core Max Turbo Frequency
4.7 GHz
Efficient-core Max Turbo Frequency
3.5 GHz
Performance-core base frequency
2.5 GHz
Efficient-core base frequency
1.8 GHz
Processor cache
20 MB
Processor cache type
Smart Cache
Number of processors installed
1
Maximum turbo power
148 W
Processor base power
65 W
Neural processor unit (NPU)
Neural processor unit (NPU)
No
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5600 MHz
Memory data transfer rate
5600 MT/s
Buffered memory type
Clocked unregistered (unbuffered)
Memory channels
Dual-channel
Non-ECC
Yes
ECC
No
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
1
Total HDDs capacity
0 GB
SSD memory type
TLC
SSD capacity
512 GB
NVMe
Yes
SSD interface
PCI Express 3.0
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
Discrete graphics card memory
0 GB
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel UHD Graphics 730
On-board graphics card cores
24
On-board graphics card 6K support
No
On-board graphics card 8K support
Yes
Number of external displays supported
3
Graphics card Open GL support
Yes
AMD FreeSync
No
Ray tracing acceleration
No
CUDA
No
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
Graphics card DisplayPorts quantity
1
Graphics card HDMI ports quantity
1
Network
Ethernet LAN
Yes
Ethernet LAN data rates
1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
PowerShare
No
USB Type-C DisplayPort Alternate Mode
No
Intel® Thunderbolt 4
No
Intel® Thunderbolt 5
No
VGA (D-Sub) ports quantity
1
DVI port
No
HDMI ports quantity
1
HDMI version
2.1
DisplayPorts quantity
1
DisplayPort version
1.4
PS/2 ports quantity
1
Ethernet LAN (RJ-45) ports
2
Microphone in
Yes
Headphone outputs
1
Line-in
Yes
Line-out
Yes
Combo headphone/mic port
No
S/PDIF out port
No
DC-in jack
No
Serial ports quantity
1
Fiber NIC port (Flex I/O)
No
Number of rear audio ports
3
Number of front audio ports
2
Number of front USB ports
3
Number of rear USB ports
5
Design
Chassis type
Mini Tower
Colour name
Black
VESA mounting
No
Placement supported
Vertical
Water cooling system
No
Number of 2.5" bays
1
Cable lock slot
Yes
Cable lock slot type
Kensington
Copilot key
No
Product colour
Black
Introduction month
June
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Country of origin
China
Refurbished
No
Certified refurbished
No
Performance
Product type
Mini PC
Market positioning
Business
Powered by
MSI
Virtual Reality (VR) ready
No
Motherboard chipset
Intel H610
Motherboard form factor
micro ATX
Compatible processor series
Intel Core i5 14th Gen
Audio chip
Realtek ALC897
Audio system
High Definition Audio
Audio output channels
7.1 channels
Built-in speaker(s)
No
Software
Operating system installed
Windows 11 Pro
Copilot+ PC
No
Operating system architecture
64-bit
Windows 11 free upgrade
No
Operating system language
English
Apple Intelligence
No
Drivers included
Yes
Power
Power supply
350 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Power consumption (standby)
8 W
Power consumption (typical)
35 W
80 PLUS certification
80 PLUS Bronze
Operational conditions
Operating temperature (T-T)
0 - 35 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
0 - 85%
Storage relative humidity (H-H)
0 - 90%
Certificates
PSTI certified
No
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CE, Federal Communications Commission (FCC)
Low halogen
No

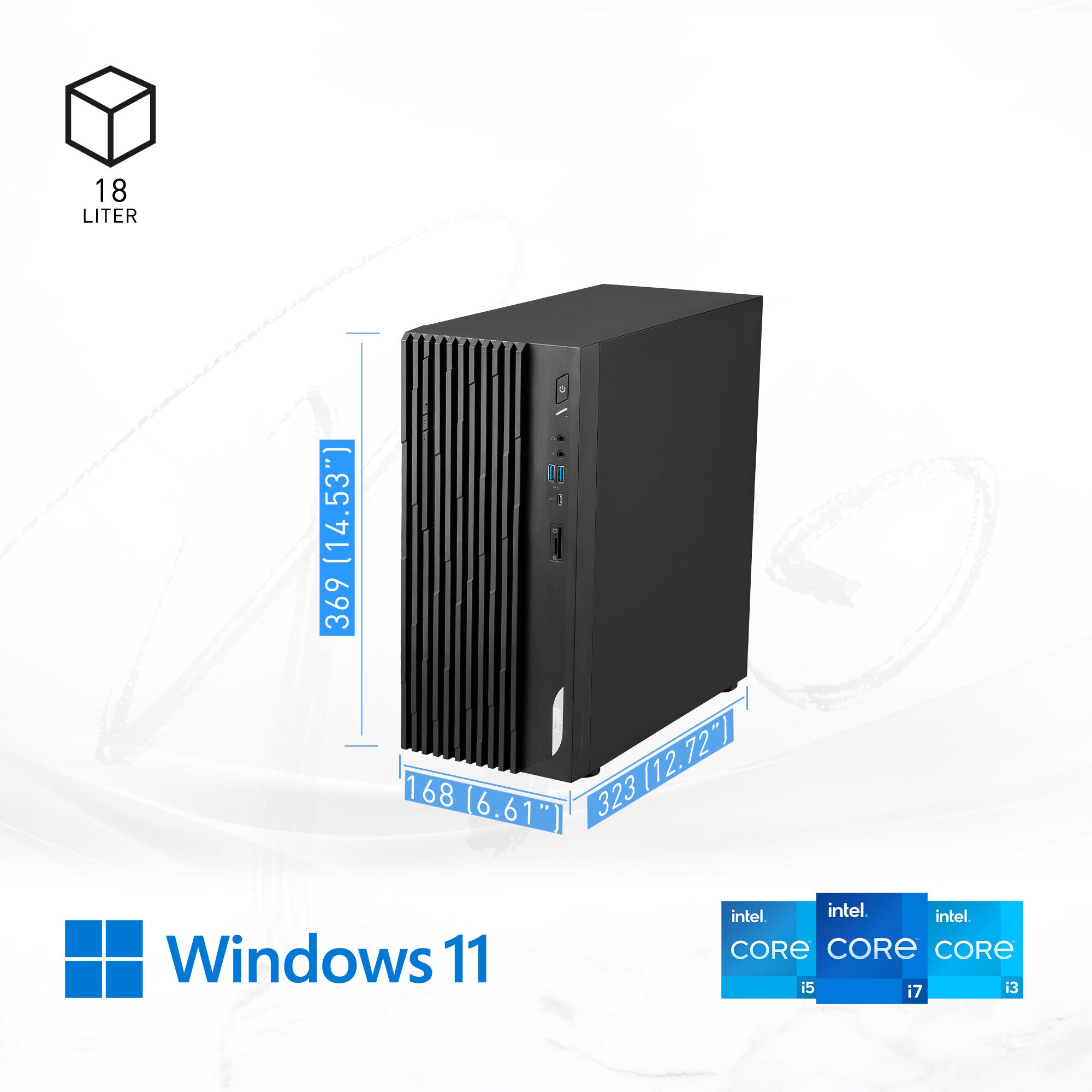

Weight & dimensions
Width
168 mm
Depth
323 mm
Height
369 mm
Weight
7.59 kg
Package width
565 mm
Package depth
242 mm
Package height
510 mm
Package weight
9.03 kg
Packaging content
Display included
No
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Power cable length
1.5 m
Cables included
AC
VESA mount included
No
Screws included
No
Manual
Yes
General
Product family
Pro
Technical details
Statement of conformance & platform certificate included
