Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X , 1TB M.2 SSD, USB 10Gbps Type A Ports, Thunderbolt 4 & HDMI 2.1, Wi-Fi 6E, Bluetooth 5.3 - Black, Windows 11 PRO NextGen Premium

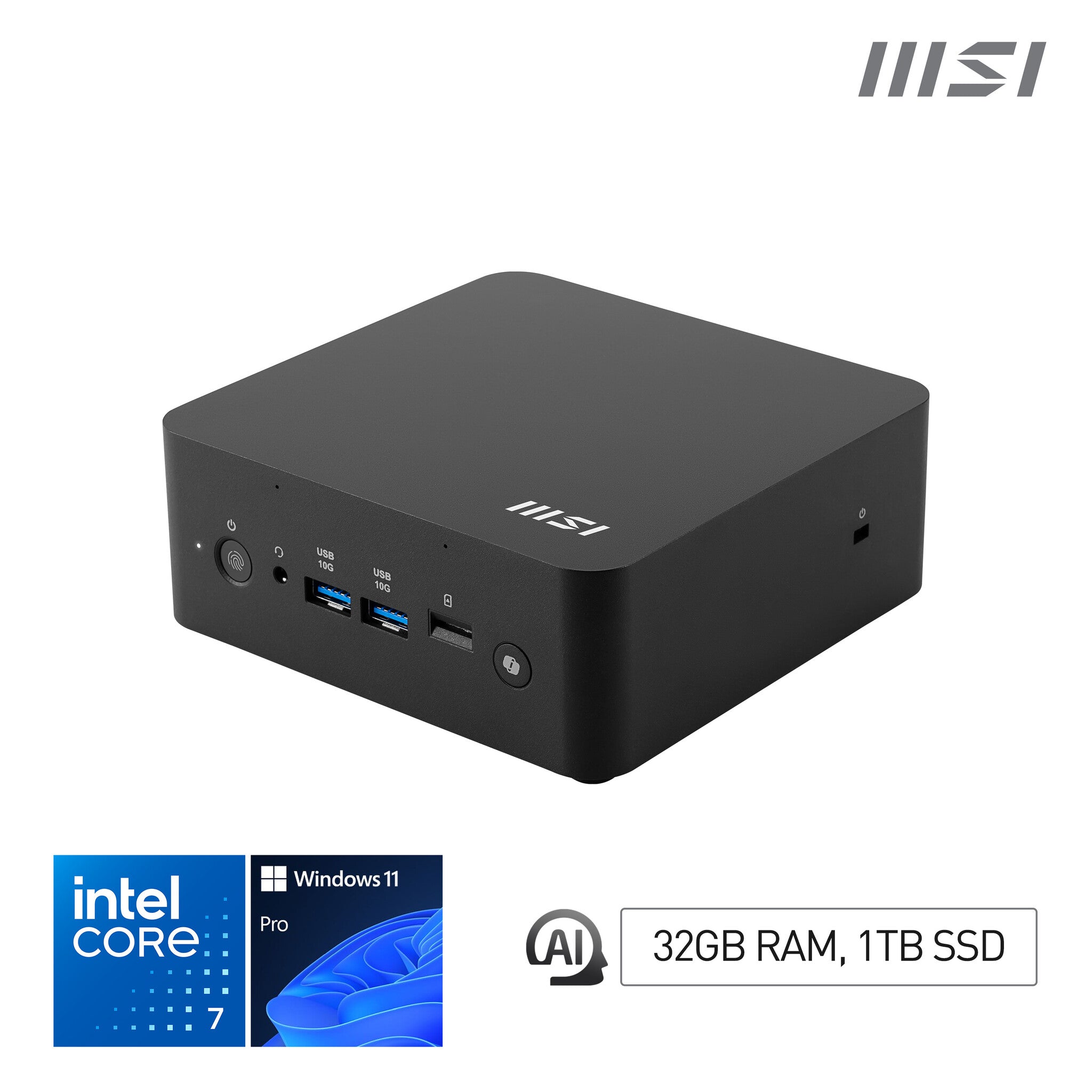

INTEL MINI PC - The CubiNUC AI+ 2MG is a palm-sized mini PC featuring an Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X, 1TB M.2 SSD Storage - Compact Case, Windows 11 Pro NextGen Premium software pre-installed
32GB RAM, Arc™ Graphics (Integrated) - The system includes 32GB of pre-installed LPDDR5X-8533 MT/s memory
Thunderbolt 4 and HDMI 2.1 support 3 monitor setups with 4K display - ideal for watching movies
The front I/O panel features 2x USB 10Gbps Type A. The compact 0.826L SFF case incorporates an MSI Frozr AI PRO thermal design & low-noise fan. Included a Power Button with Fingerprint Security Design
WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 , and dual 2.5G ethernet LAN ports; dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords

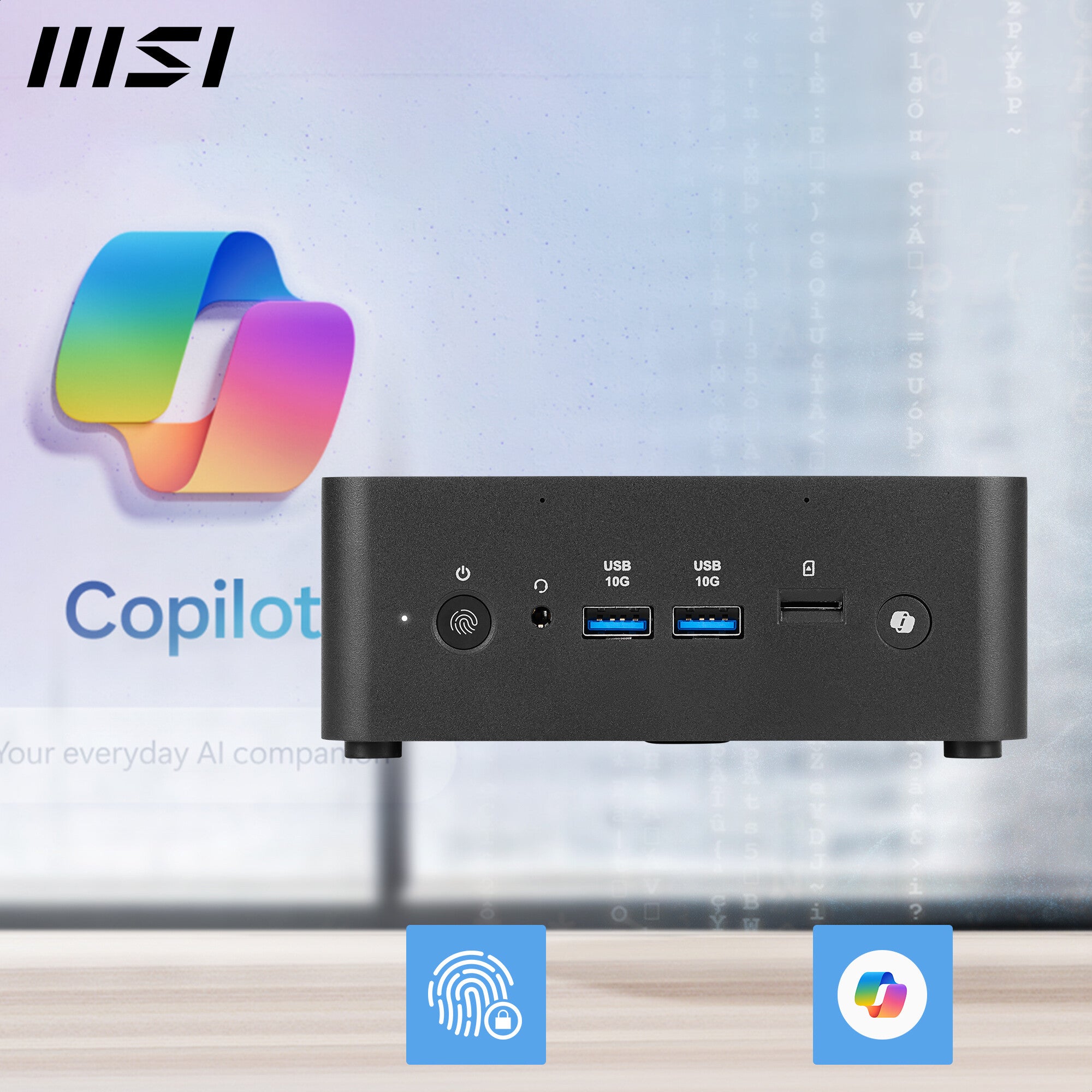

"Cubi NUC AI+ 2MG: The Sustainable Coiplot+ PC
The MSI Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 7 processor 258V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

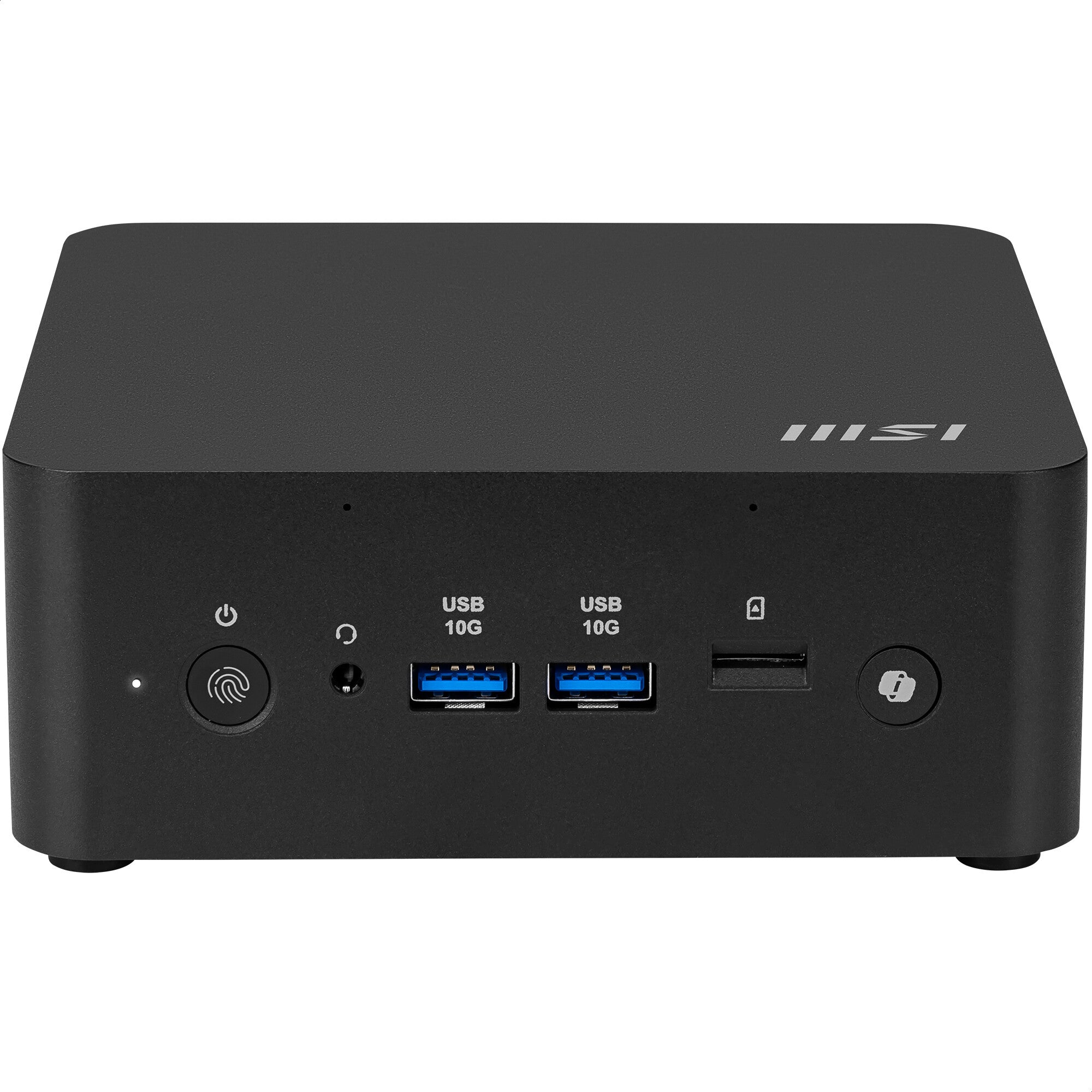

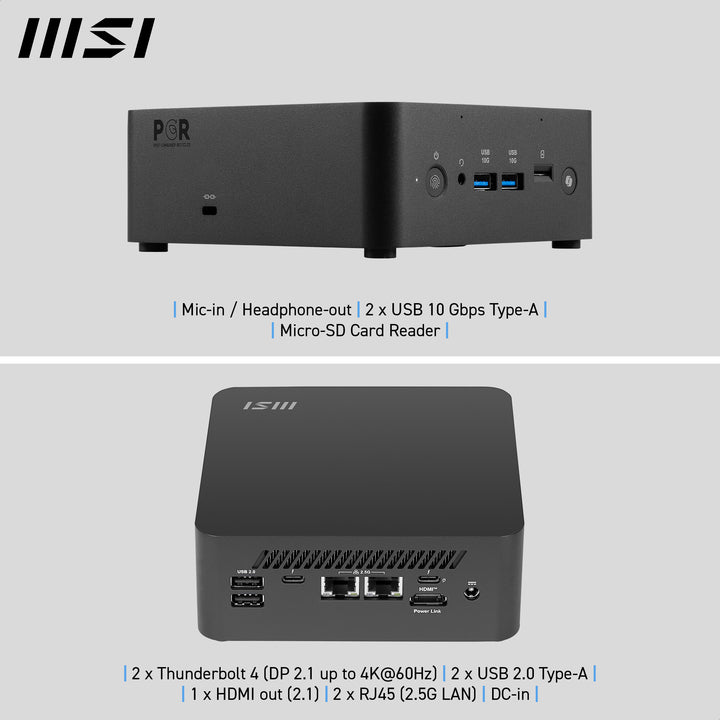

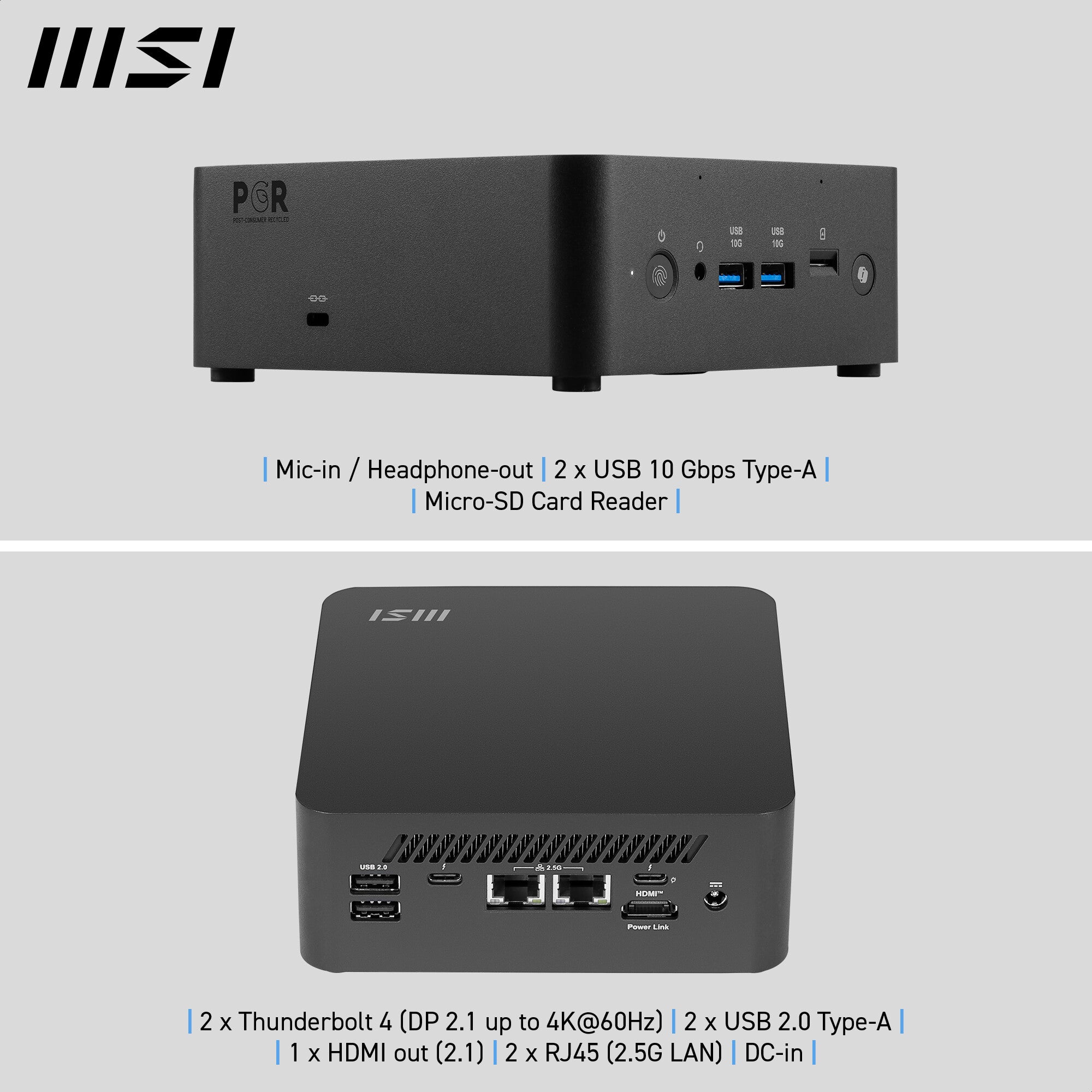

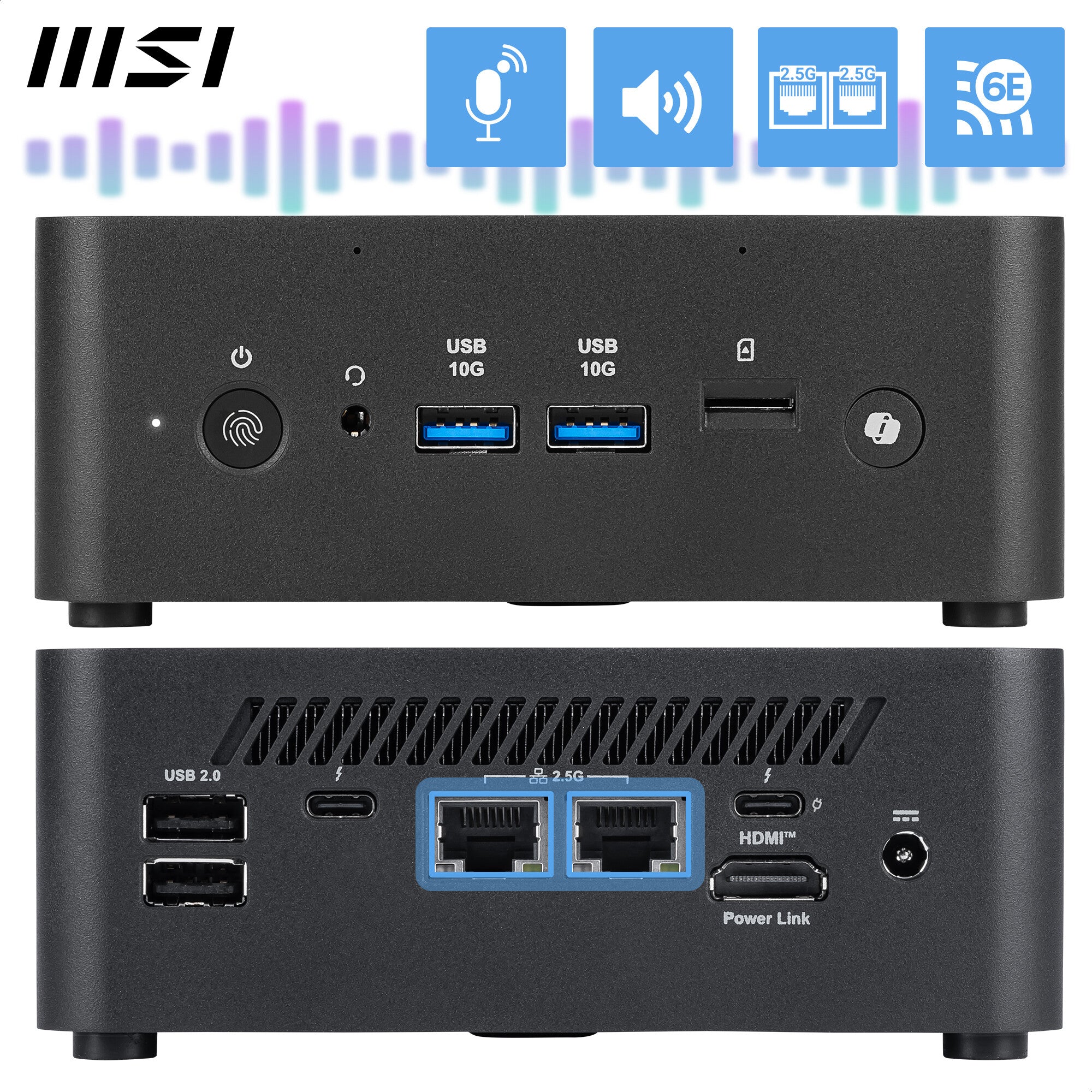

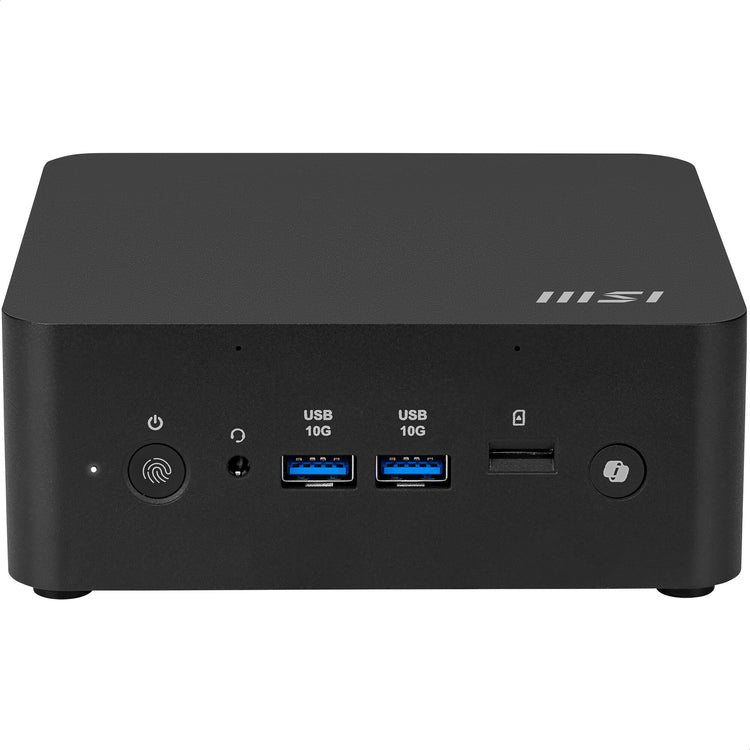

Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor model
258V
Processor cores
8
Processor threads
4
Processor boost frequency
4.8 GHz
Processor frequency
2.2 GHz
Performance cores
4
Low Power Efficient-cores
4
Performance-core Max Turbo Frequency
4.8 GHz
Low Power Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core base frequency
2.2 GHz
Low Power Efficient-core Base Frequency
2.2 MHz
Processor cache
12 MB
Processor cache type
Smart Cache
Number of processors installed
1
Maximum turbo power
37 W
Processor base power
17 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, Int8
AI software frameworks supported by NPU
ONNX RT, OpenVINO
Total processor performance up to
34 TOPs
NPU performance up to
10 TOPs
GPU performance up to
15 TOPs
Memory
Internal memory
32 GB
Maximum internal memory
96 GB
Internal memory type
LPDDR5x-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory slots
1x SO-DIMM
Memory clock speed
7467 MHz
Memory data transfer rate
7467 MT/s
Buffered memory type
Clocked unregistered (unbuffered)
Memory channels
Dual-channel
Non-ECC
Yes
ECC
No
Storage
Total storage capacity
1 TB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
1
Total HDDs capacity
0 GB
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics
On-board graphics card cores
8
On-board graphics card 6K support
Yes
On-board graphics card 8K support
Yes
Number of external displays supported
4
Graphics card Open GL support
Yes
AMD FreeSync
Yes
Ray tracing acceleration
Yes
CUDA
No
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
Network
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel I226-V
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Number of USB ports with PowerShare support
1
PowerShare
Yes
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Intel® Thunderbolt 5
No
Thunderbolt 4 ports quantity
2
DVI port
No
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Headphone outputs
1
Line-in
No
Line-out
No
Combo headphone/mic port
Yes
S/PDIF out port
No
DC-in jack
No
Fiber NIC port (Flex I/O)
No
Number of front audio ports
1
Number of front USB ports
2
Number of rear USB ports
2
Expansion slots
PCI Express x1 slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
1
PCI Express x16 (Gen 3.x) slots
1
Design
Chassis type
Mini PC
Colour name
black
VESA mounting
Yes
Placement supported
Horizontal/Vertical
Water cooling system
No
Number of 3.5" bays
1
Number of 2.5" bays
1
Cable lock slot
No
Cable lock slot type
Kensington
Copilot key
No
Product colour
Black
Introduction month
June
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Country of origin
China
Refurbished
No
Certified refurbished
No
Performance
Product type
Mini PC
Market positioning
Business
Powered by
MSI
Virtual Reality (VR) ready
No
Motherboard form factor
NUC
Audio chip
Realtek ALC256
Audio system
High Definition Audio
Audio output channels
2.0 channels
Built-in speaker(s)
Yes
Number of speakers
2
Password protection
Yes
Password protection type
BIOS
Fingerprint reader
No
BIOS type
UEFI
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Copilot+ PC
No
Operating system architecture
64-bit
Windows 11 free upgrade
No
Operating system language
English
Apple Intelligence
No
Drivers included
Yes
Processor special features
Video encode engine
Yes
Video decode engine
Yes
Power
Power supply
120 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, Federal Communications Commission (FCC)

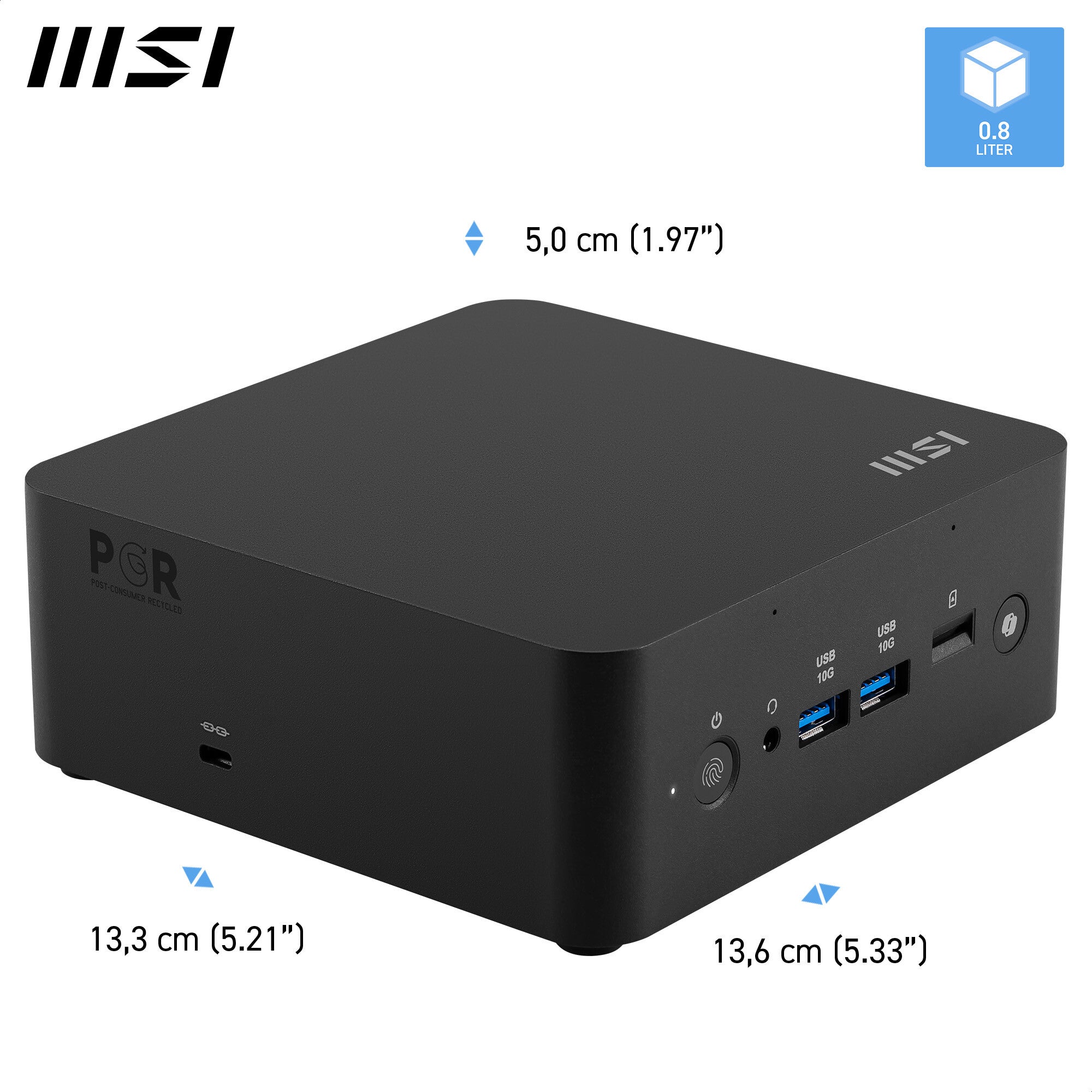

Weight & dimensions
Width
135.6 mm
Depth
132.5 mm
Height
50.1 mm
Weight
630 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.38 kg
Packaging content
Display included
No
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Cables included
AC
VESA mount included
Yes
Screws included
Yes
Manual
Yes
General
Product family
Cubi
Technical details
Not classified as hazardous under GHS
Yes
Statement of conformance & platform certificate included
Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X , 1TB M.2 SSD, USB 10Gbps Type A Ports, Thunderbolt 4 & HDMI 2.1, Wi-Fi 6E, Bluetooth 5.3 - Black, Windows 11 PRO NextGen Premium
INTEL MINI PC - The CubiNUC AI+ 2MG is a palm-sized mini PC featuring an Intel Intel® CoreTM Ultra 7 processor 258V CPU, 32GB LPDDR5X, 1TB M.2 SSD Storage - Compact Case, Windows 11 Pro NextGen Premium software pre-installed
32GB RAM, Arc™ Graphics (Integrated) - The system includes 32GB of pre-installed LPDDR5X-8533 MT/s memory
Thunderbolt 4 and HDMI 2.1 support 3 monitor setups with 4K display - ideal for watching movies
The front I/O panel features 2x USB 10Gbps Type A. The compact 0.826L SFF case incorporates an MSI Frozr AI PRO thermal design & low-noise fan. Included a Power Button with Fingerprint Security Design
WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 , and dual 2.5G ethernet LAN ports; dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
"Cubi NUC AI+ 2MG: The Sustainable Coiplot+ PC
The MSI Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP is a small yet powerful Copilot+ PC with an incredibly compact 0.826L design suitable for commercial office work or use as a home-theatre/entertainment PC (supports UHD/4K 60Hz display output & triple-monitor setups).
The Cubi NUC AI+ 2MG i7 258V FS 32GB 1TB W11PP configuration is a complete system equipped with an Intel's Intel® CoreTM Ultra 7 processor 258V, 32 GB of LPDDR5X-8533 MT/s memory, 1TB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro NextGen Premium software pre-installed.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.
Front I/O connectivity includes 2x USB 10Gbps Type A, 1x Mic-in / Headphone-out combo, 1x Micro-SD Card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 1x HDMI 2.1. The side I/O features 1x Kensington Lock and 1x External Power Switch Pin Header."
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor model
258V
Processor cores
8
Processor threads
4
Processor boost frequency
4.8 GHz
Processor frequency
2.2 GHz
Performance cores
4
Low Power Efficient-cores
4
Performance-core Max Turbo Frequency
4.8 GHz
Low Power Efficient-core Max Turbo Frequency
3.7 GHz
Performance-core base frequency
2.2 GHz
Low Power Efficient-core Base Frequency
2.2 MHz
Processor cache
12 MB
Processor cache type
Smart Cache
Number of processors installed
1
Maximum turbo power
37 W
Processor base power
17 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI datatype support on NPU
FP16, Int8
AI software frameworks supported by NPU
ONNX RT, OpenVINO
Total processor performance up to
34 TOPs
NPU performance up to
10 TOPs
GPU performance up to
15 TOPs
Memory
Internal memory
32 GB
Maximum internal memory
96 GB
Internal memory type
LPDDR5x-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory slots
1x SO-DIMM
Memory clock speed
7467 MHz
Memory data transfer rate
7467 MT/s
Buffered memory type
Clocked unregistered (unbuffered)
Memory channels
Dual-channel
Non-ECC
Yes
ECC
No
Storage
Total storage capacity
1 TB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
1
Total HDDs capacity
0 GB
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
No
Intel® Optane™ Memory module installed
No
Graphics
Discrete graphics card
No
On-board graphics card
Yes
On-board GPU manufacturer
Intel
On-board graphics card family
Intel Arc Graphics
On-board graphics card model
Intel Arc Graphics
On-board graphics card cores
8
On-board graphics card 6K support
Yes
On-board graphics card 8K support
Yes
Number of external displays supported
4
Graphics card Open GL support
Yes
AMD FreeSync
Yes
Ray tracing acceleration
Yes
CUDA
No
NVIDIA G-SYNC
No
NVIDIA GameWorks VR
No
Network
Ethernet LAN
Yes
Ethernet LAN data rates
2500 Mbit/s
Cabling technology
10/100/1000Base-T(X)
LAN controller
Intel I226-V
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Antenna type
2x2
Bluetooth
Yes
Bluetooth Low Energy (BLE)
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Miracast
Yes
Ports & interfaces
USB 2.0 ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
Number of USB ports with PowerShare support
1
PowerShare
Yes
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Intel® Thunderbolt 5
No
Thunderbolt 4 ports quantity
2
DVI port
No
HDMI ports quantity
1
HDMI version
2.1
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Headphone outputs
1
Line-in
No
Line-out
No
Combo headphone/mic port
Yes
S/PDIF out port
No
DC-in jack
No
Fiber NIC port (Flex I/O)
No
Number of front audio ports
1
Number of front USB ports
2
Number of rear USB ports
2
Expansion slots
PCI Express x1 slots
1
PCI Express x1 (Gen 3.x) slots
1
PCI Express x16 slots
1
PCI Express x16 (Gen 3.x) slots
1
Design
Chassis type
Mini PC
Colour name
black

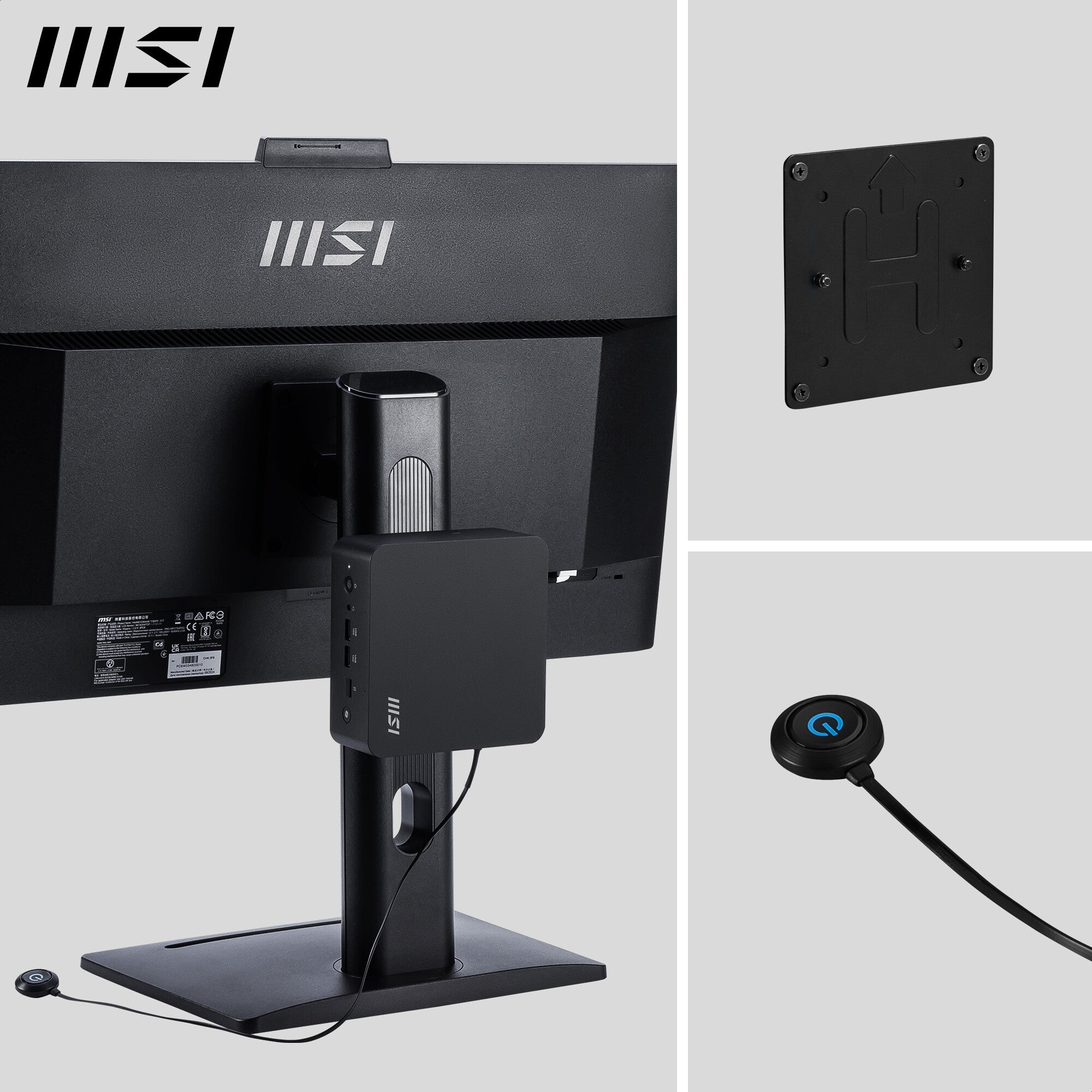

VESA mounting
Yes
Placement supported
Horizontal/Vertical
Water cooling system
No
Number of 3.5" bays
1
Number of 2.5" bays
1
Cable lock slot
No
Cable lock slot type
Kensington
Copilot key
No
Product colour
Black
Introduction month
June
Housing material
Metal, Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2025
Country of origin
China
Refurbished
No
Certified refurbished
No
Performance
Product type
Mini PC
Market positioning
Business
Powered by
MSI
Virtual Reality (VR) ready
No
Motherboard form factor
NUC
Audio chip
Realtek ALC256
Audio system
High Definition Audio
Audio output channels
2.0 channels
Built-in speaker(s)
Yes
Number of speakers
2
Password protection
Yes
Password protection type
BIOS
Fingerprint reader
No
BIOS type
UEFI
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Copilot+ PC
No
Operating system architecture
64-bit
Windows 11 free upgrade
No
Operating system language
English
Apple Intelligence
No
Drivers included
Yes
Processor special features
Video encode engine
Yes
Video decode engine
Yes
Power
Power supply
120 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 60 °C
Operating relative humidity (H-H)
10 - 90%
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
CB, Federal Communications Commission (FCC)
Weight & dimensions
Width
135.6 mm
Depth
132.5 mm
Height
50.1 mm
Weight
630 g
Package width
205 mm
Package depth
220 mm
Package height
94 mm
Package weight
1.38 kg
Packaging content
Display included
No
Mouse included
No
Keyboard included
No
Keyboard backlit
No
Numeric keypad
No
Cables included
AC
VESA mount included
Yes
Screws included
Yes
Manual
Yes
General
Product family
Cubi
Technical details
Not classified as hazardous under GHS
Yes
Statement of conformance & platform certificate included
