Quadruple monitor support (Thunderbolt 4, HDMI 2.1)

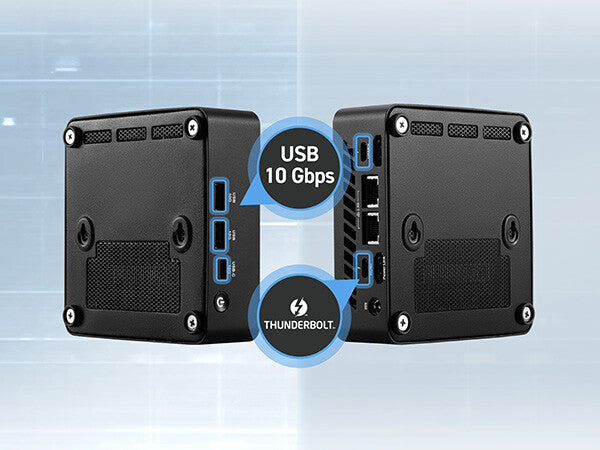

1 x USB 10GbpsType-C port front, 2 x USB 10GbpsType-A ports front
MSI Power Link support
MSI Power Meter software

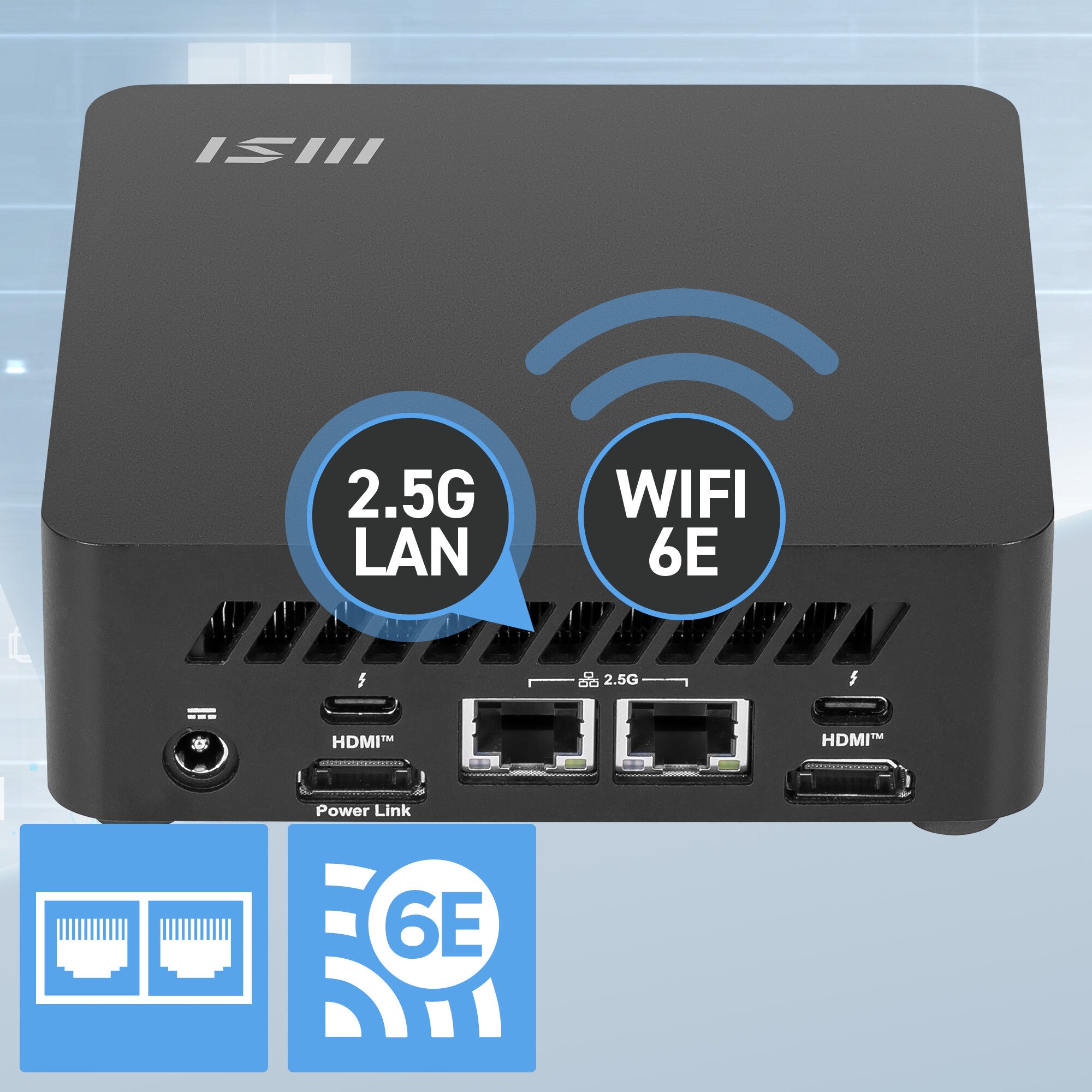

Dual 2.5G LAN, Wi-fi 6E AX211 & BT 5.3

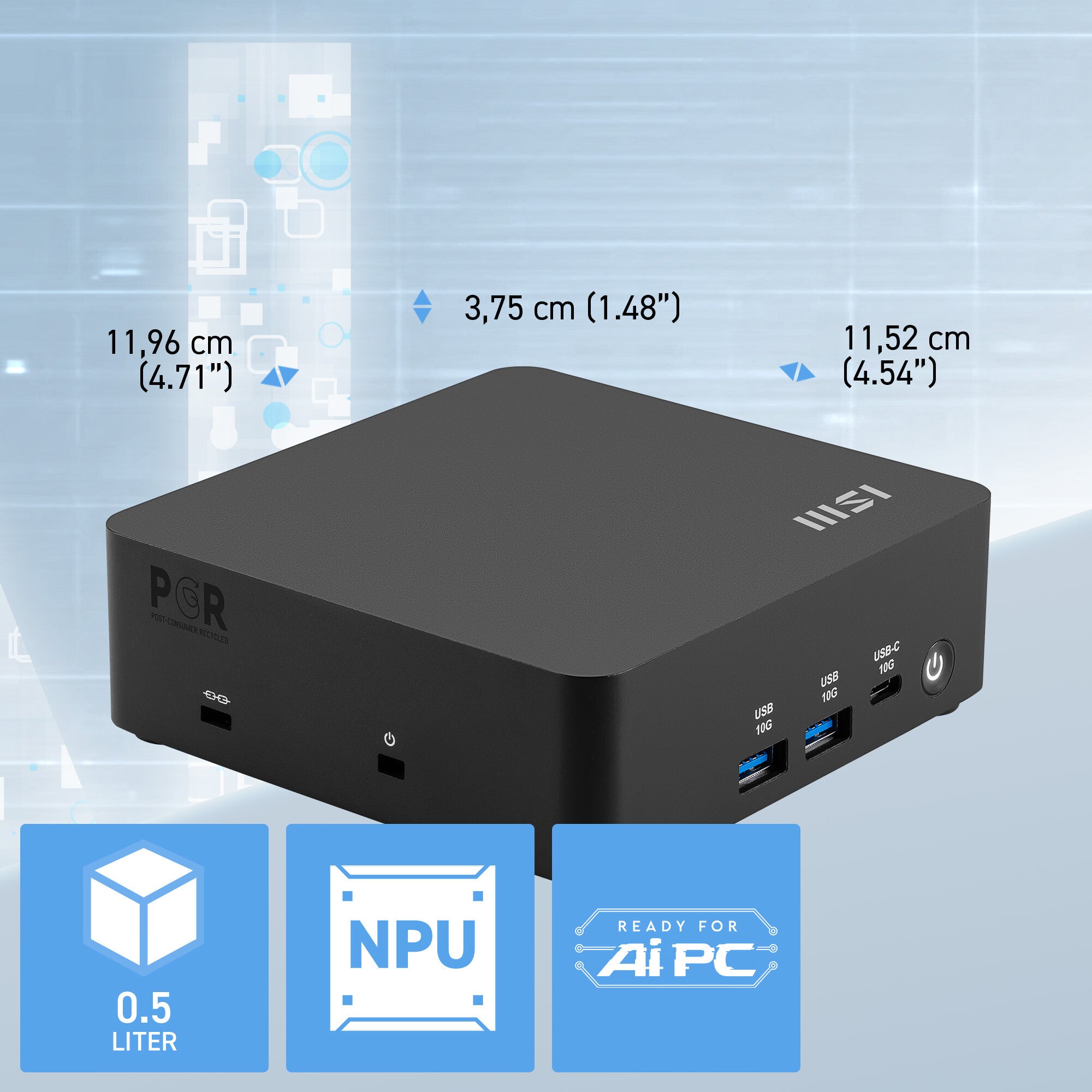

The Cubi NUC AI 1UM is a mini pc equipped with Intel® AI Boost NPU and Intel® CoreTM Ultra processor, and it won the Red Dot Design Award in 2024. With quadruple monitor support, dual 2.5G LAN network capabilities, sustainable material and packing design, the Cubi NUC AI is compact, versatile, yet capable mini desktop PC for home or the office with AI features.

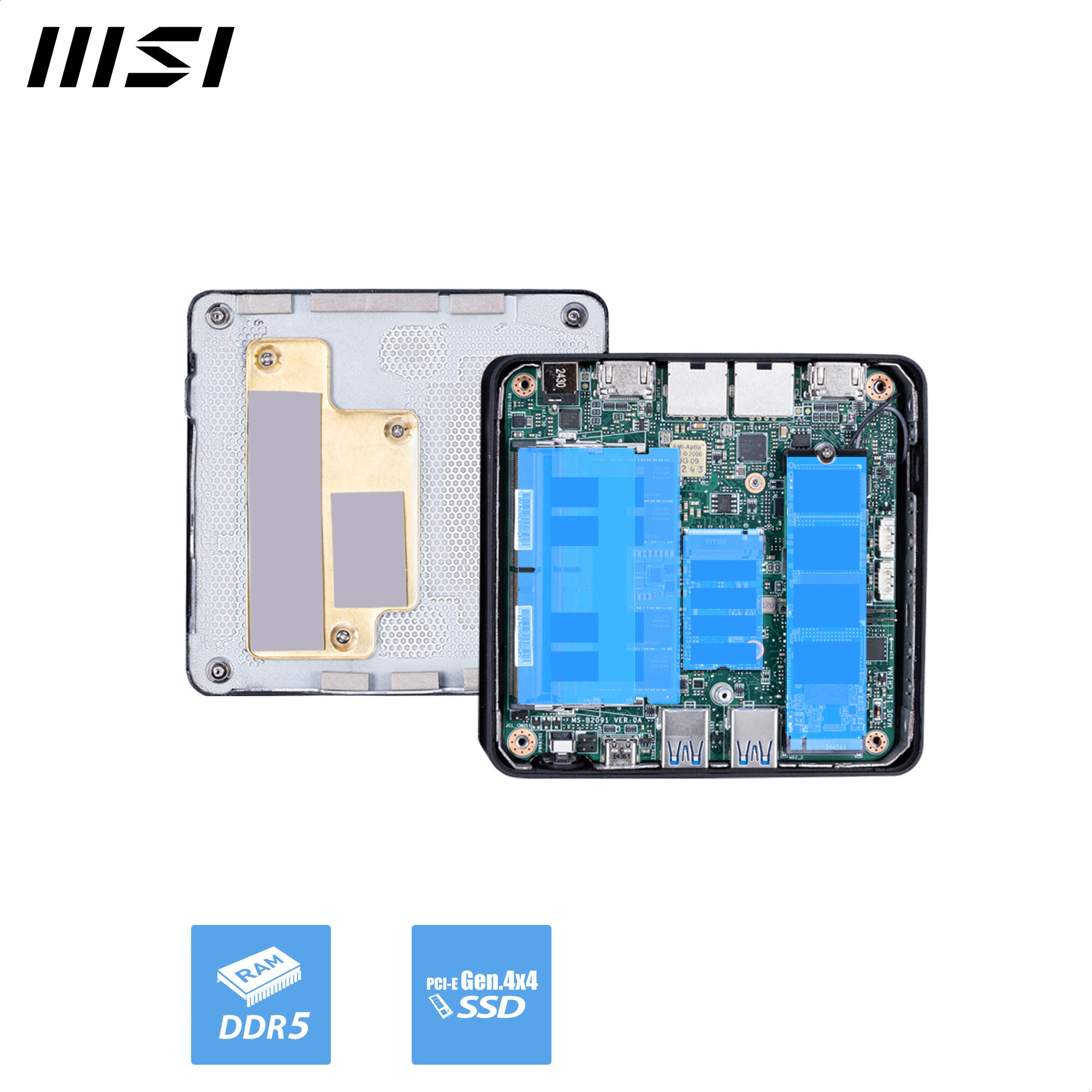

Up to Intel® CoreTM Ultra 7 processor 155H with Intel® AI Boost NPU -Equipped with a built-in Intel® AI Boost NPU, the Cubi NUC AI Series provides users with an AI-ready PC experience RAM capacity: The Cubi NUC AI Series can support DDR5 5200MHz memory (2 x SO-DIMM, up to 64GB).

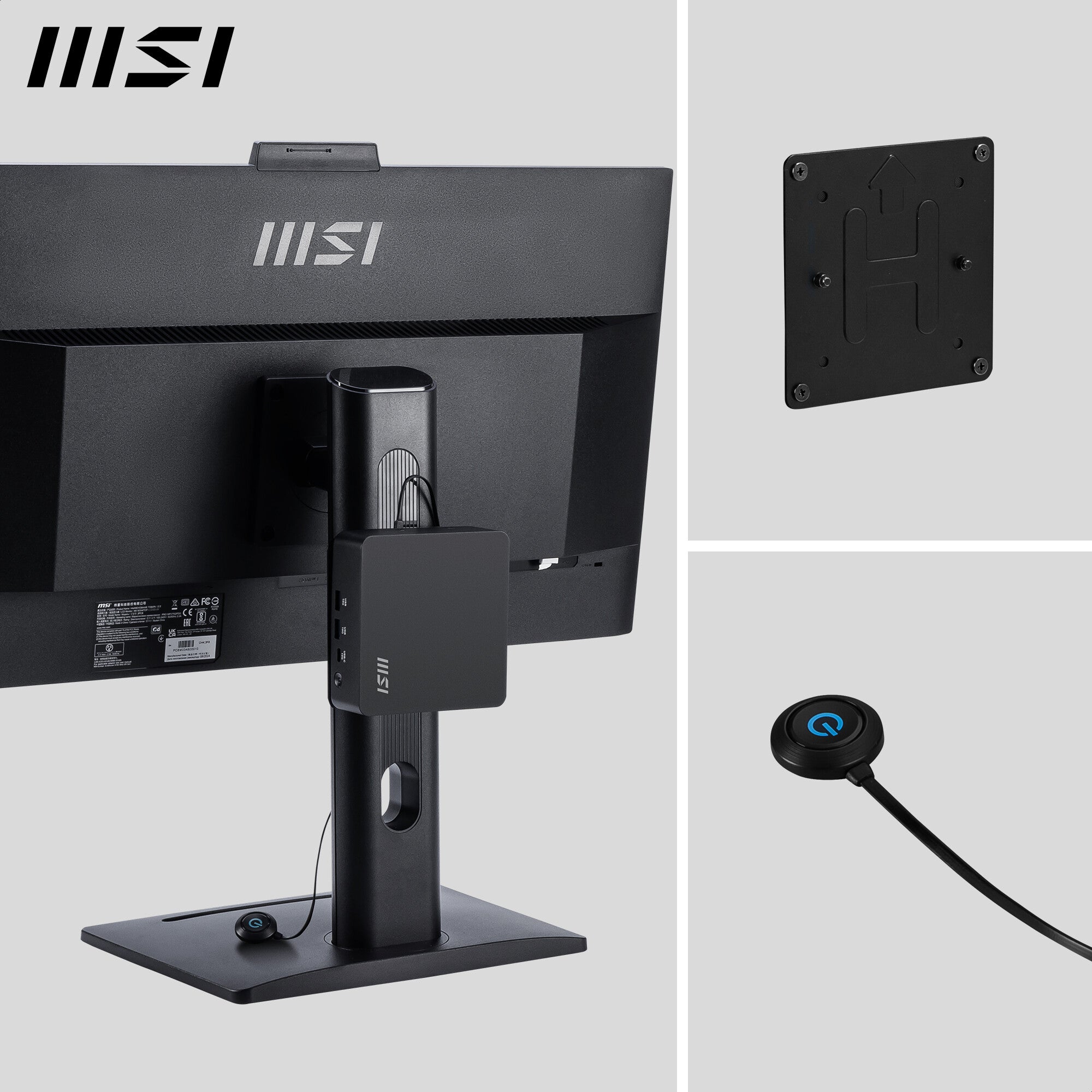

The rear I/O panels include two Thunderbolt 4, two HDMI 2.1 outputs, which support quadruple monitor setups for improved workflow efficiency or previewing e-commerce content Network connectivity includes Intel wireless, Bluetooth, and dual 2.5G ethernet LAN dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords Kensington Lock slot included The MSI Power Link allows the power button of MSI-selected monitors to turn on the Cubi NUC AI Series The chassis is VESA-mountable (standard 100x100 & 75x75), which can transform a standard compact desktop layout into an ultra-minimalist, distraction-free environment The front 1 x USB 10Gbps Type C and 2 x Type A ensure that plugging in and transferring data between devices is quick and hassle-free The two rear Thunderbolt 4 ports support the display and power delivery output of 15W Made with PCR (Post-consumer Recycled) plastic materials Reduce waste by using a recycled molded pulp tray packing design Manufatured with 99% of renewable energy in factory MSI AI Engine offers multiple optimizations that can help lighten the workload Power Meter enables one-click power saving, carbon emission calculation & electricity cost estimation
Processor
Built-in processor
Yes
Processor manufacturer
Intel
Processor family
Intel Core Ultra 7
Processor model
155H
Processor cores
16
Processor threads
22
Processor boost frequency
4.8 GHz
Processor frequency
1.4 GHz
Performance cores
6
Efficient cores
8
Low Power Efficient-cores
2
Performance-core Max Turbo Frequency
4.8 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
1 GHz
Low Power Efficient-core Base Frequency
800 MHz
Processor lithography
7 nm
Processor cache
24 MB
L2 cache
12 MB
L3 cache
12 MB
Thermal Design Power (TDP)
28 W
ECC supported by processor
No
Memory
Memory slots type
SO-DIMM
Number of memory slots
2
Memory bandwidth (max)
64 GB/s
Memory channels
Dual-channel
Maximum internal memory
64 GB
Supported memory clock speeds
5200 MHz
Supported memory types
DDR5-SDRAM
ECC
No
Non-ECC
No
Storage
Supported storage drive types
SSD
Storage drive sizes supported
M.2
Storage drive interface
PCI Express
NVMe
Yes
Number of storage drives supported
2
Card reader integrated
No
Audio
Built-in speaker(s)
No
Network
Ethernet LAN
Yes
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth Low Energy (BLE)
Yes
Near Field Communication (NFC)
No
LAN controller
Intel I226-V
Bluetooth version
5.2
Bluetooth
Yes
Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity
1
HDMI ports quantity
2
HDMI version
2.1
Thunderbolt ports quantity
2
Thunderbolt 4 ports quantity
2
Ethernet LAN (RJ-45) ports
1
DC-in jack
No
Expansion slots
Number of M.2 (M) slots
2
Design
Chassis type
Cube
Product colour
Black
Cooling type
Passive
On/off switch
Yes
VESA mounting
Yes
Panel mounting interface
100 x 100 mm
Product type
Mini PC barebone
Performance
Motherboard form factor
NUC
Processor socket
BGA 2049
Number of processors supported
1
Supported processor frequency (max)
4.8 GHz
Trusted Platform Module (TPM) version
2.0
Commodity Classification Automated Tracking System (CCATS)
