INTEL MINI PC - The Cubi NUC 1M is a palm-sized mini PC featuring an Intel® Core 5 processor 120U CPU, 16GB DDR5, 512GB M.2 SSD Storage, Windows 11 Pro software pre-installed
16GB RAM, Intel GRAPHICS - The system includes 16GB of pre-installed DDR5-5200 memory (Total 2 x SO-DIMM slots available) and supports 8K UHD display - ideal for watching movies; Thunderbolt 4 and HDMI 2.1 support quadruple monitor setups
512GB of pre-installed M.2 SSD storage ensures faster loading speeds 1x M.2 2280 SSD (PCIE, factory pre-installed), 1 x 2.5" HDD/SSD & and 1x M.2 2242 SSD free-slot

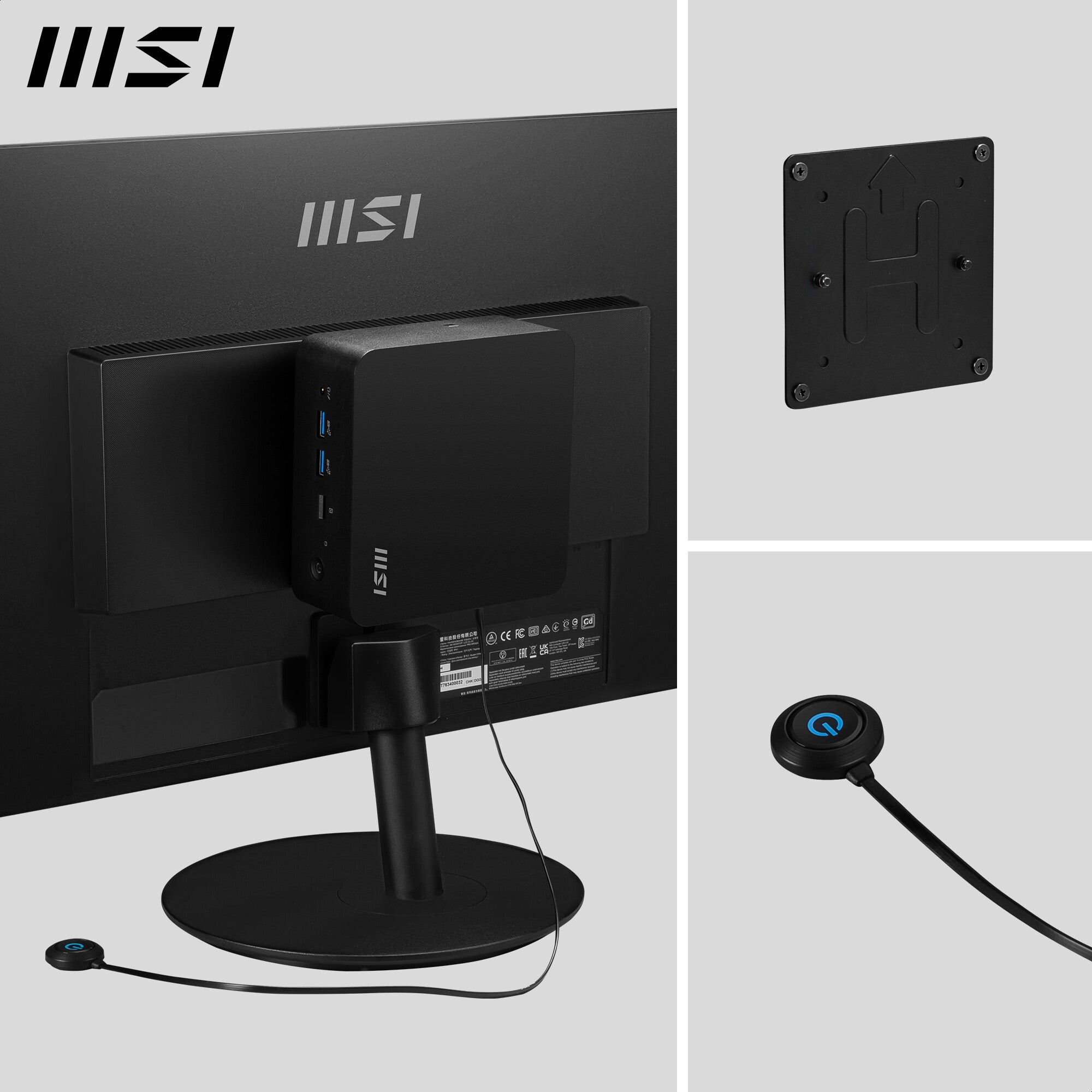

VESA mountable design and Mounting Bracket included (75mm x 75mm or 100mm x 100mm)
The front I/O panel features a 2x USB 10Gbps Type A and Micros-SD card reader; The rear I/O panel features 2x USB 10Gbps Type A as well. The compact 0.826L SFF case incorporates an efficient thermal design & low-noise fan with 21 dBA noise levels
WI-FI 6E AX211 & BLUETOOTH 5.3 - Network connectivity includes an Intel WI-FI 6E AX211 and dual 2.5G ethernet LAN ports
dTPM 2.0 (discrete Trusted Platform Module) hardware technology provides security for storing sensitive data & passwords
"Cubi NUC 1M: The Sustainable & Energy Efficient Mini-PC

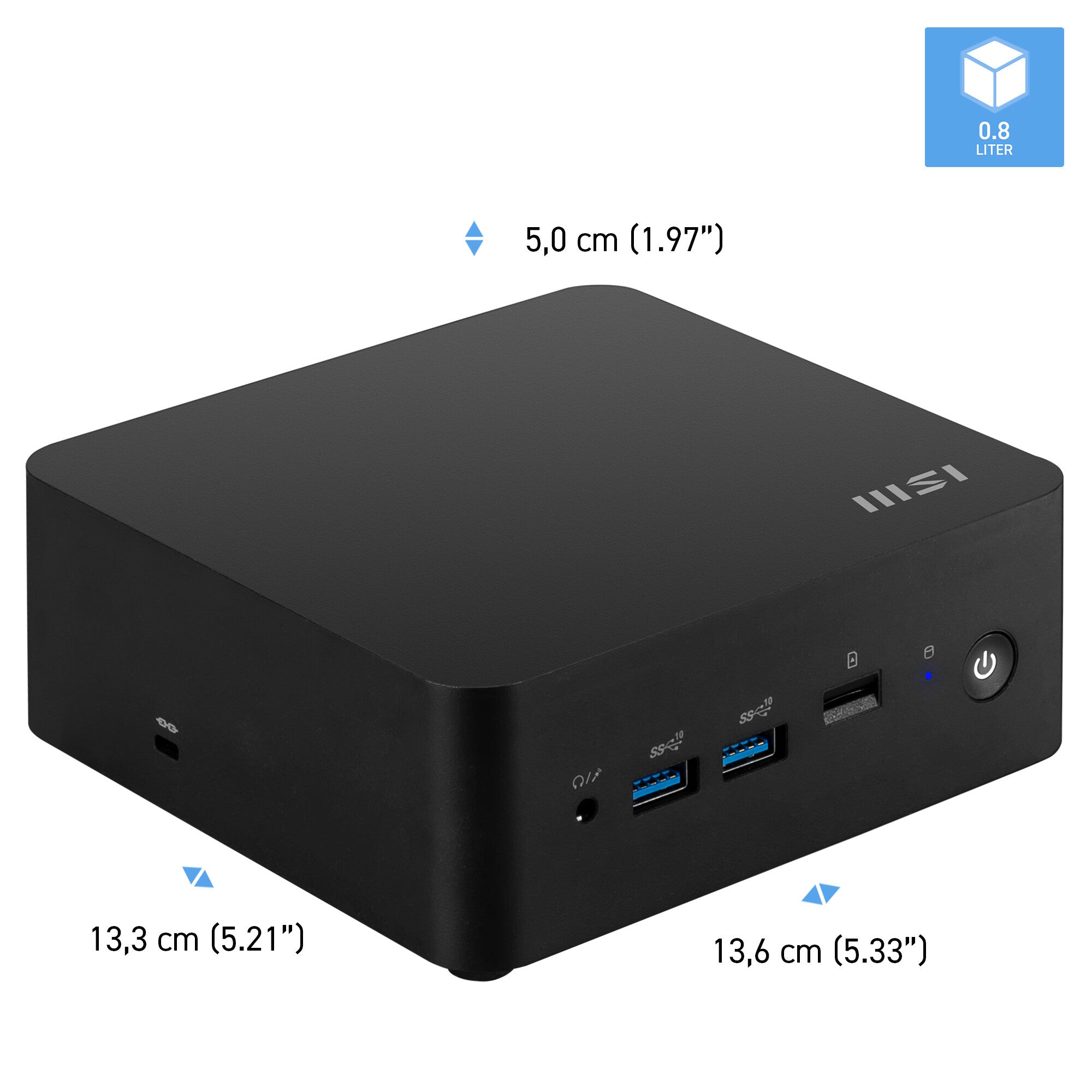

The MSI Cubi NUC 1M is a small yet powerful mini-desktop with an incredibly compact 0.826L design suitable for commercial office work or use as home-theatre/entertainment PC (supports UHD/4K 60Hz display output & quadruple-monitor setups).
The Cubi NUC 1M i5 120U FS 16GB 512GB W11P configuration is a complete system equipped with an Intel Intel® Core 5 processor 120U, 16GB of DDR5-5200MHz memory, 512GB of M.2 SSD storage, Intel Wi-Fi AX211 & Bluetooth 5.3 connectivity, as well as Windows 11 Pro software pre-installed.

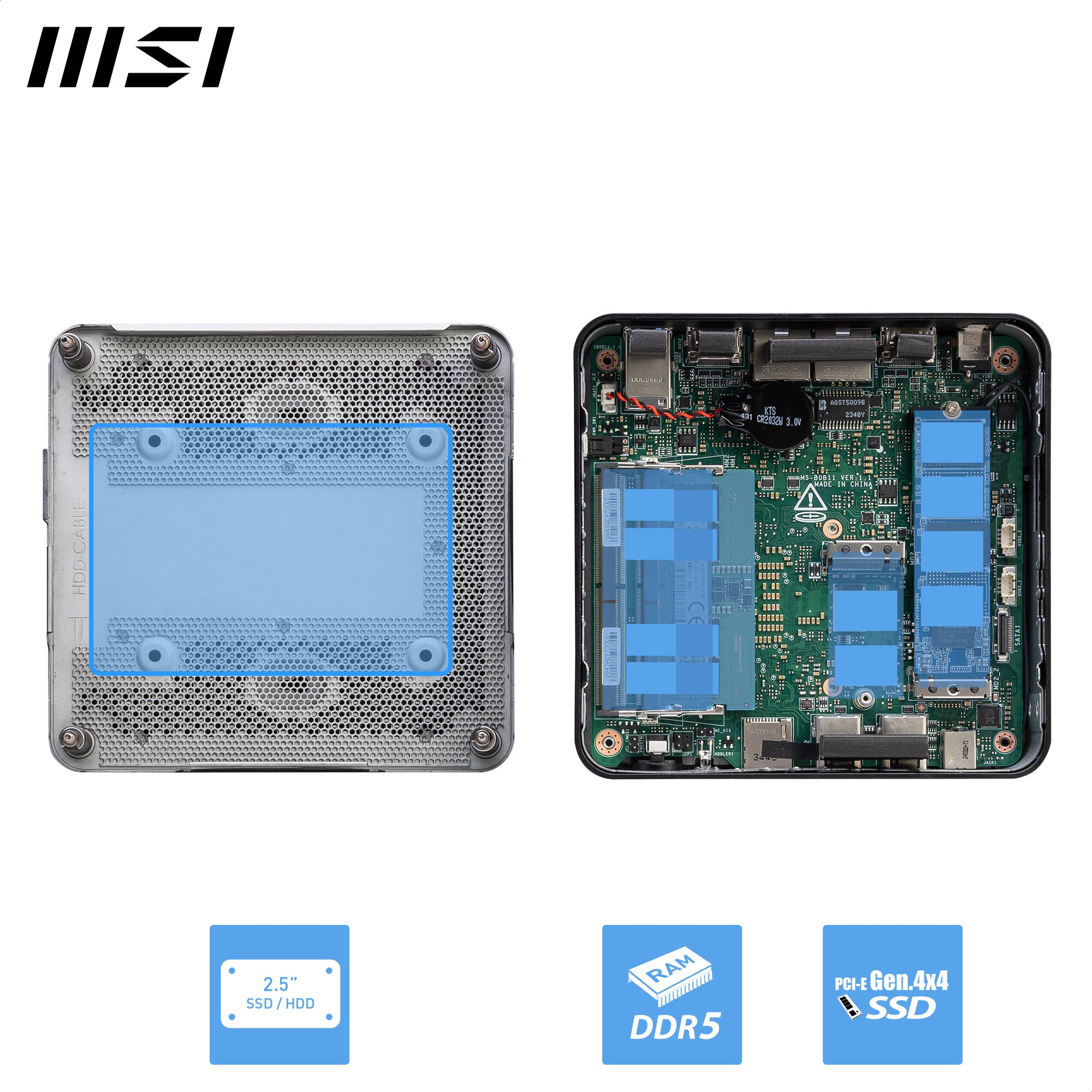

The easy-to-upgrade SFF case can house both M.2 (1 x 2280, 1x 2242) & 2.5-inch storage, as well as up to 64 GB of system memory (2 x DDR5 SO-DIMM slots), and is VESA-mountable for a cleaner desktop.
Made with PCR (Post-consumer Recycled) plastic materials and recycled molded pulp tray packing design.

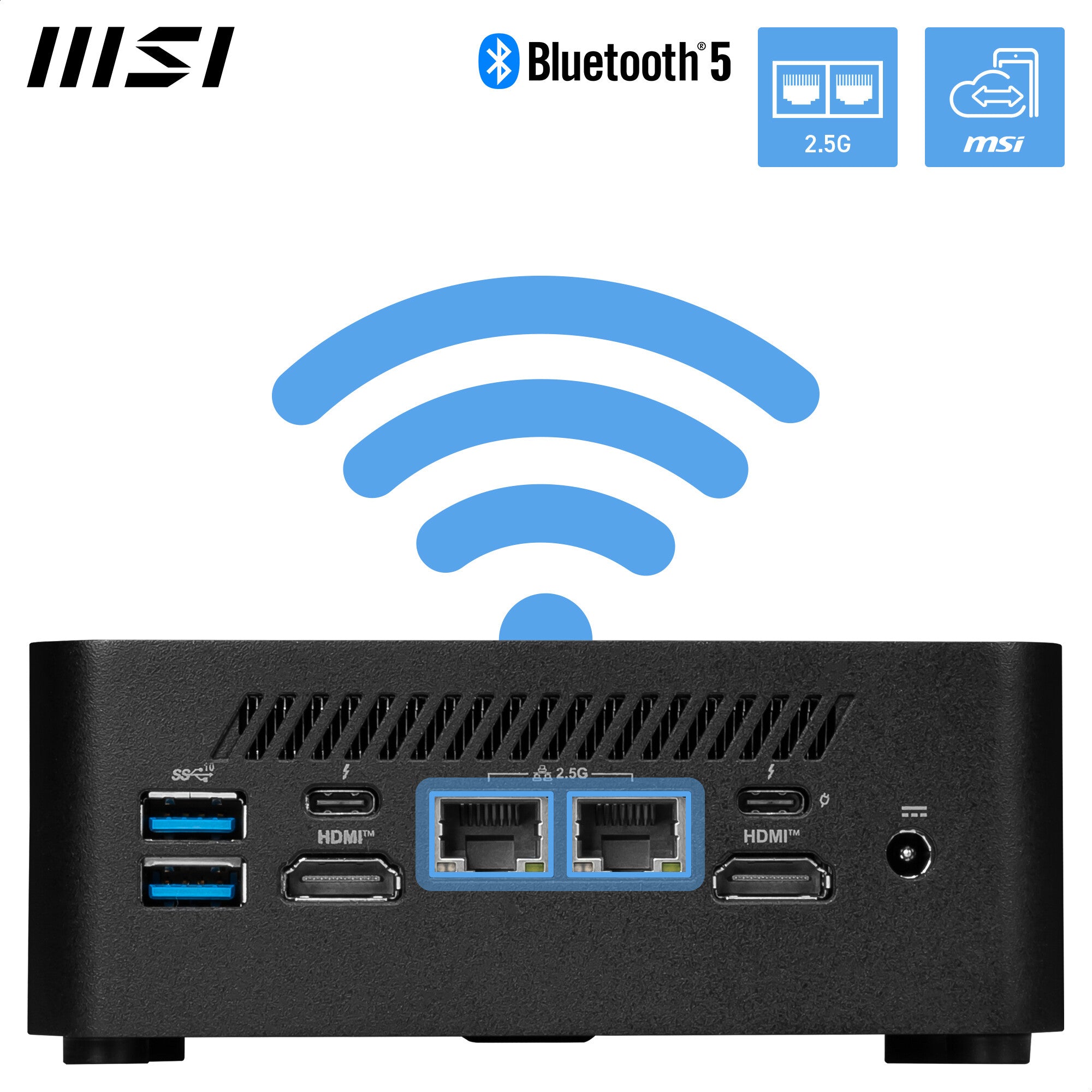

Front I/O connectivity includes a Mic-in/Headphone-out combo jack, 2x USB 10Gbps Type A and 1x Micro-SD card Reader. The rear I/O features dual 2.5Gbps ethernet LAN ports, 2x Thunderbolt 4, 2 x HDMI 2.1 and 2x USB 10Gbps Type A"
Processor
Processor manufacturer
Intel
Processor family
Intel Core 5
Processor generation
Intel Core (Series 1)
Processor model
120U
Processor cores
10
Performance cores
2
Efficient cores
8
Performance-core Max Turbo Frequency
5 GHz
Efficient-core Max Turbo Frequency
3.8 GHz
Performance-core base frequency
1.4 GHz
Efficient-core base frequency
0.9 GHz
Processor cache
12 MB
Number of processors installed
1
Maximum turbo power
55 W
Processor base power
15 W
Memory
Internal memory
16 GB
Maximum internal memory
64 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
2 x 8 GB
Memory slots
2x SO-DIMM
Memory clock speed
5200 MHz
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Number of storage drives supported
3
HDD size
2.5"
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD capacity
512 GB
NVMe
Yes
SSD interface
M.2
SSD form factor
M.2
M.2 SSD size
2280 (22 x 80 mm)
Card reader integrated
Yes
Compatible memory cards
MicroSD (TransFlash)
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Network
Ethernet LAN
Yes
LAN controller
Intel I226-V
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX211
Bluetooth
Yes
Bluetooth version
5.3
Wake-on-LAN ready
Yes
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
4
PowerShare
No
USB Type-C DisplayPort Alternate Mode
Yes
Intel® Thunderbolt 4
Yes
Thunderbolt 4 ports quantity
2
DVI port
No
HDMI ports quantity
2
HDMI version
1.4/2.1
Ethernet LAN (RJ-45) ports
2
Microphone in
No
Headphone outputs
1
Line-in
No
Line-out
No
Combo headphone/mic port
Yes
S/PDIF out port
No
DC-in jack
Yes
Fiber NIC port (Flex I/O)
No
Number of front audio ports
1
Number of front USB ports
2
Number of rear USB ports
4
Design
Chassis type
Mini PC
Colour name
Black
Volume
0.84 L
VESA mounting
Yes
Placement supported
Horizontal
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Introduction month
July
Housing material
Plastic
Viewing window
No
RGB memory lighting
No
Introduction year
2024
Country of origin
China
Performance
Product type
Mini PC
Market positioning
Business
Powered by
MSI
Motherboard chipset
Intel SoC
Motherboard form factor
NUC
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Power
Power supply
120 W
Power supply input voltage
100-240 V
Power supply input frequency
50-60 Hz
Sustainability
Sustainability certificates
ENERGY STAR, Forest Stewardship Council (FSC), Post-Consumer Recycled Plastic
