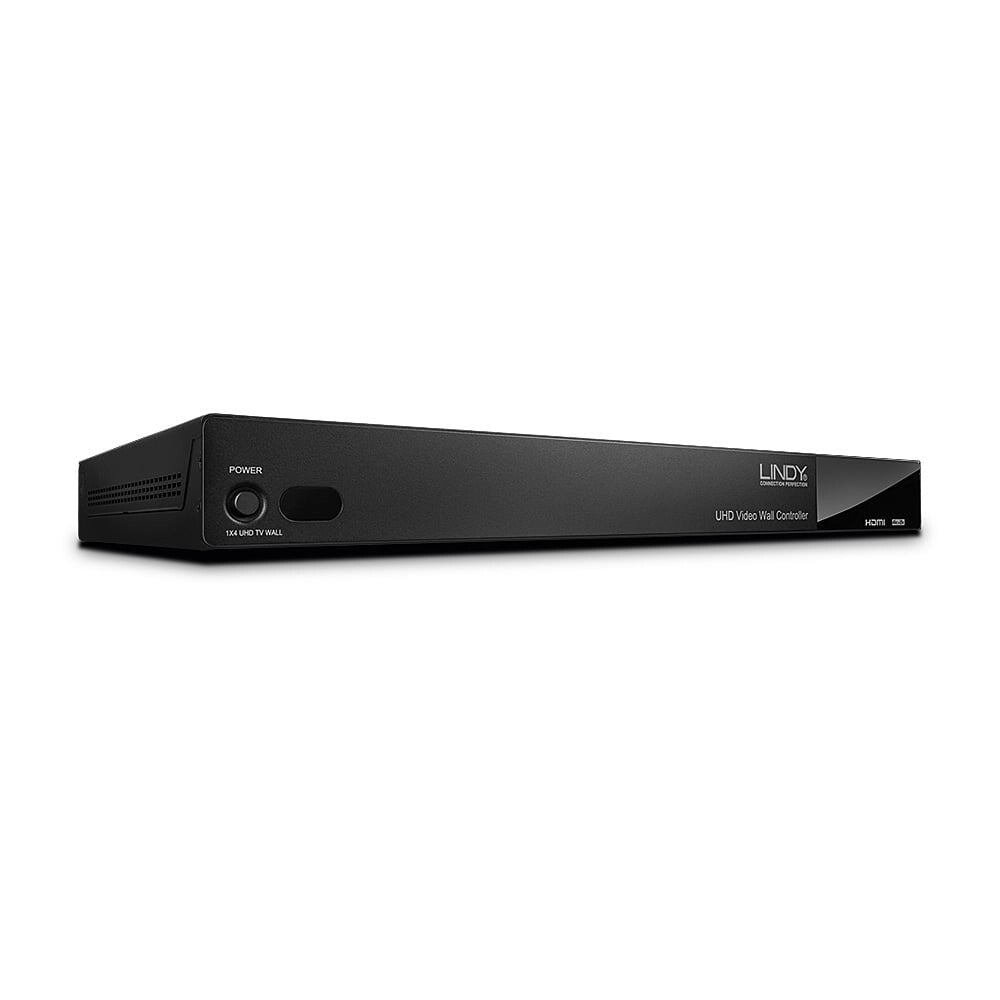

Lindy 4 Port HDMI 4K Video Wall Scaler

• Scale a single HDMI input across 4 displays (2x2, 4x1, 1x4)
• Larger video walls (up to 15x15) can be created by using additional Scalers combined with HDMI splitters
• Bezel correction and picture adjustment
• Supports Input resolutions of up to 3840/4096x2160p
• 2 year warranty

The 4K HDMI Video Wall Controller Scaler allows a 4K UHD HDMI input source to be freely arranged on 4 displays (TV or monitor) in a variety of arrangements (2x2, 4x1, 1x4). Larger video walls (up to 15x15) can be created using a HDMI splitter and multiple Scalers.

Each output can be adjusted for bezel correction, contrast, brightness, saturation and hue so that you can optimise the appearance of your video wall.

This flexible feature rich product has been designed to be used in a number of different applications, such as:



Public/Retail Advertisement Digital Presentation Broadcasting and Control Surveillance and Control Conference and Meeting Room

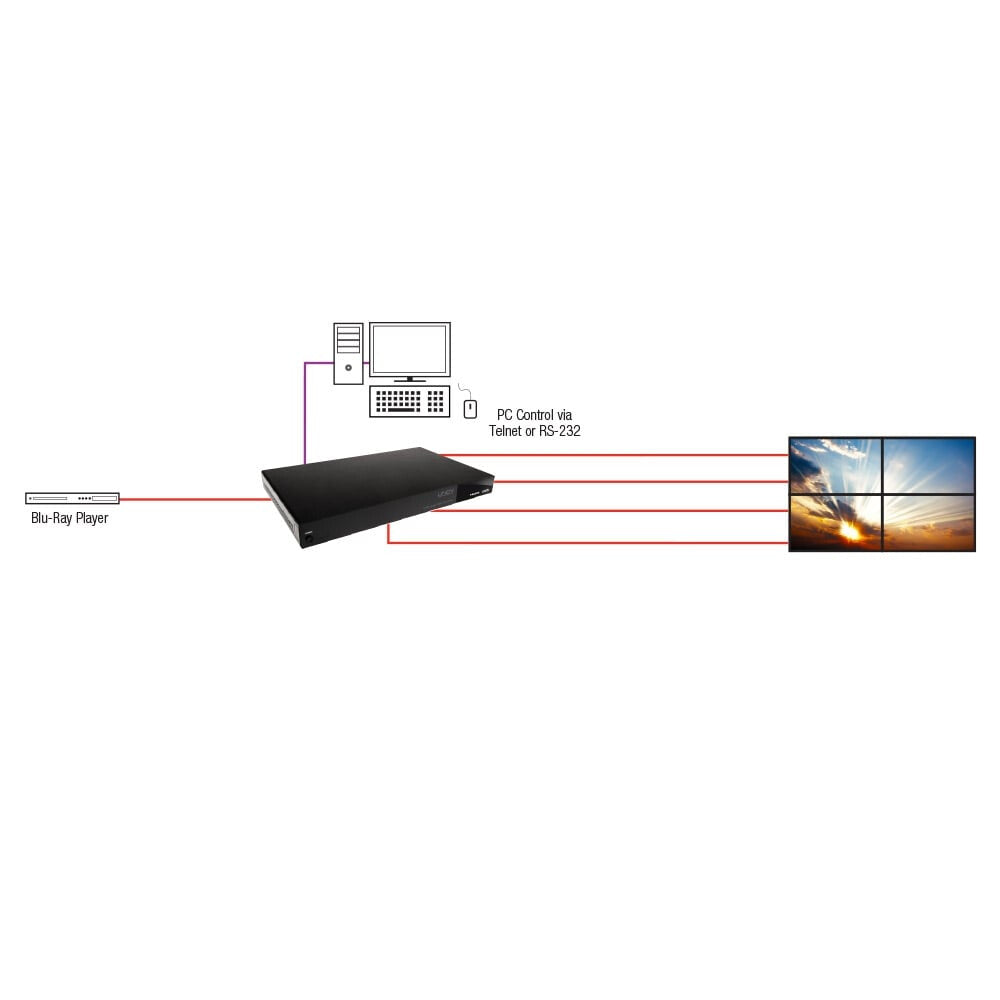

The Scaler, or multiple Scalers in larger installations, can be controlled by a simple control application (see downloads) or via RS-232 and Telnet using the commands listed in the user manual, making it simple to integrate within your installation.

• mmo_30951413_1485859714_355_19710.pdf
• manual pdf
• Quick Guide
