- Intel Xeon 6 6515P (72MB Cache, 2.3GHz)
- 32GB DDR5-SDRAM (1 x 32)

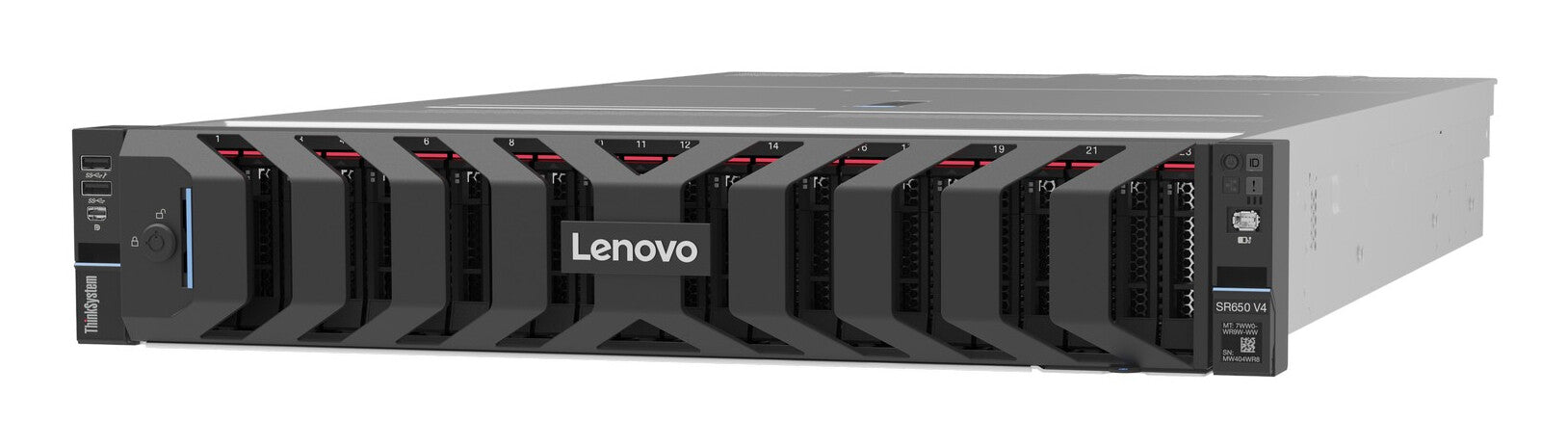

The Lenovo ThinkSystem SR650 V4 is an ideal 2-socket 2U rack server for customers that need industry-leading reliability, management, and security, as well as maximizing performance and flexibility for future growth. With two Intel Xeon 6700-series or 6500-series processors, the SR650 V4 is designed for high density and scale-out workloads in various customer segments.
This product guide provides essential pre-sales information to understand the ThinkSystem SR650 V4 server, its key features and specifications, components and options, and configuration guidelines. This guide is intended for technical specialists, sales specialists, sales engineers, IT architects, and other IT professionals who want to learn more about the SR650 V4 and consider its use in IT solutions.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel Xeon 6 |
| Processor model |
6515P |
| Processor frequency |
2.3 GHz |
| Processor boost frequency |
3.8 GHz |
| Processor cores |
16 |
| Processor cache |
72 MB |
| Number of processors installed |
1 |
| Processor threads |
32 |
| Memory |
|---|
| Internal memory |
32 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
1 x 32 GB |
| ECC |
Yes |
| Memory slots |
32x DIMM |
| Maximum internal memory |
8 TB |
| Storage |
|---|
| Number of HDDs supported |
8 |
| Supported HDD sizes |
2.5" |
| RAID support |
Yes |
| Supported RAID controllers |
940-8i 4GB |
| Hot-swap |
Yes |
| Internal drive bays |
8 |
| Supported storage drive interfaces |
SAS |
| Optical drive type |
No |
| Graphics |
|---|
| On-board graphics card |
Yes |
| Maximum graphics card memory |
16 MB |
| Network |
|---|
| Ethernet interface type |
Gigabit Ethernet |
| Cabling technology |
10/100/1000Base-T(X) |
| Ethernet LAN |
Yes |
| Ports & interfaces |
|---|
| Ethernet LAN (RJ-45) ports |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| VGA (D-Sub) ports quantity |
1 |
| Design |
|---|
| Chassis type |
Rack (2U) |
| Product colour |
Black, Steel |
| Cooling type |
Active |
| Rack mounting |
Yes |
| Performance |
|---|
| Performance management |
XClarity Controller Platinum |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Compatible operating systems |
Microsoft Windows Server, Red Hat Enterprise Linux, SUSE Linux Enterprise Server, VMware ESXi, Ubuntu Server |
| Power |
|---|
| Redundant power supply (RPS) support |
Yes |
| Power supply |
1300 W |
| Number of main power supplies |
2 |
| General |
|---|
| Product family |
ThinkSystem |
| Weight & dimensions |
|---|
| Width |
445 mm |
| Height |
43 mm |
| Depth |
796 mm |
| Technical details |
|---|
| Compliance certificates |
CCC, CE, CECP, Federal Communications Commission (FCC), RoHS, UKCA, UL |
| Supported storage drives form factor (internal) |
2.5" |
