- Intel Core i9-14900K, 24C (8P + 16E)/32T, Max Turbo up to 6.0GHz, P-core 3.2/5.6GHz, E-core 2.4/4.4GHz, 36MB
- 2x 16GB SO-DIMM DDR5-4800 Non-ECC
- 1x 1TB SSD M.2 2280 PCIe 4.0x4 NVMe Opal
- 1x NVIDIA T1000 8GB
- Windows 11 Pro

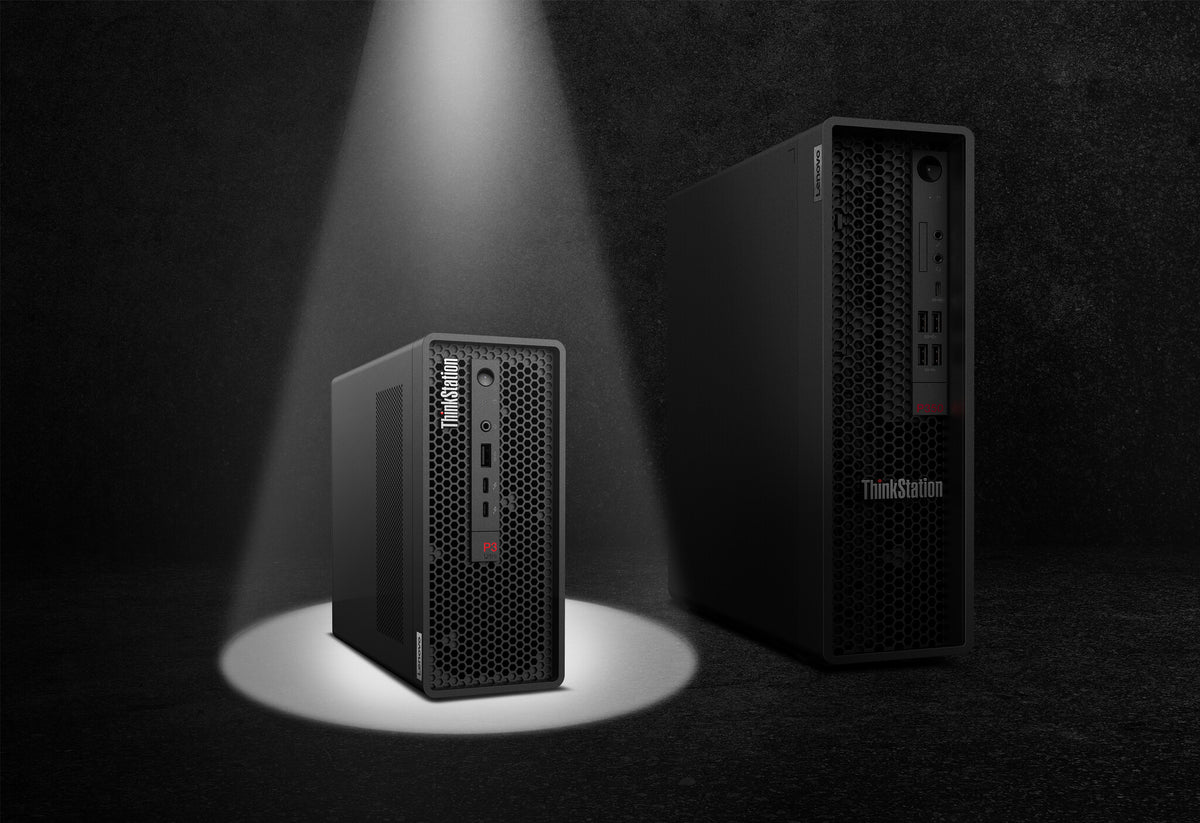

Redefining the power of small

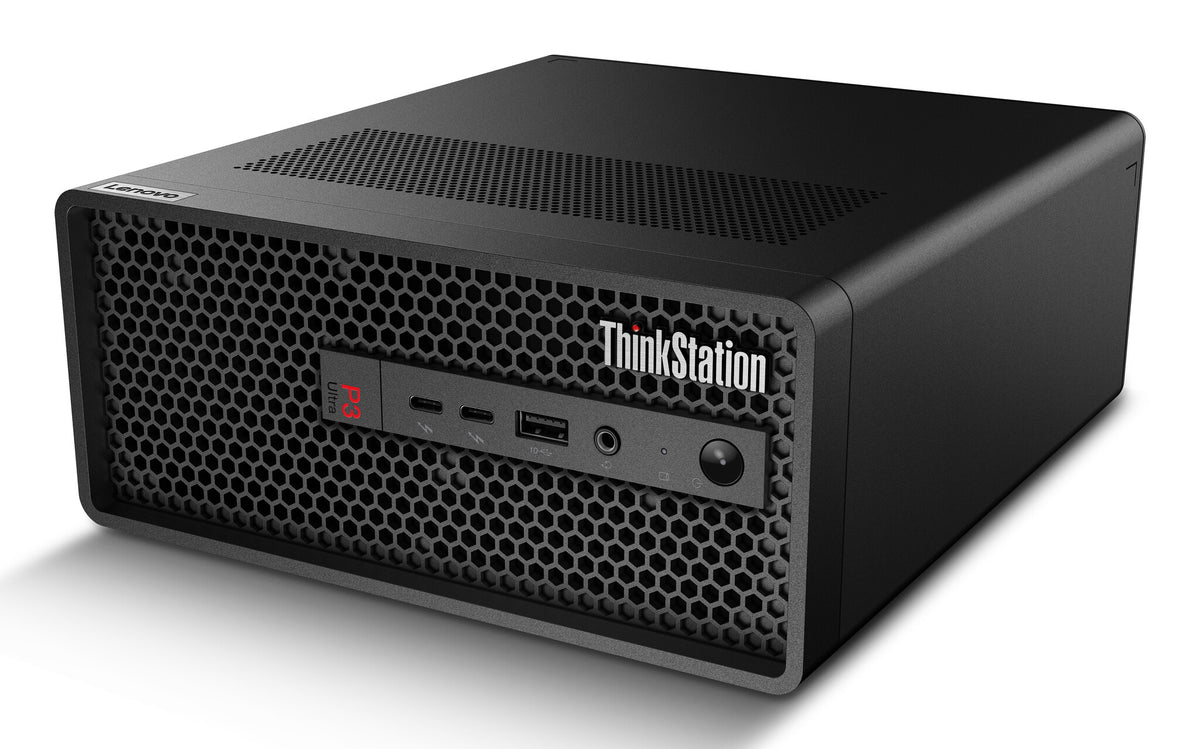

- Packs amazing power into an industry-first 3.9L chassis small form factor
- Blazingly-fast Intel vPro® with Intel® Core™ processors, vast memory
- Choice of optional professional discrete graphics
- ISV-certified, handles complex workflows with ease
- Supports remote monitoring & system management
- Designed for compact spaces, suitable for any industry
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i9 |
| Processor generation |
Intel® Core™ i9 (14th gen) |
| Processor model |
i9-14900K |
| Processor cores |
24 |
| Processor threads |
32 |
| Processor boost frequency |
5.6 GHz |
| Processor frequency |
3.2 GHz |
| Memory |
|---|
| Internal memory |
32 GB |
| Maximum internal memory |
192 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
2 x 16 GB |
| Memory slots |
4x SO-DIMM |
| Memory clock speed |
4800 MHz |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Optical drive type |
No |
| Storage media |
SSD |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD capacity |
1 TB |
| NVMe |
Yes |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Graphics |
|---|
| Discrete graphics card |
Yes |
| On-board graphics card |
Yes |
| Discrete GPU manufacturer |
NVIDIA |
| Discrete graphics card model |
NVIDIA T1000 |
| Discrete graphics card memory |
8 GB |
| Number of discrete graphics cards |
1 |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000,2500 Mbit/s |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX211 |
| Antenna type |
2x2 |
| Bluetooth |
Yes |

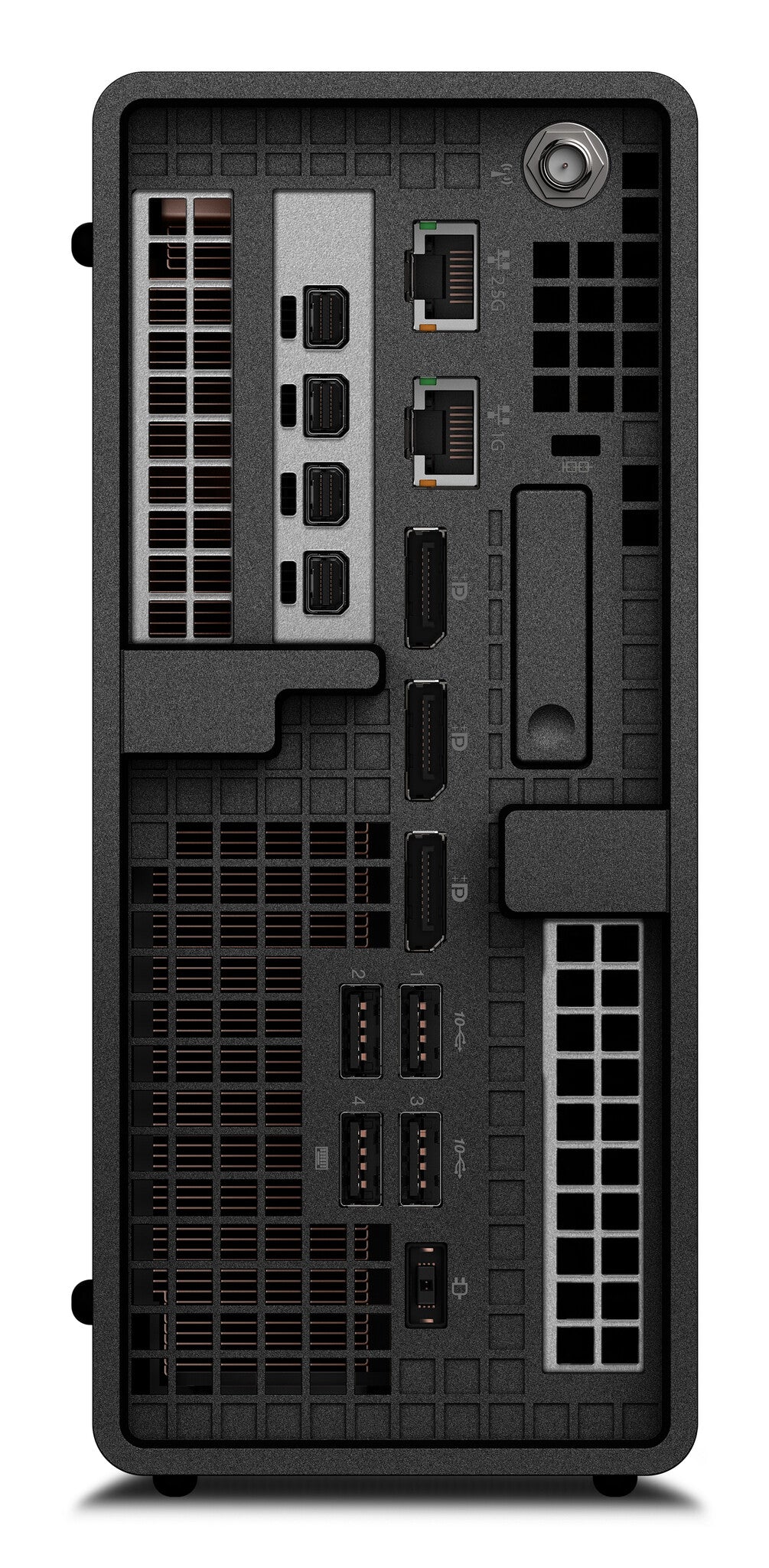

| Ports & interfaces |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
5 |
| Intel® Thunderbolt 4 |
Yes |
| Thunderbolt 4 ports quantity |
2 |
| DisplayPorts quantity |
3 |
| Ethernet LAN (RJ-45) ports |
2 |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Chassis type |
Mini Tower |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Performance |
|---|
| Product type |
Workstation |
| Motherboard chipset |
Intel W680 |
| Audio chip |
Realtek ALC897-Q |
| Audio system |
High Definition Audio |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Operating system architecture |
64-bit |
| Power |
|---|
| Power supply |
300 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-40 - 60 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
10 - 90% |
| Operating altitude |
0 - 3048 m |
| Non-operating altitude |
0 - 12192 m |
| Weight & dimensions |
|---|
| Width |
87 mm |
| Depth |
223 mm |
| Height |
202 mm |
| Weight |
3.6 kg |
| Packaging content |
|---|
| Display included |
No |
| Mouse included |
Yes |
| Keyboard included |
Yes |
| General |
|---|
| Product series |
P |
| Product family |
ThinkStation |
