- ABS plastic housing
- The keyboard PCB, screw-in stabs, and the PC plate
- Double-shot OSA PBT keycaps (including Mac & Windows keycaps)
- Gateron Jupiter switches

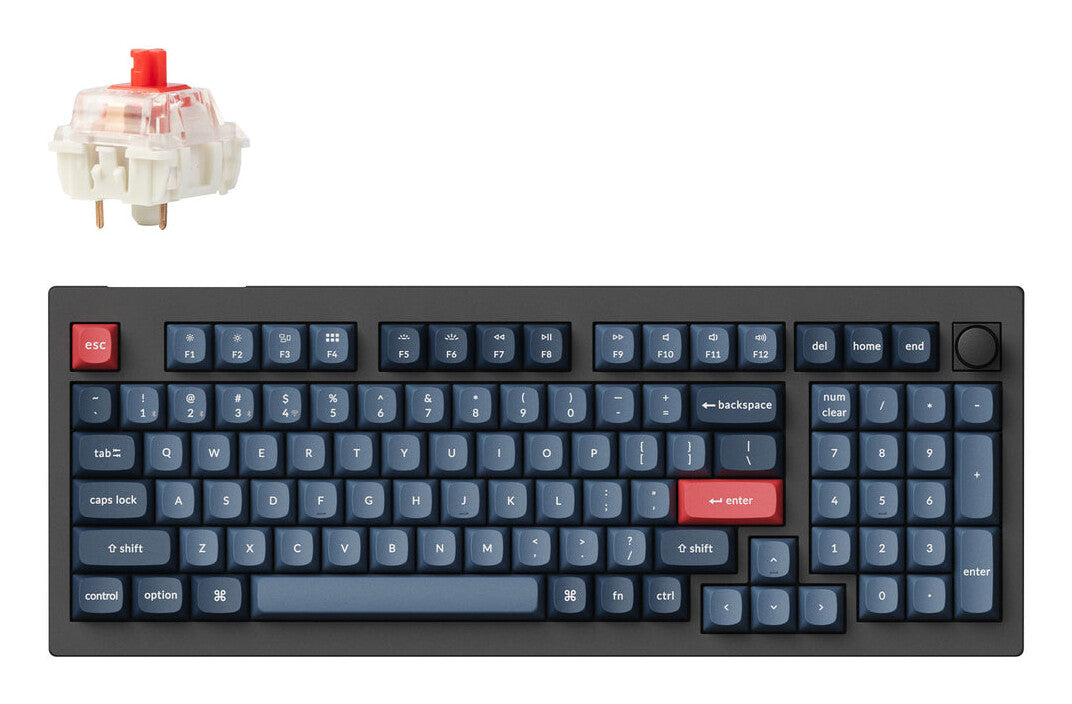

Keychron V5 Max
The V5 Max is a QMK custom mechanical keyboard with 2.4 GHz wireless and Bluetooth 5.1 connection. Coming in an 1800 compact layout, it offers a gasket mount design, sound-absorbing foam, double-shot PBT keycaps, and more to take your typing experience to a new level, delivering enhanced comfort and productivity.
| Keyboard |
|---|
| Recommended usage |
Universal |
| Connectivity technology |
Wired & Wireless |
| Device interface |
USB + RF Wireless + Bluetooth |
| Keyboard key switch |
Mechanical |
| Keyboard key switch technology |
Gateron Jupiter Red |
| Keyboard layout |
QWERTY |
| Keyboard language |
UK English |
| Pointing device |
No |
| Keyboard form factor |
96% |
| Numeric keypad |
Yes |
| Keycaps material |
Polybutylene terephthalate (PBT) |
| Keycaps |
Double shot |
| Keyboard keys operating life |
80 million characters |
| Keyboard key profile |
High-profile |
| Windows keys |
Yes |
| Programmable hot keys |
Yes |
| Key travel distance |
3.4 mm |
| Actuation force |
59 g |
| Rollover |
N-key rollover |
| Frequency band |
2.4 GHz |
| Polling rate |
90,1000 Hz |
| Built-in memory |
Yes |
| Built-in memory capacity |
256 KB |
| Bluetooth version |
5.1 |
| On/off switch |
Yes |
| Design |
|---|
| Backlight |
Yes |
| Backlight type |
RGB LED |
| Backlight colour |
Red/Green/Blue |
| Adjustable backlight |
Yes |
| Keyboard style |
Straight |
| Wrist rest |
No |
| Adjustable keyboard height |
Yes |
| Product colour |
Black, Grey |
| Material |
Plastic |
| Features |
|---|
| USB connector type |
USB Type-C |
| Detachable cable |
Yes |
| Hot-swap |
Yes |
| Power |
|---|
| Power source type |
Battery, USB |
| Keyboard battery type |
Built-in battery |
| Battery technology |
Lithium Polymer (LiPo) |
| Battery capacity |
4000 mAh |
| Battery life (max) |
225 h |
| Rechargeable |
Yes |
| Battery recharge time |
5 h |
| USB Type-C charging port |
Yes |
| System requirements |
|---|
| Windows operating systems supported |
Yes |
| Mac operating systems supported |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
-10 - 50 °C |
| Weight & dimensions |
|---|
| Keyboard dimensions (WxDxH) |
391.5 x 148.7 x 29.6 mm |
| Keyboard weight |
925 g |
| Packaging content |
|---|
| Number of products included |
1 pc(s) |
| Receiver included |
Yes |
| Wireless receiver interface |
USB Type-A/USB Type-C |
| AC adapter included |
No |
