- Capture up to 8K24 Action Footage
- 1/1.3" 48MP Sensor, Active HDR Capture
- 151° Wide-Angle Leica f/2.6 Lens
- FlowState Stabilization, Horizon Lock
- Voice & Gesture Control, 32' Waterproof
- 2.4" Flip Touchscreen, 0.7" Front Screen
- 90-Minute Runtime, Fast Charging
- 2x Video & 2.5x Photo Digital Zoom
- Directional/Stereo Audio, Wind Reduction
- Multiple Selectable Video Modes

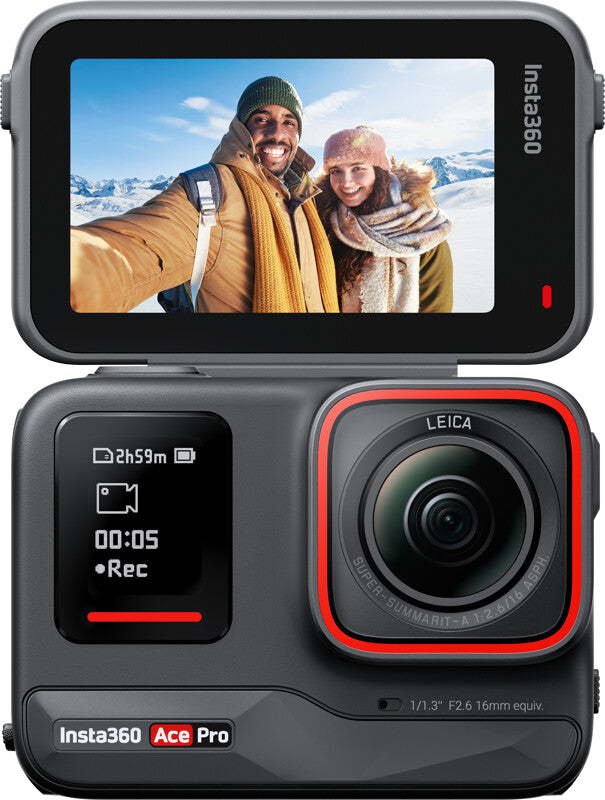

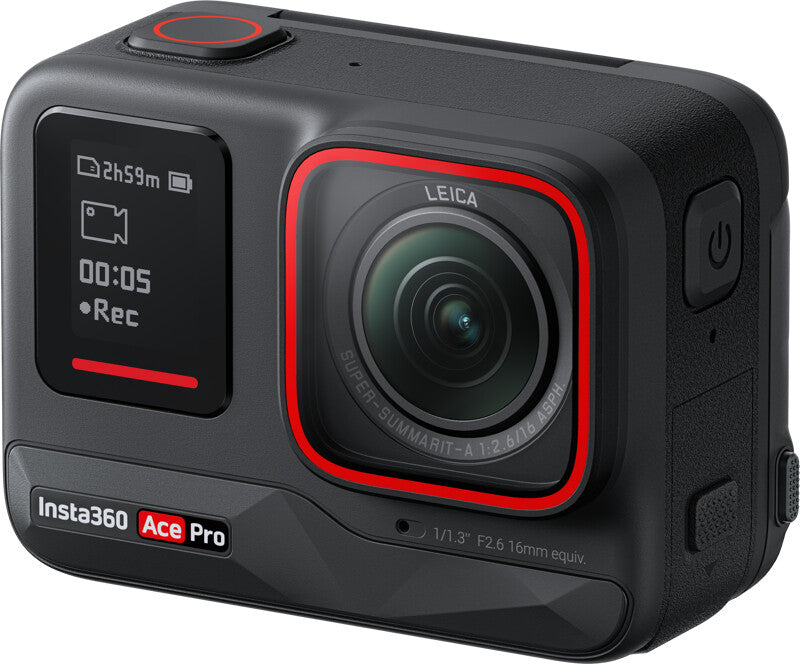

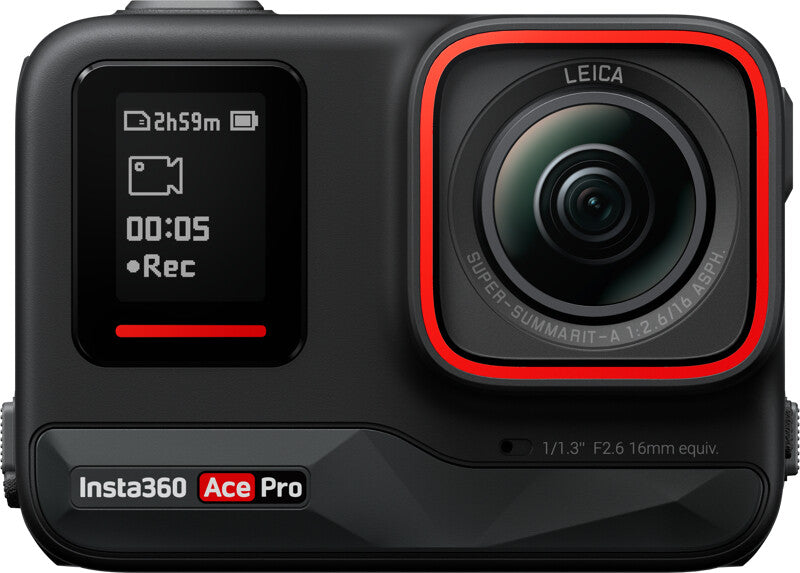

Capture all the action on the road, in the studio, or in the water with the Ace Pro Action Camera from Insta360. This compact, easy-to-use action camera provides up to 8K photo and video capture in a tiny action body that can be mounted and carried anywhere when traveling, shooting action videos, or vlogging. The large 1/1.3" sensor allows you to capture up to 8K24 resolution and features an automatic HDR mode and superior low-light performance to capture vibrant, realistic color. The wide-angle lens was developed with world-class lensmaker Leica, allowing you to capture up to a 151° field of view.

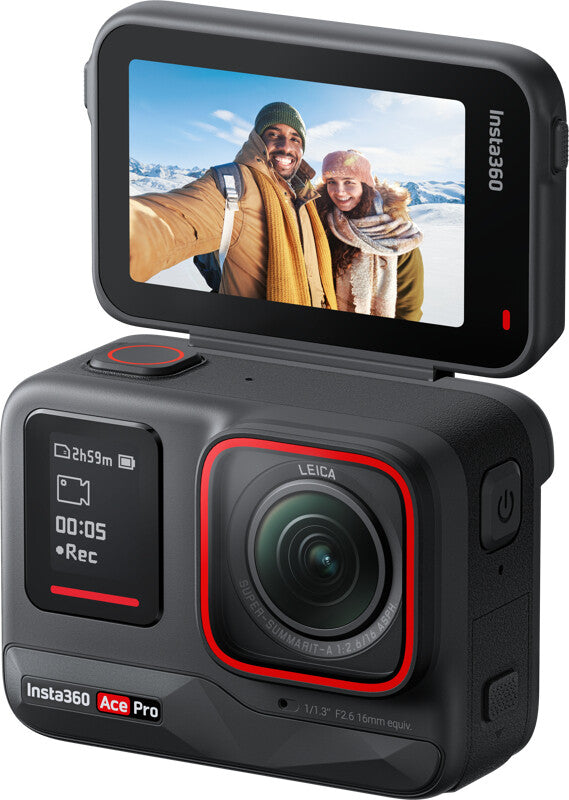

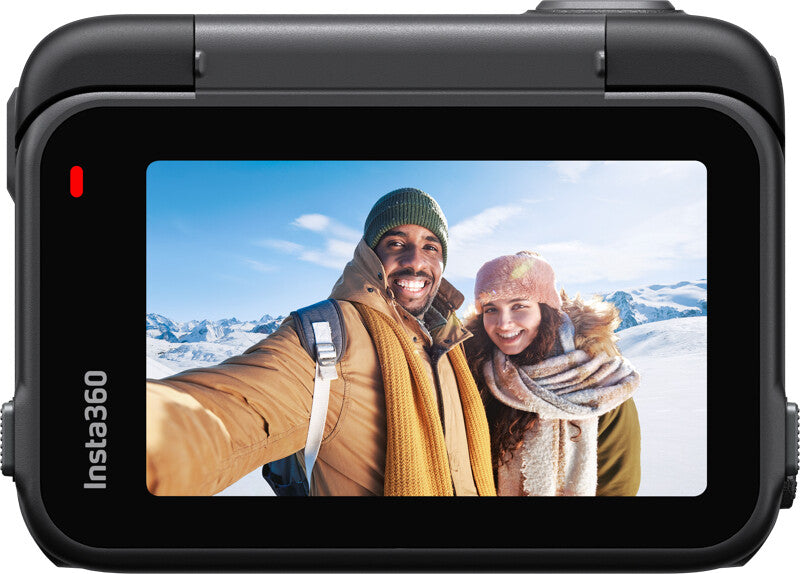

The back 2.4" touchscreen live-view display flips up to be used as front- or rear-facing, and there's a front 0.7" display that provides a view of active settings. Built-in FlowState uses a scene-detection algorithm to stabilize your shots, so they come out more balanced and professional-looking. The long-lasting battery supports fast charging and allows you to capture 4K30 video for up to 90 minutes of runtime, and 1080p video for over two hours.
Key features:
Capture up to 8K24 Action Footage
1/1.3" 48MP Sensor, Active HDR Capture
151° Wide-Angle Leica f/2.6 Lens
FlowState Stabilization, Horizon Lock
Voice & Gesture Control, 32' Waterproof
2.4" Flip Touchscreen, 0.7" Front Screen
90-Minute Runtime, Fast Charging
2x Video & 2.5x Photo Digital Zoom
Directional/Stereo Audio, Wind Reduction
Multiple Selectable Video Modes
In the box:
Insta360 Ace Pro Action Camera
1650mAh Battery
Standard Action Mount
Flexible Adhesive Mount
USB-C to USB-C Cable
| Video |
|---|
| HD type |
8K Ultra HD |
| Maximum video resolution |
7680 x 4320 pixels |
| Video resolutions |
4032 x 3024,2688 x 2016,1920 x 1080,1920 x 1440,2688 x 1520,3840 x 2160,7680 x 4320 |
| Video formats supported |
MP4 |
| Supported video modes |
1080p, 1440p |
| Aspect ratio |
2.35:1, 4:3, 16:9 |
| Maximum frame rate |
240 fps |
| Bitrate at maximum video resolution |
170 Mbit/s |
| Picture quality |
|---|
| Total megapixels |
48 MP |
| Optical sensor size |
25.4 / 1.3 mm (1 / 1.3") |
| Photo mode |
Yes |
| Maximum image resolution |
8064 x 6048 pixels |
| Image formats supported |
DNG, JPG, Raw |
| Display |
|---|
| Built-in display |
Yes |
| Display diagonal |
6.1 cm (2.4") |
| Flip-out screen |
Yes |
| Touchscreen |
Yes |
| Lens system |
|---|
| Image stabilizer |
Yes |
| Storage |
|---|
| Storage media |
Memory card |
| Compatible memory cards |
MicroSD (TransFlash) |
| Maximum memory card size |
1 TB |
| Network |
|---|
| Wi-Fi |
Yes |
| Wi-Fi standards |
802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Frequency band |
2.4 - 5 GHz |
| GPS (satellite) |
No |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
5.2 |
| Ports & interfaces |
|---|
| USB connector type |
USB Type-C |
| Design |
|---|
| Product colour |
Black |
| Waterproof up to |
10 m |
| Freezeproof up to |
-20 °C |
| Country of origin |
China |
| Power |
|---|
| Battery operated |
Yes |
| Battery technology |
Lithium-Ion (Li-Ion) |
| Number of batteries supported |
1 |
| Battery capacity |
1650 mAh |
| Battery voltage |
3.85 V |
| USB Type-C charging port |
Yes |
| Weight & dimensions |
|---|
| Weight |
493 g |
| Width |
71.9 mm |
| Depth |
38.5 mm |
| Height |
52.1 mm |
| Packaging data |
|---|
| Package weight |
1.35 kg |
| Package height |
212 mm |
| Package depth |
62 mm |
| Package width |
103 mm |
