- 38.1 cm (15") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Response time: 8 ms
- 1024 x 768 pixels XGA Panel type: TN
- Energy efficiency class (SDR): E ErP CE, cULus, EAC, REACH, RoHS, WEEE

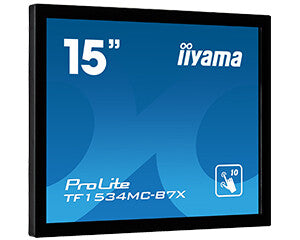

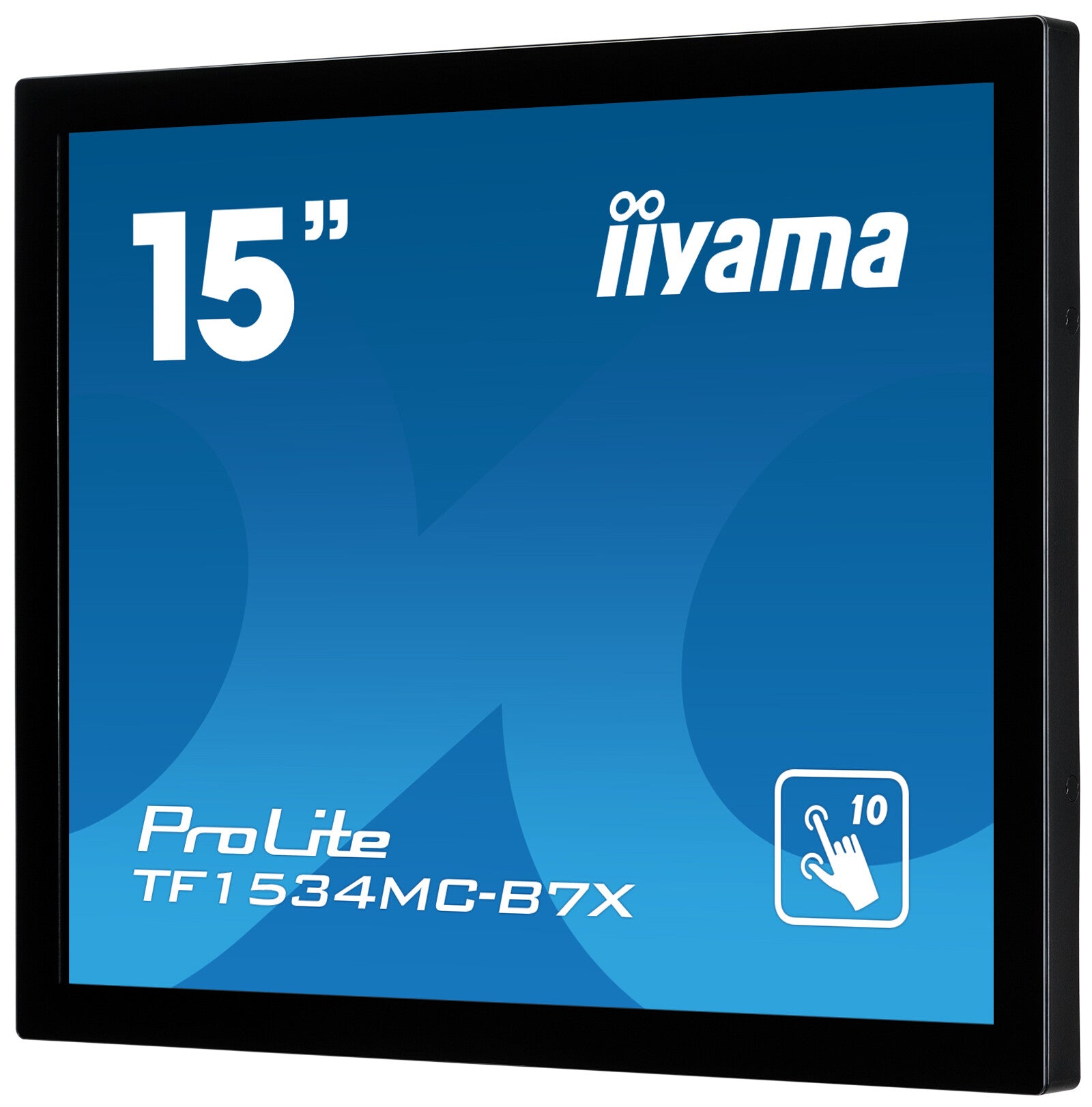

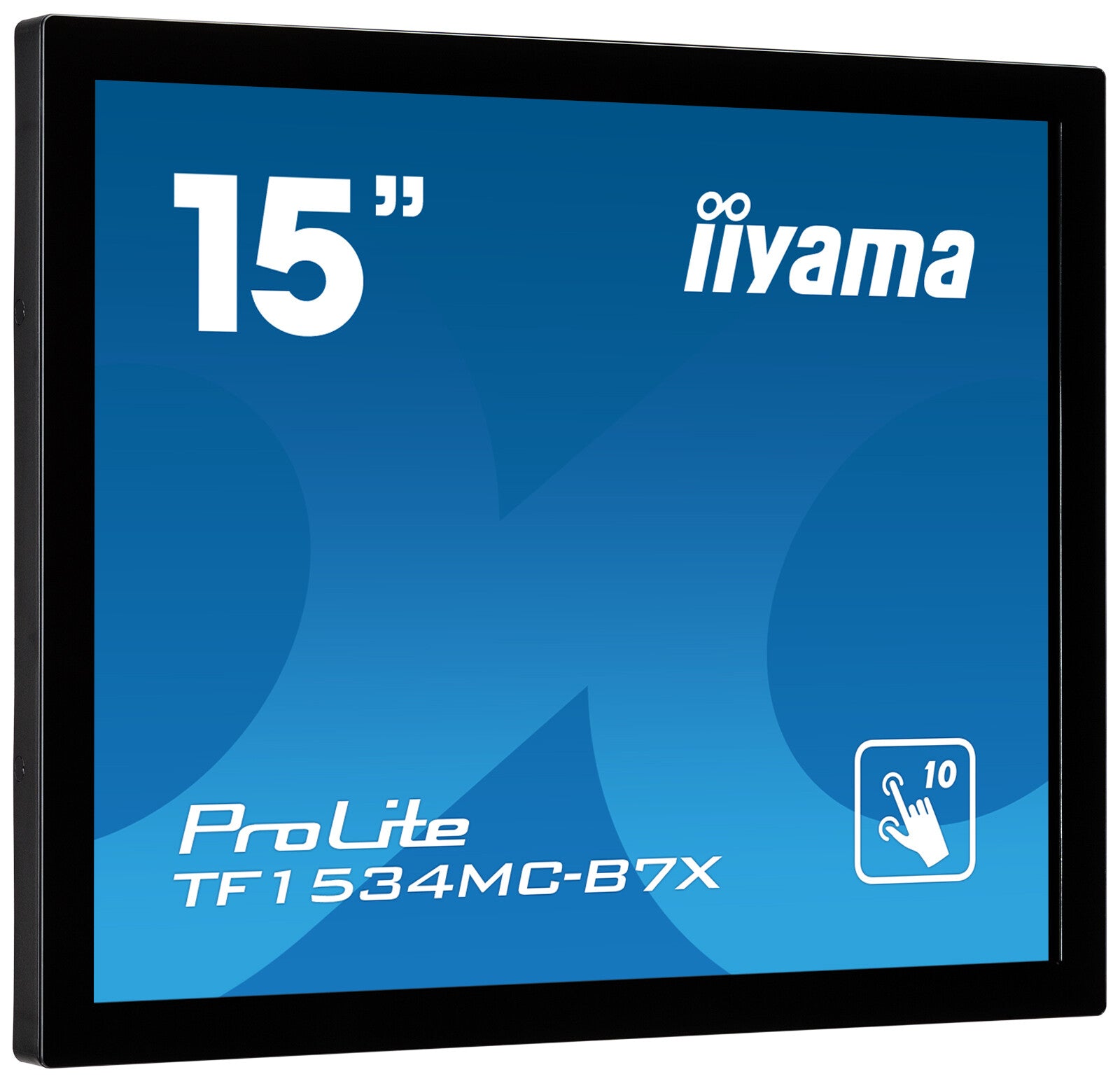

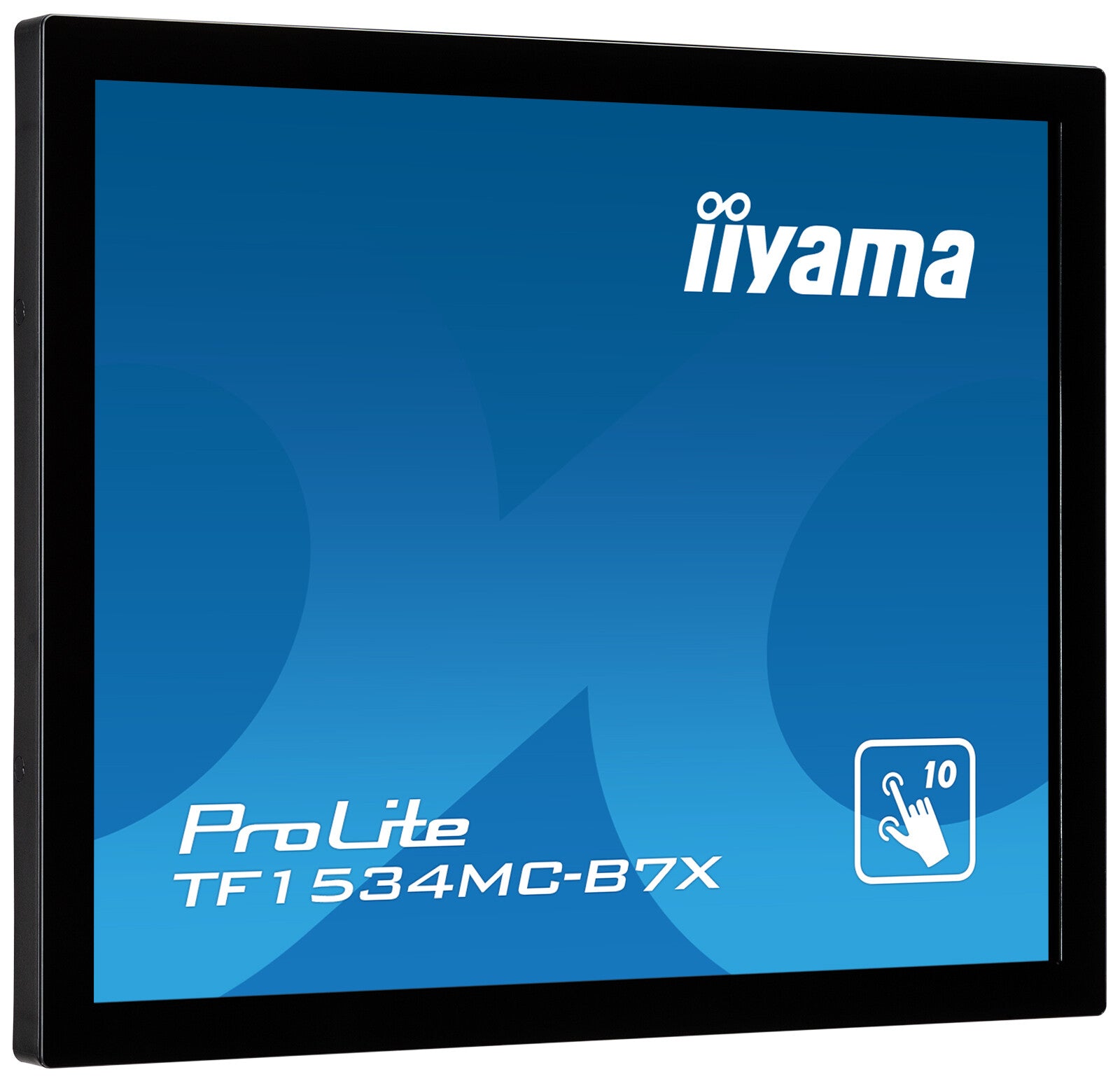

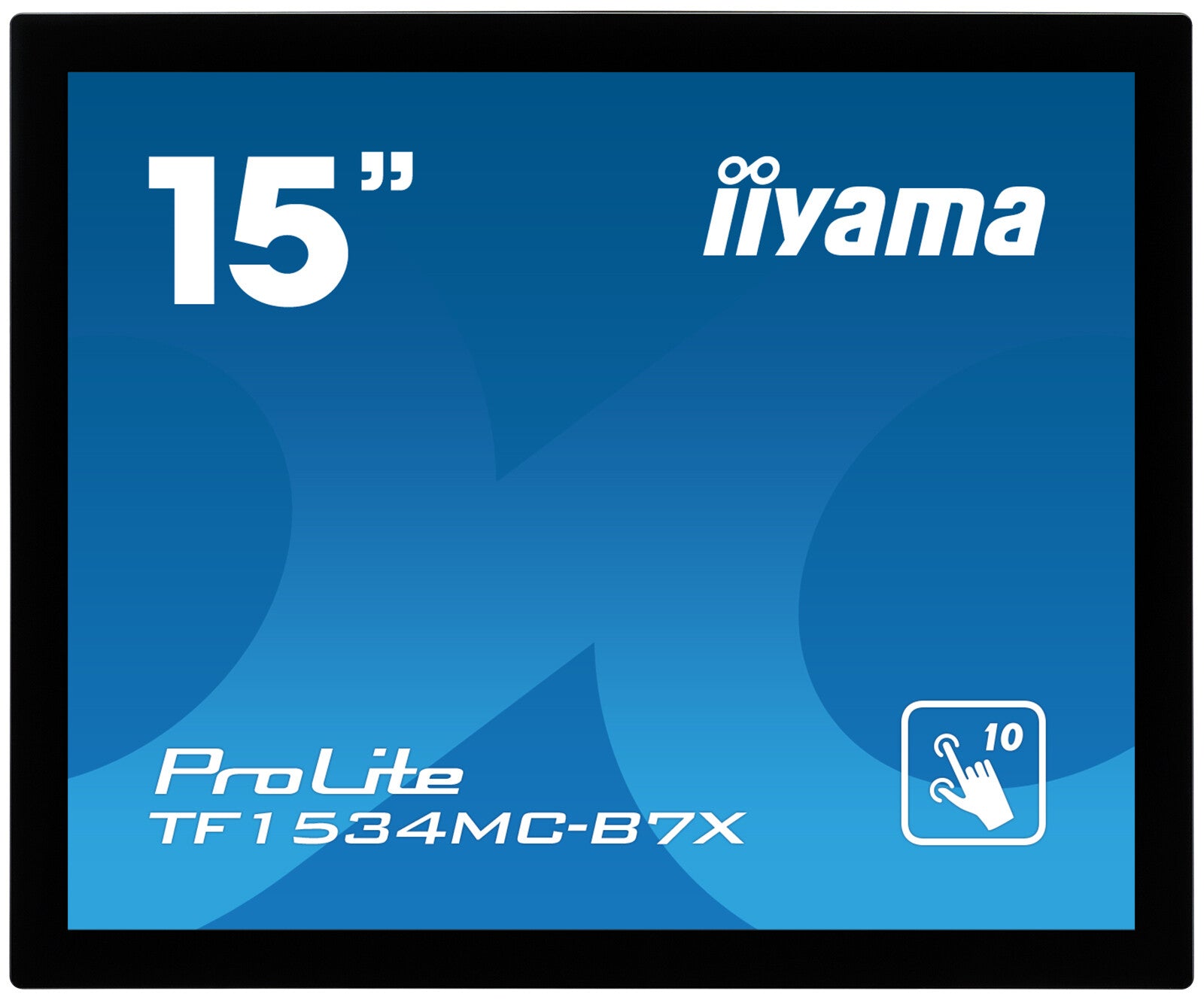

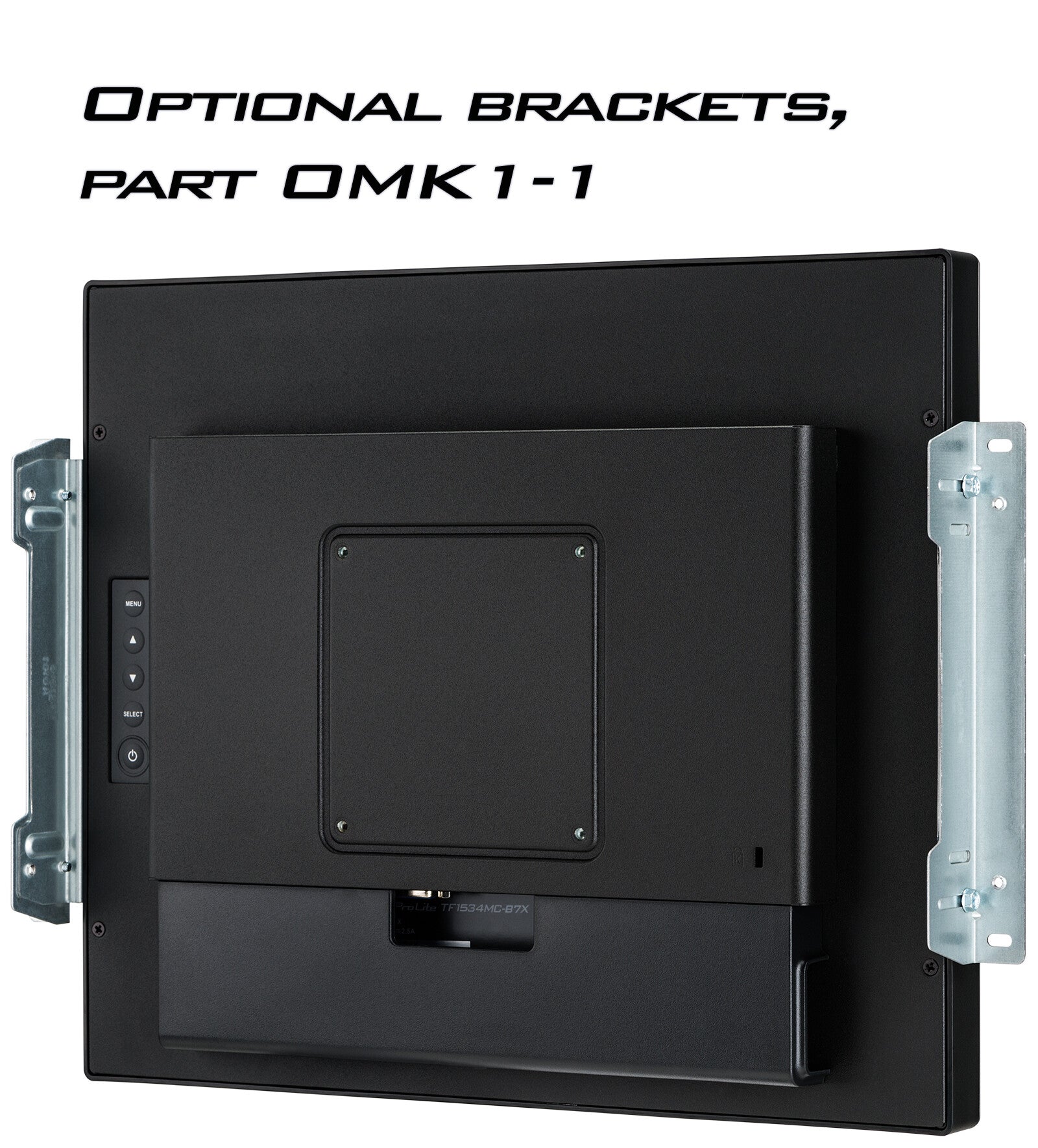

The ProLite TF1534MC-B7X uses 10 pt Projective Capacitive touch technology built into an eye catching bezel with edge-to-edge glass, which guarantees high durability, scratch-resistance and perfect picture performance. The screen is IP65 rated which means it is dust and water resistant from the front. Together with the Touch-Through-Glass technology which delivers a seamless and accurate touch response, this makes the monitor an ideal solution for kiosk integrators, Instore Retail and behind-glass-retail. For ease of integration, the monitor can be equipped with optional external mounting brackets ( OMK1-1 ).
| Display |
|---|
| Display diagonal |
38.1 cm (15") |
| Display resolution |
1024 x 768 pixels |
| Native aspect ratio |
4:3 |
| Display technology |
LED |
| Touchscreen |
Yes |
| HD type |
XGA |
| Panel type |
TN |
| Touchscreen type |
Multi-user |
| Touchscreen technology |
Projected capacitive system |
| Touch technology |
Multi-touch |
| Number of simultaneous touchpoints |
10 |
| Display brightness (typical) |
370 cd/m² |
| Display brightness |
330 cd/m² |
| Response time |
8 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
700:1 |
| Viewing angle, horizontal |
170° |
| Viewing angle, vertical |
160° |
| Display number of colours |
16.2 million colours |
| Pixel pitch |
0.297 x 0.297 mm |
| Horizontal scan range |
31.4 - 60 kHz |
| Viewable size, horizontal |
30.4 cm |
| Viewable size, vertical |
22.8 cm |
| Display diagonal (metric) |
38 cm |
| Surface hardness |
7H |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Palm rejection |
Yes |
| Design |
|---|
| Product colour |
Black |
| Front bezel colour |
Black |
| Ports & interfaces |
|---|
| USB Touch port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Ergonomics |
|---|

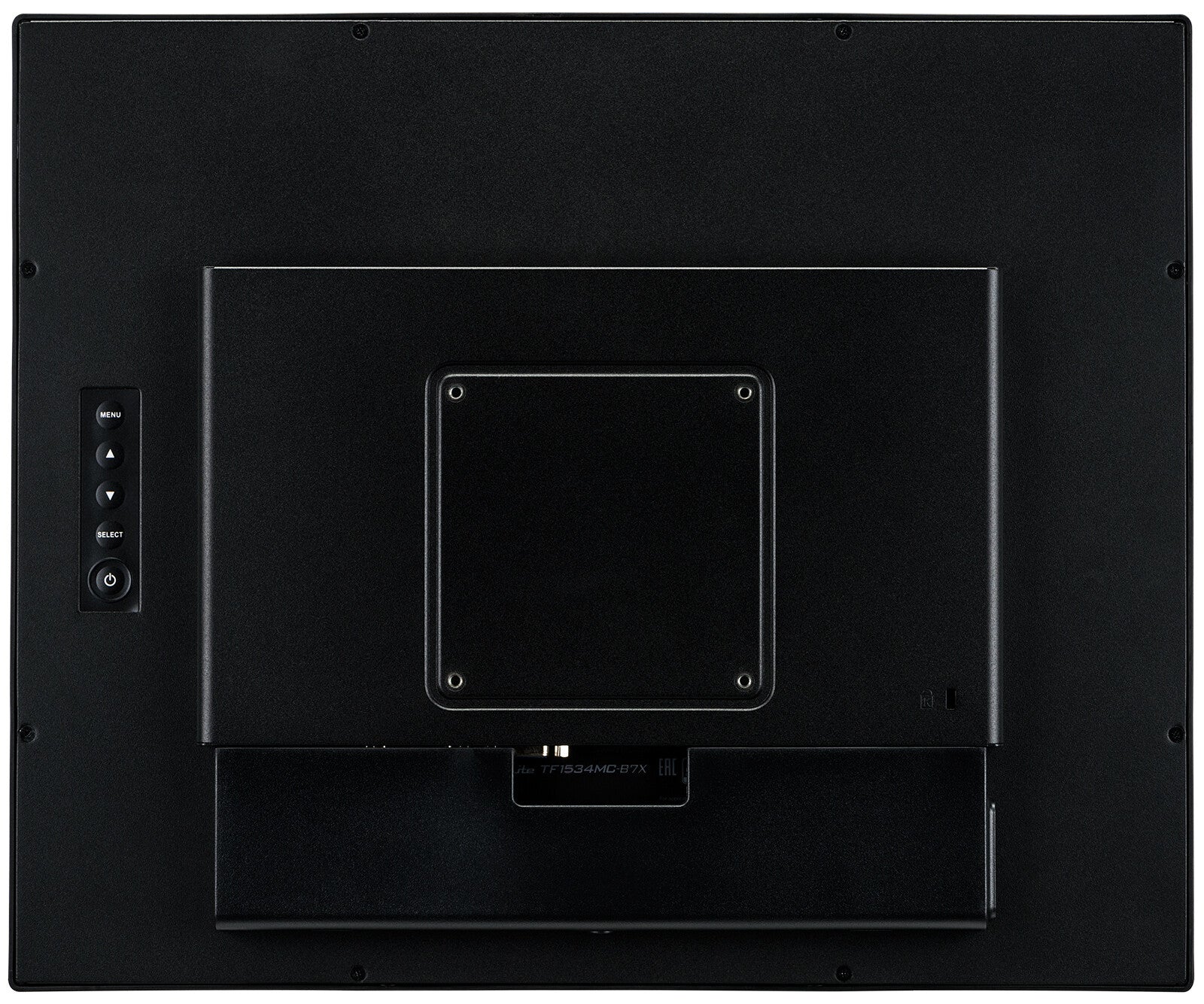

| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages |
7 |
| Power |
|---|
| Energy efficiency class (SDR) |
E |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
10 kWh |
| Power consumption (typical) |
9 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (off) |
0.3 W |
| AC adapter output voltage |
12 V |
| Power supply type |
External |
| Energy efficiency scale |
A to G |
| Weight & dimensions |
|---|
| Width (with stand) |
337.5 mm |
| Depth (with stand) |
44.5 mm |
| Height (with stand) |
265.5 mm |
| Weight (with stand) |
2.7 kg |
| Width (without stand) |
337.5 mm |
| Depth (without stand) |
44.5 mm |
| Height (without stand) |
265.5 mm |
| Weight (without stand) |
2.7 kg |
| Packaging data |
|---|
| Package width |
435 mm |
| Package depth |
165 mm |
| Package height |
335 mm |
| Package weight |
4 kg |
| USB cable length |
1.8 m |
| Packaging content |
|---|

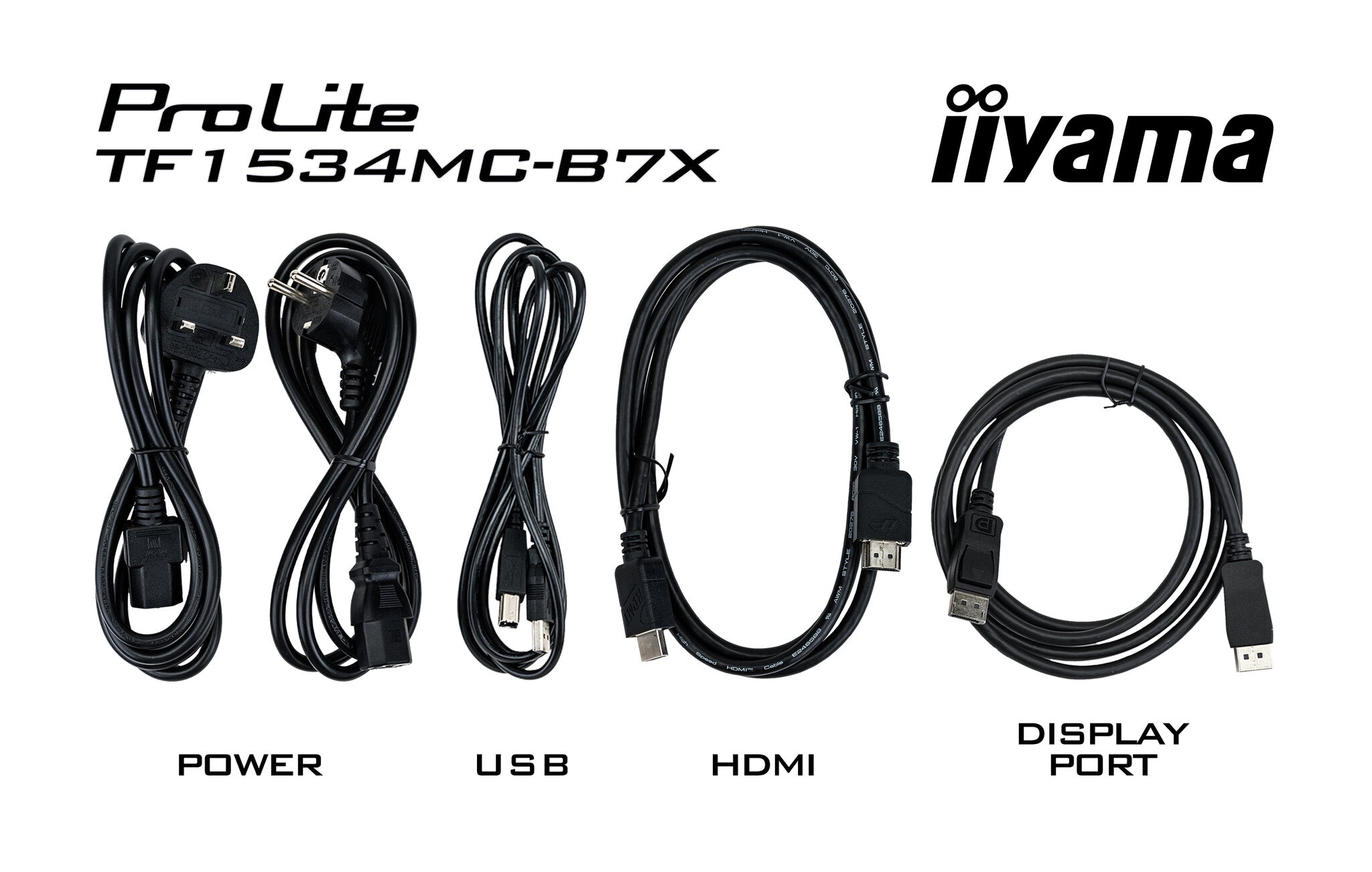

| Cables included |
AC, USB, HDMI, DisplayPort |
| Quick start guide |
Yes |
| DisplayPort cable length |
1.8 m |
| HDMI cable length |
1.8 m |
| Power cable length |
1.8 m |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| Other features |
|---|
| International Protection (IP) code |
IP65 |
| Compatible operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| Positional accuracy |
2 mm |
| AC adapter included |
Yes |
| Brightness |
330 cd/m² |
| Packaging content |
AC adapter |
| Active display area (W x H) |
304 x 228 mm |
| Compliance certificates |
CE, cULus, EAC, REACH, RoHS, WEEE |
| Depth |
44.5 mm |
| Width |
337.5 mm |
| Height |
265.5 mm |
| Weight |
2.7 kg |
| Display viewable area (HxV) |
304 x 228 mm |
| Mean time between failures (MTBF) |
50000 h |
| Control panel |
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls |
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, Touch switch), option (reset, language, source select, display mode, factory) |
| Touch method |
stylus, finger, glove (latex) |
| Logistics data |
|---|
| Products per pallet |
78 pc(s) |
| Pallet net width |
91 cm |
| Pallet net length |
198.7 cm |
| Pallet net height |
114 cm |
| Harmonized System (HS) code |
85285210 |
