- 25.6 cm (10.1") Black
- HDMI DisplayPorts quantity: 1
- Screen shape: Flat
- Maximum refresh rate: 75 Hz Response time: 29 ms
- 1280 x 800 pixels HD Panel type: IPS
- Energy efficiency class (SDR): C ErP CE, cULus, EAC, REACH, RoHS, UKCA, WEEE

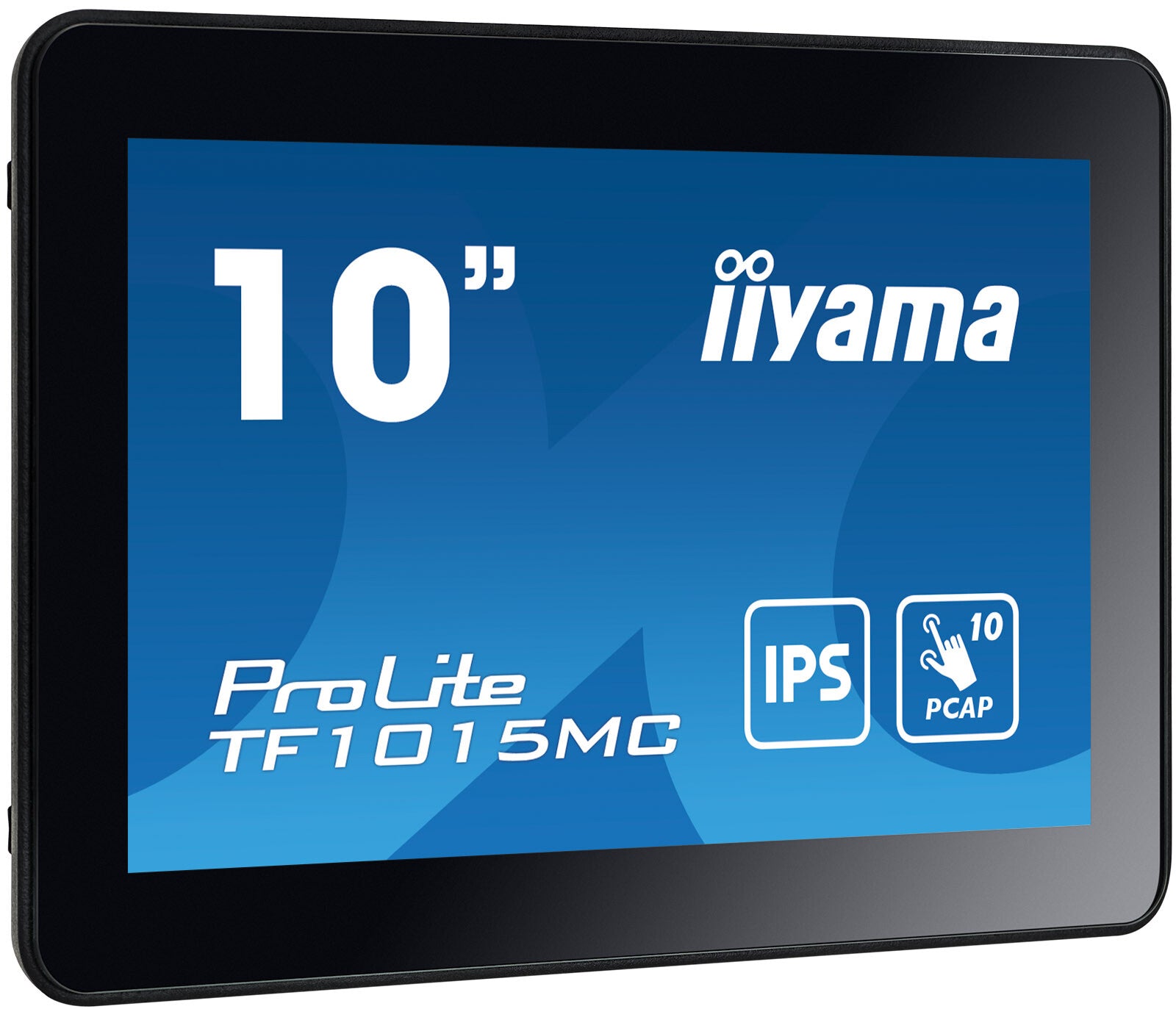

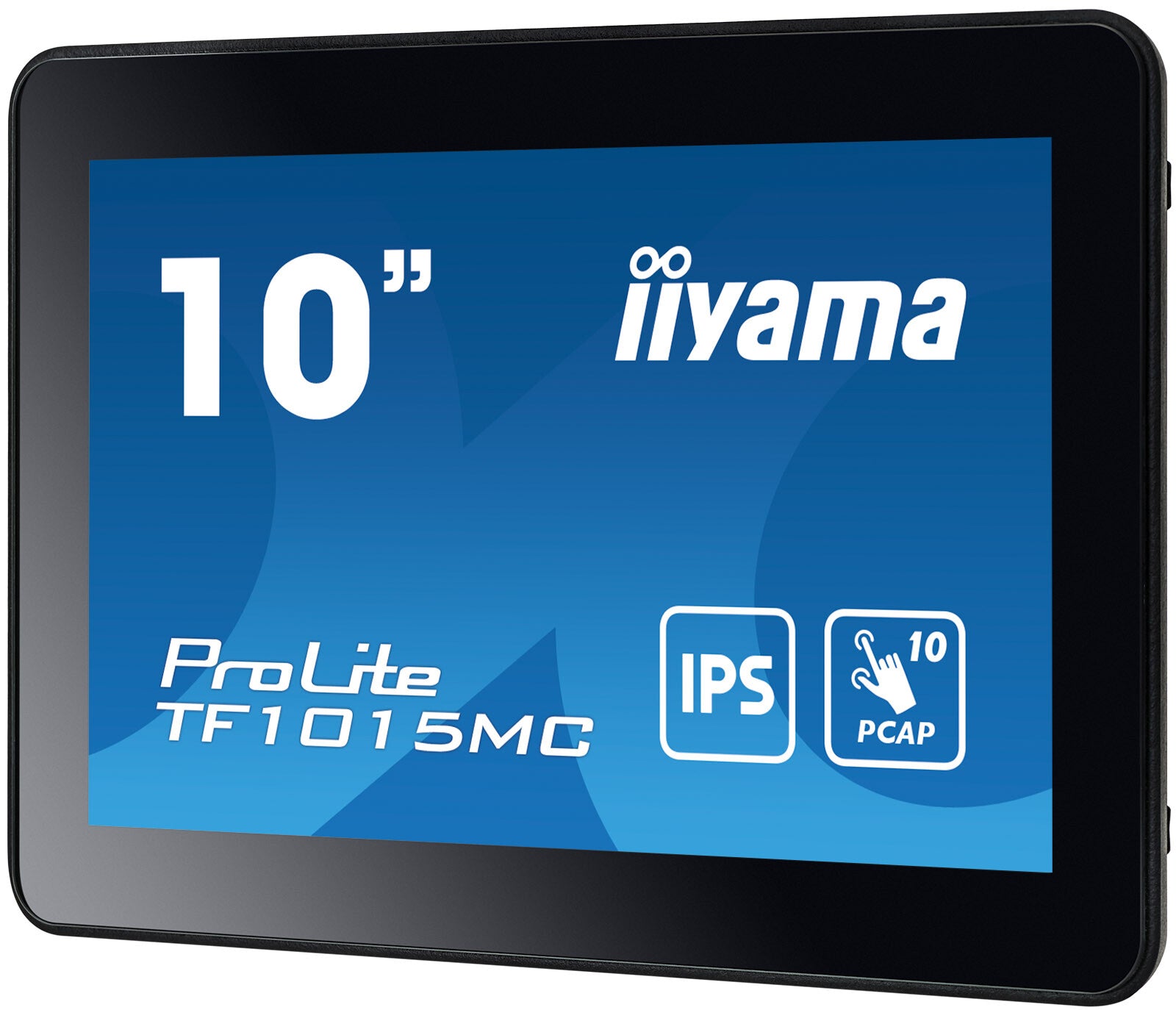

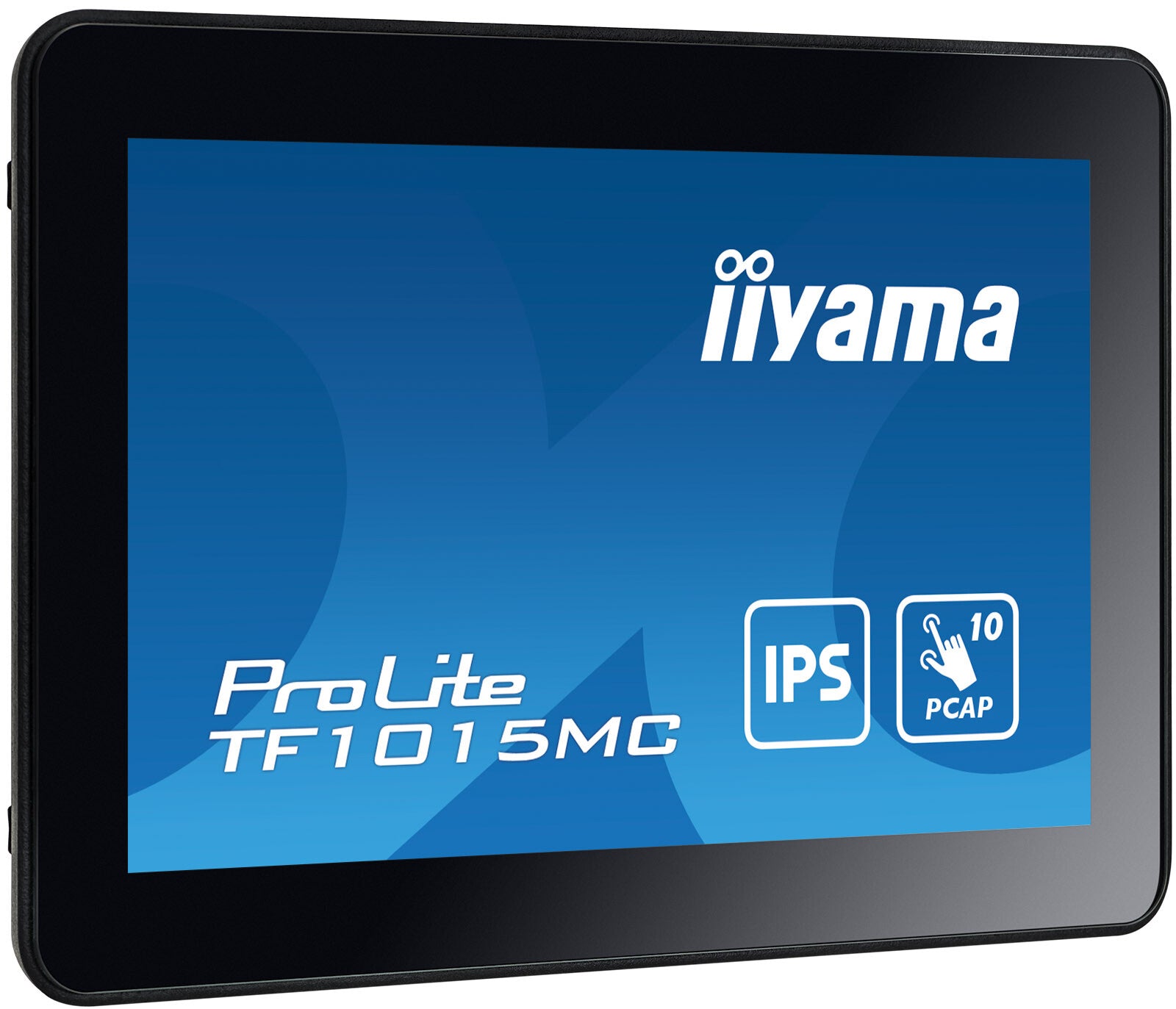

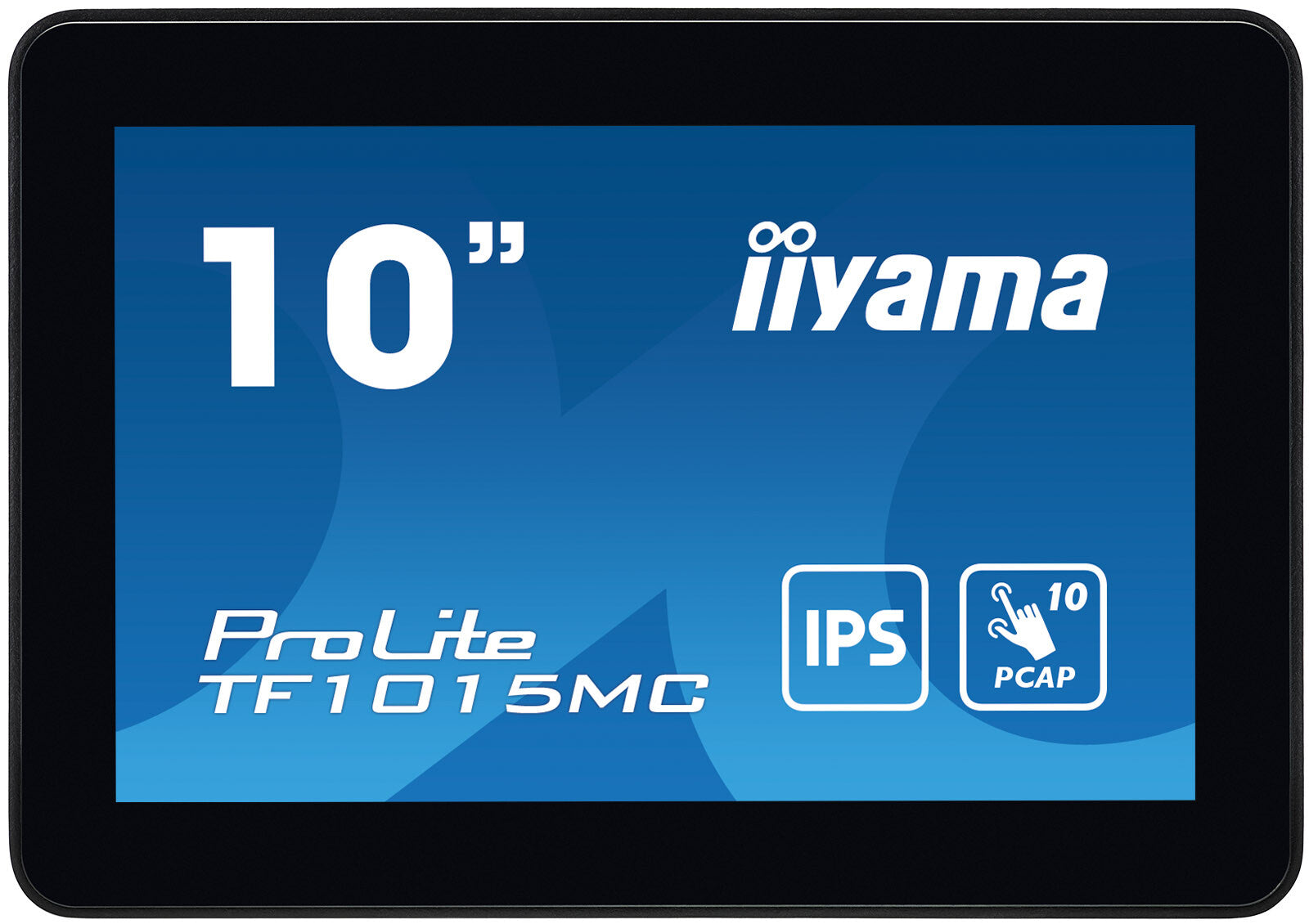

The ProLite TF1015MC (10.1 inch) uses PCAP touch technology and is built into an eye catching bezel with edge-to-edge glass. Thanks to a glass overlay covering the screen and a rugged bezel, it guarantees high durability and scratch-resistance, making it perfect for kiosk and high use public facing applications. The IPS panel technology offers accurate and consistent colour reproduction with wide viewing angles. Equipped with a foam seal finish it supports seamless integration into kiosks and provides IP65 rating resulting in dust and water resistance from the front. Landscape, portrait and face-up orientation ensures flexible mounting possibilities in almost any installation. For ease of integration, the TF1015MC can be equipped with optional external mounting brackets ( OMK2-1 ) making it an ideal solution for kiosk integrators, industrial environments, control rooms and interactive multimedia.
| Display |
|---|
| Display diagonal |
25.6 cm (10.1") |
| Display resolution |
1280 x 800 pixels |
| Native aspect ratio |
16:10 |
| Display technology |
LED |
| Touchscreen |
Yes |
| HD type |
HD |
| Panel type |
IPS |
| Touchscreen technology |
Projected capacitive system |
| Touch technology |
Multi-touch |
| Number of simultaneous touchpoints |
10 |
| Display brightness (peak) |
500 cd/m² |
| Display brightness (typical) |
500 cd/m² |
| Display brightness |
425 cd/m² |
| Response time |
29 ms |
| Screen shape |
Flat |
| Contrast ratio (typical) |
800:1 |
| Maximum refresh rate |
75 Hz |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.1695 x 0.1695 mm |
| Horizontal scan range |
30 - 49.7 kHz |
| Viewable size, horizontal |
21.7 cm |
| Viewable size, vertical |
13.6 cm |
| Digital horizontal frequency |
30 - 49.7 kHz |
| Display diagonal (metric) |
25.7 cm |
| Surface hardness |
7H |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Palm rejection |
Yes |
| Design |
|---|
| Market positioning |
Business |
| Product colour |
Black |
| Front bezel colour |
Black |
| Glass thickness |
3.3 mm |

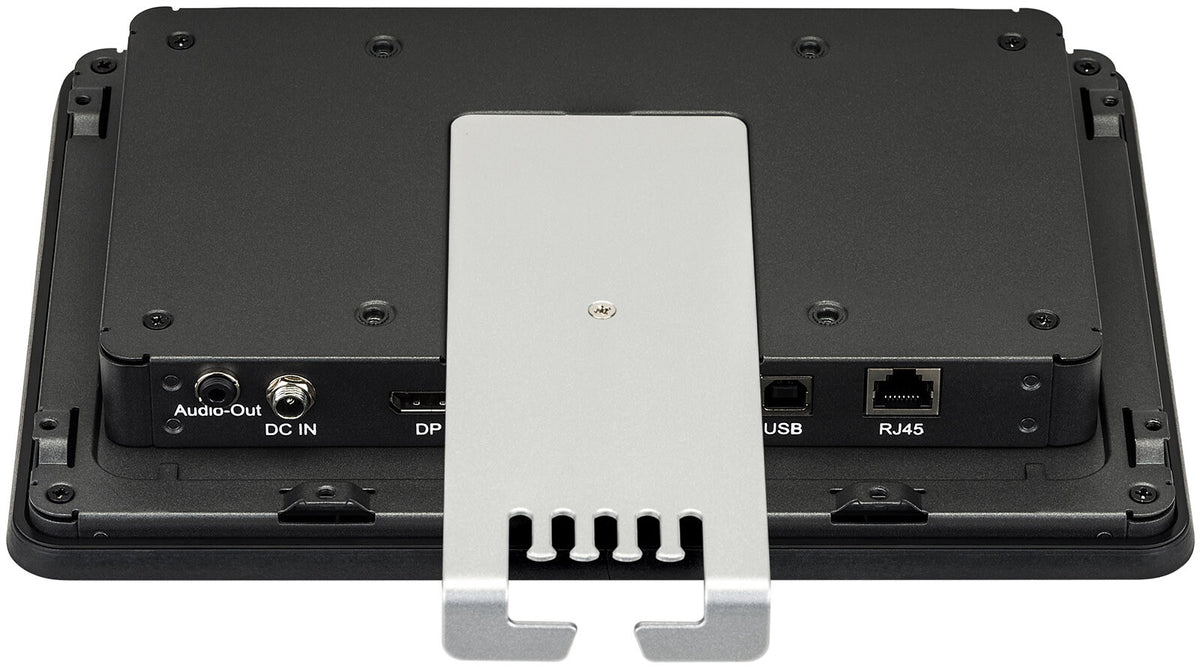

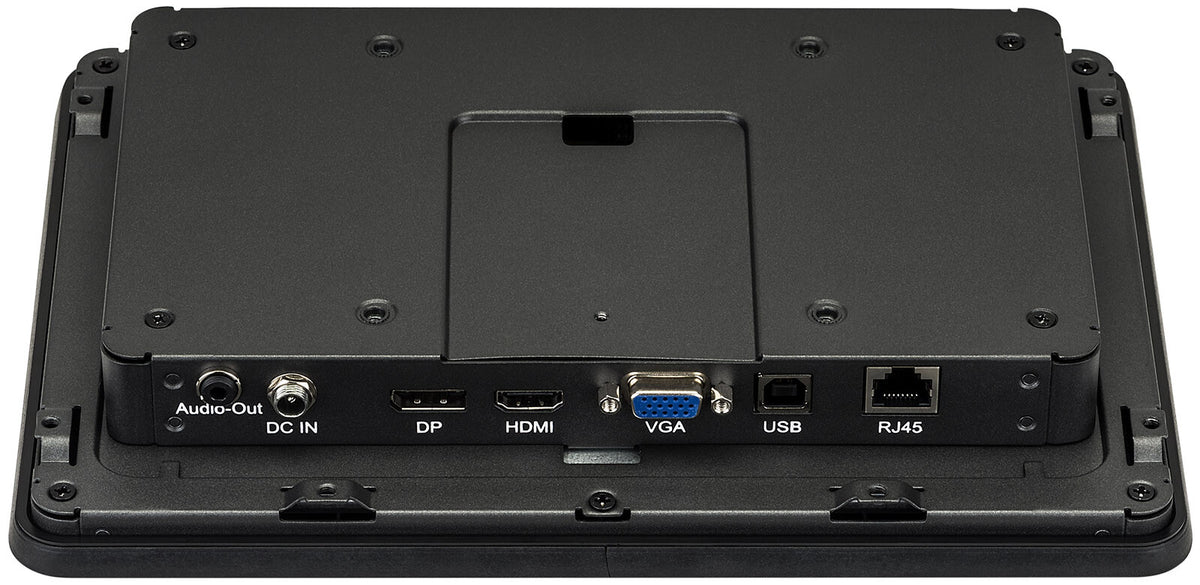

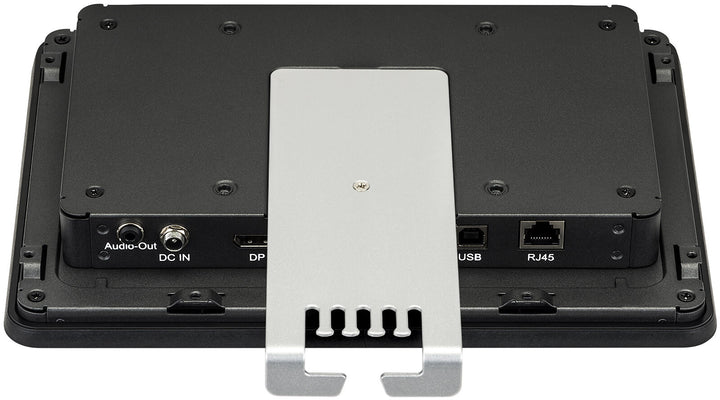

| Ports & interfaces |
|---|
| Built-in USB hub |
Yes |
| Number of upstream ports |
1 |
| USB Touch port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
No |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| Headphone connectivity |
3.5 mm |
| HDCP |
Yes |
| Ergonomics |
|---|

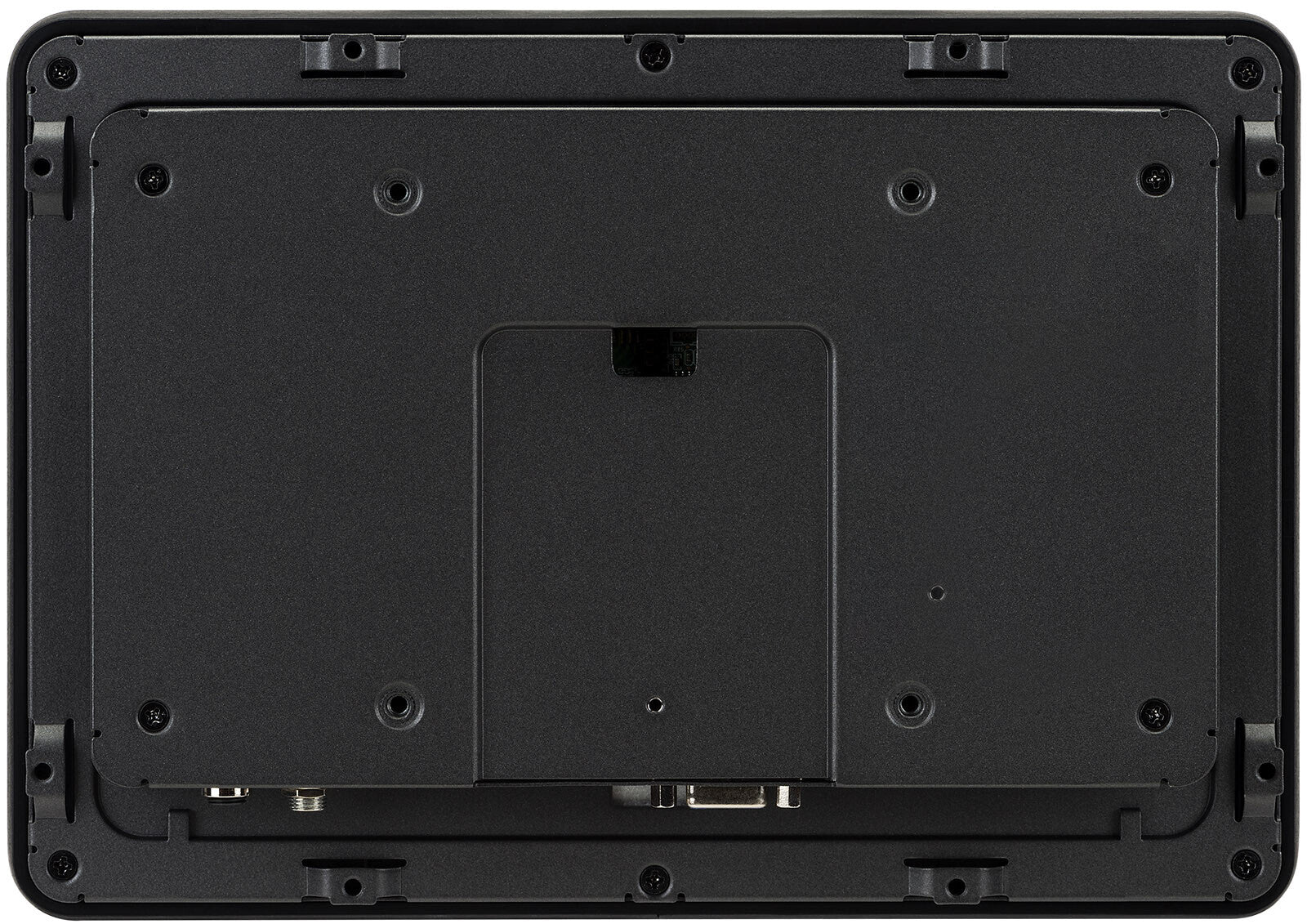

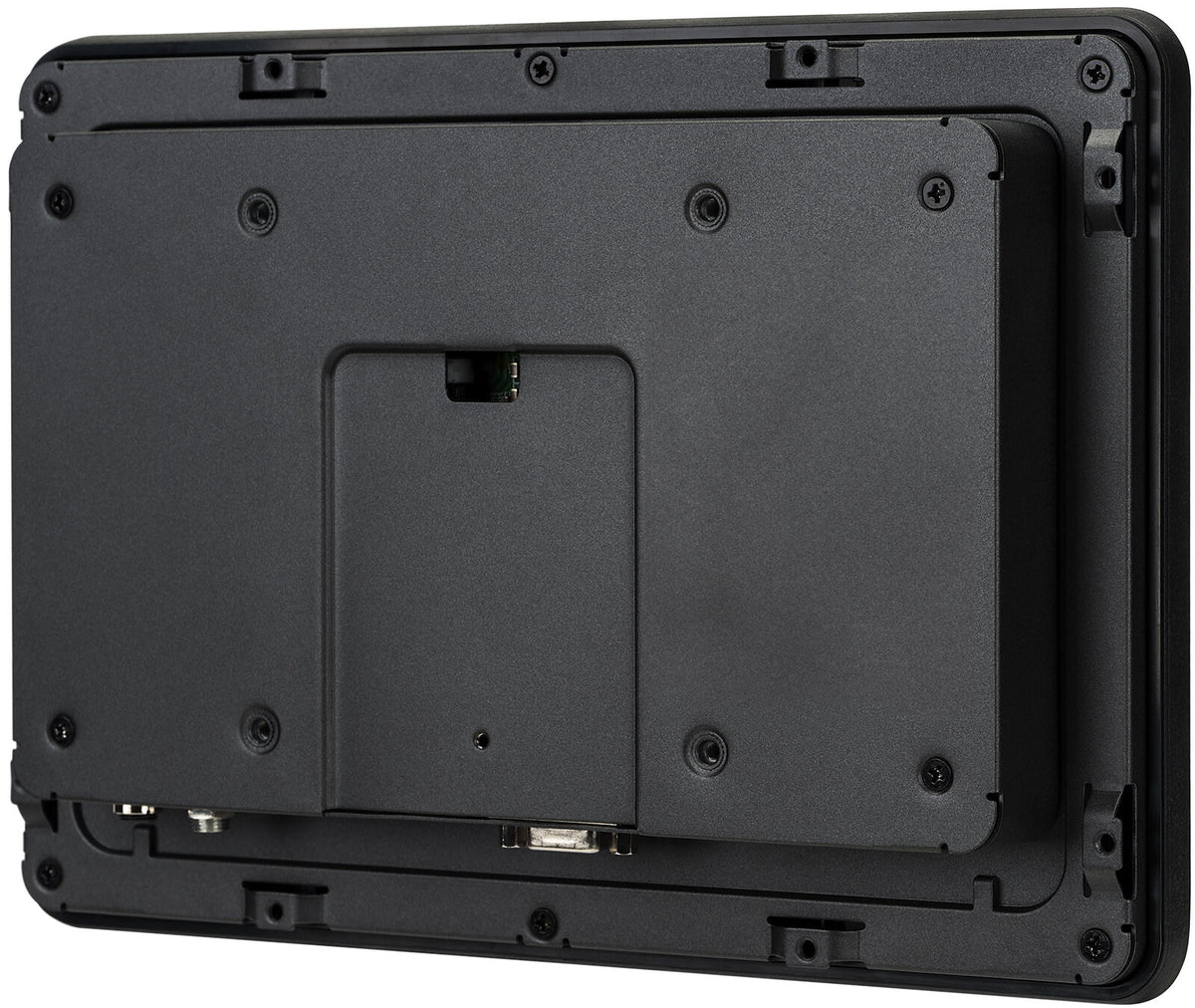

| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages |
7 |
| Plug and Play |
Yes |
| LED indicators |
Yes |
| Power |
|---|
| Energy efficiency class (SDR) |
C |
| Energy efficiency class (HDR) |
Not available |
| Energy consumption (SDR) per 1000 hours |
5.7 kWh |
| Power consumption (typical) |
6 W |
| Power consumption (standby) |
0.7 W |
| Power consumption (off) |
0.3 W |
| AC adapter output voltage |
12 V |
| Power supply type |
External |
| Energy efficiency scale |
A to G |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-20 - 60 °C |
| Weight & dimensions |
|---|
| Width (with stand) |
260.5 mm |
| Depth (with stand) |
39.5 mm |
| Height (with stand) |
183.5 mm |
| Weight (with stand) |
1.4 kg |
| Width (without stand) |
260.5 mm |
| Depth (without stand) |
39.5 mm |
| Height (without stand) |
183.5 mm |
| Weight (without stand) |
2.7 kg |
| Packaging data |
|---|
| Package width |
310 mm |
| Package depth |
370 mm |
| Package height |
160 mm |
| Package weight |
2.7 kg |

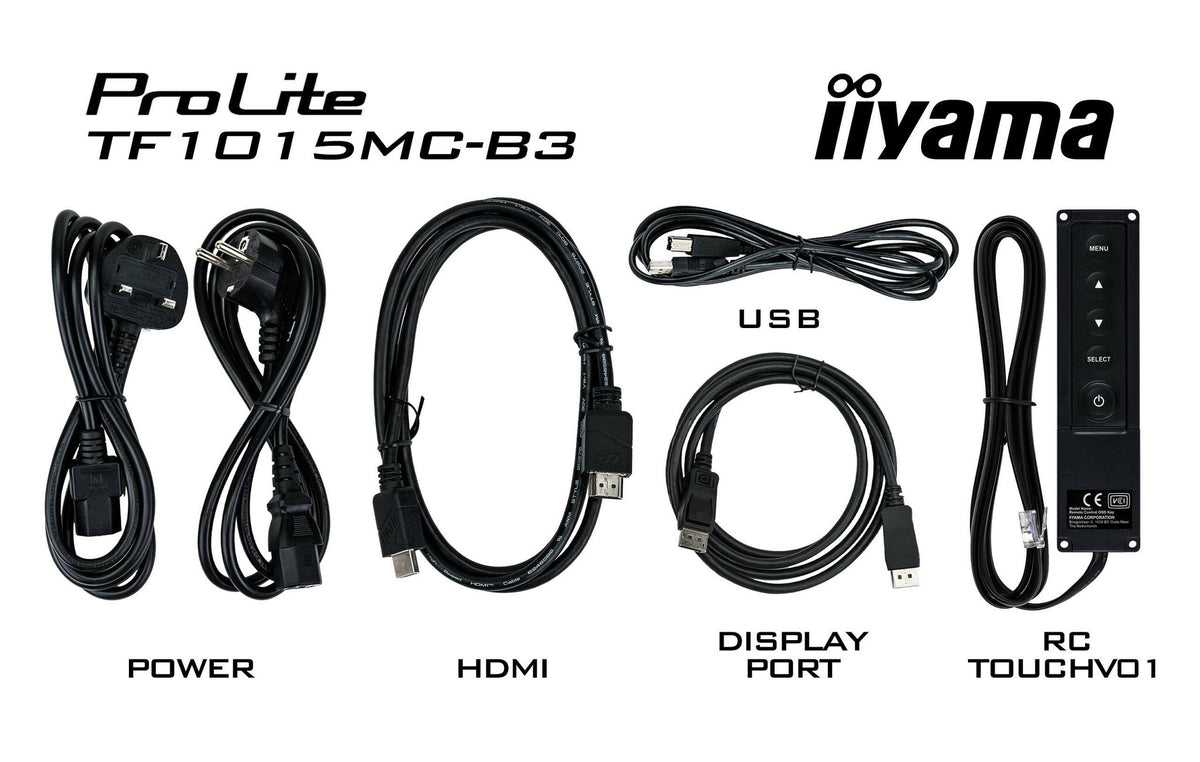

| Packaging content |
|---|
| Cables included |
AC, USB, HDMI, DisplayPort |
| Remote control included |
Yes |
| Quick start guide |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| Other features |
|---|
| International Protection (IP) code |
IP65 |
| Compatible operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included |
Yes |
| Brightness |
425 cd/m² |
| Packaging content |
AC adapter, external control pad |
| USB ports quantity |
1 |
| Active display area (W x H) |
216.96 x 135.6 mm |
| Placement supported |
Indoor |
| Compliance certificates |
CE, cULus, EAC, REACH, RoHS, UKCA, WEEE |
| Depth |
39.5 mm |
| Width |
260.5 mm |
| Height |
183.5 mm |
| Weight |
1.4 kg |
| Mean time between failures (MTBF) |
50000 h |
| Ethernet LAN (RJ-45) ports |
1 |
| Certification |
CB, CE, TÜV-Bauart, EAC, cULus |
| Control panel |
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls |
picture (contrast, brightness, H-position, V-position, phase, clock, auto adjust), advanced (color temp, sharpness), OSD (timeout, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method |
stylus, finger, glove (latex) |
| Technical details |
|---|
| Native refresh rate |
60 Hz |
