- anti-fingerprint coating, touch through-glass
- IP65 (front)
- OSD key lock

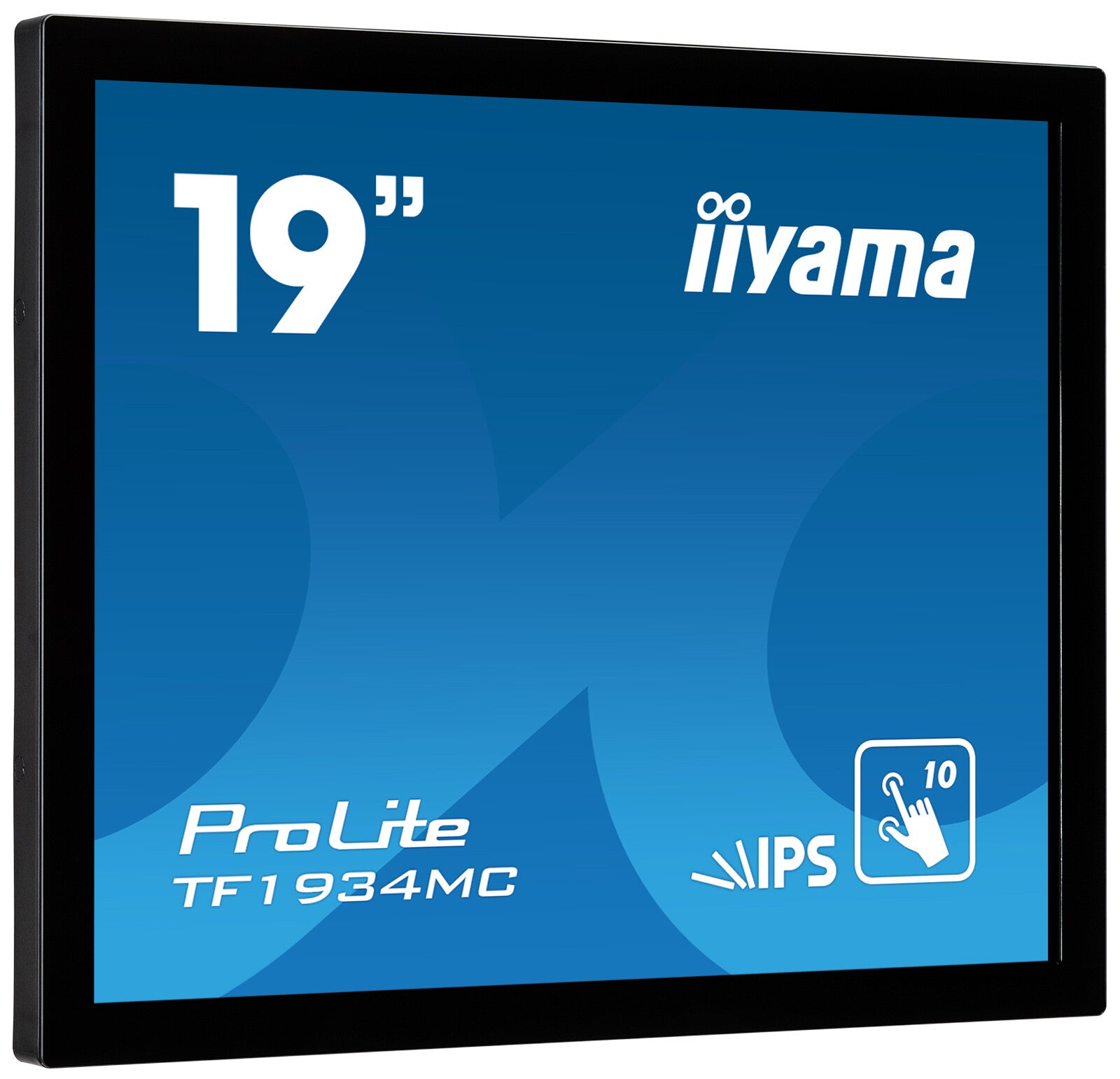

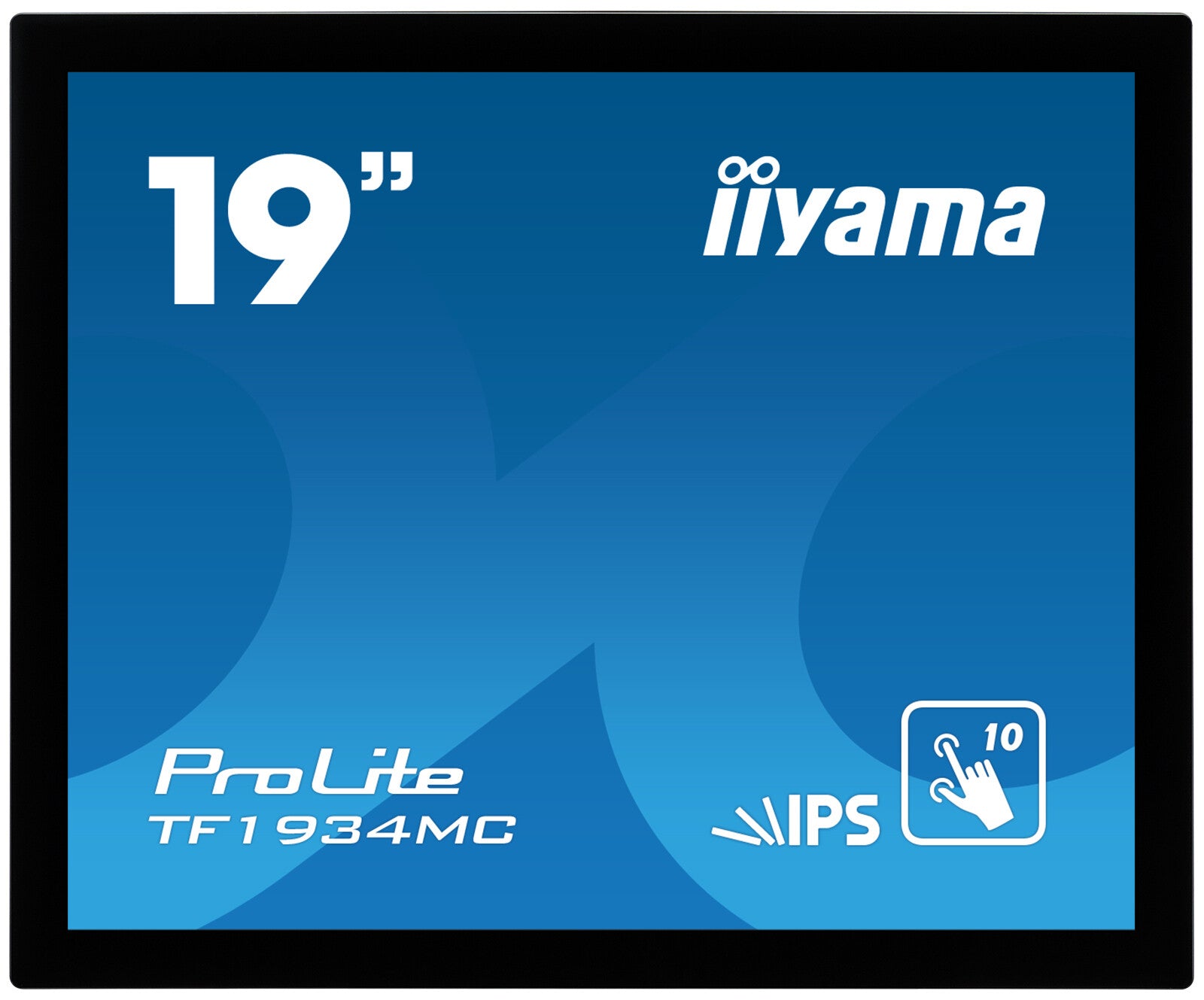

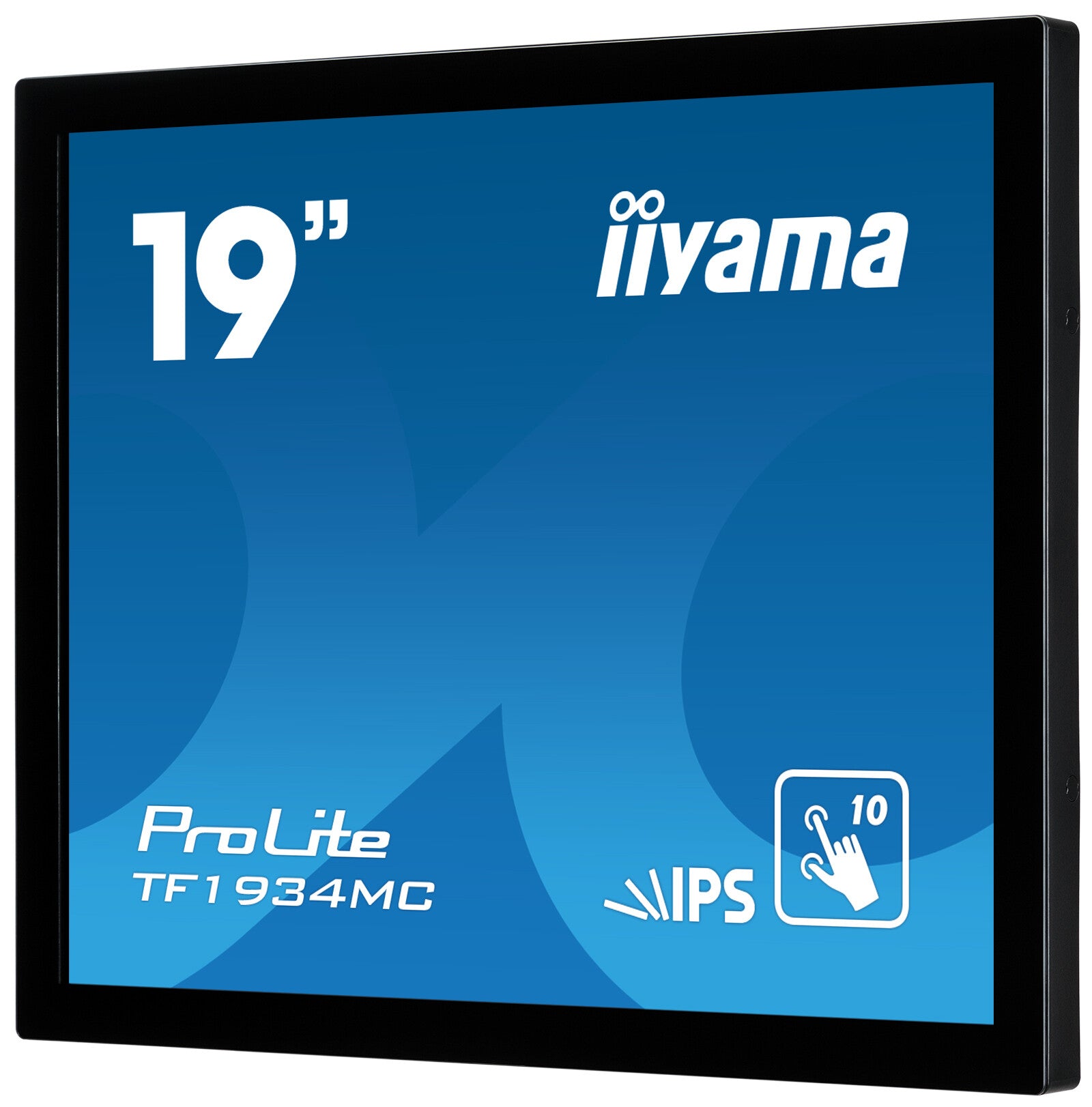

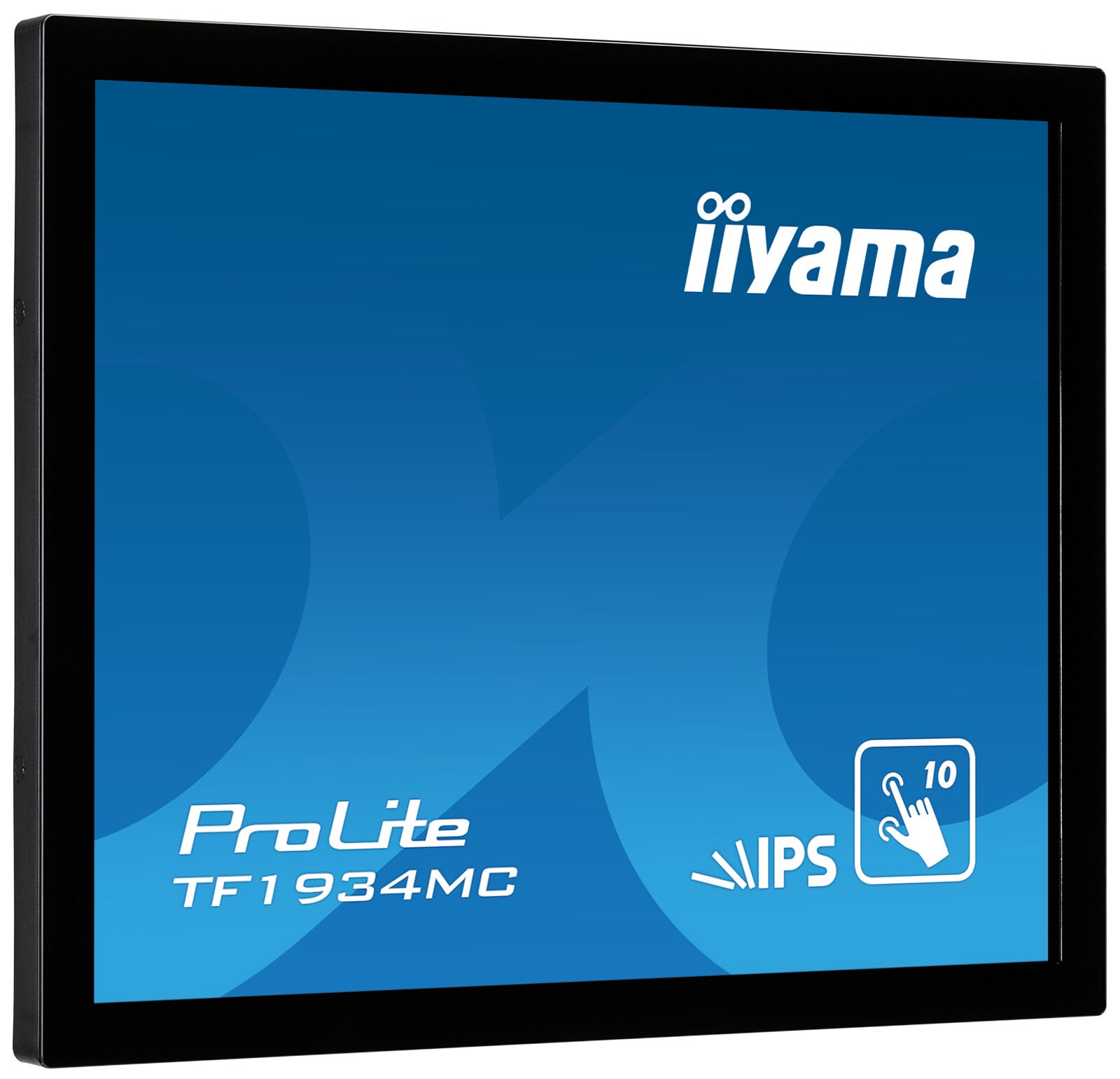

ProLite TF1934MC-B7X uses Projective Capacitive touch technology, built into an eye catching bezel with edge-to-edge glass. Featuring IPS LCD screen technology, it offers exceptional colour performance and wide viewing angles, making it a perfect interactive display for Interactive Digital Signage. In addition to the superb image quality, the screen comes with an IP65 Rating, making it dust and water resistant. Equipped with a rugged bezel making it suitable for demanding environments. The ProLite TF1934MC-B7X is the ideal screen for the kiosk integrators and a solution for Interactive Digital Signage, Instore Retail, Gaming and Interactive Presentations. For ease of integration, the TF1934MC-B7X can be equipped with optional external mounting brackets ( OMK1-1 ) making it an ideal solution for kiosk integrators and Instore Retail.
| Display |
|---|
| Display diagonal |
48.3 cm (19") |
| Display resolution |
1280 x 1024 pixels |
| Native aspect ratio |
5:4 |
| Display technology |
LED |
| Touchscreen |
Yes |
| HD type |
SXGA |
| Panel type |
IPS |
| LED backlight |
Yes |
| Backlight type |
LED |
| Touchscreen technology |
Projected capacitive system |
| Touch technology |
Multi-touch |
| Number of simultaneous touchpoints |
10 |
| Display brightness (typical) |
350 cd/m² |
| Display brightness |
315 cd/m² |
| Response time |
14 ms |
| Response time measurement type |
GTG (Gray to Gray) |
| Screen shape |
Flat |
| Supported graphics resolutions |
1280 x 1024 (SXGA) |
| Aspect ratio |
5:4 |
| Contrast ratio (typical) |
1000:1 |
| Contrast ratio (dynamic) |
1000:1 |
| Viewing angle, horizontal |
178° |
| Viewing angle, vertical |
178° |
| Display number of colours |
16.7 million colours |
| Pixel pitch |
0.294 x 0.294 mm |
| Horizontal scan range |
31.4 - 80 kHz |
| Viewable size, horizontal |
37.6 cm |
| Viewable size, vertical |
30.1 cm |
| Viewable size diagonal |
48 cm |
| Display diagonal (metric) |
48 cm |
| Performance |
|---|
| NVIDIA G-SYNC |
No |
| AMD FreeSync |
No |
| Palm rejection |
Yes |
| Multimedia |
|---|
| Built-in camera |
No |
| Built-in microphone |
No |
| Design |
|---|
| Product colour |
Black |
| Front bezel colour |
Black |
| Glass thickness |
6 mm |
| Ports & interfaces |
|---|
| USB Touch port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| HDMI |
Yes |
| HDMI ports quantity |
1 |
| DisplayPorts quantity |
1 |
| HDCP |
Yes |
| Ergonomics |
|---|
| VESA mounting |
Yes |
| Panel mounting interface |
100 x 100 mm |
| Wall mountable |
Yes |
| On Screen Display (OSD) |
Yes |
| On Screen Display (OSD) languages |
Traditional Chinese, German, English, Spanish, French, Italian, Japanese |
| Number of OSD languages |
7 |
| Power |
|---|
| Energy efficiency class (SDR) |
F |
| Energy consumption (SDR) per 1000 hours |
18 kWh |
| Power consumption (typical) |
21 W |
| Power consumption (standby) |
1.5 W |
| Power consumption (off) |
1.5 W |
| AC adapter output voltage |
12 V |
| Power supply type |
External |
| Energy efficiency scale |
A to G |
| Weight & dimensions |
|---|
| Width (with stand) |
416 mm |
| Depth (with stand) |
46.5 mm |
| Height (with stand) |
344 mm |
| Weight (with stand) |
4.4 kg |
| Width (without stand) |
416 mm |
| Depth (without stand) |
46.5 mm |
| Height (without stand) |
344 mm |
| Weight (without stand) |
4.4 kg |
| Packaging data |
|---|
| Package width |
16.4 mm |
| Package depth |
1.8 mm |
| Package height |
13.5 mm |
| Packaging content |
|---|
| Cables included |

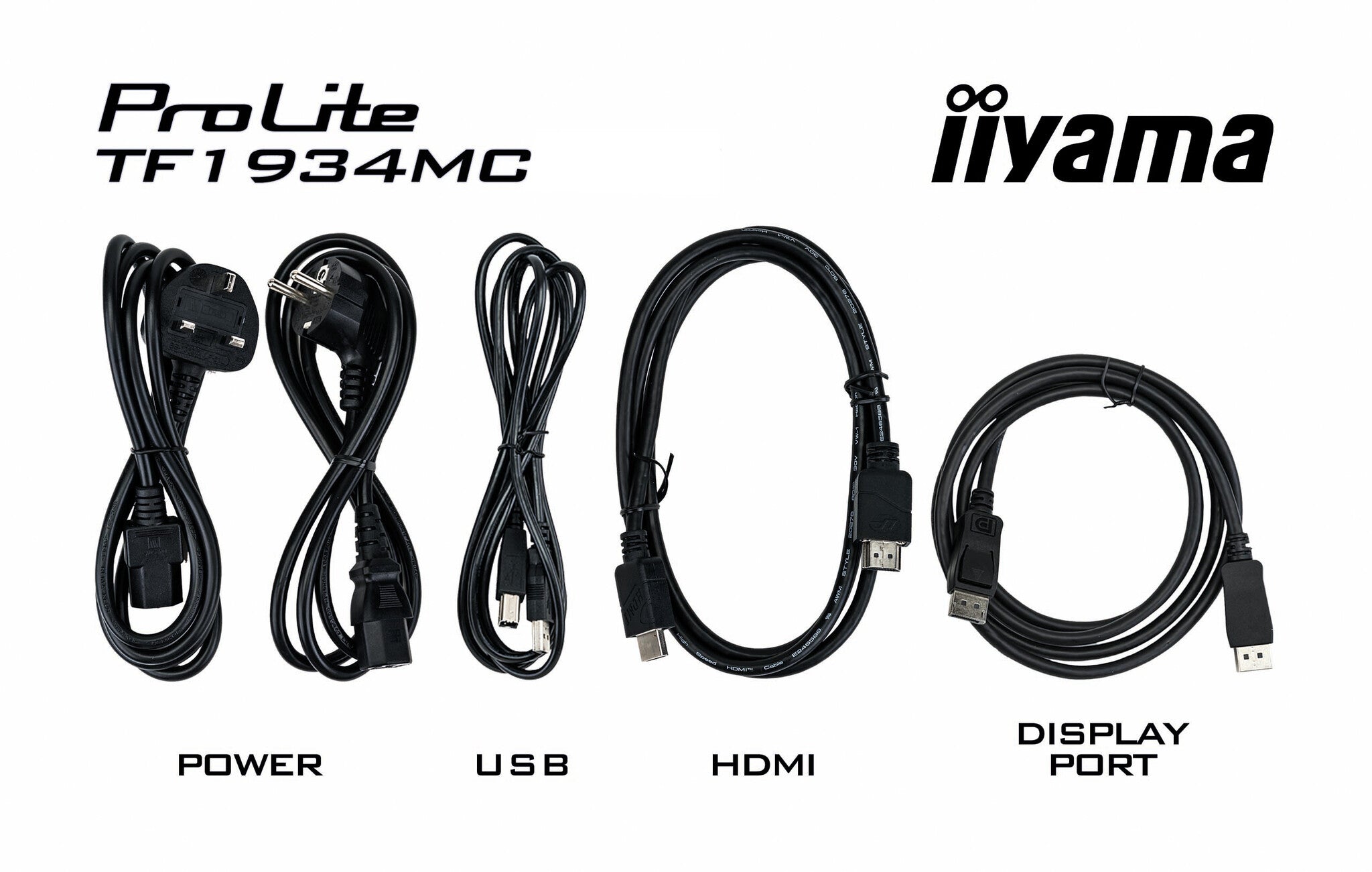

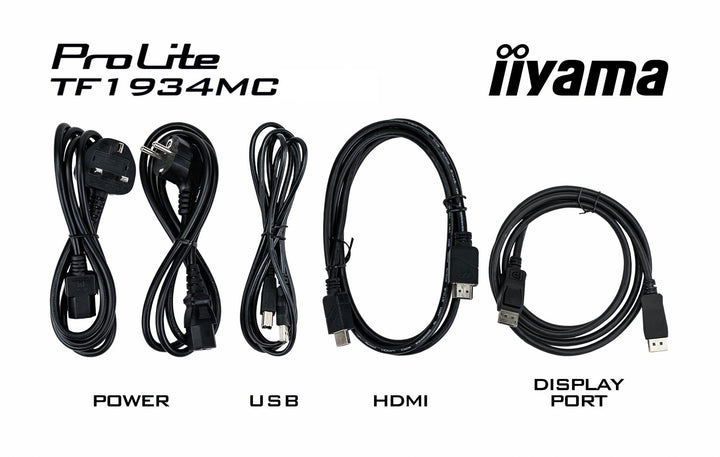

AC, USB, HDMI, DisplayPort |
| Quick start guide |
Yes |
| Sustainability |
|---|
| Sustainability certificates |
ErP |
| General |
|---|
| Product family |
ProLite |
| Other features |
|---|
| International Protection (IP) code |
IP65 |
| Compatible operating systems |
All iiyama monitors are Plug & Play and compatible with Windows and Linux. For details regarding the supported OS for the touch models, please refer to the driver instruction file available in the downloads section. |
| AC adapter included |
Yes |
| Brightness |
315 cd/m² |
| Packaging content |
AC adapter, Touch Panel Driver Disk (CD-ROM) |
| Active display area (W x H) |
376.5 x 301.1 mm |
| Compliance certificates |
CE, cULus, EAC, REACH, RoHS, WEEE |
| Depth |
46.5 mm |
| Width |
416 mm |
| Height |
344 mm |
| Weight |
4.4 kg |
| Display viewable area (HxV) |
376.5 x 301.1 mm |
| Certification |
CE, EAC, RoHS support, ErP, WEEE, cULus, REACH, REACH SVHC above 0.1%: Lead |
| Control panel |
Menu, Scroll up/ Brightness, Scroll down/ Contrast, Select, Power |
| User controls |
picture (contrast, brightness, H.position, V.position, phase, clock, auto adjust), advanced (color temp., sharpness), OSD (time out, position, H-position, V-position, touch switch), option (reset, language, source select, display mode, factory) |
| Touch method |
stylus, finger, glove |
| Supplied AC adapter type |
AC |
| Logistics data |
|---|
| Harmonized System (HS) code |
85285210 |
