- AMD Ryzen™ Threadripper™ Pro 9985WX (up to 5.4 GHz max boost clock, 256 MB L3 cache, 64 cores, 128 threads)
- Windows 11 Pro
- 128 GB DDR5-6400 MT/s ECC (4 x 32 GB), 1 TB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD
Maximized Cores. Astounding Graphics. Unbound Potential

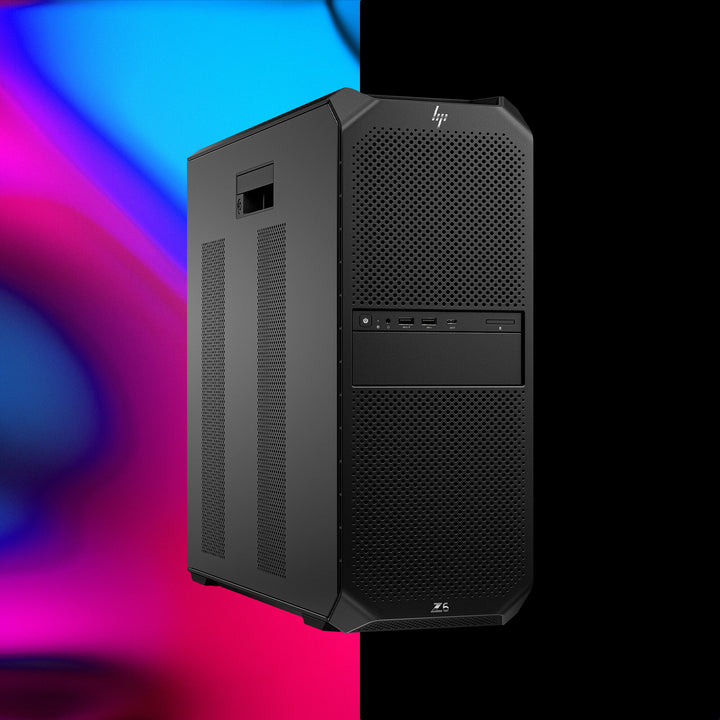

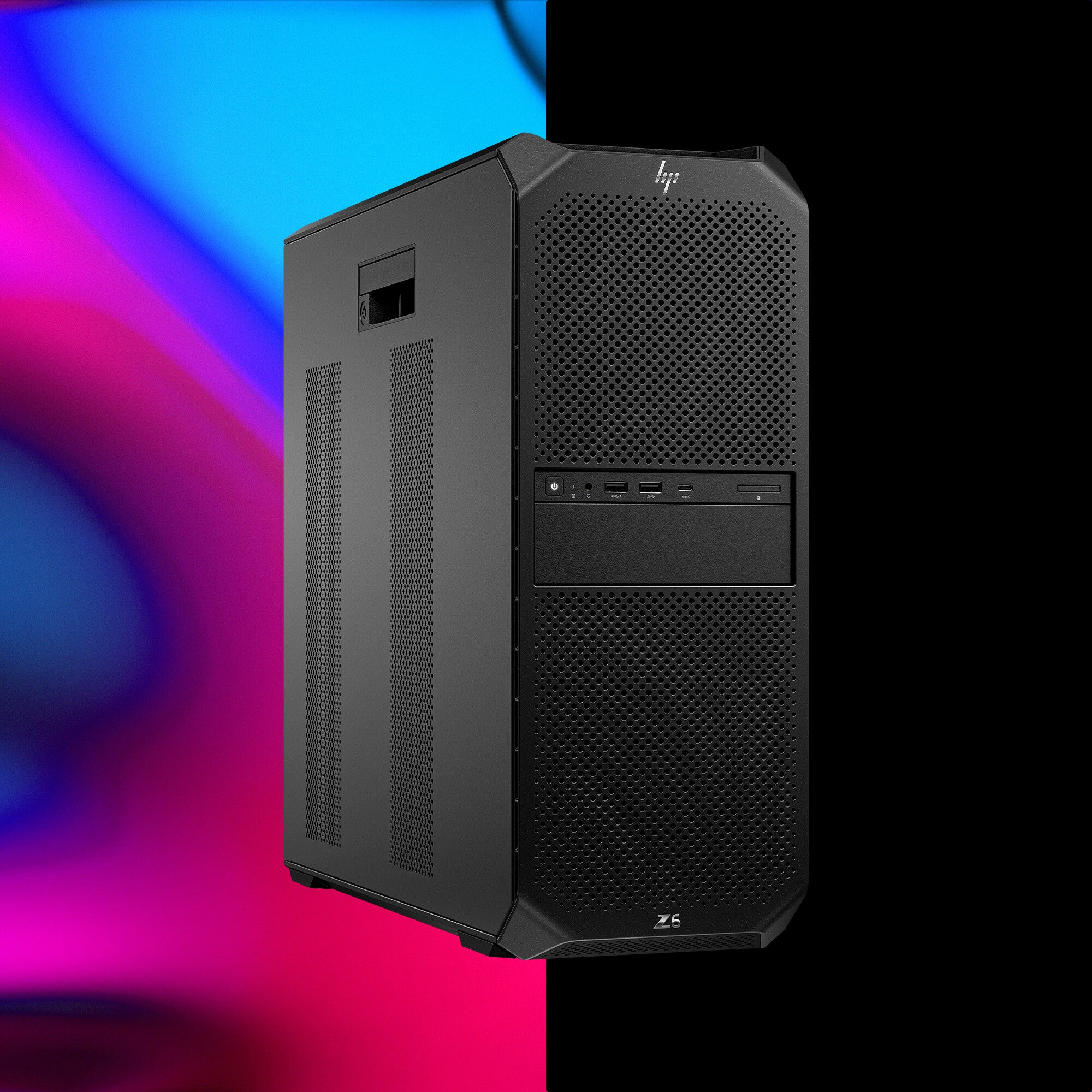

The refreshed HP Z6 G5 A is a powerhouse for AI workflows, 3D rendering and virtual production. Its innovative system design, with a next-gen AMD Ryzen™ Threadripper™ PRO CPU,[1] combines an astounding number of cores in a single CPU with up to 3 GPUs.[2] Create and render at once on intensive projects.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor family |
AMD Ryzen Threadripper PRO |
| Processor generation |
AMD Ryzen™ Threadripper™ PRO 9000 WX-Series |
| Processor model |
PRO 9985WX |
| Processor cores |
64 |
| Processor threads |
128 |
| Processor boost frequency |
5.4 GHz |
| Processor frequency |
3.2 GHz |
| Processor socket |
Socket sTR5 |
| Processor cache |
256 MB |
| Processor cache type |
L2 & L3 |
| Number of processors installed |
1 |
| Memory |
|---|
| Internal memory |
128 GB |
| Maximum internal memory |
1 TB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
4 x 32 GB |
| Memory data transfer rate |
6400 MT/s |
| ECC |
Yes |
| Storage |
|---|
| Total storage capacity |
1 TB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Total SSDs capacity |
1 TB |
| Number of SSDs installed |
1 |
| SSD memory type |
TLC |
| SSD capacity |
1 TB |
| SSD interface |
PCI Express 4.0 |
| SSD form factor |
M.2 |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
No |
| Discrete graphics card model |
Not available |
| On-board graphics card model |
Not available |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,1000,100 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 6E (802.11ax) |
| WLAN controller manufacturer |
Intel |
| Wi-Fi standards |
Wi-Fi 6E (802.11ax) |
| WLAN controller model |
Intel Wi-Fi 6E AX210 |
| Antenna type |
2x2 |
| Bluetooth |
Yes |
| Bluetooth version |
5.3 |
| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
8 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Line-in |
Yes |
| Line-out |
Yes |
| Combo headphone/mic port |
Yes |
| Expansion slots |
|---|
| PCI Express x4 slots |
2 |
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
4 |
| Design |
|---|
| Chassis type |
Tower |
| Colour name |
Black |
| Number of 3.5" bays |
2 |
| Cable lock slot |
Yes |
| Cable lock slot type |
Kensington |
| Product colour |
Black |
| Intel® vPro™ Platform Eligibility |
No |
| Introduction year |
2025 |
| Country of origin |
Czech Republic |
| Performance |
|---|
| Product type |
Workstation |
| Market positioning |
Performance |
| Audio chip |
Realtek ALC3205-CG |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Pre-installed software |
HP PC Hardware Diagnostics UEFI; HP Performance Advisor; HP Support Assistant; HP PC Hardware Diagnostics Windows; HP Image Assistant; HP Manageability Integration Kit; HP Anyware; HP Services Scan; HP Data Science Stack Manager |
| Bundled software |
HP Wolf Pro Security Edition (1 year) |
| Brand-specific features |
|---|
| HP Support Assistant |
Yes |
| HP Security tools |
Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives |
| HP Management tools |
HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support |
| HP Artificial Intelligence |
AI Workstation |
| HP segment |
Business |
| HP GTIN (EAN/UPC) |
199642658745 |
| Power |
|---|
| Power supply |
1450 W |
| Certificates |
|---|
| Low halogen |
Yes |
| Sustainability |
|---|
| Sustainable technologies and materials |
40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; Plastic cushion inserts contain 80% recycled content; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable; 10% post-consumer recycled plastic; Internal power supply 90% efficiency; Ocean-bound plastic in system and CPU fans |
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO |
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
169 mm |
| Depth |
465 mm |
| Height |
445 mm |
| Weight |
13.2 kg |
| Package width |
313 mm |
| Package depth |
593 mm |
| Package height |
610 mm |
| Package weight |
18.3 kg |
| Packaging content |
|---|
| Display included |
No |
| Mouse connectivity |
Wired |
| Mouse included |
Yes |
| Keyboard connectivity |
Wired |
| Keyboard included |
Yes |
| Numeric keypad |
No |
| Input device model |
HP Wired 320M Mouse |
| General |
|---|
| Product family |
Z6 |
| Technical details |
|---|
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true https://kaas.hpcloud.hp.com/pdf-public/pdf_8827218_en-US-1.pdf |
| Other features |
|---|
| Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Memory module type |
DIMM |
| UNSPSC-code |
43211515 |
