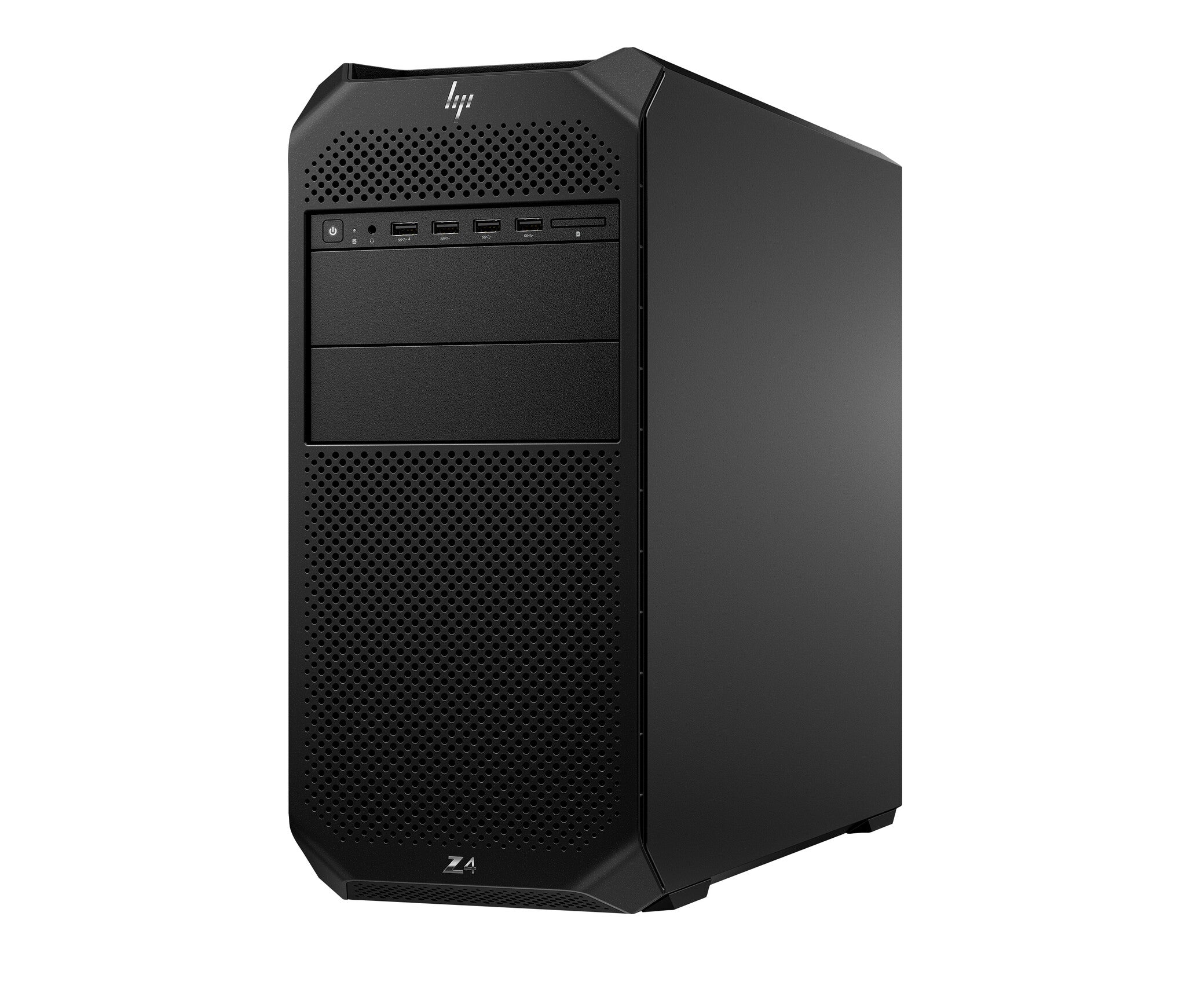

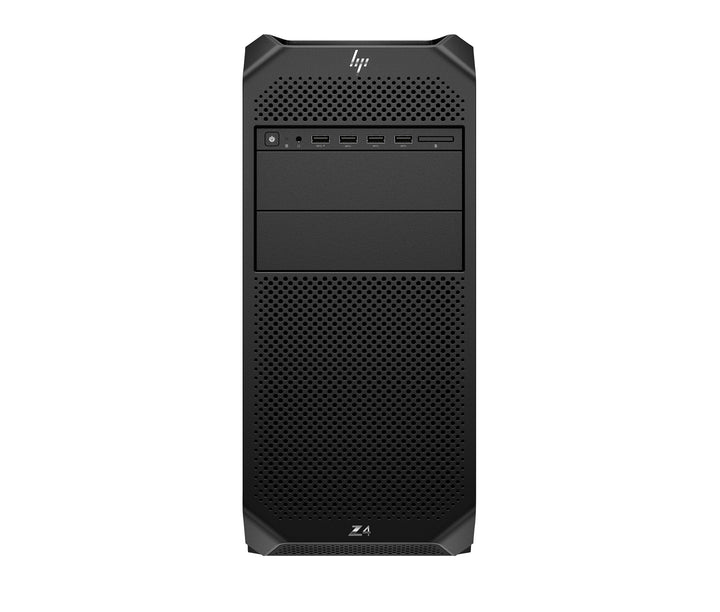

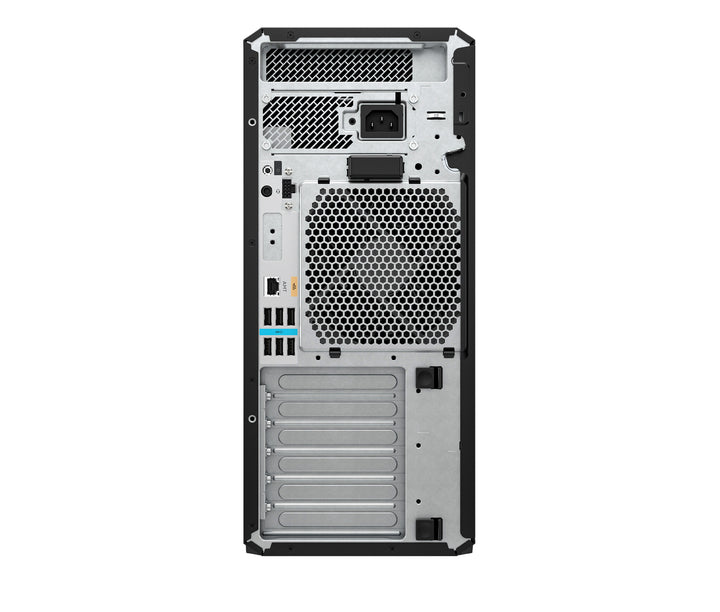

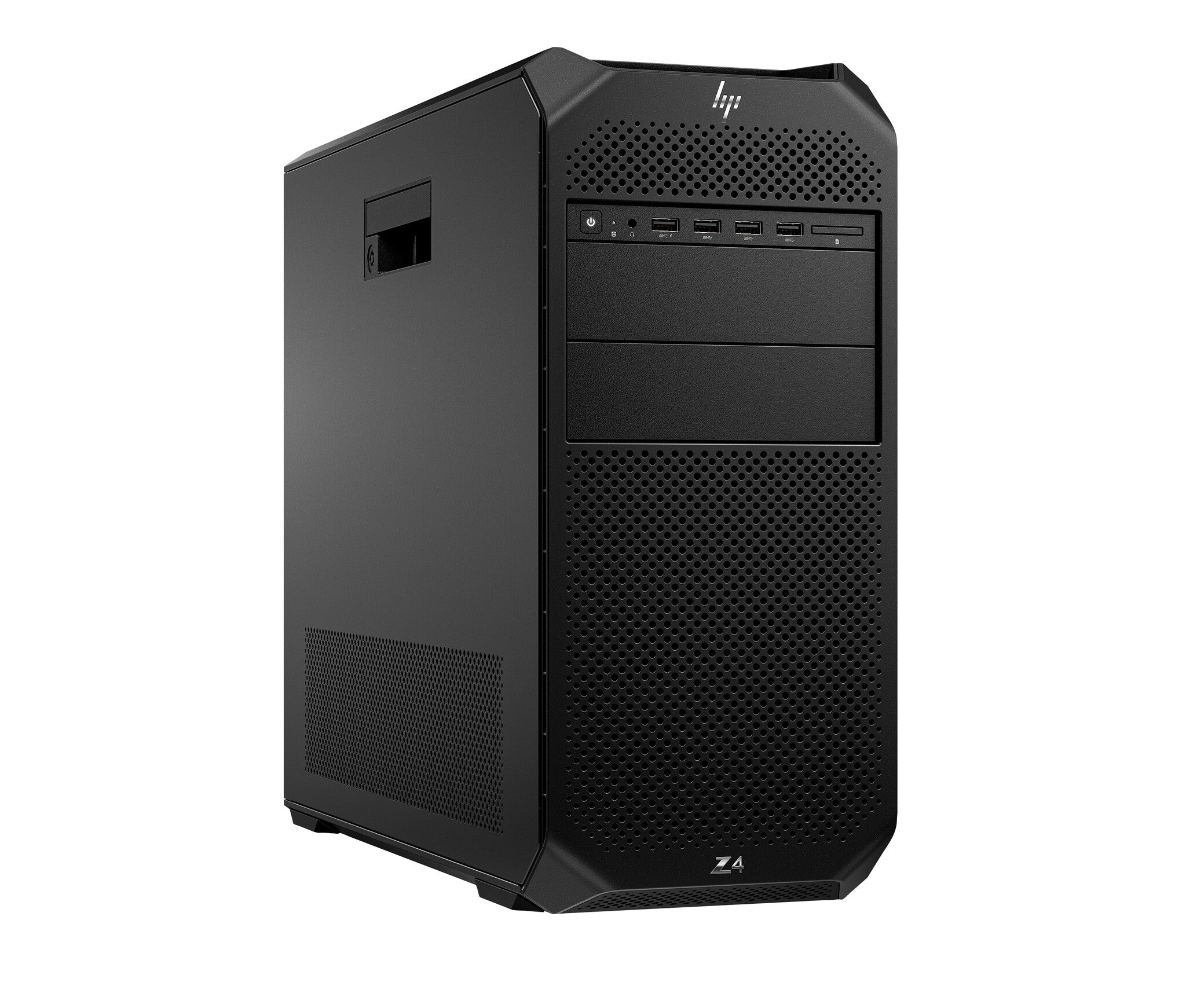

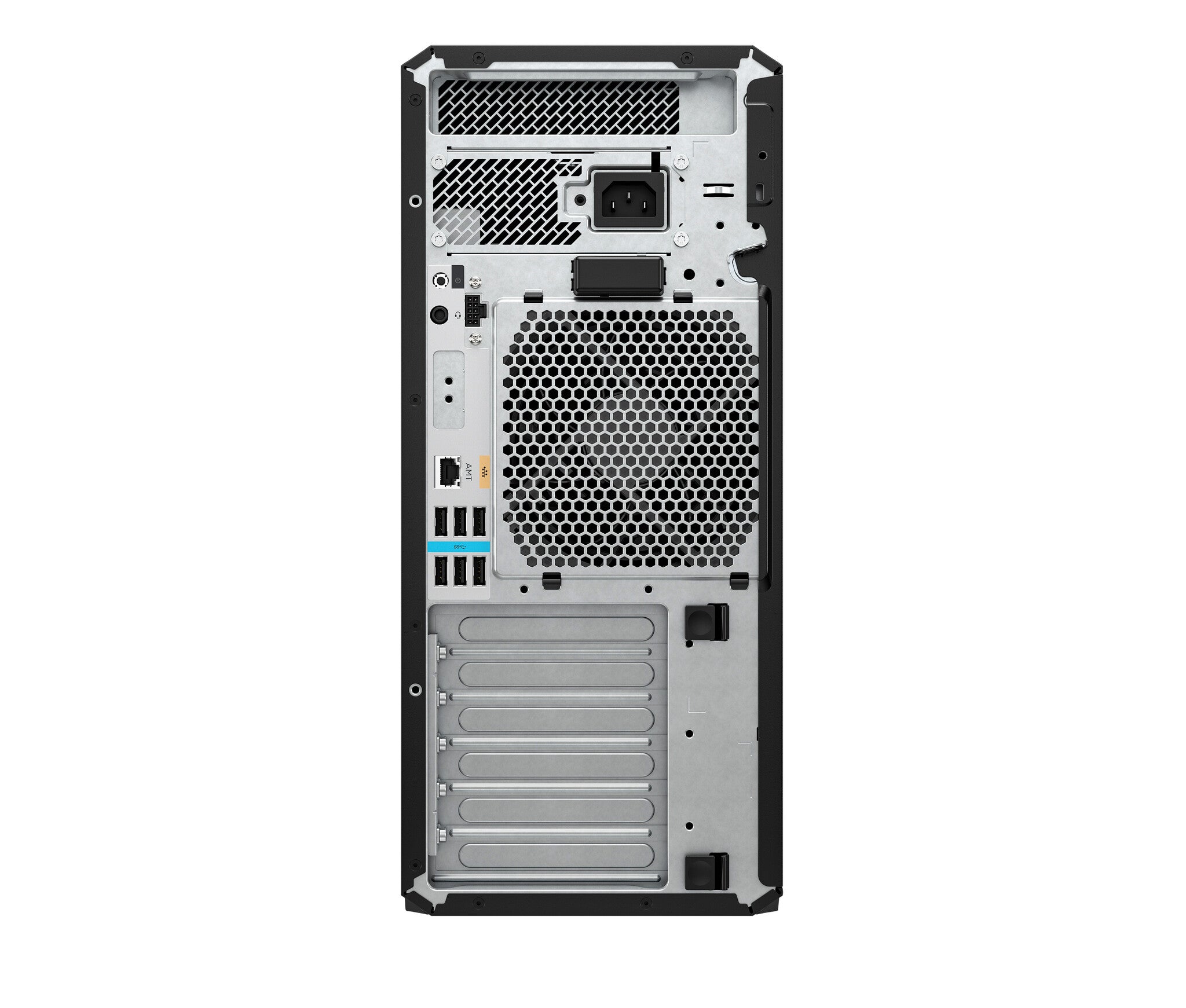

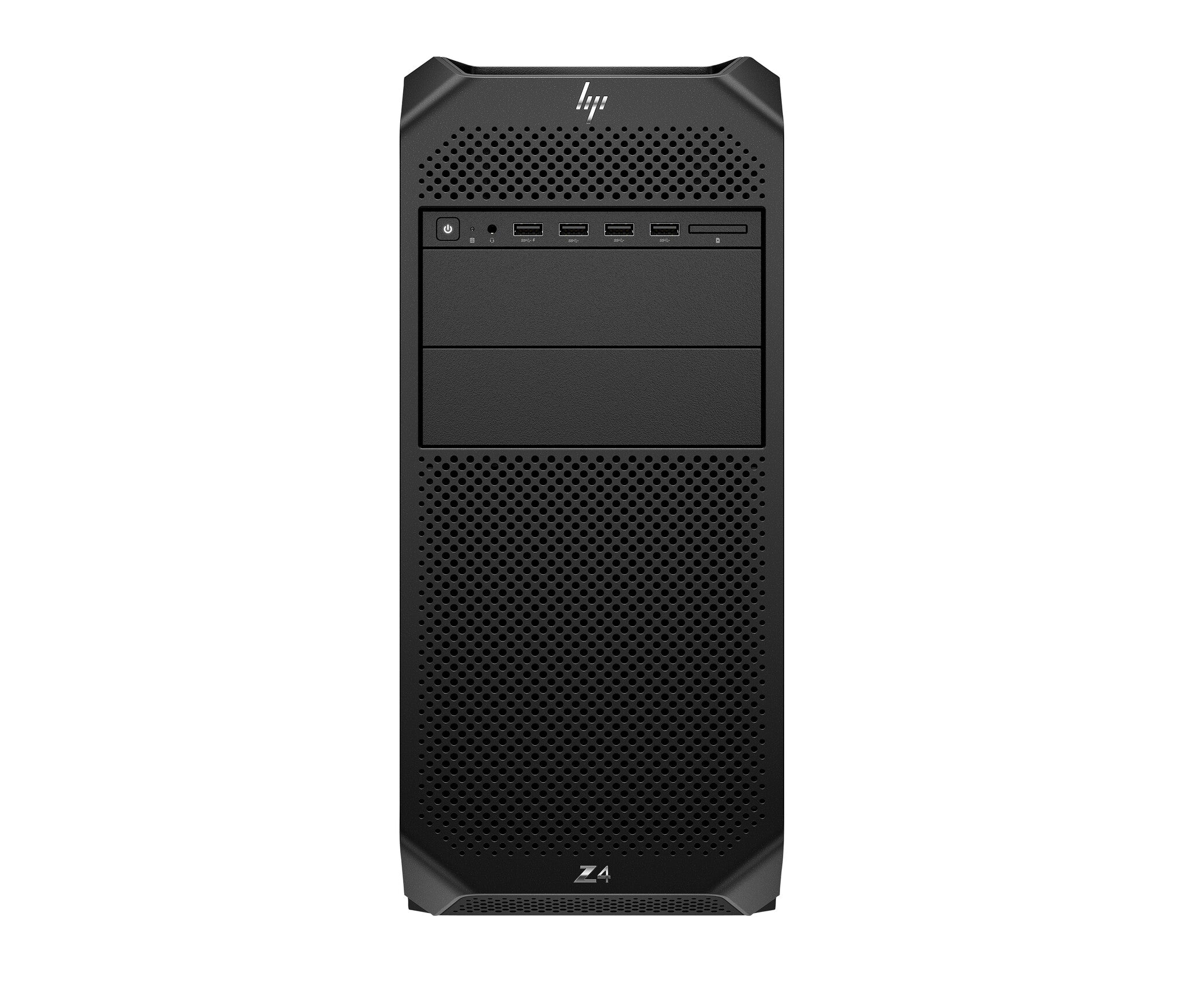

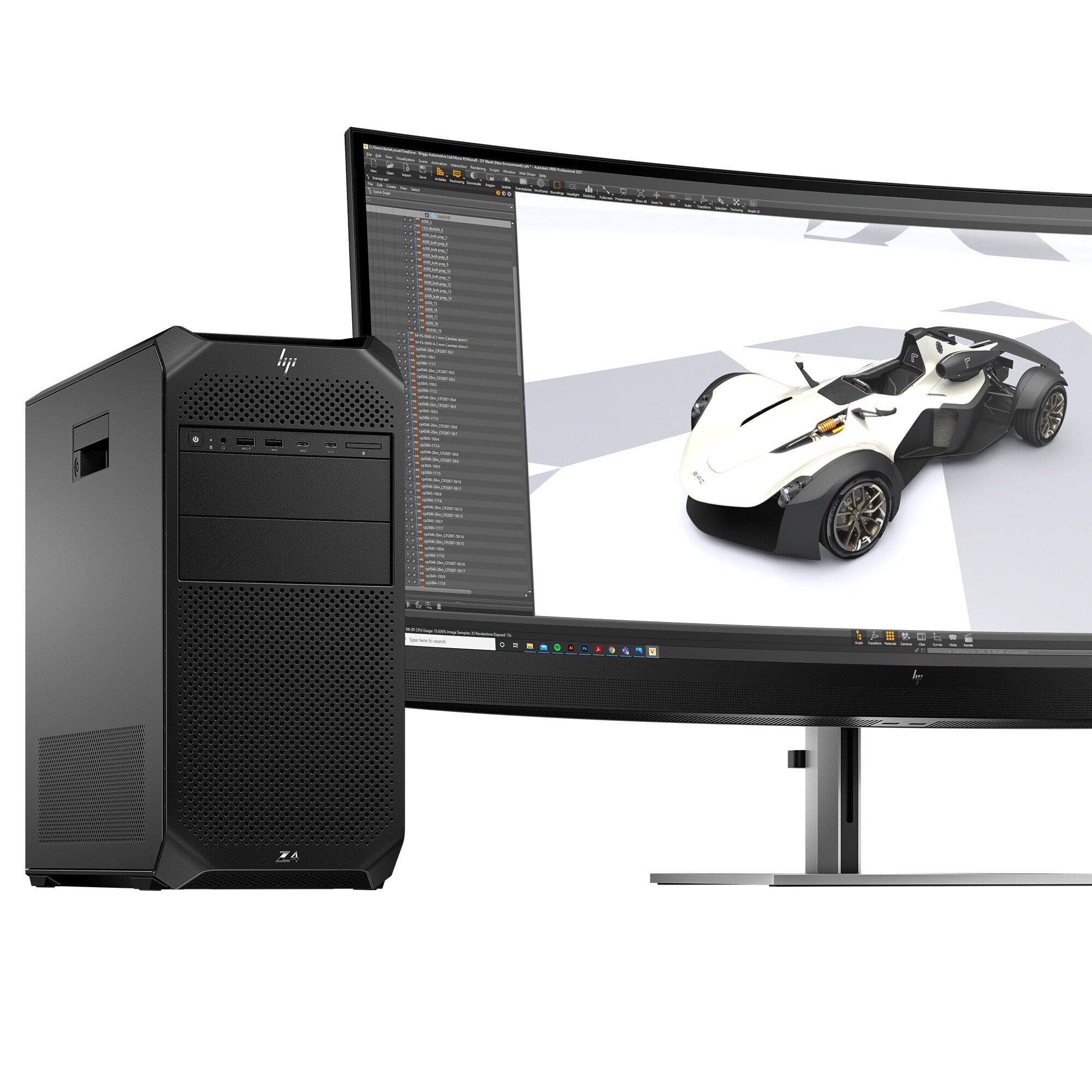

HP Z4 G5 Wolf Pro Security Edition Intel Xeon W W5-2565X 128 GB DDR5-SDRAM 2 TB SSD NVIDIA RTX PRO 5000 Blackwell Windows 11 Pro Tower Workstation AI Workstation Black
128 GB DDR5-4800 MT/s (4 x 32 GB), 2 TB HP Z Turbo Drive PCIe NVMe™ TLC M.2 SSD, 2 TB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD
Power-up to next level pro performance This high performance desktop workstation does it all. Tackle advanced workflows—from rendering and simulation to advanced video editing and massive dataset preparation. The Z4 AI workstation accelerates workflows across a wide range of professional apps and provides room to expand as work evolves.
Processor
Processor manufacturer
Intel
Processor family
Intel Xeon W
Processor model
W5-2565X
Processor cores
18
Processor threads
36
Processor boost frequency
4.8 GHz
Processor frequency
3.2 GHz
Performance cores
18
Processor socket
LGA 4677 (Socket E)
Processor cache
37.5 MB
Processor cache type
Smart Cache
Maximum turbo power
288 W
Processor base power
240 W
Memory
Internal memory
128 GB
Maximum internal memory
512 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
4 x 32 GB
Memory slots
8x DIMM
Memory data transfer rate
4800 MT/s
Non-ECC
Yes
Storage
Total storage capacity
2 TB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
2
Total SSDs capacity
2 TB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
2 TB
NVMe
Yes
SSD interface
PCI Express
SSD form factor
M.2
Graphics
Discrete graphics card
Yes
On-board graphics card
No
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA RTX PRO 5000 Blackwell
Discrete graphics card memory
48 GB
Discrete graphics memory type
GDDR7
Number of discrete graphics cards
1
On-board graphics card model
Not available
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 6E (802.11ax)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 6E (802.11ax)
WLAN controller model
Intel Wi-Fi 6E AX210
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.3
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
10
USB Power Delivery (USB PD)
Yes
USB 3.2 Gen 2x2 Type-C ports quantity
2
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Line-in
Yes
Line-out
Yes
Combo headphone/mic port
Yes
Expansion slots
PCI Express x16 (Gen 4.x) slots
2
PCI Express x16 (Gen 5.x) slots
1
Design
Chassis type
Tower
Number of 3.5" bays
4
Cable lock slot
Yes
Cable lock slot type
Kensington
Product colour
Black
Intel® vPro™ Platform Eligibility
No
Introduction year
2025
Performance
Product type
Workstation
Market positioning
Performance
Motherboard chipset
Intel W790
Audio chip
Realtek ALC3205-CG
Password protection
Yes
Password protection type
BIOS, Power on
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Windows 11 Pro
Bundled software
HP Wolf Pro Security Edition (1 year)
Processor special features
Intel® Turbo Boost Technology
Yes
Brand-specific features
HP Support Assistant
Yes
HP Security tools
Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives
HP Management tools
HP Driver Packs; HP System Software Manager (download); HP BIOS Configuration Utility (download); HP Smart Support
HP Artificial Intelligence
AI Workstation
HP segment
Business
HP GTIN (EAN/UPC)
199764311436
Power
Power supply
1125 W
Certificates
Low halogen
Yes
Sustainability
Sustainable technologies and materials
Low Halogen; 40% post-consumer recycled plastic; 25% ITE-derived closed loop plastic; Bulk packaging available; External power supply 90% efficiency; Plastic cushion inserts contain 80% recycled content; Ocean-bound plastic in system fan; 10% post-industrial recycled metal; Molded paper pulp cushion inside box is 100% sustainably sourced and recyclable
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
