16 GB DDR5-5600 MT/s (1 x 16 GB), 512 GB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD

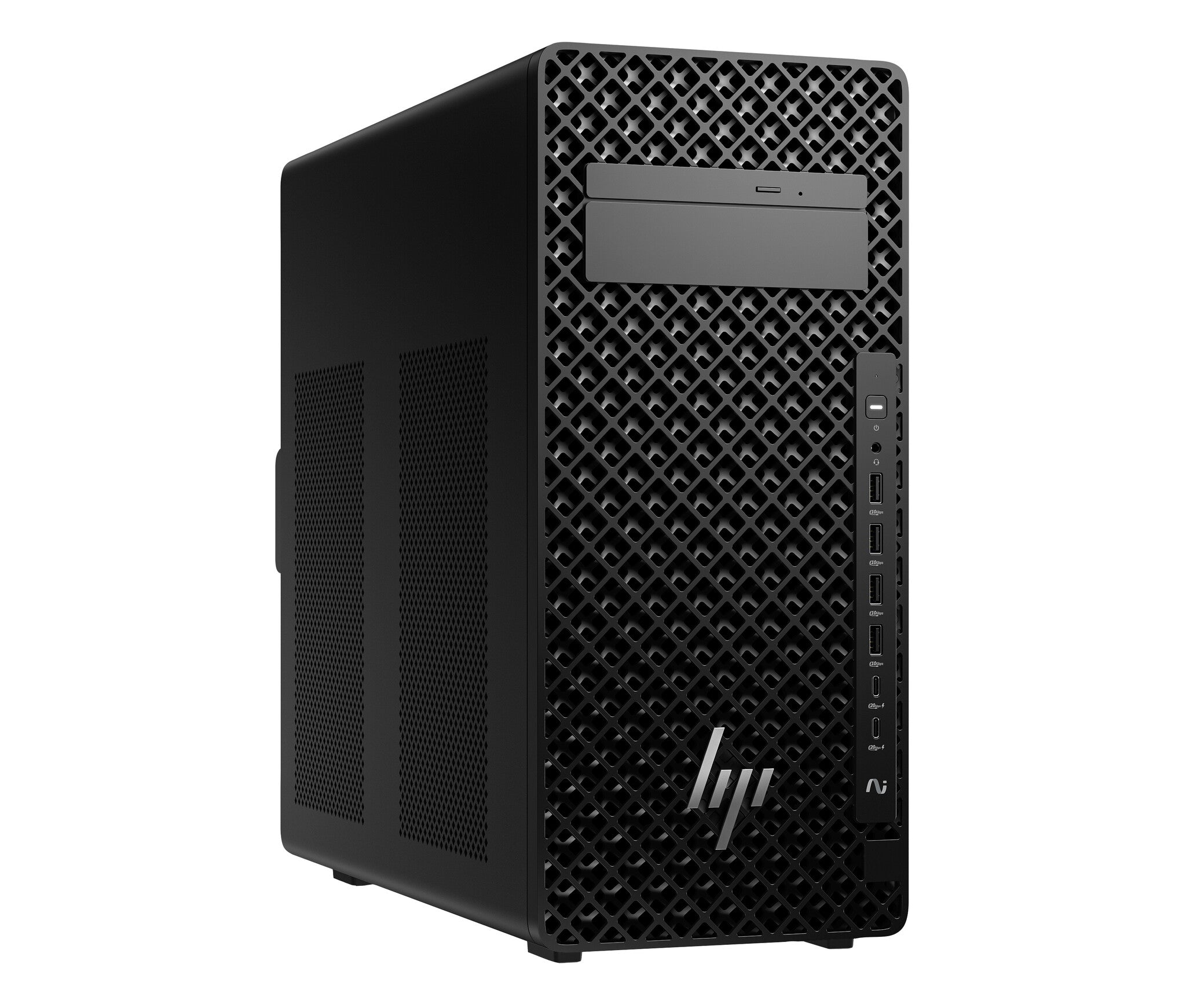

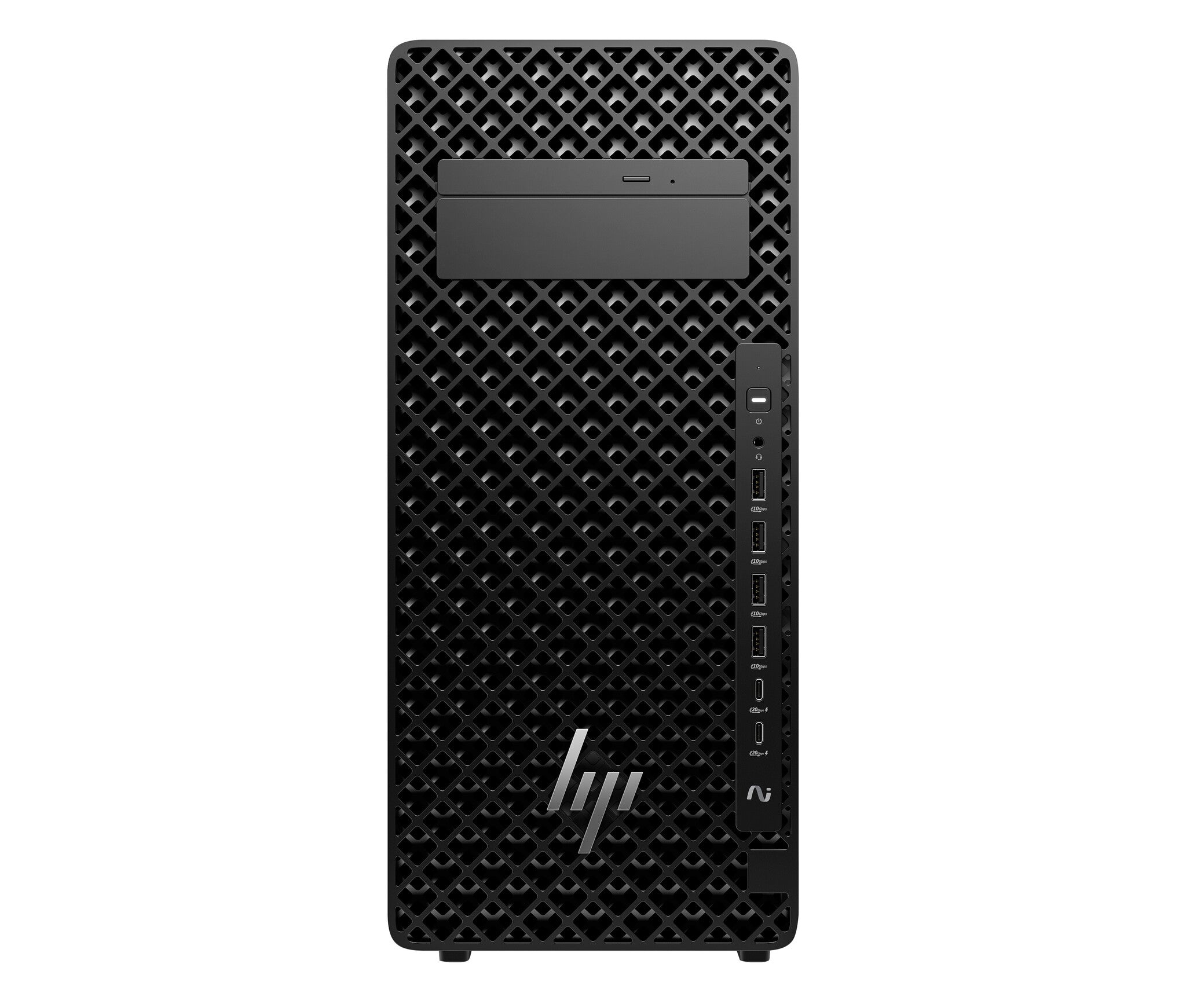

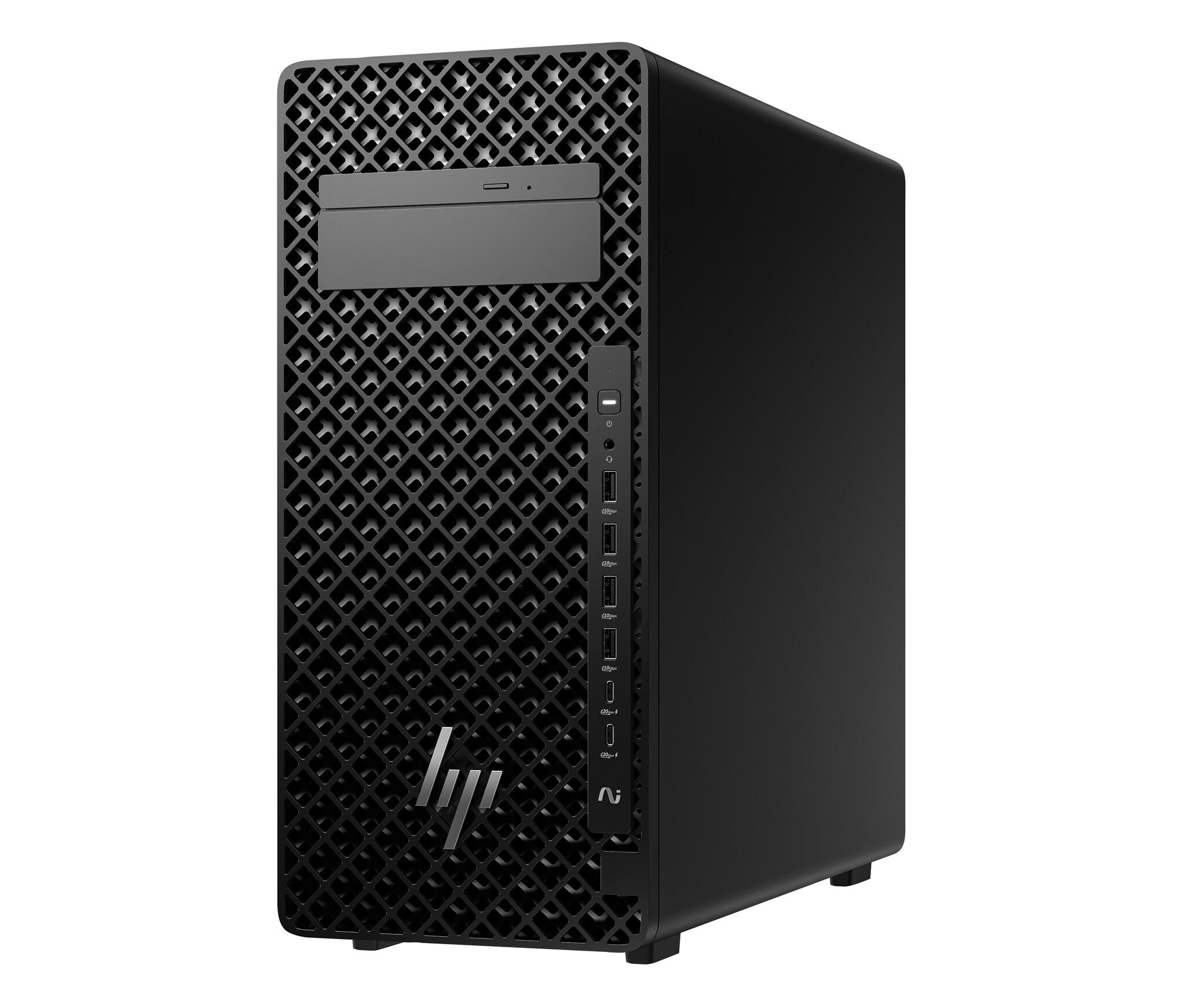

Mainstream workstation performance—reimagined Experience new levels of performance for professional workflows. The HP Z2 Tower AI workstation is reengineered to support high-end graphics and seamlessly run both single and multi-threaded apps for fast modeling, simulation, and rendering. Enjoy easy expandability to upgrade, when needs evolve.
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 5
Processor generation
Intel Core Ultra (Series 2)
Processor model
245
Processor cores
14
Processor threads
14
Processor boost frequency
5.1 GHz
Performance cores
6
Efficient cores
8
Performance-core Max Turbo Frequency
5.1 GHz
Efficient-core Max Turbo Frequency
4.5 GHz
Performance-core base frequency
3.5 GHz
Efficient-core base frequency
3 GHz
Processor cache
24 MB
Processor cache type
L3
Maximum turbo power
121 W
Processor base power
65 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
29 TOPs
NPU performance up to
13 TOPs
GPU performance up to
8 TOPs
Memory
Internal memory
16 GB
Maximum internal memory
16 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 16 GB
Memory clock speed
5600 MHz
Memory data transfer rate
5600 MT/s
Storage
Total storage capacity
512 GB
Optical drive type
No
Storage media
SSD
Number of storage drives installed
1
Total SSDs capacity
512 GB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
512 GB
SSD interface
PCI Express 4.0
SSD form factor
M.2
Graphics
Discrete graphics card
No
On-board graphics card
Yes
Discrete graphics card model
Not available
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
WLAN controller manufacturer
Intel
Wi-Fi standards
Wi-Fi 7 (802.11be)
WLAN controller model
Intel Wi-Fi 7 BE200
Antenna type
2x2
Bluetooth
Yes
Bluetooth version
5.4

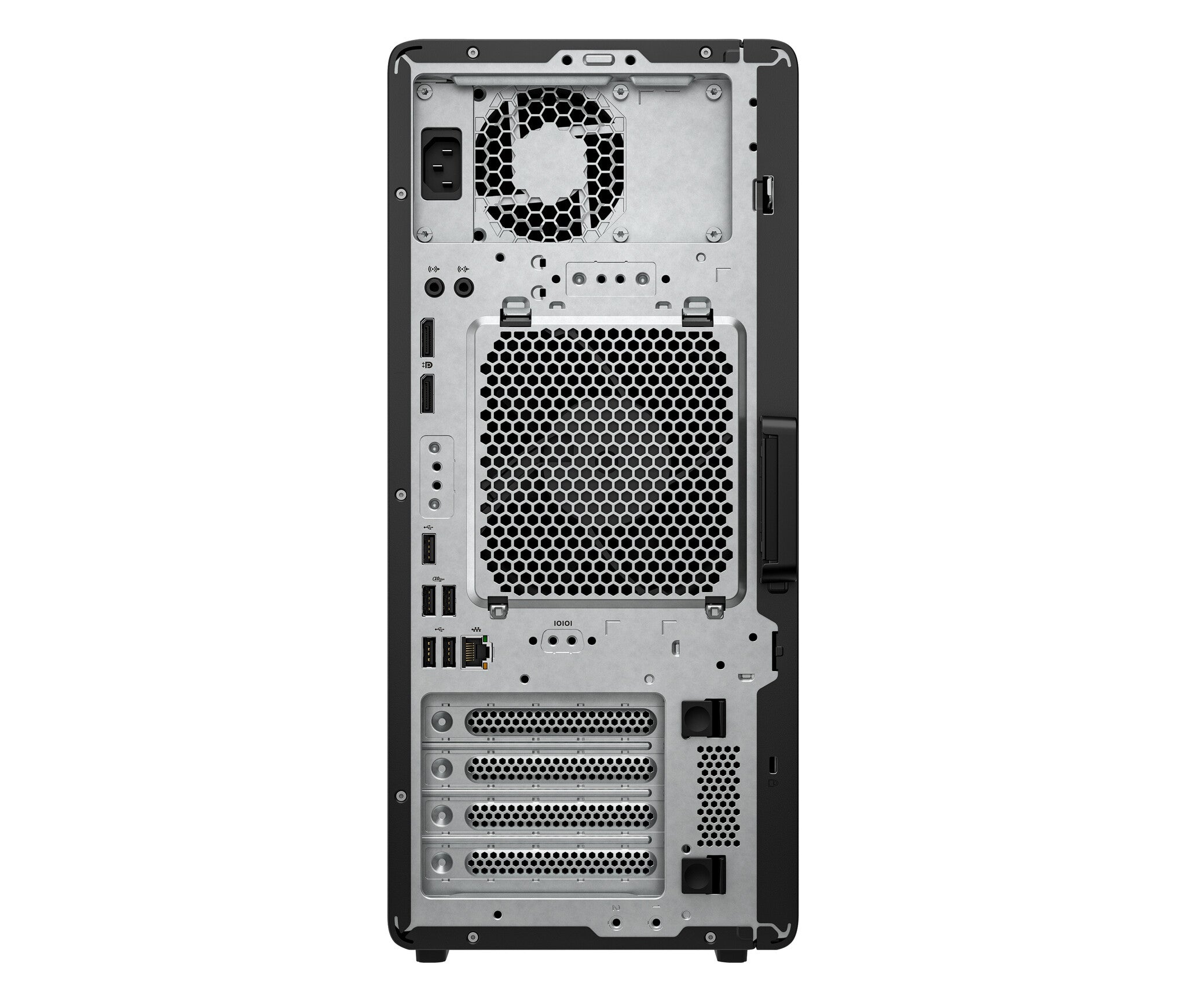

Ports & interfaces
USB 2.0 ports quantity
3
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
6
USB 3.2 Gen 2x2 Type-C ports quantity
2
DisplayPorts quantity
2
DisplayPort version
1.4
Ethernet LAN (RJ-45) ports
1
Microphone in
Yes
Line-in
Yes
Line-out
Yes
Combo headphone/mic port
Yes
Expansion slots
PCI Express x16 (Gen 4.x) slots
1
Design
Chassis type
Tower
Colour name
Black
Placement supported
Vertical
Number of 3.5" bays
1
Number of 5.25" bays
1
Product colour
Black
Intel® vPro™ Platform Eligibility
No
Introduction year
2025
Country of origin
Czech Republic
Performance
Product type
Workstation
Market positioning
Performance
Motherboard chipset
Intel W880
Audio chip
Realtek ALC3205
Password protection
Yes
Password protection type
BIOS, Power on
Software
Operating system installed
Windows 11 Pro
Processor special features
Intel® Turbo Boost Technology
Yes
Brand-specific features
HP Support Assistant
Yes
HP Artificial Intelligence
AI Workstation, AI PC
HP segment
Business
HP GTIN (EAN/UPC)
199251982897
Power
Power supply
700 W
Power supply input voltage
100 - 240 V
Power supply input frequency
50 - 60 Hz
Certificates
Low halogen
Yes
Sustainability
Sustainable technologies and materials
Low halogen; Bulk packaging available; 10% ITE-derived closed loop plastic; 25% ocean-bound plastic in system fans; Product Carbon Footprint; Contains at least 60% post-consumer recycled plastic; System has a QR code enabled experience where the user has access to a product portal – beginning December 2025, this is complete with product feature highlights, sustainability information, getting started guides, and direct setup and support options; New Energy Consumption dashboard available to customers providing timely carbon usage including recommended actions users can take to decrease carbon footprint
Sustainability certificates
ENERGY STAR, EPEAT, TCO, TCO10
Sustainability compliance
Yes

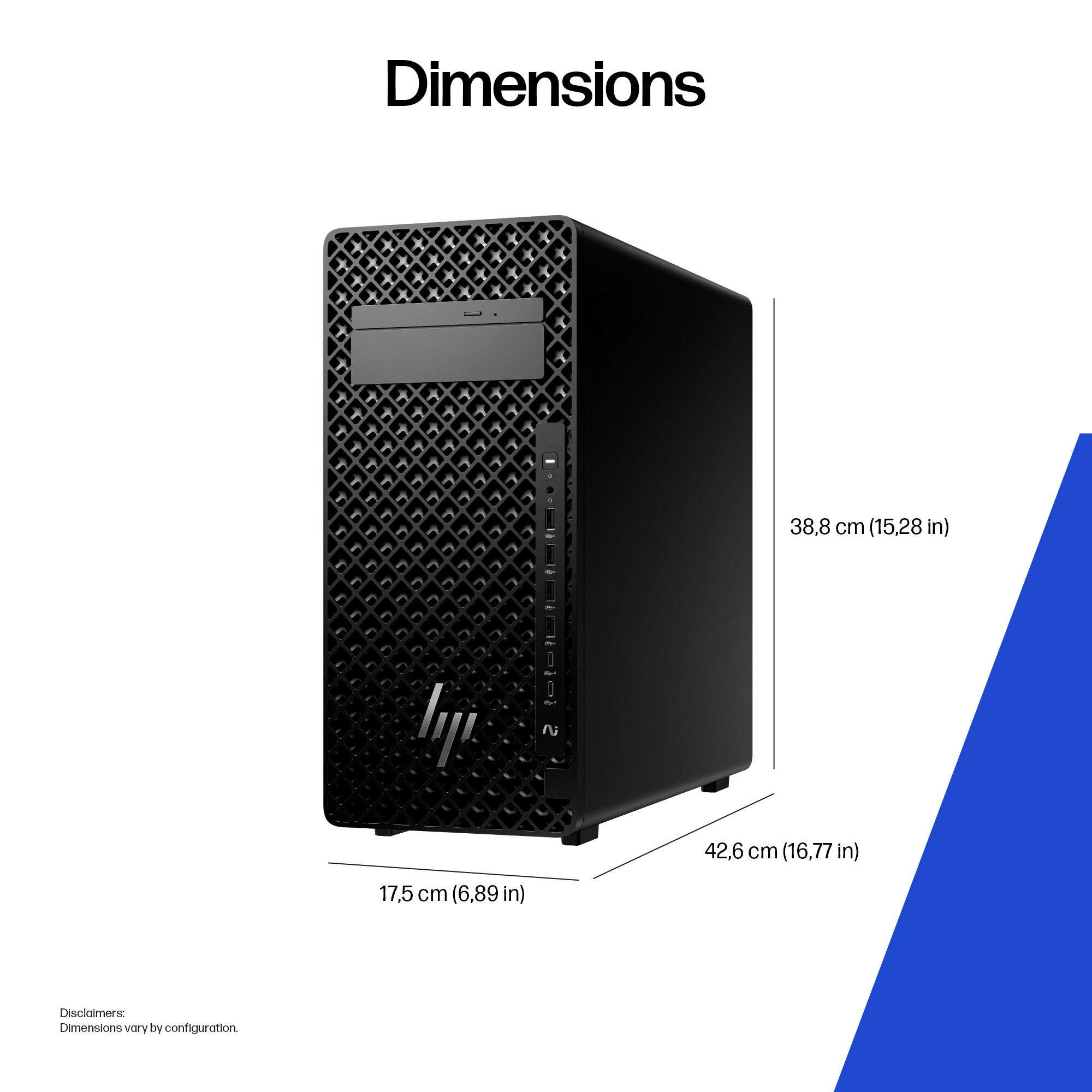

Weight & dimensions
Width
175 mm
Depth
426 mm
Height
175 mm
Weight
8.6 kg
Package width
590 mm
Package depth
490 mm
Package height
295 mm
Package weight
12.5 kg
Packaging content
Display included
No
General
Product family
Z2
Carbon footprint
Total carbon emissions, w/o use phase (kg of CO2e)
117.384
Carbon emissions, end-of-life (kg of CO2e)
2.252
Carbon emissions, logistics (kg of CO2e)
3.376
Carbon emissions, manufacturing (kg of CO2e)
293.738
Total carbon footprint (kg of CO2e)
416.75
Logistics data
Harmonized System (HS) code
8471500000
Other features
Support service included
HP 3y NBD Onsite WS Bundling. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf
Manufacturer warranty
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
