- Intel Core i7-14700T (up to 5.0 GHz Max Turbo frequency, 33 MB L3 cache, 20 cores, 28 threads)
- Windows 11 Pro
- Intel UHD Graphics 770
- 16 GB DDR5-4800 MT/s (1 x 16 GB), 512 GB PCIe NVMe M.2 SSD

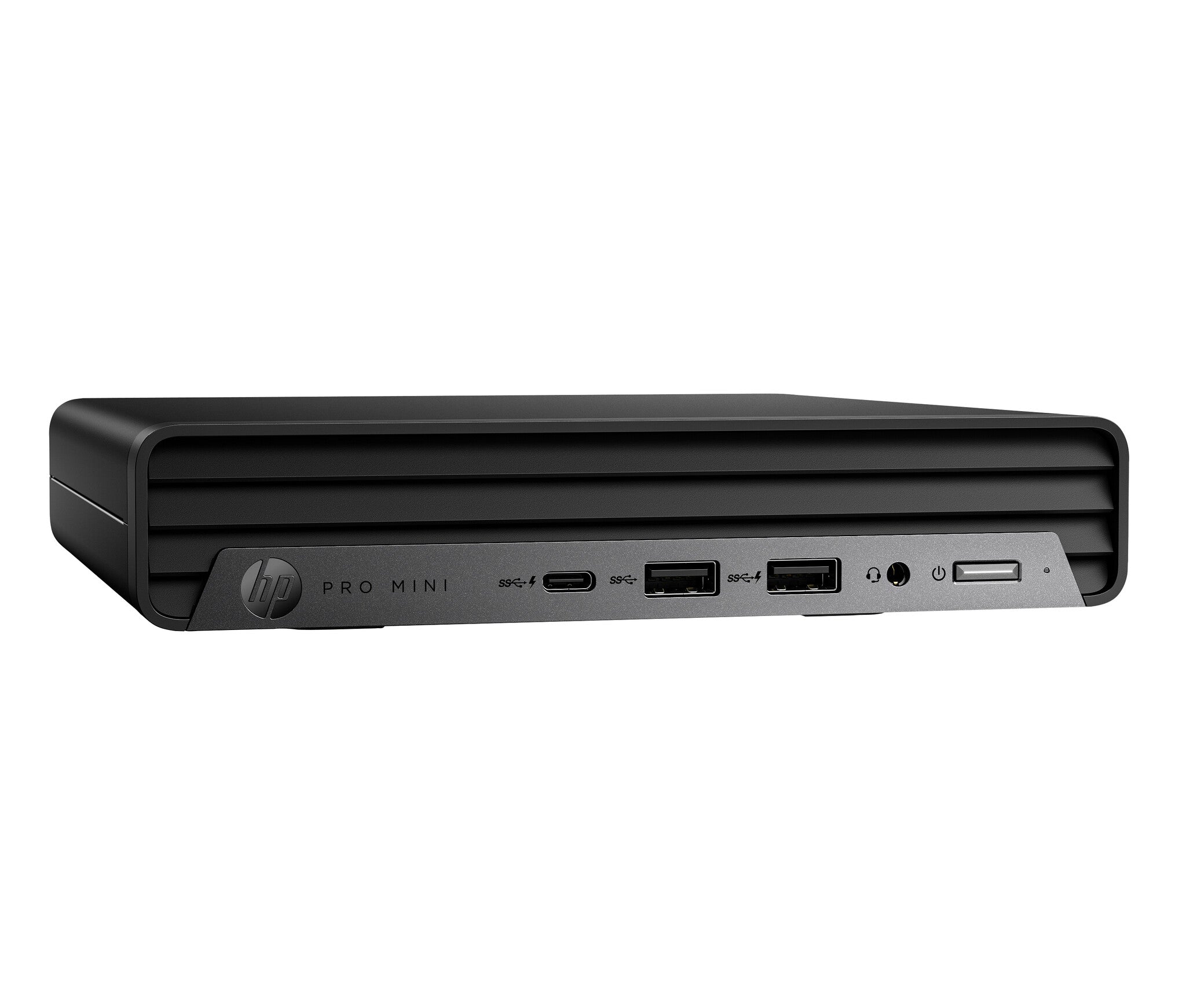

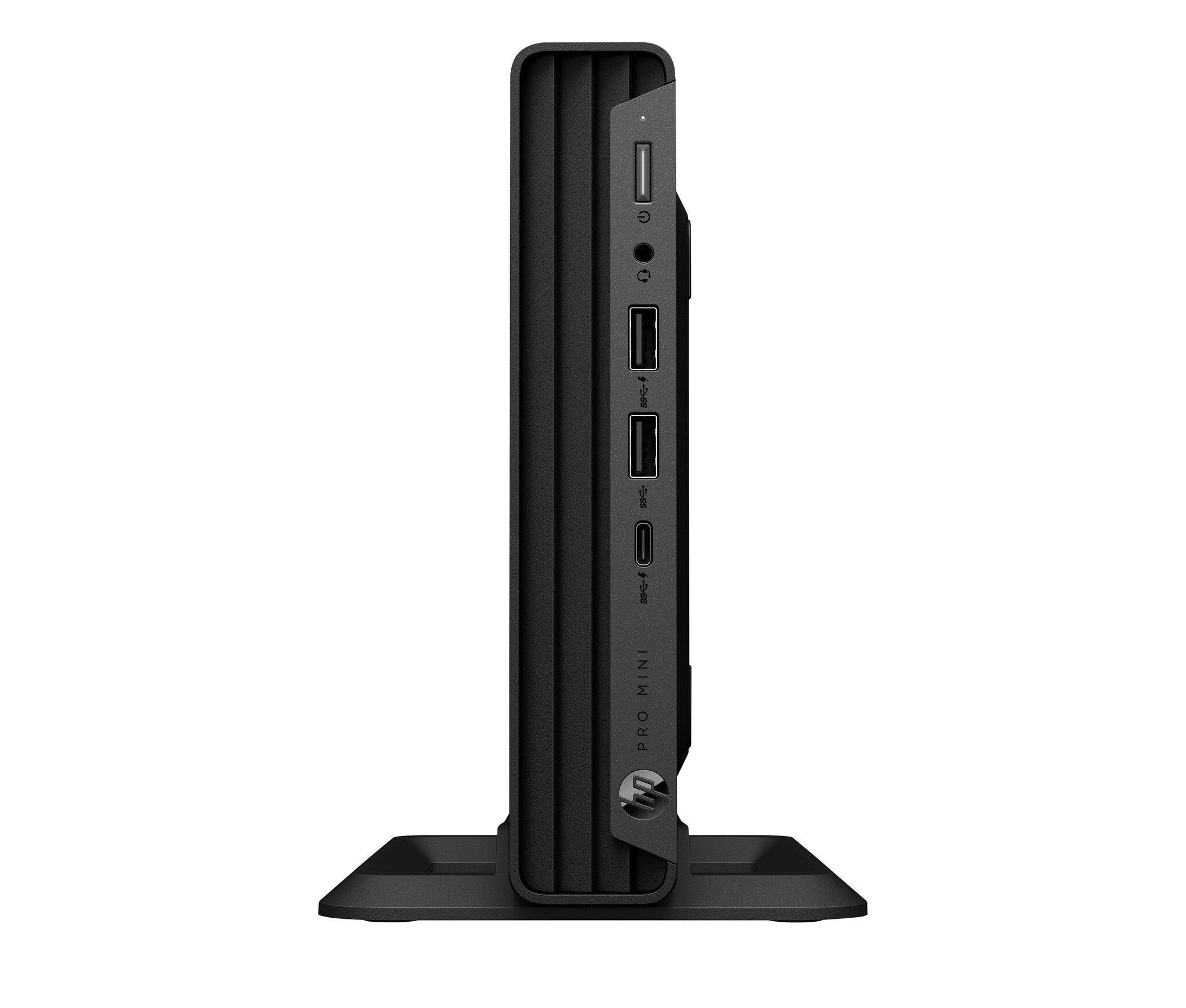

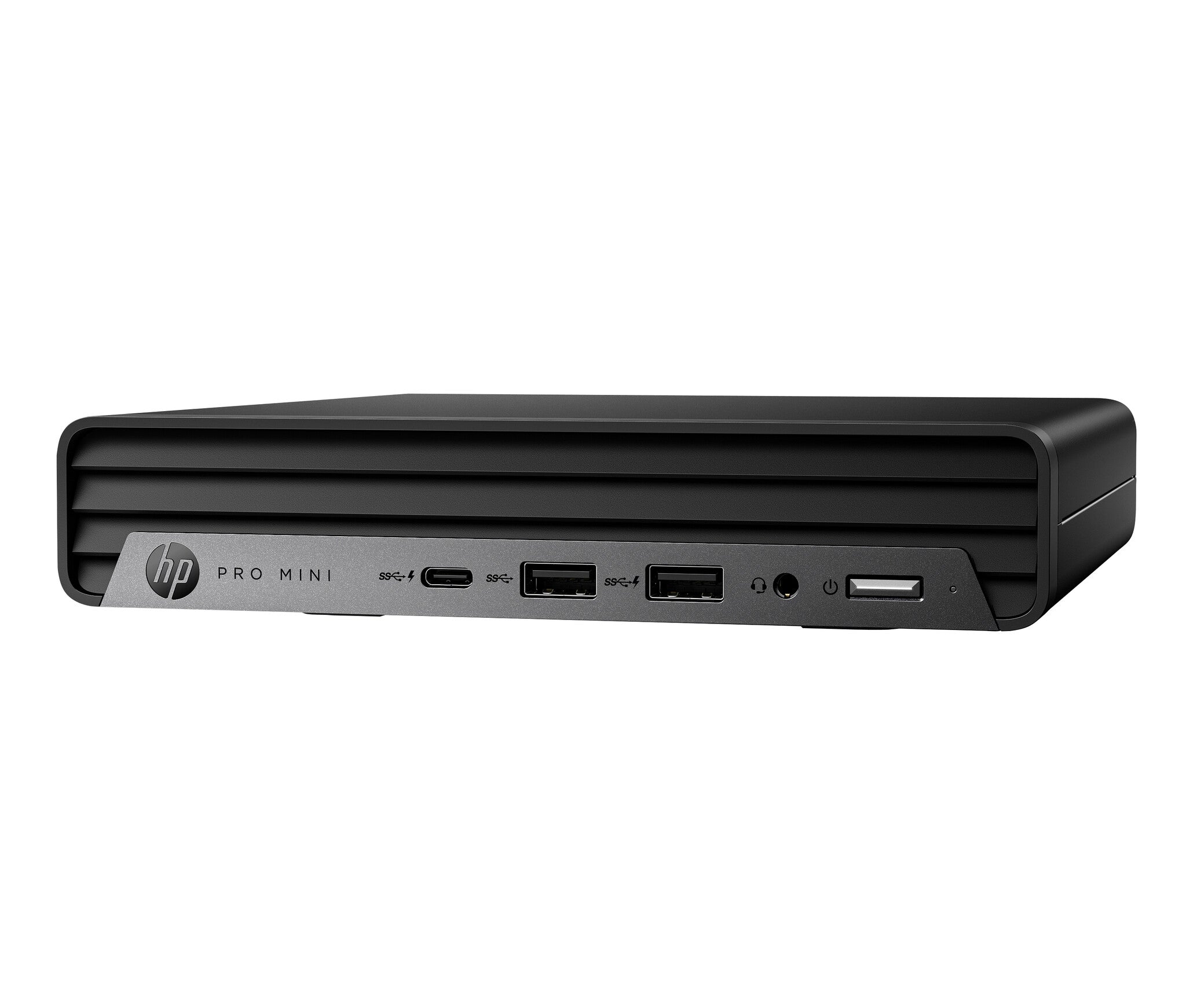

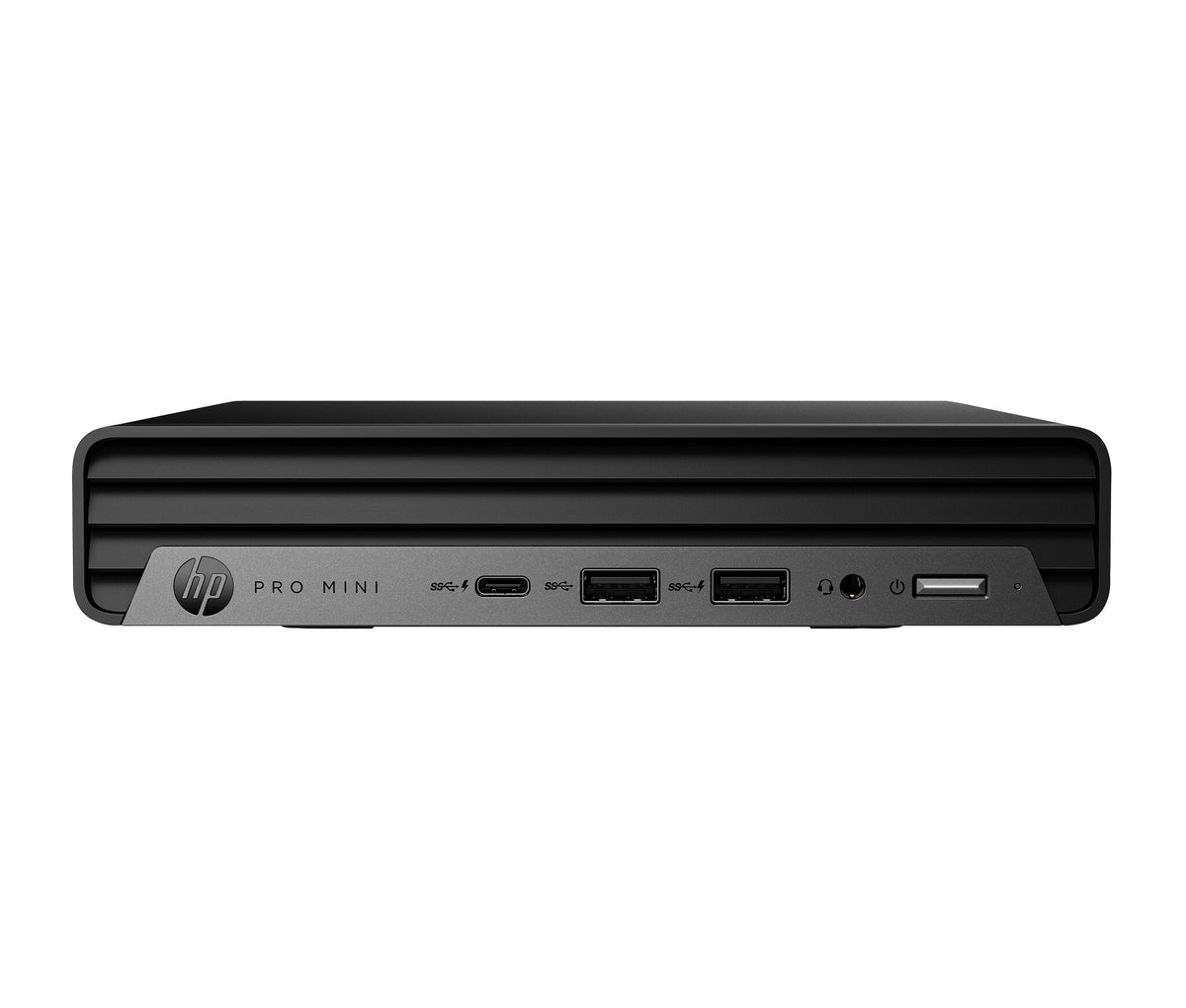

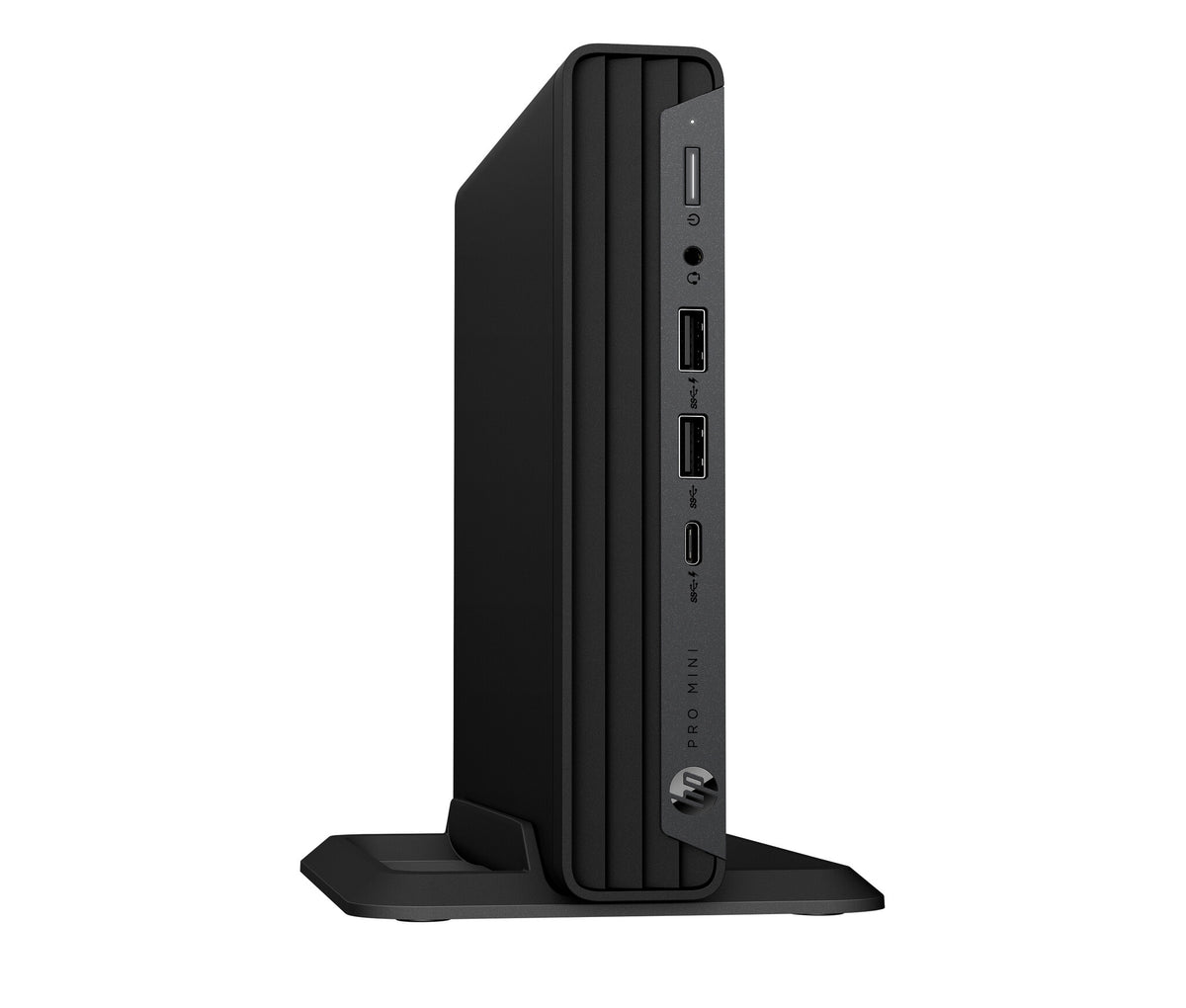

Commercial-grade Mini PC that fits anywhere you work
The HP Pro Mini 400 provides users with the commercial-grade performance, security, and the flexible deployment capabilities needed for small, varied workspaces. This reliable, ultra-small PC is powered to handle mainstream enterprise and SMBs with an Intel processor[2] and protected with always-on security you can trust.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i7 |
| Processor generation |
Intel® Core™ i5 (14th gen) |
| Processor model |
i7-14700T |
| Processor cores |
20 |
| Processor threads |
28 |
| Processor boost frequency |
5 GHz |
| Performance cores |
6 |
| Efficient cores |
8 |
| Performance-core Max Turbo Frequency |
5.1 GHz |
| Efficient-core Max Turbo Frequency |
3.6 GHz |
| Performance-core base frequency |
1.8 GHz |
| Efficient-core base frequency |
1.3 GHz |
| Processor cache |
33 MB |
| Processor cache type |
L3 |
| Maximum turbo power |
92 W |
| Processor base power |
35 W |
| Memory |
|---|
| Internal memory |
16 GB |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR5-SDRAM |
| Memory layout (slots x size) |
1 x 16 GB |
| Memory slots |
2x DIMM |
| Memory clock speed |
4800 MHz |
| Storage |
|---|
| Total storage capacity |
512 GB |
| Optical drive type |
No |
| Storage media |
SSD |
| Number of storage drives installed |
1 |
| Total SSDs capacity |
512 GB |
| Number of SSDs installed |
1 |
| SSD capacity |
512 GB |
| NVMe |
Yes |
| SSD interface |
PCI Express |
| SSD form factor |
M.2 |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board GPU manufacturer |
Intel |
| On-board graphics card family |
Intel® UHD Graphics |
| On-board graphics card model |
Intel UHD Graphics 770 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
No |

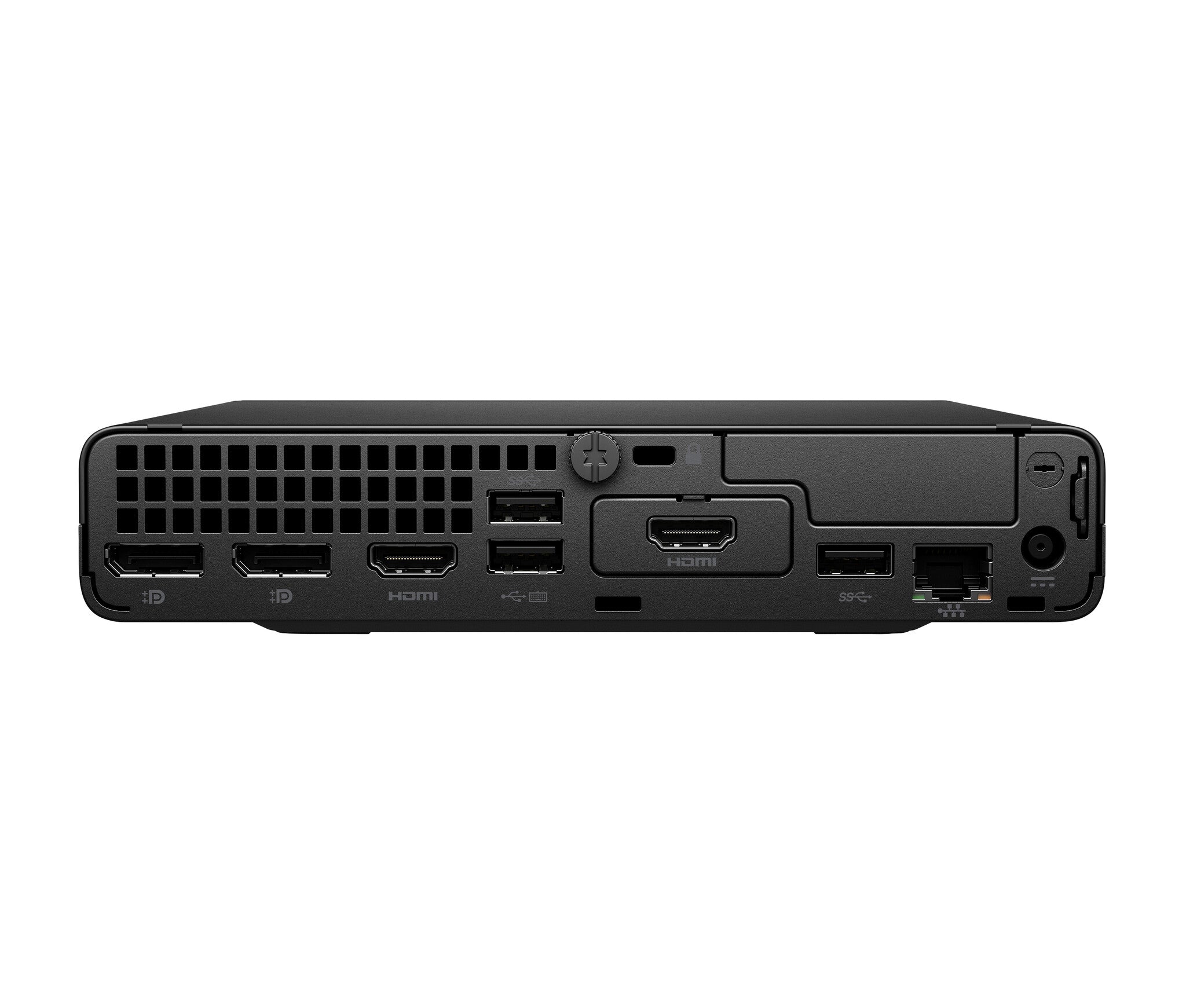

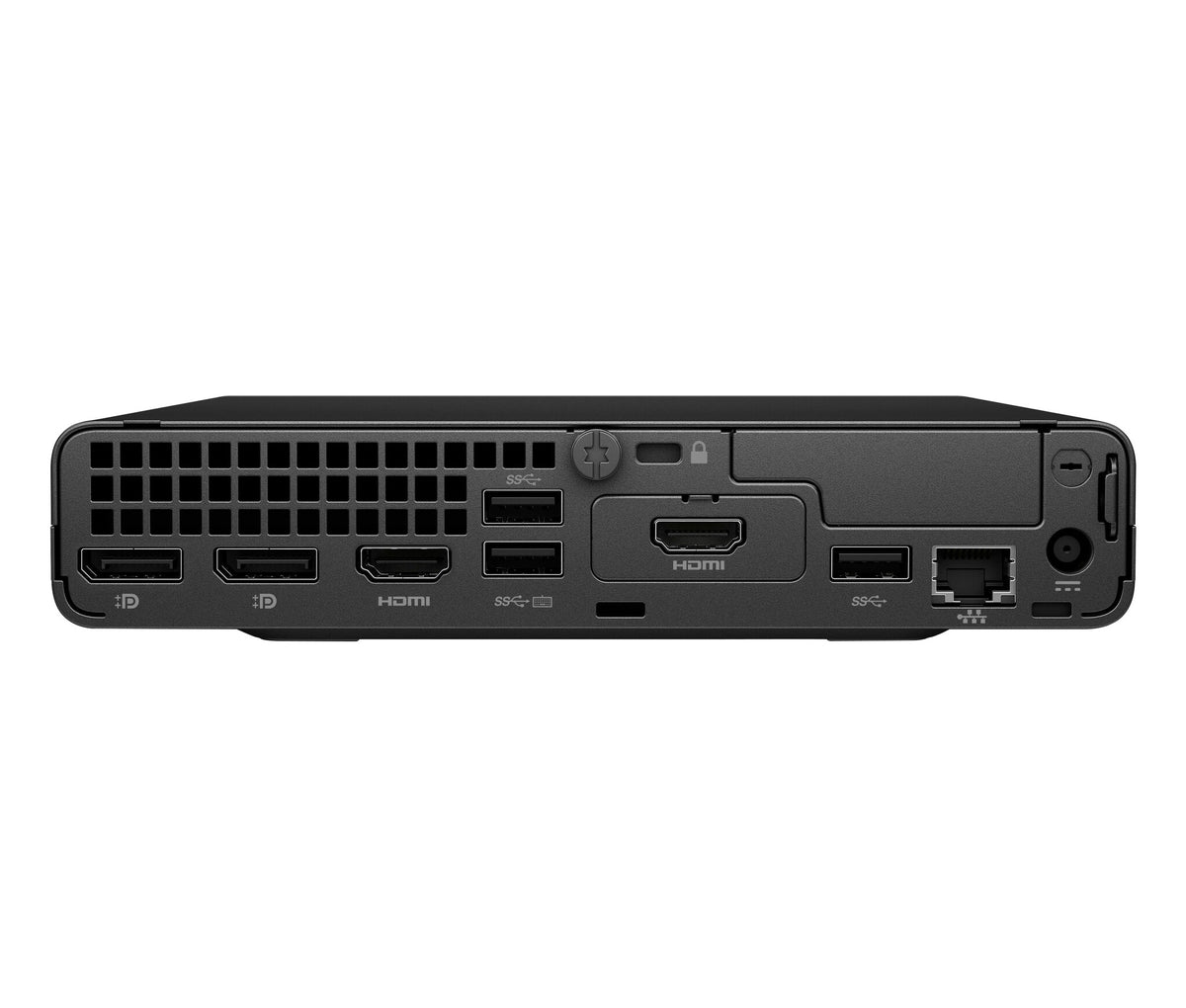

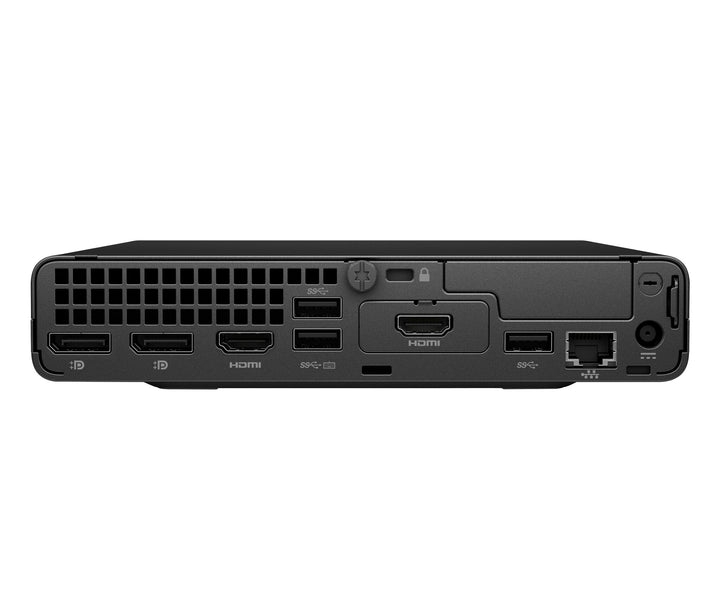

| Ports & interfaces |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
3 |
| USB 3.2 Gen 2x2 Type-C ports quantity |
1 |
| HDMI ports quantity |
1 |
| HDMI version |
2.1 |
| DisplayPorts quantity |
2 |
| DisplayPort version |
1.4 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Combo headphone/mic port |
Yes |
| Design |
|---|
| Chassis type |
Mini PC |
| Colour name |
Jack black |
| Number of 2.5" bays |
1 |
| Product colour |
Black |
| Introduction year |
2024 |
| Country of origin |
China, Thailand |
| Performance |
|---|
| Product type |
Mini PC |
| Market positioning |
Proven productivity |
| Motherboard chipset |
Intel Q670 |
| Audio chip |
Realtek ALC3252 |
| Password protection |
Yes |
| Password protection type |
BIOS, Power on |
| Trusted Platform Module (TPM) version |
2.0 |
| Trusted Platform Module (TPM) |
Yes |
| Software |
|---|
| Operating system installed |
Windows 11 Pro |
| Pre-installed software |
HP Notifications; HP PC Hardware Diagnostics UEFI; HP Support Assistant; HP Connection Optimizer; HP Privacy Settings; HP PC Hardware Diagnostics Windows; HP Desktop Support Utilities; HP Easy Clean; Touchpoint Customizer for Commercial; HP Easy Clean Keyboard Driver; HSA Fusion for Commercial; HSA Telemetry for Commercial; HPX for CMIT |
| Processor special features |
|---|
| Intel® Turbo Boost Technology |
Yes |
| Brand-specific features |
|---|
| HP Support Assistant |
Yes |
| HP Security tools |
Trusted Platform Module TPM 2.0 Embedded Security Chip shipped with Windows 10 (Common Criteria EAL4+ Certified)(FIPS 140-2 Level 2 Certified); HP Secure Erase; HP Sure Click; HP Sure Sense; Absolute Persistence module; HP Sure Admin; HP BIOSphere Gen6; HP Tamper Lock; HP Sure Start Gen7; HP Platform Certificate On Device Installation |
| HP Management tools |
HP Client Catalog (download); HP Driver Packs (download); HP Image Assistant (download); HP Client Management Script Library (download); HP Connect for Microsoft Endpoint Manager; HP Manageability Integration Kit (download); HP Patch Assistant (download) |
| HP segment |
Business |
| HP GTIN (EAN/UPC) |
198415324993 |
| Power |
|---|
| Power supply |
90 W |
| Power supply input voltage |
50 - 60 V |
| Power supply input frequency |
100 - 240 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
10 - 90% |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR, EPEAT, TCO10 |
| Sustainability compliance |
Yes |
| Weight & dimensions |
|---|
| Width |
177 mm |
| Depth |
175 mm |
| Height |
177 mm |
| Weight |
1.42 kg |
| Package width |
498 mm |
| Package depth |
235 mm |
| Package height |
132 mm |
| Package weight |
3.4 kg |
| Packaging content |
|---|
| Display included |
No |
| Keyboard connectivity |
Wired |
| Keyboard included |
Yes |
| Numeric keypad |
No |
| Input device model |
HP 125 Wired Mouse |
| General |
|---|
| Product family |
Pro Mini |
| Carbon footprint |
|---|
| Total carbon emissions, w/o use phase (kg of CO2e) |
21.373 |
| Carbon emissions, end-of-life (kg of CO2e) |
0.964 |
| Carbon emissions, logistics (kg of CO2e) |
1.271 |
| Carbon emissions, manufacturing (kg of CO2e) |
139.791 |
| Total carbon footprint (kg of CO2e) |
163.399 |
| Logistics data |
|---|
| Harmonized System (HS) code |
8471500000 |
| Technical details |
|---|
| General Product Safety Regulation (GPSR) URL |
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true |
| Other features |
|---|
| Support service included |
HP 3 year Next Business Day Onsite Desktop HardwareSupport. For terms and conditions, please visit https://h20195.www2.hp.com/v2/GetPDF.aspx/4AA5-6385EEE & https://www8.hp.com/h20195/v2/getpdf.aspx/4AA5-7123EEGB.pdf |
| Manufacturer warranty |
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply. |
| Memory module type |
SODIMM |
| UNSPSC-code |
43211507 |
| Keyboard type |
USB |
