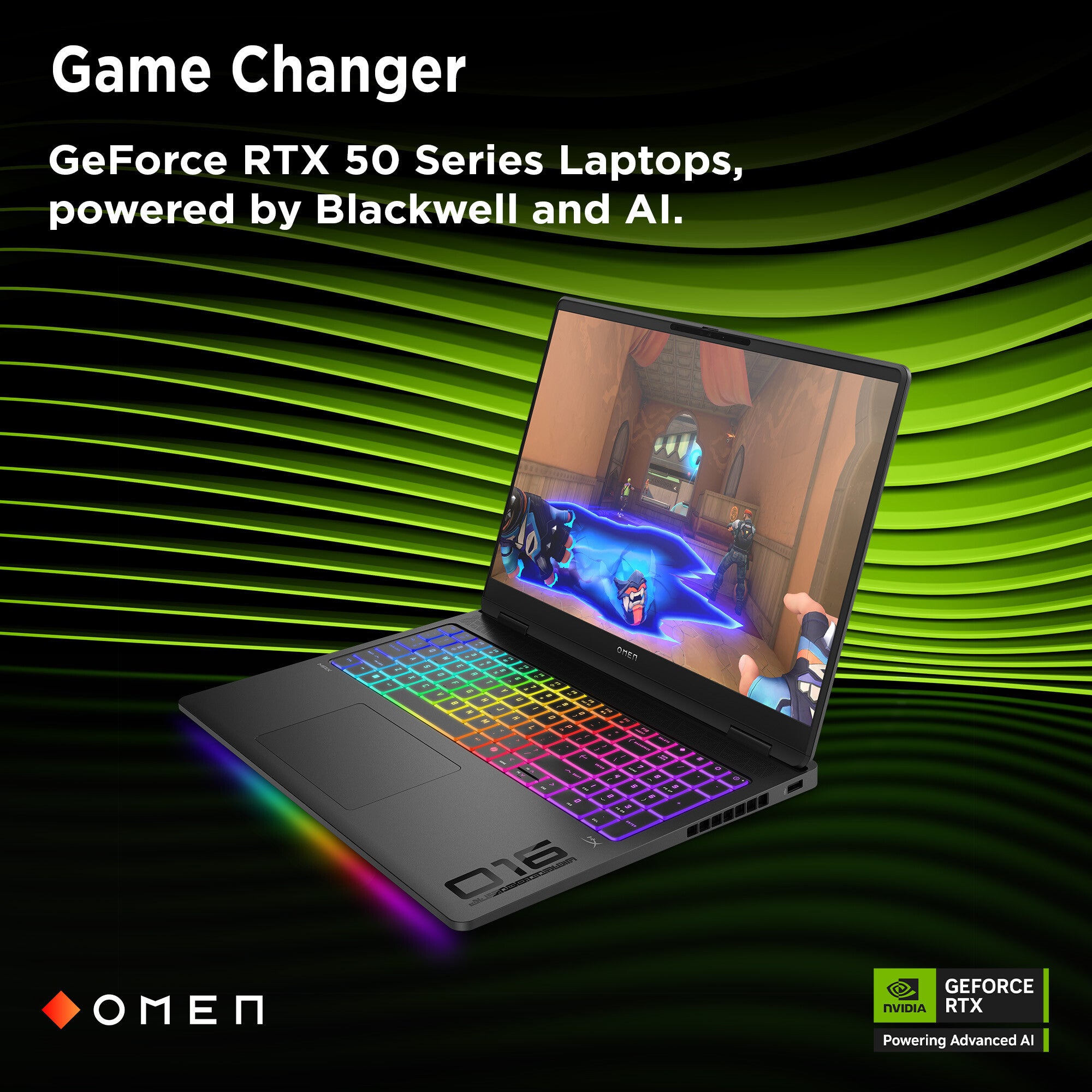

HP OMEN MAX Gaming 16-ah0002na Intel Core Ultra 9 275HX Laptop 40.6 cm (16") WQXGA 32 GB DDR5-SDRAM 1 TB SSD NVIDIA GeForce RTX 5070 Ti Wi-Fi 7 (802.11be) Windows 11 Home AI PC Black
Built to break limits The OMEN 16 MAX gaming laptop provides unparalleled performance both at-home or on-the-go. With next-gen NVIDIA GPUs and Intel Core Ultra CPUs[1], a new Unleashed Mode for manual overclocking, and a thermal architecture built to cut down on both throttling and long term wear, dedicated gamers can achieve their best for years to come.
Design
Product type
Laptop
Product colour
Black
Colour name
Shadow black
Form factor
Clamshell
Market positioning
Gaming
Software update term
2025
Country of origin
China
Original brand name
HP
Display
Display diagonal
40.6 cm (16")
Display resolution
2560 x 1600 pixels
Touchscreen
No
HD type
WQXGA
Panel type
IPS
Native aspect ratio
16:10
Anti-glare screen
Yes
Display bezel technology
Micro-Edge
Display brightness
500 cd/m²
Colour gamut
100%
RGB colour space
sRGB
Display diagonal (metric)
40.6 cm
Display response rise/fall
3 ms
Maximum refresh rate
240 Hz
sRGB coverage (typical)
100%
Processor
Processor manufacturer
Intel
Processor family
Intel Core Ultra 9
Processor generation
Intel Core Ultra (Series 2)
Processor model
275HX
Processor cores
24
Processor threads
24
Processor boost frequency
5.4 GHz
Performance cores
8
Efficient cores
16
Performance-core Max Turbo Frequency
5.4 GHz
Efficient-core Max Turbo Frequency
4.6 GHz
Performance-core base frequency
2.7 GHz
Efficient-core base frequency
2.1 GHz
Processor cache
36 MB
Processor cache type
L3
Maximum turbo power
160 W
Processor base power
55 W
Neural processor unit (NPU)
Neural processor unit (NPU)
Intel AI Boost
Sparsity support
Yes
Windows Studio effects support
Yes
AI software frameworks supported by NPU
DirectML, OpenVINO, Windows ML, ONNX RT, WebNN
Total processor performance up to
36 TOPs
NPU performance up to
13 TOPs
GPU performance up to
8 TOPs
Memory
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory form factor
SO-DIMM
Memory clock speed
5600 MHz
Memory layout (slots x size)
2 x 16 GB
Memory slots (available)
2
Maximum internal memory
32 GB
Storage
Total storage capacity
1 TB
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD capacity
1 TB
NVMe
Yes
SSD interface
PCI Express 5.0
SSD form factor
M.2
Optical drive type
No
Graphics
On-board graphics card
Yes
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA GeForce RTX 5070 Ti
Discrete graphics card memory
12 GB
Discrete graphics memory type
GDDR7
On-board GPU manufacturer
Intel
On-board graphics card family
Intel® Graphics
On-board graphics card model
Intel® Graphics
NVIDIA G-SYNC
Yes
Audio
Audio system
DTS:X Ultra
Built-in speaker(s)
Yes
Number of built-in speakers
2
Number of microphones
2
Built-in microphone
Yes
Camera
Front camera
Yes
Front camera resolution
1920 x 1080 pixels
Front camera HD type
Full HD
Infrared (IR) camera
Yes
Privacy camera
Yes
Privacy type
Privacy shutter
Network
Mobile network connection
No
Wi-Fi
Yes
Top Wi-Fi standard
Wi-Fi 7 (802.11be)
Wi-Fi standards
Wi-Fi 7 (802.11be)
Antenna type
2x2
WLAN controller manufacturer
Intel
WLAN controller model
Intel Wi-Fi 7 BE200
Ethernet LAN
Yes
Ethernet LAN data rates
2500,10,100,1000 Mbit/s
Bluetooth
Yes
Bluetooth version
5.4

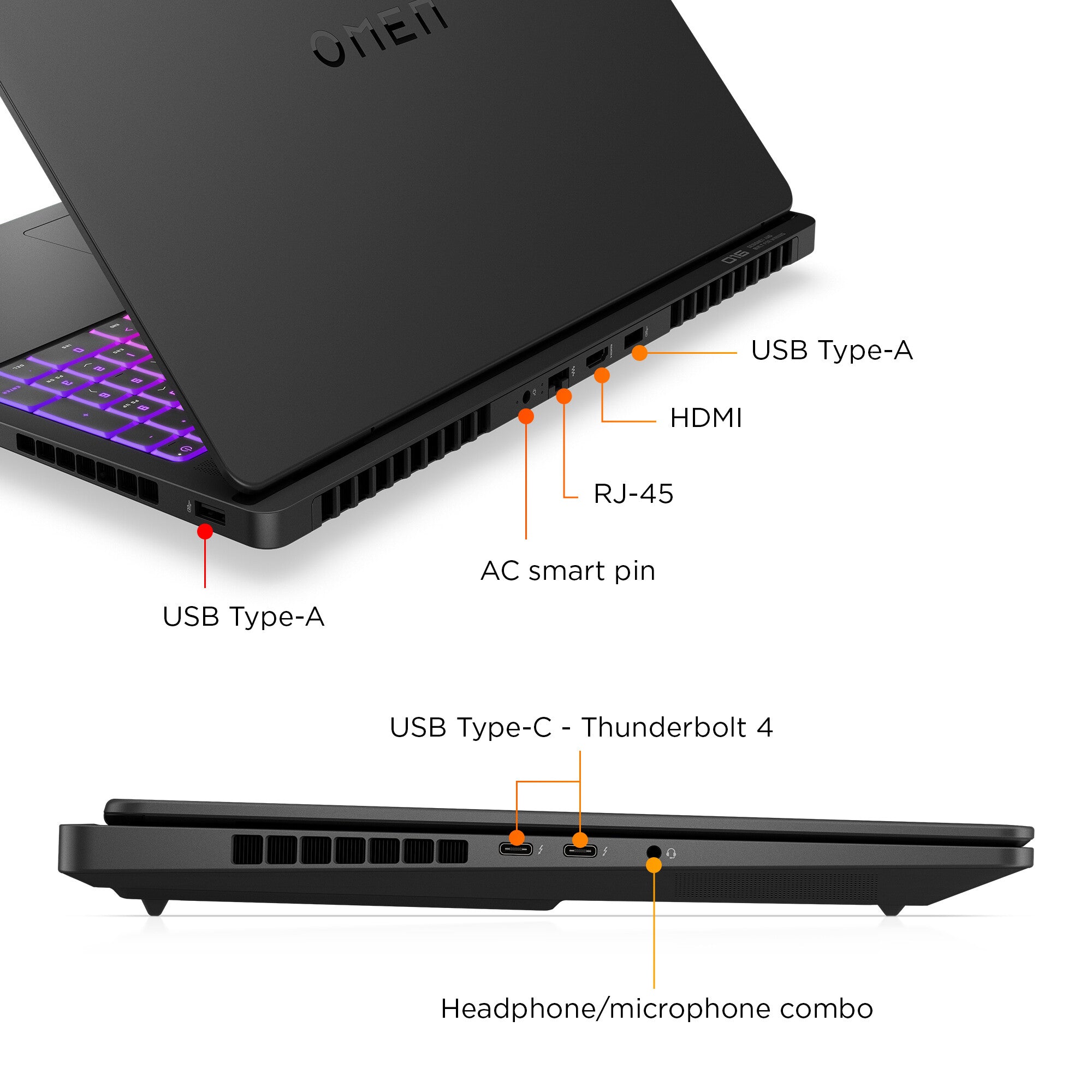

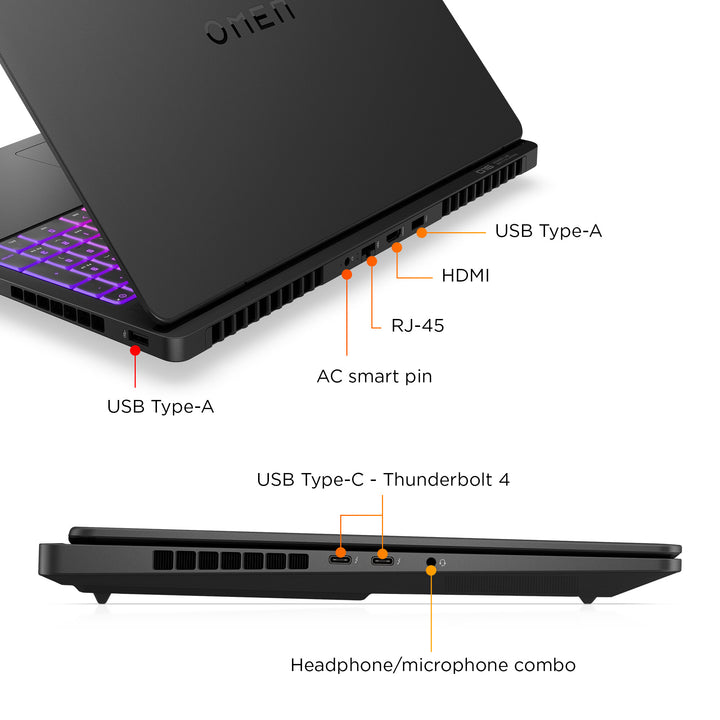

Ports & interfaces
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
2
USB4 Gen 3x2 ports quantity
2
Ethernet LAN (RJ-45) ports
1
HDMI ports quantity
1
HDMI version
2.1
Thunderbolt 4 ports quantity
2
Intel® Thunderbolt 4
Yes
Microphone in
Yes
Combo headphone/mic port
Yes
USB Type-C DisplayPort Alternate Mode
Yes
USB Sleep-and-Charge
Yes
USB Sleep-and-Charge ports
2
Performance
Motherboard chipset
Intel HM870
Temperature sensor
Yes
Keyboard
Pointing device
Touchpad
Keyboard backlit
Yes
Numeric keypad
Yes

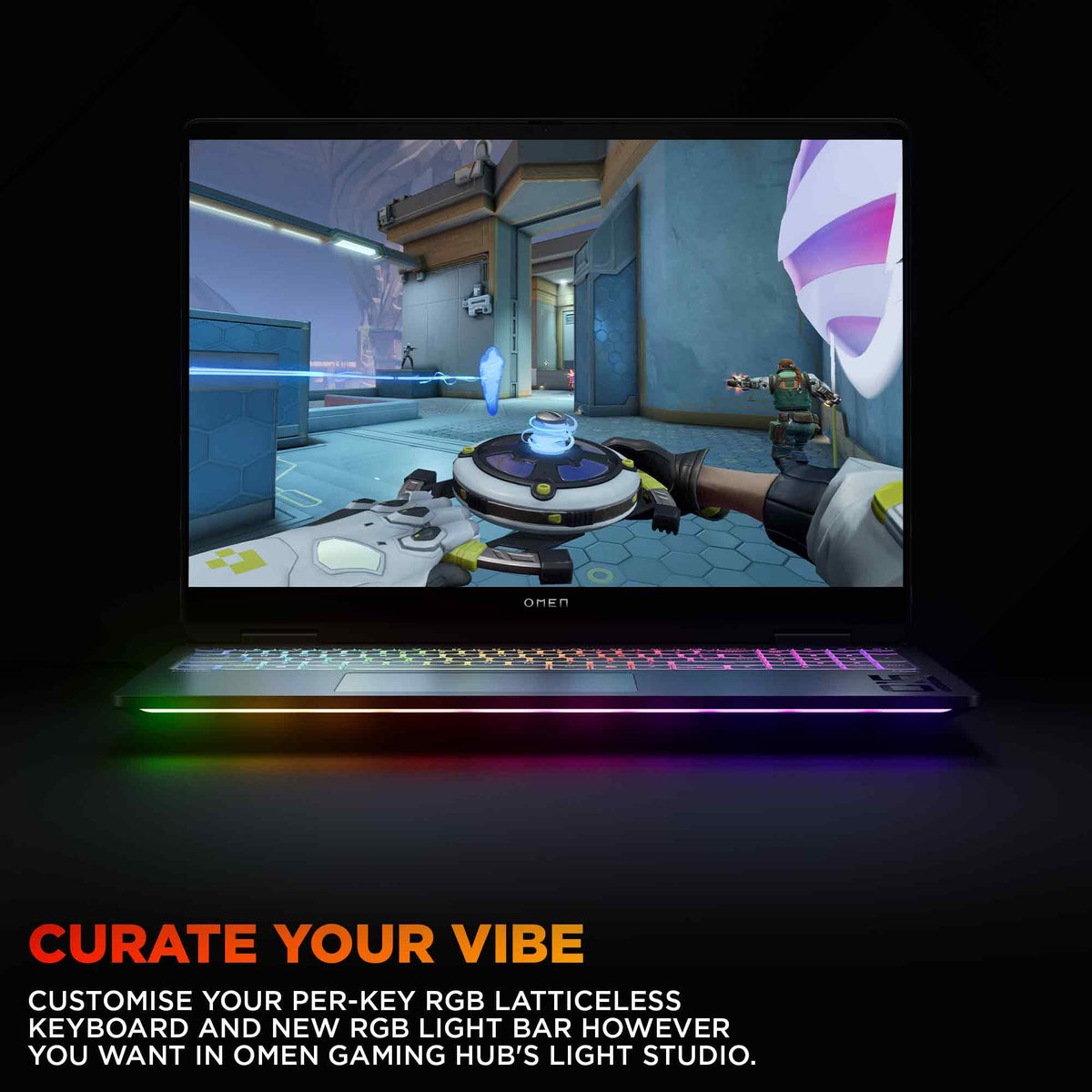

Keyboard backlit zone
Per-key RGB
Keyboard backlit colour
RGB
Full-size keyboard
Yes
Keyboard colour name
Shadow black
Software
Operating system installed
Windows 11 Home
Pre-installed software
Otter.ai, 1 month trial for new Microsoft 365 customers, McAfee Online Protection 30-day trial; 1-month Adobe free trial offer; PC Game Pass 3-month trial
Trial software
100 GB Dropbox storage for 3 months
Processor special features
Intel® Turbo Boost Technology
Yes
Brand-specific features
HP Audio Boost
Yes
HP speaker type
HP Dual Speakers
HP Imagepad
Yes
HP front camera
HP TrueVision FHD IR
HP Security tools
Camera privacy shutter; Trusted Platform Module (Firmware TPM) support
HP Software provided
HP Support Assistant; HP Connection Optimizer; OMEN Gaming Hub
HP Artificial Intelligence
AI PC
HP segment
Home
HP GTIN (EAN/UPC)
199251354373
Battery
Battery technology
Lithium Polymer (LiPo)
Number of battery cells
6
Battery capacity
83 Wh
Fast charging
Yes
Fast charging time (50%)
30 min
Power
AC adapter power
330 W
AC adapter frequency
50 - 60 Hz
AC adapter input voltage
100 - 240 V
USB Type-C charging port
Yes
USB Power Delivery (USB PD)
Yes
Security
Trusted Platform Module (TPM)
Yes
Password protection
Yes
Password protection type
BIOS, Power on
Sustainability
Sustainable technologies and materials
Ocean-bound plastic in bezel; Keyboard keycaps and scissors contain post-consumer recycled plastic; Recycled metal in cover, base and hinge cap(s)
Sustainability certificates
EPEAT Gold

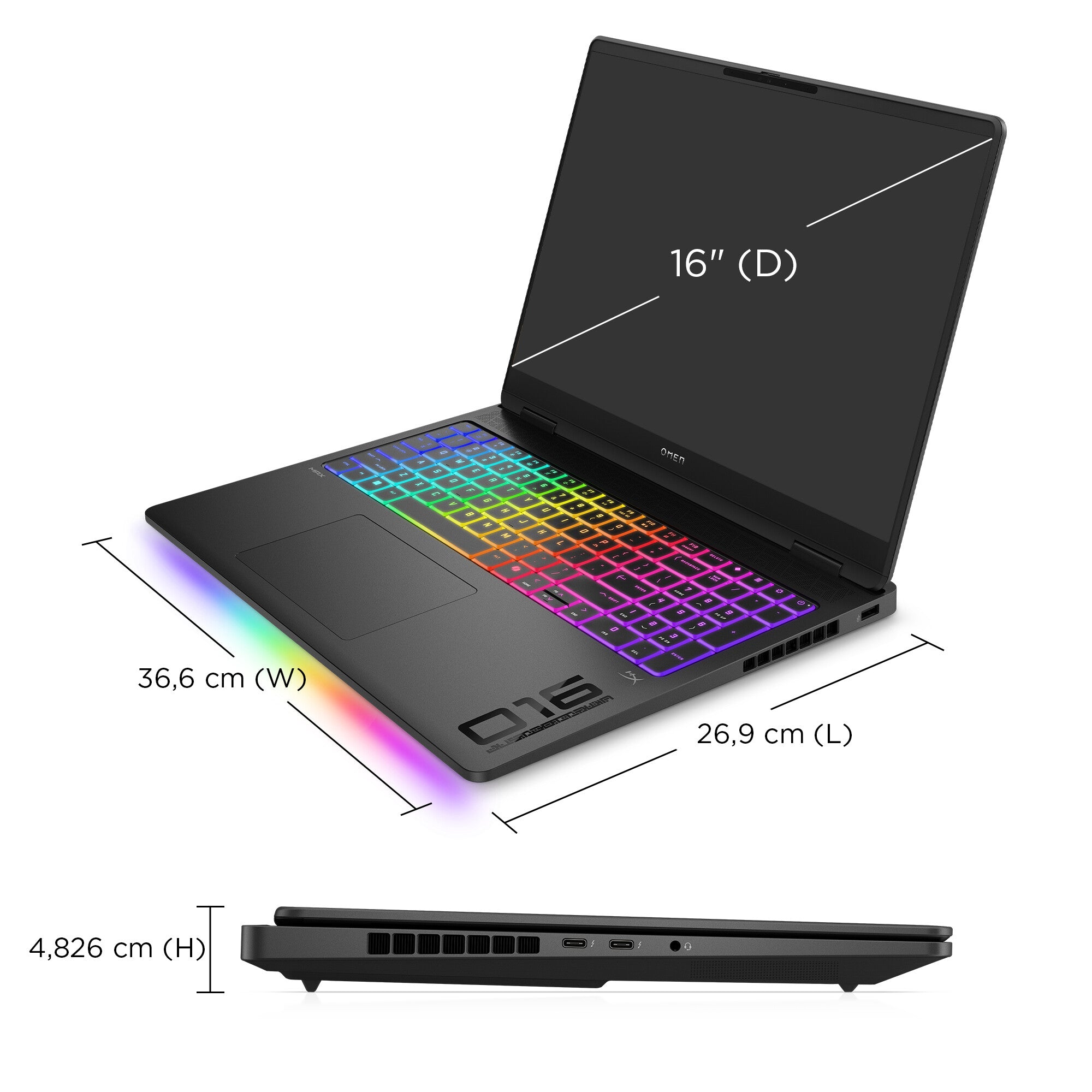

Weight & dimensions
Weight
2.68 kg
Width
356.5 mm
Depth
269 mm
Height (front)
2.29 cm
Height (rear)
2.48 cm
Packaging data
Package width
94 mm
Package depth
428 mm
Package height
332 mm
Package weight
4.74 kg
General
Product family
OMEN MAX Gaming
Carbon footprint
Carbon emissions, end-of-life (kg of CO2e)
1.196
Total carbon emissions, w/o use phase (kg of CO2e)
38.439
Carbon emissions, logistics (kg of CO2e)
8.776
Carbon emissions, manufacturing (kg of CO2e)
309.144
Total carbon footprint (kg of CO2e)
357.555
Packaging content
Keyboard included
Yes
AC adapter included
Yes
Other features
Manufacturer warranty
1 year (1/1/0) limited warranty includes 1 year of parts and labor. No on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
Memory module type
SODIMM
Supplied AC adapter type
Sandblasted and paint finish
UNSPSC-code
43211503
Technical details
General Product Safety Regulation (GPSR) URL
https://support.hp.com/us-en/document/ish_6126692-6126777-16?openCLC=true ; HP REG 23010, 08028 Barcelona, Spain ; reg@hp.com
