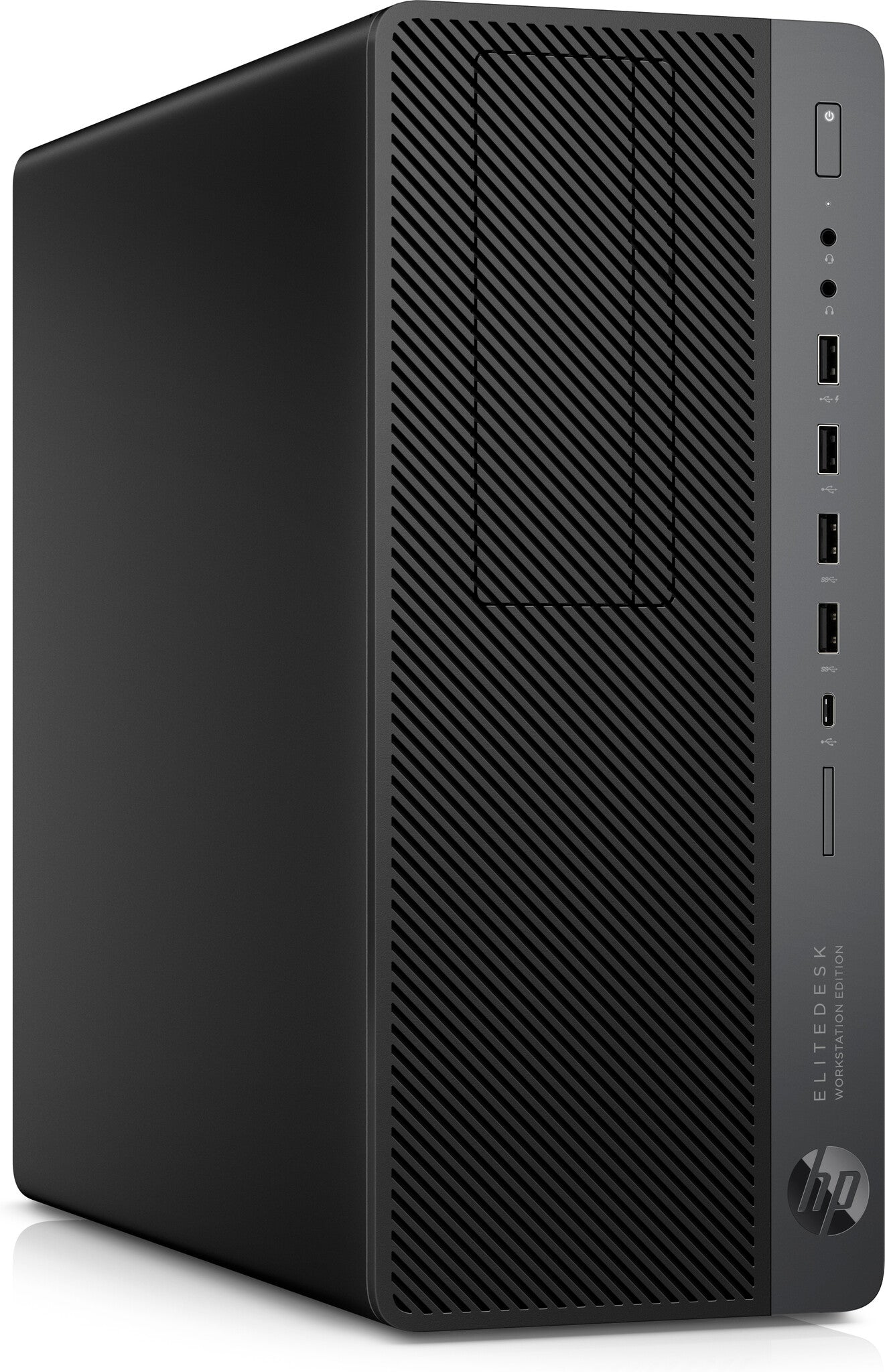

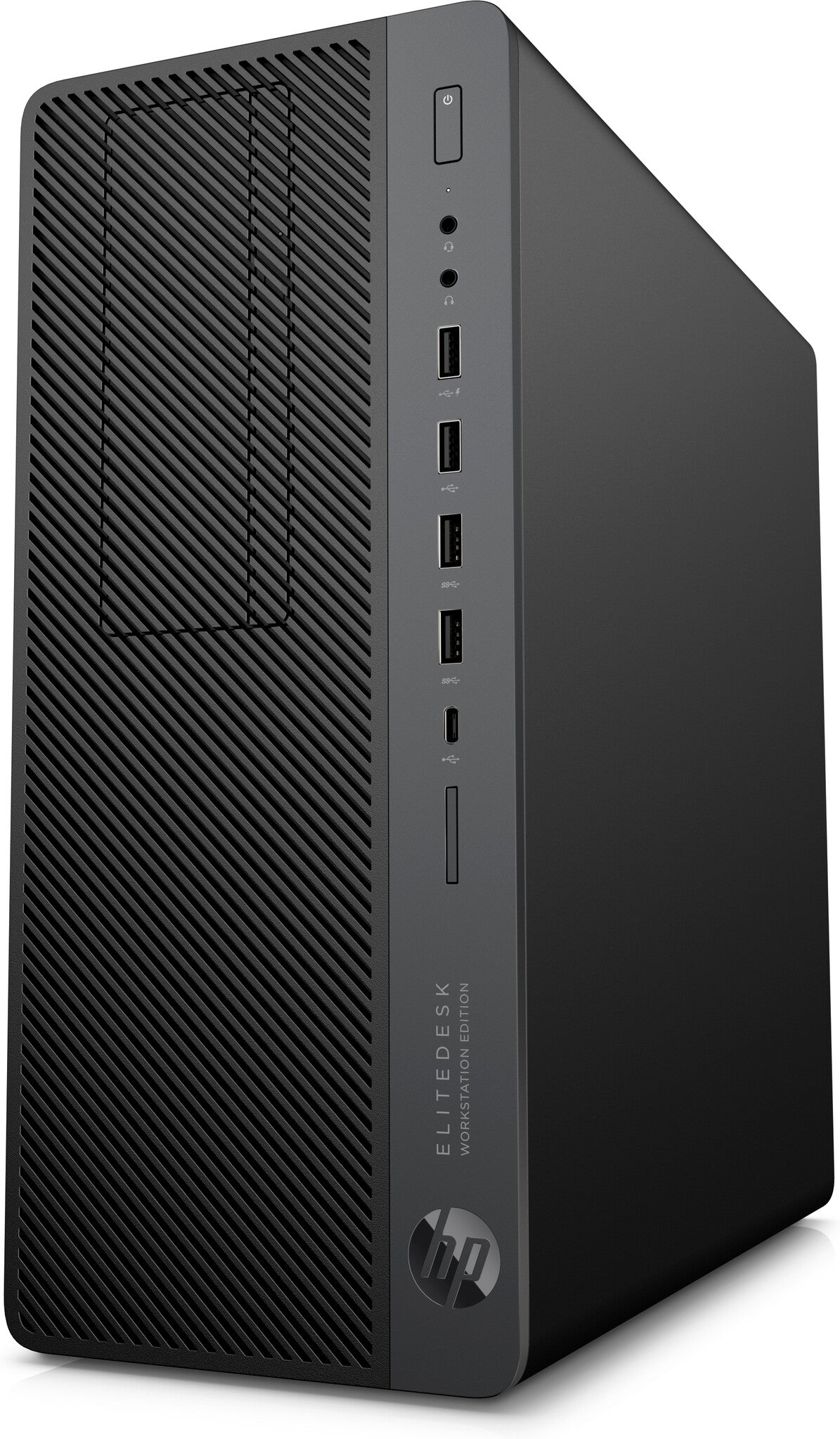

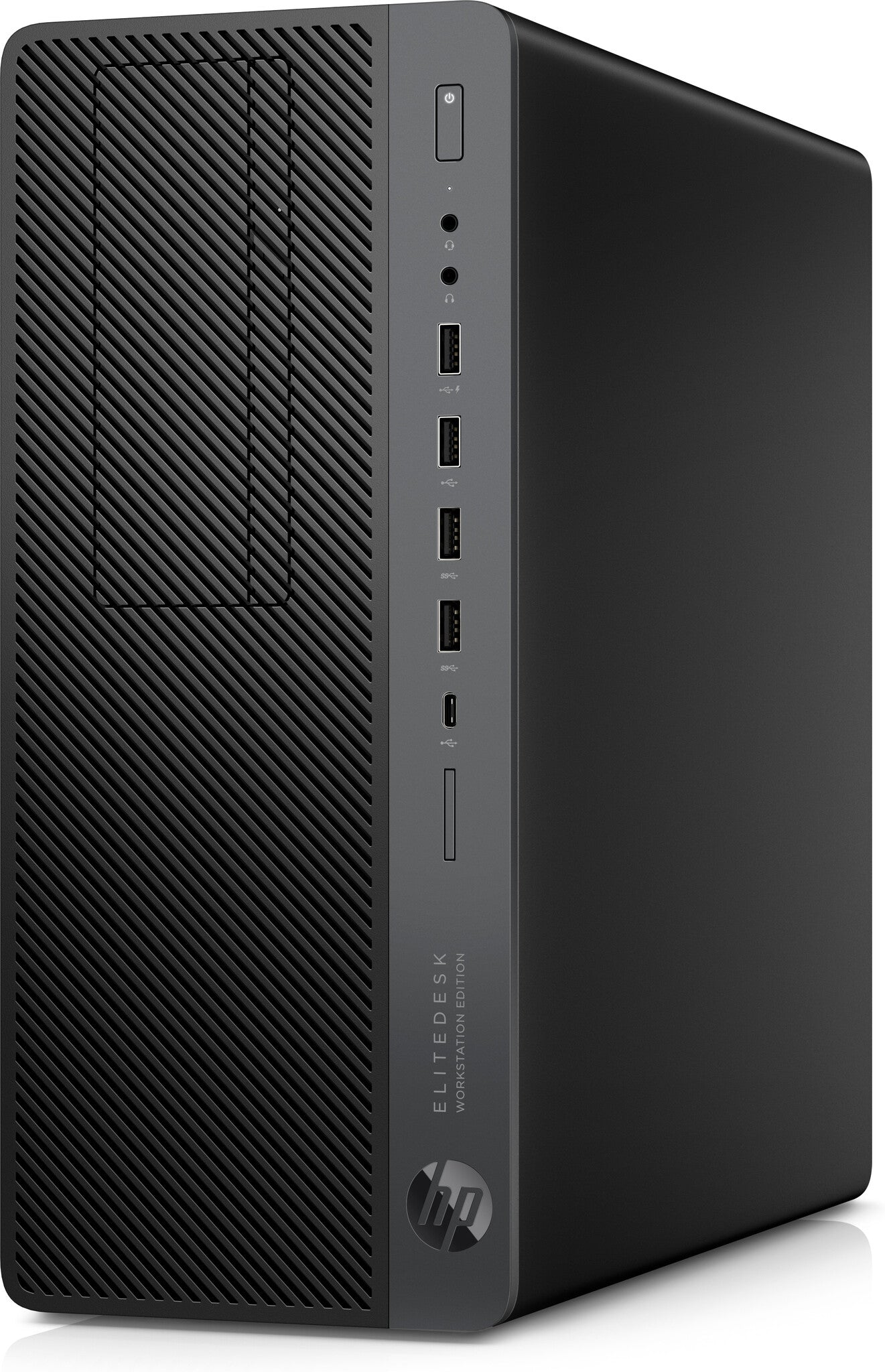

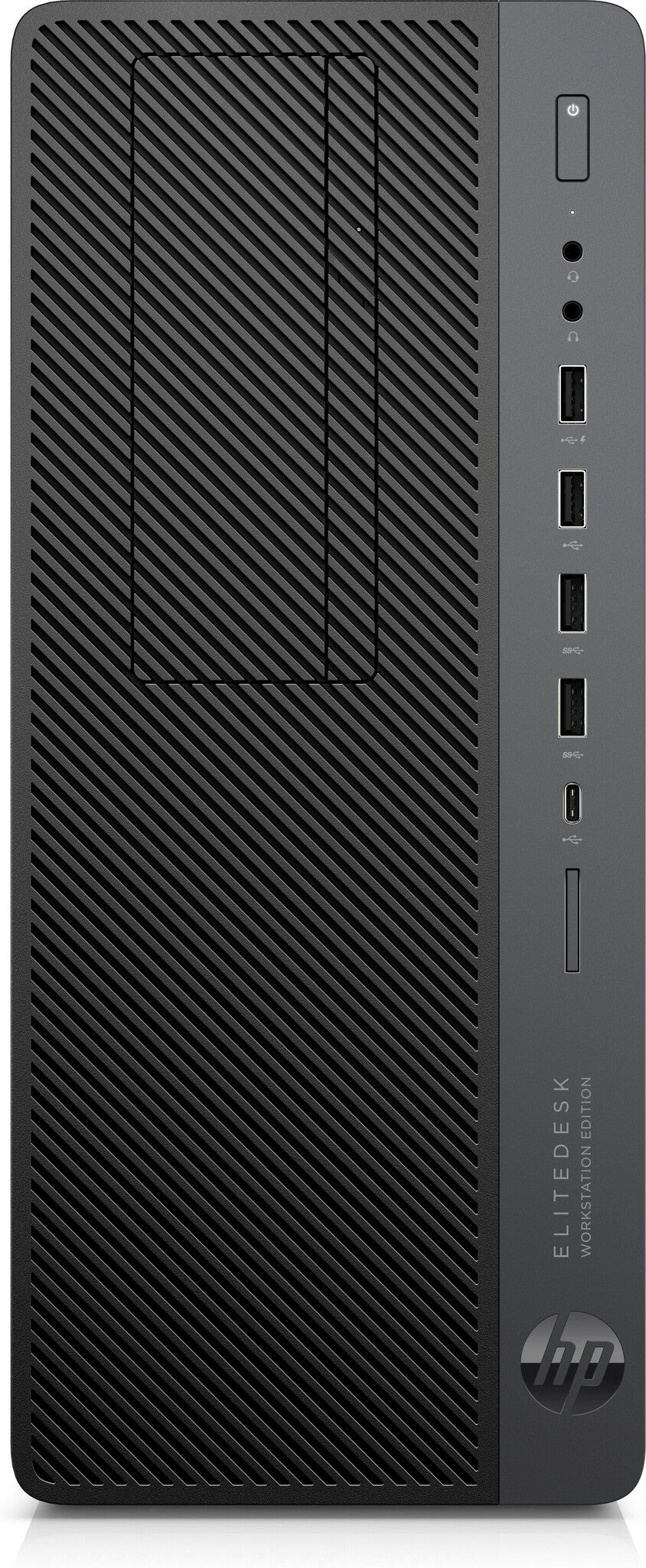

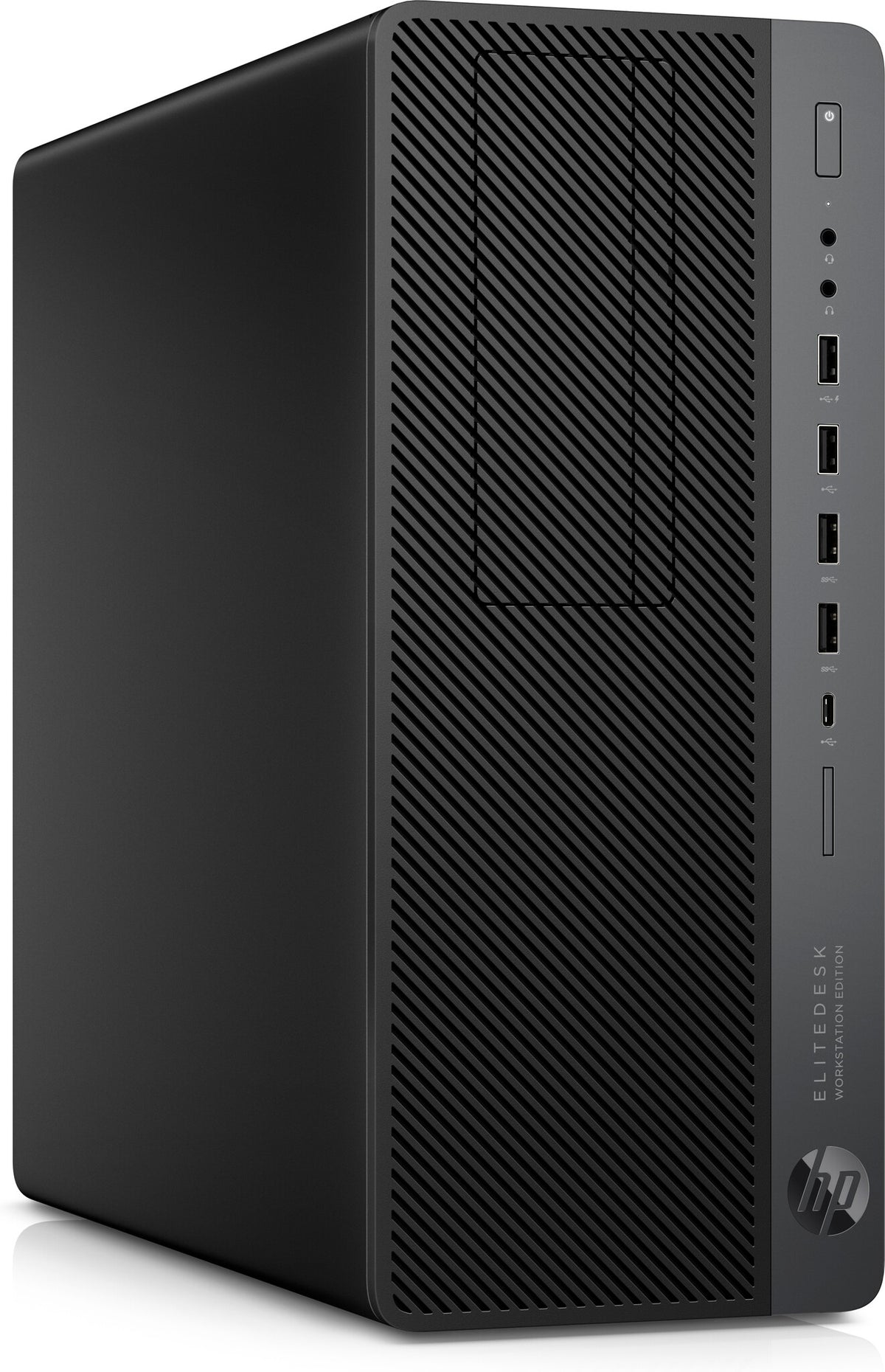

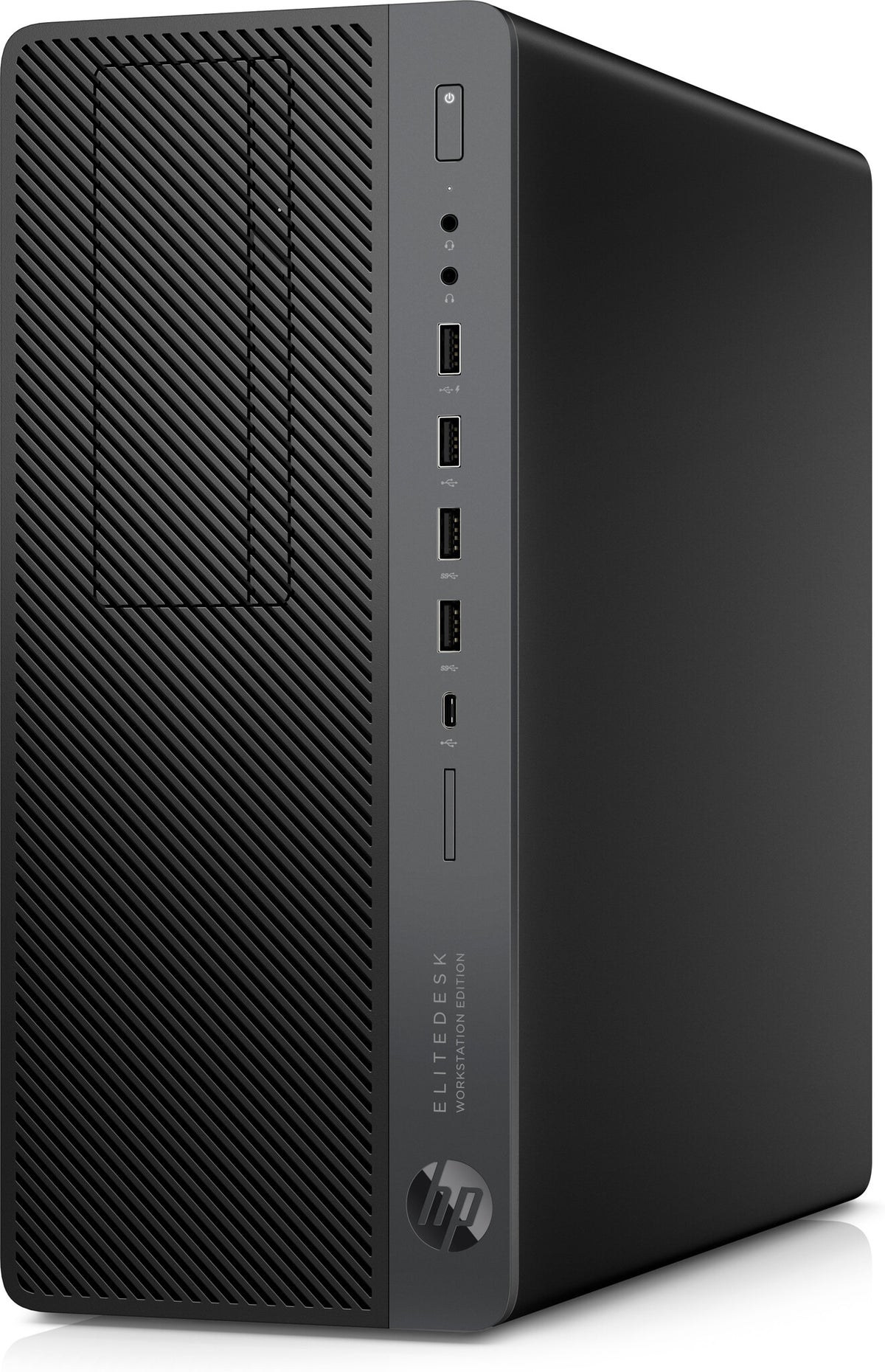

HP's most affordable professional certified desktop Workstation-class performance is within reach with a desktop certified for professional software. From 2D/3D CAD design to VR content creation, the HP EliteDesk 800 Workstation Edition is the perfect gateway to elite-level power.
Processor
Processor manufacturer
Intel
Processor family
Intel® Core™ i7
Processor generation
8th gen Intel® Core™ i7
Processor model
i7-8700K
Processor cores
6
Processor threads
12
Processor boost frequency
4.7 GHz
Processor frequency
3.7 GHz
Processor cache
12 MB
Processor cache type
Smart Cache
System bus rate
8 GT/s
Bus type
DMI3
Processor series
Intel Core i7-8700 Desktop Series
Processor lithography
14 nm
Thermal Design Power (TDP)
95 W
Processor codename
Coffee Lake
Tjunction
100 °C
PCI Express configurations
1x16, 1x8+2x4, 2x8
Maximum number of PCI Express lanes
16
PCI Express slots version
3.0
Number of processors installed
1
Maximum internal memory supported by processor
64 GB
Memory types supported by processor
DDR4-SDRAM
Memory clock speeds supported by processor
2666 MHz
Memory bandwidth supported by processor (max)
41.6 GB/s
Memory
Internal memory
32 GB
Maximum internal memory
128 GB
Internal memory type
DDR4-SDRAM
Memory layout (slots x size)
2 x 16 GB
Memory slots
4x DIMM
Memory clock speed
2666 MHz
Memory channels
Dual-channel
Non-ECC
Yes
ECC
No
Storage
Total storage capacity
1 TB
Optical drive type
DVD-ROM
Storage media
SSD
Total SSDs capacity
1 TB
Number of SSDs installed
1
SSD memory type
TLC
SSD capacity
1 TB
NVMe
Yes
SSD interface
NVMe
SSD form factor
M.2
Card reader integrated
Yes
Compatible memory cards
SD
Graphics
Discrete graphics card
Yes
On-board graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA® GeForce RTX™ 2080
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR6
On-board graphics card family
Intel® UHD Graphics
On-board graphics card model
Intel® UHD Graphics 630
Number of displays supported (on-board graphics)
3
Maximum on-board graphics card memory
64 GB
On-board graphics card dynamic frequency (max)
1200 MHz
On-board graphics card base frequency
350 MHz
On-board graphics card ID
0x3E92
On-board graphics card OpenGL version
4.5
On-board graphics card DirectX version
12.0
Number of execution units
24
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Wi-Fi
No

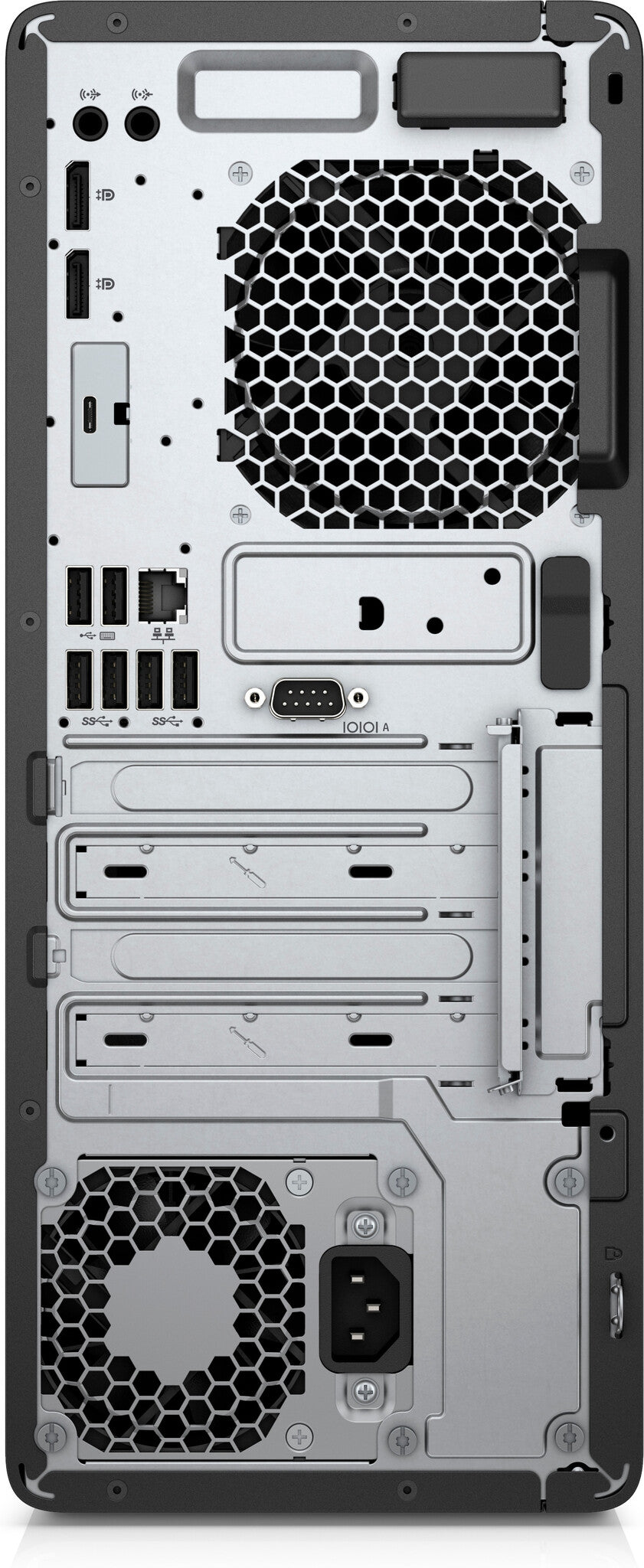

Ports & interfaces
USB 2.0 ports quantity
4
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
2
USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity
4
DVI port
No
Ethernet LAN (RJ-45) ports
1
Microphone in
No
Headphone outputs
1
Line-in
Yes
Line-out
Yes
Combo headphone/mic port
Yes
Design
Chassis type
Tower
Cable lock slot
Yes
Product colour
Black
Country of origin
China
Performance
Product type
Workstation
Market positioning
Business
Motherboard chipset
Intel Q370
Audio chip
Conexant CX20632
Password protection
Yes
Software
Operating system installed
Windows 10 Pro
Operating system architecture
64-bit
Processor special features
Processor ARK ID
126684
Thermal solution specification
PCG 2015D
Scalability
1S
Supported instruction sets
AVX 2.0, SSE4.1, SSE4.2
Processor package size
37.5 x 37.5 mm
Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID)
Yes
Intel® OS Guard
Yes
Intel® Secure Key
Yes
Intel® AES New Instructions (Intel® AES-NI)
Yes
Thermal Monitoring Technologies
Yes
Intel® Clear Video HD Technology (Intel® CVT HD)
Yes
Intel® InTru™ 3D Technology
Yes
Intel TSX-NI version
1.00
Intel Secure Key Technology version
1.00
Intel Stable Image Platform Program (SIPP) version
1.00
Intel Identity Protection Technology version
1.00
Intel Enhanced Halt State
Yes
Intel Clear Video Technology
Yes
Intel Software Guard Extensions (Intel SGX)
Yes
Intel TSX-NI
Yes
Intel Virtualization Technology (VT-x)
Yes
Intel Virtualization Technology for Directed I/O (VT-d)
