32 GB DDR5-4800 MT/s ECC (1 x 32 GB), 512 GB HP Z Turbo Drive PCIe Gen4 TLC M.2 SSD

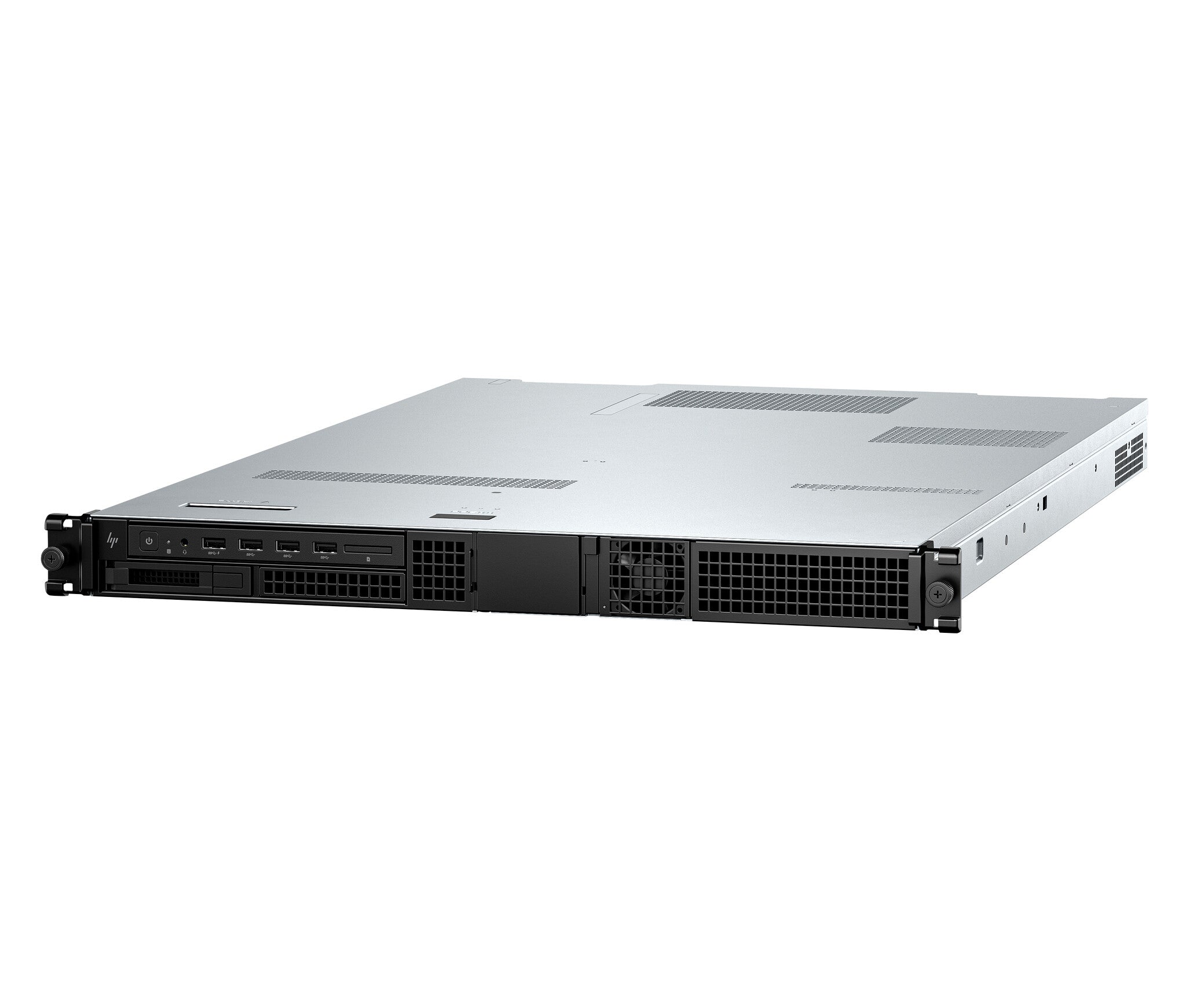

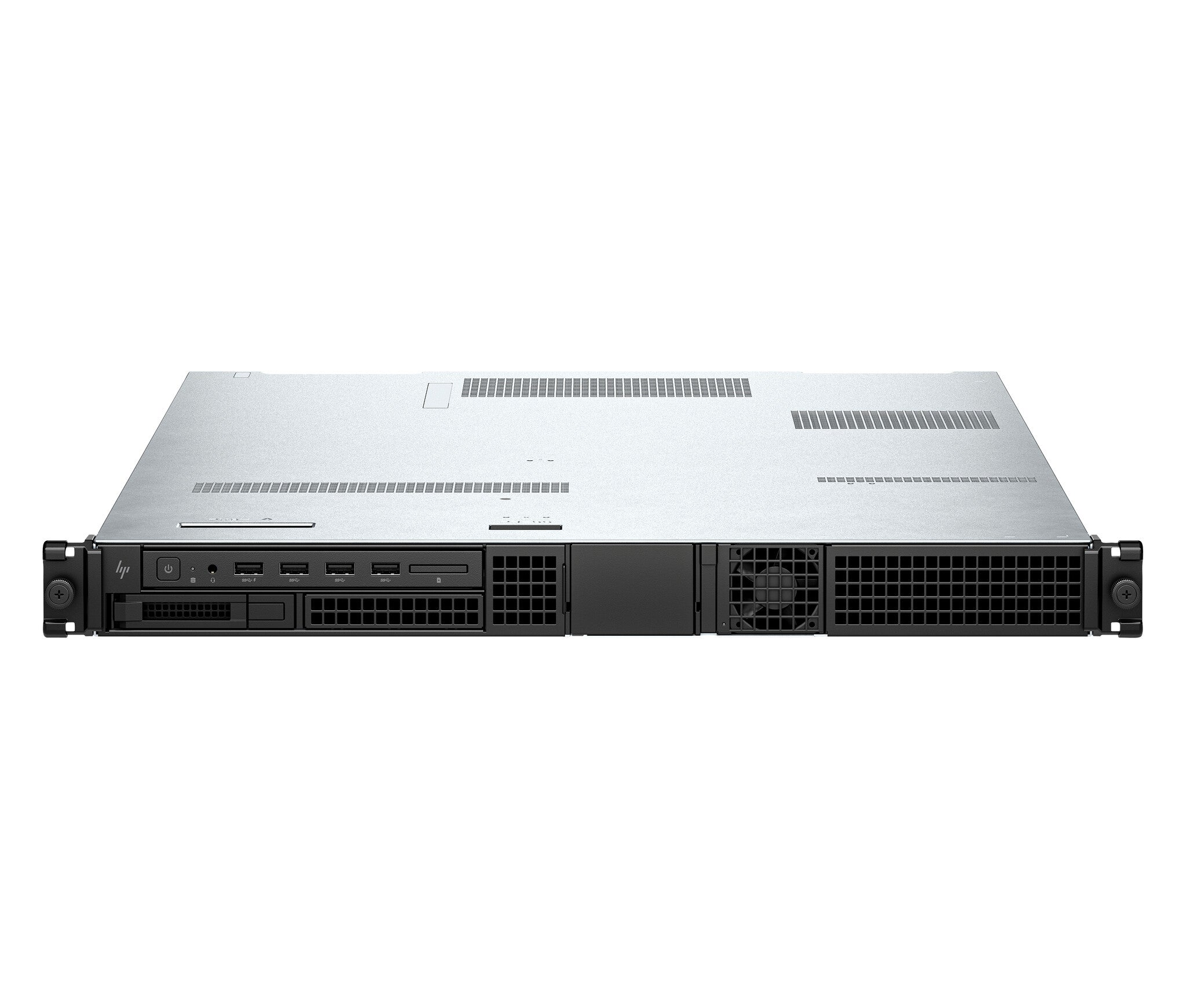

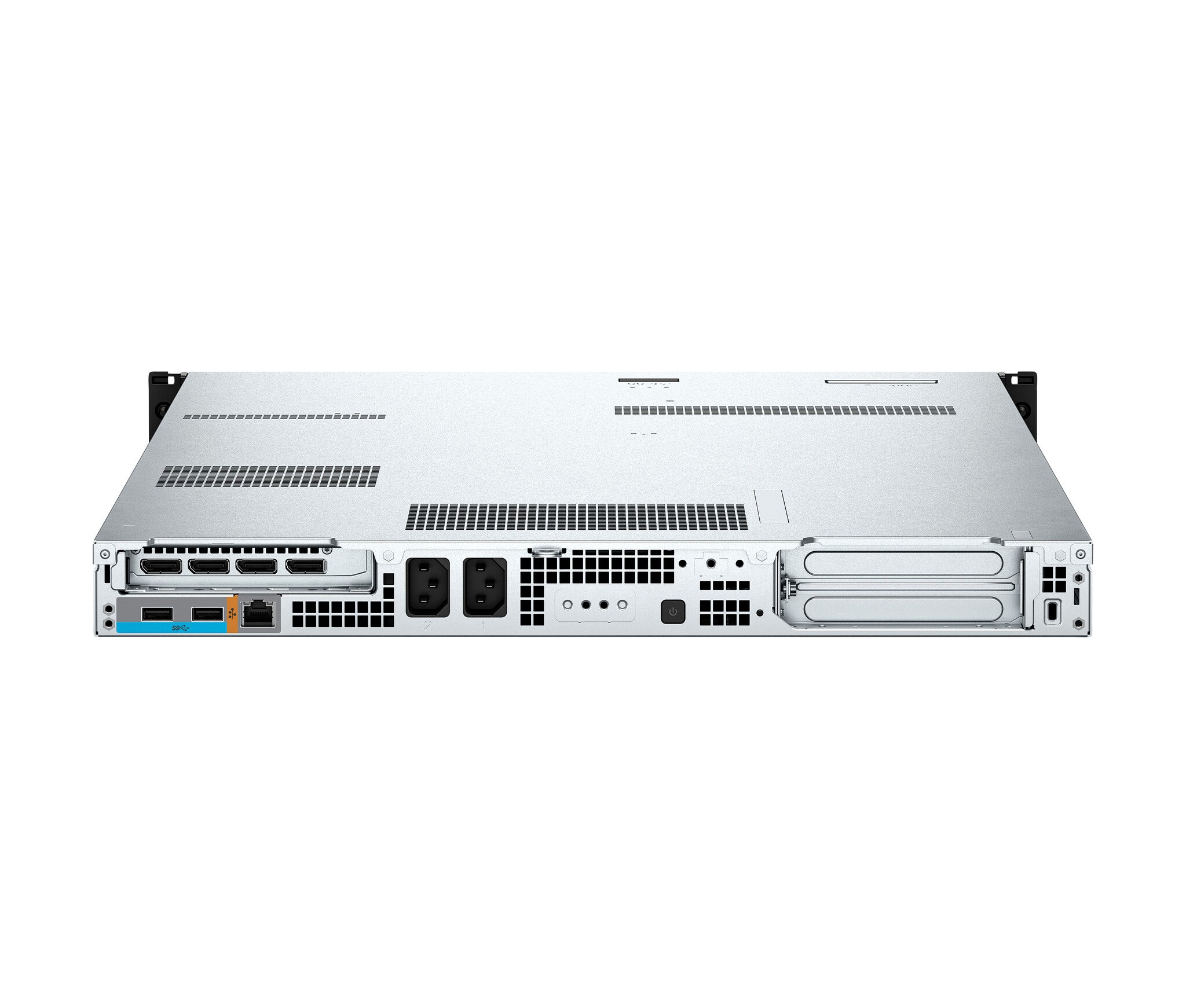

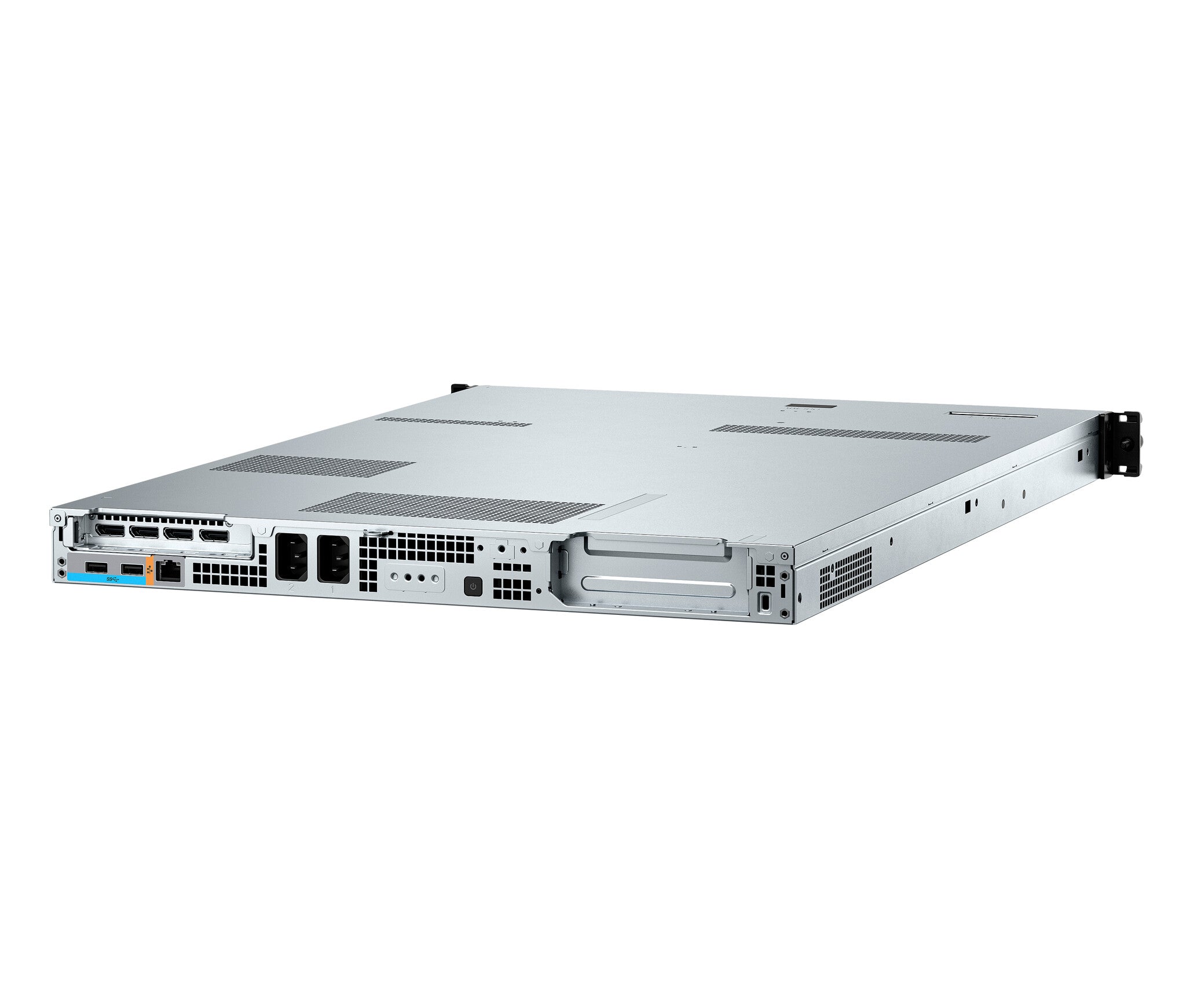

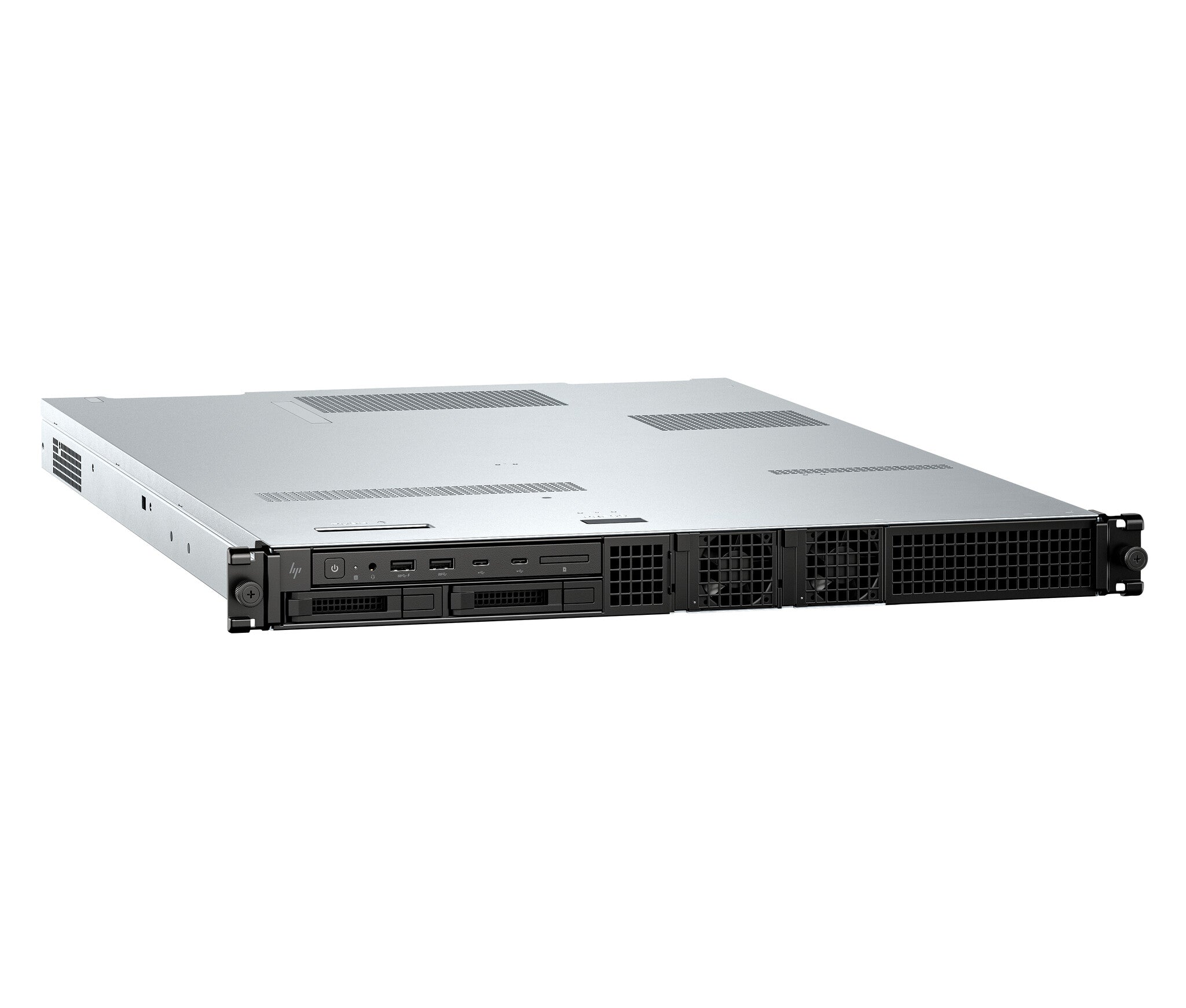

Compactly Rackable. Uniquely Powerful Empower a flexible workforce with Z by HP pro-level performance in a high-density 1U footprint. Specifically designed to pack more units in a single rack, this slim powerhouse delivers the performance your team needs. All with the ability to upgrade and expand as compute demands evolve.
Processor
Processor manufacturer
Intel
Processor family
Intel Xeon w3
Processor model
W3-2525
Processor cores
8
Processor threads
16
Processor boost frequency
4.3 GHz
Processor cache
22.5 MB
Processor cache type
L3
Memory
Internal memory
32 GB
Internal memory type
DDR5-SDRAM
Memory layout (slots x size)
1 x 32 GB
Memory slots
4x DIMM
Memory clock speed
4800 MHz
ECC
Yes
Storage
Total storage capacity
1 TB
Storage media
SSD
Number of storage drives installed
2
Total SSDs capacity
1 TB
Number of SSDs installed
2
SSD memory type
TLC
SSD capacity
512 GB
NVMe
Yes
SSD interface
PCI Express 4.0
SSD form factor
M.2
Graphics
Discrete graphics card
Yes
Discrete GPU manufacturer
NVIDIA
Discrete graphics card model
NVIDIA RTX A1000
Discrete graphics card memory
8 GB
Discrete graphics memory type
GDDR6
Number of discrete graphics cards
1
Network
Ethernet LAN
Yes
Ethernet LAN data rates
10,100,1000 Mbit/s
Cabling technology
10/100/1000Base-T(X)
Ports & interfaces
USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity
6
Expansion slots
PCI Express x16 (Gen 5.x) slots
2
Design
Chassis type
Rack-mounted chassis
Cable lock slot
Yes
Cable lock slot type
Kensington
Performance
Market positioning
Performance
Motherboard chipset
Intel W790
Audio chip
Realtek ALC3205-CG
Password protection
Yes
Password protection type
BIOS, Power on
Trusted Platform Module (TPM) version
2.0
Trusted Platform Module (TPM)
Yes
Software
Operating system installed
Linux
Processor special features
Intel® Turbo Boost Technology
Yes
Brand-specific features
HP Support Assistant
Yes
HP Security tools
Full volume encryption; HP Secure Erase; Kensington lock slot; Secure authentication; TPM 2.0 certified; HP BIOSphere; HP Sure Run; HP Sure Click; HP Sure Sense; HP Sure Admin; HP Platform Certificate; HP Sure Start; HP Sure Recover; Self-Encrypted Drives
HP Management tools
HP Anyware Remote System Controller; HP Client Management Script Library (download); HP Cloud Recovery; HP Driver Packs; HP Image Assistant Gen5 (download)
1 year (1/1/1) limited warranty includes 1 year of parts, labor and on-site repair. Terms and conditions vary by country. Certain restrictions and exclusions apply.
