DrayTek PQ2300XB Managed L2+ 2.5G Ethernet (100/1000/2500) Power over Ethernet (PoE) 1U Black

• 24 x RJ-45 multi-Gigabit Ethernet Ports (2500/1000/100/10) with PoE (8 PoE++ / 16 PoE+)
• 6 x SFP+ 10GbE Ports for Uplink / Fibre
• PoE (Power-over-Ethernet) for IP phones, wireless access points, IP Cameras etc.
• 400-watt Power-over-Ethernet budget
• 802.1q VLANs with Dynamic MAC-based, Voice & Surveillance VLAN
• VLAN Routing & Static Route with DHCP server / relay
• QoS for Application traffic prioritisation
• 802.1x RADIUS / TACACS+ Port Authentication with Accounting
• Voice VLAN for QoS (OUI Mode)
• Access Control List (ACL)
• Port Mirroring & Link Aggregation
• IGMP Snooping & Querying
• IPv4 and IPv6 Support with IP Conflict Prevention
• Centrally managed or standalone operation
• Console Port

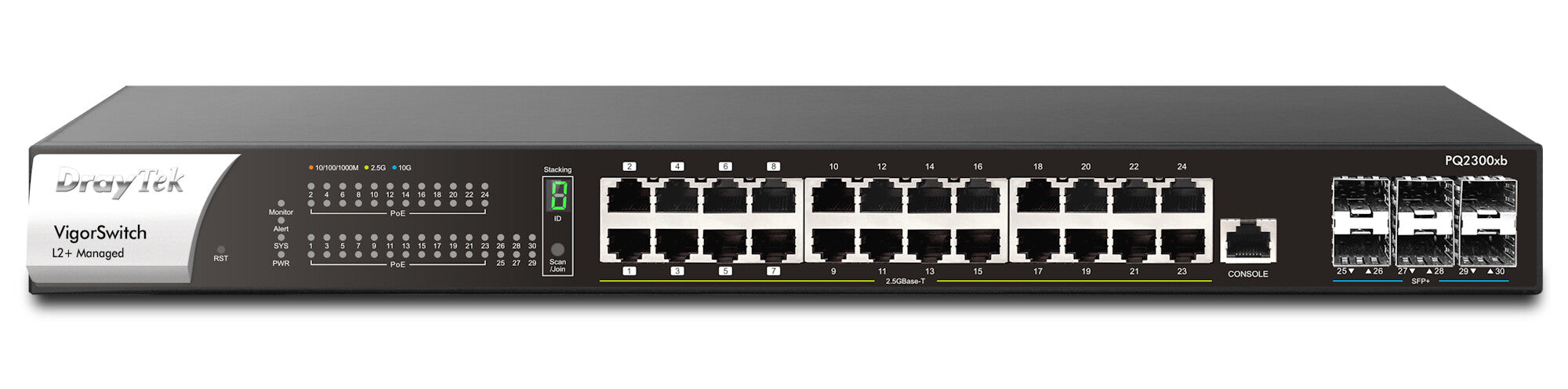

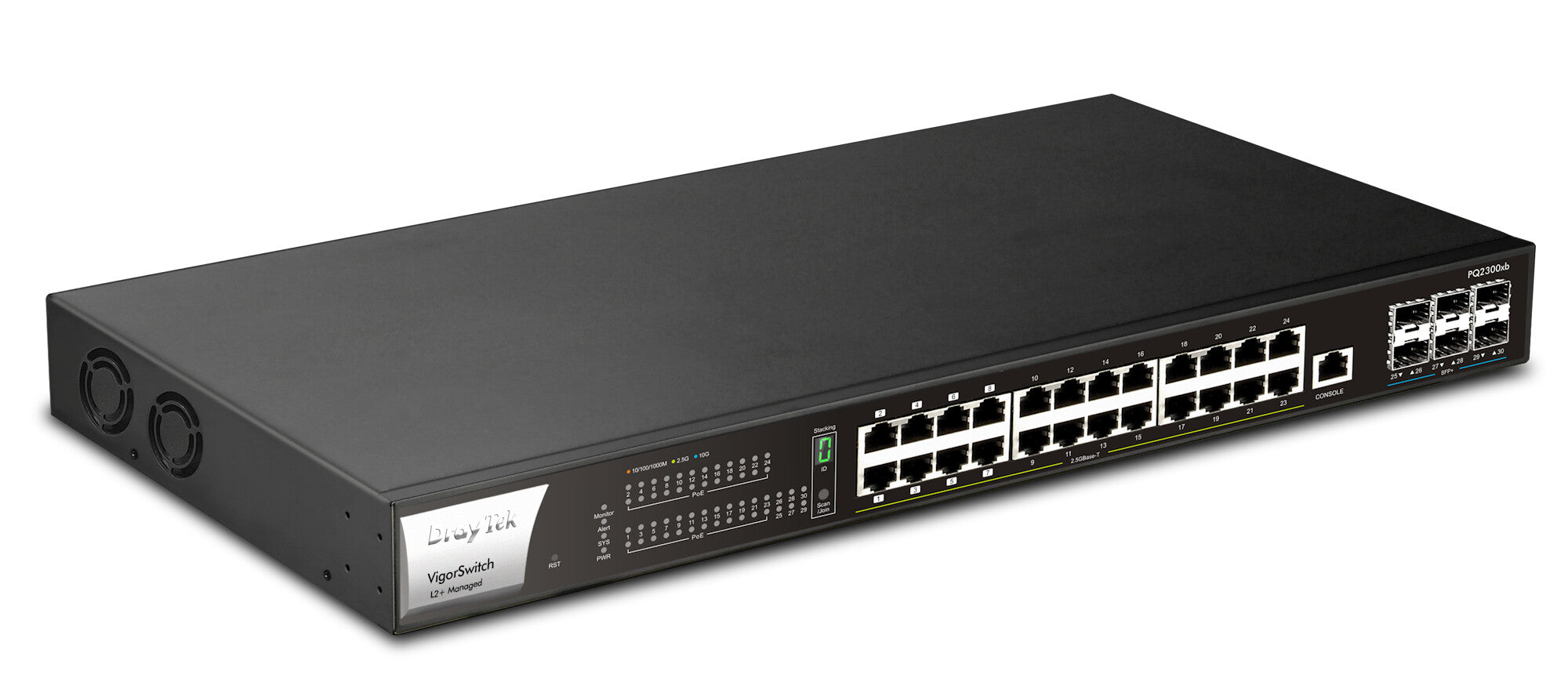

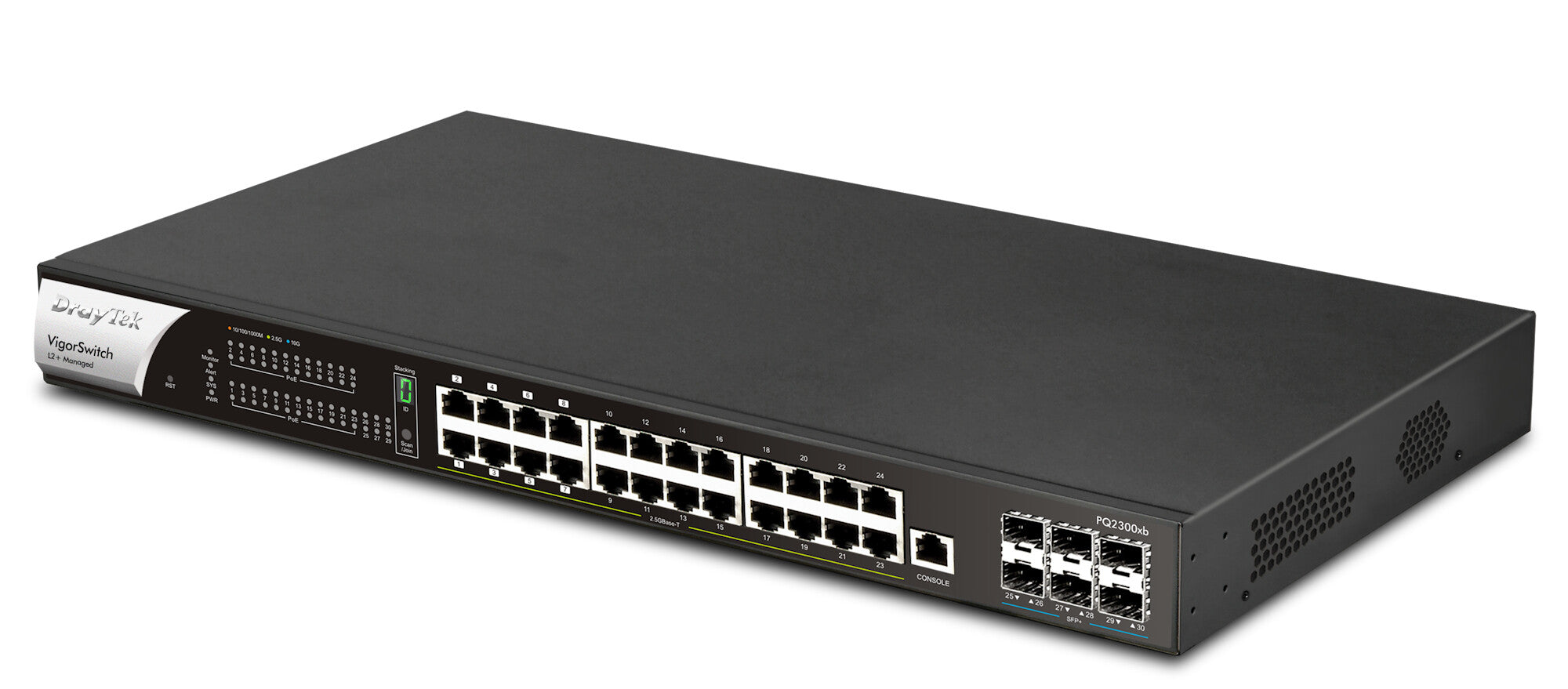

VigorSwitch PQ2300xb is a 2.5 Gigabit L2+ Managed switch with 8 PoE++ 2.5GbE ports, 16 PoE+ 2.5GbE ports (total of 400W output) and 6 additional independent SFP+ 10Gbps interfaces. Ideal for usage with devices where there are throughput demands beyond 1Gbps such as PoE Wi-Fi 6 access points, high bandwidth video or network attached storage.

Supported layer 3 features such as a DHCP Server and VLAN Routing help with network stability and efficiency. The VigorSwitch PQ2300xb can be managed in a standalone mode or provisioned and monitored through the VigorACS management platform or a DrayTek Vigor router’s Central Switch Management. Easily provision the VLAN configuration through the router and clone switch configurations. Drastically reduce the setup time required for a complex network, with VLANs spanning multiple switches.
