Application areas: 483 mm (19") distribution cabinet
Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C.2
General properties:
Suitable for 483 mm (19") rack mounting
Suitable for shielded Digitus® Keystone modules and connectors
Central earthing connection
Technical features:
Housing material: 1.5 mm SPCC cold-rolled sheet steel, powder-coated
Material standard: EN 10 130(1991), BS 1449, NFA 36/401, DIN 1623, UNI 5866, UNE 36-086, SIS, JIS G 3141, ASTM, SAE, NFA 36/401
Material earthing bar: galvanized steel
Physical properties:
Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
Color: Black RAL9005

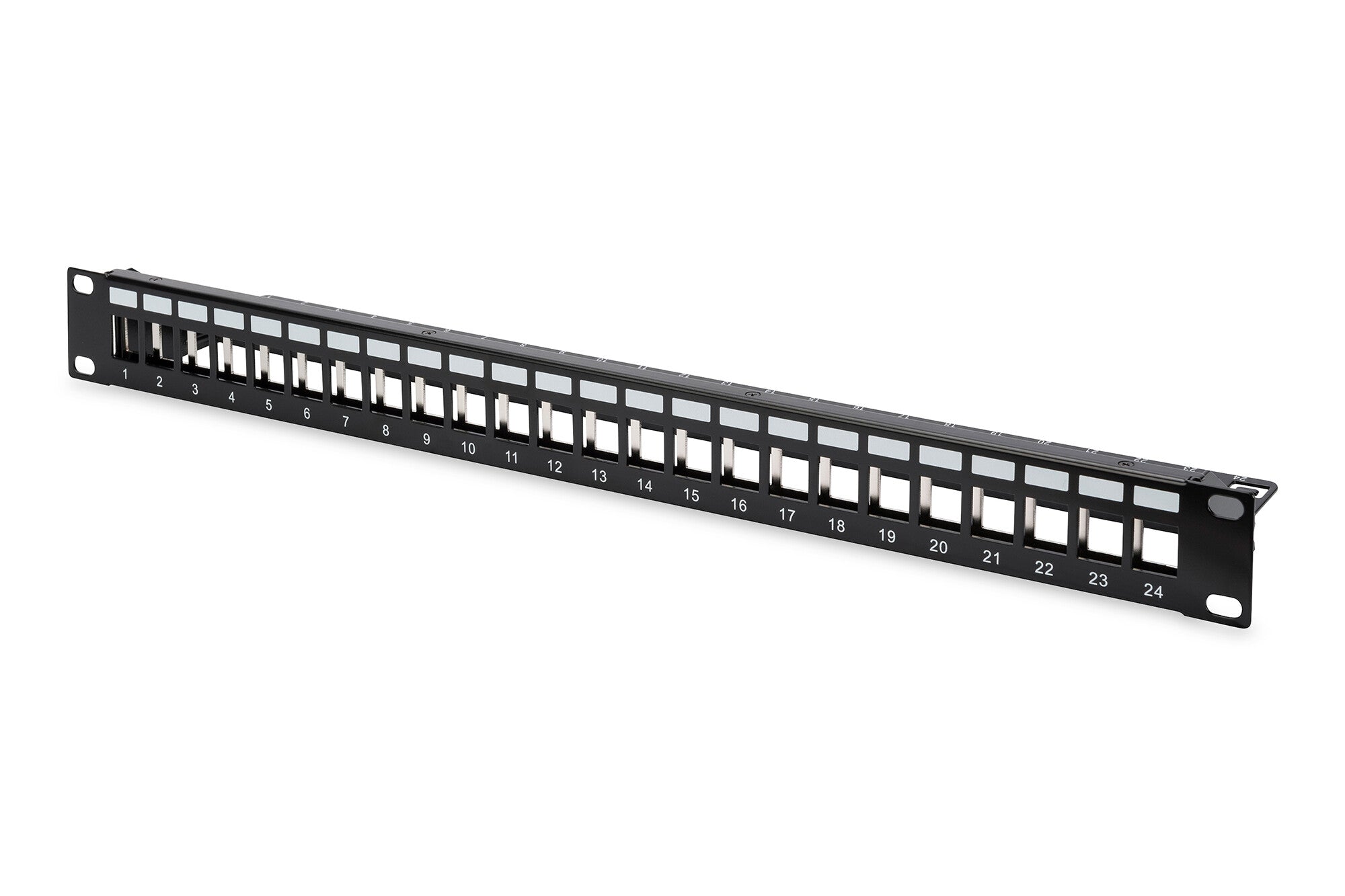

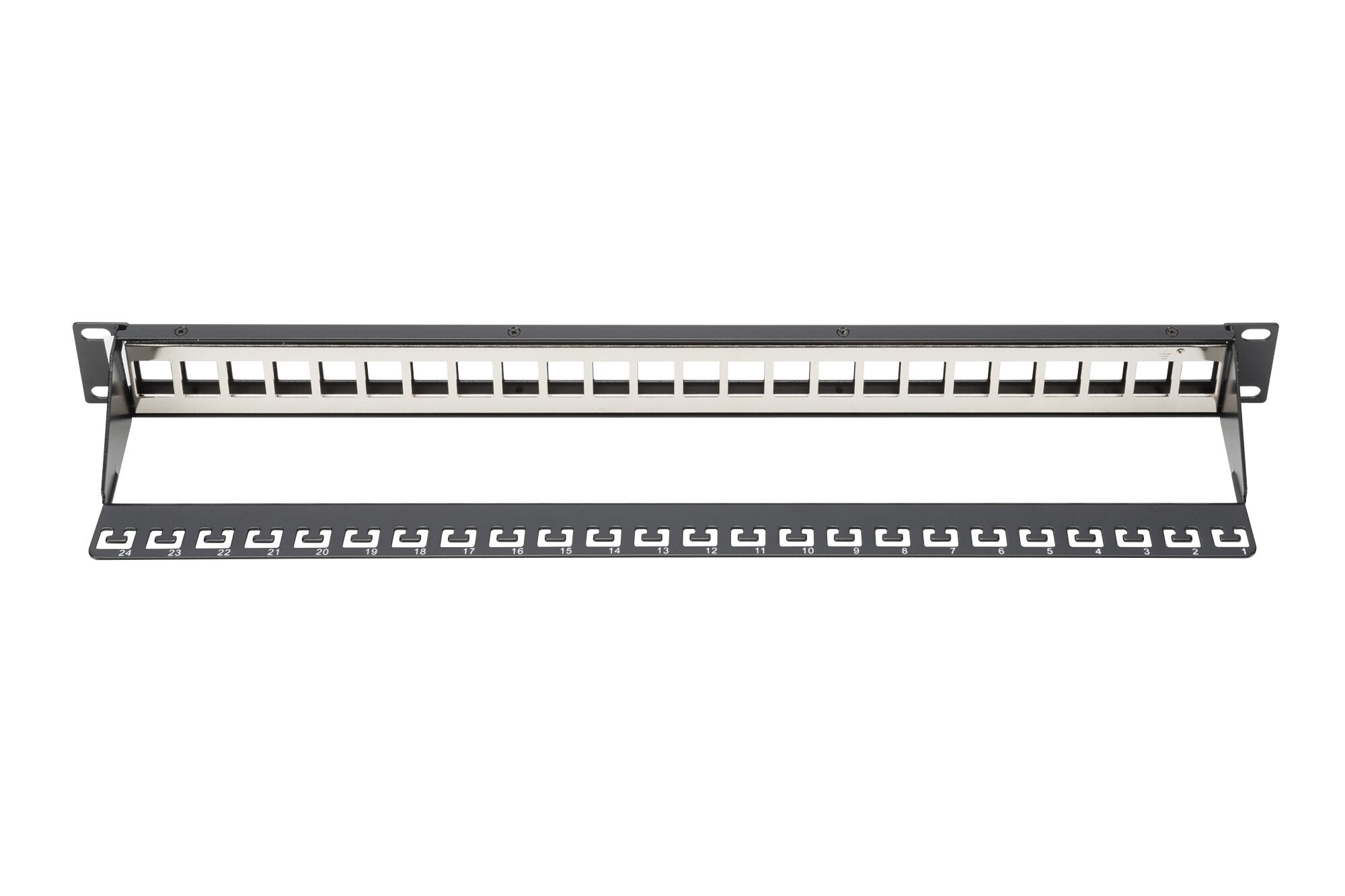

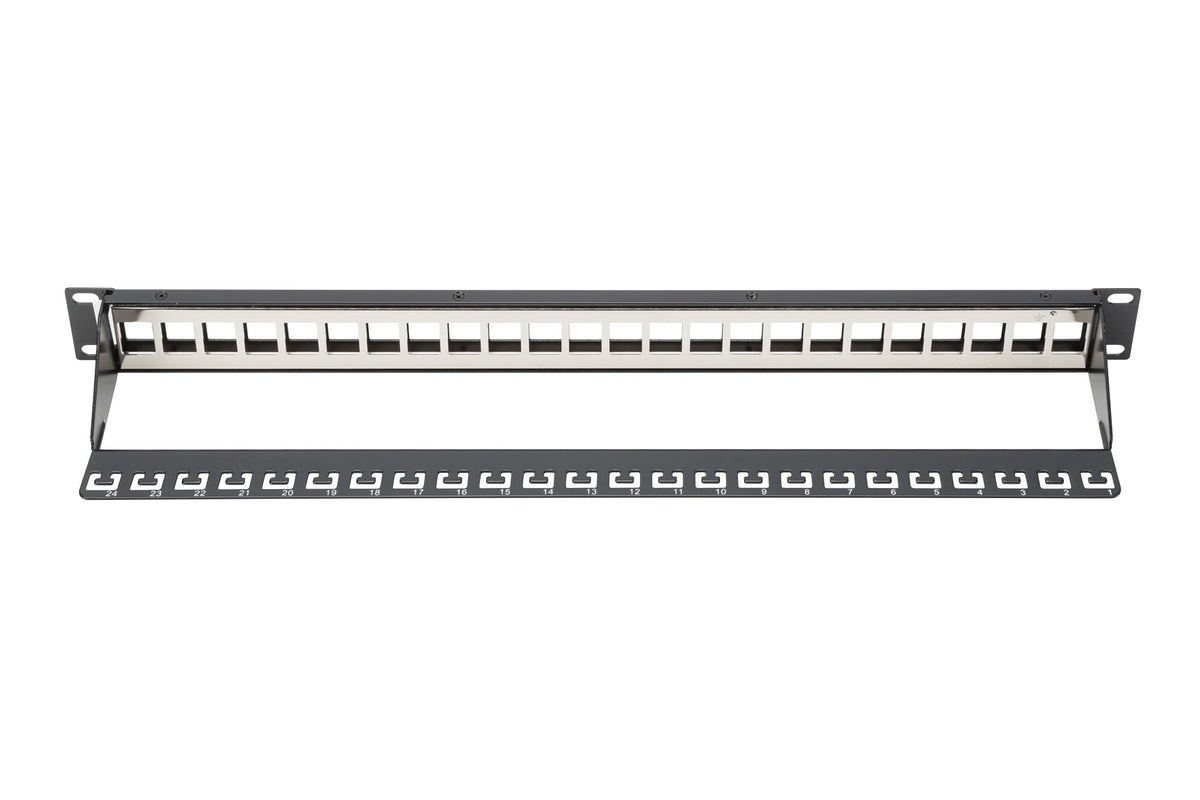

The modular patch panel from DIGITUS® is available as a 16- or 24-port version. The 1.5 mm cold-rolled carbon steel provides optimum support for your Keystone modules.
