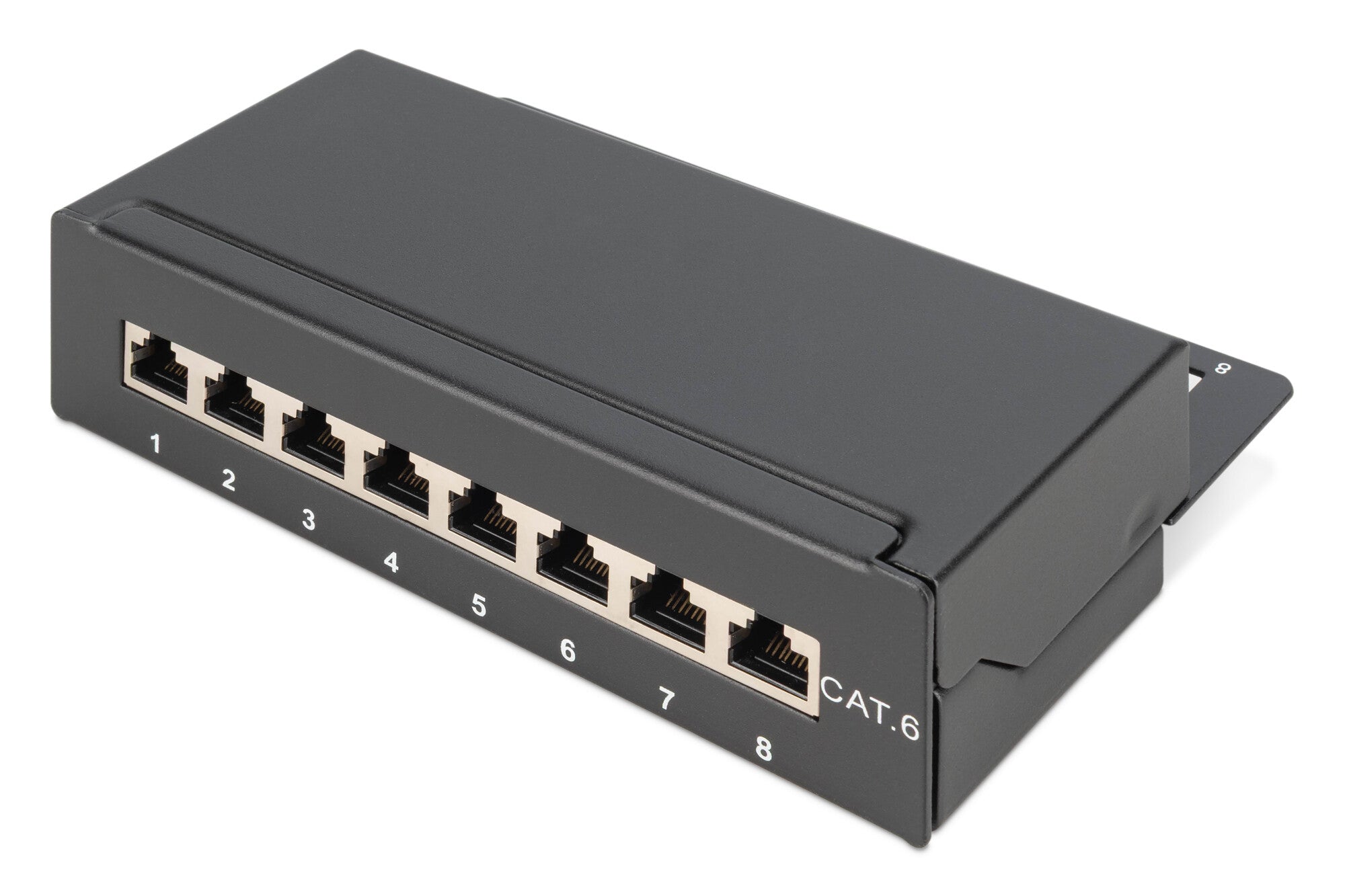

Digitus Desktop CAT 6, class E patch panel, shielded

• Application areas: Up to 250 MHz, 1GBase-T
• Standards: ISO/IEC 11801 3rd Ed., EN 50173-1, EIA/TIA 568-C
• General properties:
• Suitable for surface-mounted installations

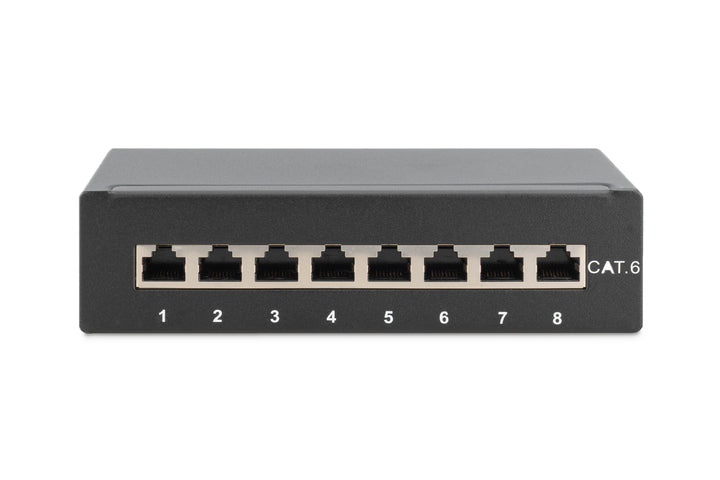

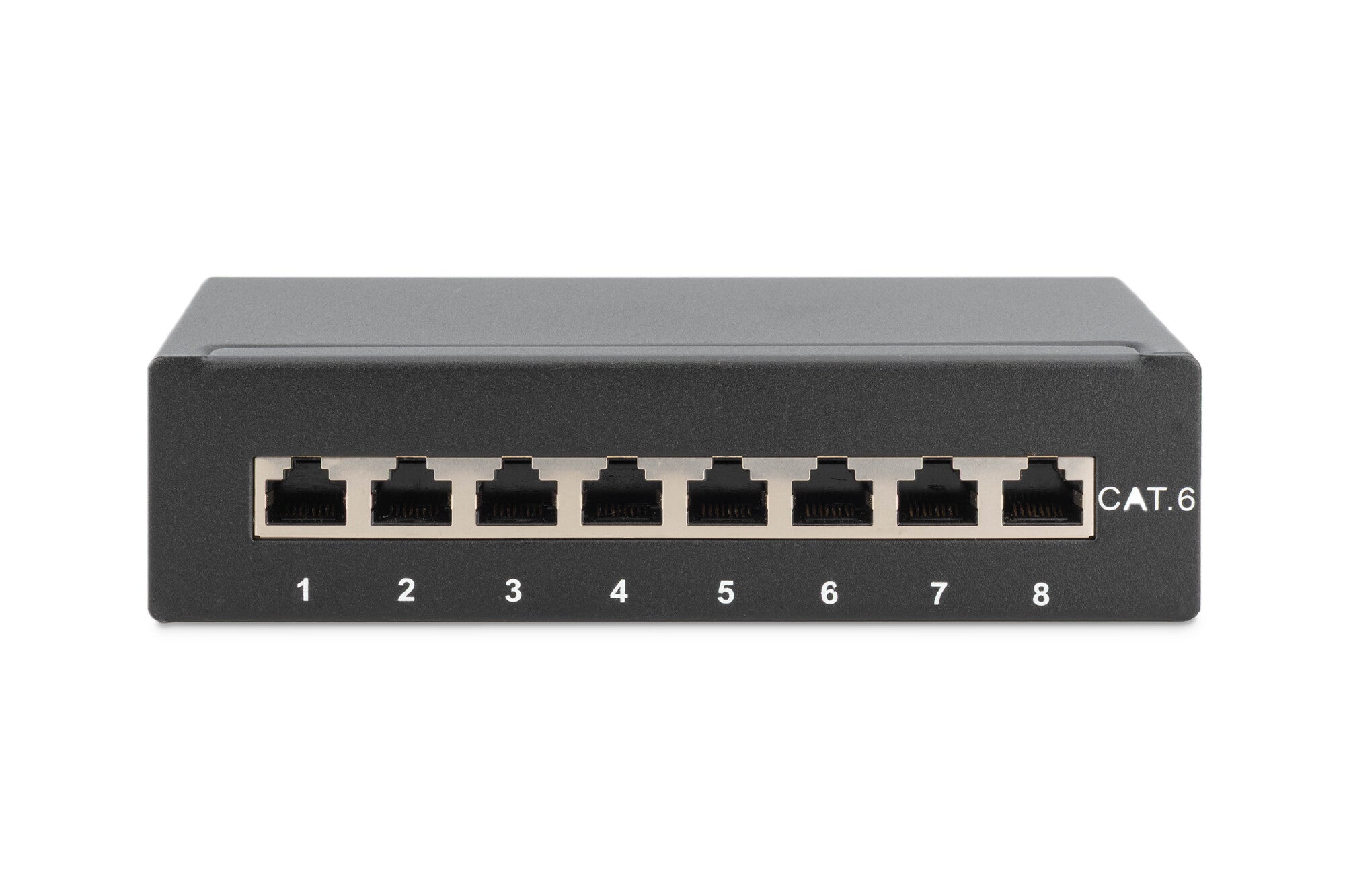

• RJ45 sockets, 8P8C

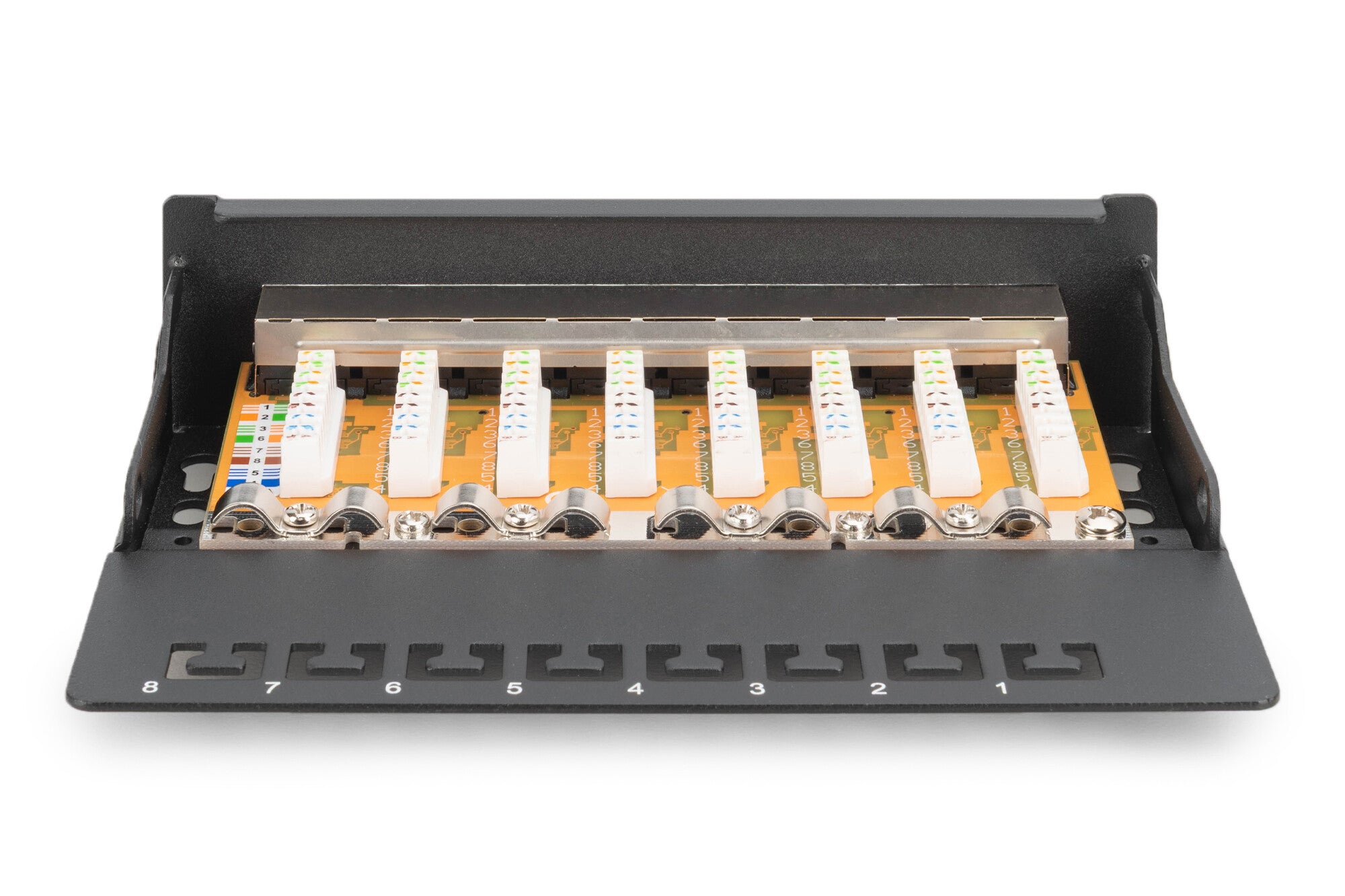

• Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B

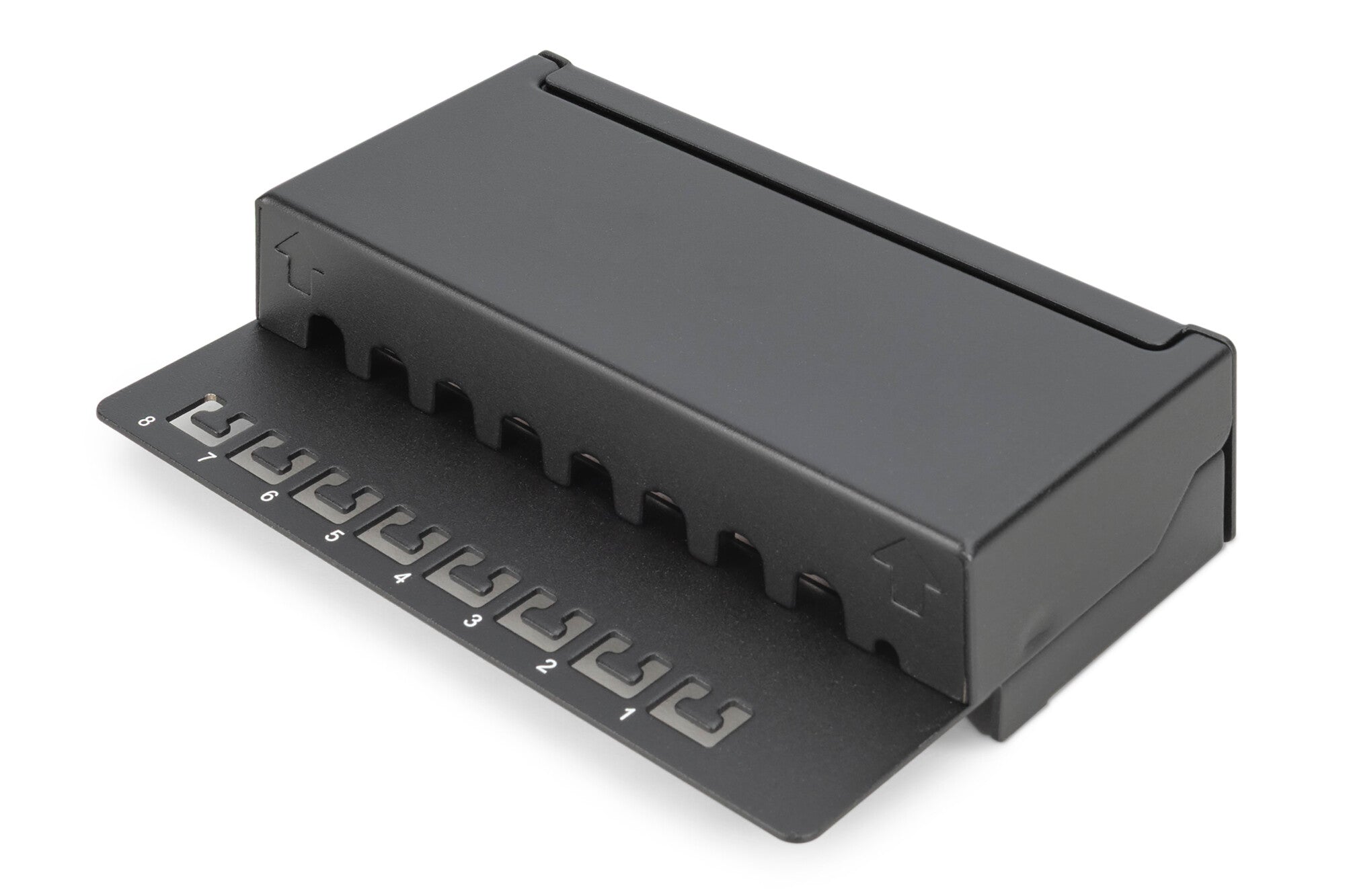

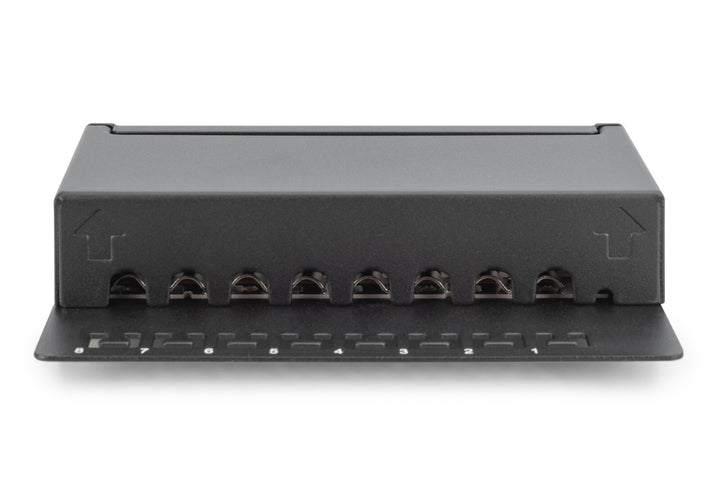

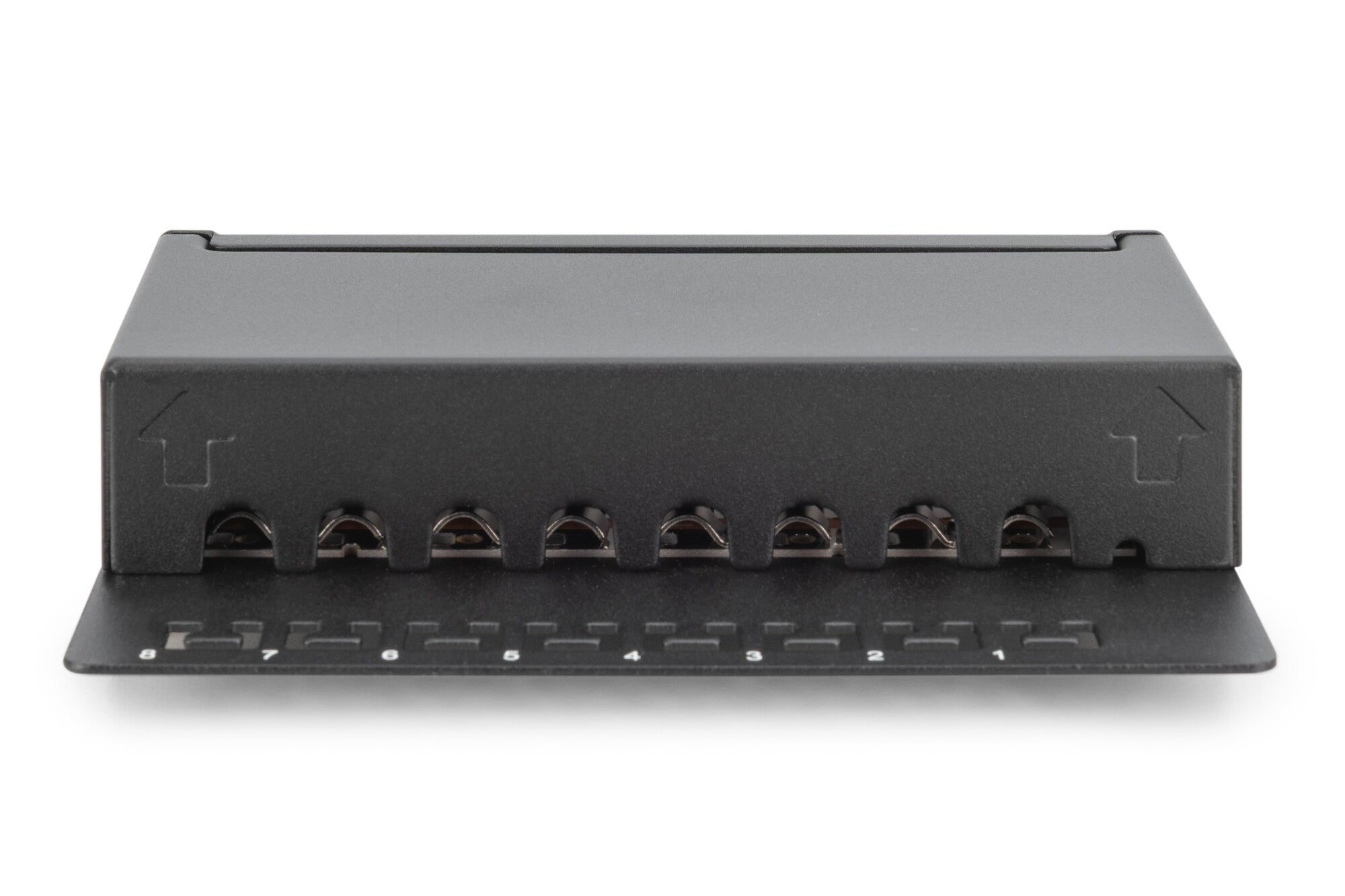

• Cable fixing by means of quick latches
• Central earthing connection
• 360° shield contacting
• Mechanical properties:
• Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 socket material: ABS UL 94V-0
• Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
• RJ-45 shielding: Nickel-plated bronze
• LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
• Earthing wire: Not included in the scope of delivery
• Printed circuit board: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Tensile load: 7.7 kg between socket and plug
• Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• Core receptacle: 22-26 AWG solid and stranded conductors
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 milliOhms
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Use in SOHO applications

- Simple cable installation possible thanks to color-coded LSA strips
- Shielding ensures optimized performance
- Robust patch panel with metal housing
- Desktop patch panel for the smart home office

The Desktop Patch Panels from DIGITUS® are the ideal solution for SoHo applications (Smart Office Home Office) The fully shielded RJ45 sockets offer optimum support for your cables with the best performance.
