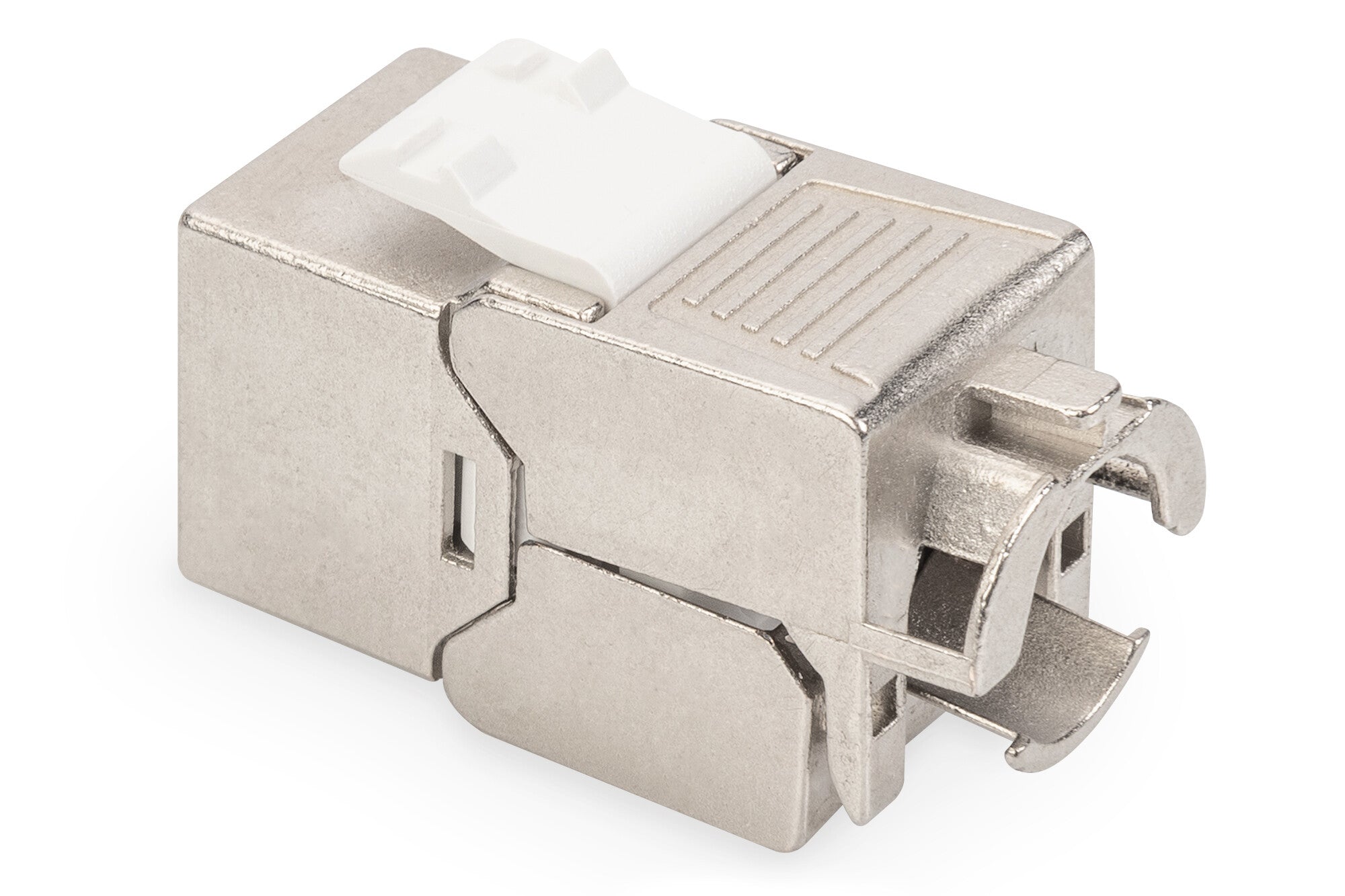

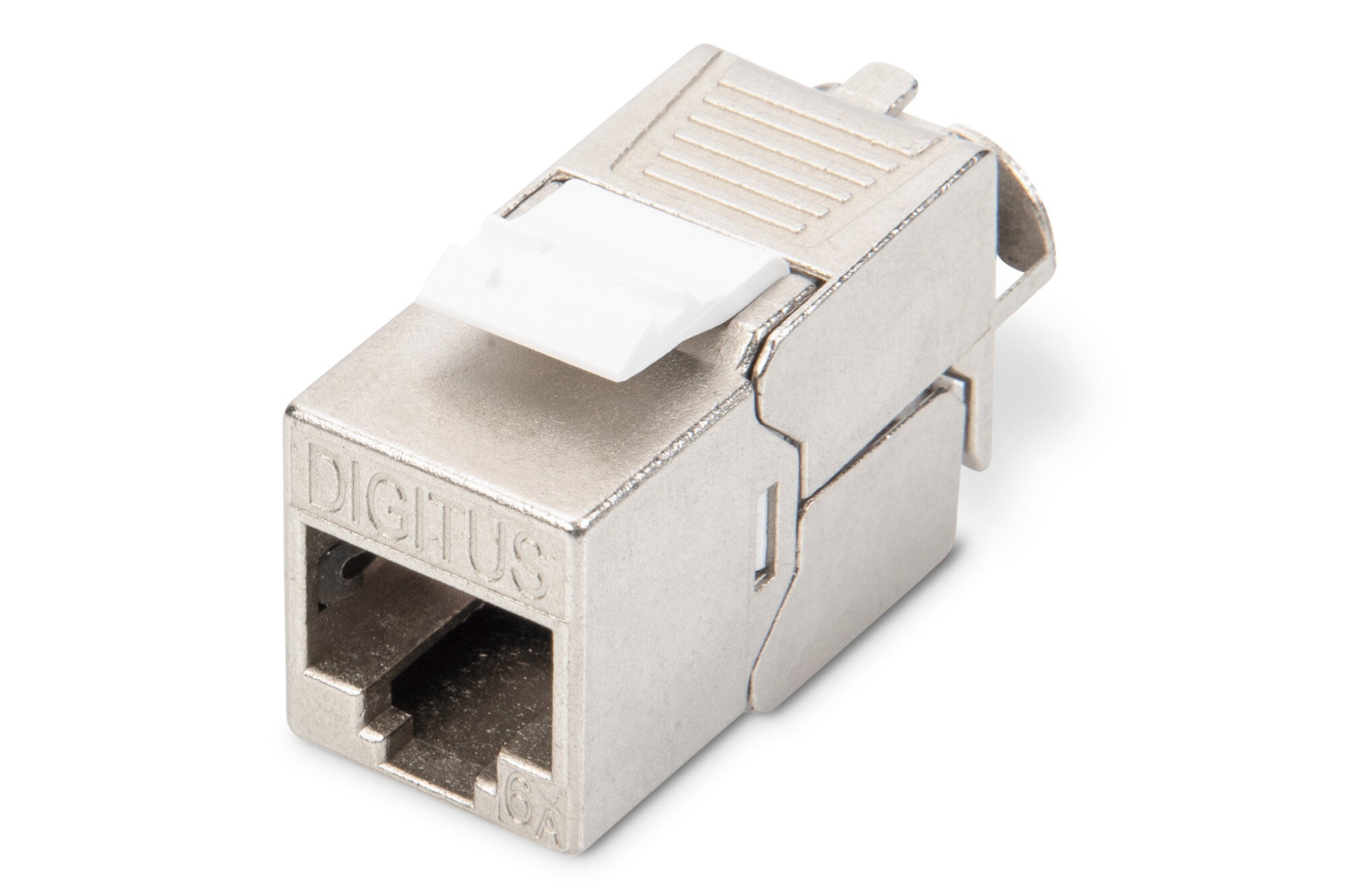

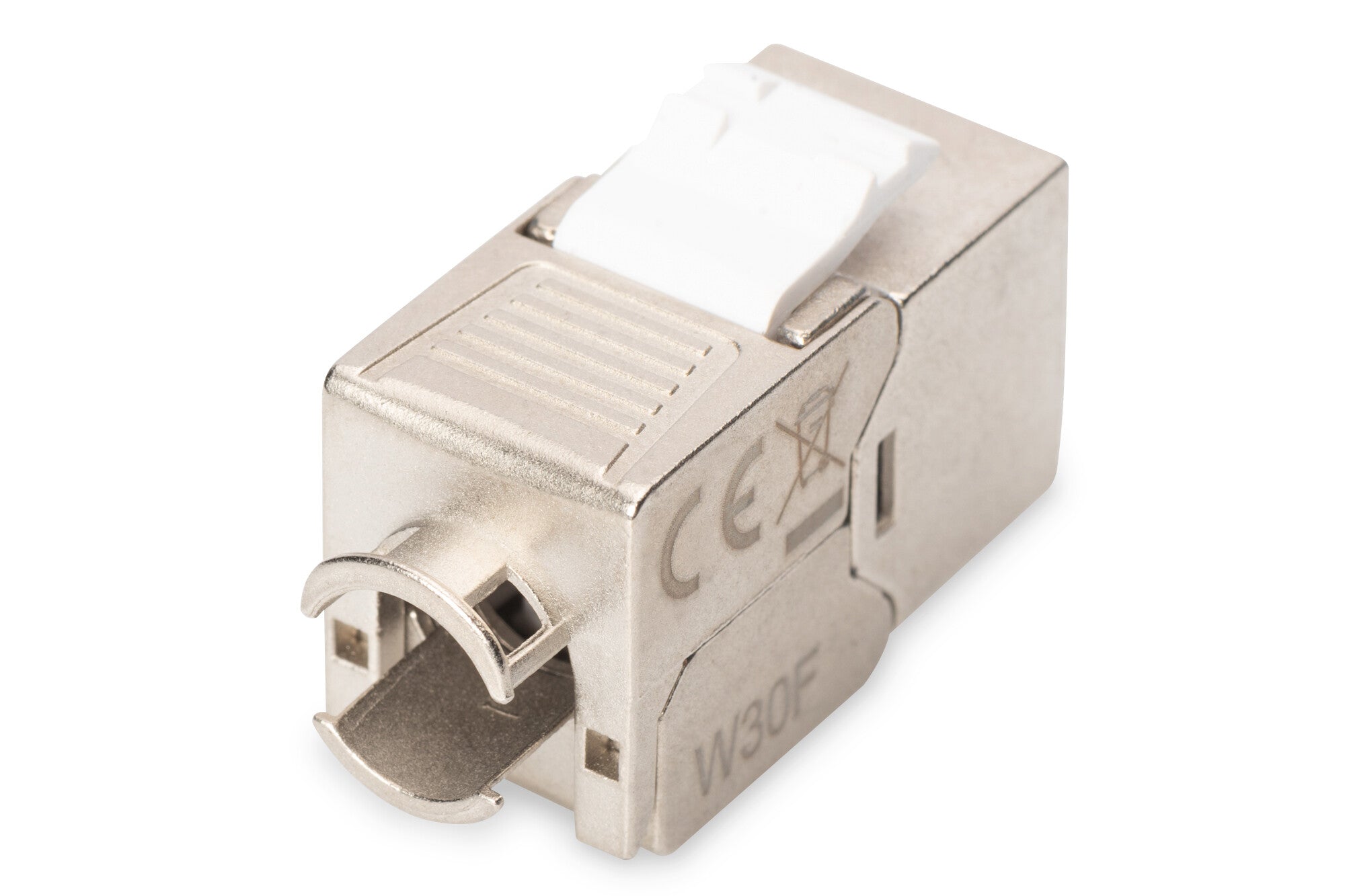

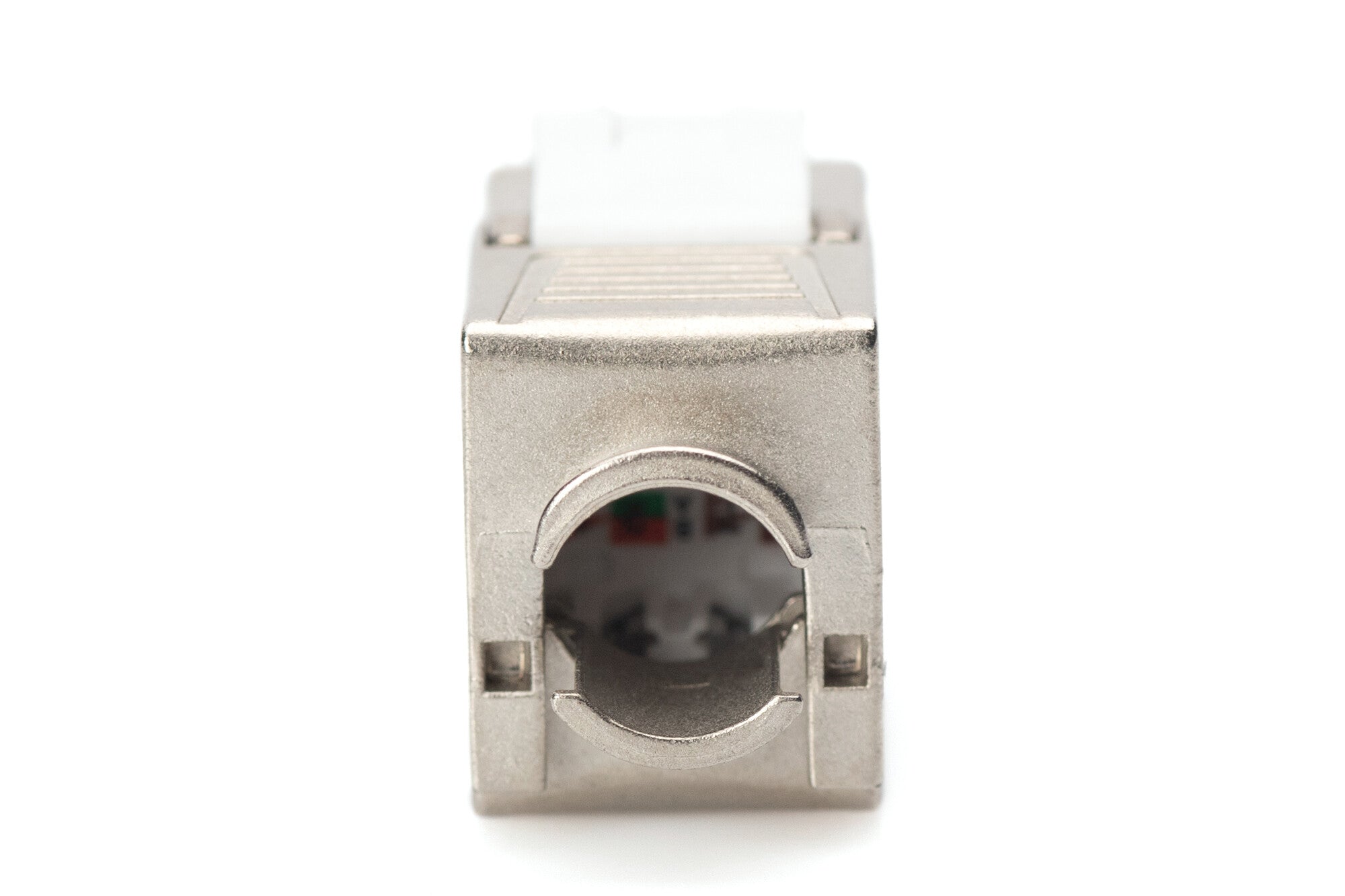

Digitus CAT 6A Keystone module, shielded, tool-free mounting connection

• Category 6A 10GBase-T, 500 MHz
• ISO/IEC 11801 3rd Edition, EN 50173-1
• Suitable for IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)
• Suitable for distribution panel and junction box installation
• RJ45 socket, 8P8C

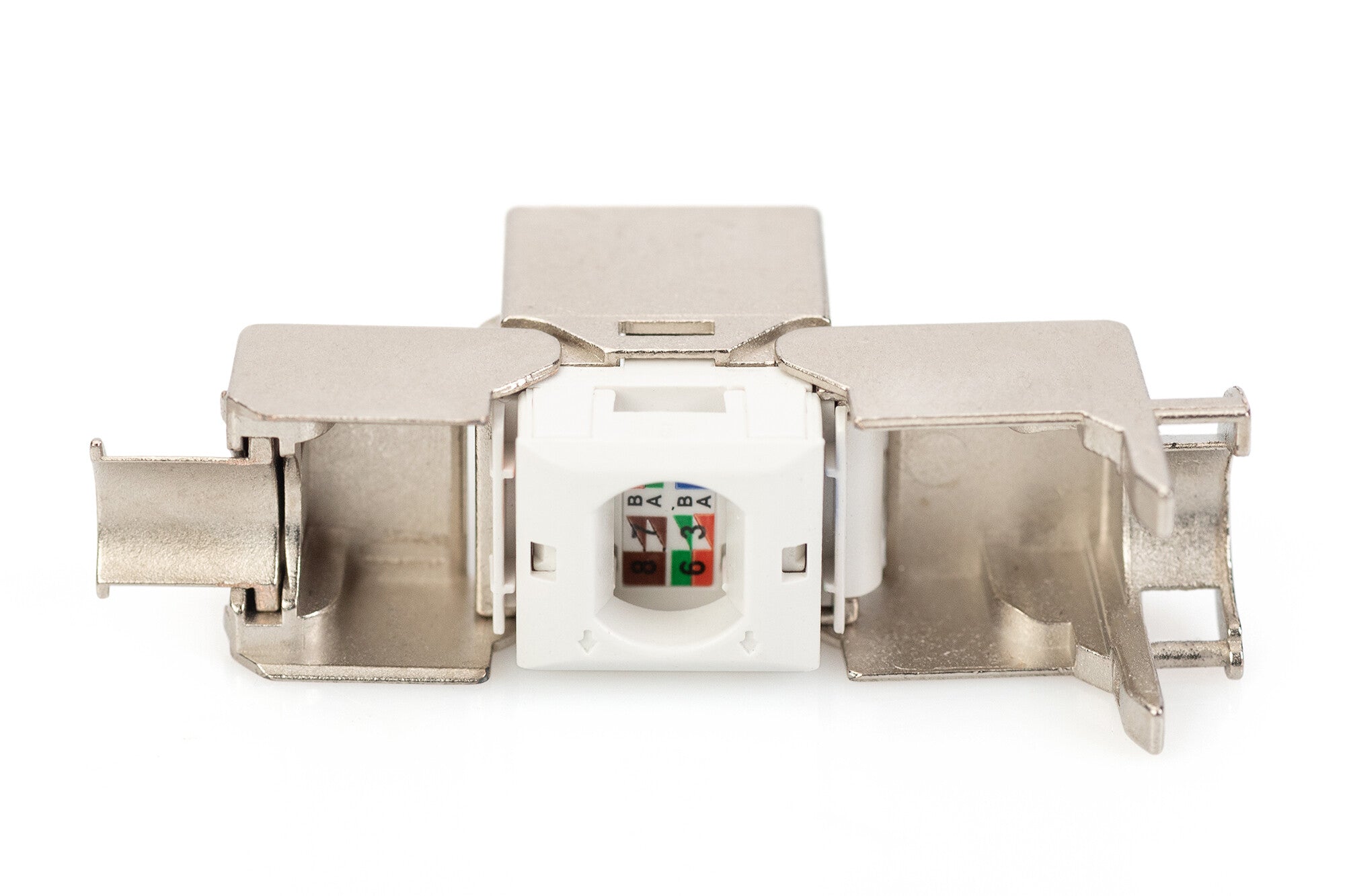

• Cable installation via insulation displacement connectors, color-coded according to EIA/TIA 568 A & B
• Strain relief and cable fixing using cable ties
• Tool-free mounting connection
• 360° shield contacting
• Housing material: Zinc die-cast - nickel-plated
• Contact material: Phosphor bronze
• Coating Contacts: Nickel, gold-plated
• Insertion force: Max. 30N (according to IEC 60603-7-51)
• Holding force: 7.7 kg between socket and plug
• Operating temperature: -20 °C up to +70 °C (ISO/IEC 11801, ANSI/TIA 568 C.2)
• Mating cycles: ≥ 750 (ISO/IEC 11801, IEC 60603-7-51)
• In accordance with IEC 60512-5, IEC 60512-6-5
• Copper conductor diameter: AWG (26/7 - 22/1), stranded and solid wire

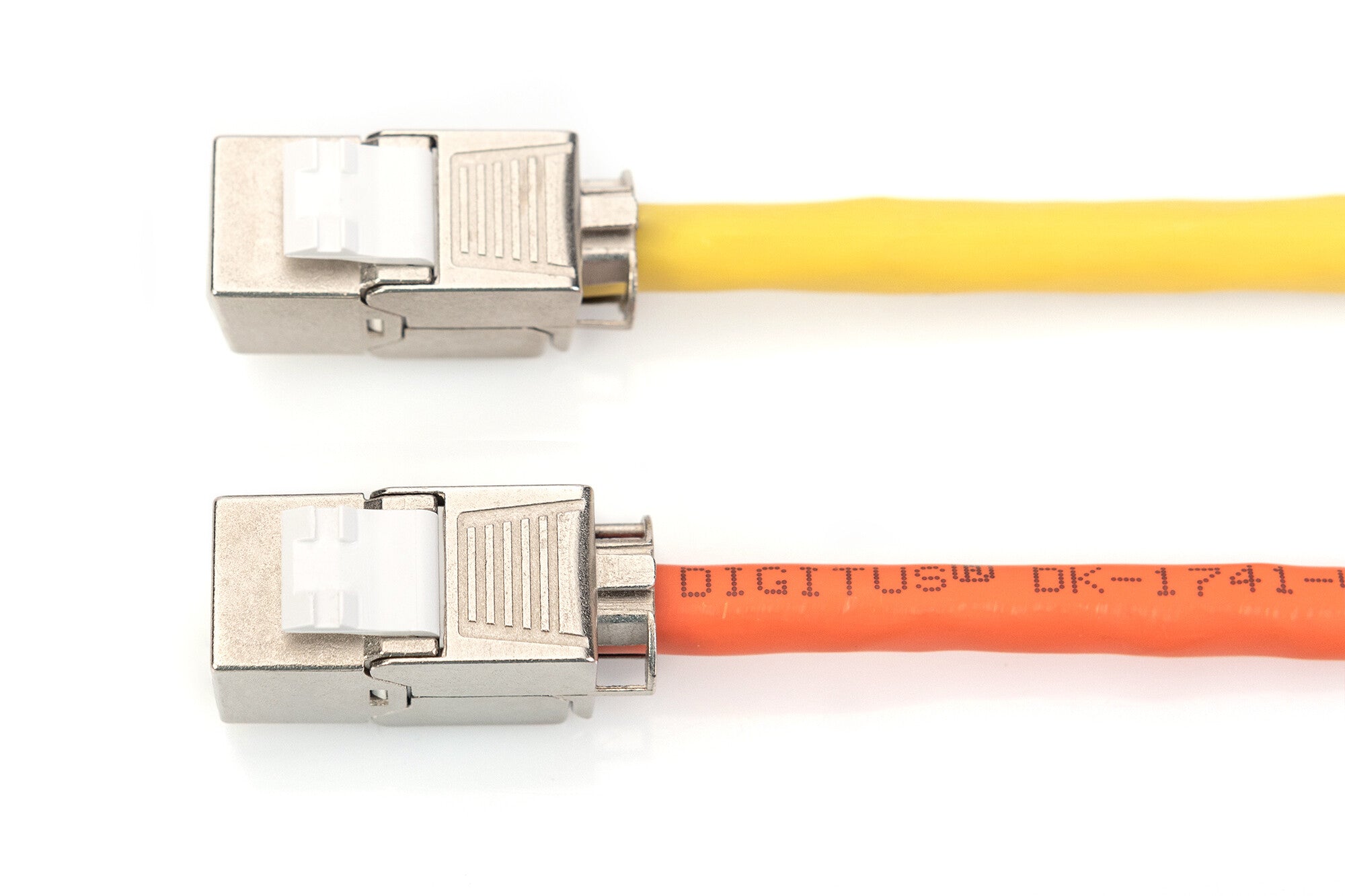

• Tested with AWG 22/1 solid installation cable
• (DIGITUS® DK-174X-A-VH-X; AWG 22/1 Cat.7A installation cable)
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)
• Tool-free installation using LSA insulation displacement connectors, color-coded in accordance with EIA/TIA 568 A & B
• Intelligent cable manager (reclosable)
• Dimensions (HxWxD): 21.0 x 14.5 x 34.5 mm
• Weight: 22 g

Quick and easy installation without special tools

- 360° shield contacting

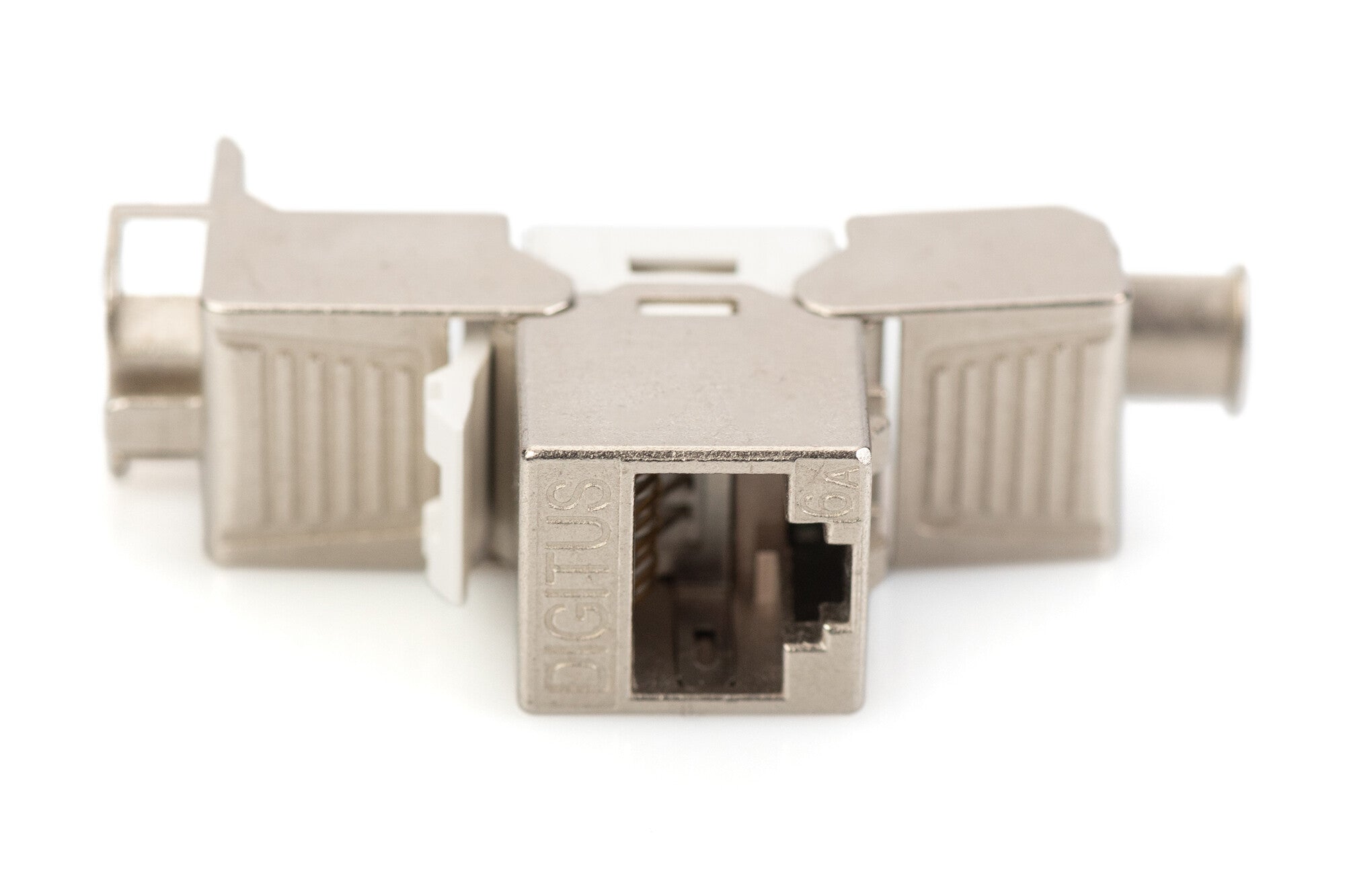

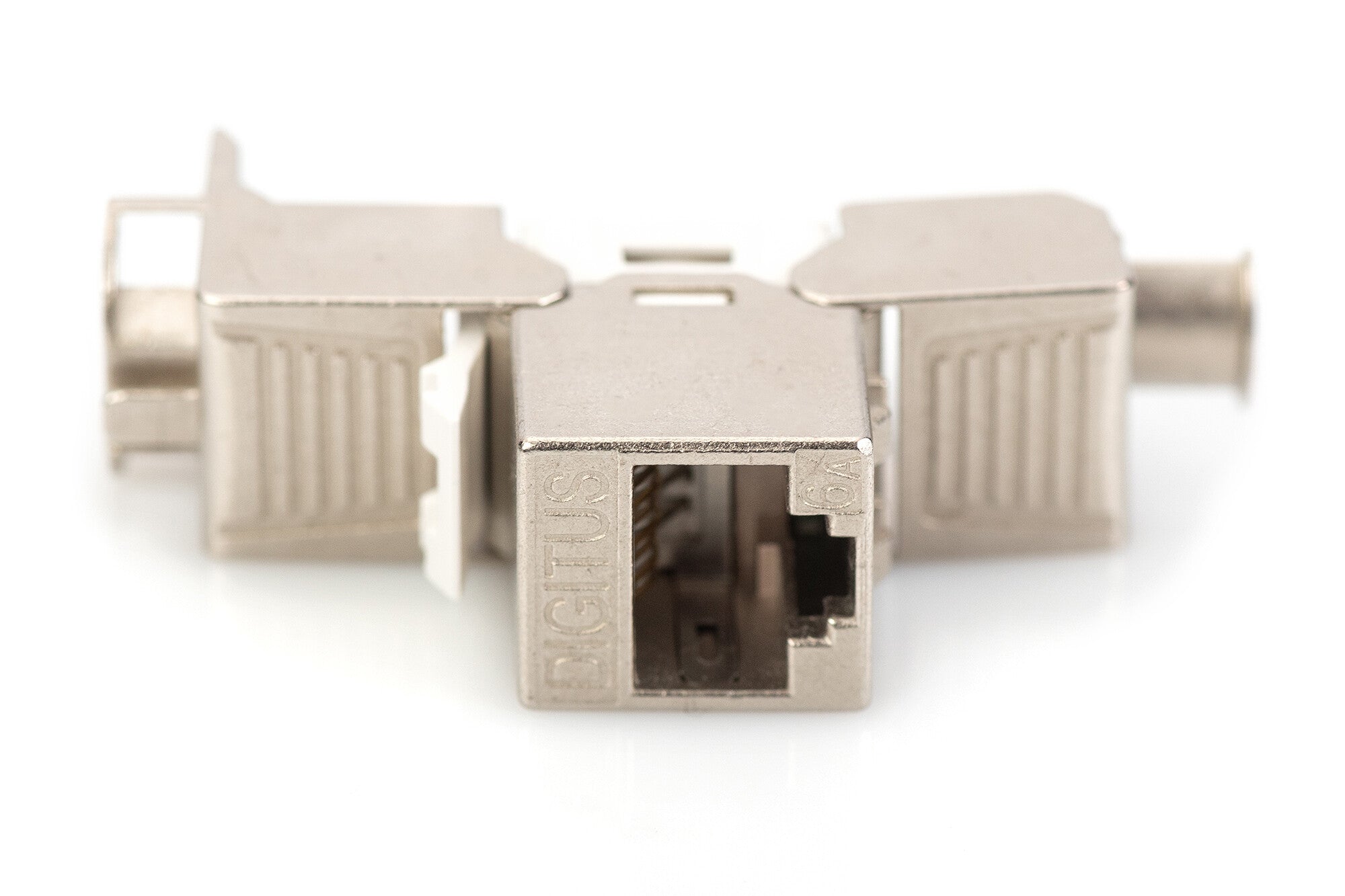

- Suitable for field assembly (tool-free installation)
- Design-compatible - suitable for mounting in distribution panels and junction boxes
- CAT 6A with LSA insulation displacement connectors

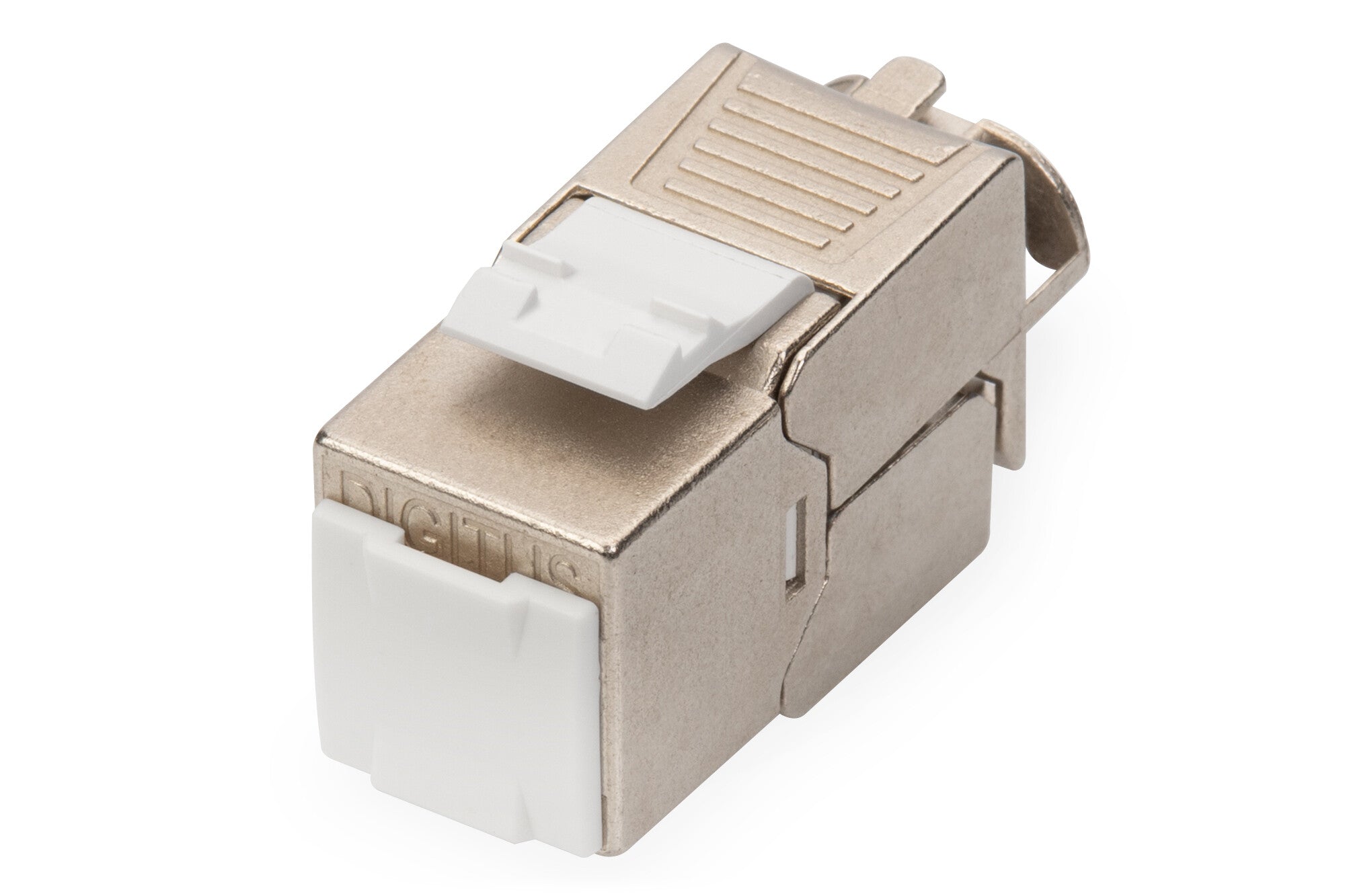

- Dust protection cap for RJ45 socket
- GHMT certified
- Supported PoE standards: IEEE 802.3 af/at/bt - PoE, PoE+ (4PPoE in permanent link)

The shielded CAT 6A Keystone module set DN-93615 from DIGITUS® impresses with future-oriented standards and high-end quality for your network. The compact design allows a series installation in 483 mm (19") 1U panels. The tool-free installation is carried out via LSA strips, color-coded according to EIA/TIA 568 A&B. Thanks to its compact design, the module also fits into design-compatible modular junction boxes.
