Digitus CAT 6A, class EA patch panel, shielded

Digitus
€77.99
€77.99
Tax included.
27 in Stock
  • Transmission characteristics: Category 6A, class EA
  • Application areas: Up to 500 MHz, 10GBase-T
  • Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
  • General properties:
  • Suitable for 483 mm (19") rack mounting

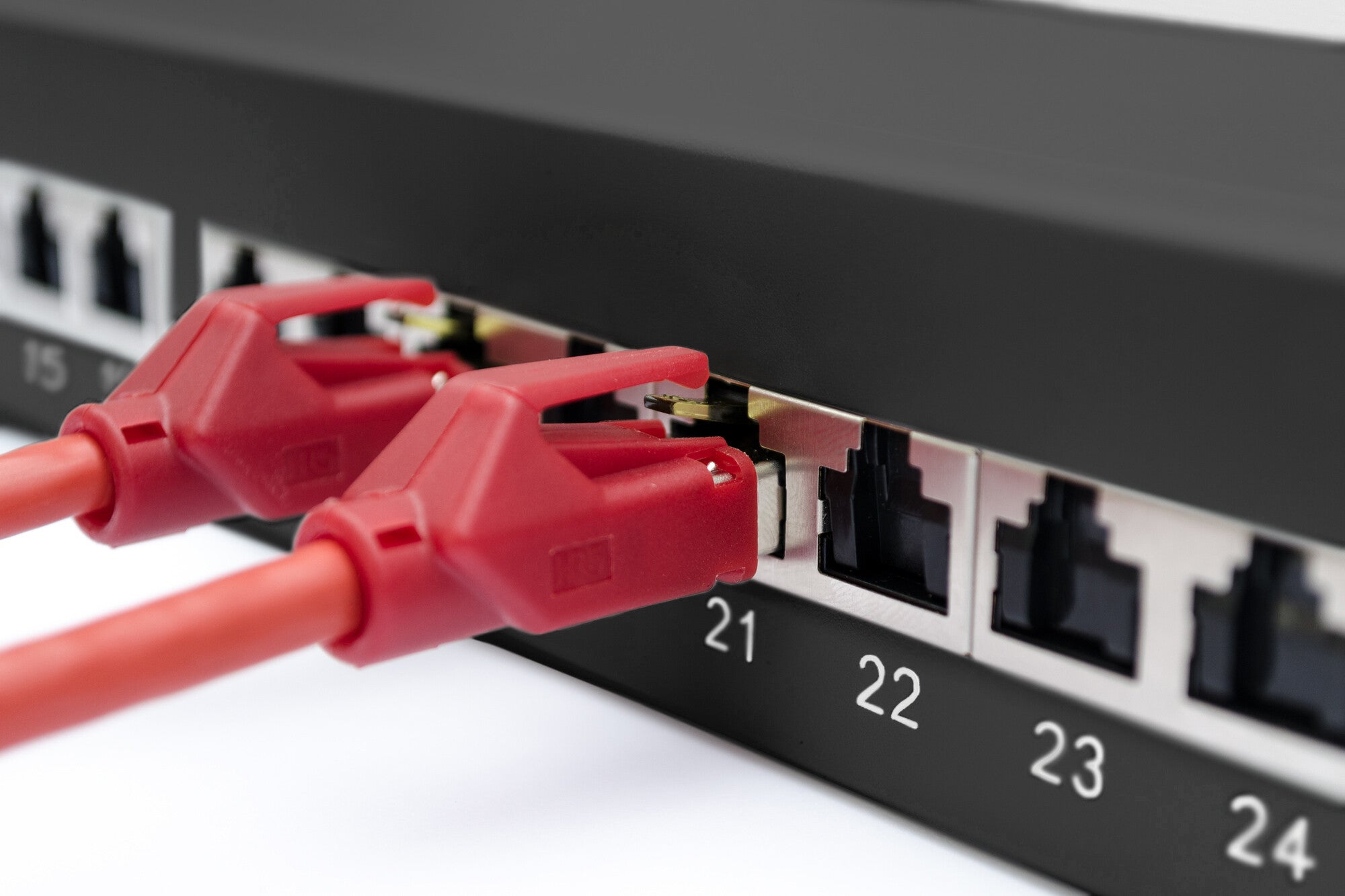

  • RJ45 sockets, 8P8C

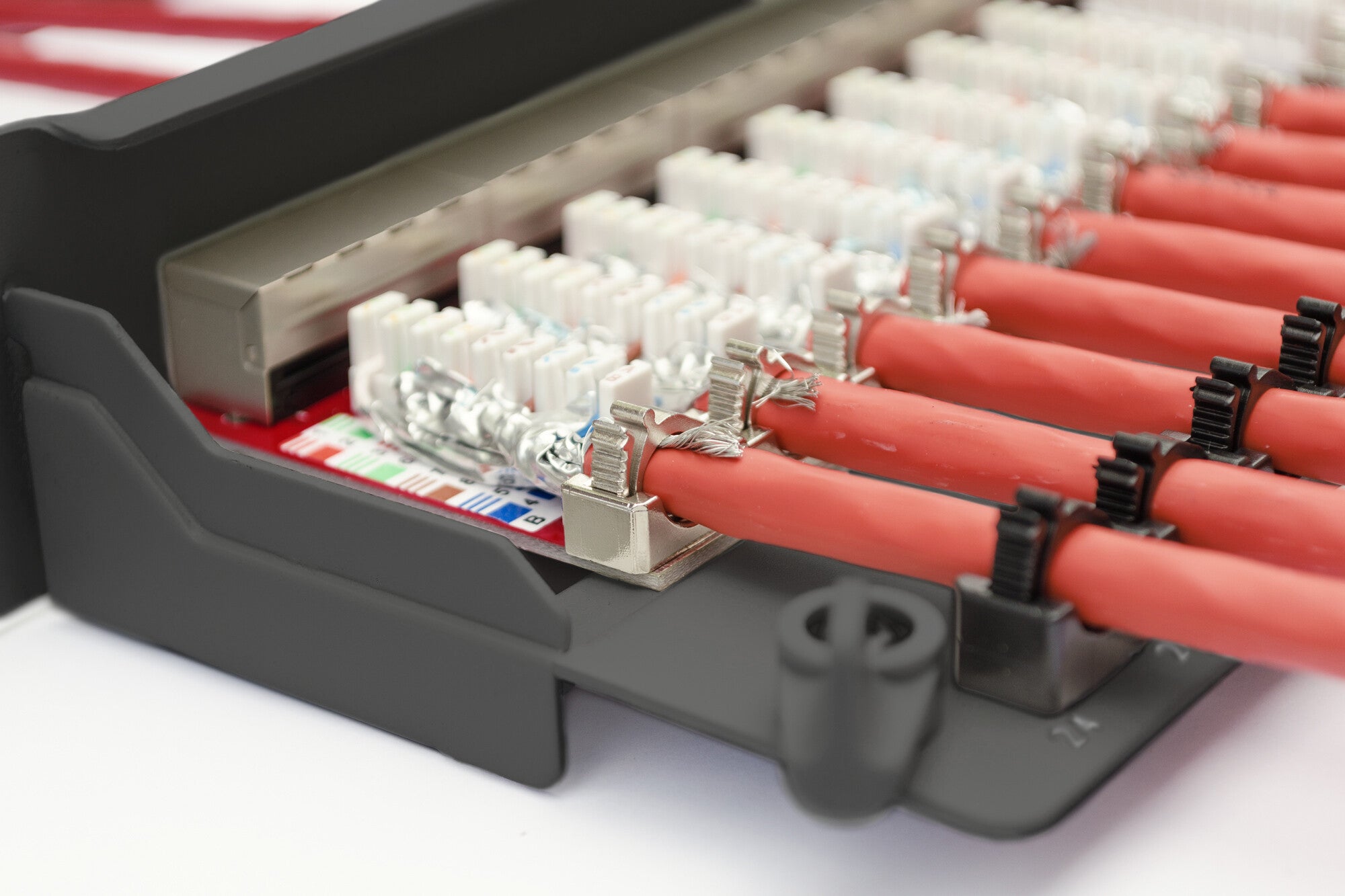

  • Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B

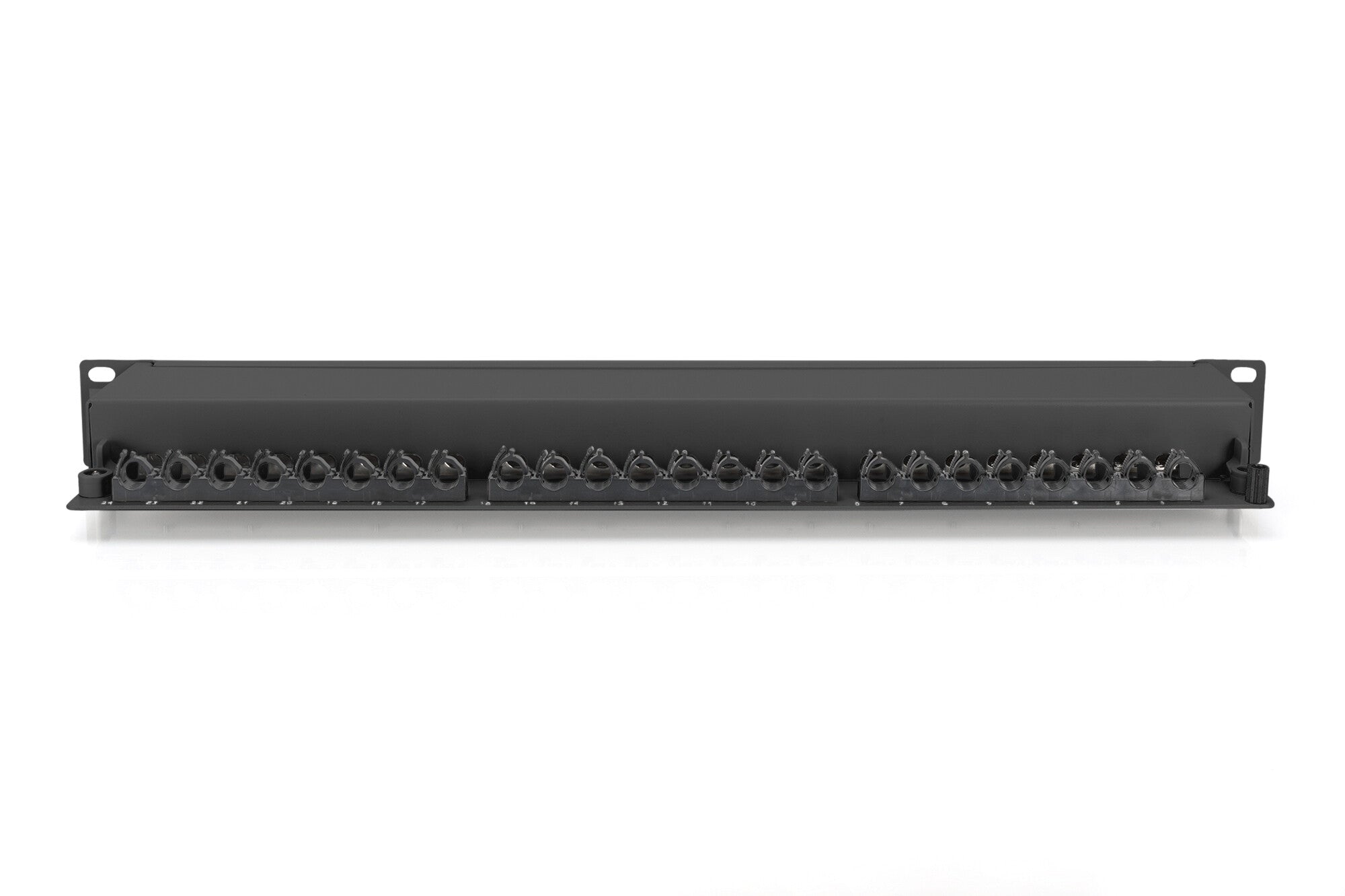

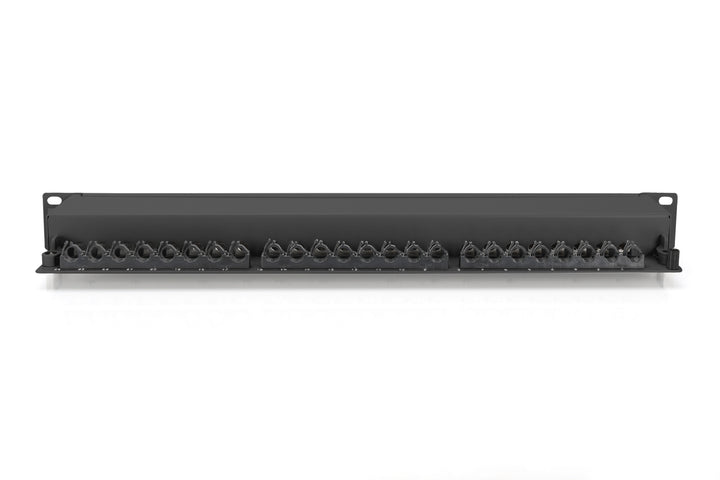

  • Cable fixing by means of quick latches
  • Central earthing connection
  • 360° shield contacting
  • Mechanical properties:
  • Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
  • RJ45 socket material: ABS UL 94V-0
  • Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
  • RJ-45 shielding: Nickel-plated bronze
  • LSA cutting clamp: Krone LSA+, UL 94V-0, galvanized phosphor bronze
  • Earthing wire: Not included in the scope of delivery
  • Printed circuit board: FR4, UL 94V-0
  • Physical properties:
  • Insertion force: 30N max. (IEC 60603-7-5)
  • Tensile load: 7.7 kg between socket and plug
  • Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
  • Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
  • Core receptacle: 22-26 AWG solid and stranded conductors"
  • Insulation resistance: > 500 MOhm
  • Contact resistance: < 20 milliOhms
  • Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Future-oriented standards and high-end quality for your network.

- Robust patch panel with sturdy metal housing
- Complete shielding of housing and shield contacting

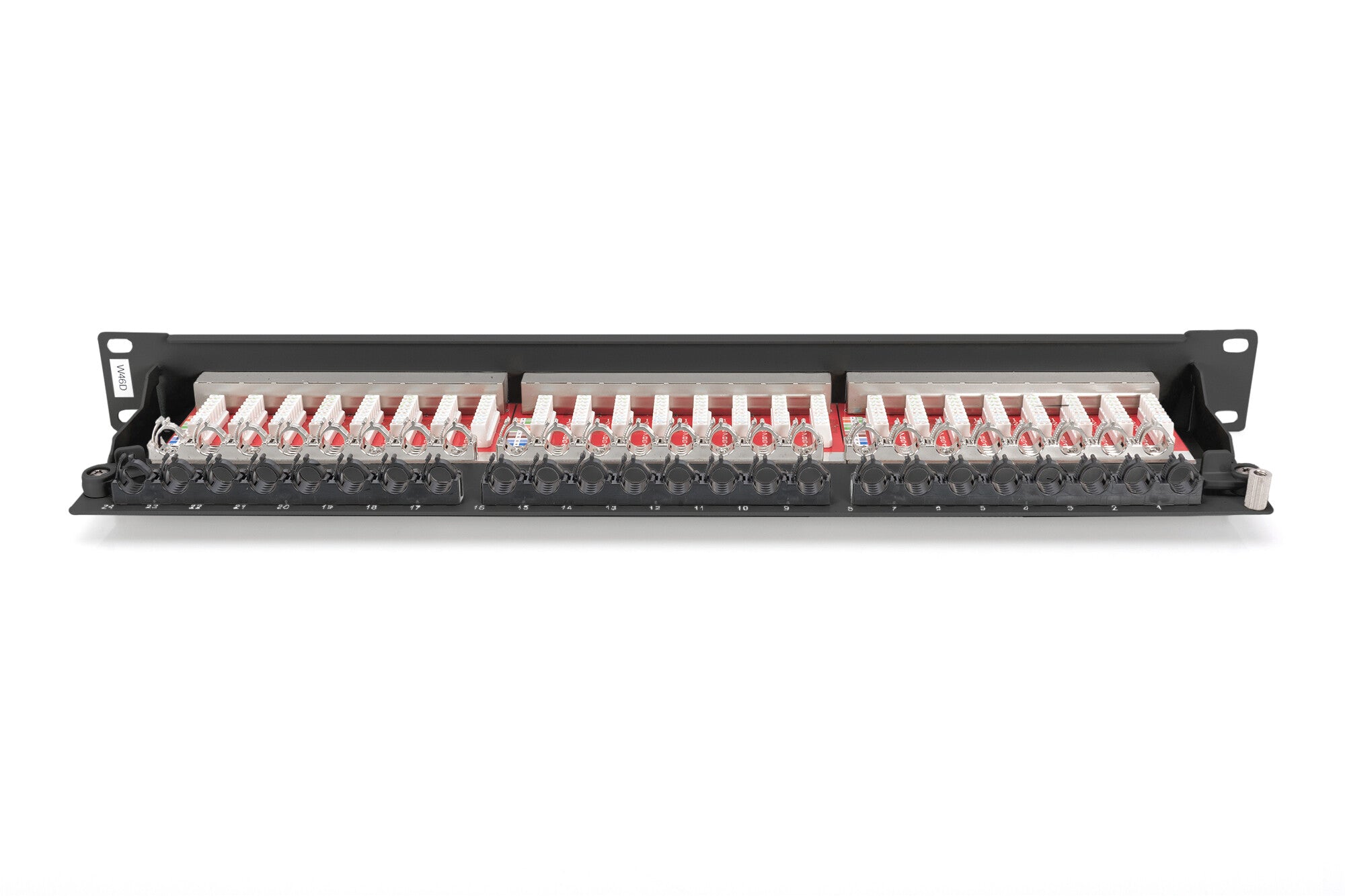

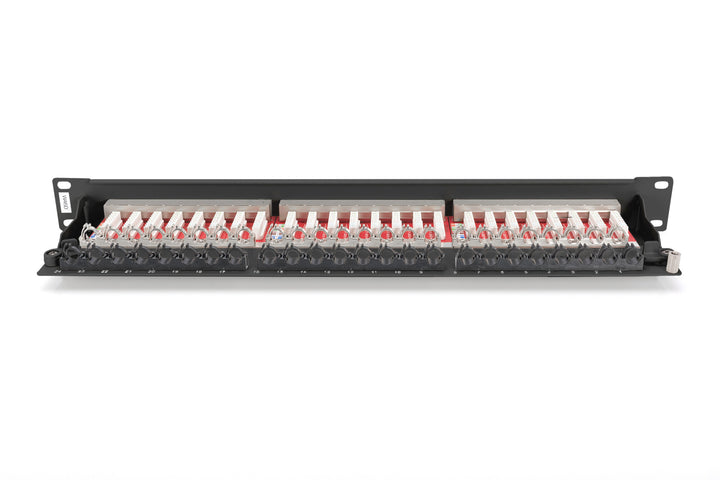

- Cable installation via LSA strips
- Central earthing connection
- Dielectric strength up to 1500 VDC (contact / ground)
- Metal-coated (electrically conductive) cable fixation for earthing the cable shielding

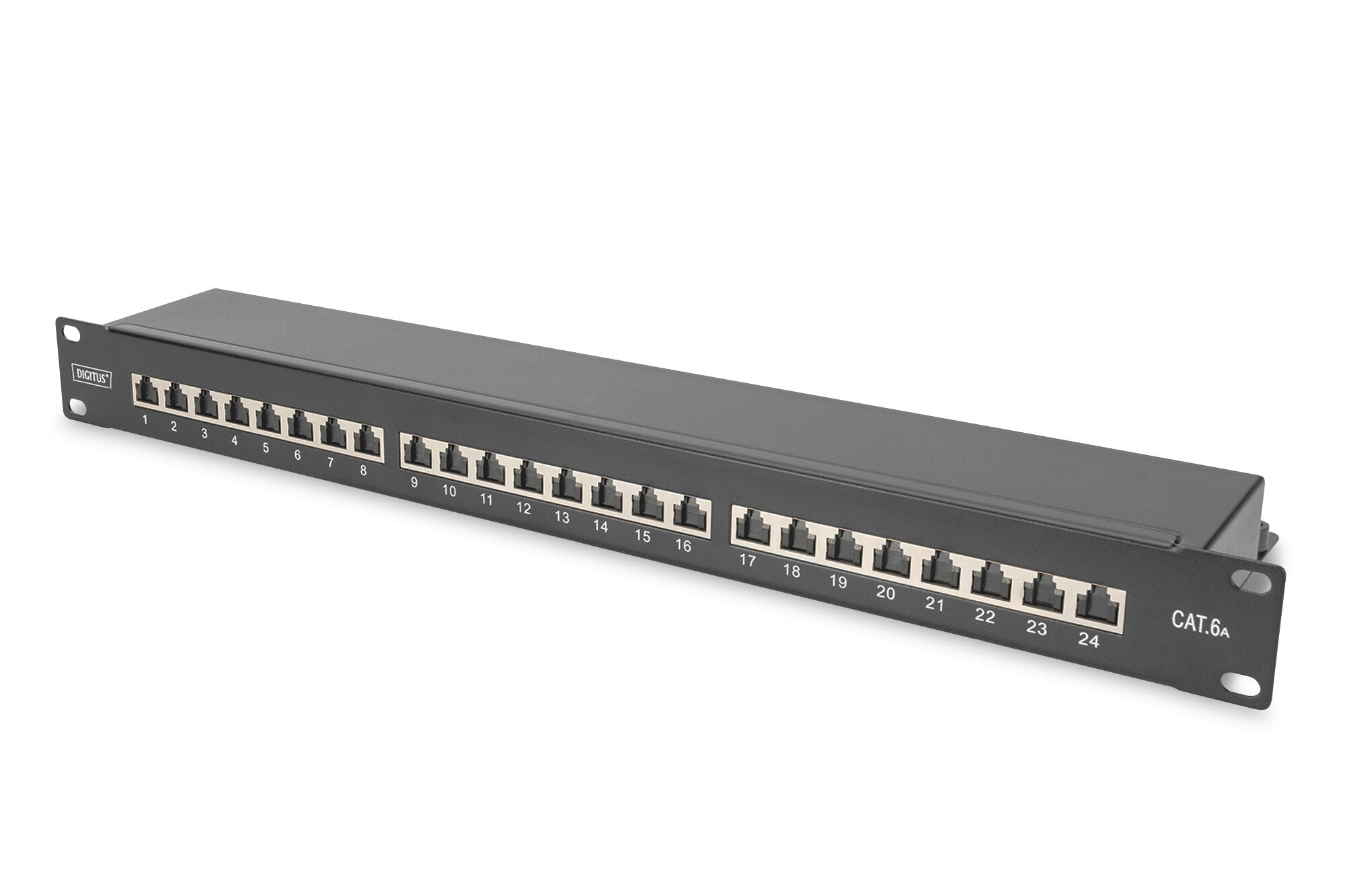

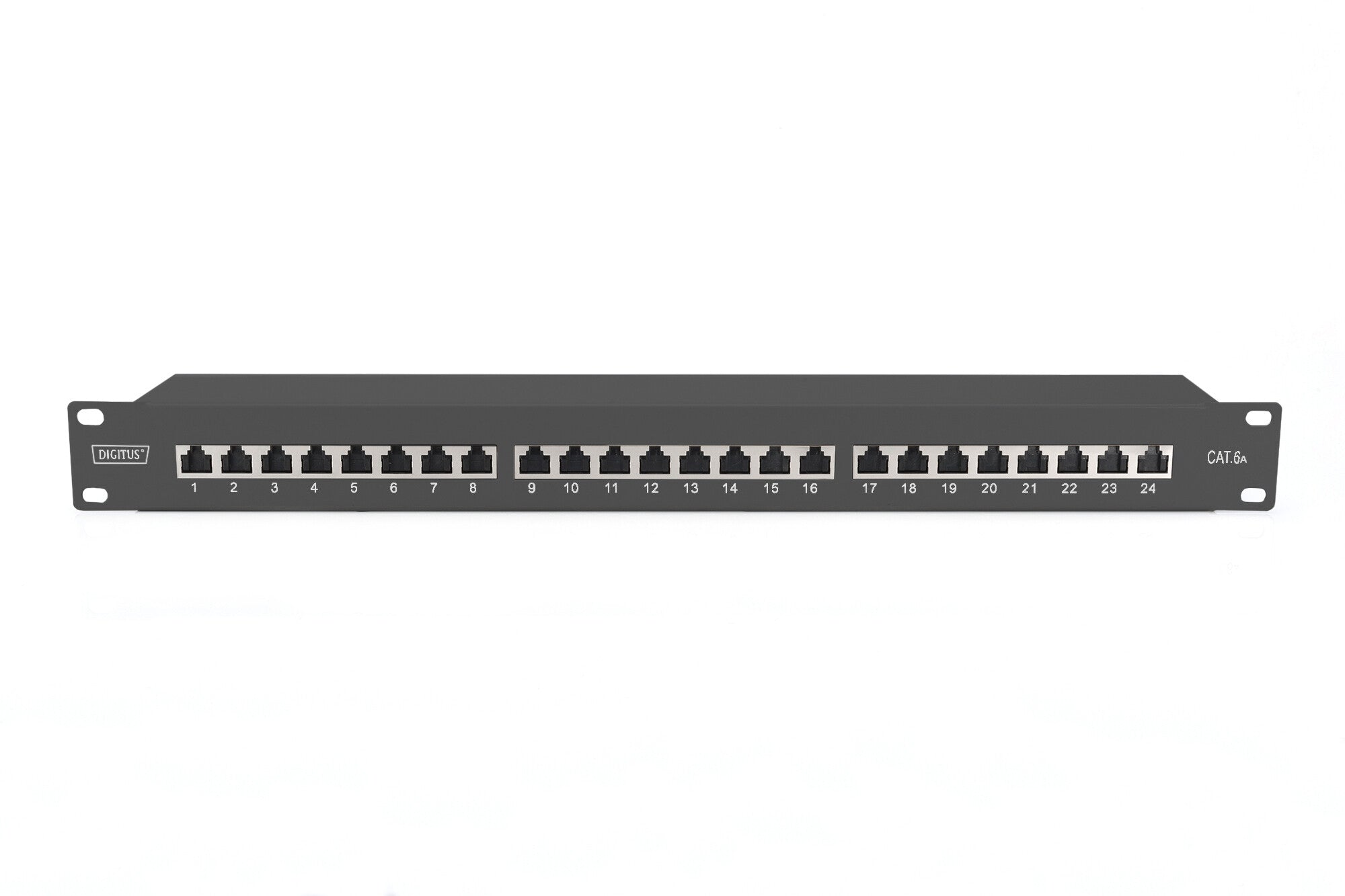

The DIGITUS® "DN-91624S-EA" CAT 6A patch panel is available in a 24-port version and, with its 1.5 mm galvanized cold-rolled steel, is a robust patch panel for 19" rack mounting. It complies with the 802.3at PoE+ and 802.3af PoE standard and is equipped with dust protection flaps.

Network
Ports quantity 24
Connector(s) RJ-45
Cable types supported Cat6a
Design
Product colour Black
Material Steel
Mounting Rack mounting
Rack capacity 1U
Operational conditions
Operating temperature (T-T) -20 - 70 °C
Weight & dimensions
Width 482.6 mm
Height 44 mm
Depth 109 mm
Packaging content
Anti-dust plug Yes
Packaging data
Package width 483 mm
Package depth 110 mm
Package weight 1.69 kg
Package volume 2390.85 cm³
Logistics data
Country of origin China
Harmonized System (HS) code 85371098
UK Trade Tariff code 85369010
