Digitus CAT 6A, Class EA Patch Panel, shielded

• Transmission characteristics: Category 6A, Class EA
• Application areas: Up to 500 MHz, 10GBase-T
• Standards: ISO/IEC 11801 2nd Ed., EN 50173-1, EIA/TIA 568-C, 802.3af, 802.3at PoE+
• General properties:
• Suitable for 483 mm (19") rack mounting

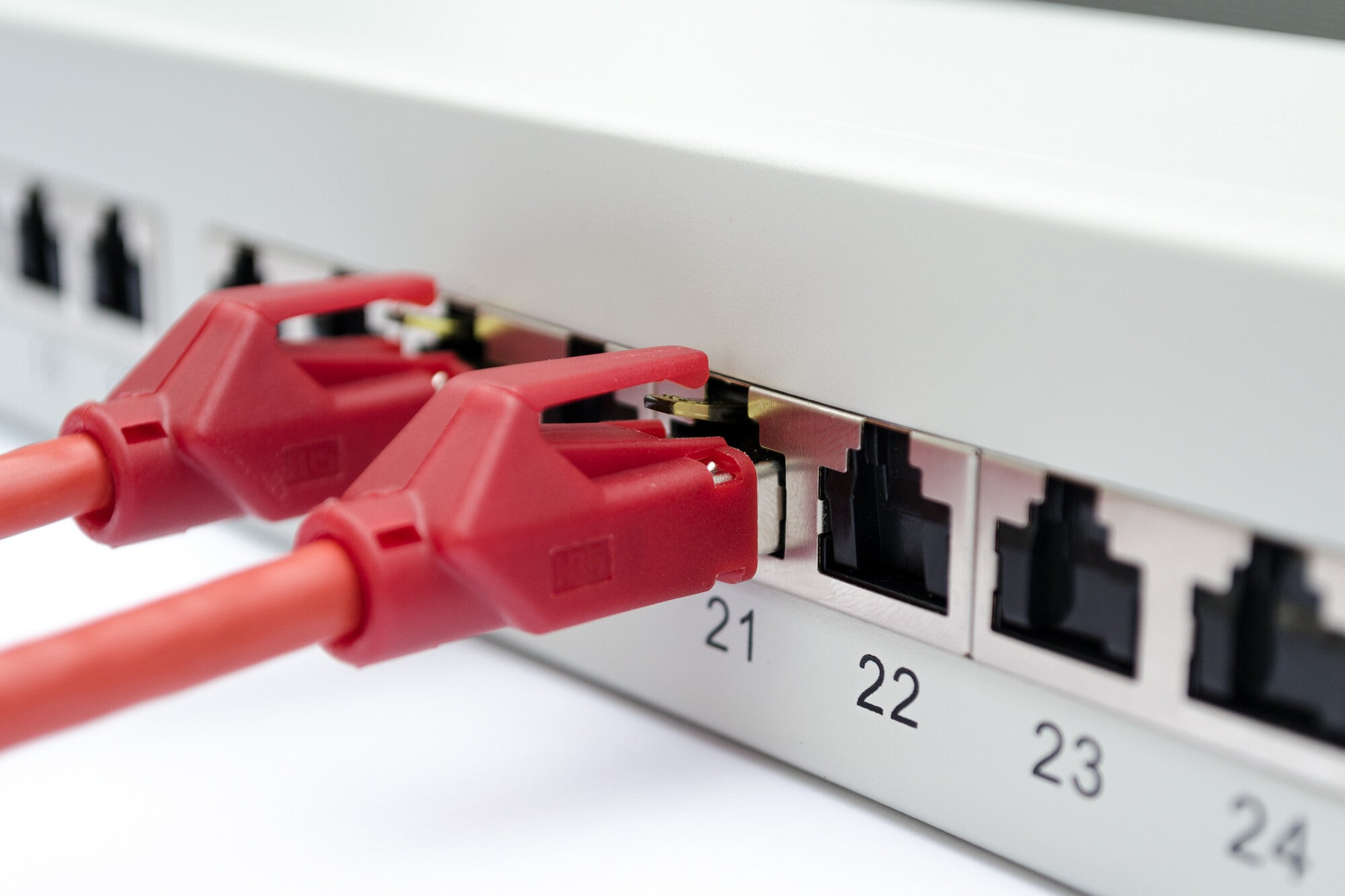

• RJ45 sockets, 8P8C

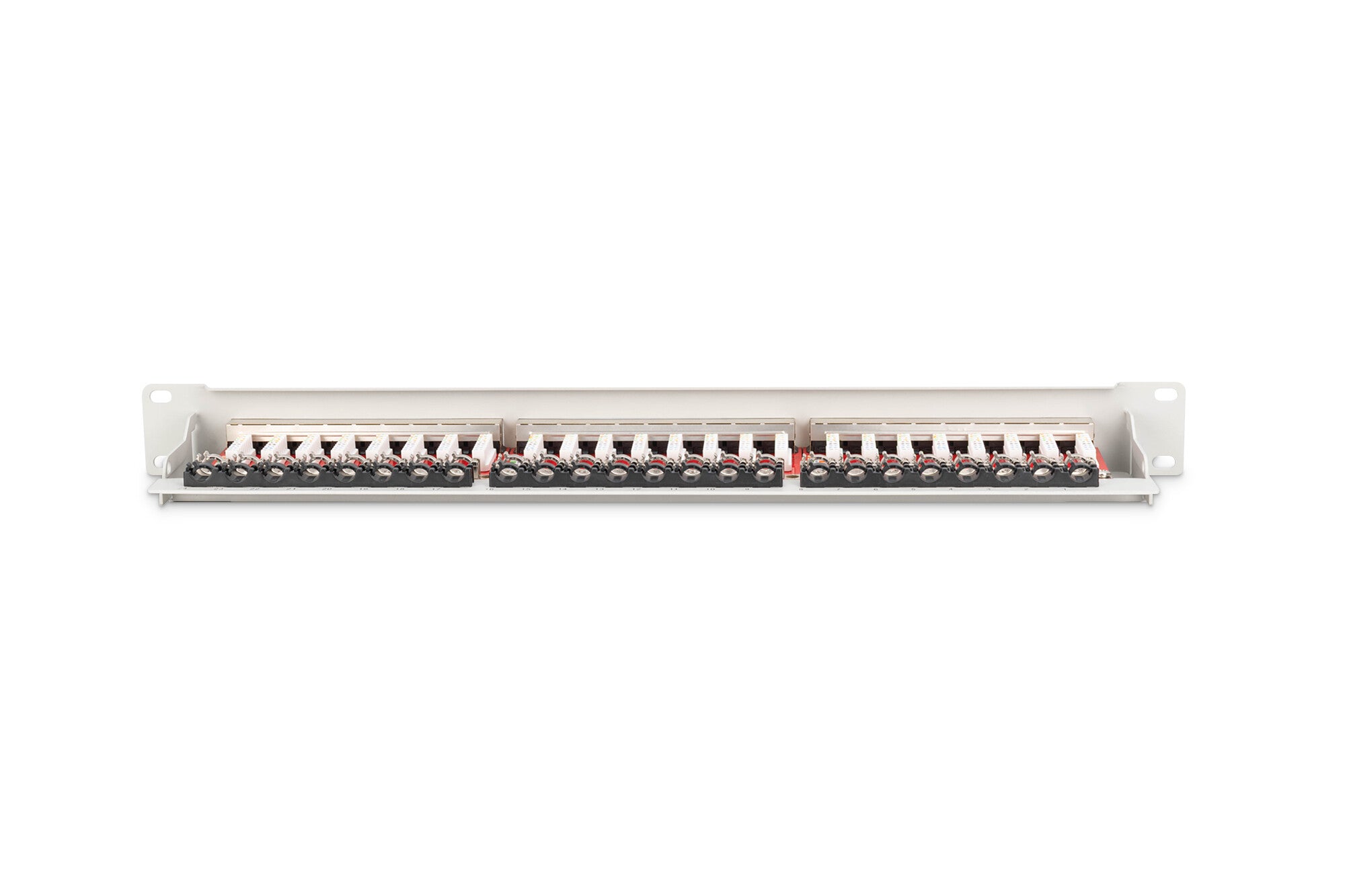

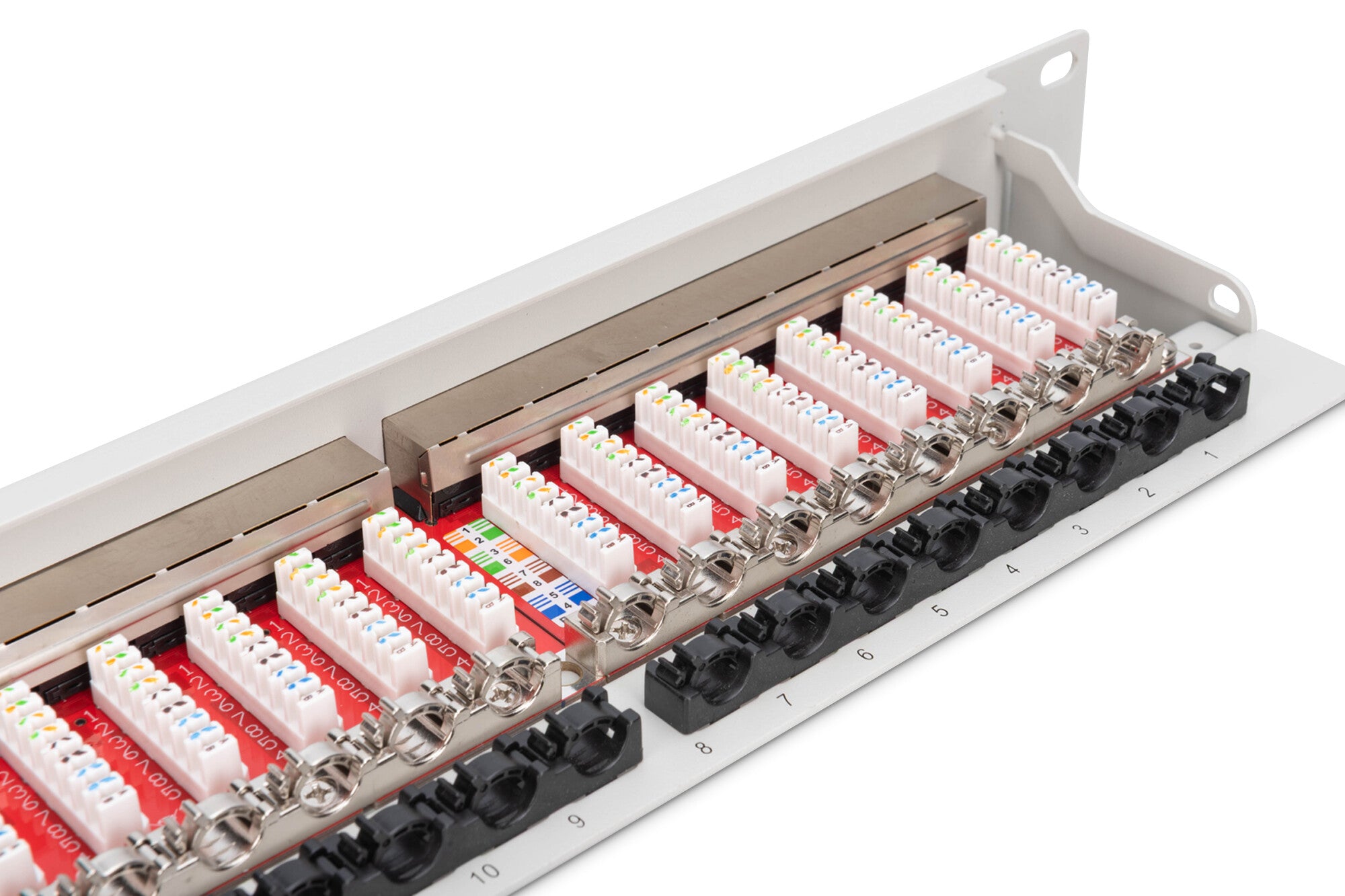

• Cable installation via LSA strips, color-coded according to EIA/TIA 568 A & B

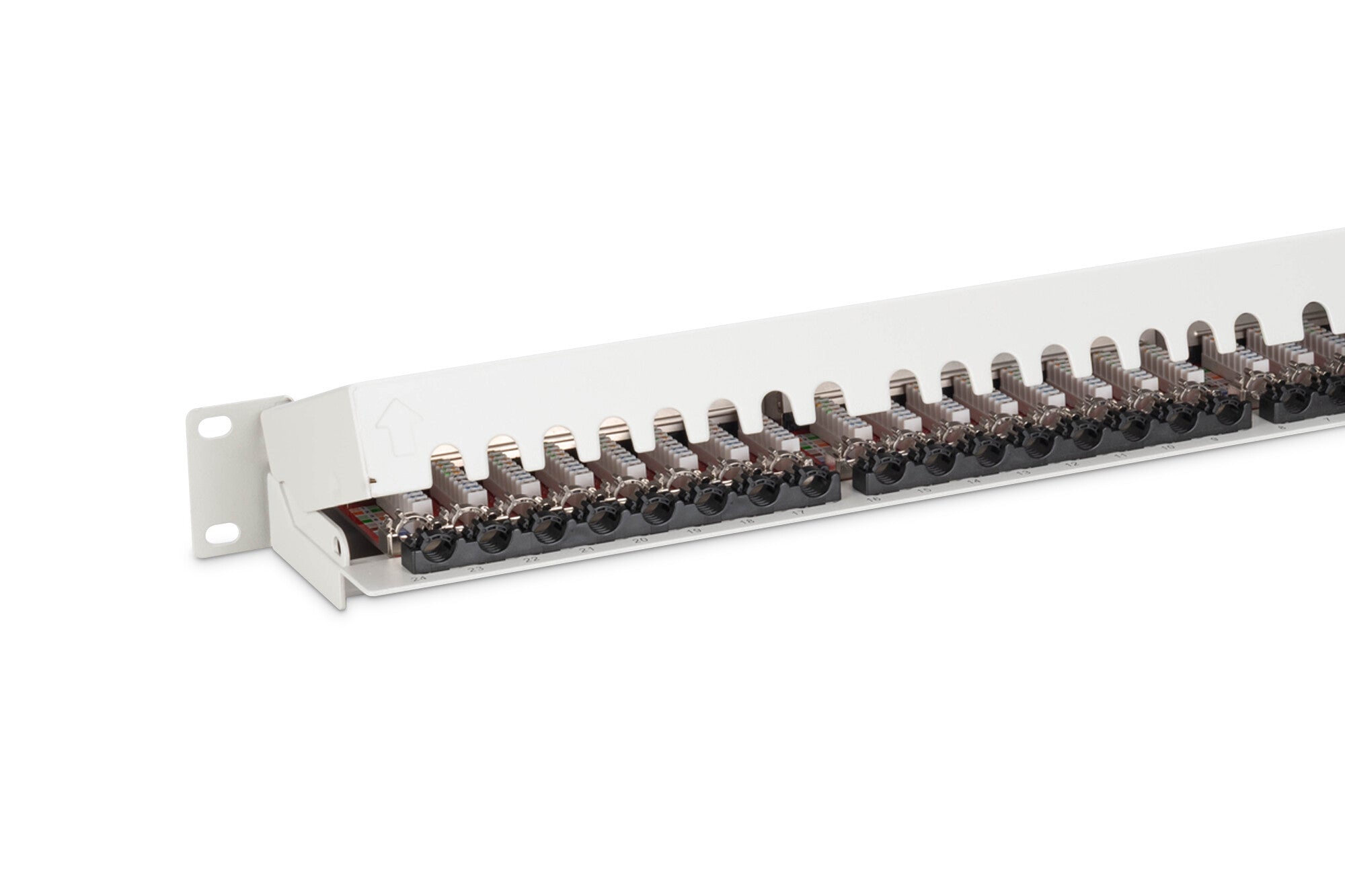

• Cable fixation by means of quick latches
• Central earthing connection
• 360° shield contacting
• Integrated dust protection flaps
• Plastic labeling field
• CAT 6A Class EA for up to 500 MHz
• Mechanical properties:
• Housing material: 1.5 mm galvanized, cold-rolled steel according to EN1.4301, UNS S30400, AISI 304 and LMSAD110
• RJ45 socket material: ABS UL 94V-0
• Contact RJ45 socket: Nickel-plated phosphor bronze, 0.5 μ gold-plated contact
• RJ-45 shielding: Nickel-plated bronze
• LSA cutting clamp: Krone LSA+, UL 94V-2, galvanized phosphor bronze
• Earthing wire: Not included in the scope of delivery
• Printed circuit board: FR4, UL 94V-0
• Physical properties:
• Insertion force: 30N max. (IEC 60603-7-5)
• Tensile load: 7.7 kg between socket and plug
• Operating temperature: -20° C to +70 °C (ISO/IEC 11801, EN 50173-1, ANSI/TIA/EIA 568 C)
• Socket mating cycle: > 750 acc. to ISO/IEC 11801, IEC 60603-7-5
• Terminal: > 200 acc. to ISO/IEC 11801, IEC 60603-7-5
• Core receptacle: 22-26 AWG solid and stranded conductors
• Insulation resistance: > 500 MOhm
• Contact resistance: < 20 milliOhms
• Dielectric strength: 1000 VDC (contact/contact), 1500 VDC (contact/ground)

Future-oriented standards and high-end quality for your network.

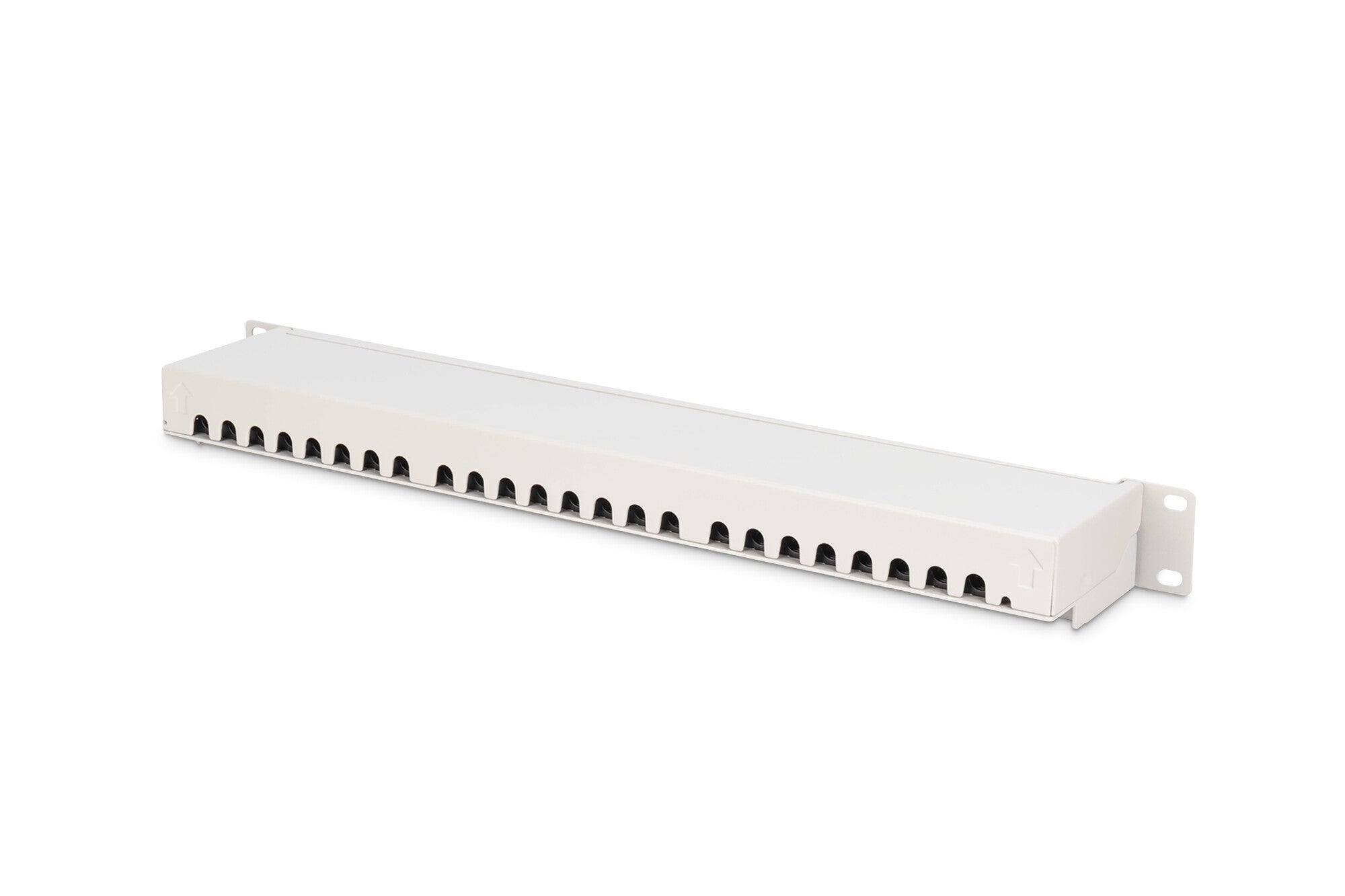

- Sturdy patch panel with metal housing
- Complete shielding of housing and shield contact
- Cable installation by IDC-strips
- Central grounding connector
- Dielectric strength up to 1500 VDC (contact/ground)
- Metal-coated (electrically conductive) cable fixation for grounding the cable shield

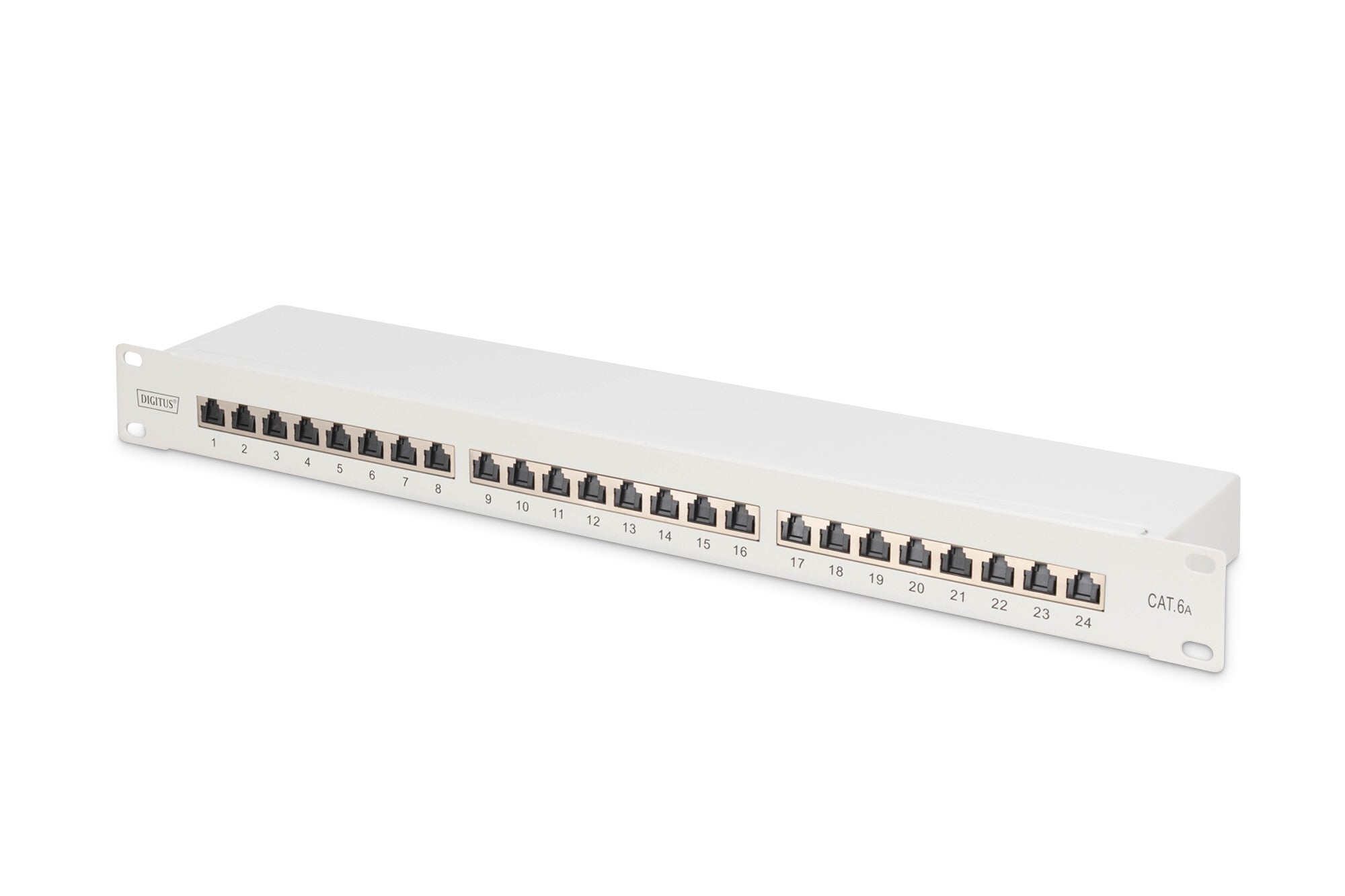

The DIGITUS® "DN-91624S-EA" CAT 6A Patch Panel is available as 24-port version and is made of 1.5 mm cold-rolled steel which makes it a sturdy Patch Panel for 19" rack mounting. It complies with the 802.3at PoE+ and the 802.3af PoE standardand is equipped with dust protection shutters.
