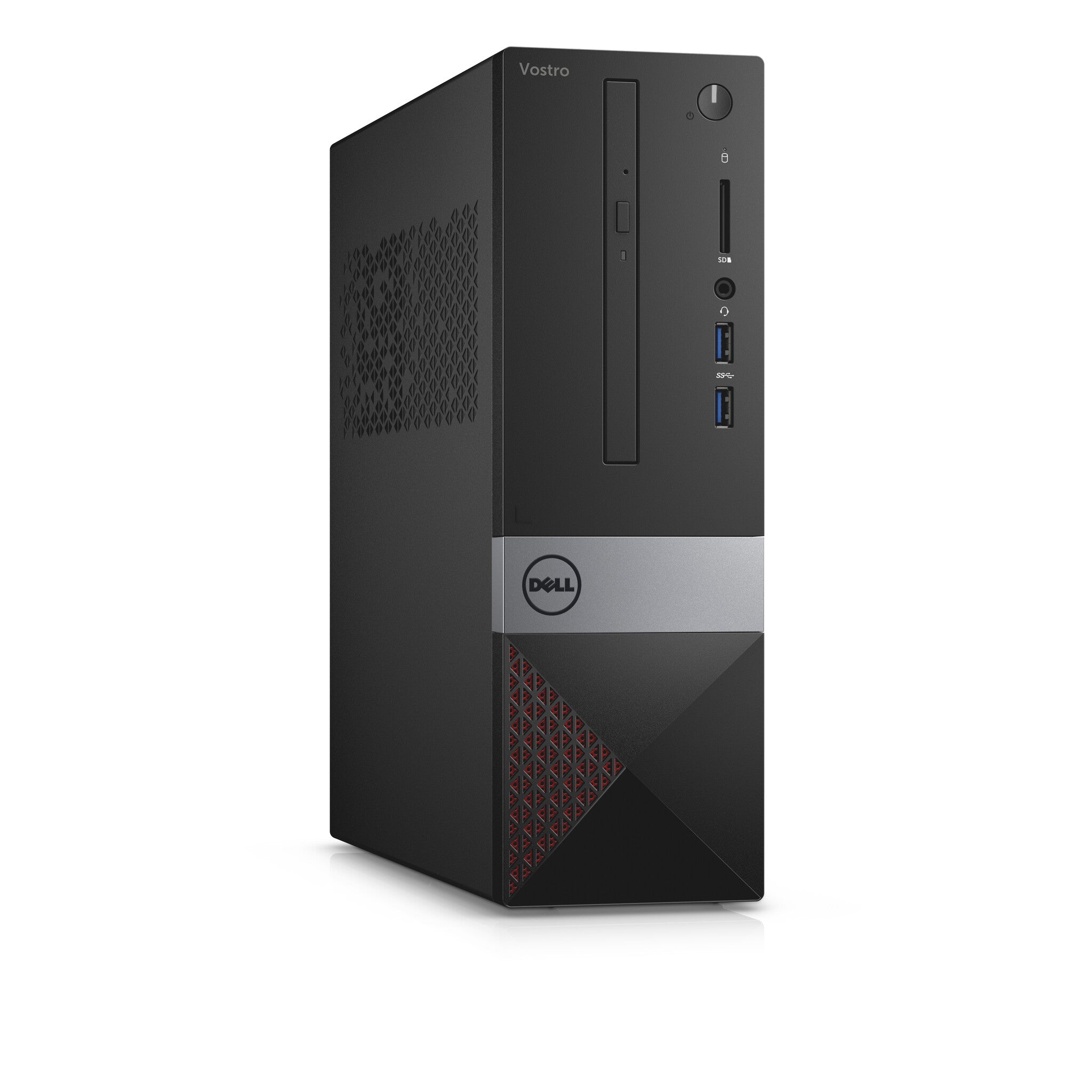

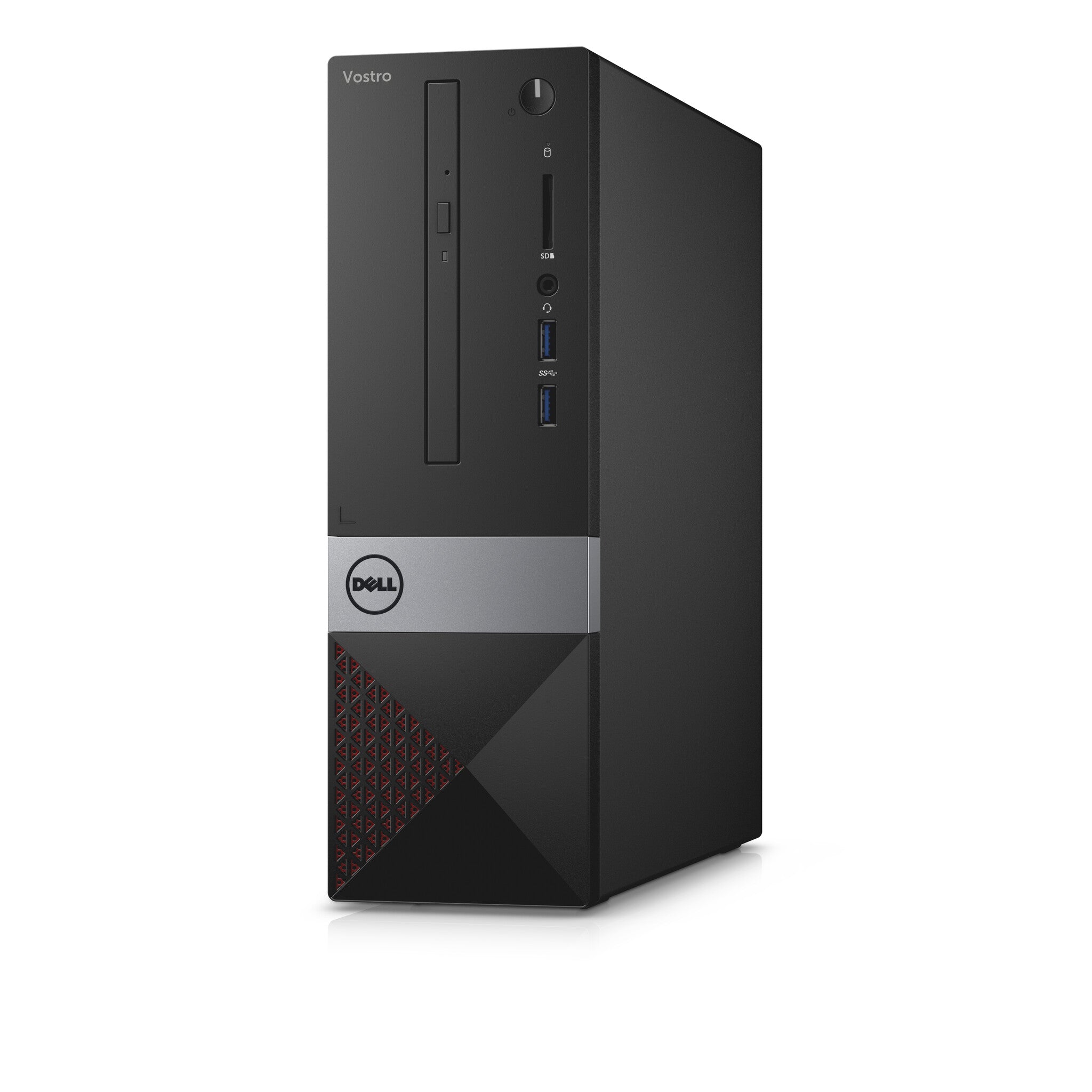

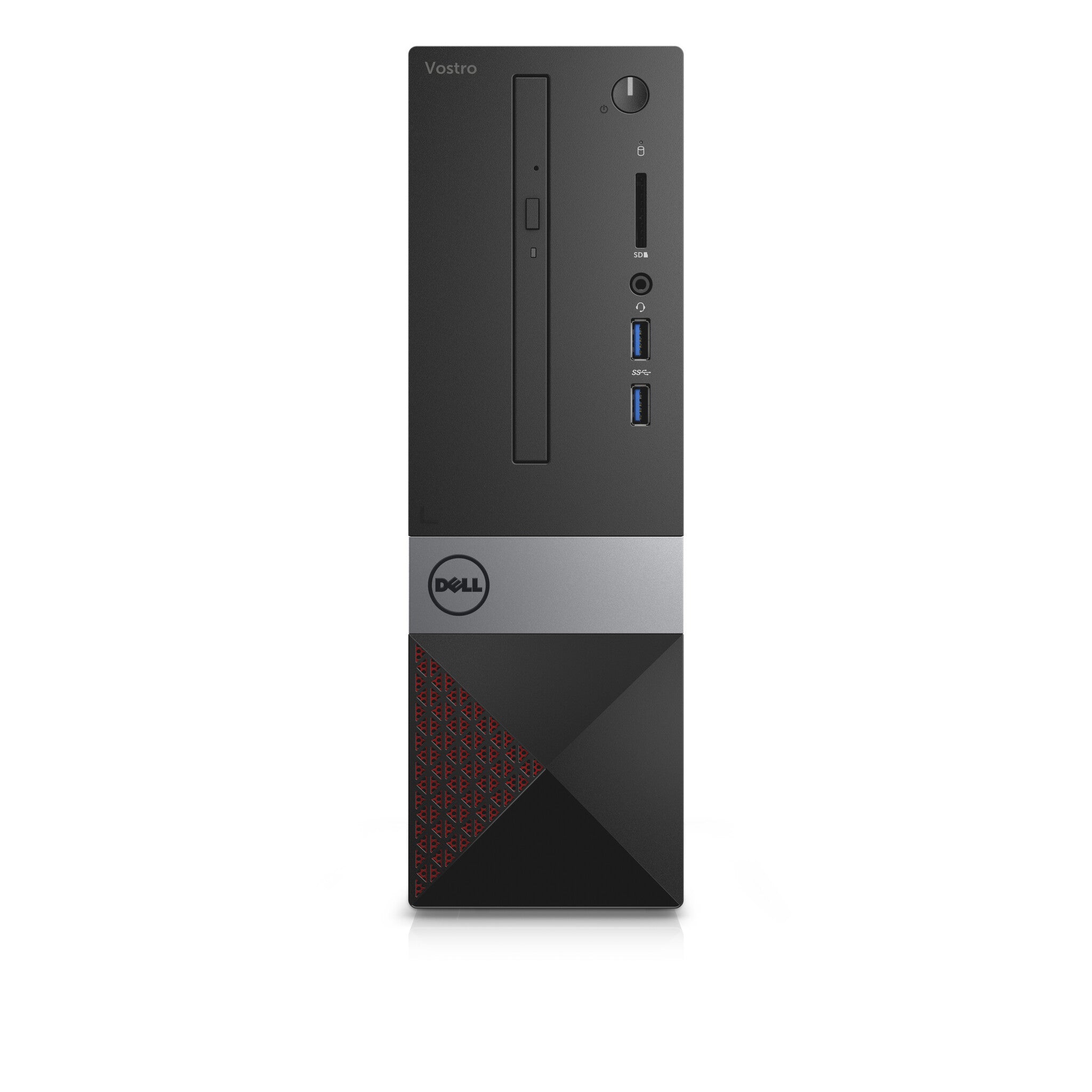

- PC Black, Silver 180 W
- Intel® Core™ i5 i5-7400 3 GHz Processor cores: 4
- 4 GB DDR4-SDRAM 2400 MHz 1 x 4 GB
- 500 GB HDD DVD±RW Card reader integrated
- Intel® HD Graphics 630
- Ethernet LAN 10,100,1000 Mbit/s Wi-Fi 4 (802.11n) Bluetooth 4.0
- Windows 10 Pro 64-bit
Compact and feature packed
Packed with power: Work throughout your day quickly and conveniently with the latest Intel® processors and up to 16GB of high-speed RAM options, delivering power and reliable performance.
Improved security: Optional hardware TPM 2.0 provides commercial-grade security.
Stay connected: Quickly transmit important business data with built-in WiFi or a Gigabit Ethernet connection.
A boost in multitasking: Run multiple apps faster and enjoy sharp, high-quality visuals on everything from Excel spreadsheets to video editing with up to 2GB of optional discrete graphics.
Plenty of room: Save and access presentations, documents and media without worry of space limitations with up to a 2TB HDD.
Designed for greatness.
Built for desk space: Our patent-pending compact form factor design ensures that you save space without sacrificing features or performance.
Uninterrupted performance: The new ventilation system and ultra-fine filter were created to improve airflow, reduce dust, and help keep your system cool.
Easy expansion: Need more performance? You can upgrade the Vostro Small Desktop as needed with expansion slot options to keep up with your business growth.
More to see: Support multiple displays for higher productivity with VGA and HDMI ports.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor generation |
7th gen Intel® Core™ i5 |
| Processor model |
i5-7400 |
| Processor cores |
4 |
| Processor threads |
4 |
| Processor boost frequency |
3.5 GHz |
| Processor frequency |
3 GHz |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor cache |
6 MB |
| Processor cache type |
Smart Cache |
| System bus rate |
8 GT/s |
| Bus type |
DMI3 |
| Processor series |
Intel Core i5-7400 Desktop Series |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Kaby Lake |
| Tjunction |
100 °C |
| PCI Express configurations |
1x16, 1x8+2x4, 2x8 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| Number of processors installed |
1 |
| Stepping |
B0 |
| Maximum internal memory supported by processor |
64 GB |
| Memory types supported by processor |
DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor |
1333,1600,2133,2400 MHz |
| ECC supported by processor |
No |
| Memory voltage supported by processor |
1.35 V |
| Memory |
|---|
| Internal memory |
4 GB |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR4-SDRAM |
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
2x DIMM |
| Memory clock speed |
2400 MHz |
| Memory channels |
Dual-channel |
| Storage |
|---|
| Total storage capacity |
500 GB |
| Optical drive type |
DVD±RW |
| Storage media |
HDD |
| Number of storage drives installed |
1 |
| Number of HDDs installed |
1 |
| HDD capacity |
500 GB |
| HDD interface |
SATA III |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| Card reader integrated |
Yes |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card family |
Intel® HD Graphics |
| On-board graphics card model |
Intel® HD Graphics 630 |
| Number of displays supported (on-board graphics) |
3 |
| Maximum on-board graphics card memory |
64 GB |
| On-board graphics card dynamic frequency (max) |
1000 MHz |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card ID |
5912 |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card DirectX version |
12.0 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 4 (802.11n) |
| Wi-Fi standards |
802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| Bluetooth |
Yes |
| Bluetooth Low Energy (BLE) |
Yes |
| Bluetooth version |
4.0 |

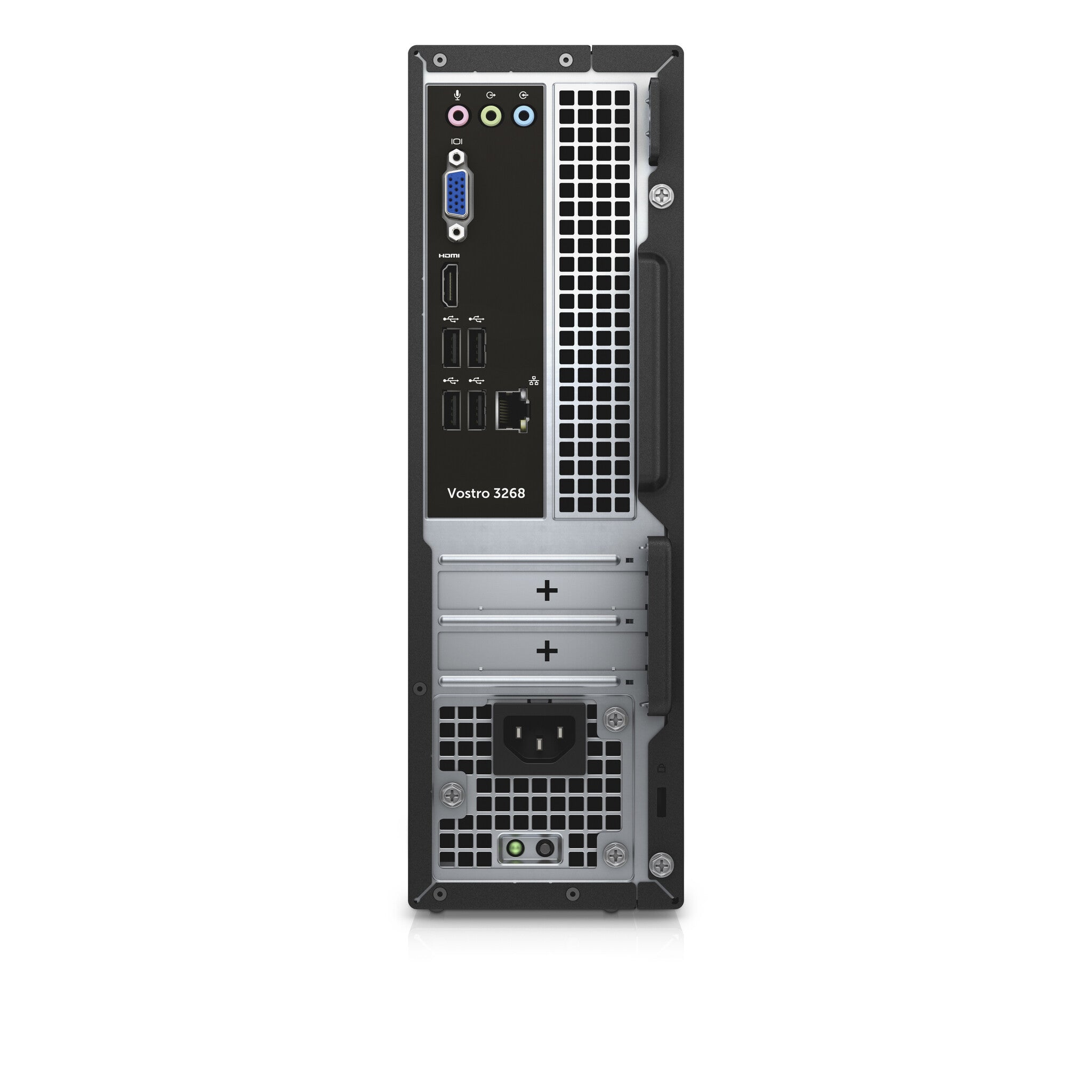

| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
2 |
| VGA (D-Sub) ports quantity |
1 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
Yes |
| Headphone outputs |
1 |
| Line-in |
Yes |
| Line-out |
Yes |
| Expansion slots |
|---|
| PCI Express x1 slots |
1 |
| PCI Express x16 slots |
1 |
| Design |
|---|
| Chassis type |
SFF |
| Placement supported |
Vertical |
| Number of 3.5" bays |
1 |
| Number of 5.25" bays |
1 |
| Product colour |
Black, Silver |
| Performance |
|---|
| Product type |
PC |
| Motherboard chipset |
Intel® H110 |
| Compatible processor series |
Intel® Celeron®, Intel® Pentium® |
| Audio output channels |
5.1 channels |
| Software |
|---|
| Operating system installed |
Windows 10 Pro |
| Operating system architecture |
64-bit |
| Operating system language |
English |
| Trial software |
Microsoft Office, McAfee |
| Processor special features |
|---|
| Processor code |
SR32W |
| Processor ARK ID |
97147 |
| Thermal solution specification |
PCG 2015C |
| Scalability |
1S |
| Supported instruction sets |
AVX 2.0, SSE4.1, SSE4.2 |
| Processor package size |
37.5 x 37.5 mm |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel TSX-NI version |
0.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
0.00 |
| Intel Identity Protection Technology version |
1.00 |
| Intel Enhanced Halt State |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel TSX-NI |
No |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| CPU configuration (max) |
1 |
| Execute Disable Bit |
Yes |
| Intel Trusted Execution Technology |
No |
| Intel Stable Image Platform Program (SIPP) |
No |
| Idle States |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
No |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Conflict-Free processor |
Yes |
| Power |
|---|
| Power supply |
180 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
10 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Operating altitude |
-15.2 - 5000 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Weight & dimensions |
|---|
| Width |
92.6 mm |
| Depth |
314.5 mm |
| Height |
293.1 mm |
| Weight |
4.4 kg |
| Packaging content |
|---|
| Display included |
No |
| Mouse included on selected markets only |
Yes |
| Keyboard included on selected markets only |
Yes |
| Cables included |
AC |
| AC adapter included |
Yes |
| Manual |
Yes |
| General |
|---|
| Product series |
3200 |
| Product family |
Vostro |
| Other features |
|---|
| Optical drives quantity |
1 |
| Intel segment tagging |
Home office, Small Business |
