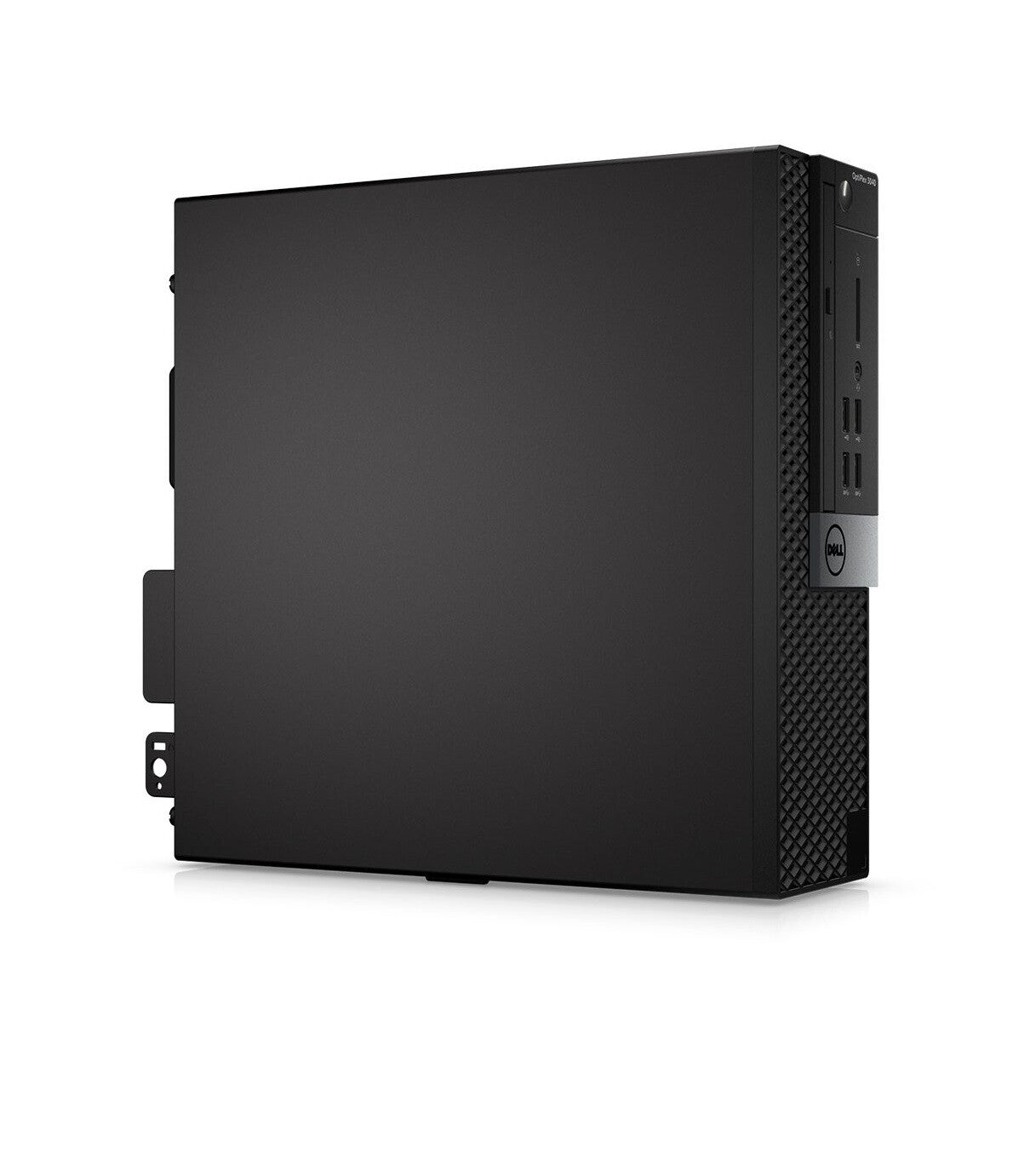

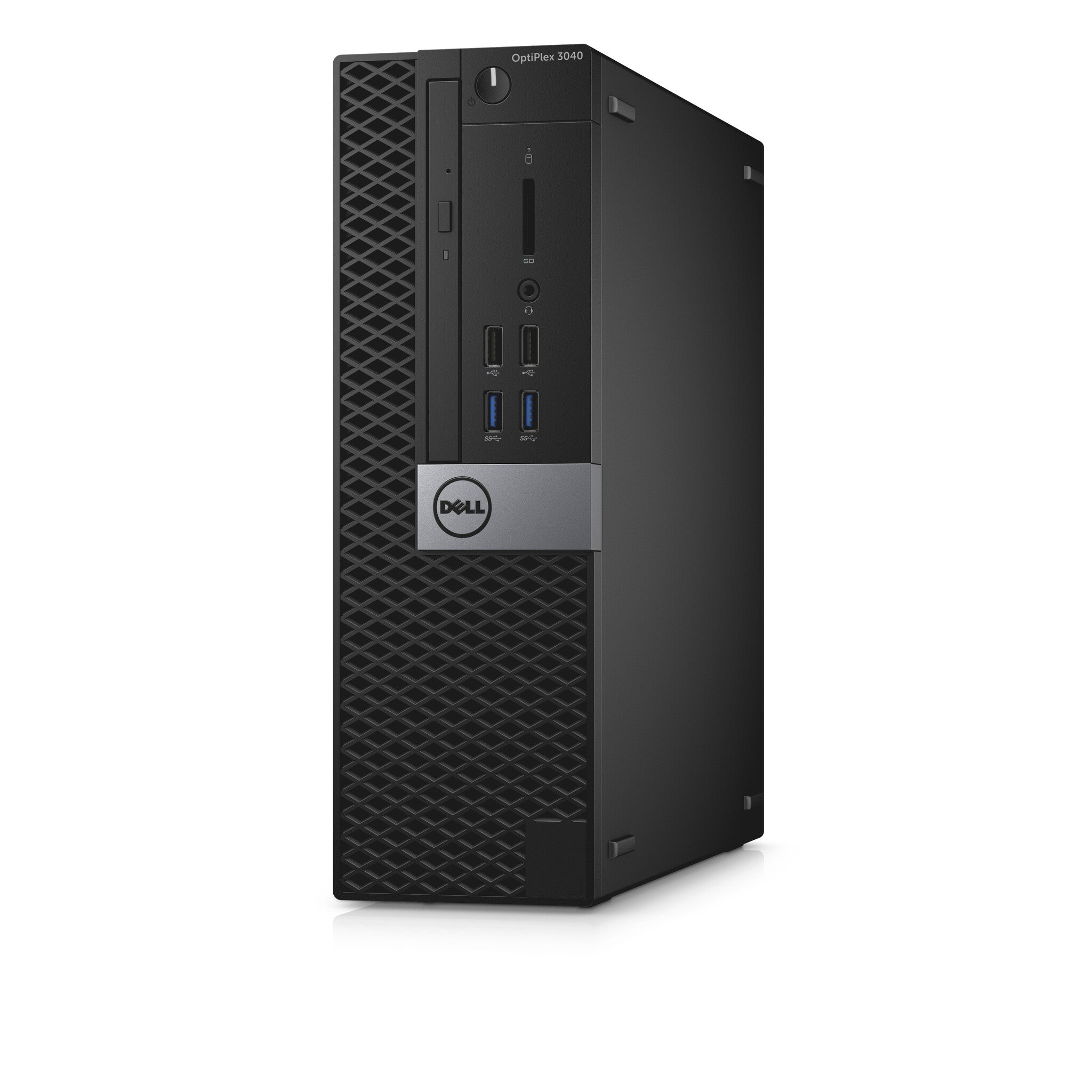

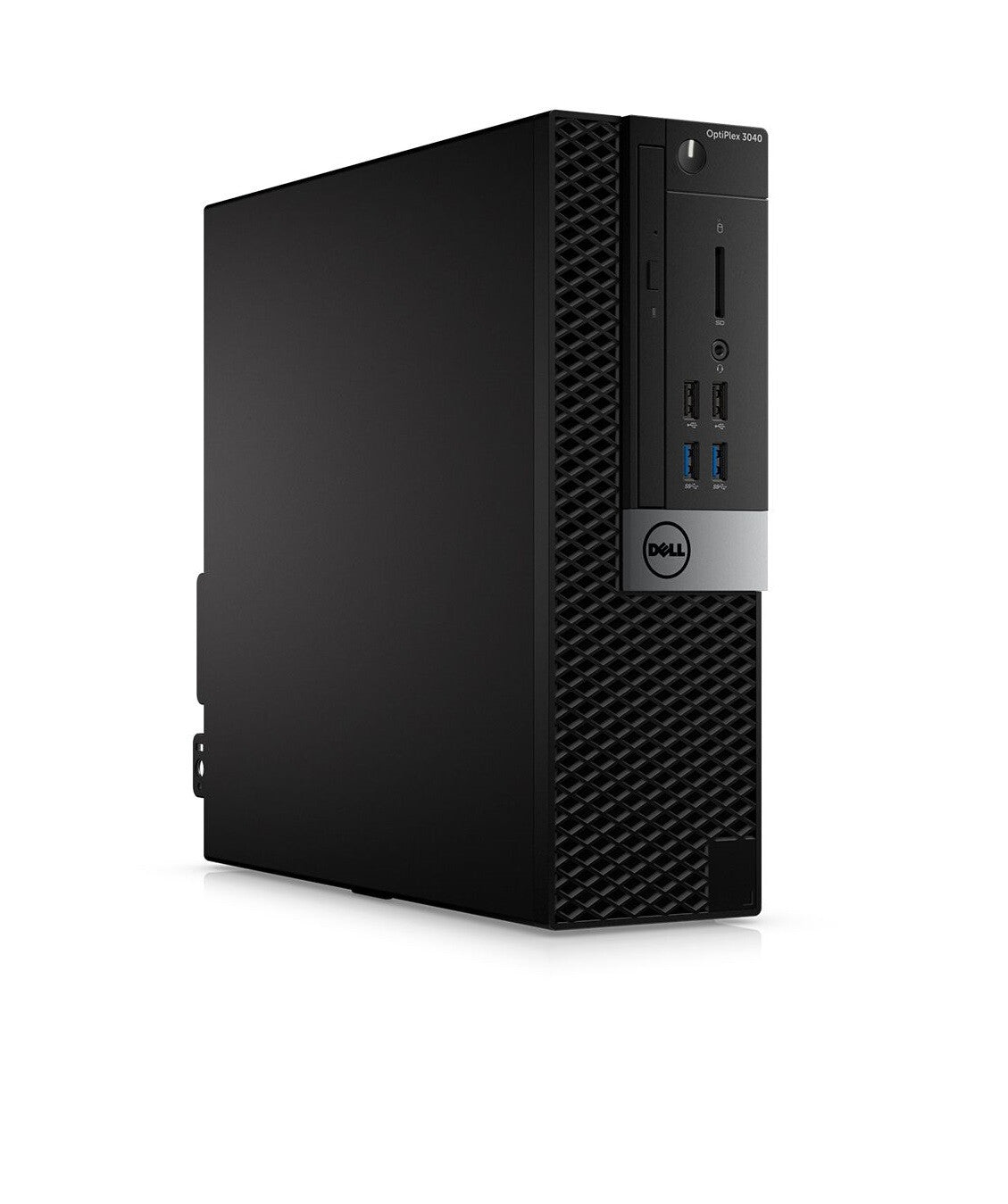

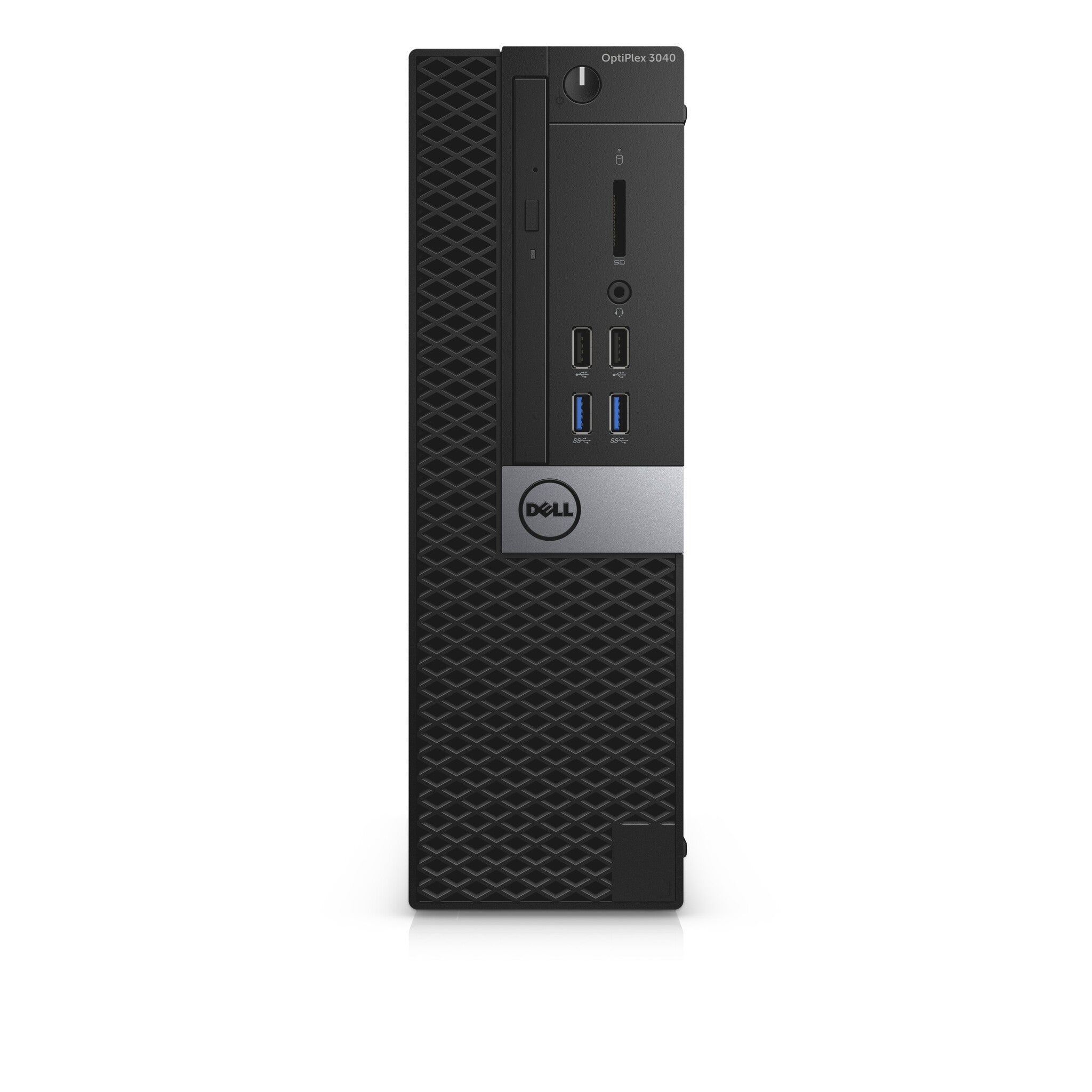

- PC Black 180 W
- Intel® Core™ i5 i5-6500 3.2 GHz Processor cores: 4
- 4 GB DDR3L-SDRAM 1600 MHz 1 x 4 GB
- 500 GB HDD DVD±RW
- Intel® HD Graphics 530
- Ethernet LAN 10,100,1000 Mbit/s
- Windows 10 Pro 64-bit
Big security. Small footprint.
Compact and space-saving desktops with flexibility for dual orientation, expandability options and multiple display support.
Big productivity. Little PC.
Mighty powerful: Powered by 6th generation Intel® Core™ processors.
Support for two displays: DisplayPort, HDMI and optional VGA connectivity allows greater visibility of your tasks.
Plenty of memory: Up to 16GB of DDR3 memory technology.
Seamless manageability
World’s most manageable: IT can manipulate BIOS settings and configure systems with ample flexibility that organizational IT infrastructures require.
You hold the keys: Dell Client Command Suite free tools allow flexible and automated BIOS or system configurations for your desktop fleet.
Packaged to perform: Factory installed with Dell Command | Update automatically presents updates.
Serves organizations of all sizes: Dell KACE System Management solutions available to meet demanding IT management needs.
The best security, right out of the box
The world’s most secure desktops are armed with Dell Data Protection hardware and software along with additional optional features.
Centralized remote management: Meet compliance regulations right out of the box and protect data on any device with Dell Data Protection | Encryption.
Authentication options: Ensure only authorized users have access to your data with FIPS 201-certified smart card, fingerprint readers or contact-less smart card reader.
Secure credential storage: FIPS 140-2-certified TPM and Dell ControlVault add extra layers of hardware security by isolating user passwords and credentials on a separately controlled hardware chip.
Stop advanced malware: Dell Data Protection | Protected Workspace launches apps in a virtualized container and restores a safe environment in only 20 seconds.
Single console security: Dell Data Protection | Endpoint Security Suite offers comprehensive threat protection, authentication and access management, and encryption, all centrally managed.
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor family |
Intel® Core™ i5 |
| Processor generation |
6th gen Intel® Core™ i5 |
| Processor model |
i5-6500 |
| Processor cores |
4 |
| Processor threads |
4 |
| Processor boost frequency |
3.6 GHz |
| Processor frequency |
3.2 GHz |
| Processor socket |
LGA 1151 (Socket H4) |
| Processor cache |
6 MB |
| Processor cache type |
Smart Cache |
| System bus rate |
8 GT/s |
| Bus type |
DMI3 |
| Processor series |
Intel Core i5-6500 Desktop series |
| Processor operating modes |
64-bit |
| Processor lithography |
14 nm |
| Thermal Design Power (TDP) |
65 W |
| Processor codename |
Skylake |
| PCI Express configurations |
1x16, 2x8, 1x8+2x4 |
| Maximum number of PCI Express lanes |
16 |
| PCI Express slots version |
3.0 |
| Number of processors installed |
1 |
| Stepping |
R0 |
| Maximum internal memory supported by processor |
64 GB |
| Memory types supported by processor |
DDR3L-SDRAM, DDR4-SDRAM |
| Memory clock speeds supported by processor |
2133,1333,1600,1866 MHz |
| Memory bandwidth supported by processor (max) |
34.1 GB/s |
| ECC supported by processor |
No |
| Memory voltage supported by processor |
1.35 V |
| Memory |
|---|
| Internal memory |
4 GB |
| Maximum internal memory |
16 GB |
| Internal memory type |
DDR3L-SDRAM |
| Memory layout (slots x size) |
1 x 4 GB |
| Memory slots |
2x DIMM |
| Memory clock speed |
1600 MHz |
| Memory channels |
Dual-channel |
| Non-ECC |
Yes |
| Storage |
|---|
| Total storage capacity |
500 GB |
| Optical drive type |
DVD±RW |
| Storage media |
HDD |
| Number of storage drives installed |
1 |
| Number of HDDs installed |
1 |
| HDD capacity |
500 GB |
| HDD interface |
SATA III |
| HDD speed |
7200 RPM |
| HDD size |
3.5" |
| Card reader integrated |
No |
| Graphics |
|---|
| Discrete graphics card |
No |
| On-board graphics card |
Yes |
| Discrete graphics card model |
Not available |
| On-board graphics card family |
Intel® HD Graphics |
| On-board graphics card model |
Intel® HD Graphics 530 |
| Number of displays supported (on-board graphics) |
3 |
| Maximum on-board graphics card memory |
1.74 GB |
| On-board graphics card dynamic frequency (max) |
1050 MHz |
| On-board graphics card base frequency |
350 MHz |
| On-board graphics card ID |
1912 |
| On-board graphics card OpenGL version |
4.4 |
| On-board graphics card DirectX version |
12.0 |
| Graphics card Open GL support |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet LAN data rates |
10,100,1000 Mbit/s |
| Cabling technology |
10/100/1000Base-T(X) |
| Wi-Fi |
No |

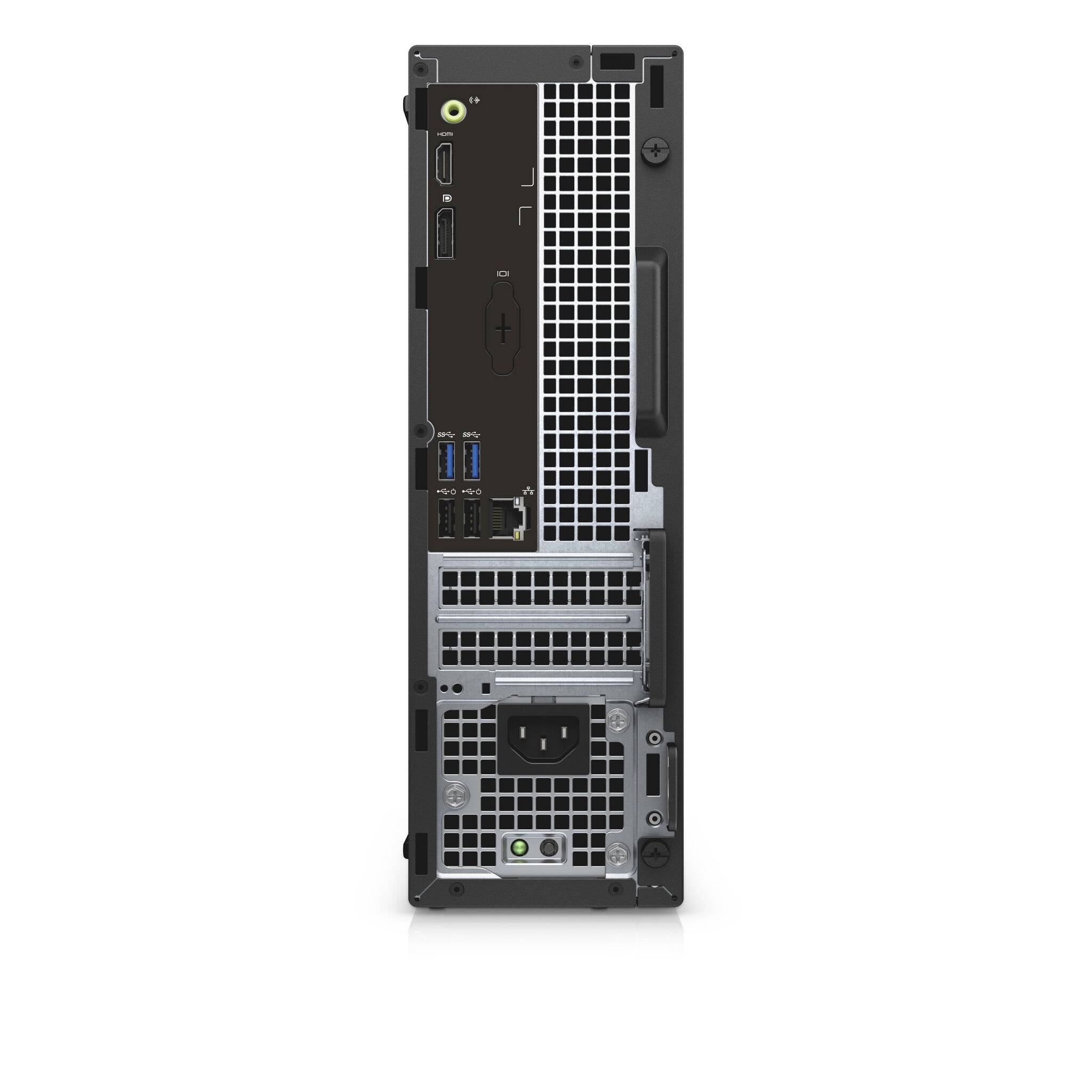

| Ports & interfaces |
|---|
| USB 2.0 ports quantity |
4 |
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| DVI port |
No |
| HDMI ports quantity |
1 |
| HDMI version |
1.4 |
| DisplayPorts quantity |
1 |
| PS/2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| Microphone in |
No |
| Line-in |
No |
| Line-out |
Yes |
| Combo headphone/mic port |
Yes |
| Expansion slots |
|---|
| PCI Express x1 slots |
1 |
| PCI Express x16 slots |
1 |
| Design |
|---|
| Chassis type |
SFF |
| Placement supported |
Horizontal/Vertical |
| Water cooling system |
No |
| Number of 3.5" bays |
1 |
| Number of 2.5" bays |
1 |
| Cable lock slot |
Yes |
| Product colour |
Black |
| Performance |
|---|
| Product type |
PC |
| Motherboard chipset |
Intel® H110 |
| Password protection |
Yes |
| Password protection type |
BIOS, HDD, Supervisor, User |
| Software |
|---|
| Operating system installed |
Windows 10 Pro |
| Operating system architecture |
64-bit |
| Operating system language |
Multilingual |
| Drivers included |
Yes |
| Processor special features |
|---|
| Intel Small Business Advantage (SBA) version |
1.00 |
| Graphics & IMC lithography |
14 nm |
| Intel® Insider™ |
Yes |
| Intel® Wireless Display (Intel® WiDi) |
Yes |
| Processor code |
SR2BX |
| Intel® Smart Cache |
Yes |
| Processor ARK ID |
88184 |
| Thermal solution specification |
PCG 2015C |
| Scalability |
1S |
| Supported instruction sets |
SSE4.2, AVX 2.0, SSE4.1 |
| Processor package size |
37.5 x 37.5 mm |
| Intel® Clear Video Technology for Mobile Internet Devices (Intel CVT for MID) |
Yes |
| Intel® OS Guard |
Yes |
| Intel® Secure Key |
Yes |
| Intel® AES New Instructions (Intel® AES-NI) |
Yes |
| Thermal Monitoring Technologies |
Yes |
| Intel® Clear Video HD Technology (Intel® CVT HD) |
Yes |
| Intel® InTru™ 3D Technology |
Yes |
| Intel TSX-NI version |
1.00 |
| Intel Secure Key Technology version |
1.00 |
| Intel Stable Image Platform Program (SIPP) version |
1.00 |
| Intel Identity Protection Technology version |
1.00 |
| Intel Enhanced Halt State |
Yes |
| Intel Clear Video Technology |
Yes |
| Intel Software Guard Extensions (Intel SGX) |
Yes |
| Intel TSX-NI |
Yes |
| Intel Virtualization Technology (VT-x) |
Yes |
| Intel Virtualization Technology for Directed I/O (VT-d) |
Yes |
| CPU configuration (max) |
1 |
| Execute Disable Bit |
Yes |
| Intel Trusted Execution Technology |
Yes |
| Intel Stable Image Platform Program (SIPP) |
Yes |
| Idle States |
Yes |
| Intel VT-x with Extended Page Tables (EPT) |
Yes |
| Embedded options available |
Yes |
| Enhanced Intel SpeedStep Technology |
Yes |
| Intel 64 |
Yes |
| Intel® Turbo Boost Technology |
2.0 |
| Intel® Hyper Threading Technology (Intel® HT Technology) |
No |
| Intel® Quick Sync Video Technology |
Yes |
| Intel® Identity Protection Technology (Intel® IPT) |
Yes |
| Conflict-Free processor |
Yes |
| Power |
|---|
| Power supply |
180 W |
| Power supply input voltage |
100 - 240 V |
| Power supply input frequency |
50 - 60 Hz |
| Operational conditions |
|---|
| Operating temperature (T-T) |
5 - 35 °C |
| Storage temperature (T-T) |
-40 - 65 °C |
| Operating relative humidity (H-H) |
20 - 80% |
| Storage relative humidity (H-H) |
5 - 95% |
| Operating altitude |
-15.2 - 3048 m |
| Non-operating altitude |
-15.2 - 10668 m |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Certification |
CECP, WEEE |
| Sustainability |
|---|
| Sustainability certificates |
ENERGY STAR |
| Weight & dimensions |
|---|
| Width |
92.6 mm |
| Depth |
292 mm |
| Height |
290 mm |
| Weight |
4.48 kg |
| Packaging content |
|---|
| Display included |
No |
| Cables included |
AC |
| Manual |
Yes |
| General |
|---|
| Product series |
3000 |
| Product family |
OptiPlex |
| Other features |
|---|
| Optical drives quantity |
1 |
| Dell E-Value Code |
S015H2O3040SFF |
