- AMD Socket AM5 AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series
- PC ATX AMD X870E 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD SATA III, M.2 RAID support Number of storage drives supported: 9
- BIOS type: UEFI AMI 64 Mbit Clear CMOS button
- 5 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth

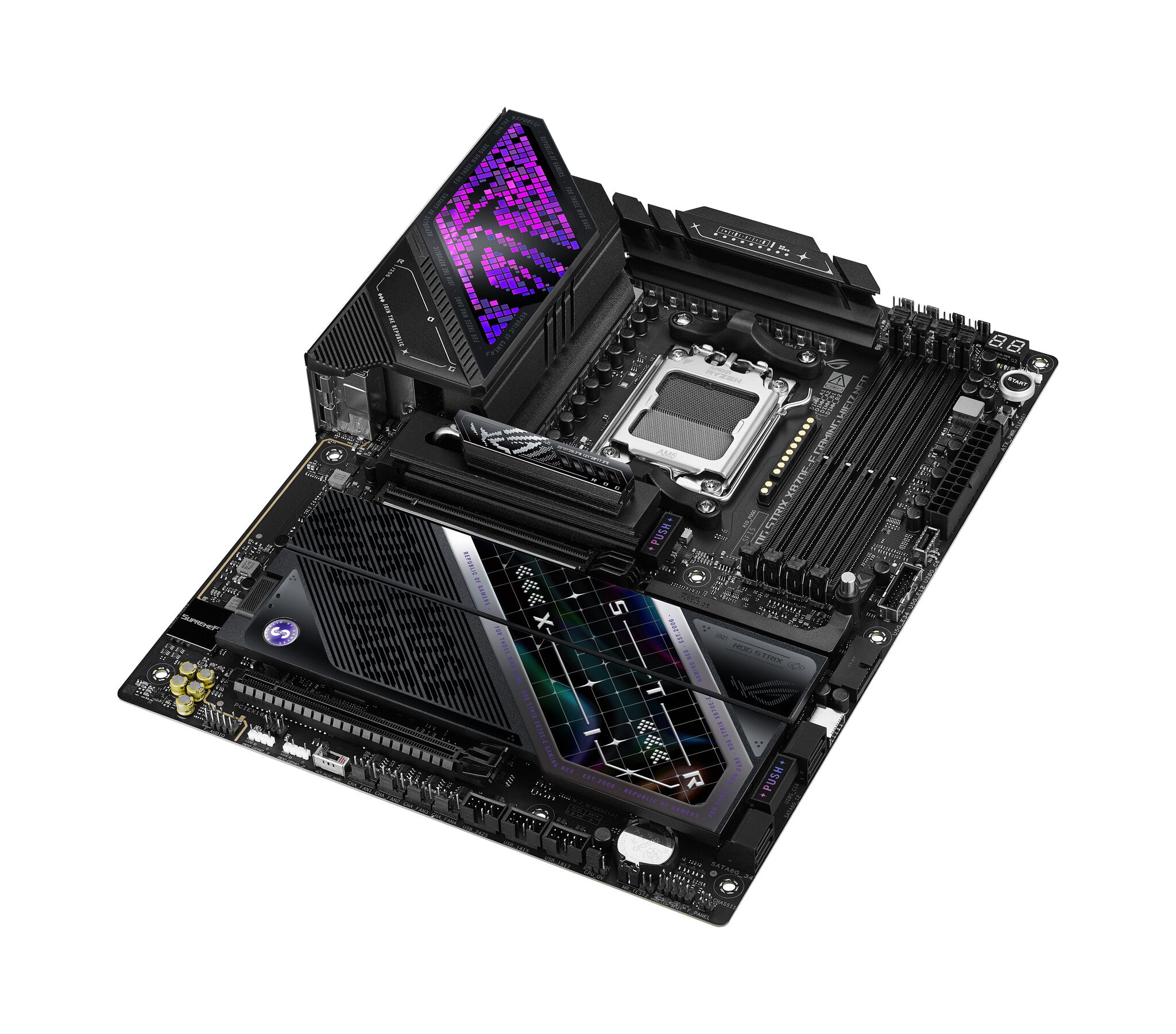

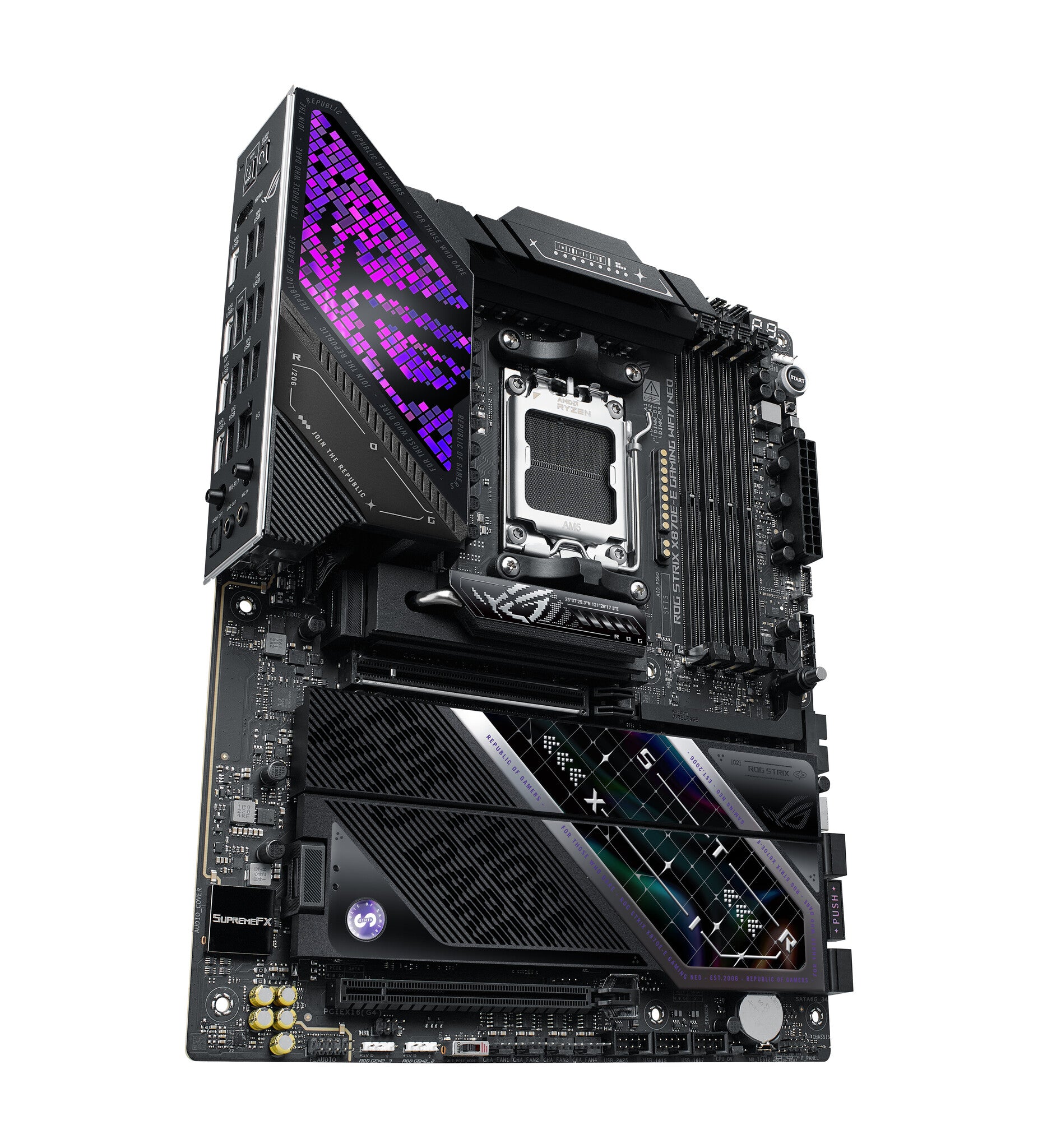

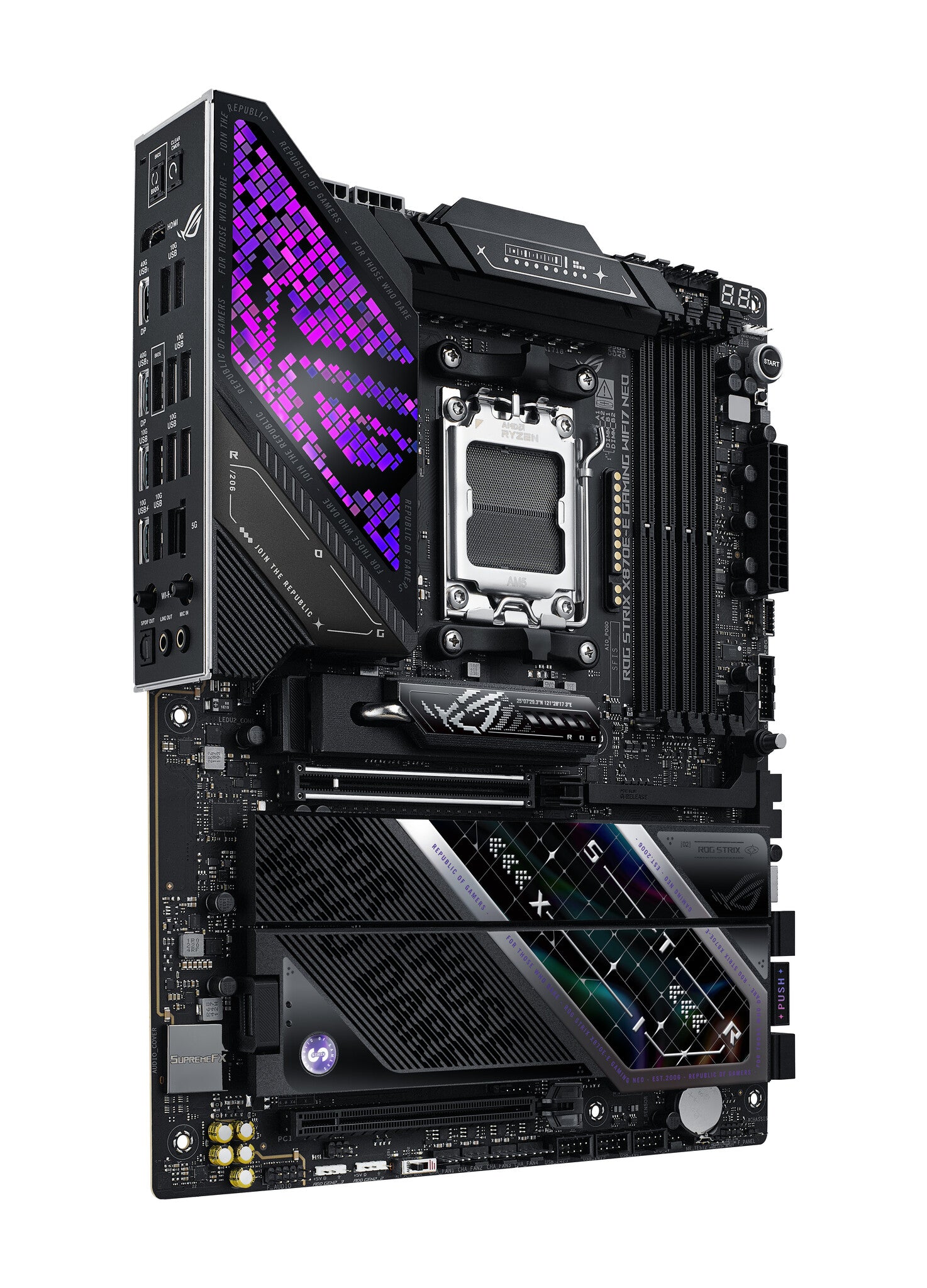

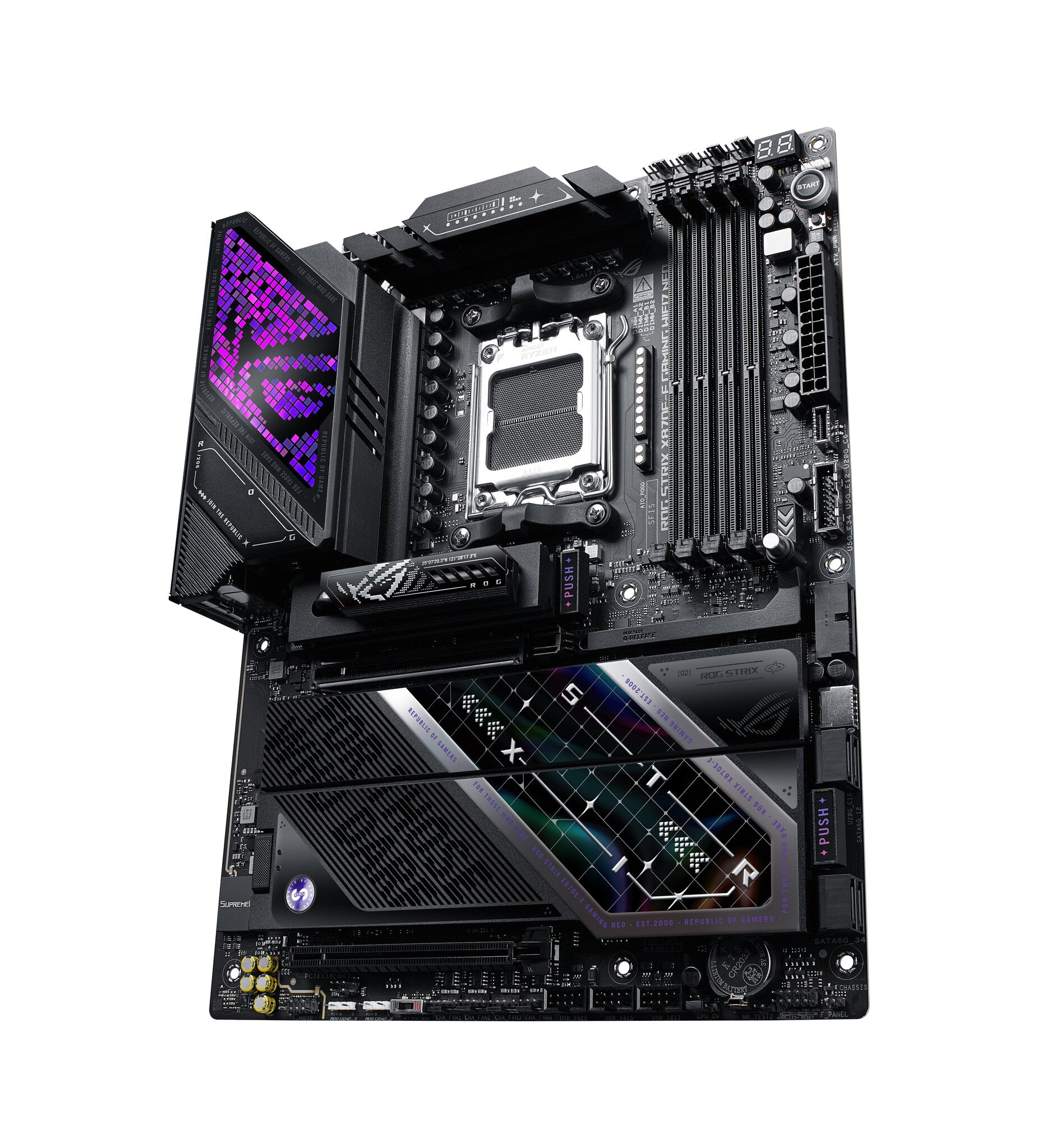

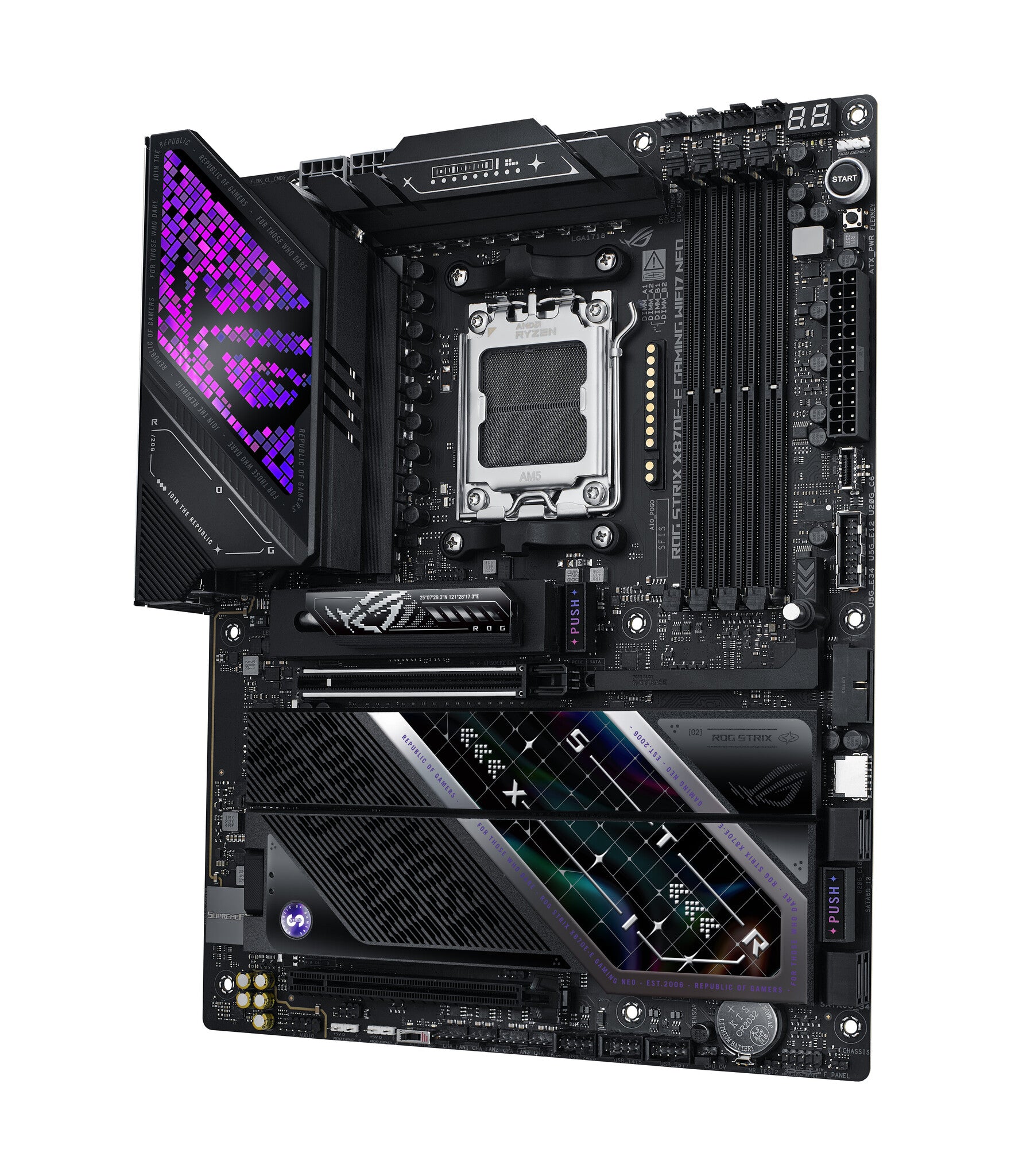

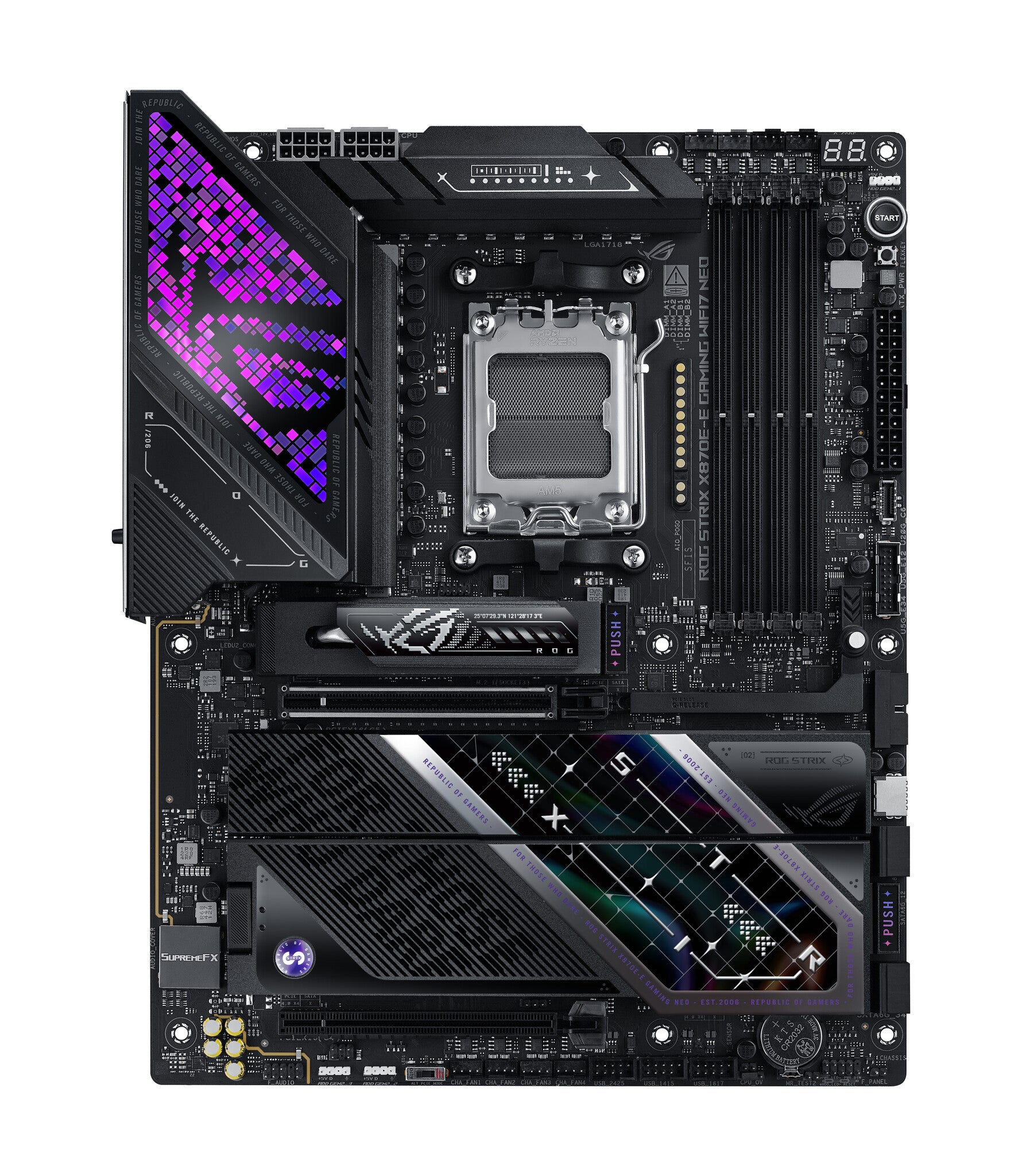

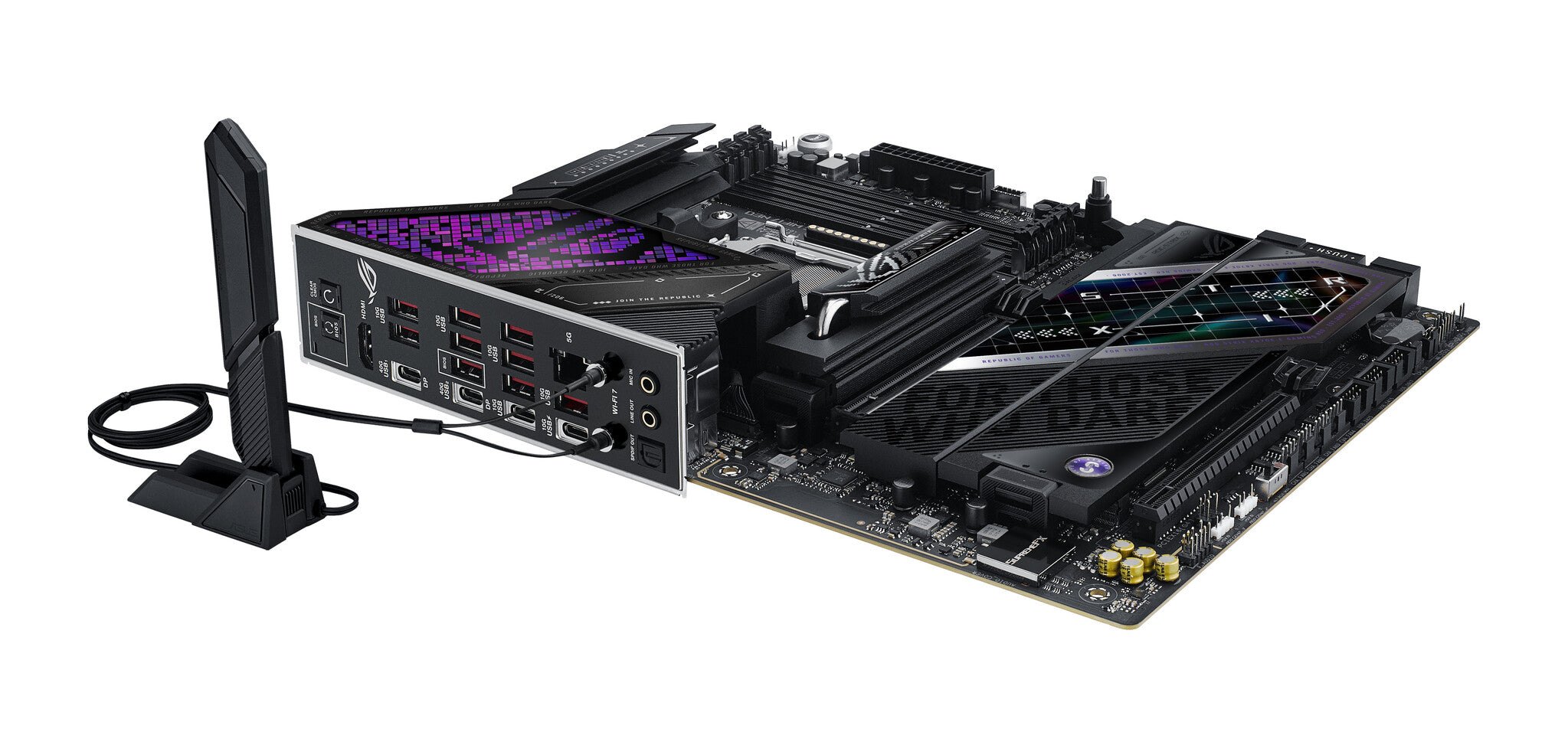

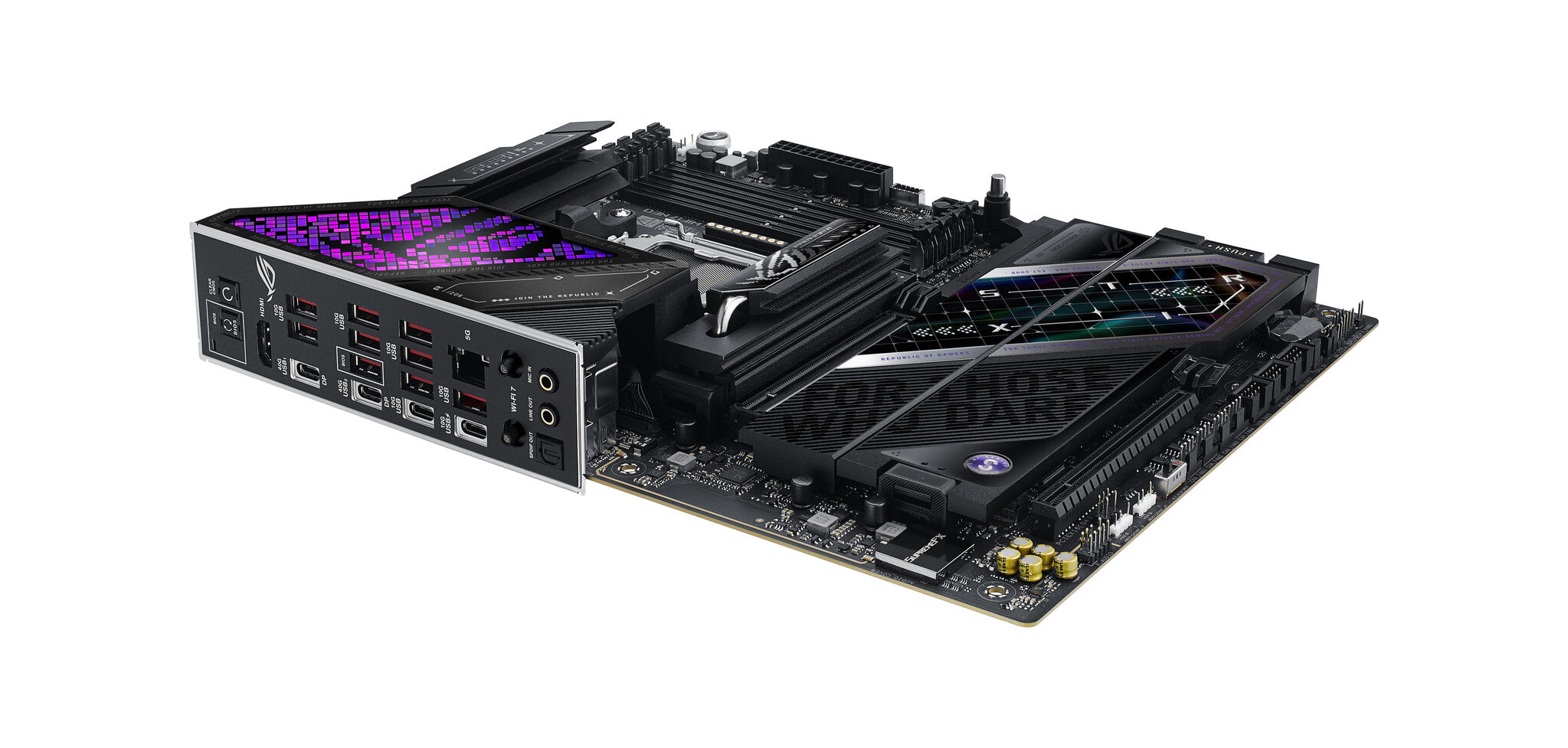

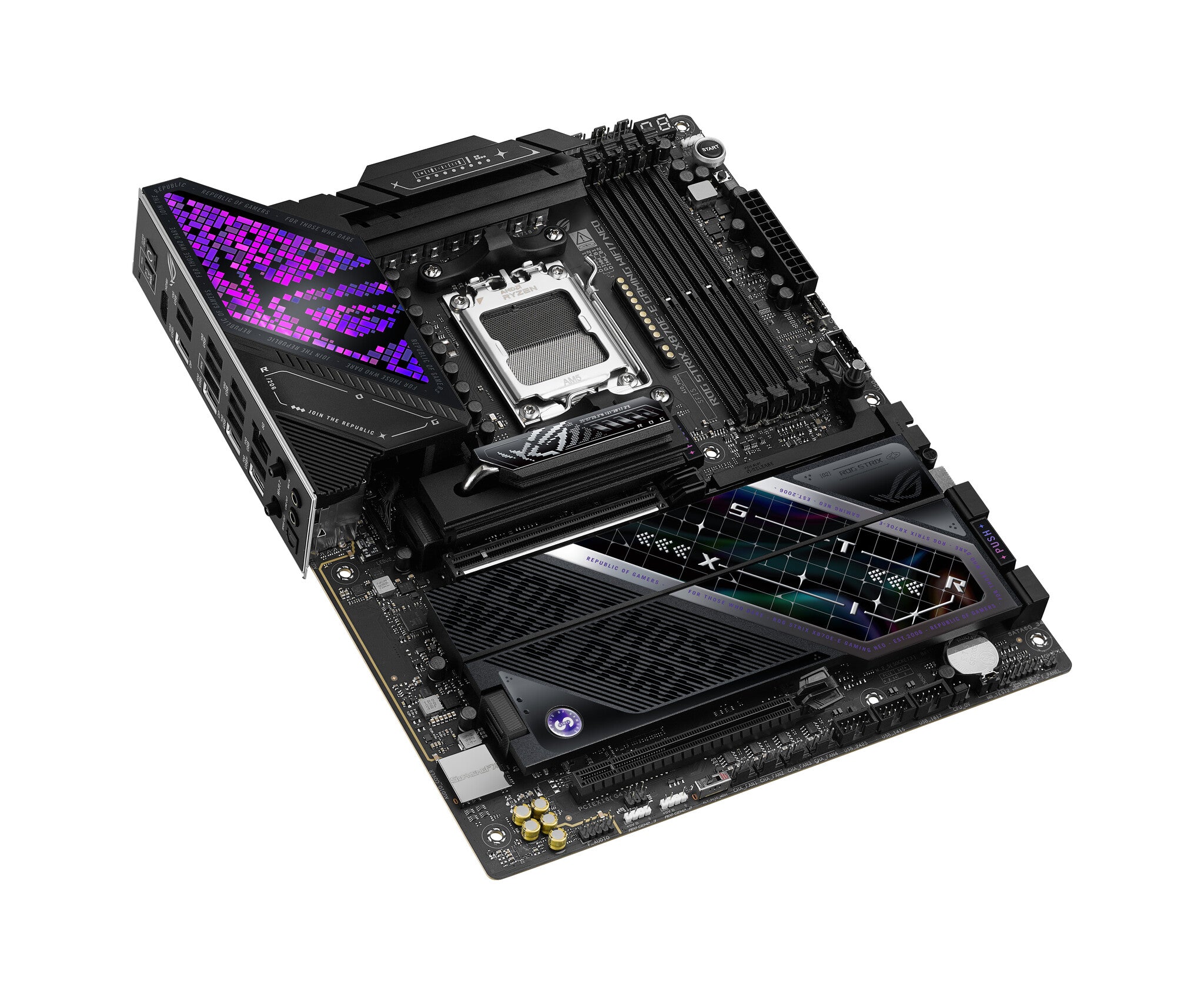

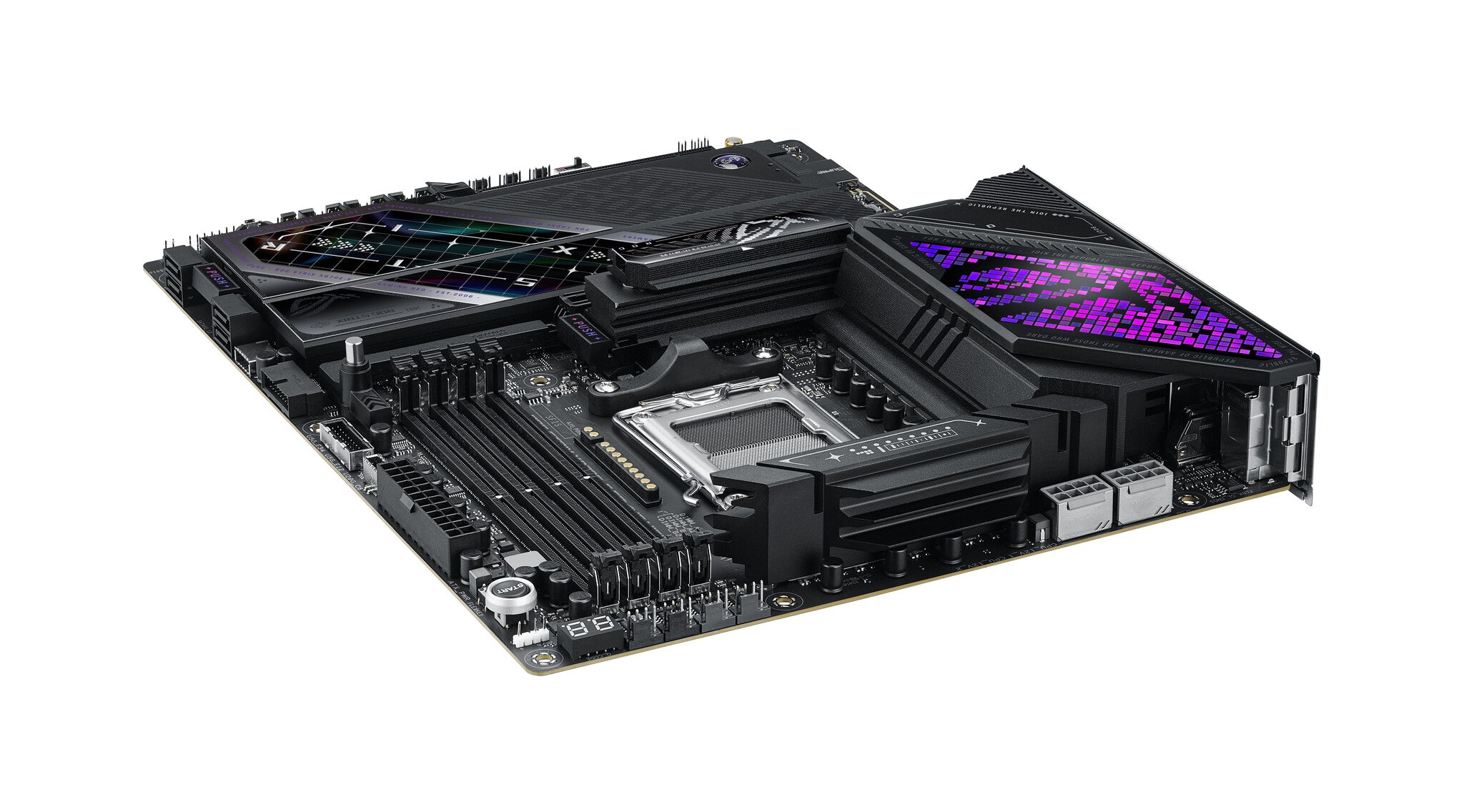

ROG Strix X870E-E Gaming WiFi7 Neo
The ROG Strix X870E-E Gaming WiFi7 Neo is designed to unleash the power of AMD Ryzen™ 9000 Series processors. Enhancements such as PCIe® lane optimization deliver higher speeds to five M.2 slots, all of which feature Q-Release for EZ DIY installation, just like the PCIe 5.0 x16 slot. AI Cache Boost optimizes CPU cache and memory pathways to accelerate AI workloads, while NitroPath DRAM Technology and a server-grade low-etch PCB enhance signal integrity for more stable DDR5 tuning and greater overclocking headroom. A spacious 64MB BIOS chip delivers broad AM5 CPU compatibility, and the redesigned BIOS interface offers a smoother user experience.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 9000 Series, AMD Ryzen 8000 Series, AMD Ryzen 7000 Series |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
256 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
SATA III, M.2 |
| Number of storage drives supported |
9 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| Internal I/O |
|---|
| USB 2.0 connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2x2 connectors |
2 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
5 |
| Chassis intrusion connector |
Yes |
| EPS power connector (8-pin) |
Yes |
| 12V power connector |
Yes |
| RGB LED pin header |
Yes |

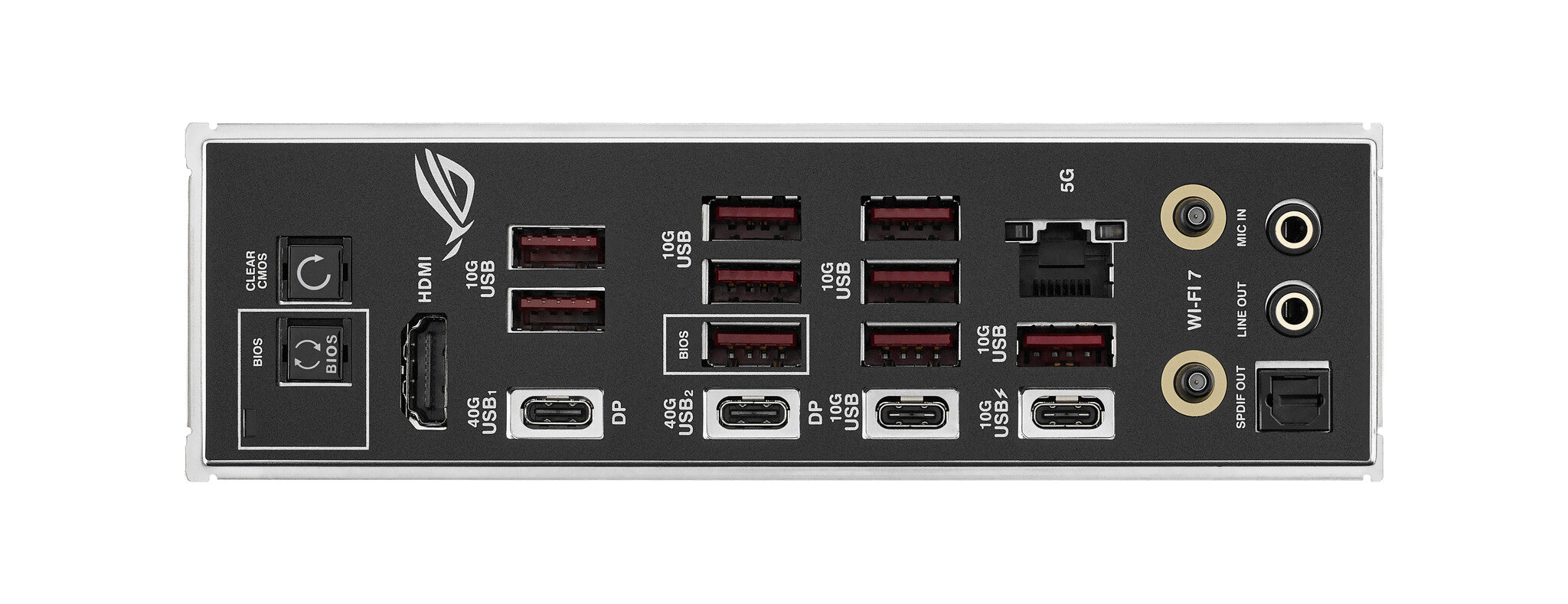

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
9 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
2 |
| USB4 Gen 3x2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
1 |
| HDMI ports quantity |
1 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
5 Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
MediaTek MT7927 |
| Bluetooth |
Yes |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Audio output channels |
7.1 channels |
| Product colour |
Black |
| Windows operating systems supported |
Windows 11 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots |
1 |
| PCI Express x16 (Gen 5.x) slots |
1 |
| Number of M.2 (M) slots |
5 |
| 1st M.2 largest key size |
2280 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| 4th M.2 largest key size |
2280 |
| 4th M.2 highest PCI Express generation |
4.0 |
| 5th M.2 largest key size |
2280 |
| 5th M.2 highest PCI Express generation |
4.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
64 Mbit |
| Clear CMOS button |
Yes |
| Packaging data |
|---|
| Package width |
353 mm |
| Package depth |
273 mm |
| Package height |
68 mm |
| Package weight |
2.7 kg |
| Weight & dimensions |
|---|
| Width |
305 mm |
| Depth |
244 mm |
| Packaging content |
|---|
| Screws included |
Yes |
| Antenna included |
Yes |
| Cables included |
SATA |
| Other features |
|---|
| Weight |
1.9 kg |
