- AMD Socket AM5 AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series
- PC Extended ATX AMD X870E Realtek ALC4082 7.1 channels
- DDR5-SDRAM 4 DIMM Maximum internal memory: 256 GB
- HDD & SSD M.2, SATA III RAID support Number of storage drives supported: 11
- BIOS type: UEFI AMI 1024 Mbit
- 10 Gigabit Ethernet Wi-Fi Wi-Fi 7 (802.11be) Bluetooth 5.4

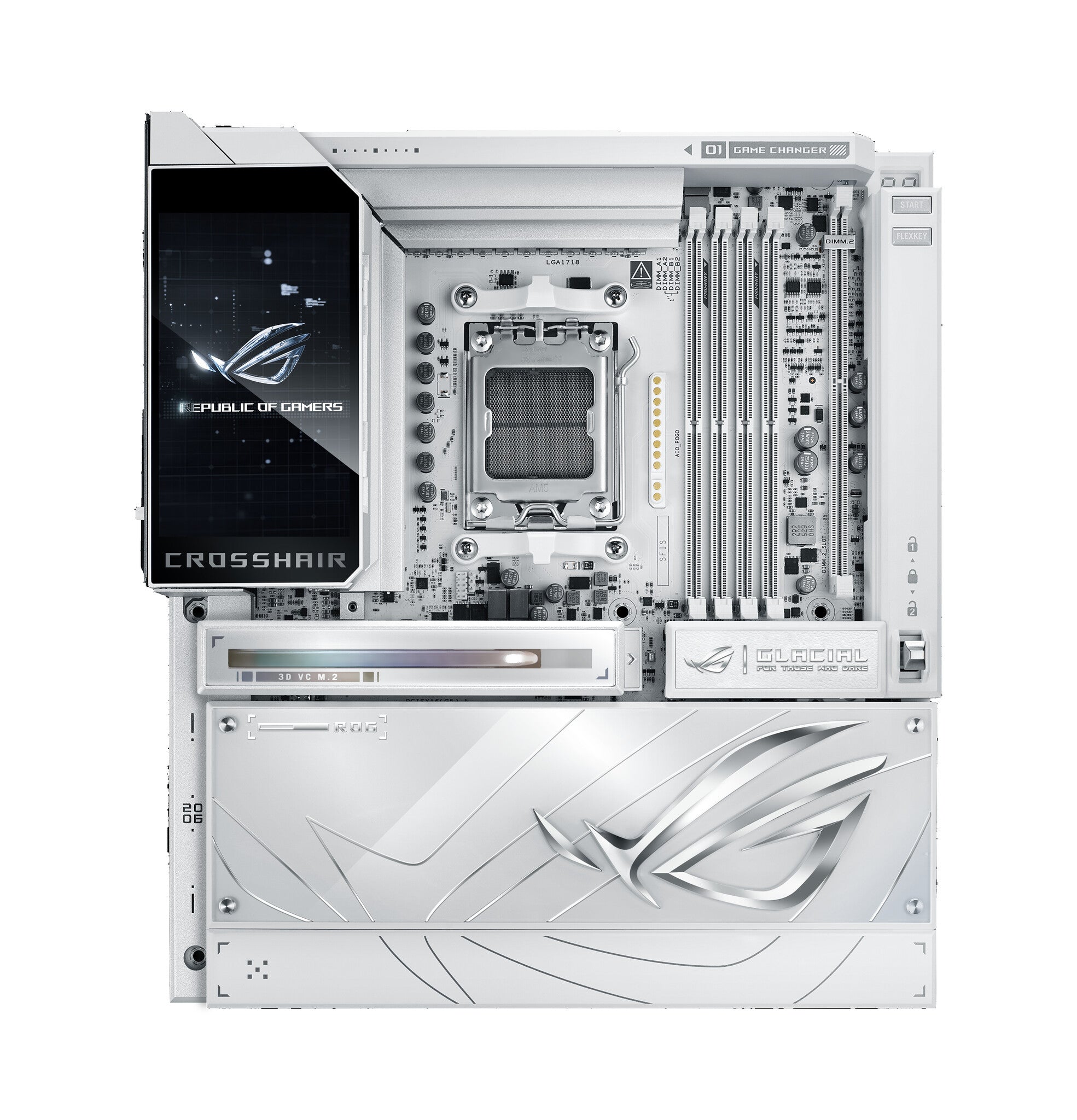

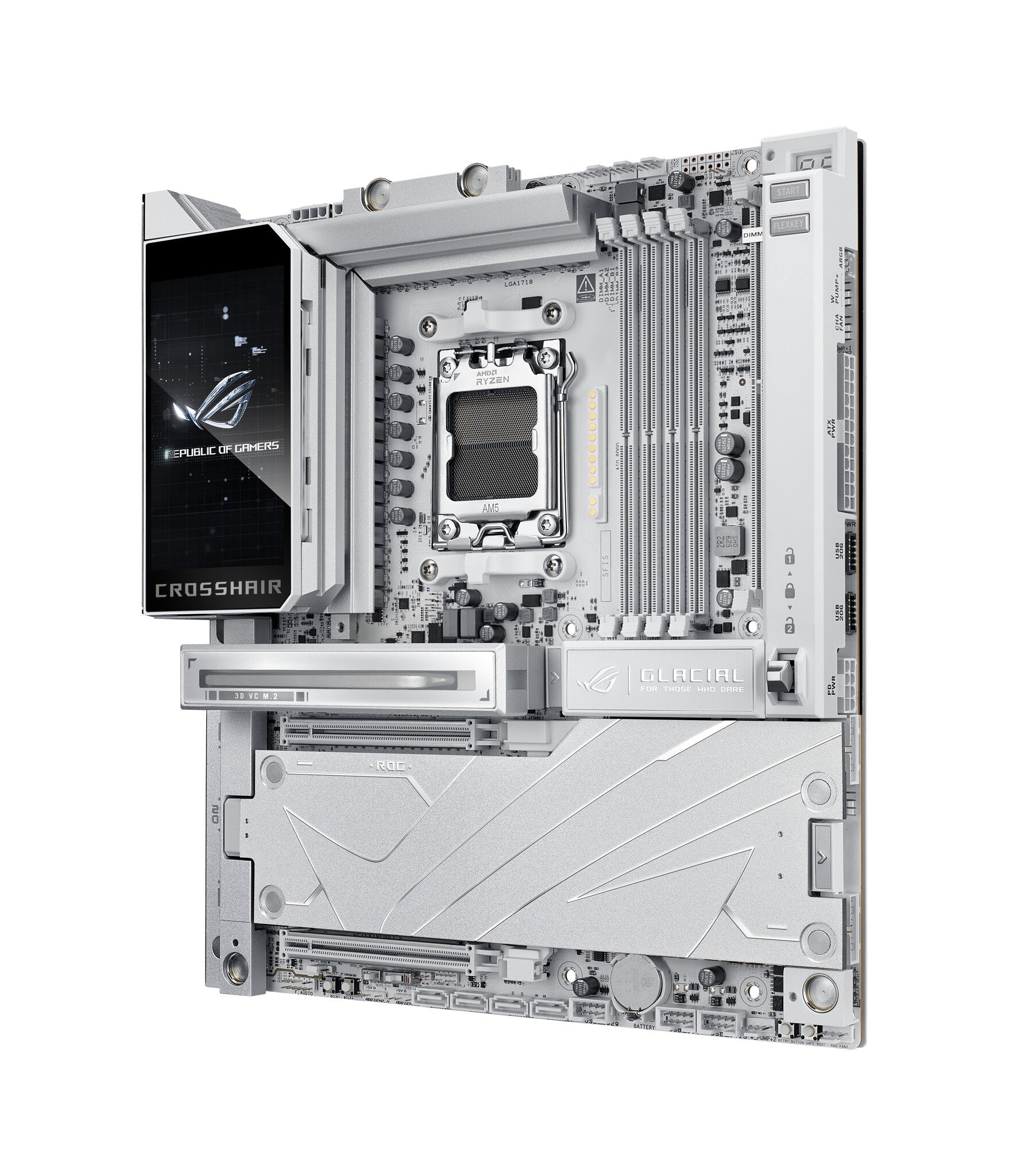

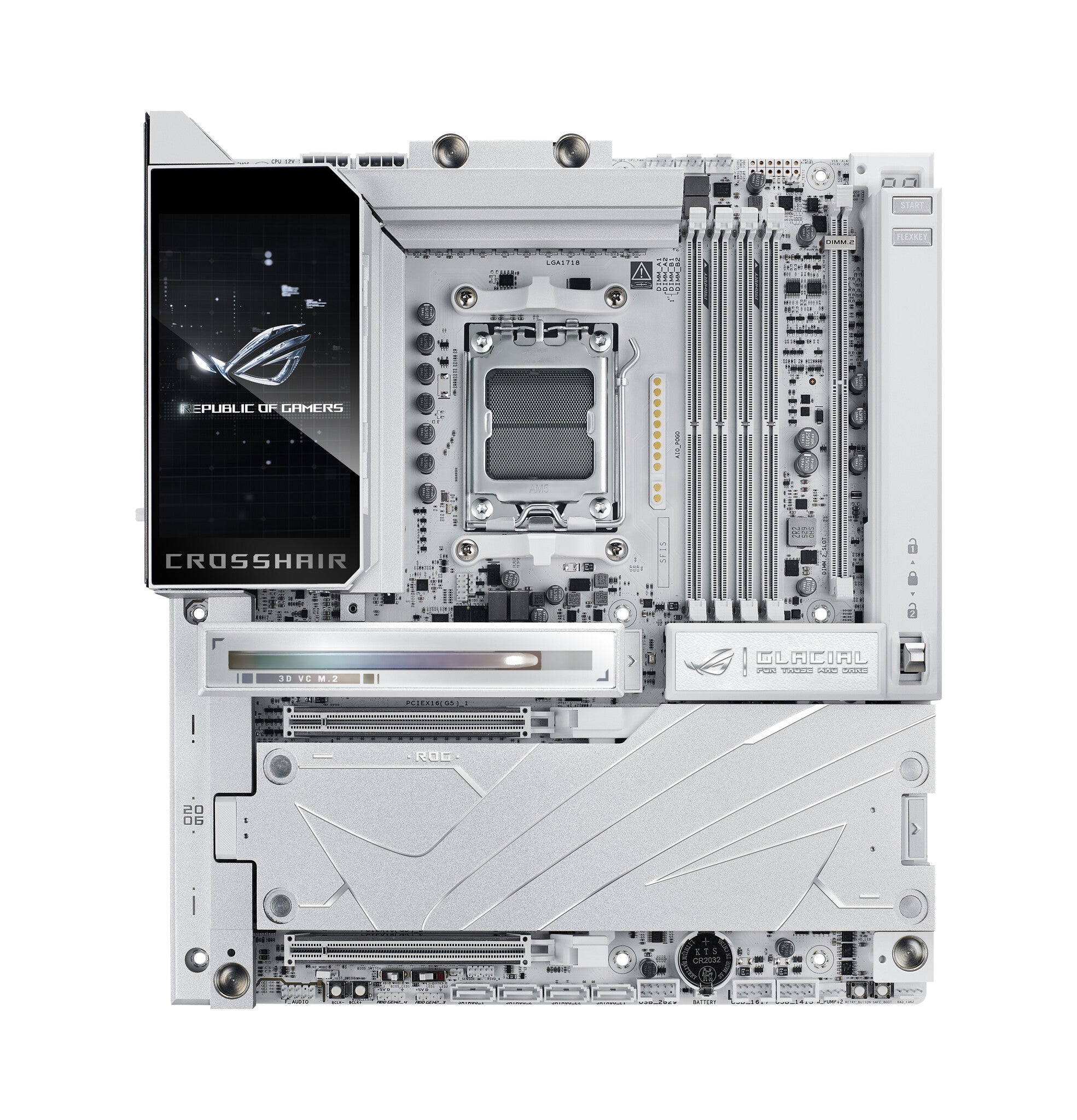

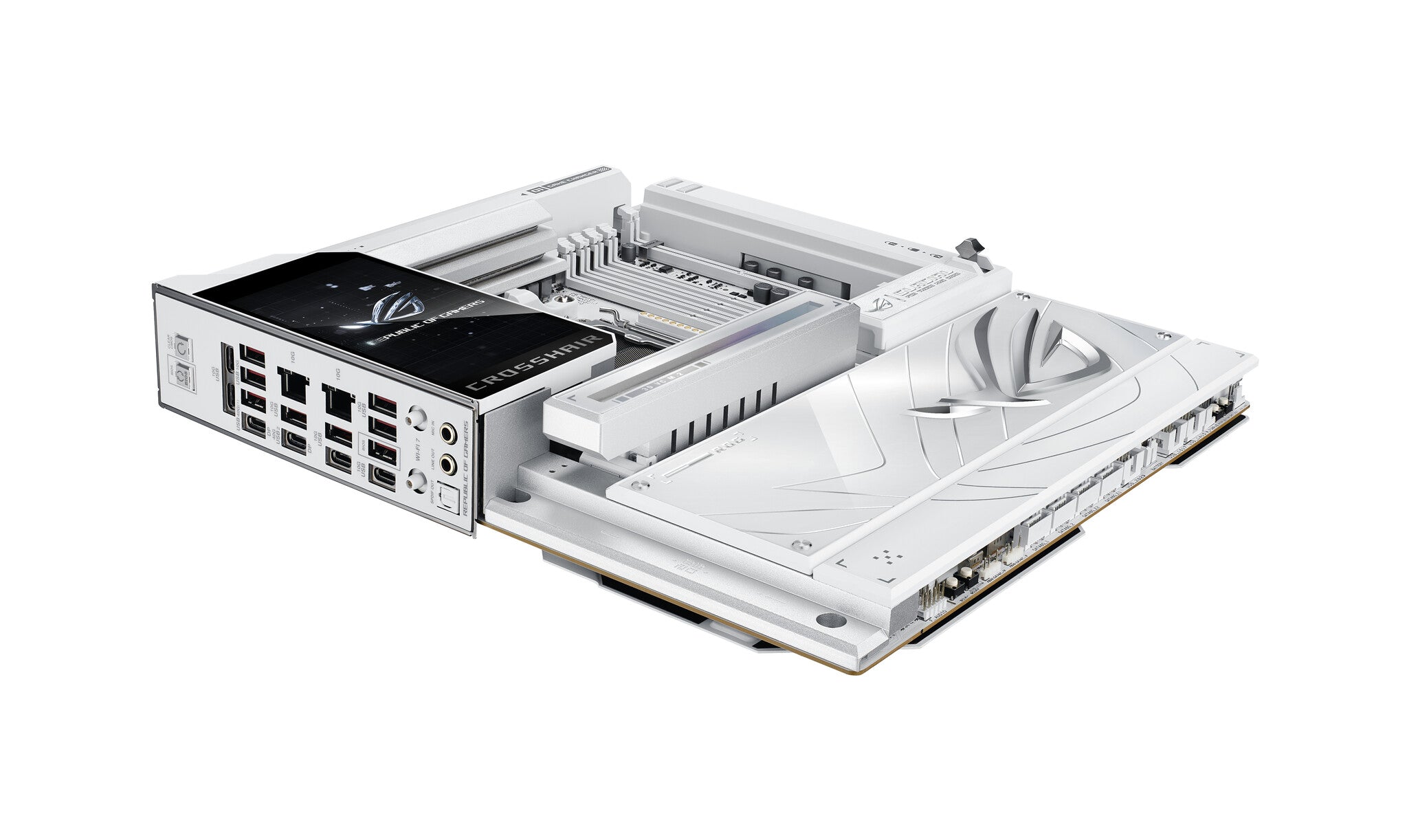

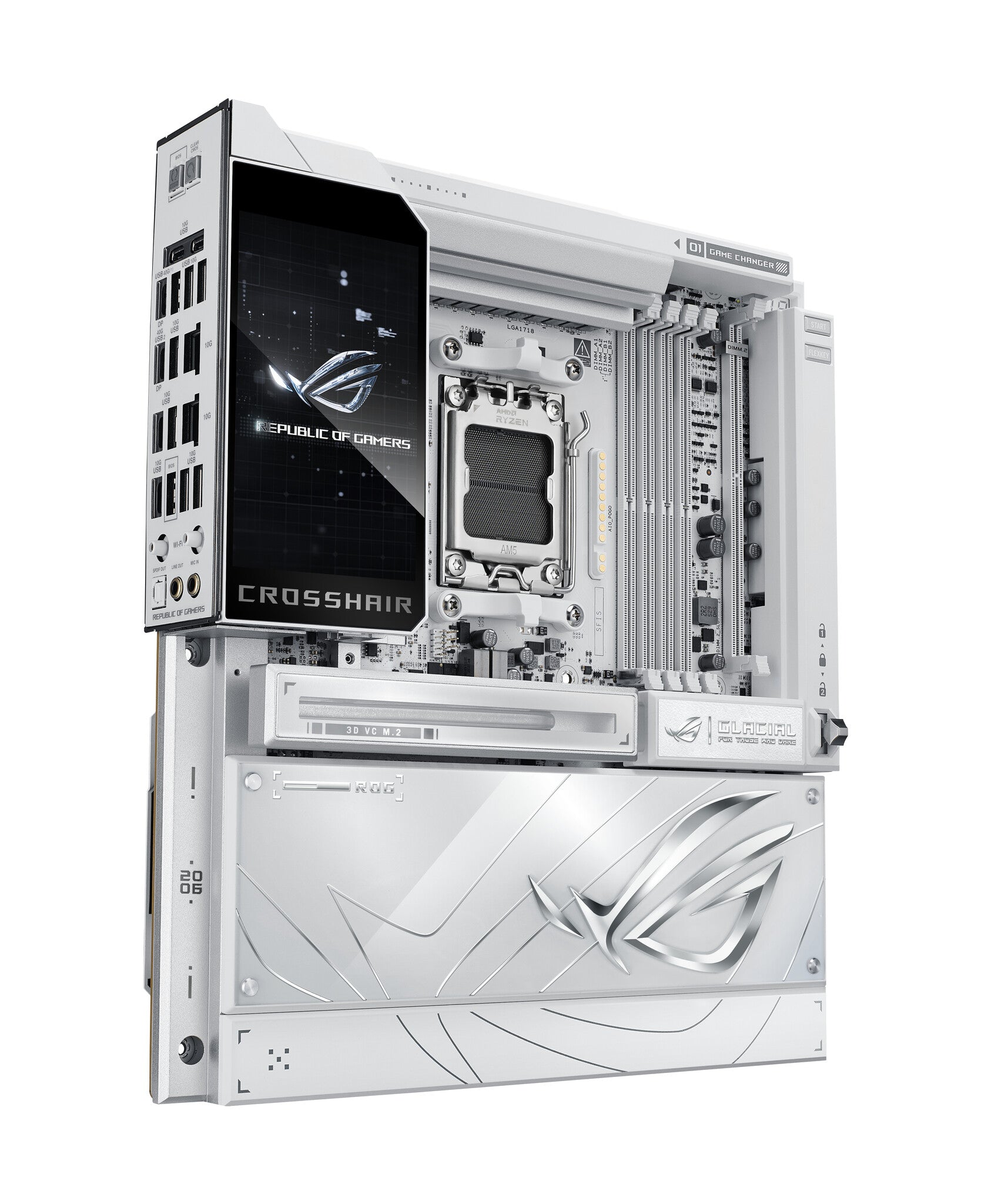

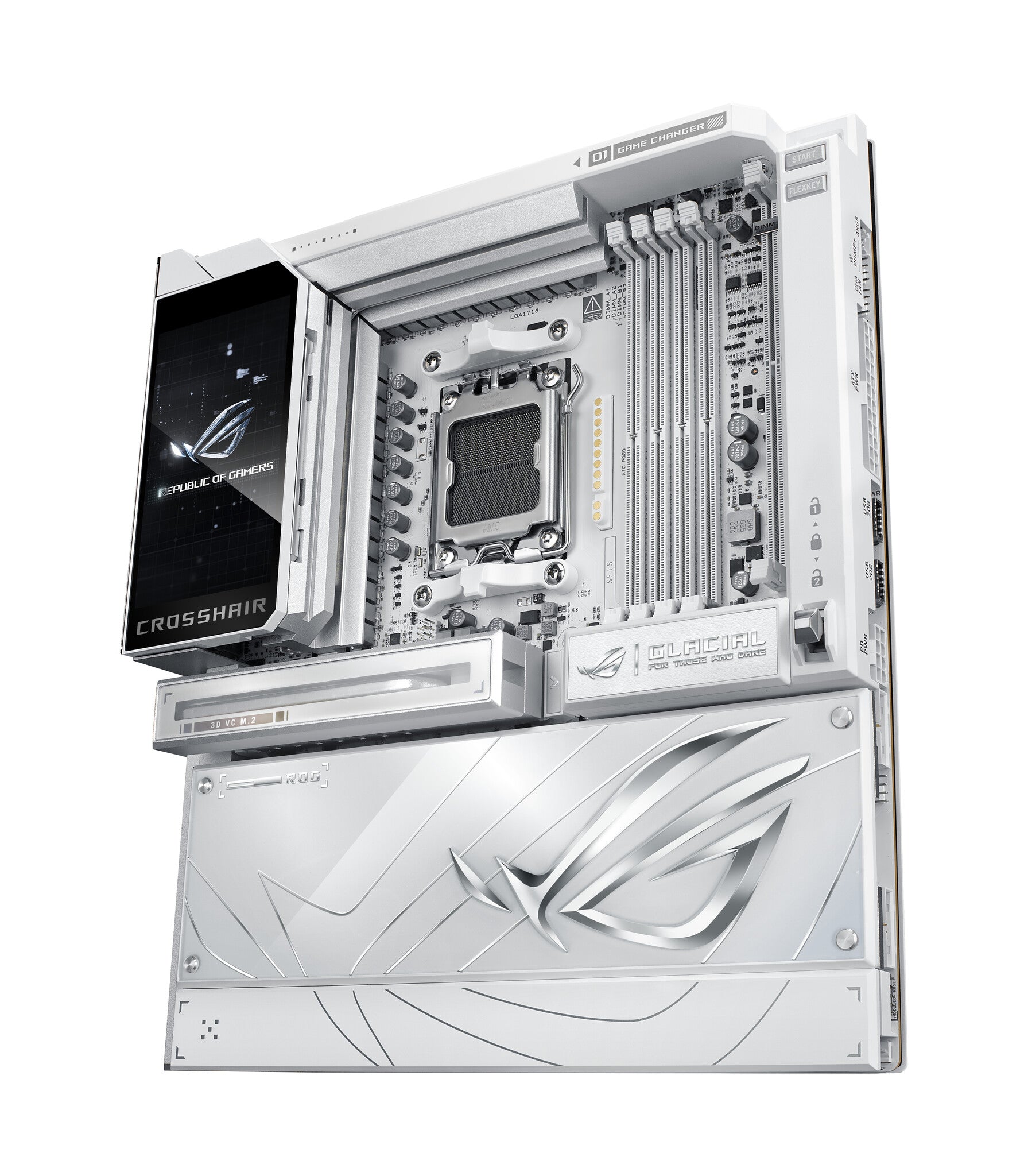

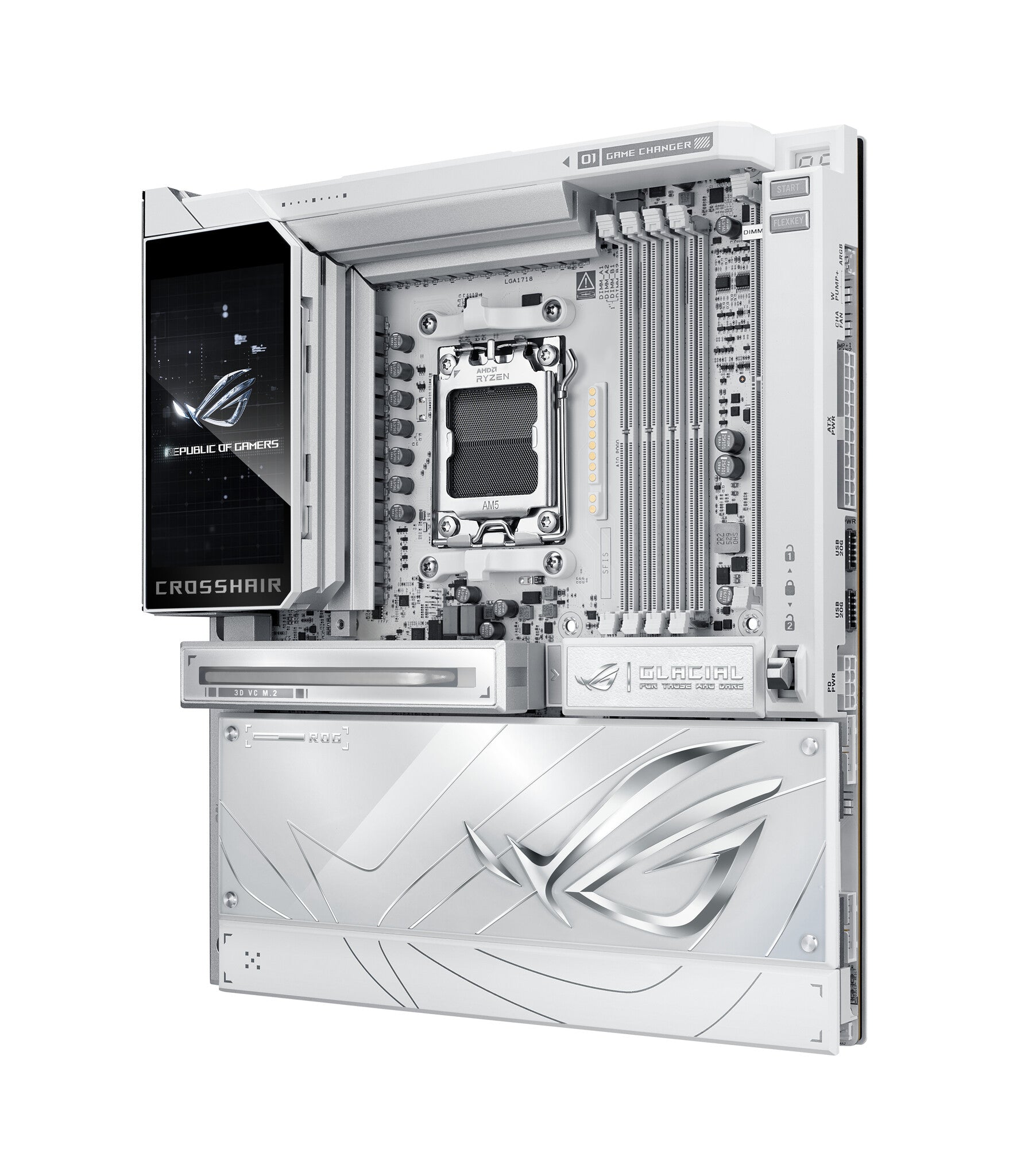

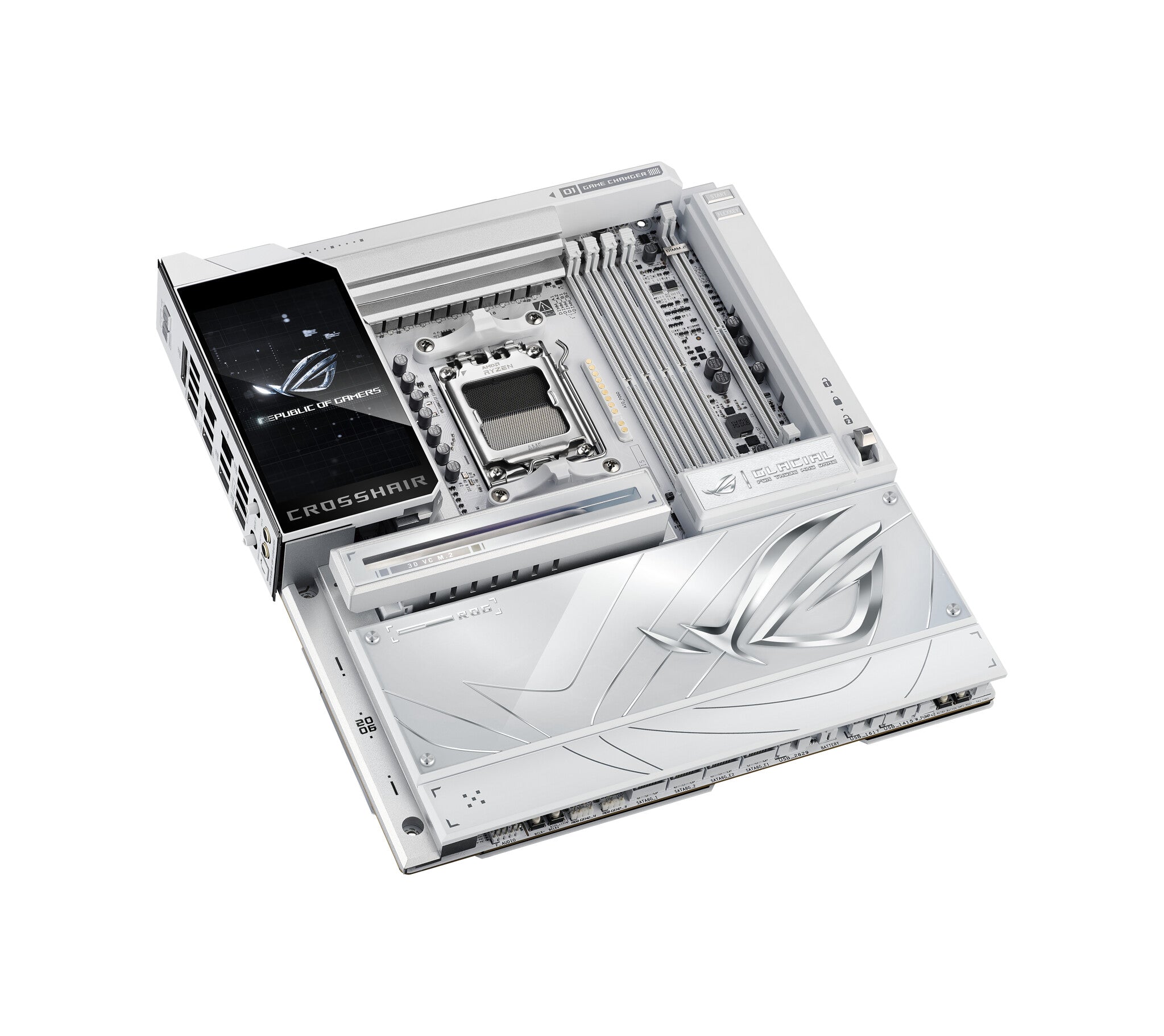

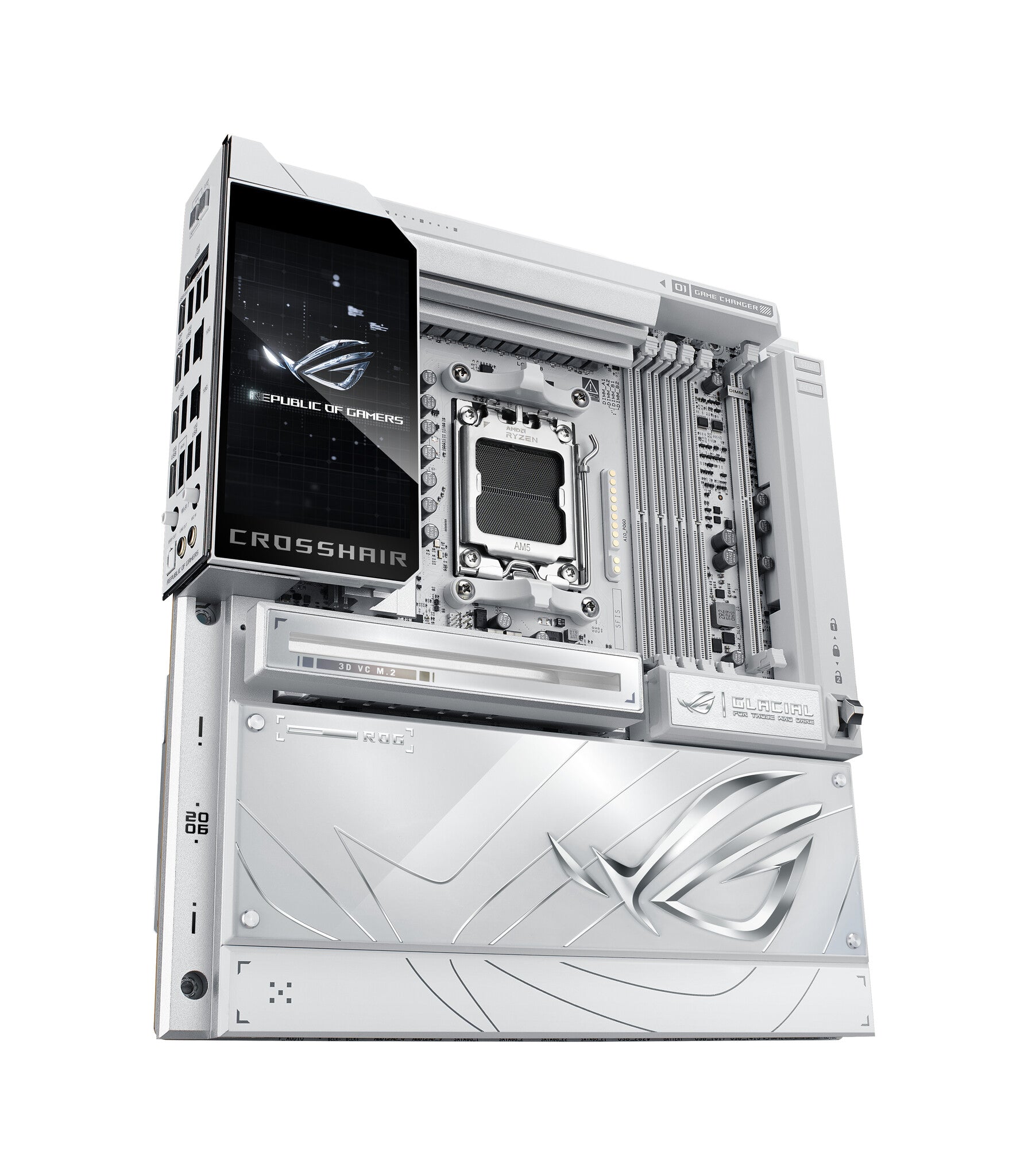

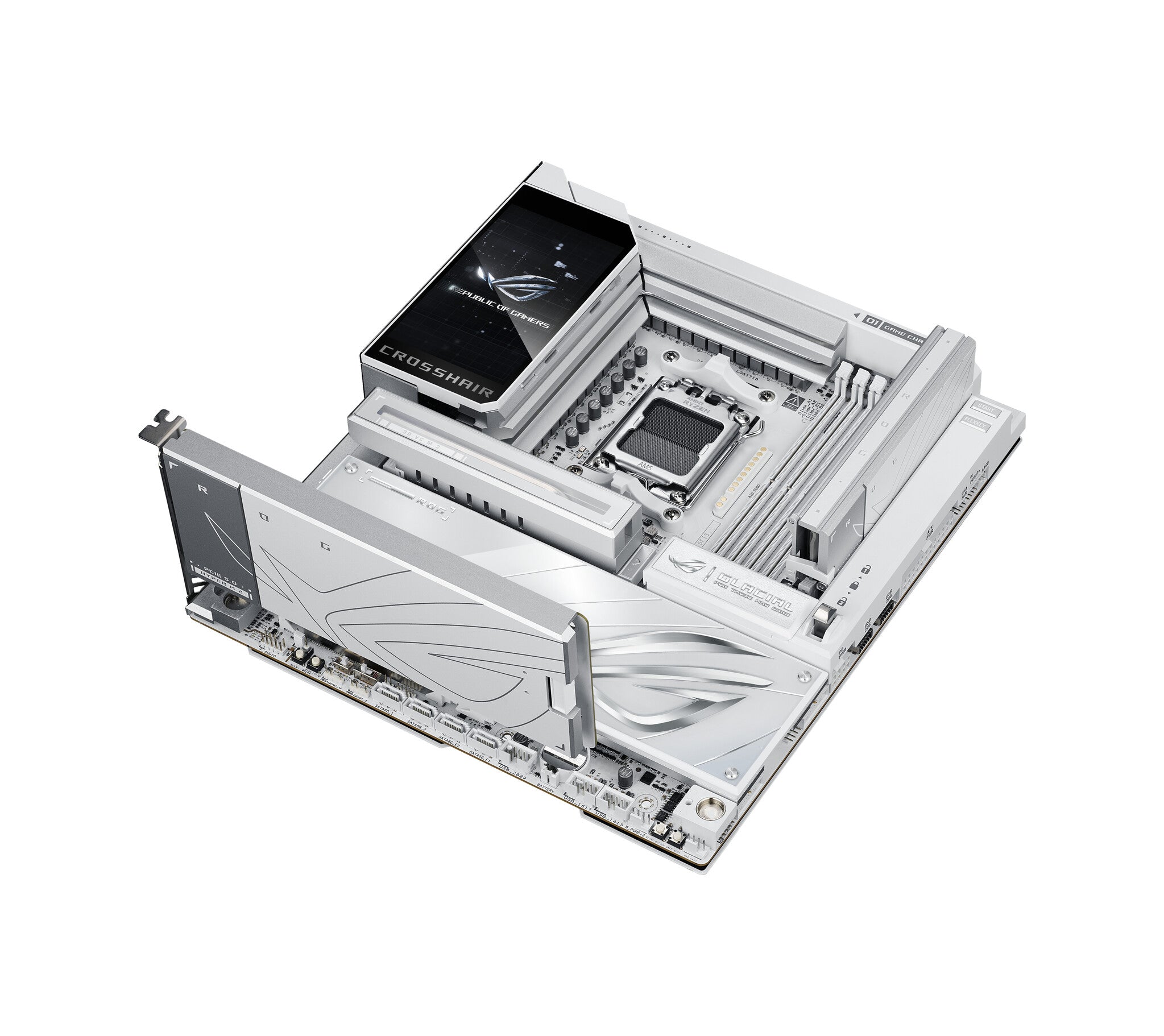

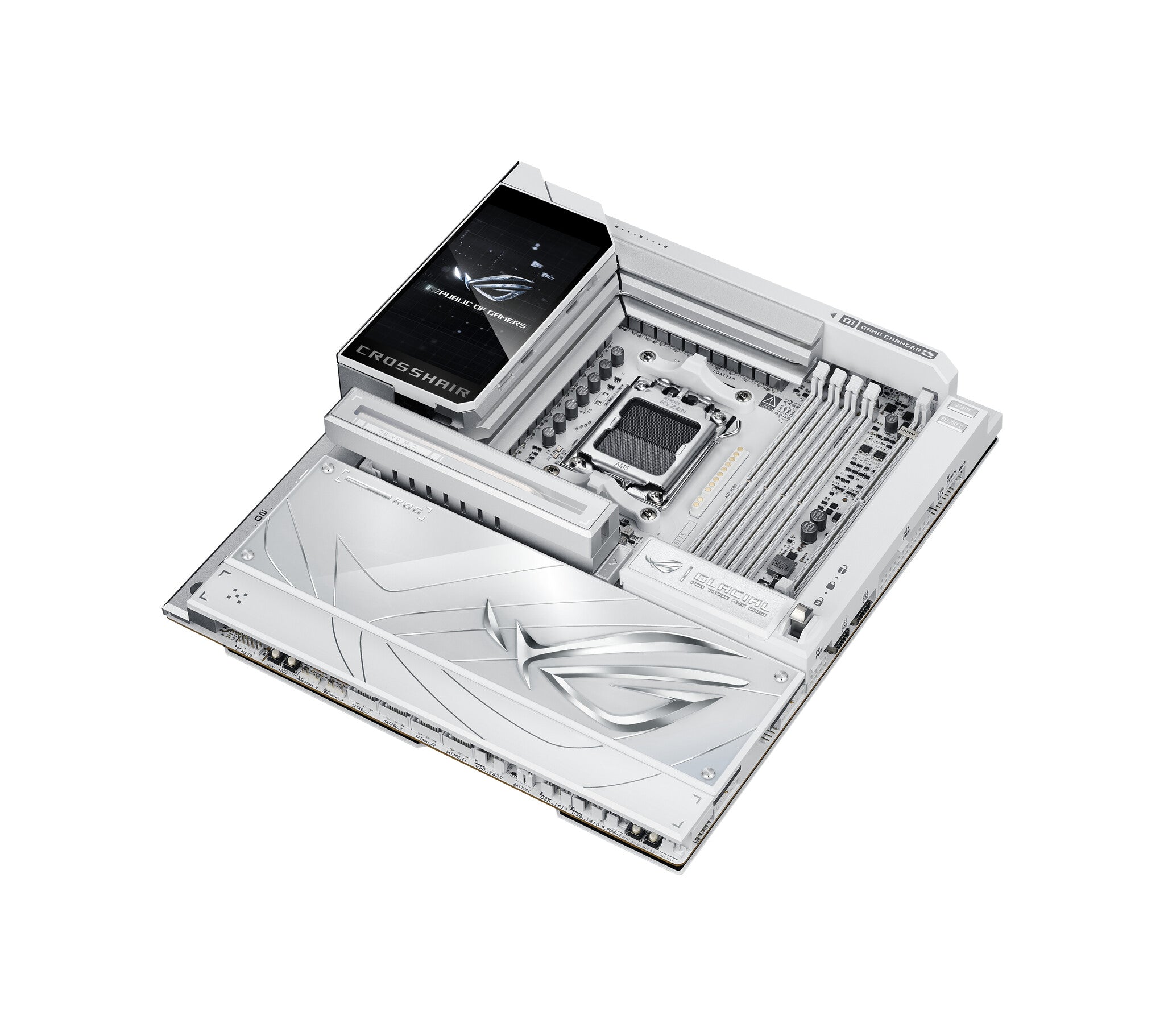

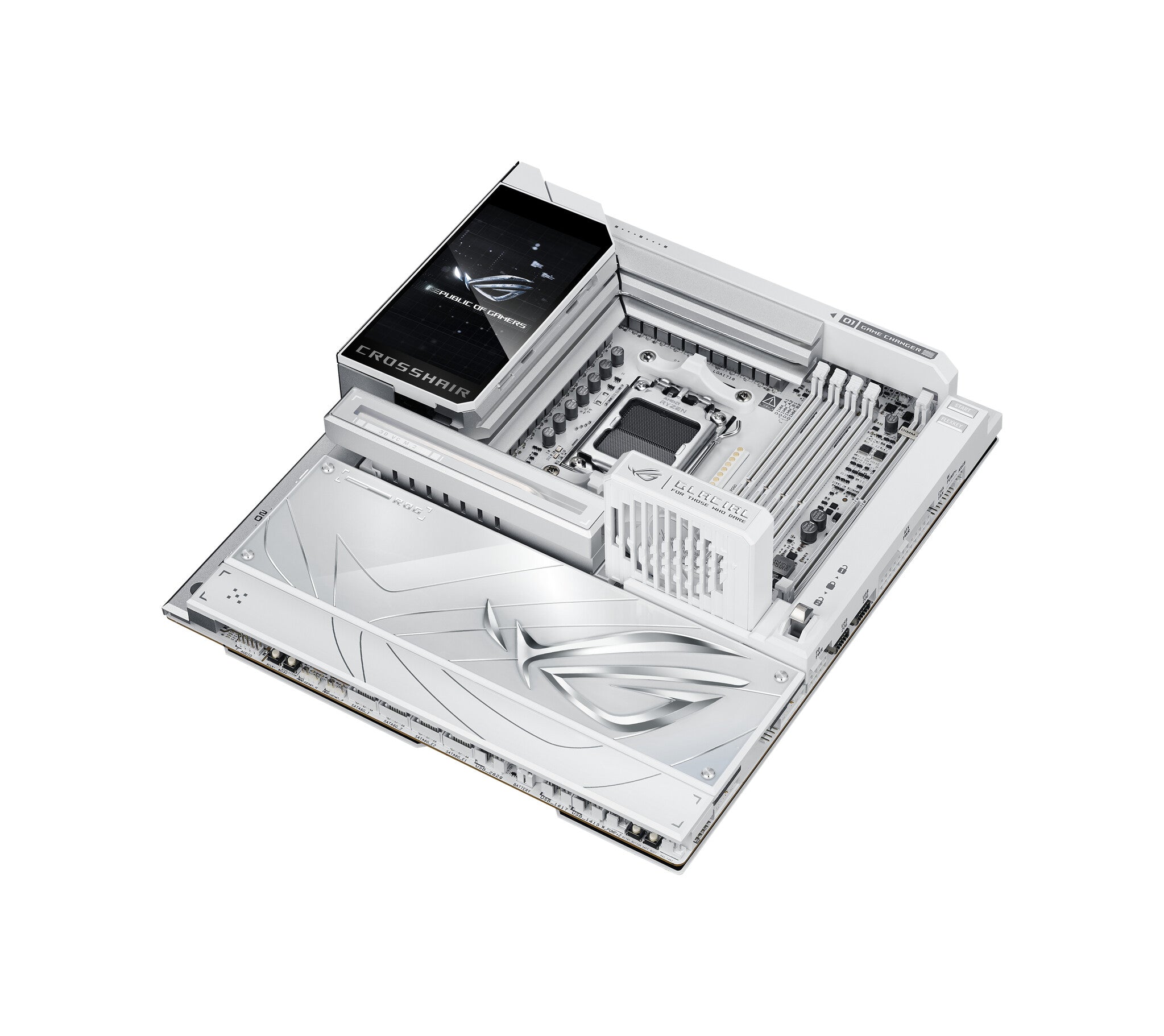

The ROG X870E Glacial is a flagship motherboard engineered for uncompromising performance and sophisticated AI. It boasts a robust 24+2+2 power stage design, Dynamic OC Switcher, and Core Flex for next-generation overclocking control. Meanwhile, advanced memory tuning is unlocked through server-grade DRAM enhancement and NitroPath DRAM technology, and storage scales with support for up to seven M.2 drives. Top-tier connectivity includes two 10G Ethernet ports, two USB4® ports, and two USB 20Gbps Type-C® front-panel connectors. This motherboard also features a 3D VC M.2 heatsink and a 5-inch LCD display, along with AI Cache Boost and AI Advisor for smarter, more intuitive system tuning.
| Processor |
|---|
| Processor manufacturer |
AMD |
| Processor socket |
Socket AM5 |
| Compatible processor series |
AMD Ryzen 7000 Series, AMD Ryzen 8000 Series, AMD Ryzen 9000 Series |
| Supported processor sockets |
Socket AM5 |
| Memory |
|---|
| Supported memory types |
DDR5-SDRAM |
| Number of memory slots |
4 |
| Memory slots type |
DIMM |
| Memory channels |
Dual-channel |
| ECC сompatibility |
ECC & Non-ECC |
| Maximum internal memory |
256 GB |
| Unbuffered memory |
Yes |
| Storage controllers |
|---|
| Supported storage drive types |
HDD & SSD |
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
11 |
| Number of HDDs supported |
4 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| Parallel processing technology support |
Not supported |
| On-board graphics card |
No |
| Internal I/O |
|---|
| USB 2.0 connectors |
3 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
2 |
| USB 3.2 Gen 2x2 connectors |
2 |
| Number of SATA III connectors |
4 |
| Front panel audio connector |
Yes |
| Front panel connector |
Yes |
| ATX Power connector (24-pin) |
Yes |
| CPU fan connector |
Yes |
| Number of chassis fan connectors |
2 |
| EPS power connector (8-pin) |
Yes |
| Number of temperature sensor headers |
1 |
| 12V power connector |
Yes |
| RGB LED pin header |
Yes |
| Rear panel I/O ports |
|---|
| USB 3.2 Gen 2 (3.1 Gen 2) Type-A ports quantity |
8 |
| USB 3.2 Gen 2 (3.1 Gen 2) Type-C ports quantity |
4 |
| USB4 Gen 3x2 ports quantity |
2 |
| Ethernet LAN (RJ-45) ports |
2 |
| Microphone in |
Yes |
| S/PDIF out port |
Yes |
| WiFi-AP antenna jack |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
10 Gigabit Ethernet |
| Wi-Fi |
Yes |
| Top Wi-Fi standard |
Wi-Fi 7 (802.11be) |
| Wi-Fi standards |
Wi-Fi 7 (802.11be) |
| WLAN controller model |
MediaTek MT7927 |
| Bluetooth |
Yes |
| Bluetooth version |
5.4 |
| Features |
|---|
| Component for |
PC |
| Motherboard form factor |
Extended ATX |
| Motherboard chipset family |
AMD |
| Motherboard chipset |
AMD X870E |
| Audio chip |
Realtek ALC4082 |
| Audio output channels |
7.1 channels |
| Product colour |
White |
| Windows operating systems supported |
Windows 11 |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots |
2 |
| PCI Express x16 (Gen 5.x) slots |
2 |
| Number of M.2 (M) slots |
7 |
| 1st M.2 largest key size |
22110 |
| 1st M.2 highest PCI Express generation |
5.0 |
| 2nd M.2 largest key size |
2280 |
| 2nd M.2 highest PCI Express generation |
5.0 |
| 3rd M.2 largest key size |
2280 |
| 3rd M.2 highest PCI Express generation |
4.0 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
1024 Mbit |
| Packaging data |
|---|
| Package width |
380 mm |
| Package depth |
320 mm |
| Package height |
125 mm |
| Package weight |
6.66 kg |
| Weight & dimensions |
|---|
| Width |
305 mm |
| Depth |
277 mm |
| Packaging content |
|---|
| Antenna included |
Yes |
| Cables included |
SATA |
