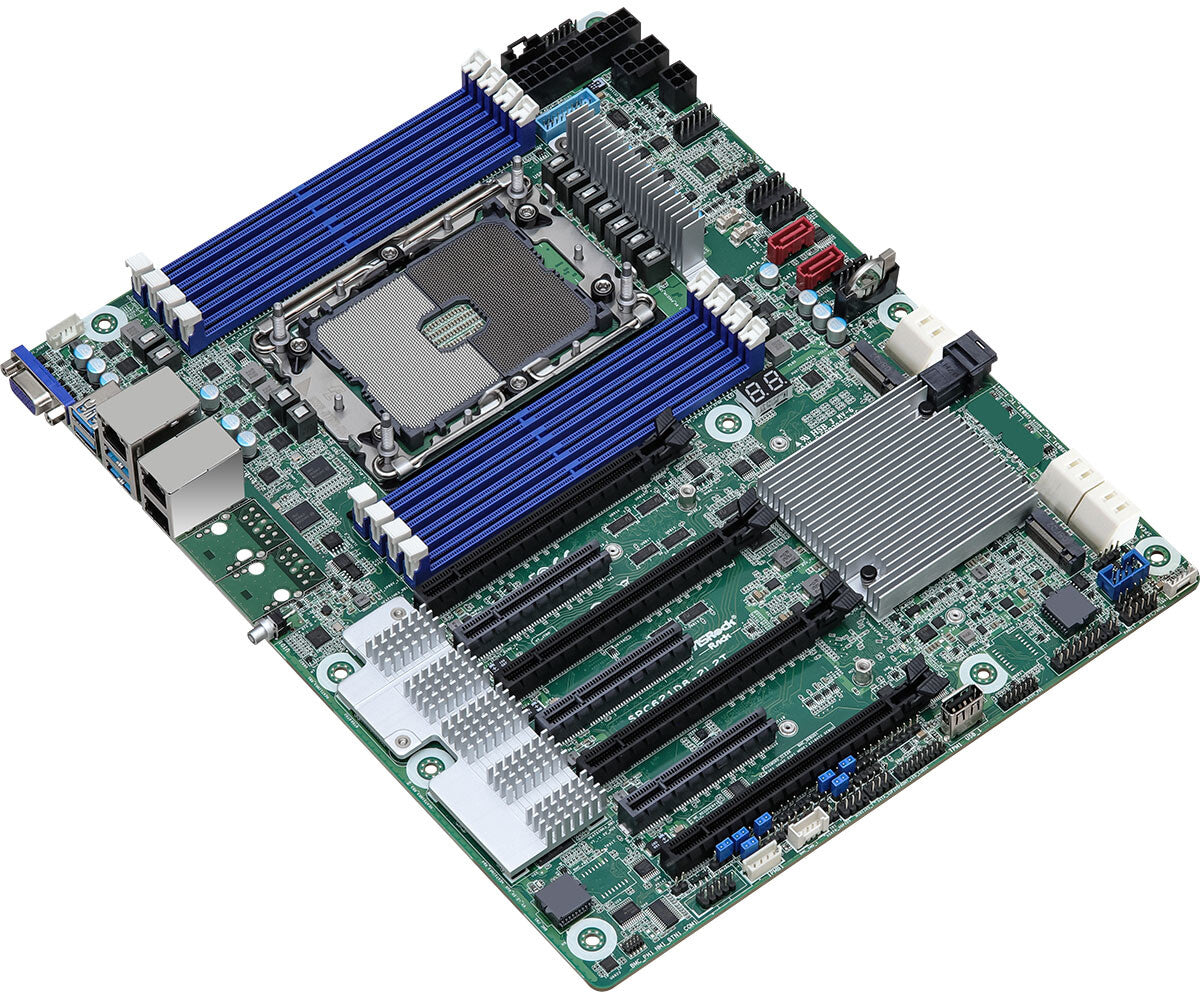

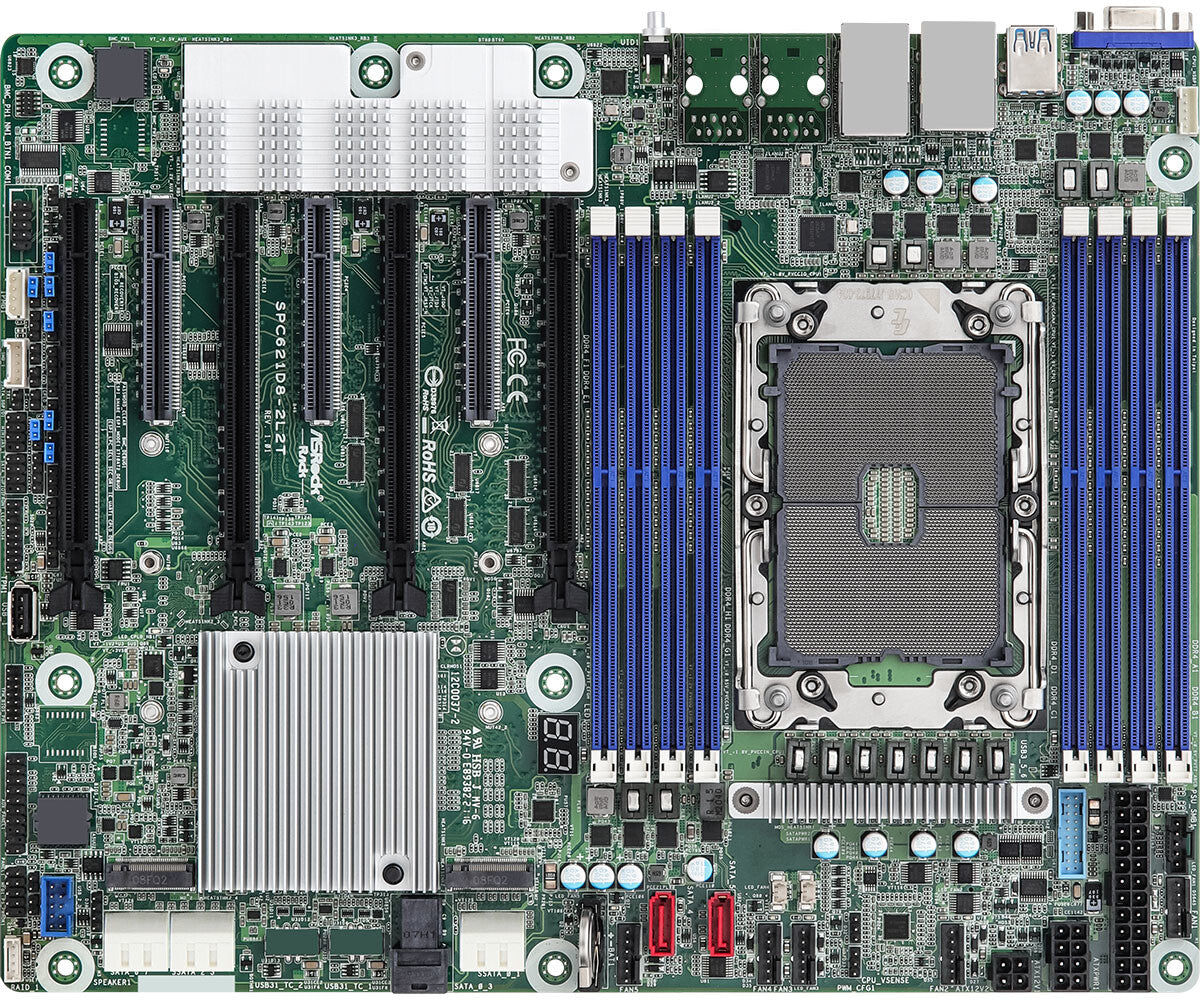

Asrock SPC621D8 motherboard Intel C621A LGA 4189 ATX
Asrock
-
Regular price
-
€618.99
-
Sale price
-
€618.99
-
Regular price
-
-
Unit price
-
/
per
Tax included.
- ATX (12" x 9.6")
- Supports 3rd Gen Intel® Xeon® Scalable Processors
- 8 DIMM slots (1DPC), supports DDR4 RDIMM, LRDIMM, RDIMM/LRDIMM-3DS, and Intel® Optane™ Persistent Memory
- 4 PCIe4.0 x16, 3 PCIe4.0 x8
- Supports 1 M.2 (PCIe3.0 x4), 1 M.2 (PCIe3.0 x1 or SATA 6Gb/s)
- 13 SATA 6Gb/s (including 1 port from M.2)
- 2 RJ45 (1GbE) by Intel® i210
- Remote management (IPMI)
| Processor |
|---|
| Processor manufacturer |
Intel |
| Processor socket |
LGA 4189 |
| Compatible processor series |
Intel® Xeon® |
| Maximum number of SMP processors |
1 |
| Memory |
|---|
| Supported memory types |
DDR4-SDRAM |
| Number of memory slots |
8 |
| Memory slots type |
DIMM |
| Memory voltage |
1.2 V |
| Maximum internal memory |
512 GB |
| Maximum RDIMM memory |
64 GB |
| Storage controllers |
|---|
| Supported storage drive interfaces |
M.2, SATA III |
| Number of storage drives supported |
15 |
| RAID support |
Yes |
| RAID levels |
0, 1, 5, 10 |
| Graphics |
|---|
| On-board graphics card memory |
16 MB |
| On-board graphics card model |
Aspeed AST2500 |
| Internal I/O |
|---|
| USB 2.0 connectors |
1 |
| USB 3.2 Gen 1 (3.1 Gen 1) connectors |
1 |
| Number of SATA III connectors |
13 |
| ATX Power connector (24-pin) |
Yes |
| EPS power connector (8-pin) |
Yes |
| TPM connector |
Yes |

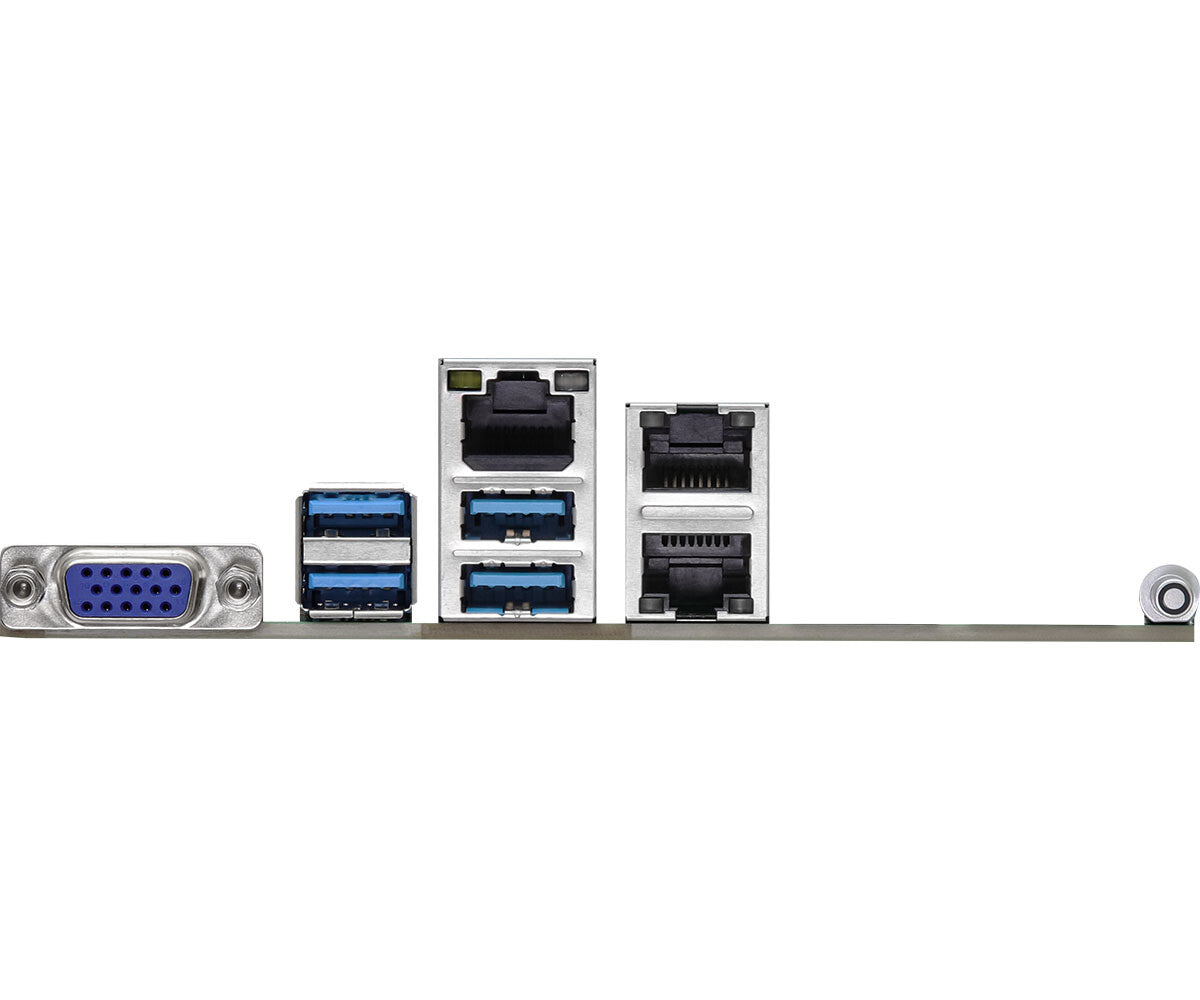

| Rear panel I/O ports |
|---|
| USB 3.2 Gen 1 (3.1 Gen 1) Type-A ports quantity |
4 |
| Ethernet LAN (RJ-45) ports |
3 |
| IPMI LAN (RJ-45) port |
Yes |
| VGA (D-Sub) ports quantity |
1 |
| Network |
|---|
| Ethernet LAN |
Yes |
| Ethernet interface type |
Gigabit Ethernet |
| LAN controller |
Intel I210, Realtek RTL8211E |
| Wi-Fi |
No |
| Top Wi-Fi standard |
Not available |
| Features |
|---|
| Component for |
Server |
| Motherboard form factor |
ATX |
| Motherboard chipset family |
Intel |
| Motherboard chipset |
Intel C621A |
| PC health monitoring |
Fan, Temperature, Voltage |
| Expansion slots |
|---|
| PCI Express x16 (Gen 4.x) slots |
4 |
| Number of M.2 (M) slots |
2 |
| BIOS |
|---|
| BIOS type |
UEFI AMI |
| BIOS memory size |
256 Mbit |
| Operational conditions |
|---|
| Storage temperature (T-T) |
-40 - 70 °C |
| Operating temperature (T-T) |
10 - 35 °C |
| Operating relative humidity (H-H) |
20 - 90% |
| Weight & dimensions |
|---|
| Width |
304.8 mm |
| Depth |
243.8 mm |
