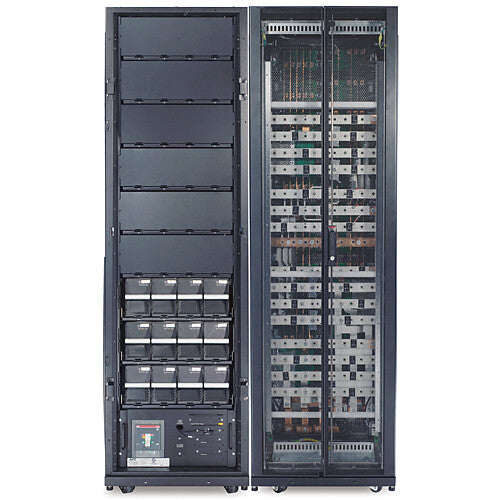

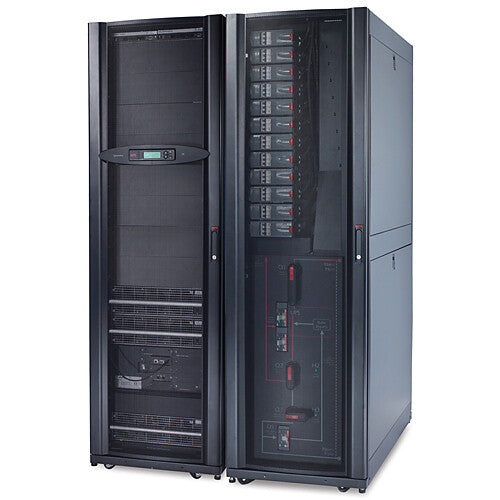

A high-efficiency 3-phase UPS with integrated modular distribution that can be right-sized to your data center power requirements. With scalable power, distribution and run-time, this UPS grows with your data center up to 96 kW/96 kVA. Suitable for small to medium data centers or individual zones of large data centers.
| Features |
|---|
| Output power capacity |
96 kVA |
| Output power |
96000 W |
| Input operation voltage (min) |
340 V |
| Input operation voltage (max) |
477 V |
| Input frequency |
50/60 Hz |
| Output operation voltage (min) |
380 V |
| Output operation voltage (max) |
415 V |
| Maximum current |
59 A |
| Efficiency |
95% |
| Emergency Power Off (EPO) |
Yes |
| Output voltage Total Harmonic Distortion (THD) |
2% |
| EMI/RFI noise filtering |
Yes |
| Noise level |
61 dB |
| Power protection features |
Over current, Overload |
| Audible alarm(s) |
Yes |
| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 5-wire (3PH + N + G) |
| Battery |
|---|
| Battery recharge time |
3.50 h |
| Hot-swap battery |
Yes |
| Design |
|---|
| Product colour |
Black |
| Display type |
LCD |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 999.9 m |
| Non-operating altitude |
0 - 15000 m |
| Certificates |
|---|
| Certification |
EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Weight & dimensions |
|---|
| Width |
1200 mm |
| Depth |
1070 mm |
| Height |
1991 mm |
| Weight |
1814 kg |
| Packaging data |
|---|
| Package weight |
1963 kg |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Number of phases |
3 |
| Battery type |
VRLA |
| Interface |
2 x SmartSlot |
| Overload protection |
Yes |
| Output voltage note |
380: 400 / 415 V 3 Ph |
| Nominal input voltage |
400 V |
| Nominal output voltage |
400 V |
| Package dimensions (WxDxH) |
1696 x 1210 x 2140 mm |
