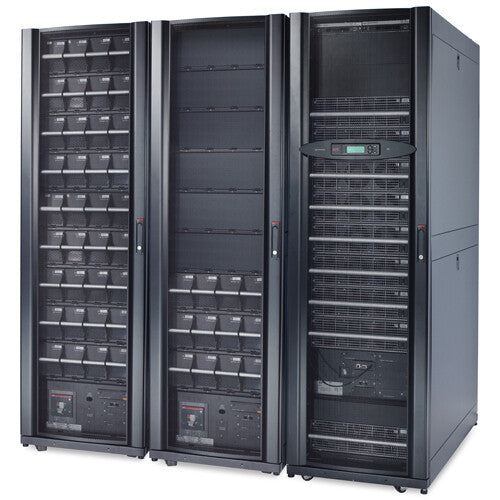

Modular, high-efficiency 3-phase UPS that is scalable as your data center grows up to 160kW/160kVA. Suitable for small, medium & large data center applications.
Includes: Network Management Card, Start-Up Service, User Manual.
| Features |
|---|
| Output power capacity |
128 kVA |
| Emergency Power Off (EPO) |
Yes |
| Noise level |
63 dB |
| Audible alarm(s) |
Yes |
| Battery |
|---|
| Battery recharge time |
3.5 h |
| Design |
|---|
| Product colour |
Black |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 999.9 m |
| Non-operating altitude |
0 - 15000 m |
| Certificates |
|---|
| Certification |
CE,EN 50091-1,EN/IEC 62040-3,EN/IEC 62040-1-1,FCC Part 15 Class A,VFI-SS-111 |
| Weight & dimensions |
|---|
| Width |
1800 mm |
| Depth |
1070 mm |
| Height |
1991 mm |
| Weight |
2518 kg |
| Packaging data |
|---|
| Package width |
1210 mm |
| Package depth |
2544 mm |
| Package height |
2140 mm |
| Package weight |
2729 kg |
| Other features |
|---|
| Battery type |
VRLA |
| Interface |
2x SmartSlot |
| Output connections |
1x Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) |
1800 x 1070 x 1991 mm |
| Output voltage note |
380, 400/415 |
| Package dimensions (WxDxH) |
2554 x 1210 x 2140 mm |
