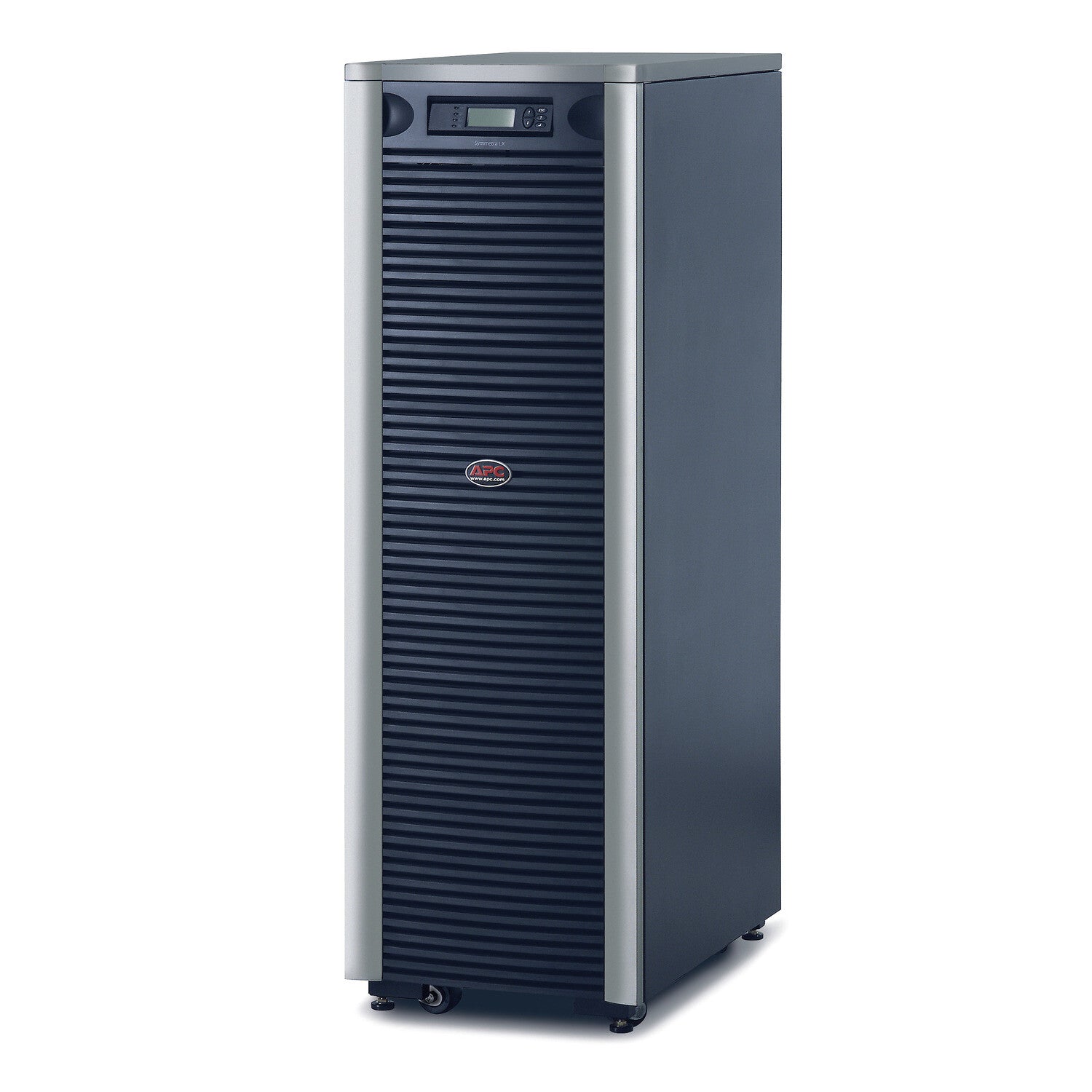

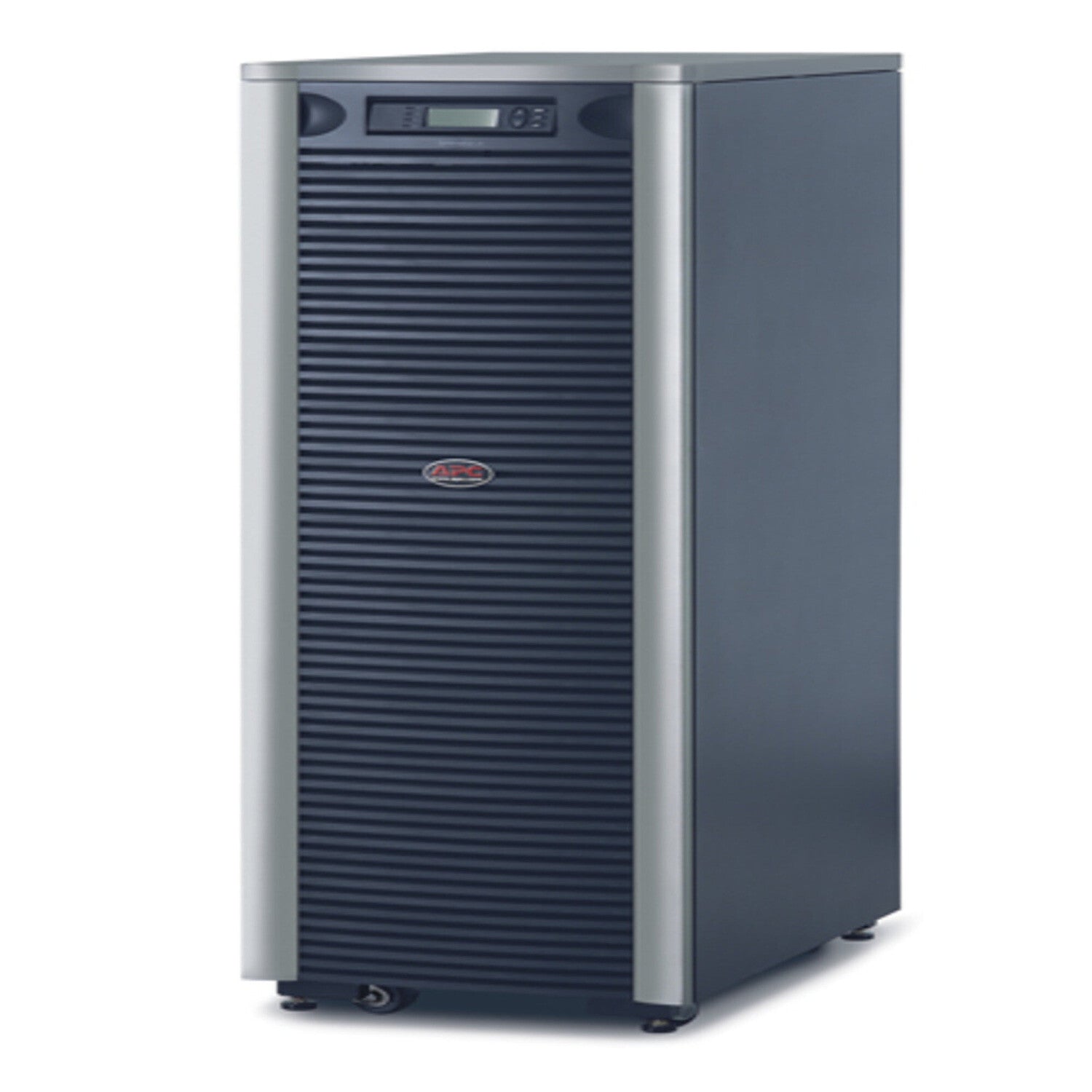

APC Symmetra LX 8kVA Scalable to 16kVA N+1 Ext. Run Tower, 220/230/240V or 380/400/415V
APC
-
Regular price
-
€25,838.99
-
Sale price
-
€25,838.99
-
Regular price
-
-
Unit price
-
/
per
Tax included.
- 8 kVA 5600 W
- Waveform: Sine
- Black, Silver
"High performance, redundant power protection with scalable power and runtime for space-constrained server rooms, and voice and data networks."
| Features |
|---|
| Output power capacity |
8 kVA |
| Output power |
5600 W |
| Waveform |
Sine |
| Number of input phases |
1 |
| Number of output phases |
1 |
| Single-phase input voltage supported |
240,220 V |
| Three-phase input voltage supported |
220,380,400,415 V |
| Emergency Power Off (EPO) |
Yes |
| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 3-wire (1PH + N + G) |
| Battery |
|---|
| Battery replacement accessibility |
End-user |
| Typical backup time at full load |
57.4 min |
| Typical backup time at half load |
122.6 min |
| Battery recharge time |
7.5 h |
| Replacement battery cartridge |
SYBT5 |
| Design |
|---|
| Product colour |
Black, Silver |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Storage temperature (T-T) |
-15 - 45 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Power |
|---|
| Input current (max) |
36 A |
| Technical details |
|---|
| Preferred mounting position |
no preference |
| Packaging recycled materials |
Recycled cardboard |
| Packaging without single use plastic |
No |
| Take-back system |
No |
| Sustainable packaging |
No |
| Certificates |
|---|
| Waste Electrical and Electronic Equipment (WEEE) compliance |
Yes |
| Compliance certificates |
RoHS, REACH, WEEE |
| Certification |
C-Tick; CE; GOST; VDE |
| Weight & dimensions |
|---|
| Width |
483 mm |
| Depth |
726 mm |
| Height |
1516 mm |
| Weight |
473.6 kg |
| Logistics data |
|---|
| Customs product code (TARIC) |
8504409590 |
| Total carbon footprint (kg of CO2e) |
34345.0451985118 |
| Harmonized System (HS) code |
85078000 |
| Country of origin |
Philippines |
| Other features |
|---|
| Battery type |
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof |
| Interface |
DB-9 RS-232, Smart-Slot |
| Output connections |
(1) Hard Wire 3-wire (H N + G) |
| Input connection type |
Hard Wire 3 wire (1PH+N+G), Hard Wire 5-wire (3PH + N + G) |
| Dimensions (WxDxH) |
730 x 480 x 1520 mm |
| Output connection type |
hard wire 3-wire (H N + E) for 1 zone(s) |
| Mounting |
front |
| Output voltage |
220 V |
| Output voltage note |
Configurable for 220: 230 or 240 nominal output voltage |
| Nominal output voltage |
230 V |
| I/O ports |
Available Smart Slot Interface Quantity - 1
Pre-Installed SmartSlot Cards - AP9619
|
