- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
- Includes: CD with software, USB cable, User Manual
For small to medium businesses, APC by Schneider Electric delivers a new category of UPSs designed for essential power protection needs even in the most unstable power conditions. APC Easy UPS 1 Ph Online is a versatile, high quality, cost competitive UPS developed to handle a wide voltage range, inconsistent power conditions and delivering the quality millions of IT professionals trust around the world.
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
6 kVA |
| Output power |
6000 W |
| Waveform |
Pure sine |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart |
Yes |

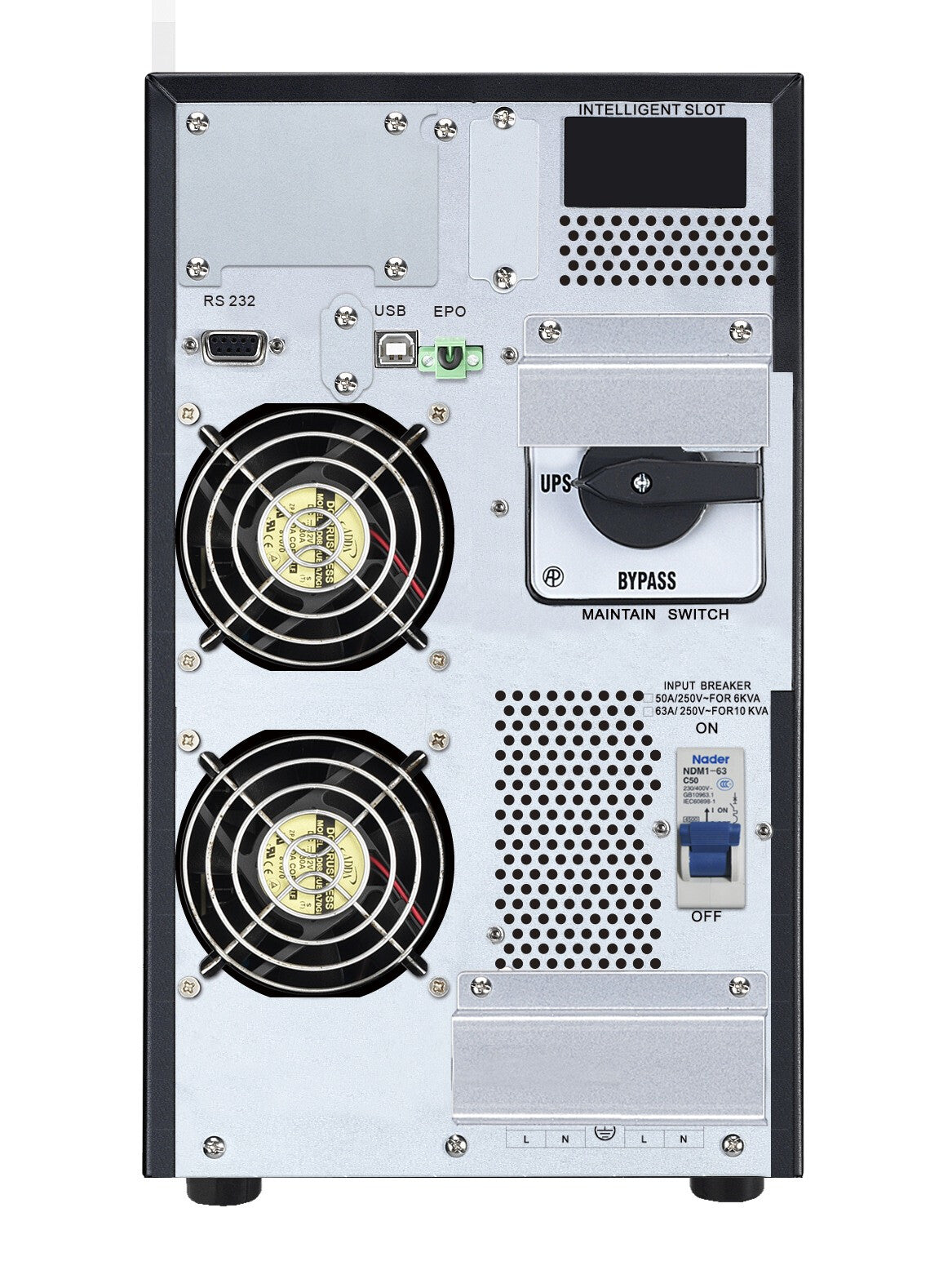

| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 3-wire (1PH + N + G) |
| USB port |
Yes |
| USB 2.0 ports quantity |
1 |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Emergency Power Off (EPO) connector |
Yes |
| SmartSlot |
Yes |
| SmartConnect port |
No |
| Battery |
|---|
| Battery technology |
Sealed Lead Acid (VRLA) |
| Battery recharge time |
3 h |
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Tower |
| Cooling type |
Active |

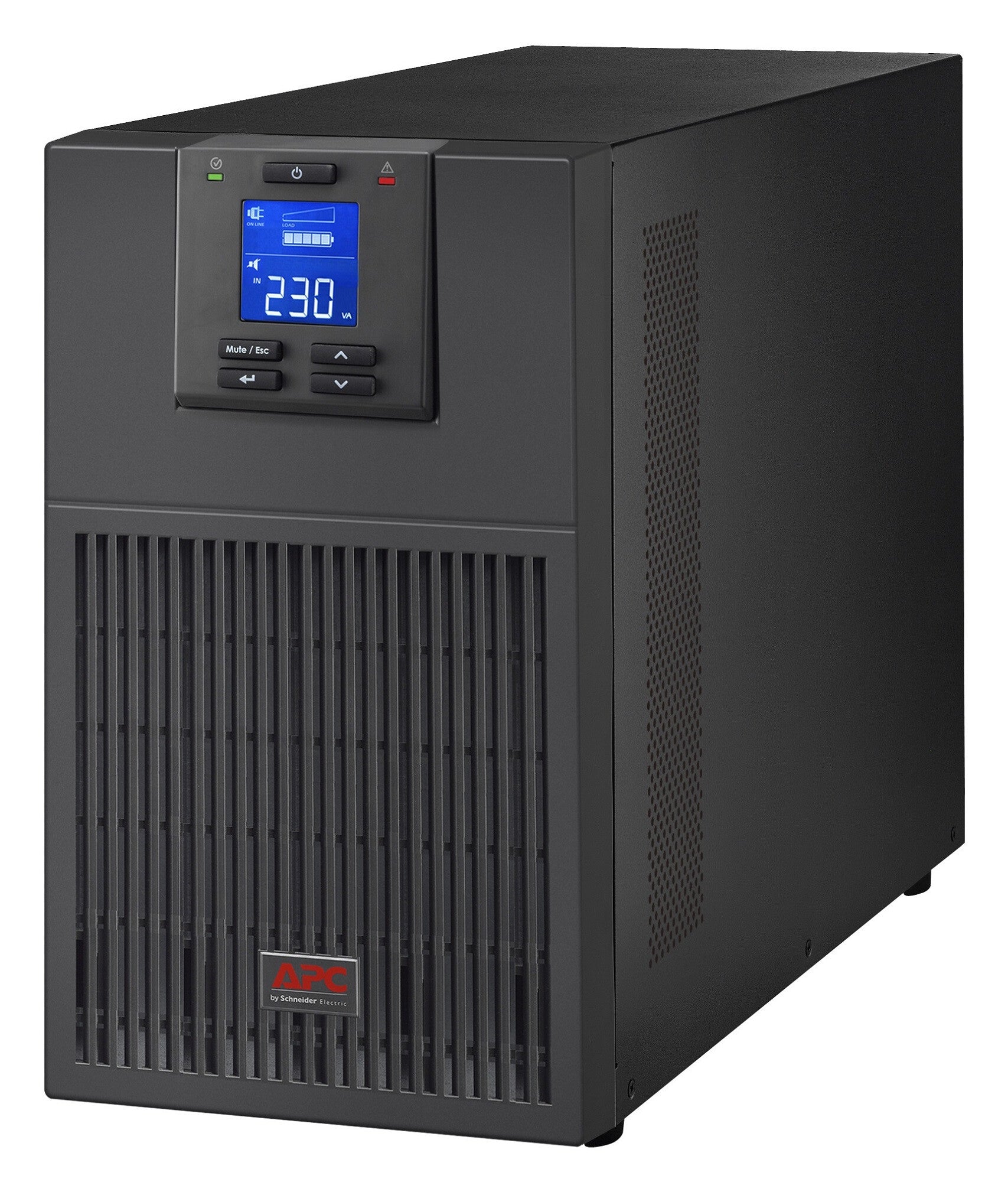

| Display type |
LCD |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Packaging content |
|---|
| Cables included |
USB cable |
| Manual |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Certification |
CE, IEC 62040-1-1, IEC 62040-1-2
REACH |
| Weight & dimensions |
|---|
| Width |
380 mm |
| Depth |
485 mm |
| Height |
368 mm |
| Weight |
73 kg |
| Battery weight |
79 kg |
| Packaging data |
|---|
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
