- High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions
- Includes: CD with software, Rack Mounting support rails, User Manual

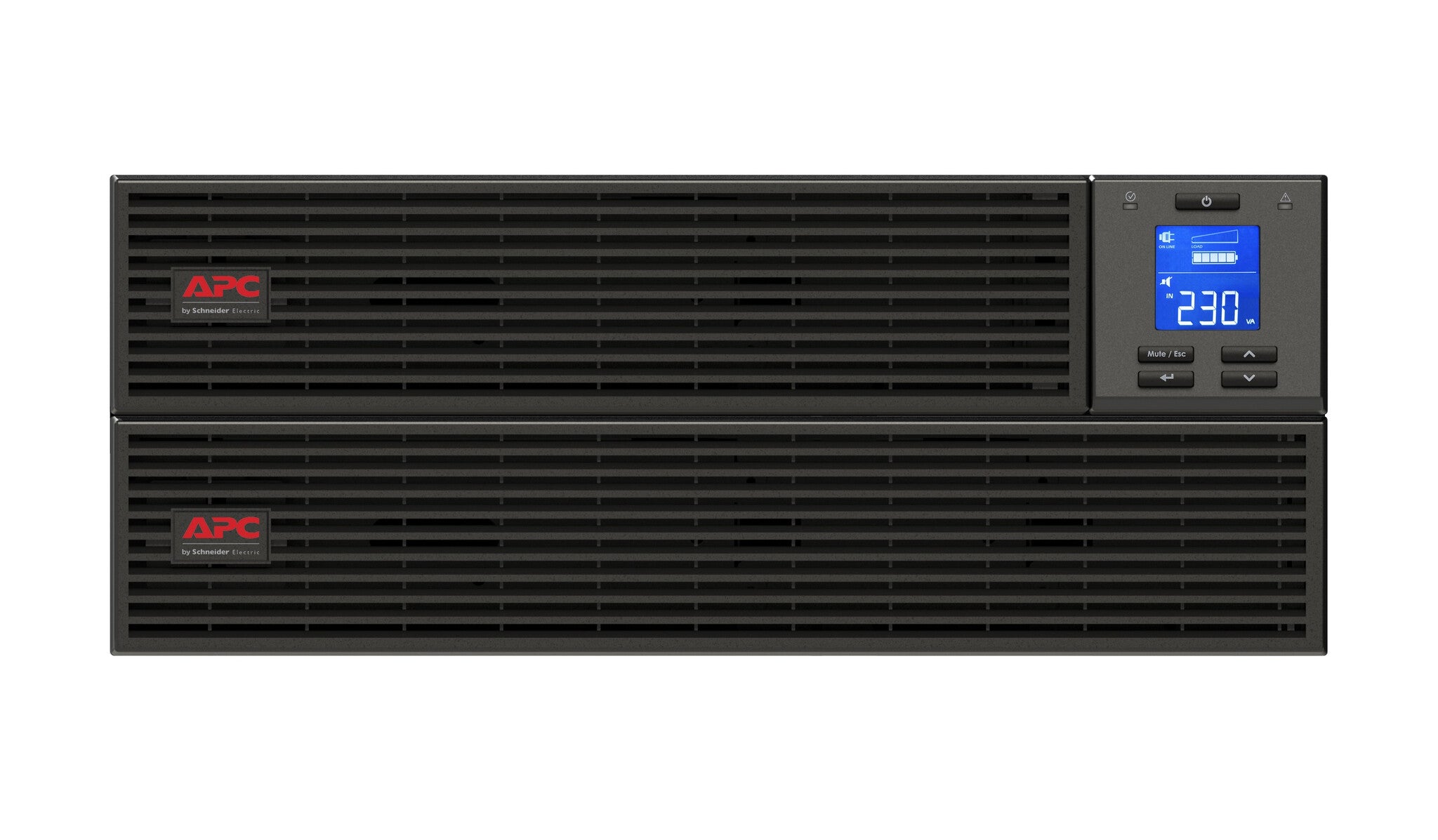

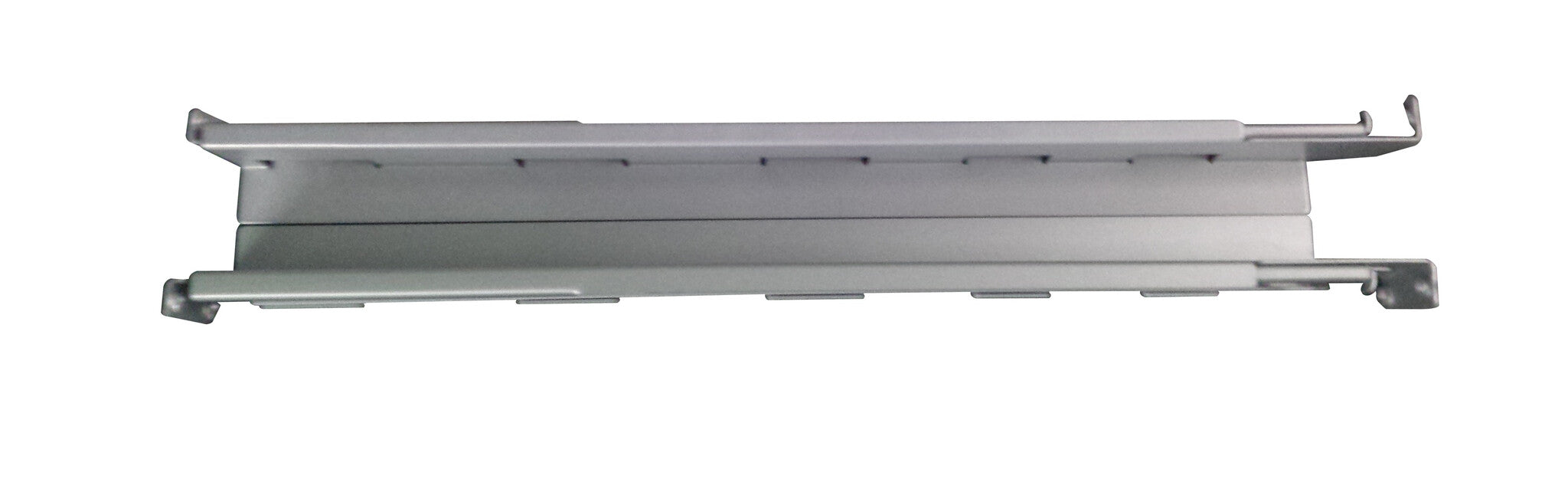

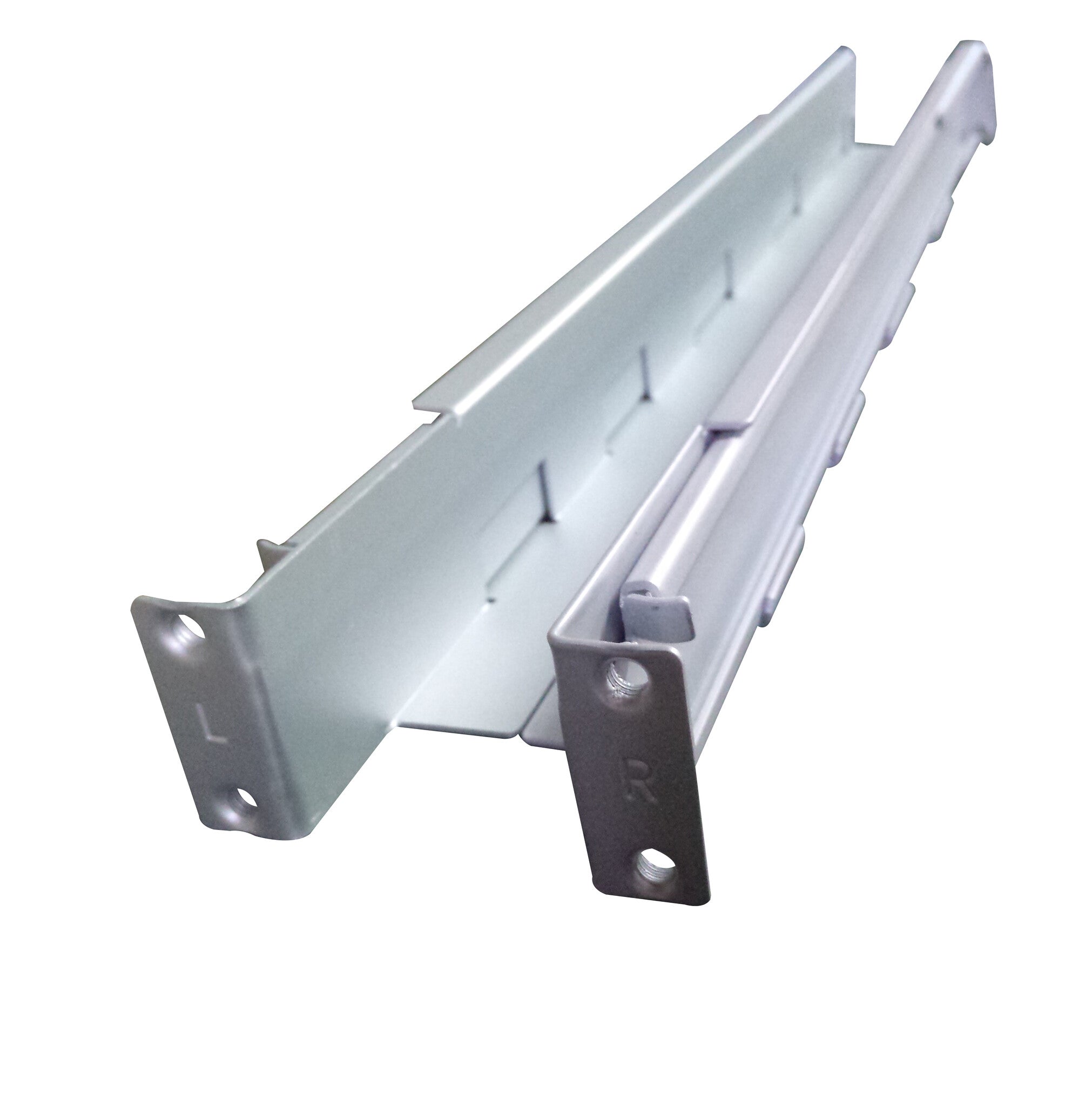

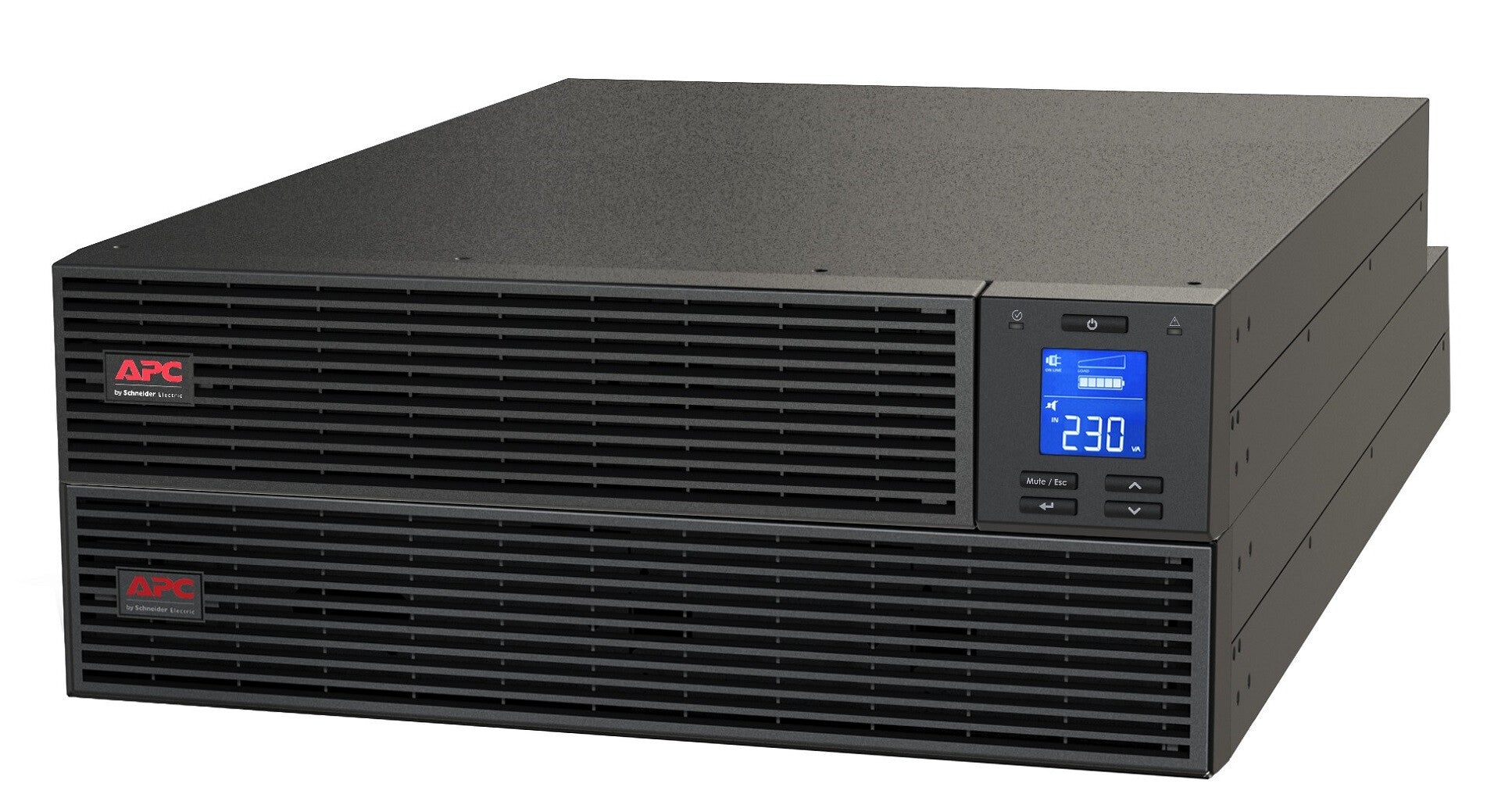

APC Easy UPS SRV RM 10000VA 230V ,with RailKit, External Battery Pack.
High quality, Double-conversion On-line UPS designed for essential power protection needs even in the most unstable power conditions.
Includes: CD with software, Rack Mounting support rails, User Manual.
| Features |
|---|
| UPS topology |
Double-conversion (Online) |
| Output power capacity |
10 kVA |
| Output power |
10000 W |
| Input operation voltage (min) |
220 V |
| Input operation voltage (max) |
240 V |
| Input frequency |
40/70 Hz |
| Output operation voltage (min) |
220 V |
| Output operation voltage (max) |
240 V |
| Surge energy rating |
600 J |
| Crest factor |
3:1 |
| ECO mode |
Yes |
| Emergency Power Off (EPO) |
Yes |
| Audible alarm(s) |
Yes |
| Audible alarm modes |
Alarm when on battery, Low battery alarm, Overload alarm |
| Auto-restart |
Yes |

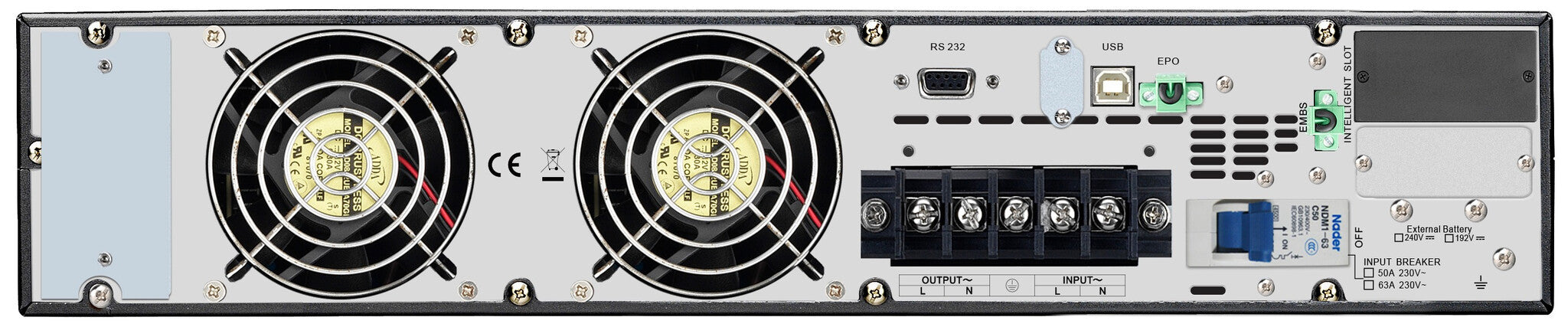

| Ports & interfaces |
|---|
| AC outlet types |
Hard Wire 3-wire (1PH + N + G) |
| USB port |
Yes |
| Serial interface |
Yes |
| Serial interface type |
RS-232 |
| Serial ports quantity |
1 |
| Emergency Power Off (EPO) connector |
Yes |
| SmartSlot |
Yes |
| SmartConnect port |
No |
| Battery |
|---|
| Automatic battery test |
Yes |
| Design |
|---|
| Form factor |
Rackmount |
| Display type |
LCD |
| LED indicators |
Yes |
| Operational conditions |
|---|
| Operating temperature (T-T) |
0 - 40 °C |
| Operating relative humidity (H-H) |
0 - 95% |
| Storage relative humidity (H-H) |
0 - 95% |
| Operating altitude |
0 - 3000 m |
| Non-operating altitude |
0 - 14763.6 m |
| Packaging content |
|---|
| Rack mount kit |
Yes |
| Manual |
Yes |
| Certificates |
|---|
| Compliance certificates |
RoHS |
| Certification |
REACH |
| Weight & dimensions |
|---|
| Width |
438 mm |
| Depth |
710 mm |
| Height |
173 mm |
| Weight |
68 kg |
| Packaging data |
|---|
| Management card included |
No |
| Logistics data |
|---|
| Harmonized System (HS) code |
85078000 |
| Other features |
|---|
| Input connection type |
HardWire 3-wire |
| Nominal input voltage |
230 V |
| Nominal output voltage |
230 V |
