Lithium-ion batteries lasts 3x VRLA UPS, no need to replace the battery during the life of the UPS
EcoStruxureTM Ready for remote monitoring and management
1-Year Secure Network Management Card subscription included
5-year warranty on UPS and internal batteries
Wireless communication capable with optional WiFi Device accessory (AP9834)
Automatic Voltage Regulation keeps output voltage within acceptable user selectable levels

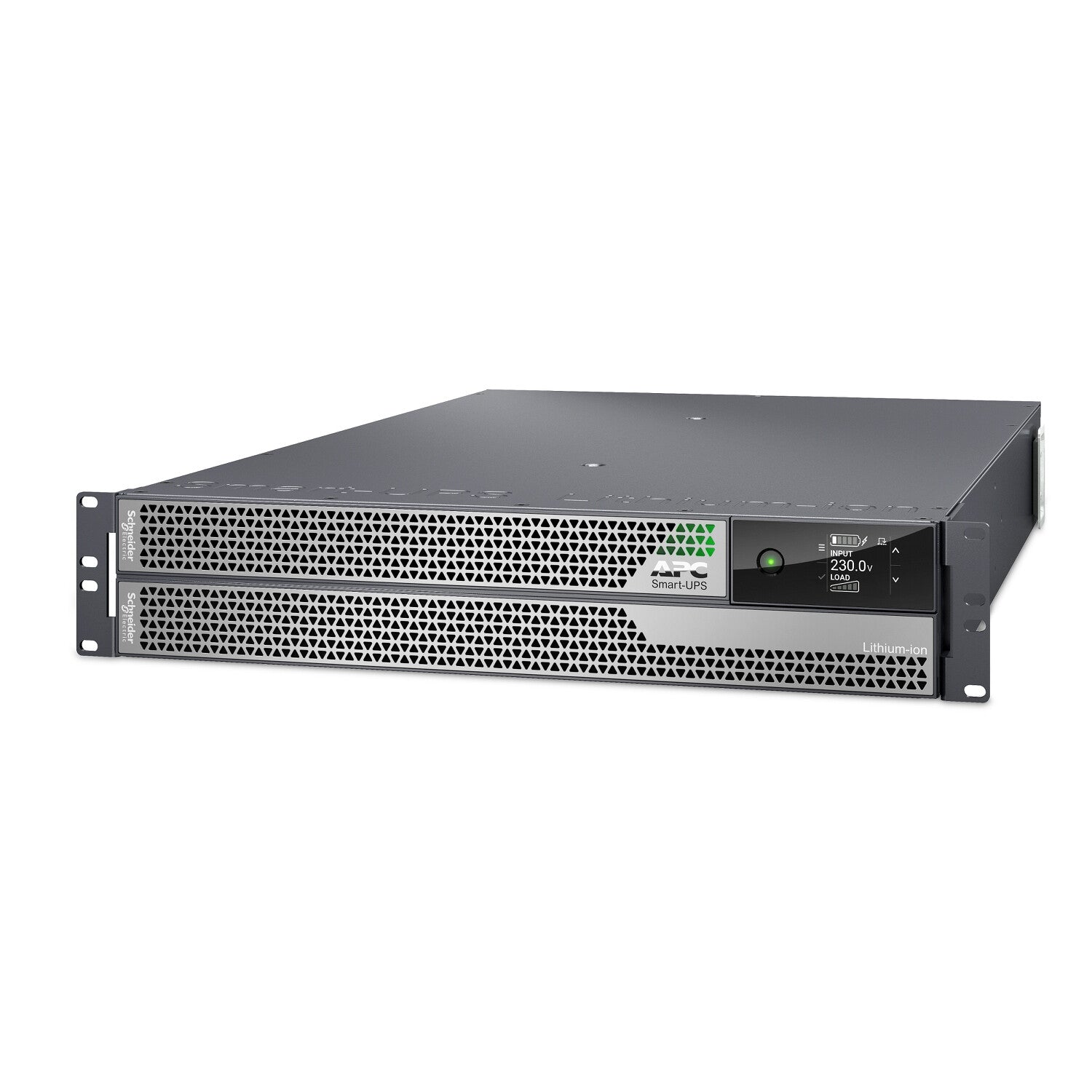

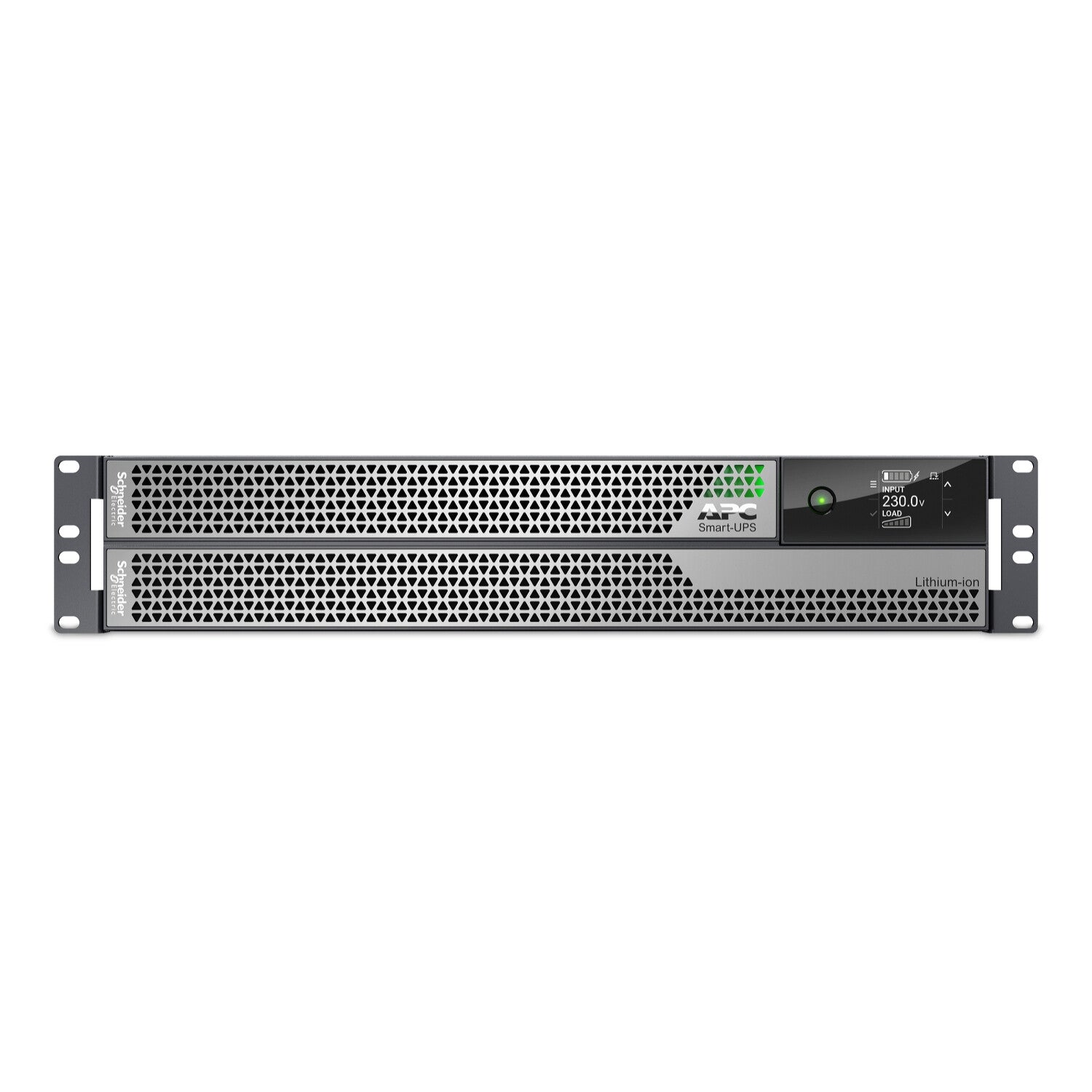

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 5KVA on-line 2U rackmount UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with Hardwired input and Hardwired 3-Wire output. It embeded Management Card that enables graceful shutdown of physical servers, virtual machines & HCI Clusters via PowerChute Network Shutdown. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 5-year warranty on the UPS and Lithium-ion battery.
Features
UPS topology
Double-conversion (Online)
Output power capacity
5 kVA
Output power
5000 W
Waveform
Sine
Input operation voltage (min)
180 V
Input operation voltage (max)
275 V
Input frequency
40 - 70 Hz
Output operation voltage (max)
220 V
Surge energy rating
1260 J
Heat dissipation
931 BTU/h
Number of input phases
1
Number of output phases
1
Single-phase input voltage supported
230 V
Noise level
55 dB
Ports & interfaces
AC outlet types
Hard Wire 3-wire (1PH + N + G)
Battery
Battery replacement accessibility
End-user
Battery technology
Lithium-Ion (Li-Ion)
Battery voltage
180 V
Battery recharge time
1.5 h
Design
Form factor
Rackmount
Product colour
Silver, Grey
Rack capacity
2U
International Protection (IP) code
IP20
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-15 - 45 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3048 m
Non-operating altitude
0 - 15240 m
Technical details
Preferred mounting position
no preference
Packaging recycled materials
Recycled cardboard
SCIP number
5ee38369-4dfb-4636-ab65-b08aa3242891
Packaging without single use plastic
No
Take-back system
No
Sustainable packaging
No
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
