APC Smart-UPS On-Line, 15kVA/15kW, Rack/Tower, 230V/380V...415V, Hard wire 5-wire(3P+N+E)+3-wire(1P+N+E), Network Card, W/O rail kit

APC
€13,607.99
€13,607.99
Tax included.
Out of Stock
  • Double-conversion (Online)
  • 15 kVA 15000 W
  • Waveform: Sine
  • Sealed Lead Acid (VRLA) 192 V
  • Rackmount/Tower Black

This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. This 15kVA on-line rack/tower UPS provides pure sine wave power and extended runtime to support critical electronics during power disruptions. It comes with hard wire 3-wire(1P+N+E) and 5-wire(3P+N+E) inputs, 3-wire(1P+N+E) and 5-wire(3P+N+E) outlets. The UPS has an embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. The UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. The UPS is compatible with SRTGRK1 rail kit sold separately.

Features
UPS topology Double-conversion (Online)
Output power capacity 15 kVA
Output power 15000 W
Waveform Sine
Input operation voltage (min) 160 V
Input operation voltage (max) 415 V
Input frequency 40/70 Hz
Output operation voltage (max) 230 V
Output frequency 50/60 Hz
Output frequency regulation 0.1 Hz
Maximum current 66 A
Number of output phases 3
Efficiency 93%
Crest factor 3:1
Emergency Power Off (EPO) Yes
Input current Total Harmonic Distortion (THD) 5%
Noise level 58 dB
Surge protection Yes
Audible alarm(s) Yes
Audible alarm modes Alarm when on battery, Low battery alarm, Overload alarm
Auto-restart Yes
Ports & interfaces
AC outlet types Hard Wire 5-wire (3PH + N + G)
Power plug Hardwire
USB port Yes
Serial interface Yes
Serial interface type RS-232
SmartSlot Yes
SmartConnect port No
Battery
Battery technology Sealed Lead Acid (VRLA)
Battery voltage 192 V
Battery life (max) 5 year(s)
Battery recharge time 4 h
Cold start Yes
Design
Form factor Rackmount/Tower
Product colour Black
Rack capacity 7U

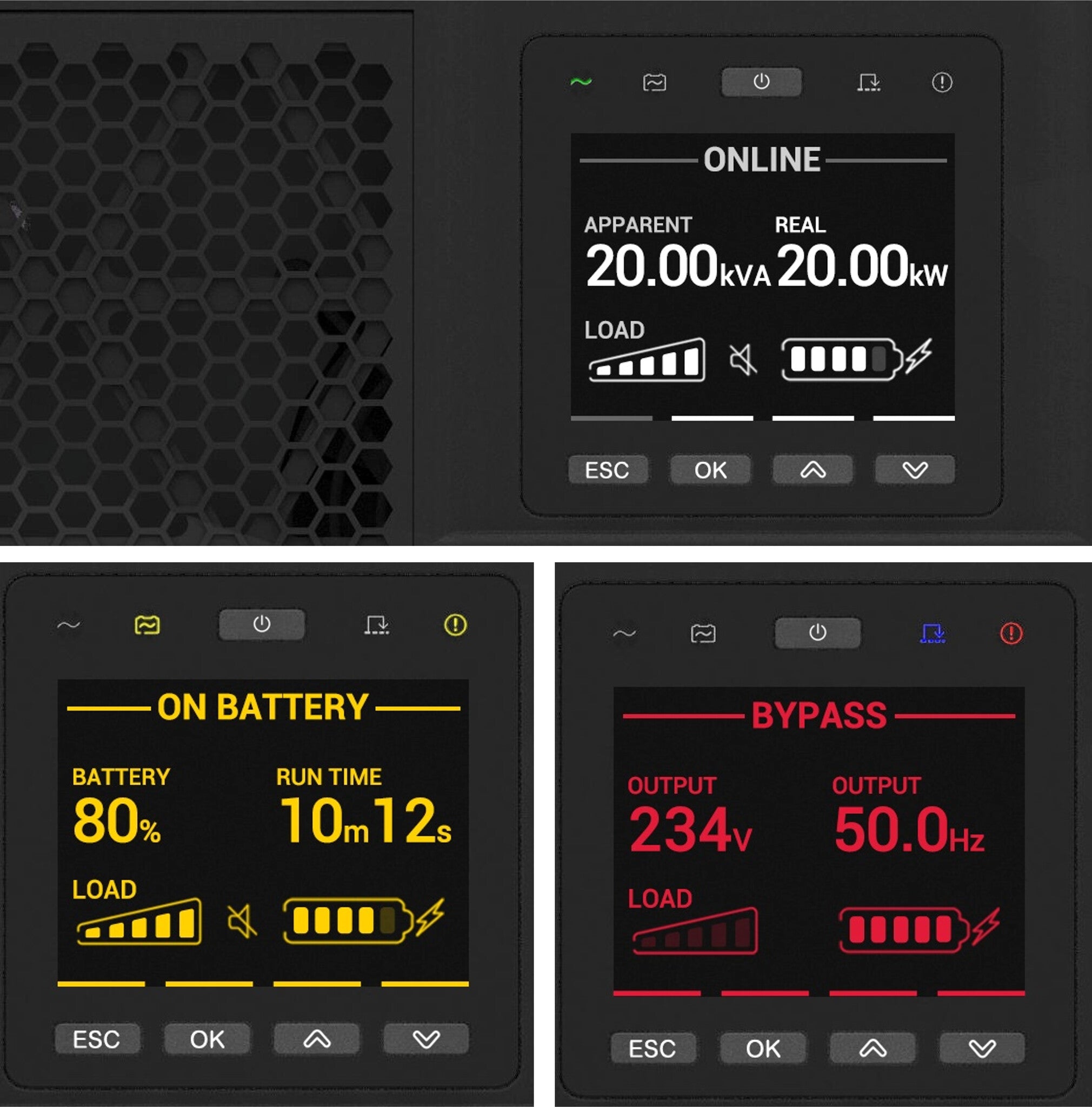

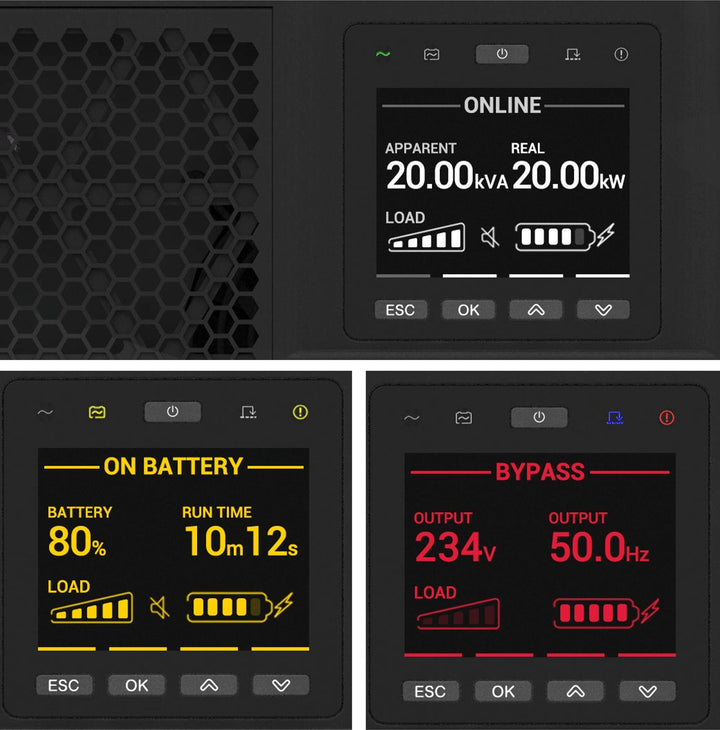

Display type LCD
LED indicators Yes
International Protection (IP) code IP20
Operational conditions
Operating temperature (T-T) 0 - 40 °C
Storage temperature (T-T) -15 - 45 °C
Operating relative humidity (H-H) 0 - 95%
Storage relative humidity (H-H) 0 - 95%
Operating altitude 0 - 2011.68 m
Non-operating altitude 0 - 15240 m
Packaging content
Cables included RS-232
Weight & dimensions
Width 440 mm
Depth 700 mm
Height 306 mm
Weight 142.5 kg
Packaging data
Management card included Yes
Package width 590 mm
Package depth 790 mm
Package height 535 mm
Package weight 156.7 kg
Logistics data
Harmonized System (HS) code 85078000
