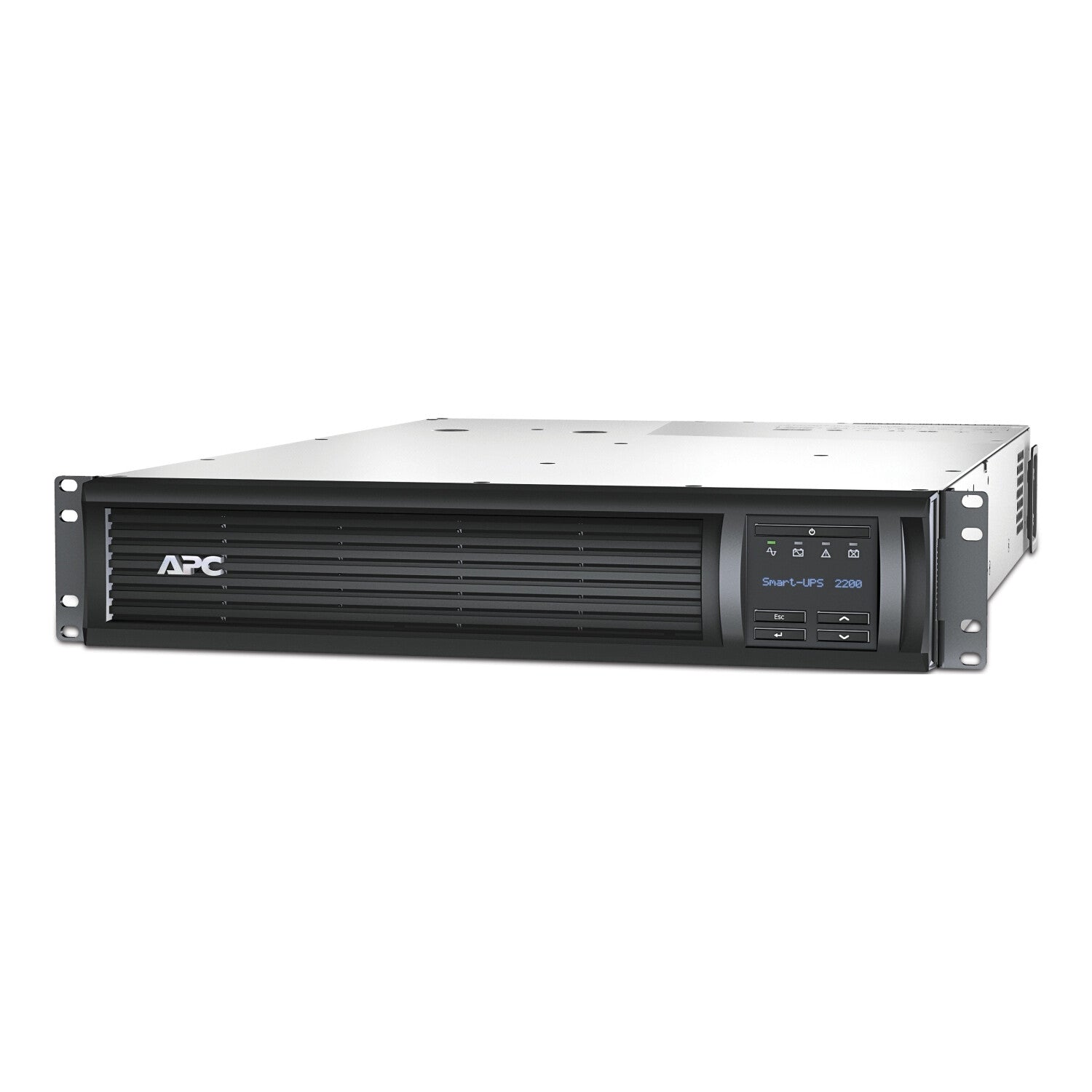

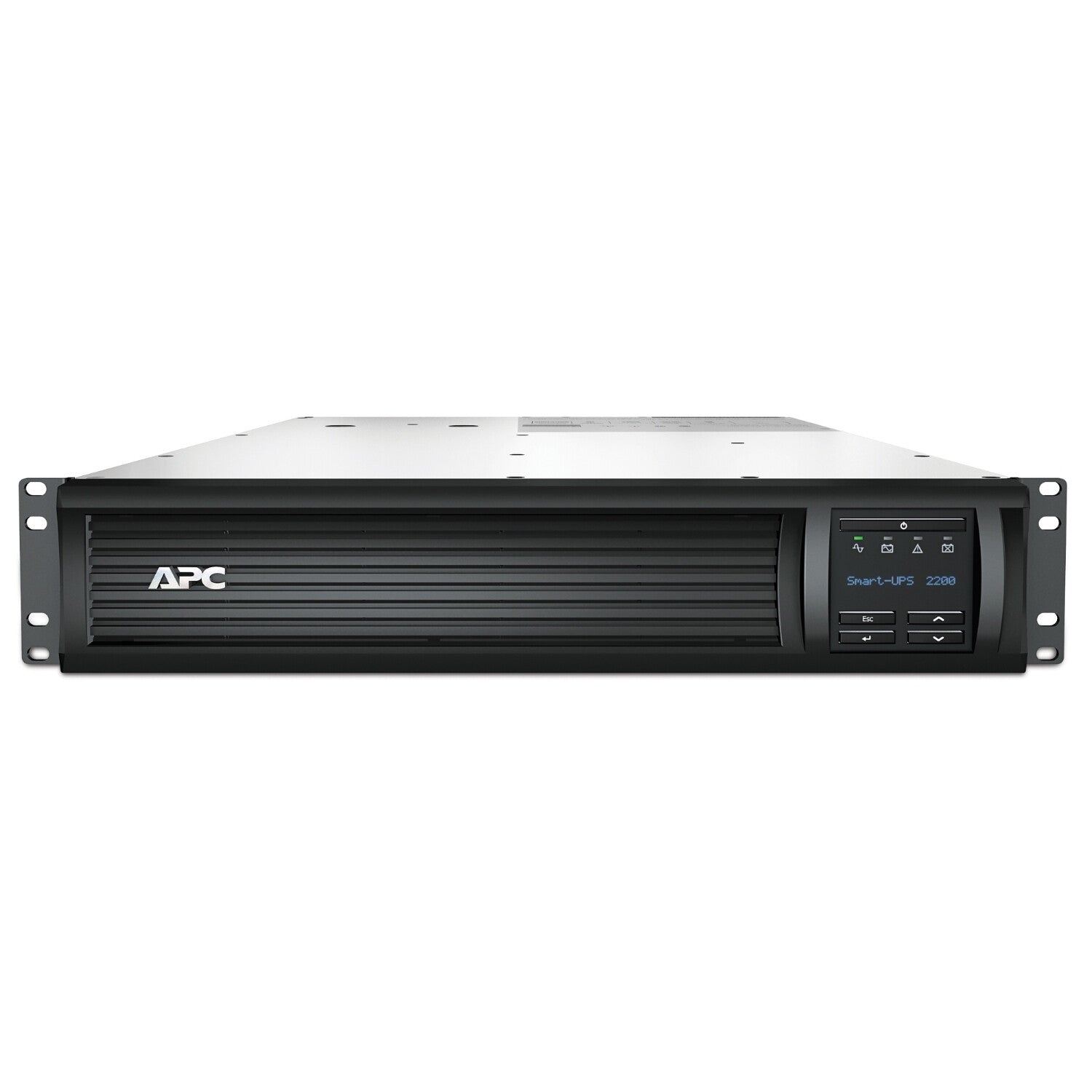

2200VA/1980W line interactive pure sine wave 2U rackmount UPS
Ideal for servers, storage, networking, business VoIP, retail POS
Automatic Voltage Regulation helps correct utility voltage
Graceful shutdown using serial or USB cables via PowerChute Business Edition
This APC Smart-UPS is designed for IT professionals or network administrators to maintain business uptime and continuity. The 2200VA line interactive 2U rackmount UPS with 2-post rack kit provides pure sine wave power to support critical electronics during power disruptions. It comes with NEMA 5-20P input, 6x NEMA 5-15R and 2x NEMA 5-20R outlets. It has a embedded Network Management Card for UPS network-based monitoring and management. The UPS comes with PowerChute Network Shutdown that provides graceful shutdown of physical servers, virtual machines, and HCI clusters. The UPS can connect to EcoStruxure IT or third-party centralized management platforms. It provides surge protection against lightning strikes, power sags, brownouts and surges. The SMT UPS has a 3-year warranty, and the built-in lead-acid battery has a 2-year warranty. It is compatible with a dedicated user-replaceable battery, and the APC replacement battery cartridge helps restore UPS performance to the original specifications.
Features
UPS topology
Line-Interactive
Output power capacity
2.2 kVA
Output power
1980 W
Waveform
Sine
Input operation voltage (min)
100 V
Input operation voltage (max)
290 V
Input frequency
50/60 Hz
Output operation voltage (max)
120 V
Output frequency
50/60 Hz
Automatic Voltage Regulation (AVR)
Yes
Surge energy rating
1366 J
Response time
6 ms
Noise level
55 dB
Audible alarm(s)
Yes
Ports & interfaces
AC outlet types
NEMA 5-15R
Power plug
NEMA 5-15P
AC outlets quantity
10 AC outlet(s)
Battery
Battery replacement accessibility
End-user
Battery technology
Sealed Lead Acid (VRLA)
Battery capacity
480 Ah
Battery life (max)
5 year(s)
Battery recharge time
4 h
Design
Form factor
Rackmount
Product colour
Black
Rack capacity
0U
Control type
Buttons
Display type
LED
LED indicators
Yes
Operational conditions
Operating temperature (T-T)
0 - 40 °C
Storage temperature (T-T)
-20 - 55 °C
Operating relative humidity (H-H)
0 - 95%
Storage relative humidity (H-H)
0 - 95%
Operating altitude
0 - 3000 m
Non-operating altitude
0 - 15000 m
Technical details
Preferred mounting position
no preference
Packaging recycled materials
Recycled cardboard
Packaging without single use plastic
No
Take-back system
No
Sustainable packaging
No
Sustainability
Doesn't contain
Mercury
Packaging content
Manual
Yes
Certificates
Waste Electrical and Electronic Equipment (WEEE) compliance
Yes
Compliance certificates
RoHS, REACH, WEEE
Certification
CSA
Weight & dimensions
Width
432 mm
Depth
683 mm
Height
86 mm
Weight
42.4 kg
Packaging data
Package width
980 mm
Package depth
600 mm
Package height
254 mm
Package weight
49.7 kg
Logistics data
Customs product code (TARIC)
8504409590
Warranty period
3 year(s)
Total carbon footprint (kg of CO2e)
3393.1684629737933
Other features
Input connection type
NEMA 5-15P; Schuko CEE 7 / EU1-16P; BS1363A British; CEI 23-16 Italian
